MANLEY TITANIUM VALVES

WARRANTY DISCLAIMER Due to the intended usage of the products in this catalog, they are sold WITHOUT WARRANTY OR ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR THE INTENDED PURPOSE. Installation of parts intended for "off-highway" use could adversely affect the vehicle manufacturer's warranty coverage. All weights specified are approximate and subject to manufacturing tolerances.

Manley Valve Locks, Bead Loc®, LocCap System	Valve Tip Wear Caps & Inserts
VALVE STEM SEALS, GUIDES & CUTTERS	Titanium Retainers

Page 44
MANLEY TITANIUM VALVES

Small Block GM, Ford & Chrysler Titanium Exhaust Valves • All valves have inserted hard tips • ¨HT¨ suffix indicates high temperature material • Available with conventional square or Manley¦s Bead LocR single radius keeper grooves

Square Groove	Bead Loc® Groove	-	-	-	-	-	-	-	-	-
Part No. Your Cost	Part No. Your Cost	Head Dia.	Stem Dia.	Inst. Hght	O/A Length	Tip Lngth	Under- head Angle/ Radius	Marg	Seat Width/ Angle	Wgt/ Grams
11401T-8 $1,229.94	11401TB-8 $1,229.94	1.600	.3415	.100 Longer	5.060	.290	15° x 1/2”	.100	.100/ 45°	73
11403T-8 $1,229.94	11403TB-8 $1,229.94	1.600	.3415	.200 Longer	5.160	.290	15° x 1/2”	.100	.100/ 45°	74
11405T-8 $1,229.94	11405TB-8 $1,229.94	1.600	.3415	.300 Longer	5.260	.290	15° x 1/2”	.100	.100/ 45°	75
11407T-8 $1,229.94	11407TB-8 $1,229.94	1.600	.3415	.400 Longer	5.360	.290	15° x 1/2”	.100	.100/ 45°	76
11409T-8 $1,229.94	11409TB-8 $1,229.94	1.600	.3415	.500 Longer	5.460	.290	15° x 1/2”	.100	.100/ 45°	77
11451T-8 $1,229.94	11451TB-8 $1,229.94	1.600	.3415	.600 Longer	5.560	.290	15° x 1/2”	.100	.100/ 45°	78
11463T-8 $1,229.94	11463TB-8 $1,229.94	1.600	.3415	Stock	4.960	.290	20° x 7/16”	.100	.100/ 45°	74
11425T-8 $1,229.94	11425TB-8 $1,229.94	1.600	.3415	.100 Longer	5.060	.290	20° x 7/16”	.100	.100/ 45°	75
- - -	11421TB-8 $1,229.94	1.600	.3110	.200 Longer	5.140	.290	20° x 7/16”	.080	.100/ 45°	68
11467HT-8 $1,281.37 *	11467HTB-8 $1,281.37 *	1.600	.3415	.200 Longer	5.140	.290	20° x 7/16”	.080	.085/ 45°	73
11427T-8 $1,229.94	11427TB-8 $1,229.94	1.600	.3415	.200 Longer	5.140	.290	20° x 7/16”	.080	.100/ 45°	74
11427HT-8 $1,281.37	11427HTB-8 $1,281.37	1.600	.3415	.200 Longer	5.140	.290	20° x 7/16”	.080	.100/ 45°	74
11429T-8 $1,229.94	11429TB-8 $1,229.94	1.600	.3415	.300 Longer	5.260	.290	20° x 7/16”	.100	.100/ 45°	77
11431T-8 $1,229.94	11431TB-8 $1,229.94	1.600	.3415	.400 Longer	5.360	.290	20° x 7/16”	.100	.100/ 45°	78
11433T-8 $1,229.94	11433TB-8 $1,229.94	1.600	.3415	.500 Longer	5.460	.290	20° x 7/16”	.100	.100/ 45°	79
11471HT-8 $1,281.37	11471HTB-8 $1,281.37	1.600	.3415	.600 Longer	5.560	.290	20° x 7/16”	.100	.100/ 45°	80
- - -	11487TB-8 $1,229.94	1.600	.3415	.800 Longer	5.740	.290	20° x 7/16”	.080	.100/ 45°	82
11469HT-8 $1,281.37	11469HTB-8 $1,281.37	1.600	.3415	.600 Longer	5.560	.290	25° x 3/4”	.100	.100 / 45°	83
11411T-8 $1,229.94	11411TB-8 $1,229.94	1.625	.3415	.100 Longer	5.060	.290	15° x 1/2”	.100	.100/ 45°	74
11413T-8 $1,229.94	11413TB-8 $1,229.94	1.625	.3415	.200 Longer	5.160	.290	15° x 1/2”	.100	.100/ 45°	75
11417T-8 $1,229.94	11417TB-8 $1,229.94	1.625	.3415	.400 Longer	5.360	.290	15° x 1/2”	.100	.100/ 45°	77
11419T-8 $1,229.94	11419TB-8 $1,229.94	1.625	.3415	.500 Longer	5.460	.290	15° x 1/2”	.100	.100/ 45°	78
11447T-8 $1,229.94	11447TB-8 $1,229.94	1.625	.3415	.600 Longer	5.560	.290	15° x 1/2”	.100	.100/ 45°	79
11435T-8 $1,229.94	11435TB-8 $1,229.94	1.625	.3415	.100 Longer	5.060	.290	20° x 7/16”	.100	.100/ 45°	75
11437T-8 $1,229.94	11437TB-8 $1,229.94	1.625	.3415	.200 Longer	5.140	.290	20° x 7/16”	.080	.100/ 45°	74
11439T-8 $1,229.94	11439TB-8 $1,229.94	1.625	.3415	.300 Longer	5.260	.290	20° x 7/16”	.100	.100/ 45°	77
11441T-8 $1,229.94	11441TB-8 $1,229.94	1.625	.3415	.400 Longer	5.360	.290	20° x 7/16”	.100	.100/ 45°	78
11443T-8 $1,229.94	11443TB-8 $1,229.94	1.625	.3415	.500 Longer	5.460	.290	20° x 7/16”	.100	.100/ 45°	79
11453T-8 $1,229.94	11453TB-8 $1,229.94	1.625	.3415	.600 Longer	5.560	.290	20° x 7/16”	.100	.100/ 45°	80
11453HT-8 $1,281.37	11453HTB-8 $1,281.37	1.625	.3415	.600 Longer	5.560	.290	20° x 7/16”	.100	.100/ 45°	80
- - -	11475HTB-8 $1,281.37	1.625	.3415	.700 Longer	5.660	.290	20° x 7/16”	.100	.100/ 45°	81
- - -	11489TB-8 $1,229.94	1.625	.3415	.800 Longer	5.740	.290	20° x 7/16”	.080	.100/ 45°	83
11455HT-8 $1,281.37	11455HTB-8 $1,281.37	1.625	.3415	.500 Longer	5.460	.290	25° x 3/4”	.100	.100/ 45°	85
11457T-8 $1,229.94	11457TB-8 $1,229.94	1.625	.3415	.600 Longer	5.560	.290	25° x 3/4”	.100	.100/ 45°	86
11457HT-8 $1,281.37	11457HTB-8 $1,281.37	1.625	.3415	.600 Longer	5.560	.290	25° x 3/4”	.100	.100/ 45°	86
11473T-8 $1,229.94	11473TB-8 $1,229.94	1.625	.3415	.700 Longer	5.660	.290	25° x 3/4”	.100	.100/ 45°	87
- - -	11477TB-8 $1,229.94	1.625	.3415	.700 Longer	5.640	.290	25° x 1/2”	.080	.100/ 55°	85
11445T-8 $1,229.94	11445TB-8 $1,229.94	1.650	.3415	.500 Longer	5.460	.290	20° x 7/16”	.100	.100/ 45°	81

*Valve P/N’s 11467HT and 11467HTB have a back cut of .055” x 30°.

Page 45
MANLEY TITANIUM VALVES

Small Block GM, Ford & Chrysler Up To 2.150” Head Dia.s Titanium Intake Valves 2.180” and 2.200” Head Dia. offerings continued on next page (46) • All valves have inserted hard tips • “HT” suffix indicates higher hardness material • Available with conventional square or Manley’s Bead Loc® single radius keeper grooves • “C” suffix indicates CrN seat coating (See page 51 for more details)

Square Groove	Bead Loc® Groove	-	-	-	-	-	-	-	-		-
Part No. Your Cost	Part No. Your Cost	Head Dia.	Stem Dia.	Inst. Hght	O/A Length	Tip Lngth	Under- head Angle/ Radius	Marg	Seat Width/ Angle	Back  Cut Width/ Angle	Wgt/ Grams
11948T-8 $1,210.09	11948TB-8 $1,210.09	2.020	.3415	.200 Longer	5.140	.290	10° x 3/8”	.080	.100/ 45°	- - -	86
11452T-8 $1,210.09	11452TB-8 $1,210.09	2.055	.3415	Stock	4.940	.290	10° x 3/8”	.080	.100/ 45°	- - -	85
11474T-8 $1,210.09	11474TB-8 $1,210.09	2.055	.3415	.100 Longer	5.040	.290	10° x 3/8”	.080	.100/ 45°	- - -	86
11950T-8 $1,210.09	11950TB-8 $1,210.09	2.055	.3415	.200 Longer	5.140	.290	10° x 3/8”	.080	.100/ 45°	- - -	87
11454T-8 $1,210.09	11454TB-8 $1,210.09	2.080	.3415	Stock	4.940	.290	10° x 3/8”	.080	.100/ 45°	- - -	86
- - -	11440HTBC-8 $1,584.71	2.080	.3110	.100 Longer	5.040	.290	10° x 3/8”	.080	.060/ 45°	.080/ 30°	80
11400T-8 $1,210.09	11400TB-8 $1,210.09	2.080	.3415	.100 Longer	5.040	.290	10° x 3/8”	.080	.100/ 45°	- - -	87
- - -	11400HTBC-8 $1,584.71	2.080	.3415	.100 Longer	5.040	.290	10° x 3/8”	.080	.060/ 45°	.080/ 30°	87
- - -	11472HTB-8 $1,281.37	2.080	.3110	.200 Longer	5.140	.290	10° x 3/8”	.080	.100/ 45°	- - -	81
- - -	11472HTBC-8 $1,584.71	2.080	.3110	.200 Longer	5.140	.290	10° x 3/8”	.080	.060/ 45°	.080/ 30°	81
11402T-8 $1,210.09	11402TB-8 $1,210.09	2.080	.3415	.200 Longer	5.140	.290	10° x 3/8”	.080	.100/ 45°	- - -	88
- - -	11402HTB-8 $1,281.37	2.080	.3415	.200 Longer	5.140	.290	10° x 3/8”	.080	.100/ 45°	- - -	88
- - -	11402HTBC-8 $1,584.71	2.080	.3415	.200 Longer	5.140	.290	10° x 3/8”	.080	.060/ 45°	.080/ 30°	88
11404T-8 $1,210.09	11404TB-8 $1,210.09	2.080	.3415	.300 Longer	5.240	.290	10° x 3/8”	.080	.100/ 45°	- - -	89
11408T-8 $1,210.09	11408TB-8 $1,210.09	2.100	.3415	.100 Longer	5.040	.290	10° x 3/8”	.080	.100/ 45°	- - -	89
- - -	11478HTB-8 $1,281.37	2.100	.3110	.200 Longer	5.140	.290	10° x 3/8”	.080	.100/ 45°	- - -	82
- - -	11478HTBC-8 $1,584.71	2.100	.3110	.200 Longer	5.140	.290	10° x 3/8”	.080	.060/ 45°	.080/ 30°	82
11410T-8 $1,210.09	11410TB-8 $1,210.09	2.100	.3415	.200 Longer	5.140	.290	10° x 3/8”	.080	.100/ 45°	- - -	90
- - -	11410HTB-8 $1,281.37	2.100	.3415	.200 Longer	5.140	.290	10° x 3/8”	.080	.100/ 45°	- - -	90
- - -	11410HTBC-8 $1,584.71	2.100	.3415	.200 Longer	5.140	.290	10° x 3/8”	.080	.060/ 45°	.080/ 30°	90
11412T-8 $1,210.09	11412TB-8 $1,210.09	2.100	.3415	.300 Longer	5.240	.290	10° x 3/8”	.080	.100/ 45°	- - -	91
11456T-8 $1,210.09	11456TB-8 $1,210.09	2.100	.3415	.300 Longer	5.240	.290	12° x 7/16”	.080	.100/ 45°	- - -	93
11462T-8 $1,111.21	11462TB-8 $1,111.21	2.100	.3415	.345 Longer	5.285	.290	12° x 3/8”	.080	.090/ 45°	.090/ 30°	94
11462HT-8 $1,281.37	11462HTB-8 $1,281.37	2.100	.3415	.345 Longer	5.285	.290	12° x 3/8”	.080	.090/ 45°	.090/ 30°	94
11414T-8 $1,210.09	11414TB-8 $1,210.09	2.100	.3415	.400 Longer	5.340	.290	10° x 3/8”	.080	.100/ 45°	- - -	94
11416T-8 $1,210.09	11416TB-8 $1,210.09	2.100	.3415	.500 Longer	5.440	.290	10° x 3/8”	.080	.100/ 45°	- - -	95
11446T-8 $1,210.09	11446TB-8 $1,210.09	2.100	.3415	.500 Longer	5.440	.290	12° x 7/16”	.080	.100/ 45°	- - -	96
11434T-8 $1,210.09	11434TB-8 $1,210.09	2.100	.3415	.600 Longer	5.540	.290	10° x 3/8”	.080	.100/ 45°	- - -	96
Square Groove	Bead Loc® Groove	-	-	-	-	-	-	-	-		-
Part No. Your Cost	Part No. Your Cost	Head Dia.	Stem Dia.	Inst. Hght	O/A Length	Tip Lngth	Under- head Angle/ Radius	Marg	Seat Width/ Angle	Back  Cut Width/ Angle	Wgt/ Grams
11442T-8 $1,210.09	11442TB-8 $1,210.09	2.125	.3415	.100 Longer	5.040	.290	10° x 3/8”	.080	.100/ 45°	- - -	90
- - -	11406HTB-8 $1,281.37	2.125	.3110	.200 Longer	5.140	.290	10° x 3/8”	.080	.100/ 45°	- - -	83
- - -	11406HTBC-8 $1,584.71	2.125	.3110	.200 Longer	5.140	.290	10° x 3/8”	.080	.060/ 45°	.080/ 30°	83
11418T-8 $1,210.09	11418TB-8 $1,210.09	2.125	.3415	.200 Longer	5.140	.290	10° x 3/8”	.080	.100/ 45°	- - -	91
11420T-8 $1,210.09	11420TB-8 $1,210.09	2.125	.3415	.300 Longer	5.240	.290	10° x 3/8”	.080	.100/ 45°	- - -	92
11422T-8 $1,210.09	11422TB-8 $1,210.09	2.125	.3415	.400 Longer	5.340	.290	10° x 3/8”	.080	.100/ 45°	- - -	93
11424T-8 $1,210.09	11424TB-8 $1,210.09	2.125	.3415	.500 Longer	5.440	.290	10° x 3/8”	.080	.100/ 45°	- - -	94
11448T-8 $1,210.09	11448TB-8 $1,210.09	2.125	.3415	.500 Longer	5.440	.290	12° x 7/16”	.080	.100/ 45°	- - -	95
11436T-8 $1,210.09	11436TB-8 $1,210.09	2.125	.3415	.600 Longer	5.540	.290	10° x 3/8”	.080	.100/ 45°	- - -	95
11470T-8 $1,210.09	11470TB-8 $1,210.09	2.125	.3415	.600 Longer	5.540	.290	12° x 7/16”	.080	.100/ 45°	- - -	96
11428T-8 $1,210.09	11428TB-8 $1,210.09	2.150	.3415	.200 Longer	5.140	.290	10° x 3/8”	.080	.100/ 45°	- - -	94
11430T-8 $1,210.09	11430TB-8 $1,210.09	2.150	.3415	.300 Longer	5.240	.290	10° x 3/8”	.080	.100/ 45°	- - -	95
11432T-8 $1,210.09	11432TB-8 $1,210.09	2.150	.3415	.400 Longer	5.340	.290	10° x 3/8”	.080	.100/ 45°	- - -	96
11458T-8 $1,210.09	11458TB-8 $1,210.09	2.150	.3415	.400 Longer	5.340	.290	12° x 7/16”	.080	.100/ 45°	- - -	97
11426T-8 $1,210.09	11426TB-8 $1,210.09	2.150	.3415	.500 Longer	5.440	.290	10° x 3/8”	.080	.100/ 45°	- - -	97
11450T-8 $1,210.09	11450TB-8 $1,210.09	2.150	.3415	.500 Longer	5.440	.290	12° x 7/16”	.080	.100/ 45°	- - -	98
- - -	11496HTB-8 $1,281.37	2.150	.3110	.600 Longer	5.540	.290	12° x 3/8”	.080	.100/ 45°	- - -	91
11438T-8 $1,210.09	11438TB-8 $1,210.09	2.150	.3415	.600 Longer	5.540	.290	10° x 3/8”	.080	.100/ 45°	- - -	99
11460T-8 $1,210.09	11460TB-8 $1,210.09	2.150	.3415	.600 Longer	5.540	.290	12° x 7/16”	.080	.100/ 45°	- - -	100
- - -	11460HTB-8 $1,281.37	2.150	.3415	.600 Longer	5.540	.290	12° x 7/16”	.080	.100/ 45°	- - -	100
- - -	11498HTB-8 $1,281.37	2.150	.3110	.700 Longer	5.640	.290	12° x 3/8”	.080	.100/ 45°	- - -	92
11476HT-8 $1,281.37	11476HTB-8 $1,281.37	2.150	.3415	.700 Longer	5.640	.290	12° x 3/8”	.080	.100/ 45°	- - -	101

2.180” and 2.200” Head Dia. offerings continued on next page (46)

Continued from page 45
Page 46

MANLEY TITANIUM VALVES

Small Block GM, Ford & Chrysler Titanium Intake Valves • All valves have inserted hard tips • “HT” suffix indicates higher hardness material • Available with conventional square or Manley’s Bead Loc® single radius keeper grooves • “C” suffix indicates CrN seat coating (See page 51 for more details)

Square Groove	Bead Loc® Groove	-	-	-	-	-	-	-	-	-
Part No. Your Cost	Part No. Your Cost	Head Dia.	Stem Dia.	Inst. Hght	O/A Length	Tip Lngth	Under- head Angle/ Radius	Marg	Seat Width/ Angle	Wgt/ Grams
11466T-8 $1,210.09	11466TB-8 $1,210.09	2.180	.3415	.500 Longer	5.440	.290	12° x 3/8”	.080	.100/ 45°	99
- - -	11494HTB-8 $1,281.37	2.180	.3110	.600 Longer	5.540	.290	12° x 3/8”	.080	.100/ 45°	92
- - -	11444HTBC-8 $1,584.71 *	2.180	.3110	.600 Longer	5.540	.290	12° x 3/8”	.065	.060/ 45°	92
11468T-8 $1,210.09	11468TB-8 $1,210.09	2.180	.3415	.600 Longer	5.540	.290	12° x 3/8”	.080	.100/ 45°	100
- - -	11468HTB-8 $1,281.37	2.180	.3415	.600 Longer	5.540	.290	12° x 3/8”	.080	.100/ 45°	100
- - -	11488HTB-8 $1,281.37	2.180	.3110	.700 Longer	5.640	.290	12° x 3/8”	.080	.100/ 45°	93
11486HT-8 $1,281.37	11486HTB-8 $1,281.37	2.180	.3415	.700 Longer	5.640	.290	12° x 3/8”	.080	.100/ 45°	101
- - -	11942HTB-8 $1,281.37	2.180	.3110	.800 Longer	5.740	.290	12° x 3/8”	.080	.080/ 52°	94
11464T-8 $1,210.09	11464TB-8 $1,210.09	2.200	.3415	.600 Longer	5.540	.290	10° x 3/8”	.080	.100/ 45°	100

* Valve P/N 11444HTBC has a 7° dish and a back cut of .075”x 33°.

LS-7 Small Block Chevy Titanium Intake Valves • These valves have an inserted hard tip • These valves have an O.E. style single radius keeper groove. • “C” suffix indicates CrN seat coating (See page 51 for more details) Use Manley valve lock P/N 13098-16 $77.80 (7°) or 13153-16 $77.80 (10°) depending on your spring/retainer choice.

Part No. Your Cost	Head Dia.	Stem Dia.	Inst. Hght	O/A Length	Tip Lngth	Under- head Angle/ Radius	Marg	Seat Width/ Angle	Back  Cut Width/ Angle	Wgt/ Grams
11958TB-8 $1,210.09	2.205	.3135	Stock	5.205	.290	12° x 3/8”	.065	.080/ 45°	.080/ 30°	78
11958TBC-8 $1,517.75	2.205	.3135	Stock	5.190	.290	10° x 3/8”	.050	.090/ 45°	.090/ 30°	78
11978TB-8 $1,210.09	2.250	.3135	Stock	5.205	.290	12° x 3/8”	.065	.080/ 45°	.080/ 30°	80
11978TBC-8 $1,517.75	2.250	.3135	Stock	5.190	.290	12° x 3/8”	.050	.090/ 45°	.090/ 30°	80

Note: Above LS-7 titanium intake valves have a 5° dish

Small Block Chevrolet AFR 210cc, 220cc, 227cc Eliminator Racing Heads TITANIUM VALVES • All valves have inserted hard tips • All valves feature Chevy LS (.060¨ single radius) style keeper grooves Use Manley valve lock P/N 13098-16 $77.80 (7°) or 13153-16 $77.80 (10°) depending on your spring/retainer choice.

|Manley stem size is .3135”. AFR heads have guides sized to .3147” (nominal).
Manley strongly recommends that all guides be checked and correctly sized for the
Manley valve stem sizes listed to achieve the proper clearances.

Part No. Your Cost	Type	Head Dia.	Stem Dia.	Inst. Hght	O/A Length	Tip Lngth	Under- head Angle/ Radius	Marg	Seat Width	Wgt/ Grams
11967TB-8 $1,229.94	Exh.	1.600”	.3135”	Stock	5.090”	.290”	25° x 7/16”	.080	.100	75
11968TB-8 $1,210.09	Int.	2.080”	.3135”	Stock	5.080”	.290”	12° x 3/8”	.070	.100	88
11970TB-8 $1,210.09	Int.	2.100”	.3135”	Stock	5.080”	.290”	12° x 3/8”	.070	.100	90

Page 47
MANLEY TITANIUM VALVES

All Pro, Brodix ASCS & GB Heads • All valves (except P/N 12218HBC-8) have inserted hard tips and Manley’s Bead Loc® single radius keeper groove • All exhaust valves are "HT" high temperature material (except P/N's 11421TB, 11427TB and 11437TB) • All intake valves are “HT” higher hardness material • “C” suffix indicates CrN seat coating (See page 51 for more details)

Part No. Your Cost	Type	Head Dia.	Stem Dia.	Inst. Hght	O/A Length	Tip Lngth	Under- head Angle/ Radius	Marg	Seat Width/ Angle	Back  Cut Width/ Angle	Wgt/ Grams
EXHAUST VALVES
11421TB-8 $1,229.94	ASCS	1.600	.3110	.200 Longer	5.140 .290		20° x 7/16”	.080	.100/ 45°	- - -	68
11427TB-8 $1,229.94	ASCS	1.600	.3415	.200 Longer	5.140	.290	.	.080	.100/ 45°	- - -	74
11427HTB-8 $1,281.37	ASCS	1.600	.3415	.200 Longer	5.140	.290	.	.	.	.	74
11437TB-8 $1,229.94	ASCS	1.625	.3415	.200 Longer	5.140	.290	20° x 7/16”	.080	.100/ 45°	- - -	74
11969HTB-8 $1,281.37	ALL PRO	1.600	.3110	Stock	5.950	.300	20° x 3/4”	.080	.065/ 45°	- - -	71
11971HTB-8 $1,281.37	ALL PRO	1.625	.3110	Stock	5.950	.300	20° x 3/4”	.080	.065/ 45°	- - -	72
11991HTB-8 $1,281.37	ALL PRO	1.600	.3110	Stock	5.950	.300	20° x 3/4”	.080	.065/ 55°	- - -	71
11993HTB-8 $1,281.37	ALL PRO	1.625	.3110	Stock	5.950	.300	20° x 3/4”	.080	.065/ 55°	- - -	72
11961HTB-8 $1,281.37	ALL PRO	1.600	.3415	Stock	5.950	.300	20° x 3/4”	.080	.065/ 45°	- - -	77
11973HTB-8 $1,281.37	ALL PRO	1.625	.3415	Stock	5.950	.300	20° x 3/4”	.080	.065/ 45°	- - -	78
12215HTBC-8 $1,631.31	ALL PRO	1.600	.3110	Stock	6.090	.300	20° x 3/4”	.080	.065/ 55°	- - -	75
11975HTB-8 $1,281.37	GB 2000	1.600	.3110	Stock	6.090	.300	25° x 3/4”	.080	.065/ 45°	- - -	73
11963HTB-8 $1,281.37	GB 2000	1.600	.3415	Stock	6.090	.300	25° x 3/4”	.080	.065/ 45°	- - -	80
11977HTB-8 $1,281.37	GB 2300	1.600	.3110	Stock	6.250 .	.300	25° x 3/4”	.080	.065/ 45°	- - -	78
11965HTB-8 $1,281.37	GB 2300	1.600	.3415	Stock	6.250	.300	25° x 3/4”	.080	.065/ 45°	- - -	85
INTAKE VALVES
11472HTB-8 $1,281.37	ASCS	2.080	.3110	.200 Longer	5.140	.290	10° x 3/8”	.080	.100/ 45°	- - -	81
11472HTBC-8 $1,584.71	ASCS	2.080	.3110	.200 Longer	5.140	.290	10° x 3/8”	.080	.060/ 45°	.080/ 30°	81
11478HTB-8 $1,281.37	ASCS	2.100	.3110	.200 Longer	5.140	.290	10° x 3/8”	.080	.100/ 45°	- - -	82
11478HTBC-8 $1,584.71	ASCS	2.100	.3110	.200 Longer	5.140	.290	10° x 3/8”	.080	.060/ 45°	.080/ 30°	82
11402HTB-8 $1,281.37	ASCS	2.080	.3415	.200 Longer	5.140	.290	10° x 3/8”	.080	.100/ 45°	- - -	88
11402HTBC-8 $1,584.71	ASCS	2.080	.3415	.200 Longer	5.140	.290	10° x 3/8”	.080	.060/ 45°	.080/ 30°	88
11410HTB-8 $1,281.37	ASCS	2.100	.3415	.200 Longer	5.140	.290	10° x 3/8”	.080	.100/ 45°	- - -	90
11410HTBC-8 $1,584.71	ASCS	2.100	.3415	.200 Longer	5.140	.290	10° x 3/8”	.080	.060/ 45°	.080/ 30°	90
11406HTB-8 $1,281.37	ASCS	2.125	.3110	.200 Longer	5.140	.290	10° x 3/8”	.080	.100/ 45°	- - -	83
11406HTBC-8 $1,584.71	ASCS	2.125	.3110	.200 Longer	5.140	.290	10° x 3/8”	.080	.060/ 45°	.080/ 30°	83

Part No. Your Cost	Type	Head Dia.	Stem Dia.	Inst. Hght	O/A Length	Tip Lngth	Under- head Angle/ Radius	Marg	Seat Width/ Angle	Back  Cut Width/ Angle	Wgt/ Grams
INTAKE VALVES  continued
11972HTB-8 $1,281.37	ALL PRO	2.180	.3110	.200 Longer	5.950	.300	10° x 3/8”	.080	.050/ 45°	.080/ 33°	88
11972HTBC-8 $1,597.66	ALL PRO	2.180	.3110	Stock	5.950	.300	10° x 3/8”	.080	.050/ 45°	.080/ 33°	88
11974HTB-8 $1,281.37	ALL PRO	2.180	.3110	Stock	5.950	.300	12° x 3/8”	.080	.050/ 52°	.080/ 35°	90
11974HTBC-8 $1,597.66	ALL PRO	2.180	.3110	Stock	5.950	.300	12° x 3/8”	.080	.050/ 52°	.080/ 35°	90
11960HTB-8 $1,281.37	ALL PRO	2.200	.3110	Stock	5.950	.300	10° x 3/8”	.080	.050/ 45°	.080/ 33°	90
11960HTBC-8 $1,597.66	ALL PRO	2.200	.3110	Stock	5.950	.300	10° x 3/8”	.080	.050/ 45°	.080/ 33°	90
11960HTBCH-8 $2,029.89	ALL PRO	2.200	.3110	Stock	5.950	.300	10° x 3/8”	.080	.050/ 45°	.080/ 33°	76
Hollow Stem with Fluted Dish
11976HTB-8 $1,281.37	ALL PRO	2.200	.3110	Stock	5.950	.300	12° x 3/8”	.080	.050/ 52°	.080/ 35°	92
11976HTBC-8 $1,597.66	ALL PRO	2.200	.3110	Stock	5.950	.300	12° x 3/8”	.080	.050/ 52°	.080/ 35°	92
11976HTBCH-8 $1,769.90	ALL PRO	2.200	.3110	Stock	5.950	.300	12° x 3/8”	.080	.050/ 52°	.080/ 35°	78
Hollow Stem with Fluted Dish
11980HTBC-8 $1,597.66	ALL PRO	2.230	.3110	Stock	5.950	.300	12° x 3/8”	.080	.050/ 52°	.080/ 35°	93
12218HBC-8 $1,597.66	ALL PRO	2.200	.2754	Stock	6.030	.230	12° x 3/8”	.060	.050/ 52°	.080/ 35°	87
12220HTBC-8 $1,597.66	ALL PRO	2.200	.3110	Stock	6.090	.300	12° x 3/8”	.060	.055/ 52°	.080/ 35°	94
11962HTB-8 $1,281.37	GB	2.200	.3110	Stock	6.090	.300	12° x 3/8”	.080	.050/ 45°	.080/ 33°	91
11962HTBC-8 $1,597.66	GB 2000	2.200	.3110	Stock	6.090	.300	12° x 3/8”	.080	.050/ 45°	.080/ 33°	91
11964HTB-8 $1,281.37	GB 2300	2.200	.3110	Stock	6.250	.300	12° x 3/8”	.080	.050/ 45°	.080/ 33°	92
11964HTBC-8 $1,597.66	GB 2300	2.200	.3110	Stock	6.250	.300	12° x 3/8”	.080	.050/ 45°	.080/ 33°	92
11966HTB-8 $1,281.37	GB 2300	2.200	.3110	Stock	6.250	.300	12° x 3/8”	.080	.050/ 52°	.080/ 35°	92
11966HTBC-8 $1,597.66	GB 2300	2.200	.3110	Stock	6.250	.300	12° x 3/8”	.080	.050/ 52°	.080/ 35°	92
11988HTBC-8 $1,597.66	GB 2300	2.230	.3110	Stock	6.250	.300	12° x 3/8”	.080	.050/ 52°	.080/ 35°	93

Page 48
MANLEY TITANIUM VALVES

M&M Revolution • These valves feature Manley’s Bead Loc® single radius keeper grooves These valves do not come with a hardened tip. Tip protection is required – Manley wear cap P/N 42139 or 42139TM

Part No. Your Cost	Type	Head Dia.	Stem Dia.	Inst. Hght	O/A Length	Tip Lngth	Under- head Angle/ Radius	Marg	Seat Width/ Angle	Back Cut Width/ Angle	Wgt/ Grams
11995B-8 $1,274.48	Exh.	1.600	.3110	Stock	6.070	.250	25° x 3/8”	.075	.090/ 55°	.050/42°	72
11996B-8 $1,274.48	Int.	2.250	.3110	Stock	6.170	.250	12° x 3/8”	.070	.050/ 50°	.100/ 35°	99

|

Big Block General Motors • “H” suffix indicates higher hardness material • Available with conventional square or Manley’s Bead Loc ® single radius keeper grooves All part numbers without a “T” suffix do not include a hard tip. Tip protection is required. Manley wear cap P/N 42104 or 42104TM.

Square Groove	Bead Loc® Groove		-	-	-	-	-	-	-	-	-
Part No. Your Cost	Part No. Your Cost	Type	Head Dia.	Stem Dia.	Inst. Hght	O/A Length	Tip Lngth	Under- head Angle/ Radius	Marg	Seat Width	Wgt/ Grams
11485-8 $1,274.48	11485B-8 $1,274.48	Exh.	1.840	.3415	Stock	5.440	.250	30° x 5/8”	.090	.075	98
11479-8 $1,274.48	11479B-8 $1,274.48	Exh.	1.880	.3415	Stock	5.440	.250	30° x 5/8”	.090	.075	100
11481-8 $1,274.48	11481B-8 $1,274.48	Exh.	1.900	.3415	Stock	5.440	.250	30° x 5/8”	.090	.075	101
11483-8 $1,274.48	11483B-8 $1,274.48	Exh.	1.900	.3415	.100 Longer	5.540	.250	30° x 5/8”	.090	.075	102
11480-8 $1,274.48	11480B-8 $1,274.48	Int.	2.250	.3415	Stock	5.250	.250	10° x 5/8”	.065	.075	89
11490-8 $1,274.48	11490B-8 $1,274.48	Int.	2.250	.3415	.100 Longer	5.350	.250	10° x 5/8”	.065	.075	90
11490T-8 $1,300.82	11490TB-8 $1,300.82	Int.	2.250	.3415	.100 Longer	5.350	.290	10° x 3/8”	.065	.075	90
11492-8 $1,274.48	11492B-8 $1,274.48	Int.	2.250	.3415	.250 Longer	5.500	.250	10° x 3/8”	.065	.075	91
11492T-8 $1,300.82	11492TB-8 $1,300.82	Int.	2.250	.3415	.250 Longer	5.540	.290	10° x 3/8”	.065	.075	92
11952-8 $1,274.48	11952B-8 $1,274.48	Int.	2.250	.3415	.350 Longer	5.600	.250	10° x 3/8”	.065	.075	93
11944T-8 $1,300.82	11944TB-8 $1,300.82	Int.	2.300	.3415	.100 Longer	5.350	.290	10° x 3/8”	.065	.075	94
11482-8 $1,274.48	11482B-8 $1,274.48	Int.	2.300	.3415	.250 Longer	5.500	.250	10° x 3/8”	.065	.075	95
11482H-8 $1,300.82	11482HB-8 $1,300.82	Int.	2.300	.3415	.250 Longer	5.500	.250	10° x 3/8”	.065	.075	95
11482T-8 $1,300.82	11482TB-8 $1,300.82	Int.	2.300	.3415	.250 Longer	5.540	.290	10° x 3/8”	.065	.075	96
11940-8 $1,274.48	11940B-8 $1,274.48	Int.	2.325	.3415	.250 Longer	5.500	.250	10° x 3/8”	.065	.075	96
11940H-8 $1,300.82	11940HB-8 $1,300.82	Int.	2.325	.3415	.250 Longer	5.500	.250	10° x 3/8”	.065	.075	96
11484-8 $1,274.48	11484B-8 $1,274.48	Int.	2.350	.3415	.250 Longer	5.500	.250	10° x 3/8”	.065	.075	97
11954-8 $1,274.48	11954B-8 $1,274.48	Int.	2.350	.3415	.350 Longer	5.600	.250	10° x 3/8”	.065	.075	99
11954H-8 $1,300.82	11954HB-8 $1,300.82	Int.	2.350	.3415	.350 Longer	5.600	.250	10° x 3/8”	.065	.075	99
- - -	11946HB-8 $1,300.82 *	Int.	2.350	.3415	.400 Longer	5.600	.250	10° x 3/8”	.065	.050	100

* Valve P/N 11946HB has a 50° seat and a back cut of .080” x 32°.

Brodix Big Block SR20 / Dart 20° Heads • “H” suffix indicates higher hardness material • All valves have Manley’s Bead Loc® single radius keeper groove All P/N’s without a “T” suffix do not include a hard tip. Tip protection is required.

Part No. Your Cost	Type	Head Dia.	Stem Dia.	Inst. Hght	O/A Length	Tip Lngth	Under- head Angle/ Radius	Marg	Seat Width/ Angle	Back Cut Width/ Angle	Wgt/ Grams
12209TB-8 $1,300.82	Exh.	1.800	.3415	Stock	5.930	.290	30° x 5/8”	.080	.075/ 55°	- - -	93
12213B-8 $1,274.48	Exh.	1.800	.3415	.100 Longer	6.010	.250	25° x3/4”	.085	.060/ 50°	- - -	92
12208HTB-8 $1,322.42 *	Int.	2.400	.3415	Stock	6.040	.290	12° x 7/16”	.065	.060/ 50°	.060/ 45°	123
12210HTB-8 $1,322.42 *	Int.	2.400	.3415	Stock	6.035	.290	12° x 7/16”	.060	.060/ 55°	.060/ 45°	121
12216HB-8 $1,300.82	Int.	2.400	.3415	.100 Longer	6.125	.250	12° x 3/8”	.050	.080/ 50°	.090/ 33°	112

* Valve P/N’s 12208HTB and 12210HTB have a second back cut of .100” x 35°

Page 49

MANLEY TITANIUM VALVES

Dart Big Block Pro 1® & 320 / 360 Heads • "H"" suffix indicates higher hardness material • Available with conventional square or Manley¦s Bead LocR single radius keeper grooves All part numbers without a “T” suffix do not include a hard tip. Tip protection is required. Manley wear cap P/N 42104 or 42104TM.

Square Groove	Bead Loc® Groove		-	-	-	-	-	-	-	-	-
Part No. Your Cost	Part No. Your Cost	Type	Head Dia.	Stem Dia.	Inst. Hght	O/A Length	Tip Lngth	Under- head Angle/ Radius	Marg	Seat Width	Wgt/ Grams
11479-8 $1,274.48	11479B-8 $1,274.48	Exh.	1.880	.3415	Stock	5.440	.250	30° x 5/8”	.090	.075	100
11481-8 $1,274.48	11481B-8 $1,274.48	Exh.	1.900	.3415	Stock	5.440	.250	30° x 5/8”	.090	.075	101
11492-8 $1,274.48	11492B-8 $1,274.48	Int.	2.250	.3415	.250 Longer	5.500	.250	10° x 3/8”	.065	.075	91
11492T-8 $1,300.82	11492TB-8 $1,300.82	Int.	2.250	.3415	.250 Longer	5.540	.290	10° x 3/8”	.065	.075	92
11482-8 $1,274.48	11482B-8 $1,274.48	Int.	2.300	.3415	.250 Longer	5.500	.250	10° x 3/8”	.065	.075	95
11482H-8 $1,300.82	11482HB-8 $1,300.82	Int.	2.300	.3415	.250 Longer	5.500	.250	10° x 3/8”	.065	.075	95
11482T-8 $1,300.82	11482TB-8 $1,300.82	Int.	2.300	.3415	.250 Longer	5.540	.290	10° x 3/8”	.065	.075	96

Pontiac Pro Stock & Dart Big Chief • ¨H¨ suffix indicates higher hardness material • Available with conventional square or Manley¦s Bead LocR single radius keeper grooves  All part numbers without a “T” suffix do not include a hard tip. Tip protection is required. Manley wear cap P/N 42104 or 42104TM

Square Groove Part No. Your Cost	Bead Loc® Groove Part No. Your Cost	Type	Head Dia.	Stem Dia.	Inst. Height	O / A Length	Tip Length	Under- head Angle / Radius	Marg	Seat Width	Wgt /  Grms
11925-8 $1,274.48 *	- - -	Exh.	1.840	.3415	.100 Longer	6.550	.250	30° x 5/8”	.125	.075	110
11921-8 $1,274.48	11921B-8 $1,274.48	Exh.	1.900	.3415	Stock	6.450	.250	30° x 5/8”	.125	.075	116
11923T-8 $1,300.82	11923TB-8 $1,300.82	Exh.	1.900	.3415	Stock	6.490	.290	30° x 5/8”	.125	.075	117
11920-8 $1,274.48	11920B-8 $1,274.48	Int.	2.400	.3415	Stock	6.600	.250	12° x 3/8”	.065	.075	112
11920H-8 $1,300.82	11920HB-8 $1,300.82	Int.	2.400	.3415	Stock	6.600	.250	12° x 3/8”	.065	.075	112
11922T-8 $1,300.82	11922TB-8 $1,300.82	Int.	2.400	.3415	Stock	6.640	.290	12° x 3/8”	.065	.075	113
11924-8 $1,274.48	11924B-8 $1,274.48	Int.	2.450	.3415	Stock	6.600	.250	12° x 3/8”	.065	.075	114
11926H-8 $1,300.82 *	- - -	Int.	2.470	.3415	.100 Longer	6.700	.250	12° x 3/8”	.065	.075	118

*Valve P/N’s 11925 and 11926H have a 55° seat angle.

Briggs & Stratton
*Dimensions are per customer specifications.

Part No. Your Cost	Type	Head Dia.	Stem Diameter	Inst. Height	O / A Length	Tip Length	Underhead Angle / Radius	Marg	Seat Width	Wgt / Grams
98031-1 $101.56	Exh.	1.500 Max	.2475	*	4.800 Max	.235	5° x 5/16” Max.	*	*	-
98030-1 $101.56	Int.	2.000 Max	.2475	*	4.800 Max	.235	5° x 5/16” Max.	*	*	-

Top Fuel Dragster,
Top Fuel Funny Car
& Nostagliaa

TFD, TFFC & Nostaglia • ¨B¨ suffix indicates a Bead Loc® keeper groove

These valves do not come with a hardened tip. Tip protection is required - Manley wear cap P/N 42104 , 42104TM or Manley LocCap System

Part No. Your Cost	Type	Head Dia.	Stem Dia.	Inst. Hght	O/A Length	Tip Lngth	Under- head Angle/ Radius	Marg	Seat Width/ Angle	Back Cut Width/ Angle	Wgt/ Grams
EXHAUST VALVES
11989-8 $1,182.92	AJPE 4/5	2.000	.3415	.100 Longer	5.020	.250	25° x 3/8”	.085	.075/ 45°	- - -	100
INTAKE VALVES
11956-8 $1,287.01	AJPE 4/5	2.375	.3415	.100 Longer	5.600	.250	25° x 5/8”	.065	.075/ 45°	- - -	139
11994B-8 $1,287.01	AJPE 4/5	2.400	.3415	.100 Longer	5.600	.250	25° x 5/8”	.070	.125/ 45°	- - -	141
11998B-8 $1,287.01	AJPE 4/5	2.400	.3415	.200 Longer	5.700	.250	25° x 5/8”	.080	.125/ 45°	- - -	142
11992-8 $1,287.01	AJPE 6	2.450	.3415	.100 Longer	5.600	.250	19° x 7/16”	.070	.155/ 45°	.075/ 32°	138
11992B-8 $1,287.01	AJPE 6	2.450	.3415	.100 Longer	5.600	.250	19° x 7/16”	.070	.155/ 45°	.075/ 32°	138

Page 50
MANLEY TITANIUM VALVES
TOP ALCOHOL DRAGSTER,
FUNNY CAR & PRO MOD

.

TAD, TAFC & Pro Mod * Valve P/N¦s 12114HC, 12114HBC, 12116HB, 12118H, 12118HB, 12160H, 12160HB, 12162H, 12162HB, and 12164H have a second back cut of .075¨ x 32° • ¨H¨ suffix indicates higher hardness material • ¨B¨ suffix indicates a Bead LocR keeper groove • ¨C¨ suffix indicates Premium CrN seat coating SEE BELOW

These valves do not come with a hardened tip. Tip protection is required - Manley wear cap P/N 42104 , 42104TM or Manley LocCap System when using a .250” tip length

Part No. Your Cost	Type	Head Dia.	Stem Dia.	Inst. Hght	O/A Length	Tip Lngth	Under- head Angle/ Radius	Marg	Seat	Back Cut	Dish	Wgt/ Grams
.	.	.	.	.	EXHAUST VALVES			.	.	.	.	.
12111-8 $1,274.48	BAE 4	1.950	.3415	Stock	5.845	.250	30° x 5/8”	.095	.100/ 45°	---	Flat	107
12113-8 $1,274.48	BAE 5	1.950	.3415	Stock	6.032	.250	30° x 5/8”	.085	.130/ 45°	---	17°	96
12113B-8 $1,274.48	BAE 5	1.950	.3415	Stock	6.032	.250	30° x 5/8”	.085	.130/ 45°	---	17°	96
12117-8 $1,274.48	BAE 6/8/8X	1.900	.3415	Stock	6.100	.250	30° x 5/8”	.110	.080/ 50°	---	17°	96
12117B-8 $1,274.48	BAE 6/8/8X	1.900	.3415	Stock	6.100	.250	30° x 5/8”	.110	.080/ 50°	---	17°	96
12161C-8 $1,590.69	BAE TA1	1.925	.3415	Stock	6.100	.250	30° x 5/8”	.110	.085/ 55°	---	19°	100
12161BC-8 $1,590.69	BAE TA1	1.925	.3415	Stock	6.100	.250	30° x 5/8”	.110	.085/ 55°	---	19°	100
12165C-8 $1,590.69	BAE TA1	1.925	.3415	Stock	6.100	.250	30° x 5/8”	.110	.085/ 55°	---	Flat	112
12167C-8 $1,590.69	TA1 NHRA	1.900	.3415	.100 Longer	6.200	.250	30° x 5/8”	.110	.080/ 55°	---	17°	100
12167BC-8 $1,590.69	TA1 NHRA	1.900	.3415	.100 Longer	6.200	.250	30° x 5/8”	.110	.080/ 55°	---	17°	100
12163C-8 $1,590.69	BAE TA1	1.925	.3415	.100 Longer	6.200	.250	30° x 5/8”	.110	.085/ 55°	---	19°	101
12163BC-8 $1,590.69	BAE TA1	1.925	.3415	100 Longer	6.200	.250	30° x 5/8”	.110	.085/ 55°	---	19°	101
INTAKE VALVES
12110-8 $1,274.48	BAE 4/5	2.425	.3415	Stock	6.400	.400	12° x 3/8”	.070	.070/ 45°	.130/ 32°	Flat	122
12110B-8 $1,274.48	BAE 4/5	2.425	.3415	Stock	6.400	.400	12° x 3/8”	.070	.070/ 45°	.130/ 32°	Flat	122
12114HC-8 $1,631.31 *	TA1 NHRA	2.400	.3415	Stock	6.400	.250	12° x 7/16”	.085	.075/ 55°	.060/ 45°	7°	127
12114HBC-8 $1,631.31 *	TA1 NHRA	2.400	.3415	Stock	6.400	.250	12° x 7/16”	.085	.075/ 55°	.060/ 45°	7°	127
12116HB-8 $1,294.76 *	BAE 6	2.400	.3415	Stock	6.400	.250	12° x 7/16”	.085	.075/ 50°	.060/ 45°	Flat	133
12118H-8 $1,294.76 *	BAE 8/8X	2.450	.3415	Stock	6.400	.250	12° x 7/16”	.085	.075/ 50°	.060/ 45°	Flat	137
12118HB-8 $1,294.76 *	BAE 8/8X	2.450	.3415	Stock	6.400	.250	12° x 7/16”	.085	.075/ 50°	.060/ 45°	Flat	137
12160H-8 $1,294.76 *	BAE TA1	2.500	.3415	Stock	6.400	.250	12° x 7/16”	.060	.060/ 50°	.045/ 45°	7°	125
12160HB-8 $1,294.76 *	BAE TA1	2.500	.3415	Stock	6.400	.250	12° x 7/16”	.060	.060/ 50°	.045/ 45°	7°	125
12164H-8 $1,294.76 *	BAE TA1	2.500	.3415	Stock	6.400	.250	12° x 7/16”	.060	.060/ 50°	.045/ 45°	Flat	131
12162H-8 $1,294.76 *	BAE TA1	2.500	.3415	.075 Longer	6.475	.250	12° x 7/16”	.060	.060/ 50°	.045/ 45°	7°	126
12162HB-8 $1,294.76 *	BAE TA1	2.500	.3415	.075 Longer	6.475	.250	12° x 7/16”	.060	.060/ 50°	.045/ 45°	7°	126

* Valve P/N’s 12114HC, 12114HBC, 12116HB, 12118H, 12118HB, 12160H, 12160HB, 12162H, 12162HB, and 12164H. have a second back cut of .075” x 32°

Titanium Valve CrN Seat Face Coating • High hardness and lubricity prevents valve seat face wear • Prevents ¨trenching¨ of the seat face which maintains combustion seal • Provides greater resistance to wear typically seen when valve float or dirt is present in the engine • Better seal between the valve seat face and the seat in the cylinder head equals more horsepower Manley Performance offers a premium (Calico) CrN seat coating option which incorporates an advanced superpolish process rendering a jewel-like surface finish (picture to the right).

.

TOP ALCOHOL DRAGSTER,
FUNNY CAR & PRO MOD

TAD, TAFC & Pro Mod • ¨H¨ suffix indicates higher hardness material • ¨B¨ suffix indicates a Bead LocR keeper groove • ¨C¨ suffix indicates Premium CrN seat coating SEE ABOVE

These valves do not come with a hardened tip. Tip protection is required - Manley wear cap P/N 42104 , 42104TM or Manley LocCap System

Part No. Your Cost	Type	Head Dia.	Stem Dia.	Inst. Hght	O/A Length	Tip Lngth	Under- head Angle/ Radius	Marg	Seat	Back Cut	Dish	Wgt/ Grams
EXHAUST VALVES
12201B-8 $1,274.48	X1/ Super 6	1.950	.3415	Stock	6.200	.250	30° x 5/8”	.110	.080/ 55°	---	18.66°	99
12201BC-8 $1,631.31	X1/ Super 6	1.950	.3415	Stock	6.200	.250	30° x 5/8”	.110	.080/ 55°	---	18.66°	99
12203B-8 $1,274.48	X1 Pro Mod	1.900	.3415	Stock	6.200	.250	30° x 5/8”	.110	.080/ 55°	---	18.66°	95
INTAKE VALVES
12200HBC-8 $1,631.31 *	X1/ Super 6	2.480	.3415	Stock	6.400	.250	12° x 7/16”	.070	.060/ 55°	.050/ 44°	6.73°	120
12212HBC-8 $1,631.31 *	X1/ Super 6	2.550	.3415	Stock	6.400	.250	12° x 7/16”	.070	.060/ 55°	.050/ 44°	6.73°	126
12202HBC-8 $1,631.31 *	X1 Pro Mod	2.400	.3415	Stock	6.400	.250	12° x 7/16”	.070	.060/ 55°	.050/ 44°	6.73°	115

These valves do not come with a hardened tip. Tip protection is required - Manley wear cap P/N 42104 , 42104TM or Manley LocCap System * Valve P/N’s 12200HBC, 12202HBC and 12212HBC have a second back cut of .060” x 32°

Page 51

Manley Performance can manufactureTITANIUM VALVES for just about any application imaginable. Servicing your custom requirements is our specialty; we do it every single day and typically 8 pieces at a time. We inventory an extensive selection of blanks in varying stem sizes with the stem coating correctly positioned to properly fit the multitude of aftermarket cylinder heads available. This allows us to maintain reliable and very reasonable turnaround times (typically 10 working days) throughout the year. If by chance we dont have a blank in stock to match your particular application, then dont worry. Well simply make it! This will lengthen the lead-time to 6 weeks. For any stem size, groove type, machined (dished) combustion face or special head shape or seat cut, were here to service your needs. Our customers prints are proprietary and confidential.

Fluted Dish

Custom Hollow Stem
Titanium Intake Valves

• Precision gun drilling • Smooth surface finish • Full radius at end of bore, no stress raisers • Able to utilize a hard tool steel tip on 5/16¨ and larger stem diameter valves • Extremely lightweight - 10-12% weight reduction

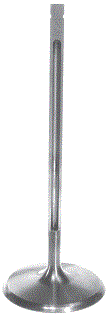

Titanium Valve
CrN Seat Face Coating

• High hardness and lubricity prevents valve seat face wear • Prevents ¨trenching¨ of the seat face which maintains combustion seal • Provides greater resistance to wear typically seen when valve float or dirt is present in the engine • Better seal between the valve seat face and the seat in the cylinder head equals more horsepower

Manley Performance offers a premium (Calico) CrN seat coating option which incorporates an advanced superpolish process rendering a jewel-like surface finish

Page 57
VALVE STEM SEALS,
CUTTER PILOTS & CUTTERS
Viton Material Valve Stem Seals
• A necessity when using NexTek® triple valve springs.
• Special design allows clearance inside small I.D. springs.

Part No. Your Cost	Quantity	Description	Guide O.D.	Installed Seal O.D	Use Cutter No.
24041-8 $16.29	8 pcs.	.274” / 7mm valves	.431”	.566”	41410 $137.21
24040-8 $16.29	8 pcs.	5/16” / 8mm valves	.420”	.566”	41510 $143.79
24042-8 $16.29	8 pcs.	5/16” / 8mm valves	.500”	.608”	41610 $143.79
24047-8 $16.29	8 pcs.	5/16” / 8mm valves	.530”	.677”	41710 $143.79
24043-8 $16.29	8 pcs.	11/32” valves	.500”	.620”	41611 $155.16
24045-8 $16.29	8 pcs.	11/32” valves	.530”	.674”	41711 $143.79
24044-8 $16.29	8 pcs.	3/8” valves	.500”	.623”	41612 $143.79
24046-8 $16.29	8 pcs.	3/8” valves	.530”	.677”	41712 $143.79

All Teflon Valve Stem Seals
• Spring loaded wiper to remove excess oil

Part No. Your Cost	Quantity	Description	Guide O.D.	Use Cutter No.
24029-16 $31.55	16 pcs.	5/16” valves	.500”	41610 $143.79
24034-16 $31.55	16 pcs.	5/16” valves	.530”	41710 $143.79
24037-16 $31.55	16 pcs.	11/32” valves	.500”	41611 $155.16
24035-16 $31.55	16 pcs.	11/32” valves	.530”	41711 $143.79
24039-16 $31.55	16 pcs.	3/8” valves	.500”	41612 $143.79
24036-16 $31.55	16 pcs.	3/8” valves	.530”	41712 $143.79

Valve Guide Seal Cutters

• Carbide tipped cutters • Due to the severe use to which these cutters are subjected, we are not able to warranty damaged goods

Part No. Your Cost	Quantity	Pilot Size	Seal No.	Guide O.D.
41410 $137.21	1	.274” / 7mm	24041	.431”
41510 $143.79	1	5/16” / 8mm valves	24040	.420”
41610 $143.79	1	5/16” / 8mm valves	24029 / 24042	.500”
41710 $143.79	1	5/16” / 8mm valves	24034 / 24047	.530”
41611 $155.16	1	11/32”	24037 / 24043	.500”
41711 $143.79	1	11/32”	24035 / 24045	.530”
41612 $143.79	1	3/8”	24039 / 24044	.500”
41712 $143.79	1	3/8”	24036 / 24046	.530”

Valve Guide Seal Cutter Pilot
• For use with any spring seat or seal cutter

Part No. Your Cost	Quantity	Description
41274 $42.82	1	7mm cutter pilot
41516 $46.45	1	5/16” cutter pilot
41132 $42.23	1	11/32” cutter pilot
41138 $42.23	1	3/8” cutter pilot

Bronze Valve Guides

• .502¨ O.D. • 1.625¨ length under flange • Threaded seal area above flange

Part No. Your Cost	Quantity	Description
12081-8 $156.59	8 pcs.	Bronze insert guide - .274” I.D.
12084-8 $156.59	8 pcs.	Bronze insert guide - .311” I.D.

Top of page

HOME
