Moroso Products Alphabetical Index
| Scroll down to see what you need then cick on the page link to the right of the table if there is one. |
| . | Page(s) |
| RACE SUPPORT & CONTINGENCY | 1 |
| PRODUCT INDEX for this page only | 2-7 |
| NEW PRODUCTS FOR 2017 | 8-29 |
| OIL PANS & ACCESSORIESSmall Block Chevrolet | 30-45 |
| OIL PANS & ACCESSORIES LS series |
|
| OIL PANS & ACCESSORIES LT series |
|
| OIL PANS & ACCESSORIES Big Block Chevy | 55-66 |
| OIL PANS & ACCESSORIES Chryler, Ford | 67-92 |
| OIL PANS & ACCESSORIES Oldsmoble | 93-101 |
| Oil Pan Accessories | 104-111 |
| OIL PUMPS | 112-133 |
| OILING SYSTEM | |
| VACUUM PUMPS & ACCESSORIES | |
| MOUNTING BRACKETS | |
| OIL PUMP & VACUUM PUMP DRIVE KIT & PULLEYS | |
| AIR/OIL SEPARATORS | |
| TANKS & COVERSALS | |
| TRANSMISSION PANS & ACCESSORIES | |
| CHEMICALS | |
| FASTENERS | |
| BRAKE & WHEEL EQUIPMENT | |
| TRICK SPRINGS | |
| TOOLS | |
| MOTOR & TRANSMISSION MOUNTS | |
| COOLING SYSTEM | |
| FUEL SYSTEM EQUIPMENT | |
| AIR CLEANERS & ACCESSORIES | |
| EXHAUST SYSTEM |
278-279 |
| VALVE TRAIN EQUIPMENT | |
| VALVE COVERS & Accessories | |
| IGNITION WIRE | |
| IGNITION SYSTEM | |
| ELECTRICAL SYSTEM | |
| REAR AXLE EQUIPMENT |
360-361 |
| SHEETMETAL & BODY |
362-363 |
| STEERING |
364 |
| TIRES |
365-366 |
| APPAREL |
367-368 |
|
B (con’t) Blue Max Ignition Wire...................... 316-327 Boot Sleeves, High Temperature.............. 329 C Charger, Battery....................................... 348 |
|
|
|
C (con’t) Coil Wire Kits.............. 288, 312-313, 315 Coils..................................... 338, 340-344 Crank Trigger Kits & Components.................... 26-27, 345-347 D Disconnect Power Switches........ 352-355 Distributor Equipment................ 333-336 Distributors................................. 333-334 Distributors, Rotor............................ 336 |
|
E Electrical System Equipment... 348-359 F Filler Cap Kits.................................. 309 |
|
|
|
O Oil Fill Kit, Valve Cover.................. 309 Oil Filler Cap.................................... 309 |
|
P Panel. Switch............................ 358-359 Power Charger, Battery.................. 348 |
|
|
|
T (con’t) Timing Pointers......................... 27, 347 Tires 365-366 Toggle Panels & Switches....... 358-359 Toggle Switch Cover....................... 357 U Ultra 40 Race Wire........... 24-25, 312-315 Ultra 40 Spark Plug Boot & Terminal Kits....................................... 315 V Vacuum Advance Kits......................... 335 |
| hOW MOROSO IGNITION WIRE IS MANUFACTURED |
|
Spark plug wire used to be nothing more than a solid core length
of wire with some type of insulation. Suppression wire was later
developed to combat radio interference, otherwise known as RFI
(radio frequency interference) or EMI (electro-magnetic interference).
For suppression wire to work, it must contain a certain amount
of electrical resistance. Because of this resistance, it was
never useful in race Applications, where every bit of spark energy
is beneficial to lighting an adequate fire within the engine’s
cylinders. For that reason, racers always choose a solid core
plug wire, which had no suppression capabilities, but offered
very little resistance to the spark generated by modern era ignition
boxes. That changed in the mid-’80’s when data loggers became standard issue on race cars. The capabilities of those early loggers were very susceptible to RFI noise, which could disrupt the timing functions of the delay/throttle stop boxes, as well as the recording ability of data loggers. Though most manufacturers installed some filtering, RFI became a big issue in the racing industry. The engineers at Moroso realized the need for enhanced suppression plug wire that would alleviate or reduce the amount of RFI. A spark voltage that exceeds 50,000-volts through a plug wire would inevitably find its way through the outer core of the wire and into the airwaves. So, it became optimal for racers to install suppression plug wires but the requirement to have a very low resistance wire was a necessity. Moroso Wire Technology led the development of modern ignition wire, designed with a Kevlar core, nickel copper alloy wire wrapped around the Kevlar and ferrite-impregnated outer sleeve. Moroso high performance Ignition Wire, manufactured at our facility in Philadelphia, protects against heat, chaffing, contaminants and results in a resistance of only 40-ohms per foot. |
 For info. on Custom Imprinted Wire Sets and other street Applications, see pg. 326 |
| An optical laser measuring device keeps constant measurement on the completed wire as it comes to the end of the line. The machine operator must maintain the measurement within a specified amount and adjust as necessary. |
The outer silicone material is fed through the machine in the
same fashion as the center core cover, eventually making it’s way onto the wire and completing the forming process. |
|
ULTRA 40 UNIVERSAL WIRE SETS, UNSLEEVED The most powerful wire for any race Application! • Moroso Ultra-40 Race Wire is the standard in high performance ignition wire • Optimized EMI/RFI resistance • Used in the highest level of racing Applications, from dual mag Top Fuel Cars thru NASCAR Sprint® Cup Series • 7mm or 8.65mm diameter wire with 40 ohms of resistance per foot • Incorporates a highly engineered spiral wound conductor • Maximizes energy transfer and minimizes electro magnetic interference (EMI) and radio frequency (RF)interference noise |
| BUYER’S GUIDE for ULTRA 40 UNIVERSAL WIRE SETS, UNSLEEVED |
| . | WIRE COLOR |
Spark Plug Wire Lengths Cylinder # (inches) |
. | |||||||||||
| Blue | Red | Black | Wire Dia. (mm) | |||||||||||
|
Application/ Distributor Cap Style |
Part # | Part # | Part # | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
Plug Boot |
Coil Wire Length (inches) |
|
| Universal Fit | ||||||||||||||
| 90º Universal | 73800 $165.85 | 73810 $160.46 | 73814 $160.46 | 8.65 | 35 | 35 | 39 | 39 | 46 | 50 | 53 | 53 | . | 36 |
| Straight Universal | 73801 $165.85 | 73812 $160.46 | 73815 $160.46 | 8.65 | 35 | 35 | 39 | 39 | 46 | 50 | 53 | 53 | STR. | 36 |
| 135º Universal | 73802 $165.85 | 73836 $165.85 | 73816 $160.46 | 8.65 | 35 | 35 | 39 | 39 | 46 | 50 | 53 | 53 | 135º | 36 |
| . | ||||||||||||||
| HEMI | ||||||||||||||
| Mopar/ Chrysler | 73840 $199.62 | N/A | 73841 $199.62 | 8.65 | 30 | 32 | 34 | 36 | 36 | 38 | 42 | 49 | Hemi | 30 |
| BAE- AJPE/8.5" Insulators | 73803 | N/A | 73804 $288.82 | 8.65 | 28 | 32 | 38 | 42 | 51 | 56 | 61 | 66 | Hemi | 38 |
| BAE- AJPE/7" Insulators | 73808 $272.59 | N/A | 73809 | 8.65 | 51 | 28 | 56 | 32 | 61 | 38 | 66 | 42 | Hemi | 36 |
|
GM Pro Stock, Brodix PB201, CFE, Ford, Yates/5" Long Straight Pro Boot |
73813 $160.46 | N/A | 73839 $160.46 | 8.65 | 41 | 41 | 46 | 46 | 56 | 56 | 66 | 66 | STR. | 38 |
| . | ||||||||||||||
| GM LS SERIES | ||||||||||||||
| Coil-on Plug | 73811 $160.46 | N/A | 73828 $157.86 | 7 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | STR. | N/A |
|
ULTRA 40 CUSTOM FIT WIRE SETS, UNSLEEVED • Cost-effective version of our race proven Ultra 40 Race Wire, without heat sleeving • 7 or 8.65mm diameter wire with 40 ohms of resistance per foot • Complete, ready-to-install sets available for specific engines • Wire for each cylinder is labeled |
| BUYER’S GUIDE for ULTRA 40 Custom fit WIRE SETS, UNSLEEVED |
| . | WIRE COLOR |
Spark Plug Wire Lengths Cylinder # (inches) |
. | |||||||||||
| Blue | Red | Black | Wire Dia. (mm) | |||||||||||
|
Application/ Distributor Cap Style |
Part # | Part # | Part # | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
Plug Boot |
Coil Wire Length (inches) |
|
| Gm lS SERIES | ||||||||||||||
| Coil-On Plug, Short | 73660 $102.52 | 73680 $102.52 | 73703 $102.52 | 7 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | STR | N/A |
| Coil-On Plug, Med. | 73662 $102.52 | 73682 $102.52 | 73705 $102.52 | 7 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | STR. | N/A |
| Coil-On Plug, Med. | n/a | n/a | 73727 $102.52 | 7 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 135º | N/A |
| Coil-On Plug, Long | 73661 $102.52 | 73681 $102.52 | 73704 $102.52 | 7 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | STR. | N/A |
| SBC | ||||||||||||||
| Over VC/ Non-HEI | 73663 $102.52 | 73683 $102.52 | 73706 $102.52 | 8.65 | 29 | 33 | 35 | 27 | 25 | 27 | 25 | 24 | 90º | 36 |
| Over VC/HEI | 73664 $102.52 | 73684 $102.52 | 73707 $102.52 | 8.65 | 29 | 33 | 35 | 27 | 25 | 27 | 25 | 24 | 90º | 36 |
| Over V/C, HEI | n/a | n/a | 73725 $102.52 | 8.65 | 29 | 33 | 35 | 27 | 25 | 27 | 25 | 24 | 135º | 36 |
| Under Header/ Non-HEI | 73665 $102.52 | 73685 $102.52 | 73708 $102.52 | 8.65 | 45 | 45 | 40 | 40 | 28 | 28 | 27 | 27 | 90º | 36 |
| Under Header/ HEI | 73666 $102.52 | 73686 $102.52 | 73709 $102.52 | 8.65 | 45 | 45 | 40 | 40 | 28 | 28 | 27 | 27 | 90º | 36 |
| Under Header, HEI | n/a | n/a | 73726 $102.52 | 8.65 | 45 | 45 | 40 | 40 | 28 | 28 | 27 | 27 | 135º | 36 |
| Sprint Car, HEI, Rear Drive | 73677 $102.52 | 73699 $102.52 | 73722 $102.52 | 8.65 | 39 | 38 | 36 | 34 | 28 | 27 | 25 | 24 | 90º | 18 |
|
Sprint Car Front Magneto Drive Kit, Non-Raised Cam |
n/a | n/a | 73723 $102.52 | 8.65 | 26 | 20 | 28 | 26 | 33 | 30 | 31 | 34 | 90º | 48 |
| Sprint Car Front Magneto Drive Kit, Raised Cam | n/a | n/a | 73724 $102.52 | 8.65 | 27 | 21 | 29 | 26 | 34 | 31 | 31 | 34 | 90º | 48 |
| BBC | ||||||||||||||
| Over VC/ Non-HEI Style Cap | 73667 $102.52 | 73687 $102.52 | 73710 $102.52 | 8.65 | 31 | 39 | 35 | 30 | 29 | 28 | 26 | 27 | STR. | 36 |
| Over VC/HEI Style Cap | 73668 $102.52 | 73688 $102.52 | 73711 $102.52 | 8.65 | 29 | 35 | 34 | 29 | 27 | 29 | 26 | 25 | STR. | 36 |
| Over VC/HEI Style Cap | n/a | n/a | 73728 $102.52 | 8.65 | 29 | 35 | 34 | 29 | 27 | 29 | 26 | 25 | 135º | 36 |
| Under Header/ Non-HEI Style Cap | 73670 $102.52 | 73690 $102.52 | 73713 $102.52 | 8.65 | 39 | 42 | 37 | 25 | 30 | 31 | 22 | 29 | 90º | 36 |
| Under Header/ HEI Style Cap | 73669 $102.52 | 73689 $102.52 | 73712 $102.52 | 8.65 | 42 | 45 | 38 | 37 | 31 | 31 | 27 | 31 | 90º | 36 |
| Under Header/ HEI Style Cap | n/a | n/a | 73729 $102.52 | 8.65 | 42 | 45 | 38 | 37 | 31 | 31 | 27 | 31 | 135º | 36 |
| Under Header /Non-HEI Crab | 73671 $102.52 | 73691 $102.52 | 73714 $102.52 | 8.65 | 38 | 43 | 35 | 33 | 30 | 30 | 26 | 29 | 90º | 36 |
| Under Header, HEI Crab | 73672 $102.52 | 73692 $102.52 | 73715 $102.52 | 8.65 | 38 | 43 | 35 | 33 | 30 | 30 | 26 | 29 | 90º | 36 |
| Jesel Front Drive Distributor | n/a | n/a | 73743 $68.78 | 8.65 | 27 | 26 | 32 | 32 | 36 | 34 | 38 | 43 | 90º | 48 |
| Ford 289-302 | ||||||||||||||
| Non-HEI | 73676 $102.52 | 73696 $102.52 | 73719 $106.53 | 8.65 | 28 | 28 | 27 | 29 | 25 | 25 | 28 | 29 | 135º | 38 |
| HEI | 73675 $102.52 | 73695 $102.52 | 73718 $102.52 | 8.65 | 28 | 28 | 27 | 29 | 25 | 25 | 28 | 29 | 135º | 36 |
| Ford 351W | ||||||||||||||
| HEI | 73673 $102.52 | 73693 $102.52 | 73716 $102.52 | 8.65 | 29 | 29 | 32 | 32 | 28 | 26 | 34 | 36 | 135º | 36 |
| Ford 429-460 | ||||||||||||||
| HEI | 73674 $102.52 | 73694 $102.52 | 73717 $102.52 | 8.65 | 27 | 27 | 29 | 30 | 24 | 33 | 27 | 32 | 135º | 36 |
| Dodge/ Chrysler | ||||||||||||||
| Hemi Truck 2003-2005 | 73657 $178.07 | N/A | N/A | 7 | 35 | 37 | 37 | 38 | 36 | 35 | 38 | 35 | STR. | N/A |
|
5.7 Hemi 2005 Magnum, 300, Jeep |
73658 $178.07 | N/A | N/A | 7 | 44 | 37 | 38 | 35 | 39 | 44 | 35 | 40 | STR. | N/A |
|
ULTRA 40 CUSTOM FIT WIRE SETS, SLEEVED Exterior sleeving offers improved dielectric strength for added resistance to outside pulses while protecting wire against heat, chafing and contaminants • 7mm or 8.65mm diameter wire with 40 ohms of resistance per foot • Sleeving adds extra dielectric strength • Sleeving extends spark plug wire life and protects against exhaust header heat, chaffing and contaminants • Complete, ready to install sets available for specific engines |
| BUYER’S GUIDE for Ultra 40 Custom Fit Wire Sets, Sleeved |
| . | WIRE COLOR |
Spark Plug Wire Lengths Cylinder # (inches) |
. | ||||||||||
| Blue | Black | Wire Dia. (mm) | |||||||||||
|
Application/ Distributor Cap Style |
Part # | Part # | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
Plug Boot |
Coil Wire Length (inches) |
|
| SBC | |||||||||||||
| Over VC/Non HEI | 73600 $267.11 | 73824 $267.11 | 8.65 | 29 | 33 | 35 | 27 | 25 | 27 | 25 | 24 | 90º | 36 |
| Over VC, HEI | 73602 $267.11 | 73817 $267.11 | 8.65 | 29 | 33 | 35 | 27 | 25 | 27 | 25 | 24 | 90º | 36 |
| Under Header, Non HEI | 73605 $267.11 | 73825 $267.11 | 8.65 | 45 | 45 | 40 | 40 | 27.75 | 28 | 27 | 26.75 | 90º | 36 |
| Under Header, HEI | 73607 $267.11 | 73818 $267.11 | 8.65 | 45 | 45 | 40 | 40 | 27.75 | 28 | 27 | 26.75 | 90º | 36 |
| Jesel Front Drive Distributor | n/a | 73842 $267.11 | 8.65 | 23 | 23 | 24 | 24.5 | 36 | 29.5 | 33 | 37.5 | 90º | 48 |
| GM LS SERIES | |||||||||||||
| Coil-On Plug, Short | 73535 $190.28 | 73823 $182.06 | 7 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | STR. | N/A |
| Coil-On Plug, Medium | 73537 $190.28 | 73827 $187.45 | 7 | 10 | 10 | 9.75 | 9.75 | 9.75 | 9.75 | 9.75 | 9.75 | STR. | N/A |
| Coil-On Plug, Long | 73536 $190.28 | 73826 $187.45 | 7 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | STR. | N/A |
| Coil-On Plug, Remote coils | n/a | 73845 $187.45 | 7 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 115º | N/A |
| Coil-on Plug, Coils on Valve Covers | n/a | 73846 $187.45 | 7 | 9 | 9 | 9.25 | 9.25 | 9.25 | 9.25 | 9.25 | 9.25 | 115º | N/A |
| BBC | |||||||||||||
| Over VC, Non HEI | 73614 $267.11 | n/a | 8.65 | 31 | 39 | 35 | 30 | 29 | 28 | 26 | 27 | STR. | 36 |
| Over VC, HEI | 73615 $225.40 | 73819 $267.11 | 8.65 | 29 | 35 | 34.25 | 28.75 | 27.25 | 28.5 | 26 | 25 | STR. | 36 |
| Under Header, Non HEI | 73617 $267.11 | 73821 $267.11 | 8.65 | 39 | 42 | 37 | 25 | 29.5 | 31 | 22 | 29 | 90º | 36 |
| Under Header, HEI | 73616 $267.11 | 73820 $267.11 | 8.65 | 42 | 45 | 37.5 | 37 | 31 | 31 | 26.5 | 31 | 90º | 36 |
| Under Header, HEI Crab | 73622 $267.11 | 73832 $267.11 | 8.65 | 38 | 43 | 35 | 33 | 29.5 | 30 | 26 | 29 | 90º | 36 |
| Jesel Front Drive Distributor | n/a | 73843 $267.11 | 8.65 | 27 | 26 | 31.75 | 31.75 | 36 | 34 | 38 | 43 | 90º | 48 |
| Ford 289-302 | |||||||||||||
| HEI | 73630 $267.11 | 73833 $267.11 | 8.65 | 28 | 28 | 26.5 | 29 | 24.5 | 25 | 28 | 28.5 | 135º | 36 |
| Non HEI | 73631 $267.11 | 73834 $267.11 | 8.65 | 28 | 28 | 26.5 | 29 | 24.5 | 25 | 28 | 28.5 | 135º | 38 |
| Ford 351W | |||||||||||||
| HEI | 73626 $267.11 | 73822 $267.11 | 8.65 | 29 | 33 | 32 | 32 | 28 | 26 | 34 | 36 | 135º | 36 |
| Ford 429-460 | |||||||||||||
| HEI | 73628 $267.11 | 73835 $267.11 | 8.65 | 27 | 27 | 29 | 29.5 | 24 | 32.5 | 27 | 32.25 | 135º | 36 |
| PART # | DESCRIPTION |
| 73830 $317.18 | Ultra 40 Wire Spool, 100 ft, Blue |
| 73838 $317.18 | Ultra 40 Wire Spool, 100 ft, Black |
|
COIL WIRE OR REPLACEMENT WIRE KIT, UNSLEEVED, ULTRA 40 WIRE
KIT Ultra 40 • Allows installation of an ignition coil in a remote location or can be used as areplacement wire in a wire set • Kit includes: 72" wire 2-HEI 90 Deg. distributor boots 2-HEI 90 Deg. spark plug boots 4-HEI terminals, 2-Non-HEI 90 Deg. Boots 4-Non-HEI terminals and 2 coil boots |
| PART # | DESCRIPTION |
| 73237 $32.25 | Coil, Replacement Wire Kit, Ultra 40, Blue |
| 73238 $32.25 | Coil, Replacement Wire Kit, Ultra 40, Black |
|
SLEEVED, ULTRA 40 WIRE Ultra 40 • Allows installation of an ignition coil in a remote location or can be used as a replacement wire in a wire set • Sleeving adds extra dielectric strength, which is wire’s ability to not be affected by outside electrical pulses • Sleeving extends spark plug wire life and protects against exhaust heat, chaffing and contaminants • Kit includes: 48" wire 48" high temp sleeving 2-HEI 90 Deg. distributor boots 2-HEI 90 Deg. spark plug boots 4-HEI terminals, 2-Non-HEI 90 Deg. Boots 4-Non-HEI terminals and 2 coil boots |
| PART # | DESCRIPTION |
| 73240 $53.88 | Coil, Replacement Wire Kit, Sleeved, Ultra 40, Blue |
| 73241 $53.88 | Coil, Replacement Wire Kit, Sleeved, Ultra 40, Black |
|
ULTRA 40 SPARK OLUG BOOT & TERMINAL KITS • Manufactured from high temperature silicone • Ultra 40 boots are available for both spark plug and distributor ends • Comes in sets of 8 with positive-locking spark plug or distributor terminals |
| PART # | DESCRIPTION |
| 72041 $22.94 | Boot & Terminal Kit, Dist., HEI, Ultra 40 |
| 72061 $36.29 | Boot & Terminal Kit, Spark Plug Boot, Straight, Ultra 40 |
| 72071 $22.94 | Boot & Terminal Kit, Spark Plug Boot, 90 Degree, Ultra 40 |
| 72076 $41.69 | Boot & Terminal Kit, Spark Plug Boot, 135 Degree, Ultra 40 |
| 72081 $28.28 | Boot & Terminal Kit, Dist., Non-HEI, Ultra 40 |
|

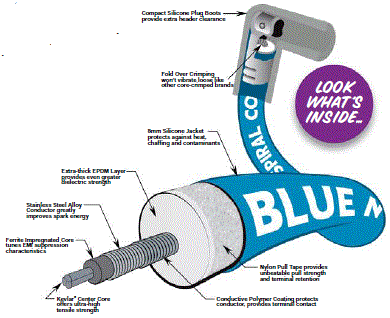

The superiority of Blue Max 8mm 800 ohm Spiral Core Wire comes
from over 35 years of refinement. The combination of Moroso’s engineering expertise and our rigorous testing program yields the finest wire available for the Street or Strip. WHETHER YOUHAVE A FULL-TIME STREET MACHINE, HOT ROD, OR RACE CAR, MOROSO BLUE MAX 800 OHM SPIRAL CORE WIRE IS THE RIGHT CHOICE FOR YOU! |
|
• Available in popular 8mm and extra-thick Super Max™
11mm • Universal and Custom Fit Sets • Optimized combination of capacitance, inductance and resistance provides more spark energy and EMI protection than any other 8mm Spiral Core Wires in their class • Eliminates interference with on-board electronics and provides static-free sound quality for car audio systems |
| INDEPENDENT TESTING CONFIRMS...BLUE MAX™ TOPS ALL OTHER WIRE! |
|
Elite Electronics Laboratories, a leading automotive electronics test facility, tested Moroso Blue Max™ against 14 other brands. Their results confirm that Blue Max™ transmitted more spark energy than any of the others. |
Elite Electronic Laboratories confirms, using SAE’s CISPR
test, that Blue Max™ suppresses more electro-magnetic interference than any other brand of “high-performance” spiral core wire. |
The chart illustrates the break-through voltage of sample wires tested in a waterfilled tank (per SAE’s approved test). Even at the maximum test output of 60,000 volts, Moroso Blue Max™ does not break down or arc through. |
|
TAkE THEM OUT OF ThE BOX, PLUG THEM IN, AND GO RACING! Moroso Blue Max™ Sleeved Wire Sets come complete with our famous 8mm, 800 ohm Spiral Core Wire pre-terminated at both ends with the correct terminals and boots, insulating sleeve that runs the entire wire length, shrink tubing to seal the boots, and numbered ID • Complete, ready-to-install sets available for your specific engine application • Each wire is individually tested for continuity and resistance after termination to ensure race-ready performance |
| . |
Spark Plug Wire Lengths (inches) Cylinder # |
. | ||||||||||||
| Part # | Application |
Distributor Cap Style |
Wire Dia. (mm) |
1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
Spark Plug Boot |
Coil Wire Length (inches) |
|
| Small Block Chevy | ||||||||||||||
| 72402 $234.75 | Over Valve Covers | HEI Style | 8 | 29 | 33 | 35 | 27 | 25 | 27 | 25 | 24 | 90º | 36 | |
| 72405 $234.75 | Under Headers | Non-HEI | 8 | 45 | 45 | 40 | 40 | 27.75 | 28 | 27 | 26.75 | 90º | 36 | |
| 72407 $234.75 | Under Headers | HEI Style | 8 | 45 | 45 | 40 | 40 | 27.75 | 28 | 27 | 26.75 | 90º | 36 | |
| BIG Block Chevy | ||||||||||||||
| 72415 $234.75 | Over Valve Covers | HEI Style | 8 | 28.75 | 34.75 | 34.25 | 28.75 | 27.25 | 28.5 | 26 | 25 | STR. | 36 | |
| 72416 $234.75 | Under Headers | HEI Style | 8 | 41.5 | 44.5 | 37.5 | 37 | 31 | 31 | 26.5 | 31 | 90º | 36 | |
| Ford 351W, V-8 | ||||||||||||||
| 72426 $234.75 | Over Valve Covers | HEI Style | 8 | 29 | 33 | 32 | 32 | 28 | 26 | 34 | 36 | 135º | 36 | |
| Ford 289-302 | ||||||||||||||
| 72430 $234.75 | Over Valve Covers | HEI Style | 8 | 27.75 | 28 | 26.6 | 29 | 24.5 | 25 | 28 | 28.5 | 135º | 36 | |
|
The Thickest Spiral Core Around! • Two layers of fiberglass braid provide unsurpassed pull strength • Intermediate layer of silicone-EPDM blend for extra insulation • Outer silicone jacket resists moisture, fuel and oil while providing added electrical insulation • Track tested by professional racers; now available to everyone in three Universal-Fit V8 Sets |
| Part # | Plug Boot | HEI Cap Style | Wire Coler |
| 8 Cyliner Engines | |||
| 73700 | 90° | HEI & Non-HEI | BlUE |
| 73701 | Straight | HEI & Non-HEI | BlUE |
| 73702 $127.95 | 135° | HEI & Non-HEI | BlUE |
| PART # | DESCRIPTION |
| 73230 $237.40 | Spiral Core 8mm, 800 ohm Wire Spool, 100 ft. |
|
• 36" Long • All the parts necessary to make a coil wire to fit virtually all popular coils and distributor cap combinations • Kit contains three feet of Blue Max™ Spiral Core 8mm suppression wire, a wire stripping tool, and a 13-piece boot and terminal kit |
| PART # | DESCRIPTION |
| 73235 $25.58 | Spiral Core 8mm, 800 ohm Coil Wire Kit, Blue |
| 73236 $25.58 | Spiral Core 8mm, 800 ohm Coil Wire Kit, Black |
|
• Moroso offers a two-piece Spiral Core Wire Set to replace
individual wires • Each wire is 55" long and terminated with a straight plug terminal at one end, and a 90° plug terminal at the other • Simply cut wire to length and use the two distributor boots and two distributor terminals supplied with the kit to complete each wire |
| PART # | DESCRIPTION |
| 72475 $45.81 | Blue Max™ Spiral Core 8mm, 800 ohm Two Wire Set |
|
Complete pre-Terminated Kits for header-Equipped Engines • Kits contain one set of Moroso Blue Max™ Spiral Core 8mm, 800 ohm Spark Plug Wire, four two hole wire looms, four chrome loom brackets, six spark plug wire separators, and a chrome distributor hold down • Designed to route the plug wires over the top of the valvecover and down to the spark plug on engines equipped with exhaust headers |
| PART # | DESCRIPTION |
| 72751 $145.62 | Ignition Wire Dress-up Kit Fits: SBC, pre-H.E.I. Distributor |
| 72752 $145.62 | Ignition Wire Dress-up Kit Fits: SBC, H.E.I. Distributor |
| 72753 $145.62 | Ignition Wire Dress-up Kit Fits: BBC, pre-H.E.I. Distributor |
| 72754 $145.62 | Ignition Wire Dress-up Kit Fits: BBC, H.E.I. Distributor |
| 72792 $145.62 | Ignition Wire Dress-up Kit Fits: Big Block Chrysler |
|
For Universal Ignition Wire Applications, These Sets Are The
Way To Go! Moroso Blue Max™ Universal Fit Wire Sets are terminated at the plug end only, and include enough wire length and terminals to fit hEI or non-hEI distributors. A coil wire is included when required. There’s even a wire stripping tool to simplify the termination. And like all Moroso Blue Max™ wire, each is individually tested for unsurpassed quality control. • Comes complete with everything you need • Available in 8mm, 800 ohm or our extra-thick 11mm 800 ohm • Includes Moroso Wire Stripping Tool for quick and easy installation |
| Part # |
Distributor Cap Style |
Wire Color |
Wire Dia (mm) |
1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
Spark Plug Boot |
Coil Wire Length (inches) |
| 4 Cylinder Engines | |||||||||||||
| 73229 $67.43 | HEI & Non-HEI | blue | 8 | 32 | 32 | 44 | 44 | . | . | . | . | STR. | 18 |
| 8 Cylinder Engines | |||||||||||||
| 73210 $129.40 | blue | 8 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 90º | 18 | |
| 73214 $119.95 | HEI & Non-HEI | red | 8 | 35 | 35 | 39 | 39 | 46 | 50 | 53 | 53 | 135º | 36 |
| 73215 $119.95 | HEI & Non-HEI | yellow | 8 | 35 | 35 | 39 | 39 | 46 | 50 | 53 | 53 | 135º | 36 |
| 73216 $119.95 | HEI & Non-HEI | yellow | 8 | 35 | 35 | 39 | 39 | 46 | 50 | 53 | 53 | STR. | 36 |
| 73217 $119.95 | HEI & Non-HEI | yellow | 8 | 35 | 35 | 39 | 39 | 46 | 50 | 53 | 53 | 90º | 36 |
| 73218 $119.95 | HEI & Non-HEI | red | 8 | 35 | 35 | 39 | 39 | 46 | 50 | 53 | 53 | STR. | 36 |
| 73219 $119.95 | HEI & Non-HEI | red | 8 | 35 | 35 | 39 | 39 | 46 | 50 | 53 | 53 | 90º | 36 |
| 73220 $119.95 | HEI & Non-HEI | blue | 8 | 35 | 35 | 39 | 39 | 46 | 50 | 53 | 53 | 135º | 36 |
| 73225 $119.95 | HEI & Non-HEI | blue | 8 | 35 | 35 | 39 | 39 | 46 | 50 | 53 | 53 | 90º | 36 |
| 73226 $119.95 | HEI & Non-HEI | blue | 8 | 35 | 35 | 39 | 39 | 46 | 50 | 53 | 53 | STR. | 36 |
| 73231 $119.99 | HEI & Non-HEI | black | 8 | 35 | 35 | 39 | 39 | 46 | 50 | 53 | 53 | 90º | 36 |
| 73232 $119.99 | HEI & Non-HEI | black | 8 | 35 | 35 | 39 | 39 | 46 | 50 | 53 | 53 | STR. | 36 |
| 73233 $119.99 | HEI & Non-HEI | black | 8 | 35 | 35 | 39 | 39 | 46 | 50 | 53 | 53 | 135º | 36 |
| 73700 | HEI & Non-HEI | blue | 11 | 35 | 35 | 39 | 39 | 46 | 50 | 53 | 53 | 90º | 36 |
| 73701 | HEI & Non-HEI | blue | 11 | 35 | 35 | 39 | 39 | 46 | 50 | 53 | 53 | STR. | 36 |
| 73702 $127.95 | HEI & Non-HEI | blue | 11 | 35 | 35 | 39 | 39 | 46 | 50 | 53 | 53 | 135º | 36 |
|
BLUE MAX™ SPIRAL CORE CUSTOM FIT WIRE SETS We’ve taken our race-proven Blue Max™ 8mm, 800 ohm Spiral Core Wire and packaged it in pre-terminated sets for most popular applications. This is the very same wire used by professional racers and engine builders to deliver maximum spark energy and provide the greatest protection against electro-magnetic interference (EMI). The result is superior ignition performance and excellent sound quality from your car’s audio system. PRE-TERMINATED AND READY TO INSTALL! |
| Includes coil wire where applicable | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| BLUE MAX® SPIRAL CORE CUSTOM FIT WIRE SETS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| BLUE MAX® SPIRAL CORE CUSTOM FIT WIRE SETS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| BLUE MAX® SPIRAL CORE CUSTOM FIT WIRE SETS |
| BUYER’S GUIDE FOR BLUE MAX™ SPIRAL CORE CUSTOM FIT WIRE SETS |
| Part # |
Cylinder # |
Spark Plug Boots |
HEI or non-HEI |
Coil Wire Length (Inches) |
|||||||
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | ||||
| 72535 $101.09 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | STR. | N/A | N/A |
| 72500 $101.09 | 28 | 28 | 32 | 32 | 45 | 49 | 49 | 49 | 90° | Non-HEI | 10 |
| 72510 $101.09 | 26 | 26 | 28 | 30 | 34 | 34 | 38 | 38 | 90° | HEI | 15 |
| 72520 $101.09 | 20 | 28 | 36 | 36 | 40 | 40 | 40 | 44 | 90° | HEI | N/A |
| 72521 $101.09 | 22 | 22 | 22 | 26 | 32 | 32 | 32 | 40 | 90° | HEI | 10 |
| 72522 $101.09 | 22 | 22 | 22 | 22 | 26 | 32 | 32 | 40 | 90° | HEI | N/A |
| 72523 | 20 | 32 | 36 | 36 | 40 | 40 | 40 | 44 | 90° & STR. | HEI | N/A |
| 72524 $101.09 | 25 | 23 | 25 | 23 | 33 | 34 | 33 | 34 | 90° | HEI | 16 |
| 72525 $101.09 | 26 | 26 | 26 | 28 | 32 | 40 | 44 | 44 | 90° & STR. | HEI | N/A |
| 72526 $101.09 | 15 | 19 | 18 | 21 | 23 | 27 | 38 | 32 | 90° | HEI | 12 |
| 72527 $101.09 | 16 | 18 | 18 | 21 | 23 | 28 | 36 | 32 | 90° | HEI | 10 |
| 72528 $101.09 | 22 | 22 | 28 | 28 | 36 | 36 | 36 | 36 | STR. | HEI | N/A |
| 72529 $101.09 | 13 | 15 | 15 | 17 | 19 | 23 | 25 | 35 | 90° | HEI | 9, 11 |
| 72530 $84.89 | 26 | 28 | 28 | 28 | 28 | 32 | 36 | 40 | STR. | HEI | N/A |
| 72538 $101.09 | 22 | 28 | 32 | 32 | 32 | 32 | 36 | 40 | 90° & STR. | HEI | 8 |
| 72540 $101.09 | 26 | 26 | 26 | 32 | 32 | 36 | 40 | 40 | 90° | HEI | 10 |
| 72542 $101.09 | 26 | 28 | 32 | 32 | 32 | 36 | 40 | 40 | STR. | HEI | 10 |
| 72550 $101.09 | 26 | 26 | 28 | 28 | 28 | 32 | 34 | 38 | STR. | Non-HEI | 12 |
| 72560 $101.09 | 26 | 27 | 29 | 30 | 30 | 32 | 35 | 37 | STR. | HEI | N/A |
| 72561 $101.09 | 22 | 26 | 28 | 28 | 44 | 48 | 56 | 56 | 90° | HEI | N/A |
| 72565 $101.09 | 22 | 22 | 24 | 24 | 28 | 36 | 40 | 40 | STR. | HEI | N/A |
| 72570 $101.09 | 18 | 20 | 22 | 26 | 28 | 28 | 36 | 40 | 135° & STR. | HEI | N/A |
| 72600 $101.09 | 28 | 28 | 28 | 28 | 28 | 31 | 31 | 34 | STR. | Non-HEI | 17-1/2 |
| 72605 $101.09 | 28 | 28 | 28 | 28 | 31 | 31 | 31 | 34 | STR. | Non-HEI | 18 |
| 72635 $101.09 | 18 | 19 | 22 | 22 | 24 | 29 | 30 | 30 | 135° | Non-HEI | 17 |
| 72645 $101.09 | 20 | 20 | 21 | 25 | 28 | 31 | 32 | 32 | 135° | Non-HEI | 18.23 |
| 72650 $101.09 | 22 | 24 | 24 | 28 | 28 | 28 | 30 | 34 | STR. | Non-HEI | 12 |
| 72655 $101.09 | 19 | 26 | 32 | 38 | 44 | 48 | 52 | 55 | 90° | Non-HEI | 9 |
| 72656 $101.09 | 16 | 26 | 32 | 32 | 32 | 36 | 38 | 52 | 90° | Non-HEI | 10 |
| 72660 $101.09 | 22 | 27 | 33 | 46 | 56 | 41 | 51 | 56 | 90° & STR. | Non-HEI | 15 |
| BLUE MAX™ SPIRAL CORE WIRE SETS - SPORT COMPACT |
|
• Every wire is cut to the correct length and factory terminated
at each end with locking, corrosion resistant steel terminals •Terminals are protected by hightemperature OEM style silicone boots, bonded to the wire to seal out moisture, fuel and oil • Includes color matched high-temperature plastic wire separators where necessary to keep wires evenly spaced |
| ACURA | |||
| Year | Model |
BLUE Part # |
RED Part # |
| 1998-94 | Integra VTEC | 72674 $101.09 | 72682 $97.13 |
| 1998-90 | Integra (excl VTEC) | 72673 $101.09 | 72680 $102.44 |
| HONDA | |||
| 1995-90 | Accord DX, LX | 72673 $101.09 | 72680 $102.44 |
| 1995-92 | Civic CX, DX, LX | 72674 $101.09 | 72682 $97.13 |
| 1991-88 | Civic, CRX | 72674 $101.09 | 72682 $97.13 |
| 1998-94 | Civic/Del Sol VTEC | 72674 $101.09 | 72682 $97.13 |
| 2000-99 | Civic Si | 72674 $101.09 | 72682 $97.13 |
| 1995-92 | Prelude | 72673 $101.09 | 72680 $102.44 |
|
BUYER’S GUIDE for Blue Max™ Spiral Core Sport Compact Wire Sets |
| . |
Cylinder # |
Spark plug Boot |
Coil Wire Length (inches) |
|||||
| Part # | 1 | 2 | 3 | 4 | 5 | 6 | ||
| 72673 $101.09 | 33 | 28 | 26 | 20 | N/A | N/A | OEM style | 14 |
| 72674 $101.09 | 32 | 30 | 24 | 21 | N/A | N/A | OEM style | N/A |
| 72680 $102.44 | 33 | 28 | 26 | 20 | N/A | N/A | OEM style | 14 |
| 72682 $97.13 | 32 | 30 | 24 | 21 | N/A | N/A | OEM style | N/A |
|
SOLID CORE PERFORMANCE! Blue Max™ Solid Core combines state-of-the-art engineering with the finest workmanship and quality control available! our Solid Core Sets are pre-terminated at the spark plug end and include enough wire, boots and terminals so you can complete the distributor/magneto end. |
|
• Super High-Performance Wire for Racing Only • Engineered for magneto and other ignitions that do not require electromagnetic interference (EMI) suppression • Combination silver-plated copper and stainless steel “solid core” provides maximum conductivity and strength • Each wire individually tested for continuity after termination to ensure raceready performance |
|
BLUE MAX™ SOLID CORE UNIVERSAL FIT WIRE SETS • Pre-terminated at the plug end with either straight or 90º boots • Sets contain both HEI and Non-HEI terminals and boots to terminate-your-own distributor/magneto wire ends • Sets can also be used in part for 2-, 4- and 6-cylinder applications • For a professional installation use with Moroso insulating Sleeve nos. 72000, 72002 $102.47 or 72004 $102.47 Shrink Sleeve nos. 72030 $28.24 or 72031, Spark Plug looms and wire separators |
| BUYER’S GUIDE for Blue Max™ Solid Core Universal Wire Sets |
| . |
Cylinder # |
Spark plug Boot |
Coil Wire Length (inches) |
|||||||
| Part # | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | ||
| 72800 $118.62 * | 35 | 35 | 39 | 39 | 46 | 50 | 53 | 53 | STR. | 36 |
| 72820 $118.62 * | 35 | 35 | 39 | 39 | 46 | 50 | 53 | 53 | 90° | 36 |
| 8 Cylinder Applications | |||
| Part # |
Plug Term's/ Boots |
Dist. Term's /Boots |
Wire Color |
| 72800 $118.62 * | Straight | HEI & Non-HEI | Blue |
| 72820 $118.62 * | 90° | HEI & Non-HEI | Blue |
|
8mm • Kit contains all the parts necessary to make a coil wire fit virtually all popular coils and distributor cap combinations • Includes 3 feet of Blue Max™ Solid Core Wire, terminals and boots |
| PART # | DESCRIPTION |
| 72855 $36.30 * | Solid Core Coil Wire Kit Wire Looms and Wire Separators |
| PART # | DESCRIPTION |
| 72830 $260.37 * | Solid Core Wire Spool, 8mm, 100 ft |
| PART # | DESCRIPTION |
| 72060 $37.61 | Spark Plug Wire Boot & Terminal Kit, Straight Ends |
| 72070 $20.02 | Spark Plug Wire Boot & Terminal Kit, 90° Ends |
| 72075 $43.00 | Spark Plug Wire Boot & Terminal Kit, 135° Ends |
|
SELF-VULCANIZING TAPE, BLACK • High dielectric strength, high-temperature silicone tape wraps around ignition wire, boots and connectors to provide added insulation • Extra insulation keeps spark energy contained within the wire, preventing high-voltage leaks and resulting misfire • Also seals out moisture, while protecting the wire from the harmful effects of oil and excessive heat • Specially formulated silicone rubber vulcanizes automatically, providing adhesion when tape surfaces make contact • An excellent alternative to applying shrink sleeves and insulated wire sleeving • One-inch wide tape packaged in 12-foot rolls |
| PART # | DESCRIPTION |
| 72038 $43.01 | Self-Vulcanizing Tape, Black |
| PART # | DESCRIPTION |
| 72023 $7.28 | Spark Plug Markers |
|
WIRE CRIMPING TOOLS • Must have tools to crimp a variety of spark plug terminals and other automotive wire hardware |
| PART # | DESCRIPTION |
| 62260 $56.59 | General Purpose Wire Crimper. Made of high carbon steel with black oxide finish and plastic hand grips |
| 62268 $128.07 | Super-Duty Wire Crimping Tool. Positive ratcheting mechanism adjusted for perfect crimps. Supplied with crimping jaws for Moroso (and other) spark plug wire terminals. Hardened steel frame with Blue molded cushion grips. Also comes with additional standard wire crimping jaws for electrical insulated terminals. |
|
Made especially for stripping 8mm & 8.65mm Moroso Ignition
Wire and others • An easy way to strip wire without damage, which is more likely to occur using other methods • Simple and efficient operation: place the end of the wire in the “mouth” of the tool, twist in a circular pattern until the cut is made around the wire, then pull off sheath • Heavy-duty construction and quality components provide reliable operation after repeated use • After using this Enhanced Stripping Tool, you will never go back to using manual strippers for assembling wire sets again |
| PART # | DESCRIPTION |
| 62272 $76.90 | Enhanced Ignition Wire Stripping Tool, for 8mm & 8.65mm diameter wire |
|
• Will strip the outer jacket and insulation in one easy
operation giving a cleaner precise cut • For stripping different diameters of cable, use the built in hex key adjuster screws to align the blade for desired results • The V-Block can be reversed and the indication arrow set to recommended cable size • The stripper distance can be changed by removing one of the stripping blades |
| PART # | DESCRIPTION |
| 62271 $22.86 | Adjustable Wire Stripping Tool |
|
• Ideal for stripping 8mm Moroso ignition wire without damaging
the conductor • Damage to conductor during stripping can cause interruption of spark and misfire • Moroso’s specially-designed tool uses a hard-edge, razor-sharp blade specially positioned in a plastic holder to cut only the insulation – not the conductor |
| PART # | DESCRIPTION |
| 62270 $8.69 | Wire Stripping Tool, 8mm |
|
INSULATED WIRE SLEEVE • Available in Black, Blue and Red • Closely woven fiberglass impregnated with high voltage, leak resistant silicone which adds up to 8,000 volts of extra insulation • Extend spark plug wire life by adding insulation against exhaust header heat • For best results, we recommend that the sleeve cover the full length of wire from spark plug boot to distributor boot and sealed with Shrink Sleeve no. 72030, or no. 72031. • nos. 72000, 72002, 72004 $102.47 fits 7 & 8mm wire; nos. 72011, 72012, 72013 $113.21 fits 8.65mm Ultra 40 Wire • Packaged in 25' lengths |
| PART # | DESCRIPTION |
| 72000 $102.47 | Insulated Spark Plug Wire Sleeve, Blue |
| 72002 $102.47 | Insulated Spark Plug Wire Sleeve, Red |
| 72004 $102.47 | Insulated Spark Plug Wire Sleeve, Black |
| 72011 $94.57 | Ultra 40 Insulated Spark Plug Wire Sleeve, Blue |
| 72012 $113.21 | Ultra 40 Insulated Spark Plug Wire Sleeve, Black |
| 72013 $113.21 | Ultra 40 Insulated Spark Plug Wire Sleeve, Red |
|
• Simplifies spark plug wire identification and installation • Pre-numbered from 1 through 8; sets include two sleeves of each number to identify both ends of each spark plug wire |
| PART # | DESCRIPTION |
| 72020 $12.06 | Numbered Shrink Sleeves |
|
• Insures a complete seal between spark plug, distributor
boots, and spark plug wire sleeve nos. 72000, 72002, 72004, 72011,
72012 $113.21 or 72013 $113.21 • Packaged 18 shrink sleeves to a set |
| PART # | DESCRIPTION |
| 72030 $28.24 | Moroso Shrink Sleeve, Blue |
| 72031 $28.28 | Moroso Shrink Sleeve, Black |
|
• Have “Dual Wall” construction, which assures
protection from spark plug and ignition wire burnout • Protects up to 1200 Deg. F. • Wires and Boots stay cooler in exhaust area • Porous/breathable to reduce “Oven Effect” • Non-flammable, will not react with petroleum based products • 1” I.D., 5-1/2” Long • Expands and stretches over regular surfaces, will work with 135 Deg. and 90 Deg. Spark Plug Boots • Sold in pairs |
| PART # | DESCRIPTION |
| 71992 $28.26 | High-Temperature Boot Sleeves, Blue |
| 71993 $28.26 | High-Temperature Boot Sleeves, Red |
| 71994 $28.26 | High-Temperature Boot Sleeves, Black |
| 71995 $28.26 | High-Temperature Boot Sleeves, Natural |
|
UNIVERSAL LOOM KITS • Includes four 2-hole looms, two 3-hole looms, and four chrome plated brackets which secure to valve cover bolts • One kit per engine |
| PART # | DESCRIPTION |
| 72150 $18.85 | Universal Loom Kit, Blue, 7-9mm |
| 72151 $18.85 | Universal Loom Kit, Red, 7-9mm |
| 72152 | Universal Loom Kit, Yellow, 7-9mm |
| 72153 $18.85 | Universal Loom Kit, Black, 7-9mm |
|
• Includes eight 2-hole looms, two 4-hole separators, and
four chrome plated brackets which secure to valve cover bolts • One kit per engine |
| PART # | DESCRIPTION |
| 72170 $28.19 | Show Car Loom Kit, Blue., 7-9mm |
| 72168 $28.19 | Show Car Loom Kit, Red, 7-9mm |
| 72169 $21.52 | Show Car Loom Kit, Yellow, 7-9mm |
| 72167 $28.19 | Show Car Loom Kit, Black, 7-9mm |
|
• Includes four right-side and four left-side chrome plated
brackets, two 1-hole looms, two 2-hole looms, two 3-hole looms, two 4-hole looms, two 4-hole separators, and two 2-hole separators • One kit per engine |
| PART # | DESCRIPTION |
| 72175 $36.29 | Big Block Chevy Loom Kit, Blue, 7-9mm |
| 72176 $36.29 | Big Block Chevy Loom Kit, Red, 7-9mm |
| 72177 $23.21 | Big Block Chevy Loom Kit, Yellow, 7-9mm |
| 72178 $36.29 | Big Block Chevy Loom Kit, Black, 7-9mm |
|
• Includes two right-side and two left-side chrome plated
brackets for mounting on the valve covers, two 4-hole wire looms,
six 2-hole looms, two 4-hole wire separators, and two 2-hole
separators. • One kit per engine |
| PART # | DESCRIPTION |
| 72171 $35.05 | Super Loom Kit, Blue, 7-9mm |
| 72172 $35.05 | Super Loom Kit, Red, 7-9mm |
| 72173 | Super Loom Kit, Yellow, 7-9mm |
| 72174 $35.05 | Super Loom Kit, Black, 7-9mm |
|
• Includes: three 4-hole wire looms, one 3-hole wire loom,
one 2-hole wire loom, one 1-hole wire loom, two 4-hole wire separators,
one 3-hole wire separator, one 2-hole wire separator, and six
chrome plated brackets • One kit per engine |
| PART # | DESCRIPTION |
| 72130 $22.90 | Ford Loom Kit, Blue, 7-9mm |
| 72131 $22.90 | Ford Loom Kit, Red, 7-9mm |
| 72132 | Ford Loom Kit, Yellow, 7-9mm |
| 72133 $22.90 | Ford Loom Kit, Black, 7-9mm |
|
SMALL BLOCK CHEVY CENTERBOLT LOOM KITS • Includes two right-side and two left-side chrome plated brackets that mount to engine, two 4-hole wire looms, six 2-hole looms, two 4-hole wire separators, and two 2-hole separators • One kit per engine |
| PART # | DESCRIPTION |
| 72140 $44.36 | Small Block Chevy Centerbolt Loom Kit, Blue, 7-9mm |
| 72141 $44.36 | Small Block Chevy Centerbolt Loom Kit, Red, 7-9mm |
| 72142 $33.70 | Small Block Chevy Centerbolt Loom Kit, Yellow, 7-9mm |
| 72143 $44.36 | Small Block Chevy Centerbolt Loom Kit, Black, 7-9mm |
| PART # | DESCRIPTION |
| 72180 $9.95 | Four Hole Loom Kit, Blue, 7-9mm |
| 72181 $9.95 | Four Hole Loom Kit, Red, 7-9mm |
| 72182 $7.87 | Four Hole Loom Kit, Yellow, 7-9mm |
|
• Designed for routing wires under headers on old and new
style Small Block Chevy engines • Includes four chrome plated brackets, two 4-hole looms, two 2-hole looms, two 4-hole separators, two 3-hole separators, two 2-hole separators and mounting bolts • One kit per engine |
| PART # | DESCRIPTION |
| 72195 $41.70 | Under Header Loom Kit, Black, 7-9mm |
|
• Direct replacement looms 7-9mm used in Moroso Loom Kits,
also fits other brands’ loom brackets • High-temperature injection molded polyester for extended durability • Not for use with Part no. 72195. • Packaged two per card |
| PART # | DESCRIPTION |
| 97830 $4.63 | Wire Loom, 2-Hole, Blue, 7-9mm |
| 97832 $4.63 | Wire Loom, 4-Hole, Blue, 7-9mm |
| 97833 $4.63 | Wire Loom, 2-Hole, Red, 7-9mm |
| 97835 $4.63 | Wire Loom, 4-Hole, Red, 7-9mm |
|
LOOM KITS Triple-process chrome plated brackets with high-temperature plastic separators keep plug wires away from exhaust manifolds, headers and other trouble spots. Prevents ignition crossfire by keeping wires evenly spaced. Available with Blue, Red, Yellow and Black looms/separators to give your engine a neat and orderly look. |
|
SPARK PLUG WIRE SEPARATORS • Protect against heat damage by preventing contact with hot engine components • Prevent crossfiring by firmly holding plug wires away from one another • Can be used for routing wires over valve covers or under headers • Wires “snap” into place with slight pressure • Sets include two 2-hole separators, two 3-hole separators and two 4-hole separators • Available in Blue, Red, Yellow and Black |
| PART # | DESCRIPTION |
| 72160 $10.53 | Spark Plug Wire Separators, Blue, 7-9mm |
| 72161 $10.53 | Spark Plug Wire Separators, Red, 7-9mm |
| 72162 $8.37 | Spark Plug Wire Separators, Yellow, 7-9mm |
| 72163 $10.53 | Spark Plug Wire Separators, Black, 7-9mm |
| 73160 $14.67 | Spark Plug Wire Separators, Blue, 11mm or sleeved wire |
| 73163 $14.67 | Spark Plug Wire Separators, Black, 11mm or sleeved wire |
|
WIRE SEPARATOR KIT, 2 EACH OF 2, 3 & 4 SEPARATORS, BLACK Fits: up to 8.65mm non-Sleeved Ignition Wire • Separators are constructed out of plastic and are a split design with center retaining hardware • Kit includes an Allen Wrench • Two kits would be needed for a typical SBC V-8 engine |
| PART # | DESCRIPTION |
| 72166 $10.68 | Wire Separator Kit, 2 each of 2, 3, & 4 hole separators including allen wrench |
|
MOROSO’S PREMIER CIRCLE TRACK DISTRIBUTORS Our BEST SPEAKS FOR ITSELF! In most catalogs, a manufacturer will showcase their top-of-the-line product, whether sold in larger numbers or not. Unfortunately, we can’t show you our Premier circle track Distributors because of proprietary agreements.We can tell you how extaordinarily well our distributors perform—in circle track’s top racing series—by both the leader and the majority of the top ten series cars. In addition to racing, Moroso distributors are also utilized on one of the largest fleet of delivery vehicles in the united states. Even though you might not be racing 500 miles or picking up 500 packages a day, Moroso’s line of distributors give our customers the same performance, quality and reliability that racing and industry leaders have come to depend on. |
| . | Model of Distributor | . | |||
| Moroso | |||||
| Moroso | Durabillet | Jesel® | Crane | ||
| Moroso | Premier | One-Piece | Front | Pro | |
| DescriPtion | Multi- phase | BlueBell | Black Housing | Drives | series |
| Cap | 97852 $112.04 | 97852 $112.04 | 97855 $121.34 | 97855 $121.34 | 97855 $121.34 |
| Cap, Non Wire Retainer | 97850 $107.92 | 97850 $107.92 | 97856 $109.22 | 97856 $109.22 | 97856 $109.22 |
| Rotor | 97848 $44.39 | 97848 $44.39 | 97848 $44.39 | 97860 $44.39 | 97849 $44.39 |
| Adapter Ring | 97851 | 97851 | 97854 $56.57 | 97861 $53.87 | 97854 $56.57 |
| Wire Retainer | 97853 $48.42 | 97853 $48.42 | 97853 $48.42 | 97853 $48.42 | 97853 $48.42 |
| Moroso Race Pickup 11" | 97862 | 97862 | 97862 | N/A | N/A |
|
COMPLETE BOLT-IN REPLACEMENTS FOR HEI CHEVROLET V8 ENGINES Now there’s no need to build your own high-output distributor that you can tune for non-computerized HEI Chevy V8’s. The ignition experts at Moroso have done it for you! Moroso’s Durafire Distributor come equipped with everything needed to customize the ignition timing curve for your particular street/strip application. They feature several high-output components including Moroso’s Procoil that provides more complete combustion for easier starts, smoother idle, improved acceleration and more horsepower! included: High-Output Module, Mechanical Advance Curve Kit, HEI Cap & Rotor, High-Output Procoil & Cover |
|
• Improved weight and advance cam pin retention by TIG welding
the pin backside to prevent them from coming loose • Upgraded strength of the plastic wire harness plug so that the two lock tabs do not break off when unplugging the harness from the distributor cap. |
| . |
|
||||
| Desc |
Moroso Multiphase |
Moroso Blue Bell |
Moroso Durabillet One Piece Black Housing |
Jesel® Front Drives |
Crane Pro Series |
| Cap | 97852 $112.04 | 97852 $112.04 | 97855 $121.34 | 97855 $121.34 | 97855 $121.34 |
| Cap, Non Wire Retainer | 97850 $107.92 | 97850 $107.92 | 97856 $109.22 | 97856 $109.22 | 97856 $109.22 |
| Rotor | 97848 $44.39 | 97848 $44.39 | 97848 $44.39 | 97860 $44.39 | 97849 $44.39 |
| Adapter Ring | 97851 | 97851 | 97854 $56.57 | 97861 $53.87 | 97854 $56.57 |
| Wire Retainer | 97853 $48.42 | 97853 $48.42 | 97853 $48.42 | 97853 $48.42 | 97853 $48.42 |
| Moroso Race Pickup 11" | 97862 | 97862 | 97862 | N/A | N/A |
| PART # | DESCRIPTION |
| 72231 $353.54 | DuraFire Distributor, GM HEI, V8, w/out Vacuum Advance |
| PART # | REPLACEMENT PARTS |
|
97857 $86.28 97858 $18.85 97859 $47.13 |
Distributor Repl, Parts (see pg. 335-336) |
| 72355 $71.51 | ProCoil Ignition Coils (see pg. 340 |
|
A. One-piece aluminum housing is cleanly machined for neat appearance;
steel shaft and gear provide concentric operation B. HEI Distributor Cap and Rotor are precision molded from advanced polymers with solid brass contacts and low-resistance center coil brush C. Mechanical Advance Curve Kit with extra springs allow you to recurve your distributor for full advance at optimum RPM; precision stamped weights, welded pins and center plates with smooth edges eliminate erratic timing D. Moroso’s ProCoil combines low oxygen, high-conductivity magnet wire, high-silicon core material, and non-porous epoxy impregnation to produce extremely high current and extended duration for increased spark energy E. High-Output Module delivers high spark output and extended reliability |
|
DURAFIRE DISTRIBTOR, PASS. CAR, TRUCK, '87 -'95 Moroso’s DuraFire Distributors are now available for GM '87-'95 Pass. cars. trucks with GM “H” and “K” code engines with external coils • Heavy duty billet aluminum body, machined for durability and looks • Hardened steel shaft and gear provide concentric operation • Cap and rotor are precision molded from advanced polymers with solid brass contact and inserts on the cap and rotor • High-output module delivers high spark output and extended reliability |
| PART # | DESCRIPTION |
| 72251 $391.43 | DuraFire Distributor. |
| PART # | REPLACEMENT PARTS |
| 27043 | Ignition Module |
| 97866 $37.67 | Cap |
| 97867 $12.02 | Rotor |
|
DURAFIRE DISTRIBTOR, GM VORTEC, 1995-01 Moroso’s DuraFire Distributors are now available for GM ‘95-’01, “R” and “M” code V-8 Vortec, “LT” Engines • Heavy duty aluminum body is stronger than O.E.M. plastic housing • Hardened steel shaft and gear provide concentric operation • Caged needle roller bearings for smooth operation • Flat cap like O.E.M. • Cap and rotor are precision molded from advanced polymers with solid brass contacts and inserts on the cap and rotor • This distributor does not use a module (it only has a HAL Effect Sensor) |
| PART # | DESCRIPTION |
| 72252 | DuraFire Distributor |
|
• Includes HEI Distributor Cap and Rotor, Coil Cover, Blue
Max™ high-performance Wire Set, and Super Loom Kit • Developed for racing, all ignition components engineered to improve ignition accuracy, fuel economy, starting, and throttle response • HEI Distributor Cap & Rotor precision molded from advanced polymers with solid brass contacts to provide high dielectric strength & unsurpassed timing accuracy • Custom-Fit Blue Max™ 8mm, 800 ohm Spiral Core Wire Set is factory terminated in the correct lengths with numbered I.D. tags, corrosion-resistant locking plug terminals and high-temperature silicone boots • Wire Loom Kit with separators and show quality chrome brackets routes wires over the valve covers to keep them away from hot exhaust manifolds or headers • Emissions legal in all 50 states |
| PART # | DESCRIPTION |
| 72280 $201.06 | Super HEI Ignition Kit |
|
REPLACEMENT IGNITION MODULE Moroso/GM HEI Distributors • Fits Moroso DuraFire Distributors nos. 72230 & 72231 $353.54 and any 4-pin GM HEI Distributor for 4, 6 and 8 cylinder engines • High-output module delivers consistent dwell, accurate timing, extended durability and high spark output |
| PART # | DESCRIPTION |
| 97857 $86.28 | Replacement Ignition Module. Fits: GM-style HEI Distributors |
|
• Allows you to change the amount of ignition vacuum advance
for maximum part-throttle performance while preventing harmful
effects of spark knock (detonation) • Dial in as much spark advance as conditions permit—add more advance under light load conditions to improve throttle response and fuel economy, or limit sparkadvance in high compression engines and high load conditions to eliminate knock • Built-in stop prevents the adjustment screw from "backing out" like other designs • Perfect companion to Moroso HEI Advance Curve Kit no. 72300, below |
| PART # | DESCRIPTION |
| 72315 $37.64 | Adjustable Vacuum Advance Kit. Fits: 1975-'81 GM HEI Distributors |
|
• "Recurve" your distributor for full spark advance
at the optimum RPM • Three sets of advance springs allow you to adjust the rate of spark advance • Weights and centerplates precision stamped with smooth edges eliminate erratic timing |
| PART # | DESCRIPTION |
| 72300 $16.19 | HEI Advance Curve Kit, special design centerplate eliminates over-centering of the centrifugal weights. Designed by Nelson Crozier. Fits: All GM HEI Distributors |
| 72310 $16.01 | Advance Curve Kit. Fits: All 1957-'75 GM/Delco Non-HEI7231 |
|
REPLACEMENT COIL COVER Moroso/GM HEI Distributors • Fits Moroso DuraFire Distributors nos. 72230 and 72231 $353.54 and any GM HEI Distributor • Precision molded from advanced polymers for longer life and protection |
| PART # | DESCRIPTION |
| 97858 $18.85 | Distributor Coil Cover, GM HEI V8 |
|
Moroso/GM HEI Distributors • Fits Moroso DuraFire Distributors nos. 72230 and 72231, and any GM HEI Distributor |
| PART # | DESCRIPTION |
| 97859 $47.13 |
Distributor Cap, Rotor & Brush Kit, GM HEI V8 |
|
ROTOR, DISTRIBUTOR Short Drive Lug Fits: Jesel®, Mallory® and Crane® Distributors • Designed specifically for each manufacturers’ distributor for better fit, tip positioning and balance • Made with high performance plastic for longer life and greater durability • The brass tip and heavy duty stainless steel spring provides and maintains great electrical performance • Features designed into the tip, plastic body and screw provide superior tip retention |
| PART # | DESCRIPTION |
| 97849 $44.39 | Rotor, Distributor, Short Drive Lug. Fits: Crane |
| 97860 $44.39 | Rotor, Distributor, Short Drive Lug. Fits: Jesel, Mallory |
|
• Allows precise adjustment of distributor shaft end play
to improve timing accuracy and reduce gear wear • Works with Moroso, GMR, AccelR, ChryslerR and other distributors with 1/2" diameter shaft • Includes two .010" shims, two .020" shims and one .053" shim |
| PART # | DESCRIPTION |
| 26140 $7.82 | Distributor Gear Shim Kit |
|
Fits: Small Block, Big Block, and 90° V6 Chevy engines • Eliminates oil pump bind and spark scatter when using a distributor in an engine with resurfaced heads or decks • Made from high impact nylon to exact GM® gasket specs • Kit insures leak-free operation and contains one each .030", .060" and .100" shims |
| PART # | DESCRIPTION |
| 26150 $6.39 | Distributor Housing Shim Kit, 1.290 I.D. & 1.830 O.D |
|
• Designed for use on all 14mm spark plugs with 5/8"
hex • With three thicknesses in each package, one will correct the electrode placement on any plug and simplify the time-consuming task of spark plug indexing • The washers are precision stamped from copper for perfect sealing and heat transfer . 30 per pack, 10 each size |
| PART # | DESCRIPTION |
| 71900 $28.28 | Spark Plug Indexing Washers, Tapered Seat, .010", .021", .032" |
| 71910 $28.28 | Spark Plug Indexing Washers, Flat Seat, .040", .050", .064" |
|
DISTRIBUTOR HOLD DOWN CLAMPS • Extra-thick and heavy-duty to ensure adequate retention of distributor housing • Stud mounted to eliminate thread wear in intake manifold • Slotted for quick distributor removal • Includes stud, washer, nut |
| PART # | DESCRIPTION |
| 26200 $16.09 | Distributor Hold Down Clamp. Fits: All V8 and 90° V6 Chevrolet engines, Clear-Zinc Steel |
| 26210 $16.09 | Distributor Hold Down Clamp. Fits: All V8 and 90° V6 Chevrolet engines, Chromed Steel |
| 26211 $17.55 | Distributor Hold Down Clamp. Fits: All Small Block Ford engines, Chromed Steel |
|
Fits: Small Block, Big Block, and 90° V6 Chevrolet • Precision machined steel collar can be positioned on distributor housing to adjust installed height for dead-center gear alignment • Also aligns the distributor’s lubrication grooves with oil passages in the block • Socket-head cap screw tightens collar to housing, while two cupped-point hardened steel set screws grip housing to eliminate any movement • Specially designed for Moroso’s Billet Distributors (also fits MSD Distributors and others) 1.25" O.D. lower distributor housing • Distributors with fixed collars can be machined smooth to accept Adjustable Collar |
| PART # | DESCRIPTION |
| 26217 $41.70 | Adjustable Distributor Collar |
|
• Machined from sturdy steel billet to eliminate deflections • Secures distributors firmly while allowing easy timing changes • Specially designed for Moroso’s Billet Distributors • Also fits MSD and Accel distributors with a 1.850" O.D. flange or a 1.25" O.D. lower distributor housing using a Moroso no. 26217 $41.70 .Adjustable Collar |
| PART # | DESCRIPTION |
| 26215 $99.81 | Billet Distributor Hold Down. Fits: Small Block, Big Block, and 90° V6 Chevrolet |
|
HIGH OUTPUT IGNITION COIL • Provides high output ignition for any 12V points-equipped car or truck • Plated with beautiful show-quality chrome for great looks and extended durability • 40,000 volt rating |
| PART # | DESCRIPTION |
| 72350 $66.04 * | High Output Ignition Coil, Chrome-Plated, Points-triggered Ignitions |
|
• Absolutely required for point-triggered ignitions equipped
with coils that do not feature a built-in resistor such as Moroso
Coil no. 72350, Accel Super Coil 140001, Super Stock High Vibration
8140HV, Racing Coils 140108, 140205, and 140305; Crane PS20 and
PS40, Jacob'S 380672T and MSD Blaster 2 - 8200, 8202, and 8203,
Blaster 3 - 8223 • Ceramic base supports resistor to eliminate the possibility of electrical shorts and to dissipate heat • ncludes built-in mounting boss; must be mounted to firewall or other metallic surface to further dissipate heat • 1/4" spade terminals facilitate wiring to battery side of the coil |
| PART # | DESCRIPTION |
| 72390 $10.71 | Ballast Resistor, 1.82 ohms |
|
For Spark Plugs • 6.4X Fire Polished, B1-Convex Optic Lens • Powerful white light LED floods the insulator cavity with light for accurate inspections • Longer life LED lamp • Lower voltage for longer battery life • Easy one-handed on/off switch • Black anodized billet aluminum flashlight housing • 2 AA batteries included |
| PART # | DESCRIPTION |
| 62348 $44.48 | Magnifying Flashlight |
|
REMOTE COIL MOUNTING BRACKET KIT Fits: LS Series • Relocates ignition coils from valve cover • Fits O.E.M. and larger aftermarket coils with 2-9/16" bolt spacing • Use with Moroso Ultra 40 Wire Sets nos. 73811 $160.46 & 73828 $157.86 • Two Mounting Brackets per kit (for 8 coils) |
| PART # | DESCRIPTION |
| 72395 $268.53 | Remote Coil Mounting Bracket with Spacers |
|
Fits: LS Series • Hinged to provide quick access to valve cover fasteners • Coil pack mounting bracket removes with two fasteners • Coils nested toward back of motor to free up area on front of valve cover for breathers, vacuum pump fittings, fill caps, etc. • Driversf side assembly shown • Fits O.E.M. and larger aftermarket coils with 2-9/16" bolt spacing • Use with Moroso Ultra 40 Wire Sets nos. 73661, 73681, or 73704. |
| PART # | DESCRIPTION |
| 72396 | Coil Mounting Bracket, Hinged, Removable |
|
COIL MOUNT BRACKET KIT, GM LS SERIES FOR MOROSO 68471/68473
VALVE COVERS • These Coil Brackets can used to relocate LS Coils between the top of the valve cover and the intake • Designed to be used with Moroso valve covers but can be drilled to be used with other valve covers or to remote mount coils in a different location. • Two versions available; One for LS1/LS6 Coils & the Second for LS2, LS3, LS7, L92, L98, L99 Coils • When used with Moroso valve covers, the valve cover can be removed and installed without disturbing the coils or brackets • Kit includes black anodized aluminum brackets and metric hardware, one kit does one LS engine |
| PART # | DESCRIPTION |
| 72397 $360.40 | Coil Mount Bracket, GM LS Series for Moroso nos. 68471/68473, LS1, LS6 Coils |
| 72398 $357.60 | Coil Mount Bracket, GM LS Series for Moroso nos. 68471/68473, LS2, LS3, LS7, L92, L98, L99 Coils |
|
We’ve taken our years of ignition experience and engineered
an extremely powerful Racing Coil for both Capacitive Discharge
(CD) and Inductive Discharge (breaker points, HEI, etc.) ignitions.
Moroso Plasma Pulse Coils feature a unique winding and core design that generates ultra-high spark current for maximum horsepower and combustion efficiency! In addition to delivering exceptional ignition power, Plasma Pulse Coils are loaded with durability features that include double-layer insulation, corrosion-resistant connectors and a durable alkyd case. The blue anodized extruded aluminum housing not only gives the coil a distinctive appearance, but cooling fins dissipate damaging heat quickly. In fact, the entire coil can withstand continuousoperation without overheating! A high-temperature epoxy filling allows you to mount the coil in any direction. |
| PART # | DESCRIPTION |
| 72380 $141.59 | Plasma Pulse Ignition Coil, Inductive Discharge. For use with Chevy HEI and Ford DuraSpark ignitions |
| 72381 | Plasma Pulse Ignition Coil, Capacitive Discharge. For use with MSD and other CD type ignitions |
| ENGINEERED FOR MAXIMUM POWER AND DURABILITY! |
|
Increased Spark Energy! Bolt In Replacement! Finally, a coil design that gives your ignition system real power. Real ignition power that provides more complete combustion for easier starts, better idle, snappier acceleration, and more horsepower. Real ignition power that eliminates the "6000 RPM barrier" inherent with stock systems. We’ve combined low oxygen, high-conductivity magnet wire, high-silicon core material, and non-porous epoxy impregnation to produce extremely high current and extended duration for increased spark energy. And our expert workmanship gives you the reliability needed for hard-core racing or daily street use. |
| REFER TO FOLLOWING PAGES FOR PROCOIL APPLICATION CHARTS: |
| PART # | DESCRIPTION |
| 72355 $71.51 | ProCoil HEI, 1975-93 GM pgs. 341-344 |
| 72358 $65.97 | ProCoil F, 1985-96 GM pg. 344 |
| 72360 $80.93 | ProCoil H.O,1982-97 Ford pg. 343 |
| CHECK OUT THE FEATURES THAT MAKE MOROSO'S PROCOIL SUPERIOR TO ALL OTHER BRANDS! |
| HEI PROCOIL APPLICATION CHART | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| HEI PROCOIL APPLICATION CHART | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PROCOIL F APPLICATION CHART | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PONTIAC
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
CRANK TRIGGER ULTRA SERIES KIT Big Block Chevrolet Fits: O.E.M., Fluidampr, ATI, Fischer, JEGS and other BBC 8.0" or smaller diameter damper cases with 4.749" mounting registers • Crank Trigger Kit is based on the popular, flying magnet-style kits • Compact adjuster arm for better fitment with two-piece oil pans and containment devices • The trigger wheel and arm are constructed out of billet aluminum with black anodized finish for long lasting good looks • Moroso has designed the trigger wheel and adjuster arm to allow for inifinite timing settings, while still giving you the ability to position the sensor for the greatest range of adjustment for your combination. No more having the sensor run out of adjustment before you even start the engine up. • The sensor mounting block is designed so that it will not stick out of the back of the arm and interfere with the oil pan or a diaper • Moroso Crank trigger sensor comes with the most common plug to easily hook to any popular ignition box with no modifications • Has two sensor locations for non-motorplate applications • Includes all necessary hardware |
| PART # | DESCRIPTION |
| 60008 $418.43 * | Crank Trigger Ultra Series Kit for Big Block Chevrolet, passenger |
| 60012 $418.43 * | Crank Trigger Ultra Series Kit for Big Block Chevrolet, Mounts to driver’s side of block for mechanical fuel pumps, Procharger clearance |
|
Small Block Chevrolet Fits: O.E.M., Fluidampr, ATI, Fischer, JEGS and other SBC 7.0” or smaller diameter damper cases with 4.749” mounting registers • Crank trigger kit is based on the popular flying magnet style kit • Compact adjuster arm for better fitment with chassis restrictions pans and containment devices • The trigger wheel and arm are constructed out of billet aluminum with black anodized finish for long lasting good looks • Moroso has designed the trigger wheel and adjuster arm to allow for infinite timing settings while still giving you the ability to position the sensor for the greatest range of adjustment for your combination. No more having the sensor run out of adjustment before you even start the engine up • The sensor mounting block is designed so that it will not stick out of the back of the arm and interfere with the oil pan • Moroso Crank trigger sensor comes with the most common plug to easily hook to any popular ignition box with no modificationss • Kit mounts to passenger side of block only, and has two sensor locations for non-motorplate applications • Includes all necessary hardware |
| PART # | DESCRIPTION |
| 60009 $418.43 * | Crank Trigger Ultra Series Kit, Small Block Chevy |
|
CRANK TRIGGER ULTRA SERIES WITH ADJUSTABLE TIMING POINTER
KIT Small Block Ford, 302 - 351W Fits: O.E.M., Fluidampr, ATI, Jegs and other S.B.F. 7.0” or smaller diameter by 3.35” long 4-bolt dampers • Crank trigger kit is based on the popular flying magnet style kit • Compact adjuster arm for better fitment with chassis restrictions pans and containment devices • The trigger wheel and arm are constructed out of billet aluminum with black anodized finish for long lasting good looks • Built-in adjustable timing pointer • The trigger wheel and arm are constructed out of billet aluminum with black anodized finish for long lasting good looks • Moroso has designed the trigger wheel and adjuster arm to allow for infinite timing settings while still giving you the ability to position the sensor for the greatest range of adjustment for your combination. No more having the sensor run out of adjustment before you even start the engine up • The sensor mounting block is designed so that it will not stick out of the back of the arm and interfere with the oil pan • Moroso Crank trigger sensor comes with the most common plug to easily hook to any popular ignition box with no modificationss • Kit mounts to passenger side of block or on motorplate applications • Includes all necessary hardware |
| PART # | DESCRIPTION |
| 60010 $534.45 |
Crank Trigger Ultra Series Kit, Small Block Ford |
| PART # | AVAILABLE OPTIONS |
| 63853 $398.25 | Oil Pump and Vacuum Pump Drive Kit with pulleys, 4-Bolt |
| 63885 $246.98 | Oil Pump and Vacuum Pump Drive Kit without pulleys, 4-Bolt |
|
REPLACEMENT CRANK TRIGGER TRANSDUCERS "Magnet-In Wheel" Style • High-quality transducer with zinc-plated, cold-rolled steel body reduces unwanted signal interference and improves triggering accuracy • Special, non-hardening epoxy impregnates pickup for shock and vibration isolation • Built-in strain relief prevents wire from pulling out of potting compound |
| PART # | DESCRIPTION |
| 60055 $199.60 * | Replacement Crank Trigger Transducer, Magnet-in-Wheel Style |
|
• High-quality, non-magnetic stainless steel body • Precision-wound low impedance winding and rare earth magnet for consistent output signal • Special, non-hardening epoxy impregnates pickup for shock and vibration isolation |
| PART # | DESCRIPTION |
| 60355 $171.33 * | Replacement Crank Trigger Transducer, "Lug Type" Style |
|
DRIVE MANDREL SPACER KIT SBC • For use with Moroso nos. 63857, & 63859, drive mandrels • Maintains register of mandrel when using a 1/4" thick crank trigger • Comes with a 1/4" longer crankshaft bolt • Constructed out of stress-proof steel with a black oxide finish |
| PART # | DESCRIPTION |
| 63861 $57.87 | Drive Mandrel Spacer Kit, SBC, for 1/4" Thick Crank Trigger Wheels |
|
For SBC and BBC • Designed to hug the damper so it is easier to line up the damper and the pointer for more accurate timing • Up to 4 degrees of adjustment are possible • Constructed of billet aluminum with a black anodized finish • Stainless steel mounting hardware included |
| PART # | DESCRIPTION |
| 60100 $43.00 | Timing Pointer, SBC, 6.250" |
| 60105 $43.00 | Timing Pointer, SBC, 6.375" |
| 60110 $43.00 | Timing Pointer, SBC, 6.750" |
| 60115 $43.00 | Timing Pointer, SBC, 7" |
| 60120 $43.00 | Timing Pointer, SBC, 7.250" |
| 60125 $43.00 | Timing Pointer, SBC, 8" |
| 60130 $43.00 | Timing Pointer, BBC, 6.250" |
| 60135 $43.00 | Timing Pointer, BBC, 7" |
| 60140 $43.00 | Timing Pointer, BBC, 7.250" |
| 60145 $43.00 | Timing Pointer, BBC, 8" |
|
• Designed to hug the damper so it is easier to line up
the damper and the pointer for more accurate timing • Up to 4 degrees of adjustment are possible • Fits 6.125" to 6.250" balancers • Constructed out of billet aluminum with a black anodized finish • Stainless steel mounting hardware included |
| PART # | DESCRIPTION |
| 60150 $75.45 |
Timing Pointer, Ford 289/302/351W, 11 O'clock TDC |
| 60155 $75.45 |
Timing Pointer, Ford 289/302/351W, 10 O'clock TDC |
|
MOROSO POWER CHARGER Includes a list of features that will make all other chargers obsolete! With this versatile charger you have at your disposal one you can use on your race car, your towing vehicle, your street car or a battery you had to buy in an emergency at the racetrack. The Power charger not only charges your everyday 12-volt battery but will also charge 16-volt batteries. Plus, it will also charge any type of battery including Gel Cell, Sealed, Lead Acid,Wet/Deep Cycle, "Reactor" batteries and even (AGM) Absorbed Glass Mat type batteries. If you’re looking for speed, you can be sure your battery is ready for the next round of competition. Featuring a near full charge recovery in about 14 minutes, it also has a maintain mode for batteries in storage. The large handle makes it easy to carry or the unit can be mounted on a wall or workbench. • Made in USA, approved by U.L., E.T.L., C.S.A. and CE • Dual Voltage charges both 12 and 16 volt batteries • 30 amp rating makes for fast recharge • Solid state LED Ammeter shows battery condition is charging at 80% or READY • Battery Type "dip" switches can be accessed and changed to charge ANY type battery • Hibernate mode is perfect for long storage, automatically shuts down to zero output after 24 hours, applying a maintenance charge cycle once every thirty days • Low Start Voltage for deeply discharged batteries, will begin charging a battery that has only .02 of a volt • Short and reverse polarity connection shutdown • External ambient temperature compensation • Works with (AGM) batteries without need for adjustment; calibrated not to exceed 19 volts charge when in the 16 volt mode |
| PART # | DESCRIPTION |
| 74016 $780.12 | Moroso Power Charger, 12/16 Volts at 30 Amps |
|
• Ideal for relocating a battery to the rear of any race,
street or show vehicle with or without a rear firewall • Holds a Series 21, 24, 26, 34, 42, 54, 55, 56, 61, 62, 63, 85, 86, 96R, battery with either top-post or side-post terminals • Outside Dimensions: 13-1/8" W, 11-1/8" D, 11-1/8" T • Fully approved for racing by NHRA, IHRA and SCCA • Includes grommets and all mounting hardware • Does not include battery cable; use with Moroso Battery Cable Kit no. 74055. |
| PART # | DESCRIPTION |
| 74051 $101.06 | Sealed Battery Box, Black |
|
BATTERY CABLE KITS • High-grade 2 gauge copper cable provides unrestricted current flow • Rugged PVC insulation resists most car fuels, oils and under hood cleaners • Available with and without battery terminals • Ideal for relocating a battery to the rear for improved weight transfer |
| PART # | DESCRIPTION |
| 74005 $145.72 | Battery Cable Kit, 20' with 4 terminals |
| 74055 $200.99 | Battery Cable Kit, 20' with 4 terminals, 8' with top-post terminals and 6" 12 gauge leads with butt connectors*, rubber-lined clamps, grommets and shrink sleeving. Use with Sealed Battery Box no. 74051.. |
|
• Compression-style fittings with tin plated brass for added
conductivity and corrosion resistance provide solid electrical
connection • Two per pack |
| PART # | DESCRIPTION |
| 74170 $26.91 | Battery Cable Remote Fitting End Kit, Compression-style, 3/8" opening |
| 74172 $29.61 | Battery Cable Remote Fitting End Kit, Compression-style, 1/2" opening |
| 74173 $6.47 | Battery Cable Terminal, Copper, Solder, 3/8" diameter stud |
| 74174 $7.53 | Battery Cable Terminal, Copper, Solder, 1/2" diameter stud |
| 74175 $28.23 | Battery Post Terminal End Kit |
|
• One turn of the knob disconnects the battery and saves
the solid state voltage regulator and alternator when charging • Also deters possible car thieves when parked • Switch is rated at 100 amps for 12 or 24 DC use |
| PART # | DESCRIPTION |
| 74103 $24.15 | Battery Terminal Disconnect Switch, Top Terminal |
| 74104 $25.56 | Battery Terminal Disconnect Switch, Side Post |
|
Meets sanctioning body requirement that terminals be covered
on the battery • Insulated Battery Post Boots meet sanctioning bodies requirement that battery posts be covered, and are a tidier looking solution than tape • Molded to fit over most non-disconnect top terminals • Works with 4-0 gauge and larger battery cables • Designed to be slipped on cable before terminal is installed, or can be slit and wire-tied over cable • When the battery needs to be charged or jumped, simply fold back the boot for access to the post; when done, just unfold and recover |
| PART # | DESCRIPTION |
| 74114 $8.11 | Battery Post Boots, one each in black and red per package |
|
REMOTE BATTERY JUMPER TERMINALS • Allows battery to be placed anywhere in the car allowed by rules and still be completely accessible for between-rounds charging • Connect to battery with a high amperage battery cable such as Moroso no. 74005, or no. 74055, or for use with Moroso Power Charger no. 74016. • Universal for 6-36 volt DC applications • Two per pack with color-coded caps |
| PART # | DESCRIPTION |
| 74140 $63.27 | Remote Battery Jumper Terminals |
| PART # | REPLACEMENT PART |
| 97545 $21.41 | Terminal Cap Kit one red, one black |
| PART # | AVAILABLE OPTION |
| 74149 $25.57 | Battery Jumper Terminal Mounting Bracket |
|
BATTERY JUMPER TERMINAL BRACKET, FOR MOROSO PART NO. 74140. • “L” shaped bracket makes mounting and aligning Moroso Part no. 74140, or similar battery disconnect switches easier than previous methods • Made out of 1/8" thick steel • Can be bolted and/or welded into place • Finish of the bracket can be painted, polished or left as is |
| PART # | DESCRIPTION |
| 74149 $25.57 | Battery Jumper Terminal Mounting Bracket |
|
QUICK-DISCONNECT FLUSH MOUNT BATTERY CABLE CONNECTORS Complete Pre-Terminated Kits for Header-Equipped Engines • Ideal for heavy-duty battery cable connection through firewalls or body panels • A quick release half-turn lock provides easy charger hook-ups • Black and red color-coded for easy identification • Two per pack |
| PART # | DESCRIPTION |
| 74155 $215.85 | Quick-Disconnect Flush Mount Battery Cable Connectors |
| PART # | REPLACEMENT PARTS |
| 97550 $28.15 | Male End, Black |
| 97551 $60.59 | Male End, Red |
| 97552 $51.18 | Female End, Black |
| 97553 $97.13 | Female End, Red |
|
QUICK-DISCONNECT FLUSH MOUNT BATTERY CABLE CONNECTOR KIT • Kit contains one black male and female lug, one red male and female lug • Ideal for heavy-duty battery cable connections through firewalls or body panels • A quick release taper lock provides easy charger hook-ups • Features brass connections for full contact • Accommodates 1 or 2 gauge wire |
| PART # | DESCRIPTION |
| 74156 $76.75 | Quick-Disconnect Flush Mount Battery Cable Connectors, Red & Black (Male and Female) |
|
BATTERY QUICK-CONNECT PLUG Full Size • Instantly connects your vehicle’s electrical system to an auxiliary power source, either to start the car or for fast battery charges • Also useful on tow vehicles and 4 x 4’s as a power plug for winches, jumper cable connection, or battery chargers • Made of tough polycarbonate with spring-loaded copper contacts • Will connect up to 175 amps using #1/0 AWG wire |
| PART # | DESCRIPTION |
| 74200 $87.67 | Battery Quick-Connect Plug |
|
• To save space this is a smaller version of Moroso no.
74200. • Will connect up to 50 amps, using #6 wire • Instantly connects your vehicle’s electrical system to an auxiliary power source, either to start the car or for fast battery charges • Also useful on tow vehicles and 4 x 4’s as a power plug for winches, jumper cable connections, or battery chargers • Made of tough polycarbonate with spring-loaded copper contacts |
| PART # | DESCRIPTION |
| 74201 $30.96 | Battery Quick Connect, Mini |
|
• Can be used wherever a battery cable goes through a firewall
or other similar panel • Connector fits through 1-1/4" hole • Use Battery Cable Remote Fitting End Kit nos. 74170, or 74172, to complete installation • One per pack |
| PART # | DESCRIPTION |
| 74144 $25.57 | Thru Panel Battery Connector, Red |
| 74145 $22.88 | Thru Panel Battery Connector, Black |
|
BATTERY DISCONNECT SWITCHES • Easy to install Disconnect Switch required by many sanctioning bodies • A quick twist of the non-slip handle or a quick push of the knob (no. 74106) shuts off all electrical current to the electric fuel pump, electric water pump, ignition, instruments, etc. • For drag racing vehicles, the switch should be mounted on the vehiclefs rear panel for easy accessibility • For oval track and road racing applications, the switch should be mounted so that it can easily be reached by the driver or service personnel from outside the vehicle • In street applications, the switch can be hidden to thwart car thieves • Use Push/Pull Switch Kit no. 74105, for remote installation for nos. 74100, & 74101. • 2-3/8" Studs included |
| PART # | DESCRIPTION |
| 74100 $56.50 | Battery Disconnect Switch, Twist, Limited-Service, i.e. Drag Race applications without alternators. Rating: 125 amps @ 6-36 volts DC |
| 74101 $68.67 | Battery Disconnect Switch, Twist, Heavy-Duty, Street Race Cars with alternators, multiple battery applications, etc. Rating: 175 amps @ 6-36 volts DC |
| 74106 $192.93 | Battery Disconnect Switch, Push On/Off, Heavy-Duty, Street or Race Applications with alternators, multiple battery applications, etc. Rating: 250 amps @ 6-24 volts DC |
|
BATTERY DISCONNECT SWITCH, SUPER-DUTY • Morosofs Super-Duty switch with rating of 2,000 amps intermittent and 300 amps continuous is perfect for engines with large starter draw, RVs, Drag Cars with alternators and other applications (20 amps on small terminals) • Two pairs of copper studs (1/2" -20 & 10 -32) make it ideal for disconnecting alternator (or other electrical device) in addition to the battery • Sealed shaft keeps out moisture and debris • Indexing pin aligns switch with mounting panel and prevents rotation; fits mounting panels up to 1/4" thick • Includes switch position face plate; also includes decal to indicate switch location during emergencies • Use with Moroso Push/Pull Kit no. 74105, for remote installations and Moroso Battery Cable Fitting End Kit with 1/2" opening no. 74172. |
| PART # | DESCRIPTION |
| 74102 $109.28 | Battery Disconnect Switch, Super-Duty |
|
BATTERY & ALTERNATOR DISCONNECT SWITCH • As race cars have gotten more complicated so has sanctioning bodies rules in making sure that a racecar's electrical power can be completely shut off • This 4-Pole switch makes installing a “Master Disconnect” switch much simpler. A 4-Pole switch is used to disconnect both the battery and the alternator feed simultaneously without the need for relays. • Can be mounted in the same locations as traditional On/Off switches with the added security of being able to interrupt the alternator circuit • Four 3/8" -24 Terminals, rated at 125A continuous/ 750A intermittent, up to 36V DC max., Two Terminals marked “Terminal A” for the battery circuit and Two Terminals marked “Terminal B" for the alternator circuit • Indexing pin aligns switch with mounting panel and prevents rotation: fits mounting panels up to 1/4" thick • Includes switch position decal and switch location decal for the exterior of the car • Use with Moroso Push/Pull Kit no. 74105 $91.62 for remote installations and Moroso Battery Cable Fitting End Kit with 3/8" opening no. 74170 $26.91 |
| PART # | DESCRIPTION |
| 74108 $113.25 | Battery & Alternator Disconnect Switch |
|
ALTERNATOR SHUTDOWN RELAY KIT • Designed to stop engine run-on when electrical master disconnect is turned off by stopping electrical feedback in malfunctioning or high amperage alternators • More and more racing sanctioning bodies are recommending that this type of device be used. • Compliments Battery Disconnect switches such as MOROSO part numbers 74100, 74101, 74102, and 74106. • Kit includes; Heavy Duty Solenoid rated at 225 Amps, mounting hardware, wiring harness and terminal |
| PART # | DESCRIPTION |
| 74107 $132.14 | Alternator Shutdown Relay Kit |
|
BOOTS FOR BATTERY DISCONNECT SWITCHES Meets sanctioning body requirement that terminals on the master electrical cut-off switch be covered • Perfect compliment to Moroso Part nos. 74100, 74101, 74102, and 74106. • Prevents the shorting out of exposed terminals • When installed, creates a finished "clean look" to disconnect switch wiring • Constructed out of high quality, pliable, race environment friendly rubber • Accommodate 2 to 4 gauge wire and 1/2" to 3/8" terminal studs • Can be installed before or after termination of remote fitting ends |
| PART # | DESCRIPTION |
| 74110 $7.75 | Boots for Battery Disconnect Switches, Two per pack (1 ea. Black/Red) |
|
BATTERY DISCONNECT SWITCH BRACKET • “L” shaped bracket makes mounting and aligning Moroso Part nos. 74100, 74101, & 74108, or similar battery disconnect switches easier than previous methods • Made out of 1/8" thick steel • Can be bolted and/or welded into place |
| PART # | DESCRIPTION |
| 74116 $30.86 | Battery & Alternator Disconnect Switch Bracket |
|
REMOTE PUSH/PULL BATTERY DISCONNECT SWITCH KIT • “Push/Pull” Style of remote battery disconnect switch allows you to mount the Battery Disconnect Switch a roll cage tube with a weld-on bracket, then actuate it with this T-handle kit protruding through the rear panel • Included switch Moroso Part no. 74100 $56.50 is for applications without alternators, Rating: 125 amps @ 6-36 volts DC • Includes switch, brackets, swing arm linkage, 18" long aluminum tube actuator link, all necessary bushings, fasteners, switch position decal and switch location decal for the exterior of the car |
| PART # | DESCRIPTION |
| 74109 $132.22 | Remote Push/Pull Battery Disconnect Switch Kit |
|
REMOTE PUSH/PULL BATTERY & ALTERNATOR DISCONNECT SWITCH
KIT • “Push/Pull” Style of remote battery disconnect switch allows you to mount the Battery Disconnect Switch a roll cage tube with a weld-on bracket, then actuate it with this T-handle kit protruding through the rear panel • Included is Moroso Part no. 74108 $113.25 “Master Disconnect” 4-Pole switch. A 4-Pole switch is used to disconnect both the battery and the alternator feed simultaneously without the need for relays • Includes switch, brackets, swing arm linkage, 18” long aluminum tube actuator link, all necessary bushings, fasteners, switch position decal and switch location decal for the exterior of the car |
| PART # | DESCRIPTION |
| 74111 $188.81 | Battery & Alternator Disconnect Switch Kit |
|
PUSH/PULL BATTERY DISCONNECT MOUNTING KIT • Allows you to mount a Battery Disconnect Switch nos. 74100, 74101 $68.67 74102 $109.28 or 74108 $113.25 (not included) to a roll cage tube with a weld-on bracket, then actuate it with this T-handle kit protruding through the rear panel • Comes with brackets, swing arm linkage, 18" long aluminum tube actuator link, all necessary bushings, fasteners and complete instructions • Aluminum parts are black anodized |
| PART # | DESCRIPTION |
| 74105 $91.62 | Push/Pull Battery Disconnect Mounting Kit |
|
REMOTE BATTERY DISCONNECT SWITCH KIT, MORSE CABLE ACTUATED • This kit allows for greater flexibility of mounting a remote battery disconnect lever • Using a morse cable to actuate the battery disconnect switch allows more flexibility and greater distances between the switch itself and the lever that the driver, crew, or safety workers operate • Included is Moroso Part no. 74100, Battery Disconnect switch for applications without alternators, Rating: 125 amps @ 6-36 volts DC • Kit includes brackets, fasteners, handle, switch position decal and switch location decal for the exterior of the car |
| PART # | DESCRIPTION |
| 74118 $111.85 | Remote Battery Disconnect Switch Kit, Morse Cable Actuated |
|
REMOTE BATTERY & ALTERNATOR DISCONNECT SWITCH KIT, MORSE
CABLE ACTUATED • This kit allows for greater flexibility of mounting a remote battery disconnect lever • Using a morse cable to actuate the battery disconnect switch allows more flexibility and greater distances between the switch itself and the lever that the driver, crew, or safety workers operate • Included is Moroso Part no. 74108, “Master Disconnect” 4-Pole switch. A 4-Pole switch is used to disconnect both the battery and the alternator feed simultaneously without the need for relays • Kit also includes brackets, fasteners, switch position decal and switch location decal for the exterior of the car |
| PART # | DESCRIPTION |
| 74119 $159.17 | Remote Battery & Alternator Disconnect Switch Kit, Morse Cable Actuated |
|
REMOTE BATTERY DISCONNECT SWITCH MOUNTING KIT, MORSE CABLE
ACTUATED • This kit allows for greater flexibility of mounting a remote battery disconnect lever • Using a morse cable to actuate the battery disconnect switch allows more flexibility and greater distances between the switch itself and the lever that the driver, crew, or safety workers operate • Kit also includes brackets, fasteners, switch position decal and switch location decal for the exterior of the car • Use with Moroso Part Nos. 74100, 74101, 74106, & 74108, Battery Disconnect Switches or other similar switches |
| PART # | DESCRIPTION |
| 74117 $82.23 | Remote Battery Disconnect Switch Mounting Kit, Morse Cable |
|
PUSH BUTTON STARTER SWITCH • Waterproof and dustproof with neoprene cap for in-car or under hood mounting • 35 amp rated @ 12 volts |
| PART # | DESCRIPTION |
| 74120 $18.75 | Push Button Starter Switch |
|
• Heavy-duty spiral cable has 15 amp rating • Ideal for transbrakes, brake line locks and nitrous systems • The cable features two 16-gauge wires enclosed in a protective PVC outer layer • Spiral cable stretches to 4 feet and "springs" back when relaxed • Use with 15 amp Momentary Push Button Switch no. 74123. |
| PART # | DESCRIPTION |
| 74115 $30.90 | Heavy-Duty Universal Cable, 15 amp DC |
|
• Precision high-quality momentary switch with a coiled
flex cable • Used on roll control devices, nitrous oxide systems, as a push-to-talk button on radios, or in any other application where an instant on/off switch is needed • The normally open, snap action, short throw switch mounts in a 1/4" dia. hole • Rated at 6 amps @ 28 volts DC or 125 volts AC |
| PART # | DESCRIPTION |
| 74122 $67.35 | Universal Momentary Switch and Cable |
|
• Heavy-duty switch has 15 amp rating; ideal for operating
a transbrake on drag race cars • Adjustable collar allows the plunger travel to be preset from .020" to .219", making the switch "fast" or "slow" to suit individual reaction time requirements • Screw-on type terminals • Can be mounted through-panel or anywhere using the two mounting holes provided • Use with Universal Momentary Cable no. 74115. |
| PART # | DESCRIPTION |
| 74123 $48.49 | Adjustable Universal Momentary Switch, 15 amp DC |
|
TOGGLE SWITCHES • Momentary Switches ideal for starting engines • On-Off Single Throw Switches control accessories such as lights, pump, fan, etc. • Rated at 20 amps lamp load • ON/OFF faceplate included |
| PART # | DESCRIPTION |
| 74124 $28.24 | Toggle Switch Momentary On, Long Handle,1-1/2" |
| 74125 $17.39 | Toggle Switch On/Off, Long Handle, 1-1/2" |
| 74126 $12.10 | Toggle Switch On/Off, Short Handle, 11/16" |
|
• Fits over Moroso no. 74126, and other short handle 11/16"
shaft-mounted toggle switches • Features flip up lid that prevents switch from accidentally being turned on • Protects switch from dirt • Helps denote different toggle switches from each other |
| PART # | DESCRIPTION |
| 74129 $25.46 | Toggle Switch Cover |
|
• Greatly simplifies the task of removing and reinstalling
starters and engines • Positive locking connector with waterproof seal keeps terminals moisture-free • Manufactured from high impact, high temperature plastic for years of dependable service in racing environments |
| PART # | DESCRIPTION |
| 74245 | Quick Disconnect Starter Harness, Fits: Tilton-style starters |
|
• Engineered to protect starters against damaging heat from
exhaust manifolds or headers • Ideal for extending starter life in both race and street applications, including tow vehicles and RVs • High-temperature insulating material (Non-Asbestos) sandwiched between two sheets of aluminum |
| PART # | DESCRIPTION |
| 74299 $51.12 | Starter Heat Shield. Fits: Most passenger-side small Tilton-style starters |
| 74300 $51.12 | Starter Heat Shield. Fits: SBC and BBC engines with Delco starters |
|
ROCKER SWITCH PANELS . High-tech rocker style switches are dust and water resistant and feature a wide-profile face for use with racing gloves . Aluminum panel versions feature laser-etched Moroso logo are black anodized to withstand years of constant use . Fiber Design versions available (no. 74193) for enhanced styling . All switches are single pole, single throw rated at 20 amps • Other switch features include a heavy-duty spring for positive engagement, orange LED indicator lamp, and 1/4" spade terminals to simplify wire connections • Five resetable 20 amp circuit breakers (except no. 74186) eliminate the need for fuses and make it easy to reactivate the circuit while driving • Switches and circuit breakers simply snap into place with locking mechanism for a secure attachment • Includes complete wiring instructions and switch decal package to indicate start, ignition, fuel, fan, lights, nitrous and other uses |
| PART # | DESCRIPTION |
| 74180 $229.42 | Flat Surface Mount, five on/off lighted switches with momentary start switch, 3.388" x 8", five circuit breakers, 20 amps ea. |
| 74181 $200.97 | Flat Surface Mount, five on/off lighted switches without momentary start switch, 3.375" x 8", five circuit breakers, 20 amps ea. |
| 74183 $201.07 | Flat Surface Mount, five on/off lighted switches, 2.488" x 6.695", separate panel for five circuit breakers 20 amps each, 1.350" x 6.695" |
| 74186 $167.24 | Flat Surface Mount, four on/off lighted switches, with momentary start switch, no breakers, 2.488" x 6.695" |
| 74190 $246.90 | Cage Mount, five on/off switches with momentary start switch, 3.750" x 8" |
| 74193 $194.32 | Rocker Switch Panel, Grey/Black, Fiber Design, 8" x 3-13/32", Dash Mount |
| PART # | REPLACEMENT PARTS |
| 97535 $13.35 | Replacement Circuit Breaker |
| 97542 $12.02 | Switch Panel Replacement Label Sheets |
| 97543 $14.76 | ON/OFF Swith |
|
TOGGLE SWITCH PANELS • Make custom wiring of your vehicle much easier and professional • Face constructed of rugged .050" thick aluminum and black anodized to prevent corrosion, Fiber Design versions available for enhanced styling • Power indicator lights and front mounted, E-Z access fuse holders with pigtails attached, features not found on other manufacturerfs switch panels (except no. 74136) • Heavy-duty on/off switches are 12 volt single-pole, single-throw with screw terminals rated at 20 amps lamp load • Heavy-duty fingertip starter controls on nos. 74130, 74131 $153.75 and 74135 $199.68 are waterproof and dustproof, and include screw terminals rated at 12 volts and 35 amps • A selection of custom labels is included so you can customize each Switch Panel to your individual needs • Black anodized finish prevents corrosion, Fiber Design available for enhanced styling |
| PART # | DESCRIPTION |
| 74130 $90.27 | Oval Track Switch Panel, 4" x 5", includes: Starter button, two on/off switches |
| 74131 $153.75 | Drag Race Switch Panel, 4" x 7.75", includes: Starter button, five on/off switches |
| 74132 $190.30 | Cage-Mount Switch Panel, Includes: five on/off switches without starter button, Steel bracket to be welded to roll cage, length: 5.5" |
| 74133 $153.75 | Dash-Mount Street Switch Panel, 2" x 5.5", includes: five on/off switches, a separate 7-station fuse panel for remote mounting |
| 74134 $138.89 | Accessory Switch Panel, 4" x 6.75", includes: five on/off switches without starter button |
| 74135 $199.68 | Cage-Mount Switch Panel, includes: five on/off switches with starter button, Steel bracket to be welded to roll cage, length: 7" |
| 74136 $97.07 | Econo-Switch Panel, 2.5" x 5", includes: four on/off switches to control various electrical functions, one momentary long handle switch for engine starting |
| 74139 $126.74 | Switch Panel, Grey/Black, Fiber Design, Dash Mount, 4" x 7-3/4", Starter Button, 1/2" LED |
| 74143 $132.19 | Switch Panel, Grey/Black, Fiber Design, Dash Mount, 2" x 5-1/2", 1/4" LED |
| 74148 $113.20 | Switch Panel, Grey/Black, Fiber Design, 6-3/4" x 4", 1/2" LED |
| PART # | REPLACEMENT PARTS |
| 74120 $18.75 | Push Button Starter Switch |
| 74124 $28.24 | Toggle Switch, Momentary On, Long Handle, 1-1/2" |
| 74125 $17.39 | Toggle Switch, On/Off, Long Handle, 1-1/2" |
| 74126 $12.10 | Toggle Switch, On/Off, Short Handle, 11/16" |
| 97542 $12.02 | Switch Panel Replacement Label Sheets |
