MANLEY PUSH RODS &
OTHER COMPONENTS
|
WARRANTY DISCLAIMER Due to the intended usage of the products
in this catalog, they are sold WITHOUT WARRANTY OR ANY IMPLIED
WARRANTY OF MERCHANTABILITY OR FITNESS FOR THE INTENDED PURPOSE.
Installation of parts intended for "off-highway" use
could adversely affect the vehicle manufacturer's warranty coverage. |
Page 87

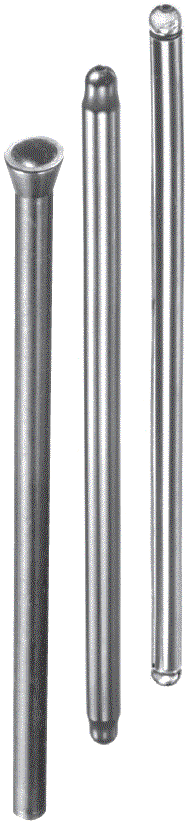

PUSHRODS
|
Small Block Chevrolet
Swedged End Pushrods
.080” Wall 1010 Steel• Heat treated and black
oxide finish
• For use in hydraulic lifter applications
with less than 400 lbs. open spring pressure and under 7500 rpm
Part No.
Your Cost |
Quantity |
Description |
Diameter |
Length |
|
25785-16 $100.38 |
16 pcs. |
SB Chevy - Stock Length |
5/16” |
7.794” |
|
25786-16 $100.38 |
16 pcs. |
SB Chevy - .100” Longer |
5/16” |
7.894” |
|
25717-16 $100.38 |
16 pcs. |
Late model 350 - Stock Length |
5/16” |
7.170” |
|
25719-16 $103.97 |
16 pcs. |
Late model 350 - .050” Longer |
5/16” |
7.220” |
P/N’s 25717 and 25719 are for late model OEM hydraulic
roller lifters.
Hardened guide plates P/N 42355 are required with aluminum heads. |
|
Small Block Chevrolet
Ball End Pushrods
.080” Wall 1010 Steel
4 Excellent pushrods for mildly modified engines
with open spring pressure under 300 lbs
Part No.
Your Cost |
Quantity |
Description |
Diameter |
Length |
|
25737-16 $107.84 |
16 pcs. |
SB Chevy - Stock Length |
5/16 |
7.794” |
|
25777-16 $107.84 |
16 pcs. |
SB Chevy - .100” Longer |
5/16 |
7.894” |
|
25790-16 $122.94 |
16 pcs. |
SB Chevy - .150” Longer |
5/16 |
7.944” |
|
|
Ford 5.0L
Swedged End Pushrods
.080” Wall 1010 Steel & 4130 Chrome Moly
4 Stock length pushrod for use with stock Ford valve ( 5.080”
O/A )
4 Use of Chevy valves ( O/A 4.911” ) in Ford heads requires
.172” shorter pushrods
|
Part No. |
Quantity |
Description |
Material |
Diameter |
Length |
|
25723-16 $100.38 |
16 pcs. |
Stock Length |
1010 |
5/16” |
6.272” |
|
25725-16 $90.77 |
16 pcs. |
.172” Shorter |
1010 |
5/16” |
6.100” |
|
25627-16 $205.88 |
16 pcs. |
Stock Length |
4130 |
5/16” |
6.272” |
|
25610-16 $205.88 |
16 pcs. |
.172” Shorter |
4130 |
5/16” |
6.100” |
|
Page 88
PUSHRODS
|
4130 Chrome Moly
Swedged End Pushrods
• Meticulously formed ends
with exact radii
• Excellent concentricity, closely
controlled length
• Heat treated and black oxide finished
• Private label programs available |
|
Length |
5/16” Dia.
.080” Wall
Part No.
Your Cost |
5/16” Dia.
.120” Wall
Part No.
Your Cost |
3/8” Dia.
.080” Wall
Part No.
Your Cost |
3/8” Dia.
.135” Wall
Part No.
Your Cost |
7/16” Dia.
.165” Wall
Part No.
Your Cost |
|
6.050 |
25605-16 $205.88 |
. |
. |
. |
. |
|
6.100 |
25610-16 $205.88 |
. |
. |
. |
. |
|
6.150 |
25615-16 $205.88 |
. |
. |
. |
. |
|
6.200 |
25620-16 $205.88 |
|
. |
. |
|
|
6.250 |
25625-16 $205.88 |
. |
. |
. |
. |
|
6.272 |
25627-16 $205.88 |
|
. |
. |
. |
|
6.300 |
25630-16 $205.88 |
25205-16 $277.74 |
. |
25305-8 $159.64 |
. |
|
6.350 |
25635-16 $205.88 |
25206-16 $277.74 |
. |
25306-8 $159.64 |
. |
|
6.400 |
25640-16 $205.88 |
25207-16 $277.74 |
. |
25307-8 $159.64 |
. |
|
6.450 |
|
25645-16 $205.88 |
|
25308-8 $159.64 |
|
|
6.500 |
|
25650-16 $205.88 |
25843-8 $123.96 |
25309-8 $159.64 |
|
|
6.550 |
|
25655-16 $205.88 |
25844-8 $123.96 |
|
|
|
6.600 |
25660-16 $205.88 |
25211-16 $277.74 |
25846-8 $123.96 |
|
|
|
6.650 |
25665-16 $205.88 |
25212-16 $277.74 |
25837-8 $123.96 |
|
|
|
6.700 |
25670-16 $205.88 |
25213-16 $277.74 |
25838-8 $123.96 |
|
|
|
6.750 |
25675-16 $205.88 |
25214-16 $277.74 |
25839-8 $123.96 |
|
|
|
6.800 |
25680-16 $205.88 |
25215-16 $277.74 |
25817-8 $123.96 |
|
|
|
6.850 |
25685-16 $205.88 |
25216-16 $277.74 |
25819-8 $123.96 |
25316-8 $159.64 |
|
|
6.875 |
25688-16 $205.88 |
|
|
|
|
|
6.900 |
25690-16 $205.88 |
25217-16 $277.74 |
25853-8 $123.96 |
25317-8 $159.64 |
|
|
6.950 |
25695-16 $205.88 |
25218-16 $277.74 |
25857-8 $123.96 |
25318-8 $159.64 |
|
|
7.000 |
25700-16 $205.88 |
25219-16 $277.74 |
25862-8 $123.96 |
25319-8 $159.64 |
|
|
7.050 |
25727-16 $205.88 |
25220-16 $277.74 |
25827-8 $123.96 |
. |
|
|
7.100 |
25729-16 $205.88 |
25221-16 $277.74 |
25829-8 $123.96 |
. |
|
|
7.150 |
25741-16 $205.88 |
25222-16 $277.74 |
25841-8 $123.96 |
. |
|
|
7.200 |
25733-16 $205.88 |
25223-16 $277.74 |
25872-8 $123.96 |
. |
|
|
7.250 |
25734-16 $205.88 |
25224-16 $277.74 |
25873-8 $123.96 |
|
|
|
7.275 |
25720-16 $205.88 |
|
|
|
|
|
Length |
5/16” Dia.
.080” Wall
Part No.
Your Cost |
5/16” Dia.
.120” Wall
Part No.
Your Cost |
3/8” Dia.
.080” Wall
Part No.
Your Cost |
3/8” Dia.
.135” Wall
Part No.
Your Cost |
7/16” Dia.
.165” Wall
Part No.
Your Cost |
|
7.300 |
25730-16 $205.88 |
25225-16 $277.74 |
25874-8 $123.96 |
|
|
|
7.325 |
25731-16 $205.88 |
|
|
|
|
|
7.350 |
25751-16 $205.88 |
25226-16 $277.74 |
25851-8 $123.96 |
|
|
|
7.375 |
25732-16 $205.88 |
|
|
|
|
|
7.400 |
25735-16 $205.88 |
25227-16 $277.74 |
25822-8 $123.96 |
|
|
|
7.425 |
25759-16 $205.88 |
- |
- |
- |
- |
|
7.450 |
25736-16 $205.88 |
25228-16 $277.74 |
25836-8 $123.96 |
25328-8 $159.64 |
- |
|
7.475 |
25760-16 $205.88 |
- |
- |
- |
- |
|
7.500 |
25754-16 $205.88 |
25229-16 $277.74 |
25854-8 $123.96 |
25329-8 $159.64 |
- |
|
7.525 |
25761-16 $205.88 |
- |
- |
- |
- |
|
7.550 |
25755-16 $205.88 |
25230-16 $277.74 |
25818-8 $123.96 |
25330-8 $159.64 |
- |
|
7.575 |
25778-16 $205.88 |
- |
- |
- |
- |
|
7.600 |
25767-16 $205.88 |
25231-16 $277.74 |
25876-8 $123.96 |
25331-8 $159.64 |
25174-8 $169.91 |
|
7.625 |
25775-16 $205.88 |
- |
25824-8 $123.96 |
- |
- |
|
7.650 |
25768-16 $205.88 |
25232-16 $277.74 |
25877-8 $123.96 |
25332-8 $159.64 |
25129-8 $169.91 |
|
7.675 |
- |
- |
25834-8 $123.96 |
- |
- |
|
7.700 |
25772-16 $205.88 |
25233-16 $277.74 |
25828-8 $123.96 |
25333-8 $159.64 |
25130-8 $169.91 |
|
7.725 |
- |
- |
25831-8 $123.96 |
- |
- |
|
7.750 |
25707-16 $205.88 |
25234-16 $277.74 |
25832-8 $123.96 |
25334-8 $159.64 |
25131-8 $169.91 |
|
7.775 |
- |
- |
25833-8 $123.96 |
- |
- |
|
7.800 |
25709-16 $205.88 |
25235-16 $277.74 |
25787-8 $123.96 |
25335-8 $159.64 |
25132-8 $169.91 |
|
7.825 |
25781-16 $205.88 |
25281-16 $277.74 |
25808-8 $123.96 |
- |
- |
|
7.850 |
25711-16 $205.88 |
25236-16 $277.74 |
25878-8 $123.96 |
25336-8 $159.64 |
25133-8 $169.91 |
|
7.875 |
- |
- |
25879-8 $123.96 |
- |
- |
|
7.900 |
25712-16 $205.88 |
25237-16 $277.74 |
25788-8 $123.96 |
25337-8 $159.64 |
25134-8 $169.91 |
|
7.925 |
- |
- |
25813-8 $123.96 |
- |
- |
|
7.950 |
25715-16 $205.88 |
25238-16 $277.74 |
25814-8 $123.96 |
25338-8 $159.64 |
25135-8 $169.91 |
|
7.975 |
- |
- |
25809-8 $123.96 |
- |
- |
|
8.000 |
25716-16 $205.88 |
25239-16 $277.74 |
25816-8 $123.96 |
25339-8 $159.64 |
25136-8 $169.91 |
|
8.025 |
|
|
25802-8 $123.96 |
|
|
|
8.050 |
25721-16 $205.88 |
25240-1 $17.36 |
25821-8 $123.96 |
25340-8 $159.64 |
25137-8 $169.91 |
|
8.075 |
|
|
25807-8 $123.96 |
|
|
|
Length |
5/16” Dia.
.080” Wall
Part No.
Your Cost |
5/16” Dia.
.120” Wall
Part No.
Your Cost |
3/8” Dia.
.080” Wall
Part No.
Your Cost |
3/8” Dia.
.135” Wall
Part No.
Your Cost |
7/16” Dia.
.165” Wall
Part No.
Your Cost |
|
8.100 |
25722-16 $205.88 |
25241-16 $277.74 |
25810-8 $123.96 |
25341-8 $159.64 |
25138-8 $169.91 |
|
8.125 |
|
|
25811-8 $123.96 |
|
|
|
8.150 |
25744-16 $205.88 |
25242-16 $277.74 |
25815-8 $123.96 |
25342-8 $159.64 |
25139-8 $169.91 |
|
8.175 |
|
|
25812-8 $123.96 |
|
|
|
8.200 |
25745-16 $205.88 |
|
25820-8 $123.96 |
25343-8 $159.64 |
25140-8 $169.91 |
|
8.225 |
|
|
25823-8 $123.96 |
|
|
|
8.250 |
25701-16 $205.88 |
|
25825-8 $123.96 |
25344-8 $159.64 |
25141-8 $169.91 |
|
8.275 |
25753-16 $205.88 |
|
|
25300-8 $159.64 |
|
|
8.280 |
|
|
25795-8 $123.96 |
|
25142-8 $169.91 |
|
8.300 |
25702-16 $205.88 |
|
25830-8 $123.96 |
25345-8 $159.64 |
25143-8 $169.91 |
|
8.325 |
25762-16 $205.88 |
|
25826-8 $123.96 |
|
|
|
8.350 |
25703-16 $205.88 |
|
25835-8 $123.96 |
25346-8 $159.64 |
25144-8 $169.91 |
|
8.375 |
25763-16 $205.88 |
|
|
|
|
|
8.380 |
|
|
25769-8 $123.96 |
|
|
|
8.400 |
25706-16 $205.88 |
|
25840-8 $123.96 |
25347-8 $159.64 |
25145-8 $169.91 |
|
8.425 |
25764-16 $205.88 |
|
25842-8 $123.96 |
|
|
|
8.450 |
25708-16 $205.88 |
|
25845-8 $123.96 |
25348-8 $159.64 |
25146-8 $169.91 |
|
8.475 |
|
|
25847-8 $123.96 |
|
|
|
8.500 |
25774-16 $205.88 |
|
25850-8 $123.96 |
25349-8 $159.64 |
25147-8 $169.91 |
|
8.525 |
|
|
25856-8 $123.96 |
|
|
|
8.550 |
25710-16 $205.88 |
|
25855-8 $123.96 |
25350-8 $159.64 |
25148-8 $169.91 |
|
8.575 |
|
|
25858-8 $123.96 |
|
|
|
8.600 |
25718-16 $205.88 |
|
25860-8 $123.96 |
25351-8 $159.64 |
25149-8 $169.91 |
|
8.625 |
|
|
25863-8 $123.96 |
|
|
|
8.650 |
25724-16 $205.88 |
|
25865-8 $123.96 |
25352-8 $159.64 |
25150-8 $169.91 |
|
8.680 |
|
|
25797-8 $123.96 |
|
25151-8 $169.91 |
|
8.700 |
25799-16 $205.88 |
|
25870-8 $123.96 |
25353-8 $159.64 |
25152-8 $169.91 |
|
8.725 |
|
|
25867-8 $123.96 |
|
|
|
Length |
5/16” Dia.
.080” Wall
Part No.
Your Cost |
5/16” Dia.
.120” Wall
Part No.
Your Cost |
3/8” Dia.
.080” Wall
Part No.
Your Cost |
3/8” Dia.
.135” Wall
Part No.
Your Cost |
7/16” Dia.
.165” Wall
Part No.
Your Cost |
|
8.750 |
25738-16 $205.88 |
|
25875-8 $123.96 |
25354-8 $159.64 |
25153-8 $169.91 |
|
8.775 |
|
|
25868-8 $123.96 |
|
|
|
8.800 |
25742-16 $205.88 |
|
25880-8 $123.96 |
25355-8 $159.64 |
25154-8 $169.91 |
|
8.825 |
|
|
25882-8 $123.96 |
|
|
|
8.850 |
25746-16 $205.88 |
|
25885-8 $123.96 |
25356-8 $159.64 |
25155-8 $169.91 |
|
8.875 |
|
|
25887-8 $123.96 |
|
|
|
8.900 |
25758-16 $205.88 |
|
25890-8 $123.96 |
25357-8 $159.64 |
25156-8 $169.91 |
|
8.925 |
|
|
25892-8 $123.96 |
|
|
|
8.950 |
25757-16 $205.88 |
|
25895-8 $123.96 |
25358-8 $159.64 |
25157-8 $169.91 |
|
8.975 |
|
|
25897-8 $123.96 |
|
|
|
9.000 |
25765-16 $205.88 |
|
25900-8 $123.96 |
25359-8 $159.64 |
25158-8 $169.91 |
|
9.025 |
|
|
25926-8 $123.96 |
|
|
|
9.050 |
25766-16 $205.88 |
|
25905-8 $123.96 |
25360-8 $159.64 |
25159-8 $169.91 |
|
9.075 |
|
|
25927-8 $123.96 |
|
|
|
9.100 |
25776-16 $205.88 |
|
25910-8 $123.96 |
25361-8 $159.64 |
25160-8 $169.91 |
|
9.125 |
|
|
25928-8 $123.96 |
|
|
|
9.150 |
25791-16 $205.88 |
|
25915-8 $123.96 |
25362-8 $159.64 |
25161-8 $169.91 |
|
9.175 |
|
|
25929-8 $123.96 |
|
|
|
9.200 |
25792-16 $205.88 |
|
25920-8 $123.96 |
25363-8 $159.64 |
25162-8 $169.91 |
|
9.250 |
25800-16 $205.88 |
|
25796-8 $123.96 |
25364-8 $159.64 |
25163-8 $169.91 |
|
9.300 |
25801-16 $205.88 |
|
25930-8 $123.96 |
25365-8 $159.64 |
25164-8 $169.91 |
|
9.350 |
25803-16 $205.88 |
|
25770-8 $123.96 |
25366-8 $159.64 |
25165-8 $169.91 |
|
9.400 |
25804-16 $205.88 |
|
25940-8 $123.96 |
25367-8 $159.64 |
25166-8 $169.91 |
|
9.450 |
25805-16 $205.88 |
|
25945-8 $123.96 |
25368-8 $159.64 |
25167-8 $169.91 |
|
9.500 |
25806-16 $205.88 |
|
25950-8 $123.96 |
25369-8 $159.64 |
25168-8 $169.91 |
|
9.550 |
25848-16 $205.88 |
|
25955-8 $123.96 |
25370-8 $159.64 |
25169-8 $169.91 |
|
9.600 |
25849-16 $205.88 |
|
25960-8 $123.96 |
25371-8 $159.64 |
25170-8 $169.91 |
|
9.650 |
|
|
25798-8 $123.96 |
25372-8 $159.64 |
25171-8 $169.91 |
|
9.700 |
25859-16 $205.88 |
|
25970-8 $123.96 |
25373-8 $159.64 |
25172-8 $169.91 |
|
9.750 |
|
|
25975-8 $123.96 |
25374-8 $159.64 |
25173-8 $169.91 |
|
9.800 |
25864-16 $205.88 |
|
25980-8 $123.96 |
25375-8 $159.64 |
25175-8 $169.91 |
Page 89
PUSHRODS
4130 Chrome Moly
Swedged End Pushrods
• Meticulously formed ends with exact radii
• Excellent concentricity, closely controlled length
• Heat treated and black oxide finished
• Private label programs available
|
Length |
5/16” Dia.
.080” Wall
Part No.
Your Cost |
5/16” Dia.
.120” Wall
Part No.
Your Cost |
3/8” Dia.
.080” Wall
Part No.
Your Cost |
3/8” Dia.
.135” Wall
Part No.
Your Cost |
7/16” Dia.
.165” Wall
Part No.
Your Cost |
|
9.850 |
|
|
25985-8 $123.96 |
25376-8 $159.64 |
25176-8 $169.91 |
|
9.900 |
25869-16 $205.88 |
|
25990-8 $123.96 |
25377-8 $159.64 |
25177-8 $169.91 |
|
9.950 |
|
|
25995-8 $123.96 |
25378-8 $159.64 |
25178-8 $169.91 |
|
10.000 |
|
|
25906-8 $123.96 |
25379-8 $159.64 |
25179-8 $169.91 |
|
10.050 |
|
|
25907-8 $123.96 |
25380-8 $159.64 |
25100-8 $169.91 |
|
10.075 |
|
|
|
|
25101-8 $169.91 |
|
10.100 |
|
|
25901-8 $123.96 |
25381-8 $159.64 |
25102-8 $169.91 |
|
10.125 |
|
|
|
|
25103-8 $169.91 |
|
10.150 |
|
|
25908-8 $123.96 |
25382-8 $159.64 |
25104-8 $169.91 |
|
10.200 |
|
|
25909-8 $123.96 |
25383-8 $159.64 |
25123-8 $169.91 |
|
10.250 |
|
|
25911-8 $123.96 |
25384-8 $159.64 |
25124-8 $169.91 |
|
10.300 |
|
|
25912-8 $123.96 |
25385-8 $159.64 |
25105-8 $169.91 |
|
10.325 |
|
|
- |
- |
25106-8 $169.91 |
|
10.350 |
|
|
25913-8 $123.96 |
25386-8 $159.64 |
25125-8 $169.91 |
|
10.400 |
|
|
25902-8 $123.96 |
25387-8 $159.64 |
25126-8 $169.91 |
|
10.450 |
|
|
25914-8 $123.96 |
25388-8 $159.64 |
25107-8 $169.91 |
|
10.475 |
|
|
|
|
25108-8 $169.91 |
|
10.500 |
|
|
25903-8 $123.96 |
25389-8 $159.64 |
25109-8 $169.91 |
|
10.525 |
|
|
|
|
25110-8 $169.91 |
|
10.550 |
|
|
25916-8 $123.96 |
25390-8 $159.64 |
25111-8 $169.91 |
|
10.575 |
|
|
|
|
25112-8 $169.91 |
|
10.600 |
|
|
25917-8 $123.96 |
25391-8 $159.64 |
25113-8 $169.91 |
|
10.625 |
|
|
|
|
25114-8 $169.91 |
|
10.650 |
|
|
25918-8 $123.96 |
25392-8 $159.64 |
25119-8 $169.91 |
|
10.700 |
|
|
25919-8 $123.96 |
25393-8 $159.64 |
25120-8 $169.91 |
|
10.750 |
|
|
25921-8 $123.96 |
25394-8 $159.64 |
25121-8 $169.91 |
|
10.800 |
|
|
25922-8 $123.96 |
25395-8 $159.64 |
25127-8 $169.91 |
|
10.850 |
|
|
25923-8 $123.96 |
25396-8 $159.64 |
25115-8 $169.91 |
|
10.875 |
|
|
|
|
25116-8 $169.91 |
|
10.900 |
|
|
25924-8 $123.96 |
25397-8 $159.64 |
25117-8 $169.91 |
|
10.925 |
|
|
|
|
25118-8 $169.91 |
|
10.950 |
|
|
25925-8 $123.96 |
25398-8 $159.64 |
25122-8 $169.91 |
|
11.000 |
|
|
25904-8 $123.96 |
25399-8 $159.64 |
25128-8 $169.91 |
|
11.050 |
|
|
- |
- |
25180-8 $169.91 |
|
11.100 |
|
|
- |
- |
25181-8 $169.91 |
|
11.150 |
|
|
- |
- |
25182-8 $169.91 |
|
11.200 |
|
|
- |
- |
25183-8 $169.91 |
|
11.250 |
|
|
- |
- |
25184-8 $169.91 |
|
11.300 |
|
|
- |
- |
25185-8 $169.91 |
|
11.350 |
|
|
- |
- |
25186-8 $169.91 |
|
11.400 |
|
|
- |
- |
25187-8 $169.91 |
|
11.450 |
|
|
- |
- |
25188-8 $169.91 |
|
11.500 |
|
|
- |
- |
25189-8 $169.91 |
|
11.550 |
|
|
- |
- |
25190-8 $169.91 |
|
11.600 |
|
|
- |
- |
25191-8 $169.91 |
|
11.650 |
|
|
- |
- |
25192-8 $169.91 |
|
11.700 |
|
|
- |
- |
25193-8 $169.91 |
|
11.750 |
|
|
- |
- |
25194-8 $169.91 |
|
11.800 |
|
|
- |
- |
25195-8 $169.91 |
|
11.850 |
|
|
- |
- |
25196-8 $169.91 |
|
11.900 |
|
|
- |
- |
25197-8 $169.91 |
|
11.950 |
|
|
- |
- |
25198-8 $169.91 |
|
12.000 |
|
|
- |
- |
25199-8 $169.91 |
|
12.050 |
|
|
- |
- |
25200-8 $169.91 |
|
12.100 |
|
|
- |
- |
25201-8 $169.91 |
|
12.150 |
- |
- |
- |
- |
25202-8 $169.91 |
3/8” .080” WALL |
3/8” .135” WALL |
7/16” .165” WALL |
Common 5/16” Pushrod
Length Applications
.080” Wall Part No.
Your Cost |
.120” Wall
Part No.
Your Cost |
Description |
Length |
|
SMALL BLOCK CHEVY |
|
25709-16 $205.88 |
25235-16 $277.74 |
265-350 Stock |
7.800” |
|
25711-16 $205.88 |
25236-16 $277.74 |
.050” Longer |
7.850” |
|
25712-16 $205.88 |
25237-16 $277.74 |
.100” Longer |
7.900” |
|
25733-16 $205.88 |
25223-16 $277.74 |
Late Model 350 |
7.200” |
|
25735-16 $205.88 |
25227-16 $277.74 |
LS Stock |
7.400” |
|
25711-16 $205.88 |
25236-16 $277.74 |
LT1 (2014-Up) Stock |
7.850” |
|
CHRYSLER / DODGE 5.7L HEMI (Thru 2008) |
|
26570 $205.88 |
26571 $277.74 |
5.7L HEMI |
Stock Length |
|
|
|
Includes 8 Intakes |
Int. 6.600” |
|
|
|
and 8 Exhausts |
Exh. 7.825” |
|
CHRYSLER / DODGE SRT-8 6.1L HEMI |
|
26610 $205.88 |
26611 $277.74 |
SRT-8 6.1L HEMI |
Stock Length |
|
. |
. |
Includes 8 Intakes |
Int. 6.650” |
|
. |
. |
and 8 Exhausts |
Exh. 7.850” |
|
CHRYSLER / DODGE 5.7L HEMI (2009-Up) &
6.4L |
|
26640 $205.88 |
26641 $277.74 |
5.7L/6.4L HEMI |
Length |
|
Includes 8 Intakes and 8 Exhausts +.025” lengths
for smaller base circle aftermarket cams |
Int. 6.800” |
|
Exh. 8.100” |
|
SMALL BLOCK FORD |
|
25627-16 $205.88 |
- - - - - - - |
Stock 5.0 L |
6.272” |
|
25744-16 $205.88 |
25242-16 $277.74 |
Stock 351 W |
8.150” |
|
25706-16 $205.88 |
- - - - - - - |
Stock 351 C |
8.400” |
|
25710-16 $205.88 |
- - - - - - - |
Yates +.150” |
8.550” |
|
Common 3/8” Pushrod Length Applications |
- |
.080” Wall Part No.
Your Cost |
.135” Wall
Part No.
Your Cost |
Description |
Length |
|
SMALL BLOCK CHEVY |
|
25787-8 $123.96 * |
25335-8 $159.64 * |
Stock & Stock LS-7 |
7.800” |
|
25788-8 $123.96 * |
25337-8 $159.64 * |
.100” Longer |
7.900” |
|
BIG BLOCK CHEVY |
|
25795-8 $123.96 |
- - - - - - - |
Stock Intake |
8.280” |
|
25796-8 $123.96 |
25364-8 $159.64 |
Stock Exhaust |
9.250” |
|
25797-8 $123.96 |
- - - - - - - |
.400” Longer Int. |
8.680” |
|
25798-8 $123.96 |
25372-8 $159.64 |
.400” Longer Exh. |
9.650” |
|
SMALL BLOCK FORD |
|
25815-8 $123.96 * |
25342-8 $159.64 * |
Stock 351 W |
8.150” |
|
25840-8 $123.96 * |
25347-8 $159.64 * |
Stock 351 C |
8.400” |
|
25855-8 $123.96 * |
25350-8 $159.64 * |
Yates +.150” |
8.550” |
* You must order 2 sets of 8 pieces for a complete engine. |
Page 90
Chrysler - Ford - Pontiac - Holden Push Rods
PUSHRODS
• Cup and tip pushrods and ball end pushrods manufactured
of 1010 steel
• Swedged end pushrods manufactured
of 4130 chrome moly
• All pushrods are heat treated and
black oxide finished |
.080" Wall
Part No.
Your Cost |
.120" Wall
Part No.
Your Cost |
Description |
Type |
Dia. |
Length |
|
CHRYSLER / DODGE ENGINES |
|
26570 $205.88 |
26571 $277.74 |
5.7 L HEMI (Thru 2008) |
Swedged |
5/16” |
Stock |
|
Includes 8 Intakes and 8 Exhausts |
. |
Int. 6.600”
Exh. 7.825” |
|
26610 $205.88 |
26611 $277.74 |
SRT-8 6.1 L HEMI |
Swedged |
5/16” |
Stock |
|
Includes 8 Intakes and 8 Exhausts |
. |
Int. 6.650”
Exh. 7.850” |
|
26640 $205.88 |
26641 $277.74 |
5.7 L HEMI (2009-Up) & 6.4 L HEMI |
Swedged |
5/16” |
- |
|
Includes 8 Intakes and 8 Exhausts +.025” lengths for smaller
base circle aftermarket cams |
|
Int. 6.800”
Exh. 8.100” |
|
25743-16 $205.88 |
- - - - - - - |
440 Chrysler w/ adjustable rockers and solid lifters |
Cup & Tip |
3/8” |
9.295” |
|
25756-16 $205.88 |
- - - - - - - |
440 Chrysler w/ adjustable rockers and hyd. lifters |
Cup & Tip |
3/8” |
8.995” |
|
FORD ENGINES |
|
25704-16 $112.33 |
- - - - - - - |
260-289-302 Ford |
Ball End |
5/16” |
6.776” |
|
25728-16 $247.93 |
25333-8 $159.64 *
(.135” Wall) |
302 Boss Ford converted to use 42156 guide plates |
Swedged |
3/8” |
7.700” |
|
25748-16 $112.33 |
- - - - - - - |
302W Ford - all engines after 10-21-68 |
Ball End |
5/16 |
6.886” |
|
25705-16 $225.71 |
- - - - - - - |
332-428 Ford with adjustable rocker arms |
Cup & Tip |
11/32” |
9.157” |
|
25747-16 $112.33 |
- - - - - - - |
351W Ford |
Ball End |
5/16” |
8.150” |
|
25744-16 $205.88 |
25242-16 $277.74 |
351W Ford |
Swedged |
5/16 |
8.150” |
|
25750-16 $112.33 |
- - - - - - - |
351C Ford - not Boss |
Ball End |
5/16” |
8.408” |
|
25752-16 $247.93 |
25347-8 $159.64 *
(.135” Wall) |
351C Ford - not Boss |
Swedged
|
3/8” |
8.408” |
|
25779-16 $247.93 |
25369-8 $159.64 *
(.135” Wall) |
351M-400 Ford |
Swedged
|
3/8 |
9.500” |
|
25789-16 $115.16 |
- - - - - - - |
429-460 Ford |
Ball End |
5/16” |
8.550” |
|
25782-16 $247.93 |
25350-8 $159.64 *
(.135” Wall) |
429-460 Ford |
Swedged
|
3/8” |
8.550” |
|
PONTIAC ENGINES |
|
25726-16 $112.33 |
- - - - - - - |
400-428-455 Pontiac |
Ball End |
5/16” |
9.130” |
|
HOLDEN ENGINES |
|
25773-16 $66.46 |
- - - - - - - |
Holden V-8 |
Ball End |
5/16” |
8.670” |
* You must order 2 sets of 8 pieces for a complete engine.
Page 59
Steel Push Rod Guide Plates
• Meticulously
crafted stamping
• Heat treated
and black oxide finished
Small Block Chevrolet
Raised Guide Plate
Part No.
Your Cost |
Quantity |
Description |
Slots |
Pushrods |
|
42151-8 $29.58 |
8 pcs. |
Small Block Chevy |
On-Center |
5/16” |
|
42150-8 $38.31 |
8 pcs. |
Small Block Chevy |
On-Center |
3/8” |
|
Small Block Chevrolet
Flat Guide Plate
Part No.
Your Cost |
Quantity |
Description |
Slots |
Pushrods |
|
42355-8 $24.26 |
8 pcs. |
Small Block Chevy |
On-Center |
5/16” |
|
42356-8 $38.31 |
8 pcs. |
Small Block Chevy |
On-Center |
3/8” |
|
Big Block Chevrolet
Part No.
Your Cost |
Quantity |
Description |
Pushrods |
|
42164-8 $54.76 |
8 pcs. |
Big Block Chevy |
3/8” |
|
42149-8 $54.76 |
8 pcs. |
Big Block Chevy |
7/16” |
|
Ford 289 - 302 - 351W
Pre 1977 Heads
Part No.
Your Cost |
Quantity |
Description |
Pushrods |
|
42152-8 $29.58 |
8 pcs. |
289, 302 W, 351 W Ford |
5/16” |
|
Ford 302 Boss - 351C
With Modified Heads
Part No.
Your Cost |
Quantity |
Description |
Pushrods |
|
42163-8 $48.44 |
8 pcs. |
302 Boss, 351 C Modified |
5/16” |
|
42156-8 $48.44 |
8 pcs. |
302 Boss, 351 C Modified |
3/8” |
|
|
To convert Ford 351C engines to adjustable rocker arms and
pushrod guide plates, machine the old rocker stanchions down
to a height of .550” as measured from the adjacent head
bolt spot face with cutter 41860 $142.07 . Drill and tap the
old screw hole to accept stud 42277 . |
Ford 429 - 460
Part No.
Your Cost |
Quantity |
Description |
Pushrods |
|
42166-8 $54.76 |
8 pcs. |
429, 460 Ford |
5/16” |
|
42160-8 $54.76 |
8 pcs. |
429, 460 Ford |
3/8” |
|
Pages 60 & 61
FASTENERS

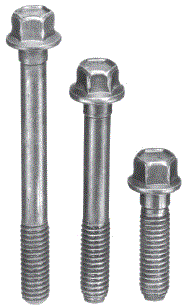

Superior Head Bolts
• 180,000 psi tensile strength
• Longer than stock for use with washers
• Improved wrenchability with 1/2¨
hex head
Part No.
Your Cost |
Quantity |
Description |
|
42193 $28.84 |
set for 1 head |
Chevrolet V-6 |
|
42171 $38.08 |
set for 1 head |
SB Chevy V-8 |
|
42312 $38.08 |
set for 1 head |
SB Chevy, Brodix - 12 and Pontiac 10093328 castings |
|
42313 $38.08 |
set for 1 head |
SB Chevy, Brodix aluminum and Pontiac 10033867 |
|
42170 $38.08 |
set for 1 head |
BB Chevy |
|
42180 $38.08 |
set for 1 head |
BB Chevy with Dart Pro 1 heads |
|
42192 $38.08 |
set for 1 head |
BB Chevy with Brodix heads, Merlin II Aluminum |
|
42322 $38.08 |
set for 1 head |
BB Chevy with Chevy Bow Tie, Dart Aluminum and Merlin heads |
|
42178 $38.08 |
set for 1 head |
Chrysler 383-440 |
|
42198 $38.08 |
set for 1 head |
Indy Cylinder Head 440-1 BB Chrysler head |
|
Hardened Head Bolt Washers
• Special heat treatment to
prevent galling
Part No.
Your Cost |
Quantity |
Description |
|
42102 $15.70 |
34 pcs. |
All Chevys, 289-351 Fords, .760” O.D., 7/16” I.D.,
.125” thick |
|
42127 $20.78 |
20 pcs. |
All Chryslers, Pontiacs, 390-427 Fords, .875” O.D., 1/2”
I.D., .105” thick |
|
42136 $37.27 |
34 pcs. |
Ideal washers for aluminum heads. 7/16” I.D. but larger
.935” O.D.
for better fit in aftermarket aluminum heads, .125” thick |
|

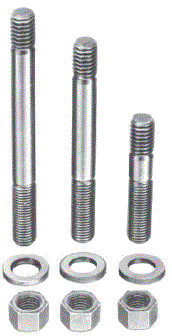

Cylinder Head Stud Kits
• Special heat treatment to
prevent galling
• Premium grade 8740 chrome moly
alloy
• 200,000 psi tensile strength
• Kit includes studs, washers and
nuts
Part No.
Your Cost |
Quantity |
Description |
|
42190 |
1 set for 1 engine |
SB Chevy OEM cast iron and aluminum
Brodix -8, -10, -11, Track 1, Dart Sportsman and Dart II |
|
42283 |
1 set for 1 engine |
BB Chevy with Dart and Chevy Bow Tie heads flat milled |
|
42284 |
1 set for 1 engine |
BB Chevy with Brodix heads flat milled |
|
42191 |
1 set for 1 engine |
BB Chevy with non Bow Tie heads flat milled |
|
42197 |
1 set for 1 engine |
Ford 4.6L 2 valve and 4 valve heads |
|
7/16” Cylinder Head Stud Nuts
Part No.
Your Cost |
Quantity |
Description |
|
42279-4 |
4 pcs. |
Hex head stud nut for all Chevrolets and 4.6L Fords |
|
42289-4 |
4 pcs. |
12 point stud nut for all Chevrolets and 4.6L Fords |
|
Hex Head Intake Manifold Bolts
• P/N 42175 $21.30 and 42176 $15.97
have gold irridite finished bolts and hardened washers
• P/N 42177 $11.99 has black oxide
finished bolts and hardened washers |
Part No.
Your Cost |
Quantity |
Description |
Underhead Length |
|
42176 $15.97 |
1 set |
Small Block Chevrolet |
1.250” |
|
42177 $11.99 |
1 set |
Small Block Chevrolet using thin casting hi-rise manifolds |
1.000” |
|
42175 $21.30 |
1 set |
Big Block Chevrolet |
1.250” |
|
42294-16 $6.47 |
16 pcs. |
Hardened washers for 42175 $21.30 & 42176 $15.97 bolts. .100”
thick. Gold Irridite |
|
|
42299-16 $18.47 |
16 pcs. |
Hardened washers for 42177 $11.99 bolts. .125” thick. Black
oxide |
|
12 Point Head Intake Manifold Bolts
• Bolts and washers with gold
irridite finish
• Shipped with hardened washers
Part No.
Your Cost |
Quantity |
Description |
Underhead Length |
|
42292 $26.55 |
1 set |
Small Block Chevrolet, Chrysler “A” and “B”
engines |
1.125” |
|
42291 $26.55 |
1 set |
Big Block Chevrolet using thin casting hi-rise manifolds |
1.125” |
|
42294-16 $6.47 |
16 pcs. |
Hardened washers for above bolts. .100” thick. Gold Irridite |
. |
|
Hard To Find “AN” Washers
• .060¨ thick
|
Part No. |
Quantity |
I.D. |
O.D. |
|
42194 $4.17 |
12 pcs |
5/16” |
9/16” |
|
42195 $4.85 |
12 pcs |
3/8” |
5/8” |
|
42196 $4.85 |
12 pcs |
7/16” |
3/4” |
|
Front Timing Cover Bolts
• Special flange for greater
§wrenchability¨
• Integral lock washer
Part No.
Your Cost |
Quantity |
Description |
|
42174 $5.02 |
1 set |
Small and Big Block Chevys-black oxide |
|
42179 $5.78 |
1 set |
Small and Big Block Chevys-gold irridite |
|
|
Oil Pan Bolts
• Special flange for greater
§wrenchability¨
• Integral lock washer
Part No.
Your Cost |
Quantity |
Description |
|
42173 $7.21 |
1 set |
Small Block Chevrolet - black oxide |
|
42189 $10.73 |
1 set |
Small Block Chevrolet - gold irridite |
|
42172 $8.36 |
1 set |
Big Block Chevrolet - black oxide |
|
42188 $11.43 |
1 set |
Big Block Chevrolet - gold irridite |
|
Page 91
CAMSHAFT SPACERS & MORE
Roller Thrust Buttons
• Prevents camshaft from walking
forward in the block
• Some Small Block Chevys require
the center hole in the cam sprocket
to be enlarged to .875¨ diameter |
|
Part No. |
Quantity |
Description |
|
42111 $13.96 |
1 |
Small Block Chevrolet w/ early ( up to 1978 ) timing cover. Length
.850” |
|
42113 $13.96 |
1 |
Small Block Chevrolet w/ late “short style” ( 1979/up
) timing cover. Length .690” |
|
42145 $13.96 |
1 |
Big Block Chevrolet. Length .950” |
Aluminum Camshaft Spacers
• An excellent economical answer
to the problem of camshaft "walk"
• Some Small Block Chevys require
the center hole in the cam sprocket
to be enlarged to .875¨ diameter |
Part No.
Your Cost |
Quantity |
Description |
|
42146 $5.59 |
1 |
Small Block Chevrolet w/ early ( up to 1978 ) timing cover. Length
.830” |
|
42144 $5.59 |
1 |
Small Block Chevrolet w/ late “short style” ( 1979/up
) timing cover. Length .690” |
|
42116 $5.59 |
1 |
Big Block Chevrolet. Length .950” |
Camshaft Lock Plate
• Positively secures sprocket
bolts in place
• Bendable tabs. Grade 8 camshaft
bolts |
Part No.
Your Cost |
Quantity |
Description |
|
42114 $3.15 |
1 kit |
SB and BB Chevrolet |
Oil Pump Stud & “Drive” Shafts
• An oil pump stud is the professional
way to secure your oil pump to the rear main cap
• Precision manufactured pump drive
shafts |
Part No.
Your Cost |
Quantity |
Description |
Application |
|
42339 $18.02 |
1 |
Oil pump stud |
Fits all Chevys |
|
42328 $24.66 |
1 |
Oil pump drive shaft |
SB Chevy and 90° V-6 |
|
42329 $18.55 |
1 |
Oil pump drive shaft |
BB Chevy |
|
|
Chevrolet Lightweight Fuel Pump Pushrod |
Part No.
Your Cost |
Quantity |
Description |
|
42236 $37.21 |
1 |
Fits Small and Big Block Chevrolet |
A stock Chevrolet fuel pump can “float
“ at high engine speeds just like a heavy intake valve.
A lightweight fuel pump pushrod helps a mechanical fuel pump
do its job when the tach climbs past 6000 rpm. Made from 4130
chrome moly steel tubing.
|
Oil Restrictor Kit
• Carefully machined for exact
fit
• The .060¡¨ orifice
precisely meters oil flow to the engine
• Spare ¨O¨ rings included
|
Part No. |
Quantity |
Material |
Description |
|
42237-2 |
Set of 2 |
Aluminum |
Fits non Bow Tie Chevys. Hex Head |
|
42238-2 |
Set of 2 |
Stainless |
Fits all Chevys including Bow Tie and RocketBlock. Recessed Allen
head |
Lifter Valley Breather Tubes
Part No.
Your Cost |
Quantity |
Description |
|
42235-8 $38.96 |
8 pcs. |
Fits all Chevrolets |
|
• Eliminates excessive oil drain
back while maintaining proper ventilation
• 1/4¨ NPT Thread Size |
Top of page
HOME
