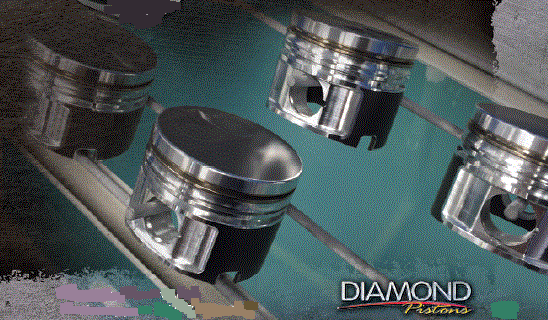

DIAMOND FORGED Street
& RACE PISTONS
Street & Strip: Small Block Mopar, Big Block Mopar & Hemi, GM Ecotec, Sport Compact - Ford, Honda, Subaru, Mitsubishi, Toyota, Nissan & NHRA Legal |
Wrist Pins | |
8620 Series | 164 |
H-13 Series | 166 |
TP-1 Series | 170 |
Wrist Pin Retaining Locks | 171 |
Ringsets | |
Pro-Select Ringsets | 172 |
Piston Ring Installation Guidelines | 185 |
Support Rails | |
Oil Ring Support Rails | 186 |
Tools | |
Piston Checking Fixture | 188 |
Chamber Mold Kit | |
Precision Ring Filer–110V 1/15HP | 188 |
Assembly Lube 8oz | 189 |
Total Seal Quickseat | 189 |
Piston Ring Expander | 189 |
Tapered Ring Compressors | 190 |
Tech Help | |
Piston Orientation Diagrams | 191 |
Custom Capabilities | 194 |
Comp. Ratios Explained | 196 |
Automath Formulas | 197 |
Forms | |
Custom Pistons Options Listings | 198 |
318 Block: 3.910 Std Bore 3.310 Std Stroke |
|
- | |||||||||
Bore | Stroke | Rod | C.D. | Wht. | Pin | CC's | 63cc | 65cc | 70cc | Ring Set | Part # ea. |
3.940 | 4.000 | 6.123 | 1.457 | 480 | .984 x 2.750 | -5.4cc | 10.7 | 10.5 | 10.0 | 09023940 $183.74 | 50001 $158.76 |
Small Block Mopar
340 STREET/STRIP
FLAT TOP SERIES
3D milling on piston crowns for ready to install finish
Valve pockets designed to work with oem and most aftermarket
cylinder head
Top ring down dimension: .310"
Ratios figured for .040 head gasket @ 9.600 Deck
Standard 1/16 x 1/16 x 3/16 ring package
Premium 8620 .155W wrist pins included
Valve pocket depth: 0.292" intake and .224" exhaust
Will work with up to a intake valve size of 2.070"
and exhaust valve size of 1.625"
Made from 4032 alloy
340 Block: 4.040 Std Bore 3.310 Std Stroke | Comp. Ratio | - | |||||||||
Bore | Stroke | Rod | C.D. | Wht. | Pin | CC's | 63cc | 65cc | 70cc | Ring Set | Part # ea. |
4.070 | 3.310 | 6.123 | 1.802 | 578 | .984 x 2.750 | -5.6cc | 9.5 | 9.3 | 8.8 | 09024070 $183.74 | 51001 $158.76 |
4.040 | 4.000 | 6.123 | 1.457 | 508 | .984 x 2.750 | -5.6cc | 11.1 | 10.9 | 10.3 | 09024040 $183.74 | 51005 $158.76 |
4.070 | 4.000 | 6.123 | 1.457 | 517 | .984 x 2.750 | -5.6cc | 11.3 | 11.0 | 10.5 | 09024070 $183.74 | 51007 $158.76 |
4.080 | 4.000 | 6.123 | 1.457 | 521 | .984 x 2.750 | -5.6cc | 11.4 | 11.1 | 10.5 | 09024080 $183.74 | 51010 $158.76 |
4.100 | 4.000 | 6.123 | 1.457 | 527 | .984 x 2.750 | -5.6cc | 11.4 | 11.2 | 10.6 | 09024100 $183.74 | 51013 $158.76 |
4.070 | 4.000 | 6.125 | 1.457 | 519 | .927 x 2.750 | -5.6cc | 11.3 | 11.1 | 10.5 | 09024070 $183.74 | 51008 $158.76 |
4.080 | 4.000 | 6.125 | 1.457 | 523 | .927 x 2.750 | -5.6cc | 11.4 | 11.1 | 10.6 | 09024080 $183.74 | 51009 $158.76 |
Page 125
Small Block Mopar 360 STREET/STRIP
FLAT TOP SERIES
3D milling on piston crowns for ready to install finish
Valve pockets designed to work with oem and most aftermarket
cylinder heads
Top ring down dimension: .310"
Ratios figured for .040 head gasket @ 9.600 Deck
Standard 1/16 x 1/16 x 3/16 ring package
Premium 8620 .155W wrist pins included
Valve pocket depth: 0.292" intake and .224" exhaust
Will work with up to a intake valve size of 2.070"
and exhaust valve size of 1.625"
Made from 4032 alloy
360 Block: 4.000 Std Bore 3.580 Std Stroke | Comp. Ratio | - | |||||||||
Bore | Stroke | Rod | C.D. | Wht. | Pin | CC's | 63cc | 65cc | 70cc | Ring Set | Part # ea. |
4.030 | 3.580 | 6.123 | 1.667 | 541 | .984 x 2.750 | -5.6cc | 10.0 | 9.8 | 9.3 | 09024030 $183.74 | 51021 $158.76 |
4.040 | 3.580 | 6.123 | 1.667 | 545 | .984 x 2.750 | -5.6cc | 10.1 | 9.9 | 9.4 | 09024040 $183.74 | 51022 $158.76 |
4.060 | 3.580 | 6.123 | 1.667 | 551 | .984 x 2.750 | -5.6cc | 10.2 | 9.9 | 9.4 | 09024060 $183.74 | 51023 $158.76 |
4.020 | 4.000 | 6.123 | 1.457 | 501 | .984 x 2.750 | -5.6cc | 11.0 | 10.8 | 10.3 | 09024020 $183.74 | 51025 $158.76 |
4.030 | 4.000 | 6.123 | 1.457 | 504 | .984 x 2.750 | -5.6cc | 11.1 | 10.8 | 10.3 | 09024030 $183.74 | 51026 $158.76 |
4.060 | 4.000 | 6.123 | 1.457 | 514 | .984 x 2.750 | -5.6cc | 11.2 | 11.0 | 10.4 | 09024060 $183.74 | 51028 $158.76 |
4.030 | 4.000 | 6.125 | 1.457 | 506 | .927 x 2.750 | -5.6cc | 11.1 | 10.9 | 10.3 | 09024030 $183.74 | 51027 $158.76 |
Page 126
Small Block Mopar 318 STREET/STRIP DISH
SERIES
3D milling on piston crowns for ready to install finish
Valve pockets designed to work with oem and most aftermarket
cylinder heads
Top ring down dimension: .310"
Ratios figured for .040 head gasket @ 9.600 Deck
Standard 1/16 x 1/16 x 3/16 ring package
Premium 8620 .155W wrist pins included
Valve pocket depth: 0.292" intake and .224" exhaust
Will work with up to a intake valve size of 2.070"
and exhaust valve size of 1.625"
Made from 4032 alloy
318 Block: 3.910 Std Bore 3.310 Std Stroke |
|
- | |||||||||
Bore | Stroke | Rod | C.D. | Wht. | Pin | CC's | 63cc | 65cc | 70cc | Ring Set | Part # ea. |
3.940 | 4.000 | 6.123 | 1.457 | 486 | .984 x 2.750 | -16.9cc | 9.5 | 9.4 | 9.0 | 09023940 $183.74 | 50010 $158.76 |
Small Block Mopar
340 STREET/STRIP DISH SERIES
3D milling on piston crowns for ready to install finish
Valve pockets designed to work with oem and most aftermarket
cylinder heads
Top ring down dimension: .310"
Ratios figured for .040 head gasket @ 9.600 Deck
Standard 1/16 x 1/16 x 3/16 ring package
Premium 8620 .155W wrist pins included
Valve pocket depth: 0.292" intake and .224" exhaust
Will work with up to a intake valve size of 2.070"
and exhaust valve size of 1.625"
Made from 4032 alloy
340 Block: 4.040 Std Bore 3.310 Std Stroke |
|
- | |||||||||
Bore | Stroke | Rod | C.D. | Wht. | Pin | CC's | 63cc | 65cc | 70cc | Ring Set | Part # ea. |
4.070 | 4.000 | 6.123 | 1.457 | 517 | .984 x 2.750 | -9.3cc | 10.8 | 10.6 | 10.1 | 09024070 $183.74 | 51411 $158.76 |
4.070 | 4.000 | 6.123 | 1.457 | 521 | .984 x 2.750 | -21.5cc | 9.6 | 9.5 | 9.1 | 09024070 $183.74 | 51409 $158.76 |
4.080 | 4.000 | 6.123 | 1.457 | 524 | .984 x 2.750 | -21.5cc | 9.7 | 9.5 | 9.1 | 09024080 $183.74 | 51412 $158.76 |
4.100 | 4.000 | 6.123 | 1.457 | 530 | .984 x 2.750 | -21.5cc | 9.7 | 9.6 | 9.2 | 09024100 $183.74 | 51416 $158.76 |
4.070 | 4.000 | 6.125 | 1.457 | 523 | .927 x 2.750 | -21.5cc | 9.7 | 9.5 | 9.1 | 09024070 $183.74 | 51410 $158.76 |
4.080 | 4.000 | 6.125 | 1.457 | 526 | .927 x 2.750 | -21.5cc | 9.7 | 9.5 | 9.1 | 09024080 $183.74 | 51413 $158.76 |
Page 127
Small Block Mopar 360 STREET/STRIP DISH
SERIES
3D milling on piston crowns for ready to install finish
Valve pockets designed to work with oem and most aftermarket
cylinder heads
Top ring down dimension: .310"
Ratios figured for .040 head gasket @ 9.600 Deck
Standard 1/16 x 1/16 x 3/16 ring package
Premium 8620 .155W wrist pins included
Valve pocket depth: 0.292" intake and .224" exhaust
Will work with up to a intake valve size of 2.070"
and exhaust valve size of 1.625"
Made from 4032 alloy
360 Block: 4.000 Std Bore 3.580 Std Stroke |
|
- | |||||||||
Bore | Stroke | Rod | C.D. | Wht. | Pin | CC's | 63cc | 65cc | 70cc | Ring Set | Part # ea. |
4.005 | 3.580 | 6.123 | 1.667 | 531 | .984 x 2.750 | -9.0cc | 9.6 | 9.4 | 9.0 | 09024000 $183.74 | 51400 $158.76 |
4.020 | 3.580 | 6.123 | 1.667 | 538 | .984 x 2.750 | -9.0cc | 9.6 | 9.4 | 9.0 | 09024020 $183.74 | 51420 $158.76 |
4.005 | 4.000 | 6.123 | 1.457 | 500 | .984 x 2.750 | -19.0cc | 9.6 | 9.4 | 9.0 | 09024000 $183.74 | 51401 $158.76 |
4.020 | 4.000 | 6.123 | 1.457 | 504 | .984 x 2.750 | -20.0cc | 9.6 | 9.4 | 9.0 | 09024020 $183.74 | 51403 $158.76 |
4.030 | 4.000 | 6.123 | 1.457 | 507 | .984 x 2.750 | -20.0cc | 9.6 | 9.4 | 9.0 | 09024030 $183.74 | 51405 $158.76 |
4.040 | 4.000 | 6.123 | 1.457 | 510 | .984 x 2.750 | -20.0cc | 9.6 | 9.5 | 9.1 | 09024040 $183.74 | 51407 $158.76 |
4.060 | 4.000 | 6.123 | 1.457 | 518 | .984 x 2.750 | -21.5cc | 9.6 | 9.4 | 9.0 | 09024060 $183.74 | 51408 $158.76 |
4.005 | 4.000 | 6.125 | 1.457 | 502 | .927 x 2.750 | -19.0cc | 9.6 | 9.4 | 9.0 | 09024000 $183.74 | 51402 $158.76 |
4.020 | 4.000 | 6.125 | 1.457 | 506 | .927 x 2.750 | -20.0cc | 9.6 | 9.4 | 9.0 | 09024020 $183.74 | 51404 $158.76 |
4.030 | 4.000 | 6.125 | 1.457 | 509 | .927 x 2.750 | -20.0cc | 9.6 | 9.5 | 9.0 | 09024030 $183.74 | 51406 $158.76 |
Page 128
Big Block Mopar 383 STREET/STRIP
FLAT TOP SERIES
3D milling on piston crowns for ready to install finish
Valve pockets designed to work with oem and most aftermarket
cylinder heads
Top ring down dimension: .240"
Ratios figured for .040 head gasket @ 9.980 Deck
Standard 1/16 x 1/16 x 3/16 ring package
Premium 8620 .185W wrist pins included
Valve pocket depth: 0.197" intake and .163" exhaust
Will work with up to a intake valve size of 2.140"
and exhaust valve size of 1.850"
Made from 4032 alloy
383 Block: 4.250 Std Bore 3.375 Std Stroke |
|
- | |||||||||
Bore | Stroke | Rod | C.D. | Wht. | Pin | CC's | 75cc | 78cc | 84cc | Ring Set | Part # ea. |
4.280 | 3.375 | 6.360 | 1.916 | 630 | 1.094 x 2.930 | -3.0cc | 9.6 | 9.3 | 8.8 | 09024280 $218.74 | 51900 $153.75 |
4.310 | 3.375 | 6.360 | 1.916 | 632 | 1.094 x 2.930 | -3.0cc | 9.7 | 9.4 | 8.9 | 09024310 $218.74 | 51903 $153.75 |
4.280 | 3.750 | 6.360 | 1.720 | 597 | 1.094 x 2.930 | -3.0cc | 10.3 | 10.0 | 9.5 | 09024280 $218.74 | 51910 $153.75 |
4.310 | 3.750 | 6.360 | 1.720 | 600 | 1.094 x 2.930 | -3.0cc | 10.5 | 10.2 | 9.6 | 09024310 $218.74 | 51912 $153.75 |
4.280 | 3.375 | 6.768 | 1.516 | 548 | .990 x 2.930 | -3.0cc | 9.7 | 9.5 | 9.0 | 09024280 $218.74 | 51907 $153.75 |
4.310 | 3.375 | 6.768 | 1.516 | 543 | .990 x 2.930 | -3.0cc | 9.9 | 9.6 | 9.1 | 09024310 $218.74 | 51908 $153.75 |
4.280 | 3.750 | 6.768 | 1.320 | 488 | .990 x 2.930 | -3.0cc | 10.5 | 10.2 | 9.7 | 09024280 $218.74 | 51950 $153.75 |
4.310 | 3.750 | 6.768 | 1.320 | 500 | .990 x 2.930 | -3.0cc | 10.6 | 10.3 | 9.5 | 09024310 $218.74 | 51952 $153.75 |
Big Block Mopar
400 STREET/STRIP
FLAT TOP SERIES
3D milling on piston crowns for ready to install finish
Valve pockets designed to work with oem and most aftermarket
cylinder heads
Top ring down dimension: .190"
Ratios figured for .040 head gasket @ 9.980 Deck
Standard 1/16 x 1/16 x 3/16 ring package
Premium 8620 .185W wrist pins included
Valve pocket depth: 0.212" intake and .163" exhaust
Will work with up to a intake valve size of 2.320"
and exhaust valve size of 1.880"
Made from 4032 alloy
400 Block: 4.340 Std Bore 3.375 Std Stroke |
|
- | |||||||||
Bore | Stroke | Rod | C.D. | Wht. | Pin | CC's | 75cc | 78cc | 84cc | Ring Set | Part # ea. |
4.375 | 3.750 | 6.768 | 1.320 | 515 | 1.094 x 2.930 | -3.4cc | 10.9 | 10.6 | 10.0 | 09024375 $218.74 | 52006 $153.75 |
4.375 | 3.750 | 6.768 | 1.320 | 523 | .990 x 2.930 | -3.4cc | 10.9 | 10.6 | 10.0 | 09024375 $218.74 | 52007 $153.75 |
4.375 | 4.150 | 6.768 | 1.120 | 487 | .990 x 2.930 | -3.4cc | 12.0 | 11.6 | 11.0 | 09024375 $218.74 | 52008 $153.75 |
4.375 | 4.250 | 6.535 | 1.305 | 513 | .990 x 2.930 | -3.4cc | 12.3 | 11.9 | 11.3 | 09024375 $218.74 | 52015 $153.75 |
Page 129
Big Block Mopar 440 STREET/STRIP
FLAT TOP SERIES
3D milling on piston crowns for ready to install finish
Designed to work with most oem open and closed chamber
cylinder heads
Top ring down dimension: .240"
Ratios figured for .040 head gasket @ 10.720 Deck
Standard 1/16 x 1/16 x 3/16 ring package
Premium 8620 .155W wrist pins included
Valve pocket depth: 0.212" intake and .163" exhaust
Will work with up to a intake valve size of 2.320"
and exhaust valve size of 1.880"
Made from 4032 alloy
440 Block: 4.320 Std Bore 3.750 Std Stroke |
|
- | |||||||||
Bore | Stroke | Rod | C.D. | Wht. | Pin | CC's | 75cc | 78cc | 84cc | Ring Set | Part # ea. |
4.350 | 3.750 | 6.768 | 2.065 | 646 | 1.094 x 2.930 | -3.4cc | 10.9 | 10.6 | 10.0 | 09024350 $218.74 | 52001 $153.75 |
4.350 | 3.750 | 6.768 | 2.065 | 653 | .990 x 2.930 | -3.4cc | 10.9 | 10.6 | 10.0 | 09024350 $218.74 | 52002 $153.75 |
4.360 | 3.750 | 6.768 | 2.065 | 660 | .990 x 2.930 | -3.4cc | 10.9 | 10.6 | 10.0 | 09024360 $218.74 | 52003 $153.75 |
4.350 | 4.150 | 6.768 | 1.865 | 614 | 1.094 x 2.930 | -3.4cc | 11.9 | 11.6 | 11.0 | 09024350 $218.74 | 52004 $153.75 |
4.360 | 4.150 | 6.768 | 1.865 | 618 | 1.094 x 2.930 | -3.4cc | 12.0 | 11.6 | 11.0 | 09024360 $218.74 | 52009 $153.75 |
4.375 | 4.150 | 6.768 | 1.865 | 621 | 1.094 x 2.930 | -3.4cc | 12.1 | 11.7 | 11.1 | 09024375 $218.74 | 52011 $153.75 |
4.350 | 4.150 | 6.768 | 1.865 | 614 | .990 x 2.930 | -3.4cc | 11.9 | 11.6 | 11.0 | 09024350 $218.74 | 52005 $153.75 |
4.360 | 4.150 | 6.768 | 1.865 | 624 | .990 x 2.930 | -3.4cc | 12.0 | 11.6 | 11.0 | 09024360 $218.74 | 52010 $153.75 |
4.375 | 4.150 | 6.768 | 1.865 | 633 | .990 x 2.930 | -3.4cc | 12.1 | 11.7 | 11.1 | 09024375 $218.74 | 52012 $153.75 |
4.380 | 4.150 | 6.768 | 1.865 | 635 | .990 x 2.930 | -3.4cc | 12.1 | 11.7 | 11.1 | 09024375 $218.74 | 52013 $153.75 |
4.350 | 4.250 | 6.768 | 1.815 | 610 | .990 x 2.930 | -3.4cc | 12.2 | 11.8 | 11.2 | 09024350 $218.74 | 52017 $153.75 |
4.360 | 4.250 | 6.768 | 1.815 | 613 | .990 x 2.930 | -3.4cc | 12.2 | 11.9 | 11.2 | 09024360 $218.74 | 52020 $153.75 |
4.375 | 4.250 | 6.768 | 1.815 | 624 | .990 x 2.930 | -3.4cc | 12.3 | 12.0 | 11.3 | 09024375 $218.74 | 52023 $153.75 |
4.380 | 4.250 | 6.768 | 1.815 | 617 | .990 x 2.930 | -3.4cc | 12.3 | 12.0 | 11.3 | 09024380 $218.74 | 52024 $153.75 |
4.350 | 4.250 | 6.800 | 1.780 | 603 | .990 x 2.930 | -3.4cc | 12.1 | 11.8 | 11.1 | 09024350 $218.74 | 52027 $153.75 |
4.360 | 4.250 | 6.800 | 1.780 | 612 | .990 x 2.930 | -3.4cc | 12.2 | 11.8 | 11.2 | 09024360 $218.74 | 52028 $153.75 |
4.380 | 4.250 | 6.800 | 1.780 | 618 | .990 x 2.930 | -3.4cc | 12.3 | 11.9 | 11.3 | 09024380 $218.74 | 52029 $153.75 |
4.350 | 4.250 | 7.100 | 1.480 | 553 | .990 x 2.930 | -3.4cc | 12.1 | 11.8 | 11.1 | 09024350 $218.74 | 52030 $153.75 |
4.360 | 4.250 | 7.100 | 1.480 | 548 | .990 x 2.930 | -3.4cc | 12.2 | 11.8 | 11.2 | 09024360 $218.74 | 52031 $153.75 |
4.380 | 4.250 | 7.100 | 1.480 | 556 | .990 x 2.930 | -3.4cc | 12.3 | 11.9 | 11.3 | 09024380 $218.74 | 52032 $153.75 |
Page 130
Big Block Mopar 572 STREET/STRIP
FLAT TOP SERIES
3D milling on piston crowns for ready to install finish
Valve pockets designed to work with Edelbrock Victor, Performer
RPM, Indy
440SR, Indy 440-1 and Indy 440 EZ cylinder heads
Top ring down dimension: .280"
Ratios figured for .040 head gasket @ 10.720 Deck
Standard 1/16 x 1/16 x 3/16 ring package
Premium 8620 .185W wrist pins included
Valve pocket depth: 0.280" intake and .230" exhaust
Will work with up to a intake valve size of 2.250"
and exhaust valve size of 1.810"
Made from 2618 alloy
440 Block: 4.320 Std Bore 3.750 Std Stroke |
|
- | |||||||||
Bore | Stroke | Rod | C.D. | Wht. | Pin | CC's | 72cc | 75cc | 80cc | Ring Set | Part # ea. |
4.500 | 4.500 | 7.100 | 1.360 | call | .990 x 2.930 | -6.9cc | 13.5 | 13.1 | 12.5 | 09024500 $218.74 | 52040 $153.75 |
Big Block Mopar
400 STREET/STRIP DISH SERIES
3D milling on piston crowns for ready to install finish
Valve pockets designed to work with oem and most aftermarket
cylinder heads
Top ring down dimension: .190"
Ratios figured for .040 head gasket @ 9.980 Deck
Standard 1/16 x 1/16 x 3/16 ring package
Premium 8620 .185W wrist pins included
Valve pocket depth: 0.212" intake and sym exhaust
Will work with up to a intake valve size of 2.320"
Made from 4032 alloy
400 Block: 4.340 Std Bore 3.375 Std Stroke |
|
- | |||||||||
Bore | Stroke | Rod | C.D. | Wht. | Pin | CC's | 75cc | 78cc | 84cc | Ring Set | Part # ea. |
4.375 | 3.750 | 6.768 | 1.320 | 515 | 1.094 x 2.930 | -12.5cc | 10.0 | 9.8 | 9.3 | 09024375 $218.74 | 52406 $153.75 |
4.375 | 3.750 | 6.768 | 1.320 | 528 | .990 x 2.930 | -12.5cc | 10.0 | 9.8 | 9.3 | 09024375 $218.74 | 52407 $153.75 |
4.375 | 4.150 | 6.768 | 1.120 | 473 | .990 x 2.930 | -20.0cc | 10.3 | 10.0 | 9.6 | 09024375 $218.74 | 52408 $153.75 |
4.375 | 4.250 | 6.535 | 1.305 | 529 | .990 x 2.930 | -24.0cc | 10.2 | 10.0 | 9.5 | 09024375 $218.74 | 52409 $153.75 |
Page 131
Big Block Mopar 440 STREET/STRIP DISH
SERIES
3D milling on piston crowns for ready to install finish
Designed to work with most oem open and closed chamber
cylinder heads
Top ring down dimension: .240"
Ratios figured for .040 head gasket @ 10.720 Deck
Standard 1/16 x 1/16 x 3/16 ring package
Premium 8620 .155W wrist pins included
Valve pocket depth: 0.212" intake and sym exhaust
Will work with up to a intake valve size of 2.320"
Made from 4032 alloy
440 Block: 4.320 Std Bore 3.750 Std Stroke |
|
- | |||||||||
Bore | Stroke | Rod | C.D. | Wht. | Pin | CC's | 75cc | 78cc | 84cc | Ring Set | Part # ea. |
4.350 | 3.750 | 6.768 | 2.065 | 667 | 1.094 x 2.930 | -13.0cc | 9.9 | 9.7 | 9.2 | 09024350 $218.74 | 52401 $153.75 |
4.350 | 3.750 | 6.768 | 2.065 | 668 | .990 x 2.930 | -13.0cc | 9.9 | 9.7 | 9.2 | 09024350 $218.74 | 52402 $153.75 |
4.350 | 3.900 | 7.100 | 1.658 | 598 | .990 x 2.930 | -16.5cc | 10.0 | 9.7 | 9.3 | 09024350 $218.74 | 52411 $153.75 |
4.350 | 4.150 | 6.768 | 1.865 | 635 | 1.094 x 2.930 | -13.0cc | 10.9 | 10.6 | 10.1 | 09024350 $218.74 | 52416 $153.75 |
4.350 | 4.150 | 6.768 | 1.865 | 642 | 1.094 x 2.930 | -24.0cc | 9.9 | 9.7 | 9.3 | 09024350 $218.74 | 52421 $153.75 |
4.350 | 4.150 | 6.768 | 1.865 | 635 | .990 x 2.930 | -13.0cc | 10.9 | 10.6 | 10.1 | 09024350 $218.74 | 52415 $153.75 |
4.360 | 4.150 | 6.768 | 1.865 | 646 | .990 x 2.930 | -13.0cc | 10.9 | 10.7 | 10.1 | 09024360 $218.74 | 52417 $153.75 |
4.350 | 4.250 | 6.768 | 1.815 | 650 | 1.094 x 2.930 | -24.0cc | 10.2 | 9.9 | 9.5 | 09024350 $218.74 | 52425 $153.75 |
4.375 | 4.250 | 6.768 | 1.815 | 662 | 1.094 x 2.930 | -24.0cc | 10.3 | 10.0 | 9.6 | 09024375 $218.74 | 52429 $153.75 |
4.350 | 4.250 | 6.768 | 1.815 | 658 | .990 x 2.930 | -24.0cc | 10.2 | 9.9 | 9.5 | 09024350 $218.74 | 52424 $153.75 |
4.360 | 4.250 | 6.768 | 1.815 | 659 | .990 x 2.930 | -24.0cc | 10.2 | 10.0 | 9.5 | 09024360 $218.74 | 52426 $153.75 |
4.380 | 4.250 | 6.768 | 1.815 | 664 | .990 x 2.930 | -24.0cc | 10.3 | 10.0 | 9.6 | 09024380 $218.74 | 52430 $153.75 |
4.350 | 4.250 | 6.800 | 1.780 | 620 | .990 x 2.930 | -24.0cc | 10.1 | 9.9 | 9.4 | 09024350 $218.74 | 52437 $153.75 |
4.360 | 4.250 | 6.800 | 1.780 | 635 | .990 x 2.930 | -24.0cc | 10.1 | 9.9 | 9.5 | 09024360 $218.74 | 52438 $153.75 |
4.380 | 4.250 | 6.800 | 1.780 | 638 | .990 x 2.930 | -24.0cc | 10.2 | 10.0 | 9.5 | 09024380 $218.74 | 52439 $153.75 |
4.350 | 4.250 | 7.100 | 1.480 | 568 | .990 x 2.930 | -24.0cc | 10.1 | 9.9 | 9.4 | 09024350 $218.74 | 52460 $153.75 |
4.360 | 4.250 | 7.100 | 1.480 | 570 | .990 x 2.930 | -24.0cc | 10.1 | 9.9 | 9.5 | 09024360 $218.74 | 52461 $153.75 |
4.380 | 4.250 | 7.100 | 1.480 | 587 | .990 x 2.930 | -24.0cc | 10.2 | 10.0 | 9.5 | 09024380 $218.74 | 52462 $153.75 |
Page 132
Big Block Mopar 572 STREET/STRIP DISH
SERIES
3D milling on piston crowns for ready to install finish
Valve pockets designed to work with Edelbrock Victor, Performer
RPM, Indy
440SR, Indy 440-1 and Indy 440 EZ cylinder heads
Top ring down dimension: .280"
Ratios figured for .040 head gasket @ 10.720 Deck
Standard 1/16 x 1/16 x 3/16 ring package
Premium 8620 .185W wrist pins included
Valve pocket depth: 0.280" intake and .230" exhaust
Will work with up to a intake valve size of 2.250"
and exhaust valve size of 1.810"
Made from 2618 alloy
440 Block: 4.320 Std Bore 3.750 Std Stroke |
|
- | |||||||||
Bore | Stroke | Rod | C.D. | Wht. | Pin | CC's | 72cc | 75cc | 80cc | Ring Set | Part # ea. |
4.500 | 4.500 | 7.100 | 1.360 | call | .990 x 2.930 | -34.0cc | 10.7 | 10.5 | 10.1 | 09024500 $218.74 | 52470 $153.75 |
4.500 | 4.500 | 7.100 | 1.360 | call | .990 x 2.930 | -31.0cc | 10.9 | 10.7 | 10.3 | 09024500 $218.74 | 52471 $153.75 |
4.500 | 4.500 | 7.100 | 1.360 | call | .990 x 2.930 | -26.0cc | 11.4 | 11.1 | 10.7 | 09024500 $218.74 | 52472 $153.75 |
4.500 | 4.500 | 7.100 | 1.360 | call | .990 x 2.930 | -22.0cc | 11.8 | 11.5 | 11.0 | 09024500 $218.74 | 52473 $153.75 |
4.500 | 4.500 | 7.100 | 1.360 | call | .990 x 2.930 | -18.0cc | 12.2 | 11.9 | 11.4 | 09024500 $218.74 | 52474 $153.75 |
Big Block Mopar 440
HIGH COMPRESSION
DOME SERIES
3D milling on piston crowns for ready to install finish
Designed to work with most oem open and closed chamber
cylinder heads
Top ring down dimension: .240"
Ratios figured for .040 head gasket @ 10.720 Deck
Standard 1/16 x 1/16 x 3/16 ring package
Premium 8620 .155W wrist pins included
Valve pocket depth: 0.225" intake and .191" exhaust
Will work with up to a intake valve size of 2.190"
and exhaust valve size of 1.880"
Made from 4032 alloy
440 Block: 4.320 Std Bore 3.750 Std Stroke |
|
- | |||||||||
Bore | Stroke | Rod | C.D. | Wht. | Pin | CC's | 75cc | 78cc | 84cc | Ring Set | Part # ea. |
4.350 | 3.750 | 6.768 | 2.029 | 660 | 1.094 x 2.930 | 8.6cc | 11.3 | 10.9 | 10.3 | 09024350 $218.74 | 52440 $175.00 |
4.360 | 3.750 | 6.768 | 2.029 | 668 | 1.094 x 2.930 | 8.6cc | 11.3 | 11.0 | 10.4 | 09024360 $218.74 | 52441 $175.00 |
4.380 | 3.750 | 6.768 | 2.029 | 673 | 1.094 x 2.930 | 8.6cc | 11.4 | 11.0 | 10.4 | 09024380 $218.74 | 52442 $175.00 |
Page 133
Big Block Mopar 440 EDELBROCK DOME SERIES
3D milling on piston crowns for ready to install finish
Designed to work with Edelbrock 60929 and 60189 Performer
RPM cylinder heads
Top ring down dimension: .240"
Ratios figured for .040 head gasket @ 10.720 Deck
Standard 1/16 x 1/16 x 3/16 ring package
Premium 8620 .185W wrist pins included
Valve pocket depth: 0.203" intake and .163" exhaust
Will work with up to a intake valve size of 2.190"
and exhaust valve size of 1.880"
Made from 2618 alloy
440 Block: 4.320 Std Bore 3.750 Std Stroke |
|
- | |||||||||
Bore | Stroke | Rod | C.D. | Wht. | Pin | CC's | 80cc | 84cc | 88cc | Ring Set | Part # ea. |
4.350 | 3.750 | 6.768 | 2.065 | 680 | 1.094 x 2.930 | 19.0cc | 13.2 | 12.6 | 12.0 | 09024350 $218.74 | 52445 $175.00 |
4.375 | 3.750 | 6.768 | 2.065 | 700 | 1.094 x 2.930 | 19.0cc | 13.3 | 12.7 | 12.2 | 09024375 $218.74 | 52448 $175.00 |
4.350 | 3.750 | 6.768 | 2.065 | 680 | .990 x 2.930 | 19.0cc | 13.2 | 12.6 | 12.0 | 09024350 $218.74 | 52446 $175.00 |
4.375 | 3.750 | 6.768 | 2.065 | 695 | .990 x 2.930 | 19.0cc | 13.3 | 12.7 | 12.2 | 09024375 $218.74 | 52449 $175.00 |
4.350 | 4.150 | 6.768 | 1.865 | 665 | 1.094 x 2.930 | 13.3cc | 13.6 | 13.0 | 12.4 | 09024350 $218.74 | 52451 $175.00 |
4.375 | 4.150 | 6.768 | 1.865 | 678 | 1.094 x 2.930 | 13.3cc | 13.7 | 13.1 | 12.5 | 09024370 | 52454 $175.00 |
4.350 | 4.150 | 6.768 | 1.865 | 667 | .990 x 2.930 | 13.3cc | 13.6 | 13.0 | 12.4 | 09024350 $218.74 | 52452 $175.00 |
4.375 | 4.150 | 6.768 | 1.865 | 680 | .990 x 2.930 | 13.3cc | 13.7 | 13.1 | 12.5 | 09024375 $218.74 | 52455 $175.00 |
Page 134
Mopar Hemi 426 HEMI STREET DOME SERIES
3D milling on piston crowns for ready to install finish
Valve pockets designed to work with most oem and aftermarket
cylinder heads
Top ring down dimension: .460"
Ratios figured for .041 head gasket @ 10.720 Deck
Standard 1/16 x 1/16 x 3/16 ring package
Premium 8620 .185W wrist pins included
Valve pocket depth: 0.263" intake and -.256"
exhaust
Will work with up to a intake valve size of 2.320"
and exhaust valve size of 1.940"
Made from 4032 alloy
426 Block: 4.250 Std Bore 3.750 Std Stroke |
|
- | |||||||||
Bore | Stroke | Rod | C.D. | Wht. | Pin | CC's | 168cc | 173cc | 178cc | Ring Set | Part # ea. |
4.250 | 3.750 | 6.860 | 1.965 | 829 | 1.031 x 2.930 | 85.0cc | 9.8 | 9.3 | 9.0 | 09024250 $218.74 | 52500 $187.50 |
4.280 | 3.750 | 6.860 | 1.965 | 841 | 1.031 x 2.930 | 85.0cc | 9.9 | 9.5 | 9.1 | 09024280 $218.74 | 52502 $187.50 |
4.310 | 3.750 | 6.860 | 1.965 | 858 | 1.031 x 2.930 | 85.0cc | 10.0 | 9.6 | 9.2 | 09024310 $218.74 | 52505 $187.50 |
4.250 | 4.150 | 6.860 | 1.765 | 778 | 1.031 x 2.930 | 75.0cc | 9.8 | 9.4 | 9.1 | 09024250 $218.74 | 52520 $187.50 |
4.280 | 4.150 | 6.860 | 1.765 | 795 | 1.031 x 2.930 | 75.0cc | 9.9 | 9.5 | 9.2 | 09024280 $218.74 | 52522 $187.50 |
4.310 | 4.150 | 6.860 | 1.765 | 793 | 1.031 x 2.930 | 75.0cc | 10.0 | 9.7 | 9.3 | 09024310 $218.74 | 52525 $187.50 |
4.250 | 4.150 | 6.860 | 1.765 | 793 | 1.031 x 2.930 | 96.0cc | 11.9 | 11.3 | 10.8 | 09024250 $218.74 | 52530 $187.50 |
4.280 | 4.150 | 6.860 | 1.765 | call | 1.031 x 2.930 | 96.0cc | 12.0 | 11.5 | 10.9 | 09024280 $218.74 | 52531 $187.50 |
4.310 | 4.150 | 6.860 | 1.765 | call | 1.031 x 2.930 | 96.0cc | 12.2 | 11.6 | 11.1 | 09024310 $218.74 | 52532 $187.50 |
4.500 | 3.750 | 6.860 | 1.965 | call | 1.031 x 2.930 | 86.0cc | 10.9 | 10.4 | 10.0 | 09024500 $218.74 | 52560 $187.50 |
4.500 | 4.150 | 6.860 | 1.765 | 785 | 1.031 x 2.930 | 74.0cc | 10.7 | 10.3 | 9.9 | 09024500 $218.74 | 52565 $187.50 |
4.500 | 4.150 | 6.860 | 1.765 | call | 1.031 x 2.930 | 86.0cc | 11.9 | 11.4 | 10.9 | 09024500 $218.74 | 52566 $187.50 |
4.500 | 4.250 | 6.860 | 1.725 | call | 1.031 x 2.930 | 72.0cc | 11.0 | 10.6 | 10.2 | 09024500 $218.74 | 52567 $187.50 |
4.500 | 4.250 | 7.100 | 1.485 | call | .990 x 2.930 | 72.0cc | 11.0 | 10.6 | 10.2 | 09024500 $218.74 | 52568 $187.50 |
4.500 | 4.500 | 6.860 | 1.600 | call | 1.031 x 2.930 | 65.0cc | 11.0 | 10.6 | 10.2 | 09024500 $218.74 | 52569 $187.50 |
4.500 | 4.500 | 7.100 | 1.360 | call | .990 x 2.930 | 65.0cc | 11.0 | 10.6 | 10.2 | 09024500 $218.74 | 52570 $187.50 |
Page 135
Mopar Hemi 426 HEMI RACE DOME SERIES
3D milling on piston crowns for ready to install finish
Valve pockets designed to work with most oem and aftermarket
cylinder heads
Top ring down dimension: .400"
Ratios figured for .041 head gasket @ 10.720 Deck
Standard 1/16 x 1/16 x 3/16 ring package
Premium 8620 .155W wrist pins included
Valve pocket depth: 0.242" intake and -.250"
exhaust
Will work with up to a intake valve size of 2.320"
and exhaust valve size of 1.940"
Made from 2618 alloy
426 Block: 4.250 Std Bore 3.750 Std Stroke |
|
- | |||||||||
Bore | Stroke | Rod | C.D. | Wht. | Pin | CC's | 168cc | 173cc | 178cc | Ring Set | Part # ea. |
4.280 | 3.750 | 6.860 | 1.965 | 797 | 1.031 x 2.930 | 112.0cc | 13.2 | 12.4 | 11.7 | 09024280 $218.74 | 52550 $187.50 |
4.310 | 3.750 | 6.860 | 1.965 | 807 | 1.031 x 2.930 | 112.0cc | 13.4 | 12.6 | 11.9 | 09024310 $218.74 | 52552 $187.50 |
4.280 | 4.150 | 6.860 | 1.765 | 775 | 1.031 x 2.930 | 103.0cc | 13.0 | 12.3 | 11.7 | 09024280 $218.74 | 52540 $187.50 |
4.310 | 4.150 | 6.860 | 1.765 | 800 | 1.031 x 2.930 | 103.0cc | 13.2 | 12.5 | 11.9 | 09024310 $218.74 | 52542 $187.50 |
Page 136
GM ECOTEC STREET/STRIP SERIES
3D milling on piston crowns for ready to install finish
Offset pins for quiet operation
Ratios figured for 86.25mm x .040 head gasket
Top ring down dimension: .230"
Standard 1.2mm x 1.5mm x 2.8mm ring package
Premium 8620 .155W wrist pins included
Oversized valve pockets - for larger than stock valve sizes
Valve pocket depth: 0.077" intake and .091" exhaust
2618 material for High HP/Boost applications
- |
|
- | |||||||
Bore | Stroke | Rod | C.D. | Wht. | Pin | CC's | Factory CC | Ring Set | Part # ea. |
86.00mm | 3.724 | 5.768 | 1.053 | 335 | .787 x 2.250 | -2.2cc | 9.5 | 09143385 $199.99 | 10000 $170.00 |
85.98mm | 3.386 | 5.725 | 1.257 | 358 | .906 x 2.500 | 1.0cc | 9.5 | 09143385 $199.99 | 10101 $170.00 |
85.98mm | 3.386 | 5.725 | 1.257 | 358 | .906 x 2.500 | 4.3cc | 10.0 | 09143385 $199.99 | 10103 $170.00 |
85.98mm | 3.386 | 5.725 | 1.257 | 364 | .906 x 2.500 | 7.0cc | 10.5 | 09143385 $199.99 | 10105 $170.00 |
Page 137
Ford/Barra XR-6 4.0L TURBO SERIES
3D milling on piston crowns for ready to install finish
Offset pins for quiet operation
Moly skirt coating for friction loss and skirt wear protection
Side gas ports for better ring seal
Ratios figured for 94mm x .040 head gasket @ 9.228 Deck
Height
Top ring down dimension: .280"
Premium 8620 .180W wrist pins chamfered for roundwire locks
included
Premium 1.0mm x 1.2mm x 2.8mm ring package included
Oversized valve pockets - for larger than stock valve sizes
Valve pocket depth: 0.122" intake and 0.000"
exhaust
2618 material for High HP/Boost applications
Stock Bore 92.26mm Stock Stroke 99.31mm |
|
- | |||||||
Bore | Stroke | Rod | C.D. | Wht. | Pin | CC's | 70cc | Ring Set | Part # ea. |
3.632 | 3.910 | 6.058 | 1.215 | call | .866 x 2.500 | -15.0cc | 8.5 | 09533632 $246.24 | 30200 $166.25 |
3.642 | 3.910 | 6.058 | 1.215 | call | .866 x 2.500 | -15.0cc | 8.5 | 09533642 $246.24 | 30201 $166.25 |
3.652 | 3.910 | 6.058 | 1.215 | call | .866 x 2.500 | -15.0cc | 8.6 | 09533652 $246.24 | 30202 $166.25 |
3.632 | 3.910 | 6.058 | 1.215 | call | .866 x 2.500 | -9.0cc | 9.0 | 09533632 $246.24 | 30203 $166.25 |
3.642 | 3.910 | 6.058 | 1.215 | call | .866 x 2.500 | -9.0cc | 9.1 | 09533642 $246.24 | 30204 $166.25 |
3.652 | 3.910 | 6.058 | 1.215 | call | .866 x 2.500 | -9.0cc | 9.1 | 09533652 $246.24 | 30205 $166.25 |
3.632 | 3.910 | 6.058 | 1.215 | call | .866 x 2.500 | -4.0cc | 9.5 | 09533632 $246.24 | 30206 $166.25 |
3.642 | 3.910 | 6.058 | 1.215 | call | .866 x 2.500 | -4.0cc | 9.6 | 09533642 $246.24 | 30207 $166.25 |
3.652 | 3.910 | 6.058 | 1.215 | call | .866 x 2.500 | -4.0cc | 9.6 | 09533652 $246.24 | 30208 $166.25 |
Page 138
Ford 1.6L FORD ECOBOOST SERIES
Piston crowns designed to work with OEM direct injection
3D milling on piston crowns for ready to install finish
Offset pins for quiet operation
Moly skirt coating for friction loss and skirt wear protection
Ratios figured for 3.150 x .040 head gasket
Top ring down dimension: .250"
Premium 8620 .180W wrist pins chamfered for roundwire locks
included
Premium 1.0mm x 1.2mm x 2.8mm ring package included
Oversized valve pockets - for larger than stock valve sizes
Valve pocket depth: 0.115" intake and .145" exhaust
2618 material for High HP/Boost applications
79.0mm (3.110) Std Bore - 83.0mm (3.205) Stock Stroke |
|
- | |||||||
Bore | Stroke | Rod | C.D. | Wht. | Pin | CC's | Factory CC | Ring Set | Part # ea. |
79.0mm | 81.4mm | 5.2758 | 1.130 | 271 | .827 x 2.250 | -5.9cc | Factory Replace- ment | 09513110 $124.99 | 33100 $147.50 |
Ford 2.0L FORD
ECOBOOST SERIES
Piston crowns designed to work with OEM direct injection
3D milling on piston crowns for ready to install finish
Offset pins for quiet operation
Moly skirt coating for friction loss and skirt wear protection
Ratios figured for 3.641 x .040 head gasket
Top ring down dimension: .250"
Premium 8620 .180W wrist pins chamfered for roundwire locks
included
Premium 1.0mm x 1.2mm x 2.8mm ring package included
Oversized valve pockets - for larger than stock valve sizes
Valve pocket depth: 0.150" intake and .145" exhaust
2618 material for High HP/Boost applications
87.5mm (3.3449) Std Bore - 83.0mm (3.2677) Stock Stroke |
|
- | |||||||
Bore | Stroke | Rod | C.D. | Wht. | Pin | CC's | Factory CC | Ring Set | Part # ea. |
87.5mm | 83.0mm | 6.136 | 1.290 | 348 | .886 x 2.250 | -6.9cc | Factory Replace- ment | 09513445 $124.99 | 33000 $147.50 |
Page 139
Ford 2.3L FORD ECOBOOST SERIES
Piston crowns designed to work with OEM direct injection
3D milling on piston crowns for ready to install finish
Offset pins for quiet operation
Moly skirt coating for friction loss and skirt wear protection
Ratios figured for 3.641 x .040 head gasket
Top ring down dimension: .280"
Premium 1.0mm x 1.2mm x 2.8mm ring package included
Premium 8620 .180W wrist pins chamfered for roundwire locks
included
Oversized valve pockets - for larger than stock valve sizes
Valve pocket depth: 0.075" intake and .150" exhaust
2618 material for High HP/Boost applications
87.5mm (3.3449) Std Bore - 93.98mm (3.700) Stock Stroke |
|
- | |||||||
Bore | Stroke | Rod | C.D. | Wht. | Pin | CC's | Factory CC | Ring Set | Part # ea. |
87.5mm | 3.700 | 5.875 | 1.290 | call | .886 x 2.500 | -6.41cc | 9.5 | 09513445 $124.99 | 23100 $147.50 |
88.0mm | 3.700 | 5.875 | 1.290 | call | .886 x 2.500 | -6.41cc | 9.5 | 09513465 $124.99 | 23101 $147.50 |
88.5mm | 3.700 | 5.875 | 1.290 | call | .886 x 2.500 | -6.41cc | 9.5 | 09513485 $299.99 | 23102 $147.50 |
Ford 3.5L FORD
ECOBOOST SERIES
Piston crowns designed to work with OEM direct injection
3D milling on piston crowns for ready to install finish
Offset pins for quiet operat
Moly skirt coating for friction loss and skirt wear protection
Ratios figured for 3.671 x .040 head gasket
Top ring down dimension: .300"
Premium 1.5mm x 1.5mm x 3.0mm ring package included
Premium 8620 .180W wrist pins chamfered for roundwire locks
included
Oversized valve pockets - for larger than stock valve sizes
Valve pocket depth: 0.090" intake and .000" exhaust
2618 material for High HP/Boost applications
92.50mm (3.6417) Std Bore - 86.70mm (3.4133) Stock Stroke |
|
- | |||||||
Bore | Stroke | Rod | C.D. | Wht. | Pin | CC's | Factory CC | Ring Set | Part # ea. |
92.50mm | 3.4133 | 6.0137 | 1.240 | call | .905 x 2.500 | -.67cc | 10.0 | 09053641 $307.49 | 35000 $147.50 |
92.75mm | 3.4133 | 6.0137 | 1.240 | call | .905 x 2.500 | -.67cc | 10.0 | 09053651 $307.49 | 35001 $147.50 |
93.00mm | 3.4133 | 6.0137 | 1.240 | call | .905 x 2.500 | -.67cc | 10.0 | 09053661 $307.49 | 35002 $147.50 |
92.50mm | 3.4133 | 6.0137 | 1.240 | call | .905 x 2.500 | -4.5cc | 9.5 | 09053641 $307.49 | 35003 $147.50 |
92.75mm | 3.4133 | 6.0137 | 1.240 | call | .905 x 2.500 | -4.5cc | 9.5 | 09053651 $307.49 | 35004 $147.50 |
93.0mm | 3.4133 | 6.0137 | 1.240 | call | .905 x 2.500 | -4.5cc | 9.5 | 09053661 $307.49 | 35005 $147.50 |
92.50mm | 3.4133 | 6.0137 | 1.240 | call | .905 x 2.500 | -8.8cc | 9.0 | 09053641 $307.49 | 35006 $147.50 |
92.75mm | 3.4133 | 6.0137 | 1.240 | call | .905 x 2.500 | -8.8cc | 9.0 | 09053651 $307.49 | 35007 $147.50 |
93.00mm | 3.4133 | 6.0137 | 1.240 | call | .905 x 2.500 | -8.8cc | 9.0 | 09053661 $307.49 | 35008 $147.50 |
Page 140
Honda B18 REBEL SERIES
3D milling on piston crowns for ready to install finish
Side gas ports for better ring seal
Ratios figured for 85mm x .030 head gasket @ 8.345"
Deck Height
Top ring down dimension: .300"
Designed for pin buttons $19.05 for maximum strength
Premium H-13 .200W wrist pins included
Premium 1.2mm x 1.2mm x 2.8mm ring package included
Oversized valve pockets for larger than stock valve
sizes
Valve pocket depth: 0.200" intake and 0.150"
exhaust
2618 material for High HP/Boost applications - rated for
1400hp
B18A/B Block: 81.0mm Std Bore 89.0mm Std Stroke |
|
- | |||||||
Bore | Stroke | Rod | C.D. | Wht. | Pin | CC's | 45CC | Ring Set | Part # ea. |
84.0mm | 89.0mm | 5.394 | 1.181 | call | .8267 x 2.250 | -2.5cc | 9.9 | 09583307 $199.99 | 71000 $190.00 |
84.5mm | 89.0mm | 5.394 | 1.181 | call | .8267 x 2.250 | -2.5cc | 10.0 | 09583327 $199.99 | 71001 $190.00 |
85.0mm | 89.0mm | 5.394 | 1.181 | call | .8267 x 2.250 | -2.5cc | 10.1 | 09583347 $199.99 | 71002 $190.00 |
84.0mm | 89.0mm | 5.394 | 1.181 | call | .866 x 2.250 | -2.5cc | 9.9 | 09583307 $199.99 | 71003 $190.00 |
84.5mm | 89.0mm | 5.394 | 1.181 | call | .866 x 2.250 | -2.5cc | 10.0 | 09583327 $199.99 | 71004 $190.00 |
85.0mm | 89.0mm | 5.394 | 1.181 | call | .866 x 2.250 | -2.5cc | 10.1 | 09583347 $199.99 | 71005 $190.00 |
Honda K20 REBEL
SERIES
3D milling on piston crowns for ready to install finish
Side gas ports for better ring seal
Ratios figured for 90mm x .030 head gasket @ 8.345"
Deck Height
Top ring down dimension: .300"
Designed for pin buttons $19.05 for maximum strength
Premium H-13 .200W wrist pins included
Premium 1.2mm x 1.2mm x 2.8mm ring package included
Oversized valve pockets for larger than stock valve
sizes
Valve pocket depth: 0.200" intake and 0.150"
exhaust
2618 material for High HP/Boost applications - rated for
1400hp
K20/K24 Block: 86.0mm Std Bore 86.0mm Std Stroke |
|
- | |||||||
Bore | Stroke | Rod | C.D. | Wht. | Pin | CC's | 50CC | Ring Set | Part # ea. |
86.0mm | 86.0mm | 5.472 | 1.181 | call | .866 x 2.250 | 2.0cc | 10.2 | 09583385 $199.99 | 71100 $190.00 |
86.5mm | 86.0mm | 5.472 | 1.181 | call | .866 x 2.250 | 2.0cc | 10.3 | 09583405 $199.99 | 71101 $190.00 |
87.0mm | 86.0mm | 5.472 | 1.181 | call | .866 x 2.250 | 2.0cc | 10.4 | 09583425 $199.99 | 71102 $190.00 |
Page 141
Honda K24 REBEL SERIES
3D milling on piston crowns for ready to install finish
Side gas ports for better ring seal
Ratios figured for 90mm x .030 head gasket @ 9.120"
Deck Height
Top ring down dimension: .300"
Designed for pin buttons $19.05 for maximum strength
Premium H-13 .200W wrist pins included
Premium 1.2mm x 1.2mm x 2.8mm ring package included
Oversized valve pockets for larger than stock valve
sizes
Valve pocket depth: 0.200" intake and 0.150"
exhaust
2618 material for High HP/Boost applications - rated for
1400hp
K20/K24 Block: 86.0mm Std Bore 86.0mm Std Stroke |
|
- | |||||||
Bore | Stroke | Rod | C.D. | Wht. | Pin | CC's | 50CC | Ring Set | Part # ea. |
87.0mm | 99.0mm | 5.984 | 1.181 | call | .866 x 2.250 | -6.0cc | 10.1 | 09583425 $199.99 | 71200 $190.00 |
87.5mm | 99.0mm | 5.984 | 1.181 | call | .866 x 2.250 | -6.0cc | 10.2 | 09583445 $199.99 | 71201 $190.00 |
88.0mm | 99.0mm | 5.984 | 1.181 | call | .866 x 2.250 | -6.0cc | 10.3 | 09583465 $199.99 | 71202 $190.00 |
89.0mm | 99.0mm | 5.984 | 1.181 | call | .866 x 2.250 | -6.0cc | 10.4 | 09583505 $199.99 | 71203 $190.00 |
Page 142
Subaru 2002-05 EJ205 WRX/STI SERIES
3D milling on piston crowns for ready to install finish
Offset pins for quiet operation
Moly skirt coating for friction loss and skirt wear protection
Ratios figured for 94mm x .0236 head gasket
Top ring down dimension: .300"
Premium 1.2mm x 1.2mm x 2.0mm ring package included
Premium 8620 .180W wrist pins chamfered for roundwire locks
included
Oversized valve pockets - for larger than stock valve size
Valve pocket depth: 0.220" intake and .220" exhaust
Stock Bore 92.0mm (3.622) Stock Stroke 75mm (2.953) |
|
- | |||||||
Bore | Stroke | Rod | C.D. | Wht. | Pin | CC's | 48cc | Ring Set | Part # ea. |
92.0mm | 75.0mm | 5.137 | 1.287 | call | .905 x 2.500 | -12.0cc | 8.3 | 09513622 $199.99 | 36001 $166.25 |
92.5mm | 75.0mm | 5.137 | 1.287 | call | .905 x 2.500 | -12.0cc | 8.4 | 09513642 $199.99 | 36002 $166.25 |
93.0mm | 75.0mm | 5.137 | 1.287 | call | .905 x 2.500 | -12.0cc | 8.5 | 09513662 $199.99 | 36003 $166.25 |
Stock Bore 92.0mm (3.622) Stock Stroke 75mm (2.953) |
|
- | |||||||
Bore | Stroke | Rod | C.D. | Wht. | Pin | CC's | 48cc | Ring Set | Part # ea. |
92.0mm | 79.0mm | 5.137 | 1.208 | call | .905 x 2.500 | -15.5cc | 8.3 | 09513622 $199.99 | 36004 $166.25 |
92.5mm | 79.0mm | 5.137 | 1.208 | call | .905 x 2.500 | -15.5cc | 8.4 | 09513642 $199.99 | 36005 $166.25 |
93.0mm | 79.0mm | 5.137 | 1.208 | call | .905 x 2.500 | -15.5cc | 8.5 | 09513662 $199.99 | 36006 $166.25 |
Subaru 2006-08 EJ255
WRX SERIES
3D milling on piston crowns for ready to install finish
Offset pins for quiet operation
Moly skirt coating for friction loss and skirt wear protection
Ratios figured for 101mm x .0236 head gasket
Top ring down dimension: .300"
Premium 1.2mm x 1.2mm x 2.0mm ring package included
Premium 8620 .180W wrist pins chamfered for roundwire locks
included
Oversized valve pockets - for larger than stock valve sizes
Valve pocket depth: 0.220" intake and .220" exhaust
2618 material for High HP/Boost applications
Stock Bore 99.5mm (3.9173) Stock Stroke 79mm (3.110) |
|
- | |||||||
Bore | Stroke | Rod | C.D. | Wht. | Pin | CC's | 50cc | Ring Set | Part # ea. |
99.5mm | 79.0mm | 5.137 | 1.208 | call | .905 x 2.500 | -24.0cc | 8.5 | 09513917 $199.99 | 36007 $166.25 |
99.75mm | 79.0mm | 5.137 | 1.208 | call | .905 x 2.500 | -24.0cc | 8.5 | 09513927 $199.99 | 36008 $166.25 |
100.0mm | 79.0mm | 5.137 | 1.208 | call | .905 x 2.500 | -24.0cc | 8.5 | 09513937 $199.99 | 36009 $166.25 |
100.5mm | 79.0mm | 5.137 | 1.208 | call | .905 x 2.500 | -24.0cc | 8.5 | 09513957 $199.99 | 36010 $166.25 |
Page 143
Subaru 2004-UP EJ257 WRX/STI SERIES
3D milling on piston crowns for ready to install finish
Offset pins for quiet operation
Moly skirt coating for friction loss and skirt wear protection
Ratios figured for 101mm x .0236 head gasket
Top ring down dimension: .250"(1.208cd) - .240"
(1.129cd)
Premium 1.2mm x 1.2mm x 2.0mm ring package included
Premium 8620 .180W wrist pins chamfered for roundwire locks
included
Oversized valve pockets - for larger than stock valve sizes
Valve pocket depth: 0.220" intake and .220" exhaust
2618 material for High HP/Boost applications
Stock Bore 99.5mm (3.9173) Stock Stroke 79mm (3.110) |
|
- | ||||||||
Bore | Stroke | Rod | C.D. | Wht. | Pin | CC's | 56cc | Ring Set | Part # ea. | |
99.5mm | 79.0mm | 5.137 | 1.208 | call | .905 x 2.500 | -22.0cc | 8.1 | 09513917 $199.99 | 36011 $166.25 | |
99.75mm | 79.0mm | 5.137 | 1.208 | call | .905 x 2.500 | -22.0cc | 8.1 | 09513927 $199.99 | 36012 $166.25 | |
100.0mm | 79.0mm | 5.137 | 1.208 | call | .905 x 2.500 | -22.0cc | 8.2 | 09513937 $199.99 | 36013 $166.25 | |
100.5mm | 79.0mm | 5.137 | 1.208 | call | .905 x 2.500 | -22.0cc | 8.3 | 09513957 $199.99 | 36014 $166.25 | |
99.5mm | 79.0mm | 5.137 | 1.208 | call | .905 x 2.500 | -12.0cc | 9.0 | 09513917 $199.99 | 36015 $166.25 | |
99.75mm | 79.0mm | 5.137 | 1.208 | call | .905 x 2.500 | -12.0cc | 9.1 | 09513927 $199.99 | 36016 $166.25 | |
100.0mm | 79.0mm | 5.137 | 1.208 | call | .905 x 2.500 | -12.0cc | 9.1 | 09513937 $199.99 | 36017 $166.25 | |
100.5mm | 79.0mm | 5.137 | 1.208 | call | .905 x 2.500 | -12.0cc | 9.2 | 09513957 $199.99 | 36018 $166.25 | |
99.5mm | 79.0mm | 5.137 | 1.208 | call | .905 x 2.500 | -4.5cc | 9.9 | 09513917 $199.99 | 36019 $166.25 | |
99.75mm | 79.0mm | 5.137 | 1.208 | call | .905 x 2.500 | -4.5cc | 10.0 | 09513927 $199.99 | 36020 $166.25 | |
100.0mm | 79.0mm | 5.137 | 1.208 | call | .905 x 2.500 | -4.5cc | 10.0 | 09513937 $199.99 | 36021 $166.25 | |
100.5mm | 79.0mm | 5.137 | 1.208 | call | .905 x 2.500 |
|
10.1 | 09513957 $199.99 | 36022 $166.25 | |
Stock Bore 99.5mm (3.9173) Stock Stroke 79mm (3.110) |
|
- | ||||||||
Bore | Stroke | Rod | C.D. | Wht. | Pin | CC's | 56cc | Ring Set | Part # ea. | |
99.5mm | 83.0mm | 5.137 | 1.129 | call | .905 x 2.500 | -26.0cc | 8.1 | 09513917 $199.99 | 36023 $166.25 | |
99.75mm | 83.0mm | 5.137 | 1.129 | call | .905 x 2.500 | -26.0cc | 8.2 | 09513927 $199.99 | 36024 $166.25 | |
100.0mm | 83.0mm | 5.137 | 1.129 | call | .905 x 2.500 | -26.0cc | 8.2 | 09513937 $199.99 | 36025 $166.25 | |
100.5mm | 83.0mm | 5.137 | 1.129 | call | .905 x 2.500 | -26.0cc | 8.3 | 09513957 $199.99 | 36026 $166.25 | |
99.5mm | 83.0mm | 5.137 | 1.129 | call | .905 x 2.500 | -16.0cc | 9.0 | 09513917 $199.99 | 36027 $166.25 | |
99.75mm | 83.0mm | 5.137 | 1.129 | call | .905 x 2.500 | -16.0cc | 9.1 | 09513927 $199.99 | 36028 $166.25 | |
100.0mm | 83.0mm | 5.137 | 1.129 | call | .905 x 2.500 | -16.0cc | 9.1 | 09513937 $199.99 | 36029 $166.25 | |
100.5mm | 83.0mm | 5.137 | 1.129 | call | .905 x 2.500 | -16.0cc | 9.2 | 09513957 $199.99 | 36030 $166.25 | |
99.5mm | 83.0mm | 5.137 | 1.129 | call | .905 x 2.500 | -8.0cc | 9.9 | 09513917 $199.99 | 36031 $166.25 | |
99.75mm | 83.0mm | 5.137 | 1.129 | call | .905 x 2.500 | -8.0cc | 10.0 | 09513927 $199.99 | 36032 $166.25 | |
100.0mm | 83.0mm | 5.137 | 1.129 | call | .905 x 2.500 | -8.0cc | 10.0 | 09513937 $199.99 | 36033 $166.25 | |
100.5mm | 83.0mm | 5.137 | 1.129 | call | .905 x 2.500 | -8.0cc | 10.1 | 09513957 $199.99 | 36034 $166.25 |
Page 144
Subaru/Toyota FA20 BRZ/4U-GSE SERIES
3D milling on piston crowns for ready to install finish
Offset pins for quiet operation
Moly skirt coating for friction loss and skirt wear protection
Ratios figured for 89.5mm x .022" head gasket @ 8.070"
Deck Height
Top ring down dimension: .250"
Premium 8620 .180W wrist pins chamfered for roundwire locks
included
Premium 1.2mm x 1.2mm x 2.0mm ring package included
Oversized valve pockets - for larger than stock valve sizes
Valve pocket depth: 0.100" intake and 0.090"
exhaust
2618 material for High HP/Boost applications
FA20 Block: 86.0mm Std Bore 86.0mm Std Stroke |
|
- | |||||||
Bore | Stroke | Rod | C.D. | Wht. | Pin | CC's | 40.3cc | Ring Set | Part # ea. |
86.0mm | 86.0mm | 5.090 | 1.285 | call | .866 x 2.250 | -11.0cc | 10.0 | 09573385 $124.99 | 36040 $166.25 |
86.25mm | 86.0mm | 5.090 | 1.285 | call | .866 x 2.250 | -11.0cc | 10.0 | 09573395 $124.99 | 36041 $166.25 |
86.5mm | 86.0mm | 5.090 | 1.285 | call | .866 x 2.250 | -11.0cc | 10.0 | 09573405 $124.99 | 36042 $166.25 |
86.0mm | 86.0mm | 5.090 | 1.285 | call | .866 x 2.250 | -14.5cc | 9.5 | 09573385 $124.99 | 36043 $166.25 |
86.25mm | 86.0mm | 5.090 | 1.285 | call | .866 x 2.250 | -14.5cc | 9.5 | 09573395 $124.99 | 36044 $166.25 |
86.5mm | 86.0mm | 5.090 | 1.285 | call | .866 x 2.250 | -14.5cc | 9.5 | 09573405 $124.99 | 36045 $166.25 |
Page 145
Subaru FA20DIT WRX SERIES
3D milling on piston crowns for ready to install finish
Offset pins for quiet operation
Moly skirt coating for friction loss and skirt wear protection
Ratios figured for 89.5mm x .022" head gasket @ 8.070"
Deck Height
Top ring down dimension: .280"
Premium 8620 .180W wrist pins chamfered for roundwire locks
included
Premium 1.2mm x 1.2mm x 2.0mm ring package included
Oversized valve pockets - for larger than stock valve sizes
Valve pocket depth: 0.190" intake and 0.170"
exhaust
2618 material for High HP/Boost applications
FA20DIT Block: 86.0mm Std Bore 86.0mm Std Stroke |
|
- | |||||||
Bore | Stroke | Rod | C.D. | Wht. | Pin | CC's | 39cc | Ring Set | Part # ea. |
86.0mm | 86.0mm | 5.090 | 1.285 | call | .866 x 2.250 | -9.0cc | 10.5 | 09573385 $124.99 | 36046 $166.25 |
86.25mm | 86.0mm | 5.090 | 1.285 | call | .866 x 2.250 | -9.0cc | 10.5 | 09573395 $124.99 | 36047 $166.25 |
86.5mm | 86.0mm | 5.090 | 1.285 | call | .866 x 2.250 | -9.0cc | 10.6 | 09573405 $124.99 | 36048 $166.25 |
86.0mm | 86.0mm | 5.090 | 1.285 | call | .866 x 2.250 | -12.0cc | 10.0 | 09573385 $124.99 | 36049 $166.25 |
86.25mm | 86.0mm | 5.090 | 1.285 | call | .866 x 2.250 | -12.0cc | 10.0 | 09573395 $124.99 | 36050 $166.25 |
86.5mm | 86.0mm | 5.090 | 1.285 | call | .866 x 2.250 | -12.0cc | 10.1 | 09573405 $124.99 | 36051 $166.25 |
Page 146
Mitsubishi 1999-2007 EVO VI-IX - 4G63
SERIES
3D milling on piston crowns for ready to install finish
Offset pins for quiet operation
Side gas ports for better ring seal
Moly skirt coating for friction loss and skirt wear protection
Ratios figured for .040 head gasket @ 9.015 Deck
Top ring down dimension: .325"-.265" 1.020cd
Premium 1.0mm x 1.2mm x 2.8mm ring package included
Premium 8620 .180W wrist pins chamfered for roundwire locks
included
Oversized valve pockets - for larger than stock valve sizes
Valve pocket depth: 0.200" intake and .190" exhaust
2618 material for High HP/Boost applications
Stock Bore 85.0mm (3.3464) Stock Stroke 88mm (3.4645) |
|
- | |||||||
Bore | Stroke | Rod | C.D. | Wht. | Pin | CC's | 47cc | Ring Set | Part # ea. |
85.0mm | 88.0mm | 5.905 | 1.375 | call | .866 x 2.250 | -12.3cc | 8.5 | 09513346 $124.99 | 82000 $177.50 |
85.5mm | 88.0mm | 5.905 | 1.375 | call | .866 x 2.250 | -12.3cc | 8.6 | 09513366 $124.99 | 82001 $177.50 |
86.0mm | 88.0mm | 5.905 | 1.375 | call | .866 x 2.250 | -12.3cc | 8.7 | 09513386 $124.99 | 82002 $177.50 |
85.0mm | 88.0mm | 5.905 | 1.375 | call | .866 x 2.250 | -8.0cc | 9.0 | 09513346 $124.99 | 82003 $177.50 |
85.5mm | 88.0mm | 5.905 | 1.375 | call | .866 x 2.250 | -8.0cc | 9.1 | 09513366 $124.99 | 82004 $177.50 |
86.0mm | 88.0mm | 5.905 | 1.375 | call | .866 x 2.250 | -8.0cc | 9.2 | 09513386 $124.99 | 82005 $177.50 |
85.0mm | 88.0mm | 5.905 | 1.375 | call | .866 x 2.250 | -1.0cc | 10.0 | 09513346 $124.99 | 82006 $177.50 |
85.5mm | 88.0mm | 5.905 | 1.375 | call | .866 x 2.250 | -1.0cc | 10.1 | 09513366 $124.99 | 82007 $177.50 |
86.0mm | 88.0mm | 5.905 | 1.375 | call | .866 x 2.250 | -1.0cc | 10.2 | 09513386 $124.99 | 82008 $177.50 |
Stock Bore 85.0mm (3.3464) Stock Stroke 88mm (3.4645) |
|
- | |||||||
Bore | Stroke | Rod | C.D. | Wht. | Pin | CC's | 47cc | Ring Set | Part # ea. |
85.0mm | 94.0mm | 5.905 | 1.255 | call | .866 x 2.250 | -16.5cc | 8.5 | 09513346 $124.99 | 82009 $177.50 |
85.5mm | 94.0mm | 5.905 | 1.255 | call | .866 x 2.250 | -16.5cc | 8.6 | 09513366 $124.99 | 82010 $177.50 |
86.0mm | 94.0mm | 5.905 | 1.255 | call | .866 x 2.250 | -16.5cc | 8.7 | 09513386 $124.99 | 82011 $177.50 |
85.0mm | 94.0mm | 5.905 | 1.255 | call | .866 x 2.250 | -12.3cc | 9.0 | 09513346 $124.99 | 82012 $177.50 |
85.5mm | 94.0mm | 5.905 | 1.255 | call | .866 x 2.250 | -12.3cc | 9.0 | 09513366 $124.99 | 82013 $177.50 |
86.0mm | 94.0mm | 5.905 | 1.255 | call | .866 x 2.250 | -12.3cc | 9.1 | 09513386 $124.99 | 82014 $177.50 |
85.0mm | 94.0mm | 5.905 | 1.255 | call | .866 x 2.250 | -4.5cc | 10.0 | 09513346 $124.99 | 82015 $177.50 |
85.5mm | 94.0mm | 5.905 | 1.255 | call | .866 x 2.250 | -4.5cc | 10.1 | 09513366 $124.99 | 82016 $177.50 |
86.0mm | 94.0mm | 5.905 | 1.255 | call | .866 x 2.250 | -4.5cc | 10.2 | 09513386 $124.99 | 82017 $177.50 |
Stock Bore 85.0mm (3.3464) Stock Stroke 88mm (3.4645) |
|
- | |||||||
Bore | Stroke | Rod | C.D. | Wht. | Pin | CC's | 47cc | Ring Set | Part # ea. |
85.0mm | 100.0mm | 5.905 | 1.135 | call | .866 x 2.250 | -21.0cc | 8.5 | 09513346 $124.99 | 82018 $177.50 |
85.5mm | 100.0mm | 5.905 | 1.135 | call | .866 x 2.250 | -21.0cc | 8.6 | 09513366 $124.99 | 82019 $177.50 |
86.0mm | 100.0mm | 5.905 | 1.135 | call | .866 x 2.250 | -21.0cc | 8.7 | 09513386 $124.99 | 82020 $177.50 |
85.0mm | 100.0mm | 5.905 | 1.135 | call | .866 x 2.250 | -16.5cc | 9.0 | 09513346 $124.99 | 82021 $177.50 |
85.5mm | 100.0mm | 5.905 | 1.135 | call | .866 x 2.250 | -16.5cc | 9.0 | 09513366 $124.99 | 82022 $177.50 |
86.0mm | 100.0mm | 5.905 | 1.135 | call | .866 x 2.250 | -16.5cc | 9.1 | 09513386 $124.99 | 82023 $177.50 |
85.0mm | 100.0mm | 5.905 | 1.135 | call | .866 x 2.250 | -8.0cc | 10.0 | 09513346 $124.99 | 82024 $177.50 |
85.5mm | 100.0mm | 5.905 | 1.135 | call | .866 x 2.250 | -8.0cc | 10.1 | 09513366 $124.99 | 82025 $177.50 |
86.0mm | 100.0mm | 5.905 | 1.135 | call | .866 x 2.250 | -8.0cc | 10.1 | 09513386 $124.99 | 82026 $177.50 |
Page 147
Mitsubishi 99-07 EVO VI-IX - 4G63 SERIES
Stock Bore 85.0mm (3.3464) Stock Stroke 88mm (3.4645) |
|
- | |||||||
Bore | Stroke | Rod | C.D. | Wht. | Pin | CC's | 47cc | Ring Set | Part # ea. |
85.0mm | 88.0mm | 6.1417 | 1.135 | call | .866 x 2.250 | -11.8cc | 8.5 | 09513346 $124.99 | 82027 $177.50 |
85.5mm | 88.0mm | 6.1417 | 1.135 | call | .866 x 2.250 | -11.8cc | 8.6 | 09513366 $124.99 | 82028 $177.50 |
86.0mm | 88.0mm | 6.1417 | 1.135 | call | .866 x 2.250 | -11.8cc | 8.7 | 09513386 $124.99 | 82029 $177.50 |
85.0mm | 88.0mm | 6.1417 | 1.135 | call | .866 x 2.250 | -8.0cc | 8.9 | 09513346 $124.99 | 82030 $177.50 |
85.5mm | 88.0mm | 6.1417 | 1.135 | call | .866 x 2.250 | -8.0cc | 9.0 | 09513366 $124.99 | 82031 $177.50 |
86.0mm | 88.0mm | 6.1417 | 1.135 | call | .866 x 2.250 | -8.0cc | 9.1 | 09513386 $124.99 | 82032 $177.50 |
85.0mm | 88.0mm | 6.1417 | 1.135 | call | .866 x 2.250 | -1.0cc | 9.9 | 09513346 $124.99 | 82033 $177.50 |
85.5mm | 88.0mm | 6.1417 | 1.135 | call | .866 x 2.250 | -1.0cc | 10.0 | 09513366 $124.99 | 82034 $177.50 |
86.0mm | 88.0mm | 6.1417 | 1.135 | call | .866 x 2.250 | -1.0cc | 10.0 | 09513386 $124.99 | 82035 $177.50 |
Stock Bore 85.0mm (3.3464) Stock Stroke 88mm (3.4645) |
|
- | |||||||
Bore | Stroke | Rod | C.D. | Wht. | Pin | CC's | 47cc | Ring Set | Part # ea. |
85.0mm | 94.0mm | 6.1417 | 1.020 | call | .866 x 2.250 | -16.5cc | 8.5 | 09513346 $124.99 | 82036 $177.50 |
85.5mm | 94.0mm | 6.1417 | 1.020 | call | .866 x 2.250 | -16.5cc | 8.6 | 09513366 $124.99 | 82037 $177.50 |
86.0mm | 94.0mm | 6.1417 | 1.020 | call | .866 x 2.250 | -16.5cc | 8.7 | 09513386 $124.99 | 82038 $177.50 |
85.0mm | 94.0mm | 6.1417 | 1.020 | call | .866 x 2.250 | -11.8cc | 9.0 | 09513346 $124.99 | 82039 $177.50 |
85.5mm | 94.0mm | 6.1417 | 1.020 | call | .866 x 2.250 | -11.8cc | 9.1 | 09513366 $124.99 | 82040 $177.50 |
86.0mm | 94.0mm | 6.1417 | 1.020 | call | .866 x 2.250 | -11.8cc | 9.2 | 09513386 $124.99 | 82041 $177.50 |
85.0mm | 94.0mm | 6.1417 | 1.020 | call | .866 x 2.250 | -4.5cc | 10.0 | 09513346 $124.99 | 82042 $177.50 |
85.5mm | 94.0mm | 6.1417 | 1.020 | call | .866 x 2.250 | -4.5cc | 10.1 | 09513366 $124.99 | 82043 $177.50 |
86.0mm | 94.0mm | 6.1417 | 1.020 | call | .866 x 2.250 | -4.5cc | 10.2 | 09513386 $124.99 | 82044 $177.50 |
Page 148
Mitsubishi 2008-UP EVO X - 4B11 SERIES
3D milling on piston crowns for ready to install finish
Offset pins for quiet operation
Side gas ports for better ring seal
Moly skirt coating for friction loss and skirt wear protection
Ratios figured for 87mm x .040 head gasket @ 8.660 deck
Top ring down dimension: .300"-.265" 1.070cd
Premium 1.0mm x 1.2mm x 2.8mm ring package included
Premium 8620 .180W wrist pins chamfered for roundwire locks
included
Oversized valve pockets - for larger than stock valve sizes
Valve pocket depth: 0.150" intake and .070" exhaust
2618 material for High HP/Boost applications
Stock Bore 86.0mm (3.3858) Stock Stroke 86mm (3.3858) |
|
- | |||||||
Bore | Stroke | Rod | C.D. | Wht. | Pin | CC's | 49cc | Ring Set | Part # ea. |
86.0mm | 86.0mm | 5.659 | 1.305 | call | .905 x 2.250 | -6.0cc | 9.0 | 09513386 $124.99 | 82050 $177.50 |
86.5mm | 86.0mm | 5.659 | 1.305 | call | .905 x 2.250 | -6.0cc | 9.1 | 09513406 $124.99 | 82051 $177.50 |
90.0mm | 86.0mm | 5.659 | 1.305 | call | .905 x 2.250 | -6.0cc | 9.7 | 09513543 $124.99 | 82062 $177.50 |
86.0mm | 86.0mm | 5.659 | 1.305 | call | .905 x 2.250 | 1.0cc | 10.0 | 09513386 $124.99 | 82052 $177.50 |
86.5mm | 86.0mm | 5.659 | 1.305 | call | .905 x 2.250 | 1.0cc | 10.1 | 09513406 $124.99 | 82053 $177.50 |
90.0mm | 86.0mm | 5.659 | 1.305 | call | .905 x 2.250 | 1.0cc | 10.5 | 09513543 $124.99 | 82063 $177.50 |
Stock Bore 86.0mm (3.3858) Stock Stroke 86mm (3.3858) |
|
- | |||||||
Bore | Stroke | Rod | C.D. | Wht. | Pin | CC's | 49cc | Ring Set | Part # ea. |
86.0mm | 94.0mm | 5.659 | 1.150 | call | .905 x 2.250 | -12.0cc | 9.0 | 09513386 $124.99 | 82054 $177.50 |
86.5mm | 94.0mm | 5.659 | 1.150 | call | .905 x 2.250 | -12.0cc | 9.1 | 09513406 $124.99 | 82055 $177.50 |
90.0mm | 94.0mm | 5.659 | 1.150 | call | .905 x 2.250 | -12.0cc | 9.8 | 09513543 $124.99 | 82064 $177.50 |
86.0mm | 94.0mm | 5.659 | 1.150 | call | .905 x 2.250 | -4.5cc | 10.0 | 09513386 $124.99 | 82056 $177.50 |
86.5mm | 94.0mm | 5.659 | 1.150 | call | .905 x 2.250 | -4.5cc | 10.1 | 09513406 $124.99 | 82057 $177.50 |
90.0mm | 94.0mm | 5.659 | 1.150 | call | .905 x 2.250 | -4.5cc | 10.8 | 09513543 $124.99 | 82065 $177.50 |
Stock Bore 86.0mm (3.3858) Stock Stroke 86mm (3.3858) |
|
- | |||||||
Bore | Stroke | Rod | C.D. | Wht. | Pin | CC's | 49cc | Ring Set | Part # ea. |
86.0mm | 98.0mm | 5.659 | 1.070 | call | .905 x 2.250 | -15.0cc | 9.0 | 09513386 $124.99 | 82058 $177.50 |
86.5mm | 98.0mm | 5.659 | 1.070 | call | .905 x 2.250 | -15.0cc | 9.1 | 09513406 $124.99 | 82059 $177.50 |
90.0mm | 98.0mm | 5.659 | 1.070 | call | .905 x 2.250 | -15.0cc | 9.7 | 09513543 $124.99 | 82066 $177.50 |
86.0mm | 98.0mm | 5.659 | 1.070 | call | .905 x 2.250 | -7.0cc | 10.0 | 09513386 $124.99 | 82060 $177.50 |
86.5mm | 98.0mm | 5.659 | 1.070 | call | .905 x 2.250 | -7.0cc | 10.1 | 09513406 $124.99 | 82061 $177.50 |
90.0mm | 98.0mm | 5.659 | 1.070 | call | .905 x 2.250 | -7.0cc | 10.8 | 09513543 $124.99 | 82067 $177.50 |
Page 149
Toyota 2JZGTE SERIES
3D milling on piston crowns for ready to install finish
Offset pins for quiet operation
Moly skirt coating for friction loss and skirt wear protection
Side gas ports for better ring seal
Ratios figured for 87mm x .040 head gasket @ 8.621 deck
Top ring down dimension: .300" 1.338cd - .280"
1.180cd
Premium 8620 .180W wrist pins chamfered for roundwire locks
included
Premium 1.0mm x 1.2mm x 2.8mm ring package included
Oversized valve pockets - for larger than stock valve sizes
Valve pocket depth: 0.245" intake and .230" exhaust
2618 material for High HP/Boost applications
Stock Bore 86mm (3.385) Stock Stroke 86mm (3.385) |
|
- | |||||||
Bore | Stroke | Rod | C.D. | Wht. | Pin | CC's | 45cc | Ring Set | Part # ea. |
86.0mm | 86.0mm | 5.590 | 1.338 | call | .866 x 2.250 | -14.5cc | 8.5 | 09513385 $246.24 | 37000 $147.50 |
86.5mm | 86.0mm | 5.590 | 1.338 | call | .866 x 2.250 | -14.5cc | 8.6 | 09513405 $246.24 | 37001 $147.50 |
87.0mm | 86.0mm | 5.590 | 1.338 | call | .866 x 2.250 | -14.5cc | 8.7 | 09513425 $246.24 | 37002 $147.50 |
86.0mm | 86.0mm | 5.590 | 1.338 | call | .866 x 2.250 | -10.4cc | 9.0 | 09513385 $246.24 | 37003 $147.50 |
86.5mm | 86.0mm | 5.590 | 1.338 | call | .866 x 2.250 | -10.4cc | 9.1 | 09513405 $246.24 | 37004 $147.50 |
87.0mm | 86.0mm | 5.590 | 1.338 | call | .866 x 2.250 | -10.4cc | 9.2 | 09513425 $246.24 | 37005 $147.50 |
86.0mm | 86.0mm | 5.590 | 1.338 | call | .866 x 2.250 | -6.1cc | 9.6 | 09513385 $246.24 | 37006 $147.50 |
86.5mm | 86.0mm | 5.590 | 1.338 | call | .866 x 2.250 | -6.1cc | 9.7 | 09513405 $246.24 | 37007 $147.50 |
87.0mm | 86.0mm | 5.590 | 1.338 | call | .866 x 2.250 | -6.1cc | 9.8 | 09513425 $246.24 | 37008 $147.50 |
86.0mm | 86.0mm | 5.590 | 1.338 | call | .866 x 2.250 | -3.5cc | 10.0 | 09513385 $246.24 | 37018 $147.50 |
86.5mm | 86.0mm | 5.590 | 1.338 | call | .866 x 2.250 | -3.5cc | 10.1 | 09513405 $246.24 | 37019 $147.50 |
87.0mm | 86.0mm | 5.590 | 1.338 | call | .866 x 2.250 | -3.5cc | 10.2 | 09513425 $246.24 | 37020 $147.50 |
Stock Bore 86mm (3.385) Stroker 94mm (3.700) |
|
- | |||||||
Bore | Stroke | Rod | C.D. | Wht. | Pin | CC's | 45cc | Ring Set | Part # ea. |
86.0mm | 94.0mm | 5.590 | 1.180 | call | .866 x 2.250 | -20.7cc | 8.5 | 09513385 $246.24 | 37009 $147.50 |
86.5mm | 94.0mm | 5.590 | 1.180 | call | .866 x 2.250 | -20.7cc | 8.6 | 09513405 $246.24 | 37010 $147.50 |
87.0mm | 94.0mm | 5.590 | 1.180 | call | .866 x 2.250 | -20.7cc | 8.7 | 09513425 $246.24 | 37011 $147.50 |
86.0mm | 94.0mm | 5.590 | 1.180 | call | .866 x 2.250 | -16.2cc | 9.0 | 09513385 $246.24 | 37012 $147.50 |
86.5mm | 94.0mm | 5.590 | 1.180 | call | .866 x 2.250 | -16.2cc | 9.1 | 09513405 $246.24 | 37013 $147.50 |
87.0mm | 94.0mm | 5.590 | 1.180 | call | .866 x 2.250 | -16.2cc | 9.2 | 09513425 $246.24 | 37014 $147.50 |
86.0mm | 94.0mm | 5.590 | 1.180 | call | .866 x 2.250 | -8.6cc | 10.0 | 09513385 $246.24 | 37015 $147.50 |
86.5mm | 94.0mm | 5.590 | 1.180 | call | .866 x 2.250 | -8.6cc | 10.1 | 09513405 $246.24 | 37016 $147.50 |
87.0mm | 94.0mm | 5.590 | 1.180 | call | .866 x 2.250 | -8.6cc | 10.2 | 09513425 $246.24 | 37017 $147.50 |
Optional H-13, M2 and TP-1 wrist pins available as a upgrade to any piston part number. |
Page 150
Nissan SR20DE & SR20DET SERIES
3D milling on piston crowns for ready to install finish
Offset pins for quiet operation
Moly skirt coating for friction loss and skirt wear protection
Side gas ports for better ring seal
Ratios figured for 88.5mm x .040 head gasket @ 8.315"
Deck Height
Top ring down dimension: .280"
Premium 8620 .180W wrist pins chamfered for roundwire locks
included
Premium 1.0mm x 1.2mm x 2.8mm( ring package included
Oversized valve pockets - for larger than stock valve sizes
Valve pocket depth: 0.105" intake and 0.105"
exhaust
2618 material for High HP/Boost applications
SR20DE Block: 86.0mm Std Bore 86.0mm Std Stroke |
|
- | |||||||
Bore | Stroke | Rod | C.D. | Wht. | Pin | CC's | 45cc | Ring Set | Part # ea. |
86.0mm | 86.0mm | 5.365 | 1.255 | call | .866 x 2.250 | -14.0cc | 8.5 | 09513386 $124.99 | 83060 $162.50 |
86.5mm | 86.0mm | 5.365 | 1.255 | call | .866 x 2.250 | -14.0cc | 8.6 | 09513406 $124.99 | 83061 $162.50 |
87.0mm | 86.0mm | 5.365 | 1.255 | call | .866 x 2.250 | -14.0cc | 8.7 | 09513426 $124.99 | 83062 $162.50 |
86.0mm | 86.0mm | 5.365 | 1.255 | call | .866 x 2.250 | -6.5cc | 9.5 | 09513386 $124.99 | 83063 $162.50 |
86.5mm | 86.0mm | 5.365 | 1.255 | call | .866 x 2.250 | -6.5cc | 9.6 | 09513406 $124.99 | 83064 $162.50 |
87.0mm | 86.0mm | 5.365 | 1.255 | call | .866 x 2.250 | -6.5cc | 9.7 | 09513426 $124.99 | 83065 $162.50 |
Nissan
VQ35DE SERIES
- 3D milling on piston crowns for ready to install finish
Offset pins for quiet operation
Moly skirt coating for friction loss and skirt wear protection
Ratios figured for 96mm x .030 head gasket @ 8.460 Deck
Height
Top ring down dimension: .250"
Premium 8620 .185W wrist pins chamfered for roundwire locks
included
Premium 1.2mm x 1.5mm x 3.0mm ring package included
Oversized valve pockets - for larger than stock valve sizes
Valve pocket depth: 0.115" intake and sym exhaust
2618 material for High HP/Boost applications
- |
|
- | |||||||
Bore | Stroke | Rod | C.D. | Wht. | Pin | CC's | 57cc | Ring Set | Part # ea. |
95.5mm | 81.4mm | 5.676 | 1.167 | call | .866 x 2.500 | 1.0cc | 10.0 | 09503760 $307.49 | 83050 $162.50 |
95.5mm | 81.4mm | 5.676 | 1.167 | call | .866 x 2.500 | -2.5cc | 9.5 | 09503760 $307.49 | 83051 $162.50 |
95.5mm | 81.4mm | 5.676 | 1.167 | call | .866 x 2.500 | -6.5cc | 9.0 | 09503760 $307.49 | 83052 $162.50 |
96.0mm | 81.4mm | 5.676 | 1.167 | call | .866 x 2.500 | 1.0cc | 10.0 | 09503780 $307.49 | 83053 $162.50 |
96.0mm | 81.4mm | 5.676 | 1.167 | call | .866 x 2.500 | -2.5cc | 9.6 | 09503780 $307.49 | 83054 $162.50 |
96.0mm | 81.4mm | 5.676 | 1.167 | call | .866 x 2.500 | -6.5cc | 9.5 | 09503780 $307.49 | 83055 $162.50 |
Page 151
Nissan VQ37VHR SERIES
3D milling on piston crowns for ready to install finish
Offset pins for quiet operation
Moly skirt coating for friction loss and skirt wear protection
Ratios figured for 97mm x .030 head gasket
Top ring down dimension: .280"
Premium 8620 .185W wrist pins chamfered for roundwire locks
included
Premium 1.2mm x 1.5mm x 3.0mm ring package included
Oversized valve pockets - for larger than stock valve sizes
Valve pocket depth: 0.225" intake and .000" exhaust
2618 material for High HP/Boost applications
- |
|
- | |||||||
Bore | Stroke | Rod | C.D. | Wht. | Pin | CC's | 50.5cc | Ring Set | Part # ea. |
95.5mm | 86.0mm | 5.881 | 1.197 | call | .866 x 2.500 | 3.5cc | 11.5 | 09503760 $307.49 | 83000 $162.50 |
95.5mm | 86.0mm | 5.881 | 1.197 | call | .866 x 2.500 | -3.0cc | 10.5 | 09503760 $307.49 | 83001 $162.50 |
95.5mm | 86.0mm | 5.881 | 1.197 | call | .866 x 2.500 | -10.0cc | 9.5 | 09503760 $307.49 | 83002 $162.50 |
96.0mm | 86.0mm | 5.881 | 1.197 | call | .866 x 2.500 | 3.5cc | 11.6 | 09503780 $307.49 | 83003 $162.50 |
96.0mm | 86.0mm | 5.881 | 1.197 | call | .866 x 2.500 | -3.0cc | 10.5 | 09503780 $307.49 | 83004 $162.50 |
96.0mm | 86.0mm | 5.881 | 1.197 | call | .866 x 2.500 | -10.0cc | 9.6 | 09503780 $307.49 | 83005 $162.50 |
Page 152
Nissan GT-R 3.8L VR38DETT SERIES
Designed to work with OEM grade block ratings
3D milling on piston crowns for ready to install finish
Offset pins for quiet operation
Moly skirt coating for friction loss and skirt wear protection
Ratios figured for 96mm-100mm x .038 head gasket
Top ring down dimension: .260"
Premium 1.2mm x 1.5mm x 3.0mm ring package included
Premium H-13 .185W wrist pins chamfered for roundwire locks included
Oversized valve pockets - for larger than stock valve sizes
Valve pocket depth: 0.071" intake and .071" exhaust
2618 material for High HP/Boost applications
Stock Bore - 95.5mm Stock Stroke 88.4mm |
|
- | |||||||||
Block Type | Bore | Stroke | Rod | C.D. | Wht. | Pin | CC's | 67cc | Ring Set | Part # ea. | |
Grade 1 | 95.5mm | 88.4mm | 6.500 | 1.350 | call | .905 x 2.500 | -0.86cc | 9.0 | 09503760 $307.49 | 81000 $162.50 | |
Grade 2 | 95.5mm | 88.4mm | 6.500 | 1.350 | call | .905 x 2.500 | -0.86cc | 9.0 | 09503760 $307.49 | 81001 $162.50 | |
Grade 3 | 95.5mm | 88.4mm | 6.500 | 1.350 | call | .905 x 2.500 | -0.86cc | 9.0 | 09503760 $307.49 | 81002 $162.50 | |
N/A | 98.5mm | 88.4mm | 6.500 | 1.350 | call | .905 x 2.500 | -0.86cc | 9.5 | 09503878 $307.49 | 81003 $162.50 | |
N/A | 99.0mm | 88.4mm | 6.500 | 1.350 | call | .905 x 2.500 | -0.86cc | 9.6 | 09503898 $307.49 | 81004 $162.50 | |
N/A | 99.5mm | 88.4mm | 6.500 | 1.350 | call | .905 x 2.500 | -0.86cc | 9.6 | 09503917 $307.49 | 81005 $162.50 | |
N/A | 100.0mm | 88.4mm | 6.500 | 1.350 | call | .905 x 2.500 | -0.86cc | 9.7 | 09503937 $307.49 | 81006 $162.50 | |
Stock Bore - 95.5mm Stock Stroke 88.4mm |
|
- | |||||||||
Block Type | Bore | Stroke | Rod | C.D. | Wht. | Pin | CC's | 67cc | Ring Set | Part # ea. | |
Grade 1 | 95.5mm | 94.4mm | 6.500 | 1.230 | call | .905 x 2.500 | -0.86cc | 9.5 | 09503760 $307.49 | 81007 $162.50 | |
Grade 2 | 95.5mm | 94.4mm | 6.500 | 1.230 | call | .905 x 2.500 | -0.86cc | 9.5 | 09503760 $307.49 | 81008 $162.50 | |
Grade 3 | 95.5mm | 94.4mm | 6.500 | 1.230 | call | .905 x 2.500 | -0.86cc | 9.5 | 09503760 $307.49 | 81009 $162.50 | |
N/A | 98.5mm | 94.4mm | 6.500 | 1.230 | call | .905 x 2.500 | -6.5cc | 9.4 | 09503878 $307.49 | 81010 $162.50 | |
N/A | 99.0mm | 94.4mm | 6.500 | 1.230 | call | .905 x 2.500 | -6.5cc | 9.5 | 09503898 $307.49 | 81011 $162.50 | |
N/A | 99.5mm | 94.4mm | 6.500 | 1.230 | call | .905 x 2.500 | -6.5cc | 9.6 | 09503917 $307.49 | 81012 $162.50 | |
|
100.0mm | 94.4mm | 6.500 | 1.230 | call | .905 x 2.500 | -6.5cc | 9.7 | 09503937 $307.49 | 81013 $162.50 | |
Stock Bore - 95.5mm Stock Stroke 88.4mm |
|
- | |||||||||
Block Type | Bore | Stroke | Rod | C.D. | Wht. | Pin | CC's | 67cc | Ring Set | Part # ea. | |
Grade 1 | 95.5mm | 98.4mm | 6.500 | 1.155 | call | .905 x 2.500 | -4.5cc | 9.6 | 09503760 $307.49 | 81014 $162.50 | |
Grade 2 | 95.5mm | 98.4mm | 6.500 | 1.155 | call | .905 x 2.500 | -4.5cc | 9.6 | 09503760 $307.49 | 81015 $162.50 | |
Grade 3 | 95.5mm | 98.4mm | 6.500 | 1.155 | call | .905 x 2.500 | -4.5cc | 9.6 | 09503760 $307.49 | 81016 $162.50 | |
N/A | 98.5mm | 98.4mm | 6.500 | 1.155 | call | .905 x 2.500 | -9.5cc | 9.5 | 09503878 $307.49 | 81017 $162.50 | |
N/A | 99.0mm | 98.4mm | 6.500 | 1.155 | call | .905 x 2.500 | -9.5cc | 9.6 | 09503898 $307.49 | 81018 $162.50 | |
N/A | 99.5mm | 98.4mm | 6.500 | 1.155 | call | .905 x 2.500 | -9.5cc | 9.7 | 09503917 $307.49 | 81019 $162.50 | |
N/A | 100.0mm | 98.4mm | 6.500 | 1.155 | call | .905 x 2.500 | -9.5cc | 9.8 | 09503937 $307.49 | 81020 $162.50 |
Page 153
Nissan/Infiniti Q50/Q60 3.0L VR30DDTT
SERIES
Designed to work with OEM grade block ratings
3D milling on piston crowns for ready to install finish
Offset pins for quiet operation
Moly skirt coating for friction loss and skirt wear protection
Ratios figured for factory head gasket
Top ring down dimension: .260"
Premium H-13 .200W wrist pins chamfered for roundwire locks
included
Premium 1.2mm x 1.5mm x 3.0mm ring package included
Oversized valve pockets - for larger than stock valve sizes
Valve pocket depth: 0.170" intake and .080" exhaust
Stock Bore - 86.0mm Stock Stroke 86.0mm |
|
- | ||||||||
Block Type | Bore | Stroke | Rod | C.D. | Wht. | Pin | CC's | Factory CC | Ring Set | Part # ea. |
Grade 1 | 86.0mm | 86.0mm | 5.974 | 1.155 | call | .905 x 2.250 | -3.0cc | 10.3 | 09503385 | 81050 $162.50 |
Grade 2 | 86.0mm | 86.0mm | 5.974 | 1.155 | call | .905 x 2.250 | -3.0cc | 10.3 | 09503385 | 81051 $162.50 |
Page 154
Audi/Volkswagen 1.8T 20V SERIES
3D milling on piston crowns for ready to install finish
Offset pins for quiet operation
Moly skirt coating for friction loss and skirt wear protection
Side gas ports for better ring seal
Ratios figured for 82.0mm x .045 head gasket @ 8.661 Deck
Height
Top ring down dimension: .325"
Premium 8620 .180W wrist pins chamfered for roundwire locks
included
Premium 1.0mm x 1.2mm x 2.8mm ring package included
Oversized valve pockets - for larger than stock valve sizes
Valve pocket depth: 0.100"/0.060" intake and
0.080" exhaust
2618 material for High HP/Boost applications
1.8T Block: 81.0mm Std Bore 86.4mm Std Stroke |
|
- | |||||||
Bore | Stroke | Rod | C.D. | Wht. | Pin | CC's | 43cc | Ring Set | Part # ea. |
81.0mm | 86.4mm | 5.669 | 1.285 | call | .787 x 2.250 | -5.0cc | 9.0 | 09513188 $124.99 | 38000 $171.25 |
81.5mm | 86.4mm | 5.669 | 1.285 | call | .787 x 2.250 | -5.0cc | 9.1 | 09513208 $124.99 | 38001 $171.25 |
82.0mm | 86.4mm | 5.669 | 1.285 | call | .787 x 2.250 | -5.0cc | 9.2 | 09513228 $124.99 | 38002 $171.25 |
82.5mm | 86.4mm | 5.669 | 1.285 | call | .787 x 2.250 | -5.0cc | 9.3 | 09513248 $124.99 | 38003 $171.25 |
83.0mm | 86.4mm | 5.669 | 1.285 | call | .787 x 2.250 | -5.0cc | 9.4 | 09513268 $124.99 | 38004 $171.25 |
81.0mm | 86.4mm | 5.669 | 1.285 | call | .787 x 2.250 | -9.0cc | 8.5 | 09513188 $124.99 | 38005 $171.25 |
81.5mm | 86.4mm | 5.669 | 1.285 | call | .787 x 2.250 | -9.0cc | 8.6 | 09513208 $124.99 | 38006 $171.25 |
82.0mm | 86.4mm | 5.669 | 1.285 | call | .787 x 2.250 | -9.0cc | 8.7 | 09513228 $124.99 | 38007 $171.25 |
82.5mm | 86.4mm | 5.669 | 1.285 | call | .787 x 2.250 | -9.0cc | 8.8 | 09513248 $124.99 | 38008 $171.25 |
83.0mm | 86.4mm | 5.669 | 1.285 | call | .787 x 2.250 | -9.0cc | 8.9 | 09513268 $124.99 | 38009 $171.25 |
Page 155
Audi/Volkswagen 2.0T FSI & TSI SERIES
3D milling on piston crowns for ready to install finish
Offset pins for quiet operation
Moly skirt coating for friction loss and skirt wear protection
Side gas ports for better ring seal
Ratios figured for 83.5mm x .035 head gasket @ 8.661 Deck
Height
Top ring down dimension: .250"
Premium 8620 .180W wrist pins chamfered for roundwire locks
included
Premium 1.0mm x 1.2mm x 2.8mm ring package included
Oversized valve pockets - for larger than stock valve sizes
Valve pocket depth: 0.125" intake and 0.095"
exhaust
2618 material for High HP/Boost applications
2.0T Block: 82.5mm Std Bore 92.8mm Std Stroke |
|
- | ||||||||
Bore | Stroke | Rod | C.D. | Wht. | Pin | CC's | 45cc | 46cc | Ring Set | Part # ea. |
82.5mm | 92.8mm | 5.669 | 1.165 | call | .787 x 2.250 | -15.5cc | 8.5 | 8.4 | 09513248 $124.99 | 38100 $171.25 |
83.0mm | 92.8mm | 5.669 | 1.165 | call | .787 x 2.250 | -15.5cc | 8.6 | 8.5 | 09513268 $124.99 | 38101 $171.25 |
82.5mm | 92.8mm | 5.669 | 1.165 | call | .787 x 2.250 | -11.5cc | 9.0 | 8.9 | 09513248 $124.99 | 38102 $171.25 |
83.0mm | 92.8mm | 5.669 | 1.165 | call | .787 x 2.250 | -11.5cc | 9.1 | 8.9 | 09513268 $124.99 | 38103 $171.25 |
82.5mm | 92.8mm | 5.669 | 1.165 | call | .787 x 2.250 | -4.5cc | 10.0 | 9.8 | 09513248 $124.99 | 38104 $171.25 |
83.0mm | 92.8mm | 5.669 | 1.165 | call | .787 x 2.250 | -4.5cc | 10.1 | 9.9 | 09513268 $124.99 | 38105 $171.25 |
82.5mm | 92.8mm | 5.669 | 1.165 | call | .8267 x 2.250 | -15.5cc | 8.5 | 8.4 | 09513248 $124.99 | 38106 $171.25 |
83.0mm | 92.8mm | 5.669 | 1.165 | call | .8267 x 2.250 | -15.5cc | 8.6 | 8.5 | 09513268 $124.99 | 38107 $171.25 |
82.5mm | 92.8mm | 5.669 | 1.165 | call | .8267 x 2.250 | -11.5cc | 9.0 | 8.9 | 09513248 $124.99 | 38108 $171.25 |
83.0mm | 92.8mm | 5.669 | 1.165 | call | .8267 x 2.250 | -11.5cc | 9.1 | 8.9 | 09513268 $124.99 | 38109 $171.25 |
82.5mm | 92.8mm | 5.669 | 1.165 | call | .8267 x 2.250 | -4.5cc | 10.0 | 9.8 | 09513248 $124.99 | 38110 $171.25 |
83.0mm | 92.8mm | 5.669 | 1.165 | call | .8267 x 2.250 | -4.5cc | 10.1 | 9.9 | 09513268 $124.99 | 38111 $171.25 |
82.5mm | 92.8mm | 5.669 | 1.165 | call | .866 x 2.250 | -15.5cc | 8.5 | 8.4 | 09513248 $124.99 | 38112 $171.25 |
83.0mm | 92.8mm | 5.669 | 1.165 | call | .866 x 2.250 | -15.5cc | 8.6 | 8.5 | 09513268 $124.99 | 38113 $171.25 |
82.5mm | 92.8mm | 5.669 | 1.165 | call | .866 x 2.250 | -11.5cc | 9.0 | 8.9 | 09513248 $124.99 | 38114 $171.25 |
83.0mm | 92.8mm | 5.669 | 1.165 | call | .866 x 2.250 | -11.5cc | 9.1 | 8.9 | 09513268 $124.99 | 38115 $171.25 |
82.5mm | 92.8mm | 5.669 | 1.165 | call | .866 x 2.250 | -4.5cc | 10.0 | 9.8 | 09513248 $124.99 | 38116 $171.25 |
83.0mm | 92.8mm | 5.669 | 1.165 | call | .866 x 2.250 | -4.5cc | 10.1 | 9.9 | 09513268 $124.99 | 38117 $171.25 |
82.5mm | 92.8mm | 5.669 | 1.165 | call | .9055 x 2.250 | -7.5cc | 9.5 | 9.4 | 09513248 $124.99 | 38118 $171.25 |
83.0mm | 92.8mm | 5.669 | 1.165 | call | .9055 x 2.250 | -7.5cc | 9.6 | 9.5 | 09513268 $124.99 | 38119 $171.25 |
Page 156
Volkswagen VR6 3.2L R32 SERIES
3D milling on piston crowns for ready to install finish
Offset pins for quiet operation
Moly skirt coating for friction loss and skirt wear protection
Side gas ports for better ring seal
Ratios figured for 85.0mm x .025 head gasket @ 9.709 Deck
(.000 Deck)
Premium 8620 .180W wrist pins chamfered for roundwire locks
included
Premium 1.0mm x 1.2mm x 2.8mm ring package included
Oversized valve pockets - for larger than stock valve sizes
Valve pocket depth: 0.200" intake and 0.125"
exhaust
2618 material for High HP/Boost applications
VR6 Block: 84.0mm Std Bore 95.9mm Std Stroke |
|
- | |||||||
Bore | Stroke | Rod | C.D. | Wht. | Pin | CC's | 40cc | Ring Set | Part # ea. |
84.0mm | 95.9mm | 6.457 | 1.364 | call | .787 x 2.250 | -21.5cc | 9.0 | 09513307 $246.24 | 38200 $190.00 |
84.5mm | 95.9mm | 6.457 | 1.364 | call | .787 x 2.250 | -21.5cc | 9.1 | 09513327 $246.24 | 38201 $190.00 |
85.0mm | 95.9mm | 6.457 | 1.364 | call | .787 x 2.250 | -21.5cc | 9.2 | 09513347 $246.24 | 38202 $190.00 |
84.0mm | 95.9mm | 6.457 | 1.364 | call | .787 x 2.250 | -7.0cc | 11.2 | 09513307 $246.24 | 38203 $190.00 |
84.5mm | 95.9mm | 6.457 | 1.364 | call | .787 x 2.250 | -7.0cc | 11.4 | 09513327 $246.24 | 38204 $190.00 |
85.0mm | 95.9mm | 6.457 | 1.364 | call | .787 x 2.250 | -7.0cc | 11.5 | 09513347 $246.24 | 38205 $190.00 |
Page 158

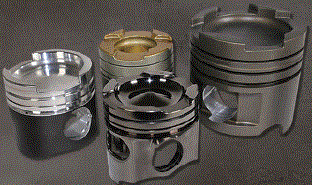

Custom Diesel Piston Capabilities
Diamond Pistons is an acknowledged leader in racing piston design,
but many may be unaware that Diamond also applies its considerable
engineering expertise to the commercial and consumer diesel market. Diamond offers a fully customizable piston package for almost any Diesel engine. Diamonds custom piston options incorporated the desirable performance and durability features that are long recognized as a hallmark of Diamond Pistons. Diamond can manufacture custom diesel pistons ranging from bore diameters of 2.600" to 6.000". With over 15 years of experience in billet piston technology, Diamond can reproduce any customer engineered fuel bowl design or prototype one-off piston design imaginable. Diamonds broad library of OEM specs range from European, Antique, GM, Ford, Dodge, John Deere, International and many other engine platforms. Diamond is your #1 source for all Diesel piston applications. |
Page 159
Page 160
NHRA APPROVED
STOCK ELIMINATOR PISTON LISTING
CHEVROLET | ||||||
Engine Type | Bore | C.D. | Wht. | CC's | Pin | Part # ea. |
346 98-02 LS1 | 3.905 | 1.340 | 416 | 0.0cc | .945 x 2.500 | 80001 |
346 98-02 LS1 | 3.905 | 1.315 | 416 | -0.0cc | .927 x 2.500 | 80002 |
283 57-67 | 3.935 | 1.787 | 545 | -3.0cc | .927 x 2.750 | 80003 |
327 62-69 210-300HP | 4.040 | 1.665 | 547 | -3.0cc | .927 x 2.950 | 80004 |
305 78-86 | 3.800 | 1.560 | 452 | -12.6cc | .927 x 2.500 | 80005 |
350 67-70 250-300HP | 4.030 | 1.550 | 535 | -5.7cc | .927 x 2.950 | 80006 |
350 LT1 90-98 | 4.040 | 1.535 | 518 | -5.7cc | .927 x 2.500 | 80007 |
396 65-69 375HP | 4.095 | 1.760 | 641 | 40.7cc | .990 x 2.930 | 80008 |
427 66-69 425HP | 4.250 | 1.760 | 662 | 37.0cc | .990 x 2.930 | 80009 |
409 61-65 340-425HP | 4.320 | 1.820 | 810 | 90.7cc | .990 x 2.930 | 80030 |
454 1971 425HP | 4.280 | 1.615 | 642 | 14.7cc | .990 x 2.930 | 80037 |
265 56-57 All HP | 3.750 | 1.810 | 525 | -3.0cc | .927 x 2.500 | 80046 |
427 2012 Copo | 4.125 | 1.190 | 469 | 11.5cc | .927 x 2.250 | 80052 |
396 2013 Copo | 4.065 | 1.105 | 420 | -4.0cc | .927 x 2.200 | 80056 |
350 2014 Copo 350HP | 4.125 | 1.250 | 475 | 11.9cc | .927 x 2.250 | 80058 |
427-1 2014 Copo | 4.125 | 1.140 | 415 | -3.0cc | .927 x 2.200 | 80059 |
396 66-69 325-360HP | 4.095 | 1.735 | 672 | 23.2cc | .990 x 2.750 | 80061 |
302 37-69 290HP | 4.000 | 1.775 | 565 | 14.3cc | .927 x 2.500 | 80063 |
350 2014 Copo 530HP | 4.065 | 1.200 | 467 | 12.1cc | .927 x 2.250 | 80067 |
350 2016 Copo Supercharged 580HP | 4.065 | 1.200 | 474 | 12.0cc | .927 x 2.250 | 80074 |
409 2016 Copo 450HP | 4.125 | 1.125 | 453 | 11.3cc | .927 x 2.250 | 80075 |
427 2016 Copo 470HP | 4.125 | 1.140 | 454 | 11.3cc | .927 x 2.250 | 80076 |
FORD | ||||||
Engine Type | Bore | C.D. | Wht. | CC's | Pin | Part # ea. |
390 FE 66-70 | 4.080 | 1.745 | 618 | -7.6cc | .975 x 2.930 | 80024 |
428 67 Shelby | 4.160 | 1.645 | 615 | -3.6cc | .975 x 2.930 | 80025 |
351C 70-72 All Flat Top | 4.030 | 1.645 | 532 | -1.6cc | .912 x 2.750 | 80026 |
429 69-71 370-375HP | 4.422 | 1.848 | 778 | -1.3cc | 1.040 x 2.930 | 80028 |
5.4L 2012 450HP CJ | 3.552 | 1.260 | 389 | -12.5cc | .866 x 2.500 | 80040 |
5.4L 2008 425HP CJ | 3.552 | 1.260 | 389 | -12.5cc | .866 x 2.500 | 80042 |
5.4L 2010 435HP CJ | 3.552 | 1.260 | 389 | -12.5cc | .866 x 2.500 | 80043 |
5.4L 2010 500HP CJ | 3.552 | 1.220 | 389 | 0.0cc | .866 x 2.500 | 80044 |
5.4L 2012 510HP CJ | 3.552 | 1.260 | 389 | -12.5cc | .866 x 2.500 | 80045 |
428 2010 375HP CJ | 4.080 | 1.245 | 450 | -5.1cc | .927 x 2.500 | 80048 |
363 2013 CJ | 4.125 | 1.090 | 397 | -6.6cc | .927 x 2.500 | 80060 |
302 2013 500HP | 3.630 | 1.155 | 338 | -5.5cc | .866 x 2.500 | 80068 |
427 2013 425HP CJ | 4.125 | 1.230 | 423 | -14.0cc | .927 x 2.250 | 80070 |
351C 1971 Boss 330 | 4.060 | 1.650 | 562 | 11.6cc | .912 x 2.750 | 80071 |
Page 161
NHRA APPROVED
STOCK ELIMINATOR PISTON LISTING
MOPAR | ||||||
Engine Type | Bore | C.D. | Wht. | CC's | Pin | Part # ea. |
426 2009-2010 Dragpack | 4.185 | 1.221 | 476 | 18.3cc | .927 x 2.250 | 80010 |
426 66-71 426 Street Hemi | 4.280 | 1.970 | 836 | 90.5cc | 1.031 x 2.930 | 80017 |
440 70-71 6-Pak | 4.360 | 2.062 | 856 | -2.7cc | 1.094 x 2.750 | 80018 |
340 68-71 275-290HP | 4.070 | 1.842 | 712 | -5.5cc | .984 x 2.750 | 80019 |
340 72-73 240HP | 4.070 | 1.742 | 712 | -0.9cc | .984 x 2.750 | 80020 |
360 73-92 All HP | 4.030 | 1.592 | 580 | -6.8cc | .984 x 2.750 | 80021 |
360 80-92 Truck | 4.040 | 1.620 | 469 | -9.8cc | .984 x 2.750 | 80022 |
360 93-99 All HP | 4.030 | 1.626 | 469 | -6.8cc | .984 x 2.750 | 80023 |
345 09-10 Drag Pak | 3.917 | 1.263 | 489 | 14.9cc | .927 x 2.750 | 80038 |
370 2009 385 Drag Pak | 4.050 | 1.263 | 515 | 10.7cc | .927 x 2.750 | 80039 |
392 2010 375HP Drag Pak | 4.060 | 1.155 | 447 | -4.8cc | .927 x 2.750 | 80049 |
512 2011 Dodge V10 | 4.060 | 1.250 | 492 | 8.1cc | .927 x 2.500 | 80051 |
413 1962 410HP | 4.180 | 2.015 | 741 | 7.8cc | 1.094 x 2.930 | 80064 |
426 1963 415HP | 4.250 | 2.015 | 741 | 8.2cc | 1.094 x 2.930 | 80065 |
426 1964 415HP | 4.250 | 2.015 | 741 | 10.5cc | 1.094 x 2.930 | 80066 |
354 2015 530HP Drag Pak | 4.060 | 1.270 | 470 | 13.4cc | .927 x 2.250 | 80073 |
BUICK | ||||||
Engine Type | Bore | C.D. | Wht. | CC's | Pin | Part # ea. |
455 1970 350-360HP | 4.320 | 1.900 | 634 | -9.7cc | 1.000 x 2.930 | 80053 |
455 71-76 All HP | 4.320 | 1.900 | 634 | -25.0cc | 1.000 x 2.930 | 80054 |
PONTIAC | ||||||
Engine Type | Bore | C.D. | Wht. | CC's | Pin | Part # ea. |
350 74-77 155-170-200HP | 3.935 | 1.690 | 557 | 0.0cc | .980 x 2.750 | 80062 |
OLDSMOBILE | ||||||
Engine Type | Bore | C.D. | Wht. | CC's | Pin | Part # ea. |
455 68-70 All 4-Brl | 4.125 | 1.735 | 575 | -8.2cc | .980 x 2.930 | 80015 |
455 71-76 All 4-Brl | 4.125 | 1.735 | 650 | -22.1cc | .980 x 2.930 | 80016 |
307 80-89 138-180HP | 3.840 | 1.590 | 538 | -12.5cc | .980 x 2.930 | 80057 |
