FORGED DIAMOND PISTONS
LT2K piston
Chevy LS, LT, Gen V, Modern Hemi, Mopar, BBC,
Oldsmobile, Pontiac, LS Chevy, Ford Modular,
BBC Chevy Marine, Mercury Marine Racing
Page 1
Small Block Mopar | |
Small Block Mopar 318 Street/Strip Flat Top Series | 124 |
Small Block Mopar 340 Street/Strip Flat Top Series | 124 |
Small Block Mopar 360 Street/Strip Flat Top Series | 125 |
Small Block Mopar 318 Street/Strip Dish Series | 126 |
Small Block Mopar 340 Street/Strip Dish Series | 126 |
Small Block Mopar 360 Street/Strip Dish Series | 127 |
Big Block Mopar | |
Big Block Mopar 383 Street/Strip Flat Top Series | 128 |
Big Block Mopar 400 Street/Strip Flat Top Series | 128 |
Big Block Mopar 440 Street/Strip Flat Top Series | 129 |
Big Block Mopar 572 Street/Strip Flat Top Series | 130 |
Big Block Mopar 400 Street/Strip Dish Series | 130 |
Big Block Mopar 440 Street/Strip Dish Series | 131 |
Big Block Mopar 572 Street/Strip Dish Series | 132 |
Big Block Mopar 440 High Comp. Dome Series | 132 |
Big Block Mopar 440 Edelbrock Dome Series | 133 |
Mopar Hemi | |
Mopar 426 Hemi Street Dome Series | 134 |
Mopar 426 Hemi Race Dome Series | 135 |
Sport Compact Series | |
GM | |
GM Ecotec Street/Strip Series | 136 |
Ford | |
Ford/Barra XR-6 40L Turbo Series | 137 |
Ford 16L Ecoboost Series | 138 |
Ford 20L Ecoboost Series | 138 |
Ford 23L Ecoboost Series | 139 |
Ford 35L Ecoboost Series | 139 |
Honda | |
Honda B18 Rebel Series | 140 |
Honda K20 Rebel Series | 140 |
Honda K24 Rebel Series | 141 |
Subaru | |
Subaru 2002-05 EJ205 WRX/STI Series | 142 |
Subaru 2006-08 EJ255 WRX Series | 142 |
Subaru 2004-UP EJ257 WRX/STI Series | 143 |
Subaru/Toyota FA20 BRZ/4U-GSE Series | 144 |
Subaru FA20DIT WRX Series | 145 |
Mitsubishi | |
Mitsubishi 1999-2007 EVO VI-IX – 4G63 Series | 146 |
Mitsubishi 2008-UP EVO X – 4B11 Series | 148 |
Toyota | |
Toyota 2JZGTE Series | 149 |
Nissan | Page |
Nissan SR20DE & SR20DET Series | 150 |
Nissan VQ35DE Series | 150 |
Nissan VQ37VHR Series | 151 |
Nissan GT-R 38L VR38DETT Series | 152 |
Nissan Q50/Q60 30L VR30DDTT Series | 153 |
Audi/Volkswagen | |
Audi/Volkswagen 18T 20V Series | 154 |
Audi/Volkswagen 20T FSI & TSI Series | 155 |
Volkswagen VR6 32L R32 Series | 156 |
Diesel | |
Diesel Custom Piston Capabilities | 158 |
NHRA Legal | |
NHRA Legal Piston Series | 160 |
Coatings | |
Coating Services | 162 |
Wrist Pins | |
8620 Series | 164 |
H-13 Series | 166 |
TP-1 Series | 170 |
Wrist Pin Retaining Locks | 171 |
Ringsets | |
Pro-Select Ringsets | 172 |
Piston Ring Installation Guidelines | 185 |
Support Rails | |
Oil Ring Support Rails | 186 |
Tools | |
Piston Checking Fixture | 188 |
Chamber Mold Kit | |
Precision Ring Filer–110V 1/15HP | 188 |
Assembly Lube 8oz | 189 |
Total Seal Quickseat | 189 |
Piston Ring Expander | 189 |
Tapered Ring Compressors | 190 |
Tech Help | |
Piston Orientation Diagrams | 191 |
Custom Capabilities | 194 |
Comp. Ratios Explained | 196 |
Automath Formulas | 197 |
Forms | |
Custom Pistons Options Listings | 198 |
In the early days of racing, those who wanted to win races became innovators, pushing the envelope of speed in the quest for glory. Diamond Pistons, founded in 1968the heyday of muscle cars and drag racing was born of that innovation and continues today to be a driving force in performance and racing piston design. Original founders, Diamond Jim Cavallaro, Nick Plantas and Butch Eldkins, were a group of racers and entrepreneurs who combined resources to form the companys first iteration. It didnt take long for them to carve a niche in the highperformance game, with Diamond quickly becoming involved with Super Stock and Pro Stock in the early 70s. Like many companies of that ilk and era, Diamond wasnt focused on doing just one thing. Instead, they did it all. Cylinder head porting, engine building, and all other manner of performance took place under Diamonds roof. From Pro Stock and NASCAR engines, to rocker arms and fittings were all built under Diamonds roof. It was a fully operational machine shop that deigned anything needed, in-house. As demand for performance peaked, Diamond started to machine their own pistons using forged blanks, finished in-house to their rigid specs and quality. That business plan continued into the early 90s when a new owner, Bob Fox, decided to shift the companys considerable engineering resources solely to piston development. Fox, who previously worked for the trio of founders as a salesman, purchased the company from Jim, Butch, and Nick in 1999. With new leadership and product direction, Diamonds resources became hyper-focused on performance and racing piston technology and innovation. As Diamond Pistons went up against corporate conglomerates, it was a classic case of David vs. Goliath. However, Fox realized this wasnt a detriment, but a strength in scale. The goliaths of the world simply couldnt provide the attention to detail and customer service that Diamond was and continues to be capable of. That individual customer focus allowed the company to grow into an industry leader in billet and prototype piston production. |
Throughout the years Diamond has maintained their seat on the cutting-edge of manufacturing technology by continuously upgrading equipment, machinery, and software. In addition to hardware, Diamond has completely revolutionized the landscape of manufacturing methodology. A complete forged piston can now go from raw material to a finished part in a single machining cell, in one-operation. A process that traditionally took weeks of manufacturing has been reduced to mere hours. Even more important, dimensional tolerances, repeatability, and overall quality have been improved 25 percent over legacy manufacturing processes, further elevating Diamonds level of excellence. This excellence is evident in Diamonds relationships with top racing teams such as those of Pro Stock drivers Greg Anderson and Jason Line. That technology then trickles down to designs available to others spaces of the racing sphere. While some may think piston technology has reached its zenith, thats hardly the case. Diamond is always looking forward, striving to develop the next big thing in piston technology. From materials and machining, to tooling techniques, and new engineering software, Diamonds innovation is shaping the curve. The proof is in the performance! Its not just a tagline, but the credo of Diamonds business; six words that encompass our ideals and personal commitment to each and every product that leaves our doors. |
LM7 Block: 3.780 Std Bore 3.622 Std Stroke | Comp. Ratio | - | ||||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 62cc | 70cc | Ring Set | Part # each |
3.780 | 3.622 | 6.098 | 1.331 | call | .945 x 2.500 | -2.0cc | 10.2 | 9.3 | 09543780 $187.49 | 11592R1 $97.50 |
3.800 | 3.622 | 6.098 | 1.331 | call | .945 x 2.500 | -2.0cc | 10.3 | 9.4 | 09543800 $187.49 | 11598R1 $97.50 |
3.780 | 3.622 | 6.125 | 1.304 | call | .927 x 2.500 | -2.0cc | 10.2 | 9.3 | 09543780 $187.49 | 11593R1 $97.50 |
3.800 | 3.622 | 6.125 | 1.304 | call | .927 x 2.500 | -2.0cc | 10.3 | 9.4 | 09543800 $187.49 | 11599R1 $97.50 |
LS1 5.7L Block: 3.898 Std Bore 3.622 Std Stroke | Comp. Ratio | - | |||||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 62cc | 66cc | 70cc | Ring Set | Part # each |
3.905 | 3.622 | 6.098 | 1.331 | 415 | .945 x 2.500 | -2.0cc | 10.7 | 10.2 | 9.8 | 09453905 $399.99 | 11500R1 $97.50 |
3.905 | 3.622 | 6.098 | 1.331 | 424 | .945 x 2.500 | 0.0cc | 11.0 | 10.5 | 10.0 | 09453905 $399.99 | 11501R1 $97.50 |
3.905 | 3.622 | 6.125 | 1.304 | 408 | .927 x 2.500 | -2.0cc | 10.7 | 10.2 | 9.8 | 09453905 $399.99 | 11502R1 $97.50 |
3.905 | 4.000 | 6.125 | 1.115 | 375 | .927 x 2.500 | -2.0cc | 11.7 | 11.2 | 10.7 | 09453905 $399.99 | 11505R1 $97.50 |
LS2 Block: 4.000 Std Bore 3.622 Std Stroke | Comp. Ratio | - | |||||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 62cc | 66cc | 70cc | Ring Set | Part # each |
4.005 | 4.000 | 6.125 | 1.115 | 402 | .927 x 2.500 | -2.0cc | 12.2 | 11.6 | 11.1 | 09454005 $187.49 | 11540R1 $97.50 |
LQ4/LQ9 6.0L Block: 4.000 Std Bore 3.622 Std Stroke | Comp. Ratio-- | - | |||||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 62cc | 66cc | 70cc | Ring Set | Part # each |
4.030 | 3.622 | 6.098 | 1.331 | 449 | .945 x 2.500 | -2.0cc | 11.3 | 10.7 | 10.3 | 09454030 $187.49 | 11510R1 $97.50 |
4.060 | 3.622 | 6.098 | 1.331 | 457 | .945 x 2.500 | -2.0cc | 11.4 | 10.9 | 10.4 | 09454065 $187.49 | 11511R1 $97.50 |
4.030 | 3.622 | 6.125 | 1.304 | 451 | .927 x 2.500 | -2.0cc | 11.3 | 10.7 | 10.3 | 09454030 $187.49 | 11512R1 $97.50 |
4.060 | 3.622 | 6.125 | 1.304 | 452 | .927 x 2.500 | -2.0cc | 11.4 | 10.9 | 10.4 | 09454065 $187.49 | 11513R1 $97.50 |
4.000 | 4.000 | 6.125 | 1.115 | 402 | .927 x 2.500 | -2.0cc | 12.2 | 11.6 | 11.1 | 09454005 $187.49 | 11518R1 $97.50 |
4.030 | 4.000 | 6.125 | 1.115 | 412 | .927 x 2.500 | -2.0cc | 12.3 | 11.8 | 11.2 | 09454030 $187.49 | 11519R1 $97.50 |
4.060 | 4.000 | 6.125 | 1.115 | 418 | .927 x 2.500 | -2.0cc | 12.5 | 11.9 | 11.4 | 09454065 $187.49 | 11529R1 $97.50 |
Page 8
Chevy LS3/L92 STREET/STRIP FLAT TOP
SERIES
3D milling on piston crowns for ready to install finish
Valve pockets designed to work with most aftermarket cylinder
heads
Offset pins for quiet operation
Moly skirt coating for friction loss and skirt wear protection
Top ring down dimension: .250"
Ratios figured for .040 head gasket
Premium 1.2mm x 1.2mm x 3.0mm ring package included
Premium 8620 .185W wrist pins included
Valve pocket depth: 0.176" intake and .105" exhaust
2618 material for High HP-NOS-Boost applications
LS3-L92 Block: 4.065 Std Bore 3.622 Std Stroke |
Comp. Ratio | - | |||||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 62cc | 70cc | 76cc | Ring Set | Part # each |
4.005 | 3.622 | 6.125 | 1.304 | 438 | .927 x 2.500 | -2.0cc | 11.1 | 10.1 | 9.5 | 09454005 $187.49 | 11541R1 $97.50 |
4.005 | 4.000 | 6.125 | 1.115 | 413 | .927 x 2.500 | -2.0cc | 12.2 | 11.1 | 10.4 | 09454005 $187.49 | 11542R1 $97.50 |
4.065 | 3.622 | 6.125 | 1.304 | 457 | .927 x 2.500 | -2.0cc | 11.5 | 10.4 | 9.8 | 09454065 $187.49 | 11543R1 $97.50 |
4.065 | 4.000 | 6.125 | 1.115 | 421 | .927 x 2.500 | -2.0cc | 12.5 | 11.4 | 10.7 | 09454065 $187.49 | 11544R1 $97.50 |
4.070 | 3.622 | 6.125 | 1.304 | 458 | .927 x 2.500 | -2.0cc | 11.5 | 10.5 | 9.8 | 09454070 $187.49 | 11545R1 $97.50 |
4.070 | 4.000 | 6.125 | 1.115 | 423 | .927 x 2.500 | -2.0cc | 12.6 | 11.4 | 10.7 | 09454070 $187.49 | 11546R1 $97.50 |
4.125 | 3.622 | 6.125 | 1.304 | call | .927 x 2.500 | -2.0cc | 11.7 | 10.7 | 10.0 | 09454125 $187.49 | 11560R2 $97.50 |
4.125 | 4.000 | 6.125 | 1.115 | 437 | .927 x 2.500 | -2.0cc | 12.9 | 11.7 | 11.0 | 09454125 $187.49 | 11547R1 $97.50 |
4.130 | 4.000 | 6.125 | 1.115 | 440 | .927 x 2.500 | -2.0cc | 12.9 | 11.7 | 11.0 | 09454130 $187.49 | 11548R1 $97.50 |
LS7 Block: 4.125 Std Bore 4.000 Std Stroke | Comp. Ratio | - | ||||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 70cc | 72cc | Ring Set | Part # each |
4.125 | 4.000 | 6.077 | 1.163 | 456 | .9252 x 2.250 | -3.84c | 11.5 | 11.2 | 09454125 $187.49 | 11580R1 $106.25 |
4.130 | 4.000 | 6.077 | 1.163 | 457 | .9252 x 2.250 | -3.84cc | 11.5 | 11.3 | 09454130 $187.49 | 11581R1 $106.25 |
4.125 | 4.000 | 6.125 | 1.115 | 449 | .9252 x 2.250 | -3.84cc | 11.5 | 11.2 | 09454125 $187.49 | 11585R1 $106.25 |
4.130 | 4.000 | 6.125 | 1.115 | 455 | .9252 x 2.250 | -3.84cc | 11.5 | 11.3 | 09454130 $187.49 | 11586R1 $106.25 |
Page 9
Chevy LS1 STREET/STRIP DISH SERIES
3D milling on piston crowns for ready to install finish
Valve pockets designed to work with most aftermarket cylinder
heads
Offset pins for quiet operation
Moly skirt coating for friction loss and skirt wear protection
Top ring down dimension: .250"
Ratios figured for .040 head gasket
Premium 1.2mm x 1.2mm x 3.0mm ring package included
Premium 1.2mm x 1.5mm x 3.0mm ring package on all 3.905
bore piston
sets included
Premium 8620 .185W wrist pins included
Valve pocket depth: 0.176" intake and .105" exhaust
2618 material for High HP-NOS-Boost applications
LS1 5.7L Block: 3.898 Std Bore 3.622 Std Stroke |
Comp. Ratio | - | |||||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 62cc | 66cc | 70cc | Ring Set | Part # each |
3.905 | 3.622 | 6.125 | 1.304 | 421 | .927 x 2.500 | -8.6cc | 9.9 | 9.5 | 9.1 | 09453905 $399.99 | 11503R1 $97.50 |
3.905 | 4.000 | 6.125 | 1.115 | 383 | .927 x 2.500 | -7.0cc | 11.1 | 10.6 | 10.1 | 09453905 $399.99 | 11504R1 $97.50 |
LS2 Block: 4.000 Std Bore 3.622 Std Stroke | Comp. Ratio | - | - | ||||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 62cc | 66cc | 70cc | Ring Set | Part # each |
4.005 | 4.000 | 6.125 | 1.115 | 403 | .927 x 2.500 | -10.0cc | 11.1 | 10.6 | 10.2 | 09454005 $187.49 | 11550R1 $97.50 |
LQ4/LQ9 6.0L Block: 4.000 Std Bore
3.622 Std Stroke |
Comp. Ratio | - | - | ||||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 62cc | 66cc | 70cc | Ring Set | Part # each |
4.000 | 3.622 | 6.098 | 1.331 | 443 | .945 x 2.500 | -13.7cc | 9.7 | 9.3 | 9.0 | 09454005 $187.49 | 11514R1 $97.50 |
4.030 | 3.622 | 6.098 | 1.331 | 450 | .945 x 2.500 | -15.0cc | 9.7 | 9.3 | 9.0 | 09454030 $187.49 | 11515R1 $97.50 |
4.000 | 3.622 | 6.125 | 1.304 | 437 | .927 x 2.500 | -13.7cc | 9.7 | 9.3 | 9.0 | 09454005 $187.49 | 11516R1 $97.50 |
4.030 | 3.622 | 6.125 | 1.304 | 446 | .927 x 2.500 | -15.0cc | 9.7 | 9.3 | 9.0 | 09454030 $187.49 | 11517R1 $97.50 |
4.000 | 4.000 | 6.125 | 1.115 | 407 | .927 x 2.500 | -15.0cc | 10.5 | 10.1 | 9.7 | 09454005 $187.49 | 11520R1 $97.50 |
4.030 | 4.000 | 6.125 | 1.115 | 410 | .927 x 2.500 | -15.0cc | 10.6 | 10.2 | 9.8 | 09454030 $187.49 | 11521R1 $97.50 |
4.125 | 4.000 | 6.125 | 1.115 | 434 | .927 x 2.500 | -7.0cc | 12.1 | 11.6 | 11.1 | 09454125 $187.49 | 11522R1 $97.50 |
Page 10
Chevy LS3/L92 STREET/STRIP DISH SERIES
3D milling on piston crowns for ready to install finish
Valve pockets designed to work with most aftermarket cylinder
heads
Offset pins for quiet operation
Moly skirt coating for friction loss and skirt wear protection
Top ring down dimension: .250"
Ratios figured for .040 head gasket
Premium 1.2mm x 1.2mm x 3.0mm ring package included
Premium 8620 .185W wrist pins included
Valve pocket depth: 0.176" intake and .105" exhaust
LS3-L92 Block: 4.065 Std Bore 3.622 Std Stroke | Comp. Ratio | - | |||||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 62cc | 70cc | 76cc | Ring Set | Part # each |
4.005 | 4.000 | 6.125 | 1.115 | 410 | .927 x 2.500 | -19.2cc | 10.0 | 9.4 | 8.9 | 09454005 $187.49 | 11551R1 $97.50 |
4.065 | 3.622 | 6.125 | 1.304 | 461 | .927 x 2.500 | -12.3cc | 10.2 | 9.4 | 8.9 | 09454065 $187.49 | 11552R1 $97.50 |
4.065 | 4.000 | 6.125 | 1.115 | 412 | .927 x 2.500 | -21.0cc | 10.2 | 9.4 | 9.0 | 09454065 $187.49 | 11553R1 $97.50 |
4.070 | 3.622 | 6.125 | 1.304 | 470 | .927 x 2.500 | -12.6cc | 10.2 | 9.4 | 8.9 | 09454070 $187.49 | 11554R1 $97.50 |
4.070 | 4.000 | 6.125 | 1.115 | 410 | .927 x 2.500 | -22.5cc | 10.0 | 9.3 | 8.9 | 09454070 $187.49 | 11555R1 $97.50 |
4.125 | 3.622 | 6.125 | 1.304 | call | .927 x 2.500 | -13.0cc | 10.3 | 9.5 | 9.0 | 09454125 $187.49 | 11561R2 $97.50 |
4.125 | 4.000 | 6.125 | 1.115 | call | .927 x 2.500 | -15.0cc | 11.0 | 10.2 | 9.7 | 09454125 $187.49 | 11584R1 $97.50 |
4.125 | 4.000 | 6.125 | 1.115 | 420 | .927 x 2.500 | -25.3cc | 10.0 | 9.3 | 8.9 | 09454125 $187.49 | 11556R1 $97.50 |
4.130 | 4.000 | 6.125 | 1.115 | 420 | .927 x 2.500 | -25.6cc | 10.0 | 9.3 | 8.9 | 09454130 $187.49 | 11557R1 $97.50 |
Page 11
Chevy LS7 STREET/STRIP DISH SERIES
3D milling on piston crowns for ready to install finish
Inboard forging design for maximum strength
Valve pockets designed to work with most aftermarket cylinder
heads
Offset pins for quiet operation
Moly skirt coating for friction loss and skirt wear protection
Top ring down dimension: .250"
Ratios figured for .040 head gasket
Premium 1.2mm x 1.2mm x 3.0mm ring package included
Premium 8620 .185W wrist pins chamfered for roundwire locks
included
Valve pocket depth: 0.206" intake and .148" exhaust
2618 material for High HP-NOS-Boost applications
LS7 Block: 4.125 Std Bore 4.000 Std Stroke | Comp. Ratio | - | ||||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 70cc | 72cc | Ring Set | Part # each |
4.125 | 4.000 | 6.077 | 1.163 | 459 | .9252 x 2.250 | -23.0cc | 9.5 | 9.4 | 09454125 $187.49 | 11590R1 $106.25 |
4.130 | 4.000 | 6.077 | 1.163 | 453 | .9252 x 2.250 | -23.0cc | 9.5 | 9.4 | 09454130 $187.49 | 11591R1 $106.25 |
4.125 | 4.000 | 6.125 | 1.115 | 450 | .927 x 2.250 | -23.0cc | 9.5 | 9.4 | 09454125 $187.49 | 11595R1 $106.25 |
4.130 | 4.000 | 6.125 | 1.115 | 445 | .927 x 2.250 | -23.0cc | 9.5 | 9.4 | 09454130 $187.49 | 11596R1 $106.25 |
Chevy LS9/LSA STREET/STRIP
DISH SERIES
3D milling on piston crowns for ready to install finish
Valve pockets designed to work with most aftermarket cylinder
heads
Offset pins for quiet operation
Moly skirt coating for friction loss and skirt wear protection
Top ring down dimension: .250"
Ratios figured for .040 head gasket
Premium 1.2mm x 1.2mm x 3.0mm ring package included
Premium 8620 .185W wrist pins included
Valve pocket depth: 0.178" intake and .108" exhaust
LS9/LSA 6.2L Block: 4.065 Std Bore 3.622 Std Stroke | Comp. Ratio | - | |||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 70cc | Ring Set | Part # each |
4.065 | 3.622 | 6.125 | 1.304 | call | .927 x 2.500 | -11.0cc | 9.5 | 09454065 $187.49 | 11588R1 $97.50 |
4.070 | 3.622 | 6.125 | 1.304 | call | .927 x 2.500 | -11.0cc | 9.5 | 09454070 $187.49 | 11589R1 $97.50 |
Page 12
Chevy L83 ECOTEC3 5.3L STREET/STRIP
SERIES
3D milling on piston crowns for ready to install finish
Valve pockets designed to work with most aftermarket cylinder
heads
Offset pins for quiet operation
Moly skirt coating for friction loss and skirt wear protection
Side gas ports for better ring seal
Top ring down dimension: .250"
Ratios figured for .053 head gasket
Premium 1.0mm x 1.2mm x 2.8mm ring package included
Premium 8620 .185W wrist pins included
Valve pocket depth: 0.130" intake and .150" exhaust
2618 material for High HP-NOS-Boost applications
L83 Block: 3.780 Std Bore 3.622 Std Stroke |
Comp. Ratio | - | ||||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 57cc | 60cc | Ring Set | Part # each |
3.780 | 3.622 | 6.098 | 1.331 | call | .943 x 2.500 | 2.0cc | 11.2 | 10.7 | 09543780 $187.49 | 21500R1 $97.50 |
3.800 | 3.622 | 6.098 | 1.331 | call | .943 x 2.500 | 2.0cc | 11.3 | 10.8 | 09543800 $187.49 | 21501R1 $97.50 |
3.780 | 3.622 | 6.125 | 1.304 | call | .927 x 2.500 | 2.0cc | 11.2 | 10.7 | 09543780 $187.49 | 21502R1 $97.50 |
3.800 | 3.622 | 6.125 | 1.304 | call | .927 x 2.500 | 2.0cc | 11.3 | 10.8 | 09543800 $187.49 | 21503R1 $97.50 |
3.780 | 3.622 | 6.125 | 1.304 | call | .927 x 2.500 | -1.6cc | 10.6 | 10.2 | 09543780 $187.49 | 21504R1 $97.50 |
3.800 | 3.622 | 6.125 | 1.304 | call | .927 x 2.500 | -1.6cc | 10.7 | 10.3 | 09543800 $187.49 | 21505R1 $97.50 |
3.780 | 3.622 | 6.125 | 1.304 | call | .927 x 2.500 | -9.5cc | 9.6 | 9.3 | 09543780 $187.49 | 21506R1 $97.50 |
3.800 | 3.622 | 6.125 | 1.304 | call | .927 x 2.500 | -9.5cc | 9.7 | 9.4 | 09543800 $187.49 | 21507R1 $97.50 |
3.780 | 4.000 | 6.125 | 1.115 | call | .927 x 2.500 | -5.0cc | 11.1 | 10.7 | 09543780 $187.49 | 21508R1 $97.50 |
3.800 | 4.000 | 6.125 | 1.115 | call | .927 x 2.500 | -5.0cc | 11.2 | 10.8 | 09543800 $187.49 | 21509R1 $97.50 |
Page 13

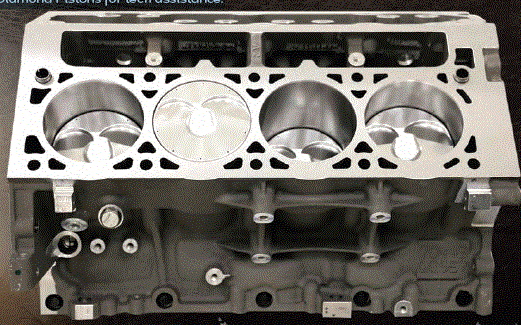

Chevy Gen V LT1/LT4 STREET/STRIP SERIES
Designed for Chevy Gen V LT1/LT4 engine base
Piston crowns designed to work with OEM direct injection
3D milling on piston crowns for ready to install finish
Offset pins for quiet operation
Inboard forging design for maximum strength
Moly skirt coating for friction loss and skirt wear protection
Top ring down dimension: .300"
Ratios figured for 4.125 x .050 head gasket
Premium 1.2mm x 1.2mm x 3.0mm ring package included
Premium 8620 .185W wrist pins chamfered for roundwire locks
included
Valve pocket depth: 0.200" intake and .200" exhaust
2618 material for High HP/Boost applications
Stock Bore 4.065 Stock Stroke 3.622 | Comp. Ratio | - | ||||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 59cc (LT1) |
65cc (LT4) |
Ring Set | Part # each |
4.065 | 3.622 | 6.098 | 1.331 | 575 | .943 x 2.250 | -1.0cc | 11.5 | 10.7 | 09454065 $187.49 | 11531R2 $106.25 |
4.065 | 3.622 | 6.098 | 1.331 | 567 | .943 x 2.250 | -7.0cc | 10.7 | 10.0 | 09454065 $187.49 | 11532R2 $106.25 |
4.065 | 3.622 | 6.125 | 1.304 | call | .927 x 2.250 | -1.5cc | 11.5 | 10.7 | 09454065 $187.49 | 11533R2 $106.25 |
4.070 | 3.622 | 6.125 | 1.304 | call | .927 x 2.250 | -1.5cc | 11.5 | 10.7 | 09454070 $187.49 | 11534R2 $106.25 |
4.065 | 3.622 | 6.125 | 1.304 | call | .927 x 2.250 | -7.0cc | 10.7 | 10.0 | 09454065 $187.49 | 11535R2 $106.25 |
4.070 | 3.622 | 6.125 | 1.304 | call | .927 x 2.250 | -7.0cc | 10.8 | 10.1 | 09454070 $187.49 | 11536R2 $106.25 |
4.065 | 4.000 | 6.125 | 1.115 | call | .927 x 2.250 | -9.0cc | 11.5 | 10.8 | 09454065 $187.49 | 11569R2 $106.25 |
4.070 | 4.000 | 6.125 | 1.115 | call | .927 x 2.250 | -9.0cc | 11.5 | 10.8 | 09454070 $187.49 | 11587R2 $106.25 |
4.065 | 4.000 | 6.125 | 1.115 | call | .927 x 2.250 | -16.0cc | 10.7 | 10.0 | 09454065 $187.49 | 11539R1 |
4.070 | 4.000 | 6.125 | 1.115 | call | .927 x 2.250 | -16.0cc | 10.7 | 10.1 | 09454070 $187.49 | 11549R1 |
4.125 | 4.000 | 6.125 | 1.115 | call | .927 x 2.250 | -11.0cc | 11.5 | 10.8 | 09454125 $187.49 | 11594R2 $106.25 |
4.125 | 4.000 | 6.125 | 1.115 | call | .927 x 2.250 | -19.0cc | 10.6 | 10.0 | 09454125 $187.49 | 11597R2 $106.25 |
Page 14
Mopar 5.7L HEMI SERIES
3D milling on piston crowns for ready to install finish
Valve pockets designed to work with 5.7L & 6.1L cylinder
heads
Offset pins for quiet operation
Moly skirt coating for friction loss and skirt wear protection
Top ring down dimension: .285"
Ratios figured for .040 head gasket @ 9.250 Deck
Premium 1.2mm x 1.2mm x 3.0mm ring package
Premium 8620 .185W wrist pins included chamfered for roundwire
locks
Valve pocket depth: 0.175" intake and .075" exhaust
Will work with up to a intake valve size of 2.080"
and exhaust valve size of 1.625"
2618 material for High HP-NOS-Boost applications
5.7L Block: 3.917 Std Bore 3.578 Std Stroke |
Comp. Ratio | - | |||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 85cc | Ring Set | Part # each |
3.927 | 3.578 | 6.243 | 1.220 | call | .945 x 2.350 | 15.0cc | 10.0 | 09453927 $187.49 | 53033R1 $97.50 |
3.937 | 3.578 | 6.243 | 1.220 | call | .945 x 2.350 | 15.0cc | 10.1 | 09453937 $187.49 | 53034R1 $97.50 |
3.927 | 3.578 | 6.243 | 1.220 | call | .945 x 2.350 | 5.0cc | 9.0 | 09453927 $187.49 | 53036R1 $97.50 |
3.937 | 3.578 | 6.243 | 1.220 | call | .945 x 2.350 | 5.0cc | 9.0 | 09453937 $187.49 | 53037R1 $97.50 |
3.927 | 4.050 | 6.125 | 1.090 | call | .927 x 2.350 | 6.5cc | 10.0 | 09453927 $187.49 | 53003R1 $97.50 |
3.937 | 4.050 | 6.125 | 1.090 | call | .927 x 2.350 | 6.5cc | 10.0 | 09453937 $187.49 | 53004R1 $97.50 |
3.927 | 4.050 | 6.125 | 1.090 | call | .927 x 2.350 | -5.0cc | 9.0 | 09453927 $187.49 | 53006R1 $97.50 |
3.937 | 4.050 | 6.125 | 1.090 | call | .927 x 2.350 | -5.0cc | 9.0 | 09453937 $187.49 | 53007R1 $97.50 |
Page 15
Mopar 5.7L 2009 & UP HEMI SERIES
3D milling on piston crowns for ready to install finish
Valve pockets designed to work with 2009 & up 5.7L
cylinder heads
Offset pins for quiet operation
Moly skirt coating for friction loss and skirt wear protection
Top ring down dimension: .285"
Ratios figured for .040 head gasket @ 9.250 Deck
Premium 1.2mm x 1.2mm x 3.0mm ring package
Premium 8620 .185W wrist pins included chamfered for roundwire
locks
Valve pocket depth: 0.175" intake and .075" exhaust
Will work with up to a intake valve size of 2.080"
and exhaust valve size of 1.625"
2618 material for High HP-NOS-Boost applications
5.7L Block: 3.917 Std Bore 3.578 Std Stroke |
Comp. Ratio | - | |||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 64cc | Ring Set | Part # each |
3.927 | 4.050 | 6.125 | 1.090 | call | .927 x 2.350 | -14.5cc | 10.0 | 09453927 $187.49 | 53051R1 $97.50 |
3.937 | 4.050 | 6.125 | 1.090 | call | .927 x 2.350 | -14.5cc | 10.0 | 09453937 $187.49 | 53052R1 $97.50 |
3.927 | 4.050 | 6.125 | 1.090 | call | .927 x 2.350 | -20.0cc | 9.5 | 09453927 $187.49 | 53054R1 $97.50 |
3.937 | 4.050 | 6.125 | 1.090 | call | .927 x 2.350 | -20.0cc | 9.5 | 09453937 $187.49 | 53055R1 $97.50 |
3.927 | 4.050 | 6.125 | 1.090 | call | .927 x 2.350 | -25.0cc | 9.0 | 09453927 $187.49 | 53057R1 $97.50 |
3.937 | 4.050 | 6.125 | 1.090 | call | .927 x 2.350 | -25.0cc | 9.1 | 09453937 $187.49 | 53058R1 $97.50 |
Page 16
Mopar 6.1L HEMI SERIES
3D milling on piston crowns for ready to install finish
Valve pockets designed to work with 5.7L & 6.1L cylinder
heads
Offset pins for quiet operation
Moly skirt coating for friction loss and skirt wear protection
Top ring down dimension: .285"
Ratios figured for .040 head gasket @ 9.250 Deck
Premium 1.2mm x 1.2mm x 3.0mm ring package
Premium 8620 .185W wrist pins included chamfered for roundwire
locks
Valve pocket depth: 0.175" intake and .075" exhaust
Will work with up to a intake valve size of 2.080"
and exhaust valve size of 1.625"
2618 material for High HP-NOS-Boost applications
6.1L Block: 4.055 Std Bore 3.578 Std Stroke |
Comp. Ratio | - | |||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 74cc | Ring Set | Part # each |
4.060 | 3.578 | 6.243 | 1.220 | call | .984 x 2.350 | 3.5cc | 10.5 | 09454060 $187.49 | 53039R1 $97.50 |
4.070 | 3.578 | 6.243 | 1.220 | call | .984 x 2.350 | 3.5cc | 10.6 | 09454070 $187.49 | 53040R1 $97.50 |
4.080 | 3.578 | 6.243 | 1.220 | call | .984 x 2.350 | 3.5cc | 10.6 | 09454080 $187.49 | 53041R1 $97.50 |
4.060 | 3.578 | 6.243 | 1.220 | call | .984 x 2.350 | -5.5cc | 9.5 | 09454060 $187.49 | 53043R1 $97.50 |
4.070 | 3.578 | 6.243 | 1.220 | call | .984 x 2.350 | -5.5cc | 9.6 | 09454070 $187.49 | 53044R1 $97.50 |
4.080 | 3.578 | 6.243 | 1.220 | call | .984 x 2.350 | -5.5cc | 9.6 | 09454080 $187.49 | 53045R1 $97.50 |
4.060 | 3.578 | 6.243 | 1.220 | call | .984 x 2.350 | -11.0cc | 9.0 | 09454060 $187.49 | 53047R1 $97.50 |
4.070 | 3.578 | 6.243 | 1.220 | call | .984 x 2.350 | -11.0cc | 9.1 | 09454070 $187.49 | 53048R1 $97.50 |
4.080 | 3.578 | 6.243 | 1.220 | call | .984 x 2.350 | -11.0cc | 9.1 | 09454080 $187.49 | 53049R1 $97.50 |
4.060 | 4.050 | 6.125 | 1.090 | call | .927 x 2.350 | -5.0cc | 10.5 | 09454060 $187.49 | 53009R1 $97.50 |
4.070 | 4.050 | 6.125 | 1.090 | call | .927 x 2.350 | -5.0cc | 10.5 | 09454070 $187.49 | 53010R1 $97.50 |
4.080 | 4.050 | 6.125 | 1.090 | call | .927 x 2.350 | -5.0cc | 10.5 | 09454080 $187.49 | 53011R1 $97.50 |
4.060 | 4.050 | 6.125 | 1.090 | call | .927 x 2.350 | -15.0cc | 9.5 | 09454060 $187.49 | 53013R1 $97.50 |
4.070 | 4.050 | 6.125 | 1.090 | call | .927 x 2.350 | -15.0cc | 9.6 | 09454070 $187.49 | 53014R1 $97.50 |
4.080 | 4.050 | 6.125 | 1.090 | call | .927 x 2.350 | -15.0cc | 9.6 | 09454080 $187.49 | 53015R1 $97.50 |
4.060 | 4.050 | 6.125 | 1.090 | call | .927 x 2.350 | -21.0cc | 9.0 | 09454060 $187.49 | 53017R1 $97.50 |
4.070 | 4.050 | 6.125 | 1.090 | call | .927 x 2.350 | -21.0cc | 9.1 | 09454070 $187.49 | 53018R1 $97.50 |
4.080 | 4.050 | 6.125 | 1.090 | call | .927 x 2.350 | -21.0cc | 9.1 | 09454080 $187.49 | 53019R1 $97.50 |
Page 17
Mopar 6.2L HELLCAT HEMI SERIES
3D milling on piston crowns for ready to install finish
Inboard forging design for maximium strength
Valve pockets designed to work with 6.2L Hellcat cylinder
heads
Offset pins for quiet operation
Moly skirt coating for friction loss and skirt wear protection
Top ring down dimension: .300"
Ratios figured for .036 head gasket @ 9.280 Deck
Premium 1.2mm x 1.2mm x 3.0mm ring package
Premium 8620 .185W wrist pins chamfered for roundwire locks
included
Valve pocket depth: 0.130" intake and sym exhaust
Will work with up to a intake valve size of 2.150"
2618 material for High HP-NOS-Boost applications
Hellcat 6.2L Block: 4.090 Std Bore 3.578 Std Stroke |
Comp. Ratio | - | |||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 75cc | Ring Set | Part # each |
4.090 | 3.578 | 6.200 | 1.275 | call | .927 x 2.500 | 1.5cc | 9.9 | 09454090 $399.99 | 53100R1 $106.25 |
4.100 | 3.578 | 6.200 | 1.275 | call | .927 x 2.500 | 1.5cc | 10.0 | 09454100 $399.99 | 53101R1 $106.25 |
4.125 | 3.578 | 6.200 | 1.275 | call | .927 x 2.500 | 1.5cc | 10.1 | 09454125 $187.49 | 53102R1 $106.25 |
4.090 | 3.578 | 6.200 | 1.275 | call | .927 x 2.500 | -3.0cc | 9.5 | 09454090 $399.99 | 53103R1 $106.25 |
4.100 | 3.578 | 6.200 | 1.275 | call | .927 x 2.500 | -3.0cc | 9.5 | 09454100 $399.99 | 53104R1 $106.25 |
4.125 | 3.578 | 6.200 | 1.275 | call | .927 x 2.500 | -3.0cc | 9.6 | 09454125 $187.49 | 53105R1 $106.25 |
4.090 | 3.578 | 6.200 | 1.275 | call | .927 x 2.500 | -9.0cc | 9.0 | 09454090 $399.99 | 53106R1 $106.25 |
4.100 | 3.578 | 6.200 | 1.275 | call | .927 x 2.500 | -9.0cc | 9.0 | 09454100 $399.99 | 53107R1 $106.25 |
4.125 | 3.578 | 6.200 | 1.275 | call | .927 x 2.500 | -9.0cc | 9.1 | 09454125 $187.49 | 53108R1 $106.25 |
Page18
Mopar 6.4L APACHE HEMI SERIES
3D milling on piston crowns for ready to install finish
Inboard forging design for maximium strength
Valve pockets designed to work with 6.4L Apache cylinder
heads
Offset pins for quiet operation
Moly skirt coating for friction loss and skirt wear protection
Top ring down dimension: .300"
Ratios figured for .036 head gasket @ 9.280 Deck
Premium 1.2mm x 1.2mm x 3.0mm ring package
Premium 8620 .185W wrist pins chamfered for roundwire locks
included
Valve pocket depth: 0.130" intake and sym exhaust
Will work with up to a intake valve size of 2.150"
2618 material for High HP-NOS-Boost applications
Apache 6.4L Block: 4.090 Std Bore 3.724 Std Stroke |
Comp. Ratio | - | |||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 72cc | Ring Set | Part # each |
4.090 | 3.724 | 6.200 | 1.210 | call | .927 x 2.500 | -6.0cc | 10.0 | 09454090 $399.99 | 53110R1 $106.25 |
4.100 | 3.724 | 6.200 | 1.210 | call | .927 x 2.500 | -6.0cc | 10.1 | 09454100 $399.99 | 53111R1 $106.25 |
4.125 | 3.724 | 6.200 | 1.210 | call | .927 x 2.500 | -6.0cc | 10.2 | 09454125 $187.49 | 53112R1 $106.25 |
4.090 | 3.724 | 6.200 | 1.210 | call | .927 x 2.500 | -11.5cc | 9.5 | 09454090 $399.99 | 53113R1 $106.25 |
4.100 | 3.724 | 6.200 | 1.210 | call | .927 x 2.500 | -11.5cc | 9.5 | 09454100 $399.99 | 53114R1 $106.25 |
4.125 | 3.724 | 6.200 | 1.210 | call | .927 x 2.500 | -11.5cc | 9.6 | 09454125 $187.49 | 53115R1 $106.25 |
4.090 | 3.724 | 6.200 | 1.210 | call | .927 x 2.500 | -17.0cc | 9.0 | 09454090 $399.99 | 53116R1 $106.25 |
4.100 | 3.724 | 6.200 | 1.210 | call | .927 x 2.500 | -17.0cc | 9.1 | 09454100 $399.99 | 53117R1 $106.25 |
4.125 | 3.724 | 6.200 | 1.210 | call | .927 x 2.500 | -17.0cc | 9.2 | 09454125 $187.49 | 53118R1 $106.25 |
Page19
Just a couple of Race Cars that use Diamond Pistons
Page 20
Big Block Chevy 24°/26° COMPETITION
SERIES
Designed for use with most 24°/26° cylinder heads
Vertical gas ports for maximum ring seal
Inboard forging design for maximum strength
Suitable for small to medium nitrous applications
Moly skirt coating for friction loss and skirt wear protection
Premium .043mm x .043mm x 3/16 ring package
H-13 tool steel .185W wrist pins included
Top ring down dimension: .300" - .290" on 1.065cd
Will work with up to a intake valve size of 2.350"
and exhaust valve size of 1.900"
Valve pocket depth: 0.325" intake and -.120"
exhaust
Made from 2618 alloy
- | Comp. Ratio | - | |||||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 112cc | 118cc | 124cc | Ring Set | Part # each |
4.500 | 4.250 | 6.385 | 1.270 | 655 | .990 x 2.750 | 45.0cc | 14.0 | 13.2 | 12.4 | 09244500 $399.99 | 20000 $147.50 |
4.530 | 4.250 | 6.385 | 1.270 | 668 | .990 x 2.750 | 45.0cc | 14.2 | 13.3 | 12.6 | 09244530 $399.99 | 20001 $147.50 |
4.560 | 4.250 | 6.385 | 1.270 | 680 | .990 x 2.750 | 45.0cc | 14.4 | 13.5 | 12.7 | 09244560 $399.99 | 20002 $147.50 |
4.600 | 4.250 | 6.385 | 1.270 | 683 | .990 x 2.750 | 45.0cc | 14.6 | 13.7 | 12.9 | 09244600 $399.99 | 20003 $147.50 |
4.610 | 4.250 | 6.385 | 1.270 | 693 | .990 x 2.750 | 45.0cc | 14.7 | 13.8 | 13.0 | 09244610 $399.99 | 20004 $147.50 |
4.625 | 4.250 | 6.385 | 1.270 | 700 | .990 x 2.750 | 45.0cc | 14.7 | 13.8 | 13.0 | 09244625 $399.99 | 20005 $147.50 |
4.500 | 4.375 | 6.385 | 1.215 | 645 | .990 x 2.750 | 45.0cc | 14.7 | 13.8 | 13.0 | 09244500 $399.99 | 20006 $147.50 |
4.530 | 4.375 | 6.385 | 1.215 | 656 | .990 x 2.750 | 45.0cc | 14.9 | 14.0 | 13.1 | 09244530 $399.99 | 20007 $147.50 |
4.560 | 4.375 | 6.385 | 1.215 | 668 | .990 x 2.750 | 45.0cc | 15.1 | 14.1 | 13.3 | 09244560 $399.99 | 20008 $147.50 |
4.600 | 4.375 | 6.385 | 1.215 | 682 | .990 x 2.750 | 45.0cc | 15.3 | 14.4 | 13.5 | 09244600 $399.99 | 20009 $147.50 |
4.610 | 4.375 | 6.385 | 1.215 | 677 | .990 x 2.750 | 45.0cc | 15.4 | 14.4 | 13.6 | 09244610 $399.99 | 20010 $147.50 |
4.625 | 4.375 | 6.385 | 1.215 | 682 | .990 x 2.750 | 45.0cc | 15.5 | 14.5 | 13.7 | 09244625 $399.99 | 20011 $147.50 |
4.500 | 4.375 | 6.535 | 1.065 | 612 | .990 x 2.750 | 45.0cc | 14.7 | 13.8 | 13.0 | 09244500 $399.99 | 20012 $147.50 |
4.530 | 4.375 | 6.535 | 1.065 | 619 | .990 x 2.750 | 45.0cc | 14.9 | 14.0 | 13.1 | 09244530 $399.99 | 20013 $147.50 |
4.560 | 4.375 | 6.535 | 1.065 | 634 | .990 x 2.750 | 45.0cc | 15.1 | 14.1 | 13.3 | 09244560 $399.99 | 20014 $147.50 |
4.600 | 4.375 | 6.535 | 1.065 | 635 | .990 x 2.750 | 45.0cc | 15.3 | 14.4 | 13.5 | 09244600 $399.99 | 20015 $147.50 |
4.610 | 4.375 | 6.535 | 1.065 | 636 | .990 x 2.750 | 45.0cc | 15.4 | 14.4 | 13.6 | 09244610 $399.99 | 20016 $147.50 |
4.625 | 4.375 | 6.535 | 1.065 | 652 | .990 x 2.750 | 45.0cc | 15.5 | 14.5 | 13.7 | 09244625 $399.99 | 20017 $147.50 |
4.500 | 4.500 | 6.385 | 1.155 | 633 | .990 x 2.750 | 45.0cc | 15.3 | 14.3 | 13.5 | 09244500 $399.99 | 20018 $147.50 |
4.530 | 4.500 | 6.385 | 1.155 | 641 | .990 x 2.750 | 45.0cc | 15.4 | 14.4 | 13.5 | 09244530 $399.99 | 20019 $147.50 |
4.560 | 4.500 | 6.385 | 1.155 | 656 | .990 x 2.750 | 45.0cc | 15.7 | 14.7 | 13.9 | 09244560 $399.99 | 20020 $147.50 |
4.600 | 4.500 | 6.385 | 1.155 | 667 | .990 x 2.750 | 45.0cc | 15.8 | 14.8 | 14.0 | 09244600 $399.99 | 20021 $147.50 |
4.610 | 4.500 | 6.385 | 1.155 | 669 | .990 x 2.750 | 45.0cc | 15.9 | 14.9 | 14.0 | 09244610 $399.99 | 20022 $147.50 |
4.625 | 4.500 | 6.385 | 1.155 | 678 | .990 x 2.750 | 45.0cc | 16.0 | 15.0 | 14.1 | 09244625 $399.99 | 20023 $147.50 |
4.500 | 4.750 | 6.700 | 1.120 | 623 | .990 x 2.750 | 45.0cc | 16.5 | 15.4 | 14.5 | 09244500 $399.99 | 20024 $147.50 |
4.530 | 4.750 | 6.700 | 1.120 | 639 | .990 x 2.750 | 45.0cc | 16.6 | 15.5 | 14.6 | 09244530 $399.99 | 20025 $147.50 |
4.560 | 4.750 | 6.700 | 1.120 | 648 | .990 x 2.750 | 45.0cc | 16.7 | 15.6 | 14.7 | 09244560 $399.99 | 20026 $147.50 |
4.600 | 4.750 | 6.700 | 1.120 | 654 | .990 x 2.750 | 45.0cc | 16.8 | 15.7 | 14.8 | 09244600 $399.99 | 20027 $147.50 |
4.610 | 4.750 | 6.700 | 1.120 | 666 | .990 x 2.750 | 45.0cc | 16.9 | 15.8 | 14.9 | 09244610 $399.99 | 20028 $147.50 |
4.625 | 4.750 | 6.700 | 1.120 | 660 | .990 x 2.750 | 45.0cc | 17.0 | 15.9 | 15.0 | 09244625 $399.99 | 20029 $147.50 |
Page 21
Big Block Chevy 20° COMPETITION
SERIES
Designed for use with Brodix SR20 and Dart 20° cylinder heads
Vertical gas ports for maximum ring seal
Inboard forging design for maximum strength
Suitable for small to medium nitrous applications
Moly skirt coating for friction loss and skirt wear protection
Premium .043mm x .043mm x 3.0mm ring package
H-13 tool steel .185W wrist pins included
Top ring down dimension: .295" - .280" on 1.065cd
Will work with up to a intake valve size of 2.400"
and exhaust valve size of 1.800"
Valve pocket depth: 0.345" intake and -.030"
exhaust
Made from 2618 alloy
- | Comp. Ratio | - | |||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 95cc | Ring Set | Part # each |
4.600 | 4.375 | 6.385 | 1.215 | 655 | .990 x 2.750 | 27.94cc | 15.3 | 09224600 $429.99 | 21000 $147.50 |
4.605 | 4.375 | 6.385 | 1.215 | 657 | .990 x 2.750 | 27.94cc | 15.3 | 09224600 $429.99 | 21001 $147.50 |
4.610 | 4.375 | 6.385 | 1.215 | 658 | .990 x 2.750 | 27.94cc | 15.3 | 09224610 | 21002 $147.50 |
4.625 | 4.375 | 6.385 | 1.215 | 663 | .990 x 2.750 | 27.94cc | 15.4 | 09224625 $429.99 | 21003 $147.50 |
4.600 | 4.375 | 6.535 | 1.065 | 618 | .990 x 2.750 | 27.94cc | 15.3 | 09224600 $429.99 | 21004 $147.50 |
4.605 | 4.375 | 6.535 | 1.065 | 620 | .990 x 2.750 | 27.94cc | 15.3 | 09224600 $429.99 | 21005 $147.50 |
4.610 | 4.375 | 6.535 | 1.065 | 622 | .990 x 2.750 | 27.94cc | 15.3 | 09224610 | 21006 $147.50 |
4.625 | 4.375 | 6.535 | 1.065 | 629 | .990 x 2.750 | 27.94cc | 15.4 | 09224625 $429.99 | 21007 $147.50 |
4.600 | 4.500 | 6.385 | 1.155 | 643 | .990 x 2.750 | 27.94cc | 15.8 | 09224600 $429.99 | 21008 $147.50 |
4.605 | 4.500 | 6.385 | 1.155 | 644 | .990 x 2.750 | 27.94cc | 15.9 | 09224600 $429.99 | 21009 $147.50 |
4.610 | 4.500 | 6.385 | 1.155 | 647 | .990 x 2.750 | 27.94cc | 15.9 | 09224610 | 21010 |
4.625 | 4.500 | 6.385 | 1.155 | 652 | .990 x 2.750 | 27.94cc | 16.0 | 09224625 $429.99 | 21011 $147.50 |
4.600 | 4.750 | 6.700 | 1.120 | 625 | .990 x 2.750 | 27.94cc | 16.9 | 09224600 $429.99 | 21012 |
4.605 | 4.750 | 6.700 | 1.120 | 636 | .990 x 2.750 | 27.94cc | 17.0 | 09224600 $429.99 | 21013 |
4.610 | 4.750 | 6.700 | 1.120 | 639 | .990 x 2.750 | 27.94cc | 17.0 | 09224610 | 21014 |
4.625 | 4.750 | 6.700 | 1.120 | 643 | .990 x 2.750 | 27.94cc | 17.1 | 09224625 $429.99 | 21015 |
4.600 | 4.250 | 6.385 | 1.270 | 662 | .990 x 2.750 | 27.94cc | 14.6 | 09224600 $429.99 | 21016 $147.50 |
4.605 | 4.250 | 6.385 | 1.270 | 669 | .990 x 2.750 | 27.94cc | 14.6 | 09224600 $429.99 | 21017 $147.50 |
4.610 | 4.250 | 6.385 | 1.270 | 670 | .990 x 2.750 | 27.94cc | 14.7 | 09224610 | 21018 $147.50 |
4.625 | 4.250 | 6.385 | 1.270 | 676 | .990 x 2.750 | 27.94cc | 14.7 | 09224625 $429.99 | 21019 $147.50 |
Page 22
Big Block Chevy 18° COMPETITION
SERIES
Designed for use with Dart 18° Big Chief & Brodix
18° Big Duke cylinder heads
Vertical gas ports for maximum ring seal
Inboard forging design for maximum strength
Suitable for small to medium nitrous applications
Moly skirt coating for friction loss and skirt wear protection
Premium .043mm x .043mm x 3.0mm ring package
H-13 tool steel .185W wrist pins included
Top ring down dimension: .320" - .280" on 1.065cd
Will work with up to a intake valve size of 2.450"
and exhaust valve size of 1.900"
Valve pocket depth: 0.310" intake and .080" exhaust
Made from 2618 alloy
. | Comp. Ratio | |||||||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 70cc | 85cc | 95cc | 100cc | Ring Set | Part # each |
4.600 | 4.250 | 6.385 | 1.270 | 633 | .990 x 2.750 | 15.8cc | 17.0 | 14.2 | 12.9 | 12.3 | 09224600 $429.99 | 23000 $147.50 |
4.605 | 4.250 | 6.385 | 1.270 | 635 | .990 x 2.750 | 15.8cc | 17.0 | 14.2 | 12.9 | 12.3 | 09224600 $429.99 | 23001 $147.50 |
4.610 | 4.250 | 6.385 | 1.270 | 636 | .990 x 2.750 | 15.8cc | 17.0 | 14.2 | 12.9 | 12.3 | 09224610 | 23002 $147.50 |
4.625 | 4.250 | 6.385 | 1.270 | 645 | .990 x 2.750 | 15.8cc | 17.1 | 14.3 | 13.0 | 12.4 | 09224625 $429.99 | 23003 $147.50 |
4.600 | 4.375 | 6.385 | 1.215 | 623 | .990 x 2.750 | 15.8cc | 17.9 | 14.9 | 13.5 | 12.9 | 09224600 $429.99 | 23004 $147.50 |
4.605 | 4.375 | 6.385 | 1.215 | 626 | .990 x 2.750 | 15.8cc | 17.9 | 14.9 | 13.5 | 12.9 | 09224600 $429.99 | 23005 $147.50 |
4.610 | 4.375 | 6.385 | 1.215 | 627 | .990 x 2.750 | 15.8cc | 17.9 | 14.9 | 13.5 | 12.9 | 09224610 | 23006 $147.50 |
4.625 | 4.375 | 6.385 | 1.215 | 630 | .990 x 2.750 | 15.8cc | 18.0 | 15.0 | 13.6 | 13.0 | 09224625 $429.99 | 23007 $147.50 |
4.600 | 4.375 | 6.535 | 1.065 | 650 | .990 x 2.750 | 15.8cc | 17.9 | 14.9 | 13.5 | 12.9 | 09314600 | 23008 $147.50 |
4.605 | 4.375 | 6.535 | 1.065 | 585 | .990 x 2.750 | 15.8cc | 17.9 | 14.9 | 13.5 | 12.9 | 09314600 | 23009 $147.50 |
4.610 | 4.375 | 6.535 | 1.065 | 588 | .990 x 2.750 | 15.8cc | 17.9 | 14.9 | 13.5 | 12.9 | 09314610 | 23010 $147.50 |
4.625 | 4.375 | 6.535 | 1.065 | 595 | .990 x 2.750 | 15.8cc | 18.0 | 15.0 | 13.6 | 13.0 | 09314625 | 23011 $147.50 |
4.600 | 4.750 | 6.700 | 1.120 | 576 | .990 x 2.750 | 7.0cc | 17.8 | 15.1 | 13.7 | 13.1 | 09224600 $429.99 | 23012 $147.50 |
4.605 | 4.750 | 6.700 | 1.120 | 578 | .990 x 2.750 | 7.0cc | 17.8 | 15.1 | 3.7 | 13.1 | 09224600 $429.99 | 23013 $147.50 |
4.610 | 4.750 | 6.700 | 1.120 | 580 | .990 x 2.750 | 7.0cc | 17.8 | 15.1 | 13.7 | 13.1 | 09224610 | 23014 $147.50 |
4.625 | 4.750 | 6.700 | 1.120 | 587 | .990 x 2.750 | 7.0cc | 17.9 | 15.2 | 13.8 | 13.2 | 09224625 $429.99 | 23015 $147.50 |
4.600 | 4.500 | 6.385 | 1.155 | 603 | .990 x 2.750 | 13.0cc | 17.9 | 15.0 | 13.6 | 13.0 | 09224600 $429.99 | 23016 $147.50 |
4.605 | 4.500 | 6.385 | 1.155 | 609 | .990 x 2.750 | 13.0cc | 17.9 | 15.0 | 13.6 | 13.0 | 09224600 $429.99 | 23017 $147.50 |
4.610 | 4.500 | 6.385 | 1.155 | 613 | .990 x 2.750 | 13.0cc | 17.9 | 15.0 | 13.6 | 13.0 | 09224610 | 23018 $147.50 |
4.625 | 4.500 | 6.385 | 1.155 | 620 | .990 x 2.750 | 13.0cc | 18.0 | 15.1 | 13.7 | 13.1 | 09224625 $429.99 | 23019 $147.50 |
350 Block: 4.057 Std Bore 3.385 Std Stroke | Comp. Ratio | - | |||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 95cc | Ring Set | Part # each |
4.060 | 3.385 | 6.000 | 1.620 | 510 | .984 x 2.500 | -1.3cc | 8.8 | 09024030 $183.74 | 22001 $106.25 |
Oldsmobile 455
STREET/STRIP FLAT TOP SERIES
3D milling on piston crowns for ready to install finish
Valve pockets designed to work with OEM & aftermarket
cylinder heads
Top ring down dimension: .200"
Ratios figured for .040 head gasket @ 10.625 Deck
Standard 1/16 x 1/16 x 3/16 ring package
Premium 8620 .155W wrist pins included
Valve pocket depth: 0.075" intake and sym exhaust
Will work with up to a intake valve size of 2.150"
Made from 4032 alloy and designed for applications up to
650hp
455 Block: 4.125 Std Bore 4.250 Std Stroke | Comp. Ratio | - | - | ||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 77cc | Ring Set | Part # each |
4.125 | 4.250 | 6.735 | 1.750 | 554 | .984 x 2.500 | -1.3cc | 11.2 | 09024125 $183.74 | 61200 $106.25 |
4.155 | 4.250 | 6.735 | 1.750 | 560 | .984 x 2.500 | -1.3cc | 11.3 | 09024155 $183.74 | 61201 $106.25 |
Page 25
Oldsmobile 455 STREET/STRIP DISH SERIES
3D milling on piston crowns for ready to install finish
Valve pockets designed to work with OEM & aftermarket
cylinder heads
Top ring down dimension: .200"
Ratios figured for .040 head gasket @ 10.625 Deck
Standard 1/16 x 1/16 x 3/16 ring package
Premium 8620 .155W wrist pins included
Valve pocket depth: 0.075" intake and sym exhaust
Will work with up to a intake valve size of 2.150"
Made from 4032 alloy and designed for applications up to
650hp
455 Block: 4.125 Std Bore 4.250 Std Stroke | Comp. Ratio | - | |||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 77cc | Ring Set | Part # each |
4.125 | 4.250 | 6.735 | 1.750 | 550 | .984 x 2.500 | -8.5cc | 10.4 | 09024125 $183.74 | 61202 $106.25 |
4.155 | 4.250 | 6.735 | 1.750 | 560 | .984 x 2.500 | -8.5cc | 10.5 | 09024155 $183.74 | 61203 $106.25 |
4.165 | 4.250 | 6.735 | 1.750 | 565 | .984 x 2.500 | -8.5cc | 10.5 | 09024165 $183.74 | 61204 $106.25 |
4.155 | 4.500 | 7.100 | 1.260 | 465 | .990 x 2.500 | -15.0cc | 10.5 | 09024155 $183.74 | 61205 $106.25 |
4.165 | 4.500 | 7.100 | 1.260 | 470 | .990 x 2.500 | -15.0cc | 10.6 | 09024165 $183.74 | 61206 $106.25 |
Page 26
Pontiac 400 STREET/STRIP FLAT TOP SERIES
3D milling on piston crowns for ready to install finish
Valve pockets designed to work with OEM & aftermarket
cylinder heads
Top ring down dimension: .200"
Ratios figured for .040 head gasket @ 10.225 Deck
Standard 1/16 x 1/16 x 3/16 ring package
Premium 8620 .185W wrist pins included
Valve pocket depth: 0.209" intake and sym exhaust
Will work with up to a intake valve size of 2.150"
Made from 4032 alloy and designed for applications up to
650hp
400 Block: 4.120 Std Bore 3.750 Std Stroke | Comp. Ratio | - | |||||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 72cc | 77cc | 87cc | Ring Set | Part # each |
4.125 | 3.750 | 6.700 | 1.630 | call | .990 x 2.500 | -4.6cc | 10.0 | 9.5 | 8.7 | 09024125 $183.74 | 22100 $106.25 |
4.155 | 3.750 | 6.700 | 1.630 | call | .990 x 2.500 | -4.6cc | 10.1 | 9.7 | 8.8 | 09024155 $183.74 | 22102 $106.25 |
Pontiac 455 STREET/STRIP
FLAT TOP SERIES
3D milling on piston crowns for ready to install finish
Valve pockets designed to work with OEM & aftermarket
cylinder heads
Top ring down dimension: .200"
Ratios figured for .040 head gasket @ 10.225 Deck
Standard 1/16 x 1/16 x 3/16 ring package
Premium 8620 .155W wrist pins included
Valve pocket depth: 0.209" intake and sym exhaust
Will work with up to a intake valve size of 2.150"
Made from 4032 alloy and designed for applications up to
650hp
455 Block: 4.151 Std Bore 4.210 Std | Comp. Ratio | - | - | ||||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 72cc | 77cc | 87cc | Ring Set | Part # each |
4.155 | 4.210 | 6.625 | 1.480 | 505 | .980 x 2.500 | -4.6cc | 11.4 | 10.8 | 9.9 | 09024155 $183.74 | 61000 $106.25 |
4.165 | 4.210 | 6.625 | 1.480 | 510 | .980 x 2.500 | -4.6cc | 11.4 | 10.9 | 9.9 | 09024165 $183.74 | 61001 $106.25 |
4.185 | 4.210 | 6.625 | 1.480 | 515 | .980 x 2.500 | -4.6cc | 11.5 | 11.0 | 10.0 | 09024185 $183.74 | 61002 $106.25 |
4.155 | 4.250 | 6.800 | 1.280 | 470 | .990 x 2.500 | -4.6cc | 11.4 | 10.8 | 9.9 | 09024155 $183.74 | 61003 $106.25 |
4.165 | 4.250 | 6.800 | 1.280 | 475 | .990 x 2.500 | -4.6cc | 11.4 | 10.9 | 9.9 | 09024165 $183.74 | 61004 $106.25 |
4.185 | 4.250 | 6.800 | 1.280 | 480 | .990 x 2.500 | -4.6cc | 11.5 | 11.0 | 10.0 | 09024185 $183.74 | 61005 $106.25 |
4.350 | 4.250 | 6.800 | 1.280 | call | .990 x 2.500 | -4.6cc | 12.2 | 11.6 | 10.6 | 09024350 $218.74 | 61006 $106.25 |
Page 27
Pontiac 455 STREET/STRIP DISH SERIES
3D milling on piston crowns for ready to install finish
Valve pockets designed to work with OEM & aftermarket
cylinder heads
Top ring down dimension: .200"
Ratios figured for .040 head gasket @ 10.225 Deck
Standard 1/16 x 1/16 x 3/16 ring package
Premium 8620 .155W wrist pins included
Valve pocket depth: 0.209" intake and sym exhaust
Will work with up to a intake valve size of 2.150"
Made from 4032 alloy and designed for applications up to
650hp
455 Block: 4.151 Std Bore 4.210 Std Stroke | Comp. Ratio | - | |||||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 72cc | 77cc | 87cc | Ring Set | Part # each |
4.155 | 4.250 | 6.800 | 1.280 | call | .980 x 2.500 | -10.0cc | 10.8 | 10.3 | 9.5 | 09024155 $183.74 | 61010 $106.25 |
4.165 | 4.250 | 6.800 | 1.280 | call | .980 x 2.500 | -10.0cc | 10.8 | 10.3 | 9.5 | 09024165 $183.74 | 61011 $106.25 |
4.185 | 4.250 | 6.800 | 1.280 | call | .980 x 2.500 | -10.0cc | 10.9 | 10.4 | 9.6 | 09024185 $183.74 | 61012 $106.25 |
4.155 | 4.500 | 6.700 | 1.255 | call | .990 x 2.500 | -17.0cc | 10.7 | 10.2 | 9.4 | 09024155 $183.74 | 61013 $106.25 |
4.165 | 4.500 | 6.700 | 1.255 | call | .990 x 2.500 | -17.0cc | 10.7 | 10.3 | 9.5 | 09024165 $183.74 | 61014 $106.25 |
4.185 | 4.500 | 6.700 | 1.255 | call | .990 x 2.500 | -17.0cc | 10.8 | 10.3 | 9.6 | 09024185 $183.74 | 61015 $106.25 |
Page 28
Chevy LS2K 15° FLAT TOP SERIES
3D milling on piston crowns for ready to install finish
Inboard forging design with fully machined under crown
for maximum strength
Valve pockets designed to work with most aftermarket 15°
cylinder heads
Side gas ports for better ring seal
Moly skirt coating for friction loss and skirt wear protection
Top ring down dimension: .280" (1.115cd) .250"
(1.053cd)
Ratios figured for .053 head gasket
Premium 1.5mm x 1.5mm x 3.0mm ring package included
Premium H-13 .225W wrist pins included chamfered for round
wire locks
Valve pocket depth: 0.200" intake and .145" exhaust
2618 material for High HP-NOS-Boost applications - rated
for 2000HP
Designed For Use With OEM and Aftermarket Blocks | Comp. Ratio | - | - | ||||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 62cc | 70cc | 76cc | Ring Set | Part # each |
4.000 | 4.000 | 6.125 | 1.115 | call | .927 x 2.250 | -3.0cc | 11.3 | 10.7 | 10.4 | 09054005 $399.99 | 21510RS $106.25 |
4.005 | 4.000 | 6.125 | 1.115 | call | .927 x 2.250 | -3.0cc | 11.3 | 10.7 | 10.4 | 09054005 $399.99 | 21511RS $106.25 |
4.010 | 4.000 | 6.125 | 1.115 | call | .927 x 2.250 | -3.0cc | 11.3 | 10.7 | 10.4 | 09054010 $399.99 | 21512RS $106.25 |
4.030 | 4.000 | 6.125 | 1.115 | call | .927 x 2.250 | -3.0cc | 11.4 | 10.8 | 10.5 | 09054030 $399.99 | 21513RS $106.25 |
4.035 | 4.000 | 6.125 | 1.115 | call | .927 x 2.250 | -3.0cc | 11.5 | 10.9 | 10.5 | 09054030 $399.99 | 21514RS $106.25 |
4.065 | 4.000 | 6.125 | 1.115 | call | .927 x 2.250 | -3.0cc | 11.6 | 11.0 | 10.7 | 09054065 $399.99 | 21515RS $106.25 |
4.070 | 4.000 | 6.125 | 1.115 | call | .927 x 2.250 | -3.0cc | 11.7 | 11.0 | 10.7 | 09054070 $399.99 | 21516RS $106.25 |
4.080 | 4.000 | 6.125 | 1.115 | call | .927 x 2.250 | -3.0cc | 11.7 | 11.1 | 10.7 | 09054080 $399.99 | 21517RS $106.25 |
4.125 | 4.000 | 6.125 | 1.115 | call | .927 x 2.250 | -3.0cc | 11.9 | 11.3 | 10.9 | 09054125 $399.99 | 21518RS $106.25 |
4.185 | 4.000 | 6.125 | 1.115 | call | .927 x 2.250 | -3.0cc | 12.3 | 11.6 | 11.2 | 09054185 $399.99 | 21519RS $106.25 |
4.030 | 4.125 | 6.125 | 1.053 | call | .927 x 2.250 | -3.0cc | 11.8 | 11.1 | 10.8 | 09054030 $399.99 | 21520RS $106.25 |
4.070 | 4.125 | 6.125 | 1.053 | call | .927 x 2.250 | -3.0cc | 12.0 | 11.3 | 11.0 | 09054070 $399.99 | 21521RS $106.25 |
4.125 | 4.125 | 6.125 | 1.053 | call | .927 x 2.250 | -3.0cc | 12.3 | 11.6 | 11.3 | 09054125 $399.99 | 21522RS $106.25 |
Page 29
Chevy LS2K 15° DISH SERIES
3D milling on piston crowns for ready to install finish
Inboard forging design with fully machined under crown
for maximum strength
Valve pockets designed to work with most aftermarket 15°
cylinder heads
Side gas ports for better ring seal
Moly skirt coating for friction loss and skirt wear protection
Top ring down dimension: .280" (1.115cd) .250"
(1.053cd)
Ratios figured for .053 head gasket
Premium 1.5mm x 1.5mm x 3.0mm ring package included
Premium H-13 .225W wrist pins included chamfered for round
wire locks
Valve pocket depth: 0.200" intake and .145" exhaust
2618 material for High HP-NOS-Boost applications - rated
for 2000HP
Designed For Use With OEM and Aftermarket Blocks | Comp. Ratio | - | |||||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 62cc | 70cc | 76cc | Ring Set | Part # each |
4.000 | 4.000 | 6.125 | 1.115 | call | .927 x 2.250 | -15.0cc | 10.0 | 9.5 | 9.2 | 09054005 $399.99 | 21536RS $106.25 |
4.005 | 4.000 | 6.125 | 1.115 | call | .927 x 2.250 | -15.0cc | 10.0 | 9.5 | 9.2 | 09054005 $399.99 | 21537RS $106.25 |
4.010 | 4.000 | 6.125 | 1.115 | call | .927 x 2.250 | -15.0cc | 10.0 | 9.5 | 9.2 | 09024010 | 21538RS $106.25 |
4.030 | 4.000 | 6.125 | 1.115 | call | .927 x 2.250 | -15.0cc | 10.0 | 9.5 | 9.3 | 09054030 $399.99 | 21539RS $106.25 |
4.035 | 4.000 | 6.125 | 1.115 | call | .927 x 2.250 | -15.0cc | 10.0 | 9.5 | 9.3 | 09054030 $399.99 | 21540RS $106.25 |
4.065 | 4.000 | 6.125 | 1.115 | call | .927 x 2.250 | -18.0cc | 10.0 | 9.5 | 9.3 | 09054065 $399.99 | 21541RS $106.25 |
4.070 | 4.000 | 6.125 | 1.115 | call | .927 x 2.250 | -18.0cc | 10.0 | 9.5 | 9.3 | 09054070 $399.99 | 21542RS $106.25 |
4.080 | 4.000 | 6.125 | 1.115 | call | .927 x 2.250 | -18.0cc | 10.0 | 9.5 | 9.3 | 09054080 $399.99 | 21543RS $106.25 |
4.125 | 4.000 | 6.125 | 1.115 | call | .927 x 2.250 | -21.0cc | 10.0 | 9.5 | 9.3 | 09054125 $399.99 | 21544RS $106.25 |
4.185 | 4.000 | 6.125 | 1.115 | call | .927 x 2.250 | -24.0cc | 10.0 | 9.5 | 9.3 | 09054185 $399.99 | 21545RS $106.25 |
4.030 | 4.125 | 6.125 | 1.053 | call | .927 x 2.250 | -20.0cc | 10.0 | 9.5 | 9.3 | 09054030 $399.99 | 21546RS $106.25 |
4.070 | 4.125 | 6.125 | 1.053 | call | .927 x 2.250 | -21.0cc | 10.0 | 9.5 | 9.3 | 09054070 $399.99 | 21547RS $106.25 |
4.125 | 4.125 | 6.125 | 1.053 | call | .927 x 2.250 | -24.0cc | 10.0 | 9.5 | 9.3 | 09054125 $399.99 | 21548RS $106.25 |
Page 30
Chevy LS2K 12° FLAT TOP SERIES
3D milling on piston crowns for ready to install finish
Inboard forging design with fully machined under crown
for maximum strength
Valve pockets designed to work with most aftermarket 12°
cylinder heads
Side gas ports for better ring seal
Moly skirt coating for friction loss and skirt wear protection
Top ring down dimension: .280" (1.115cd) .250"
(1.053cd)
Ratios figured for .053 head gasket
Premium 1.5mm x 1.5mm x 3.0mm ring package included
Premium H-13 .225W wrist pins included chamfered for round
wire locks
Valve pocket depth: 0.220" intake and .162" exhaust
2618 material for High HP-NOS-Boost applications - rated
for 2000HP
Designed For Use With OEM and Aftermarket Blocks | Comp. Ratio | - | ||||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 62cc | 70cc | 76cc | Ring Set |
4.000 | 4.000 | 6.125 | 1.115 | call | .927 x 2.250 | -4.8cc | 10.6 | 10.4 | 10.2 | 09054005 $399.99 |
4.005 | 4.000 | 6.125 | 1.115 | call | .927 x 2.250 | -4.8cc | 10.6 | 10.4 | 10.2 | 09054005 $399.99 |
4.010 | 4.000 | 6.125 | 1.115 | call | .927 x 2.250 | -4.8cc | 10.6 | 10.4 | 10.2 | 09024010 |
4.030 | 4.000 | 6.125 | 1.115 | call | .927 x 2.250 | -4.8cc | 10.7 | 10.5 | 10.3 | 09054030 $399.99 |
4.035 | 4.000 | 6.125 | 1.115 | call | .927 x 2.250 | -4.8cc | 10.8 | 10.5 | 10.3 | 09054030 $399.99 |
4.065 | 4.000 | 6.125 | 1.115 | call | .927 x 2.250 | -4.8cc | 10.9 | 10.7 | 10.5 | 09054065 $399.99 |
4.070 | 4.000 | 6.125 | 1.115 | call | .927 x 2.250 | -4.8cc | 10.9 | 10.7 | 10.5 | 09054070 $399.99 |
4.080 | 4.000 | 6.125 | 1.115 | call | .927 x 2.250 | -4.8cc | 11.0 | 10.8 | 10.5 | 09054080 $399.99 |
4.125 | 4.000 | 6.125 | 1.115 | call | .927 x 2.250 | -4.8cc | 11.2 | 11.0 | 10.7 | 09054125 $399.99 |
4.185 | 4.000 | 6.125 | 1.115 | call | .927 x 2.250 | -4.8cc | 11.5 | 11.3 | 11.0 | 09054185 $399.99 |
4.030 | 4.125 | 6.125 | 1.053 | call | .927 x 2.250 | -4.8cc | 11.0 | 10.8 | 10.6 | 09054030 $399.99 |
4.070 | 4.125 | 6.125 | 1.053 | call | .927 x 2.250 | -4.8cc | 11.2 | 11.0 | 10.8 | 09054070 $399.99 |
4.125 | 4.125 | 6.125 | 1.053 | call | .927 x 2.250 | -4.8cc | 11.5 | 11.3 | 11.1 | 09054125 $399.99 |
Page 31
Chevy LS2K 12° DISH SERIES
3D milling on piston crowns for ready to install finish
Inboard forging design with fully machined under crown
for maximum strength
Valve pockets designed to work with most aftermarket 12°
cylinder heads
Side gas ports for better ring seal
Moly skirt coating for friction loss and skirt wear protection
Top ring down dimension: .280" (1.115cd) .250"
(1.053cd)
Ratios figured for .053 head gasket
Premium 1.5mm x 1.5mm x 3.0mm ring package included
Premium H-13 .225W wrist pins included chamfered for round
wire locks
Valve pocket depth: 0.220" intake and .162" exhaust
2618 material for High HP-NOS-Boost applications - rated
for 2000HP
Designed For Use With OEM and Aftermarket Blocks | Comp. Ratio | - | |||||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 62cc | 70cc | 76cc | Ring Set | Part # each |
4.000 | 4.000 | 6.125 | 1.115 | call | .927 x 2.250 | -14.0cc | 9.7 | 9.5 | 9.3 | 09054005 $399.99 | 21549RS $106.25 |
4.005 | 4.000 | 6.125 | 1.115 | call | .927 x 2.250 | -14.0cc | 9.7 | 9.5 | 9.3 | 09054005 $399.99 | 21550RS $106.25 |
4.010 | 4.000 | 6.125 | 1.115 | call | .927 x 2.250 | -14.0cc | 9.7 | 9.5 | 9.4 | 09054010 $399.99 | 21551RS $106.25 |
4.030 | 4.000 | 6.125 | 1.115 | call | .927 x 2.250 | -15.0cc | 9.7 | 9.5 | 9.4 | 09054030 $399.99 | 21552RS $106.25 |
4.035 | 4.000 | 6.125 | 1.115 | call | .927 x 2.250 | -15.0cc | 9.7 | 9.5 | 9.4 | 09054030 $399.99 | 21553RS $106.25 |
4.065 | 4.000 | 6.125 | 1.115 | call | .927 x 2.250 | -17.0cc | 9.7 | 9.5 | 9.3 | 09054065 $399.99 | 21554RS $106.25 |
4.070 | 4.000 | 6.125 | 1.115 | call | .927 x 2.250 | -17.0cc | 9.7 | 9.5 | 9.4 | 09054070 $399.99 | 21555RS $106.25 |
4.080 | 4.000 | 6.125 | 1.115 | call | .927 x 2.250 | -18.0cc | 9.7 | 9.5 | 9.3 | 09054080 $399.99 | 21556RS $106.25 |
4.125 | 4.000 | 6.125 | 1.115 | call | .927 x 2.250 | -20.0cc | 9.7 | 9.5 | 9.3 | 09054125 $399.99 | 21557RS $106.25 |
4.185 | 4.000 | 6.125 | 1.115 | call | .927 x 2.250 | -23.0cc | 9.7 | 9.5 | 9.3 | 09054185 $399.99 | 21558RS $106.25 |
4.030 | 4.125 | 6.125 | 1.053 | call | .927 x 2.250 | -18.0cc | 9.7 | 9.5 | 9.4 | 09054030 $399.99 | 21559RS $106.25 |
4.070 | 4.125 | 6.125 | 1.053 | call | .927 x 2.250 | -20.0cc | 9.7 | 9.5 | 9.4 | 09054070 $399.99 | 21560RS $106.25 |
4.125 | 4.125 | 6.125 | 1.053 | call | .927 x 2.250 | -23.0cc | 9.7 | 9.5 | 9.4 | 09054125 $399.99 | 21561RS $106.25 |
Page 32
Ford MOD2K 4.6L TRICK FLOW 2V SERIES
3D milling on piston crowns for ready to install finish
Inboard forging design with fully machined under crown
for maximum strength
Valve pockets designed to work with most aftermarket cylinder
heads
Side gas ports for better ring seal
Moly skirt coating for friction loss and skirt wear protection
Top ring down dimension: .325"
Ratios figured for .040 head gasket @ 8.937 Deck
Premium 1.5mm x 1.5mm x 3.0mm ring package included
Premium H-13 .225W wrist pins included chamfered for round
wire locks
Valve pocket depth: 0.180" intake and .100" exhaust
2618 material for High HP-NOS-Boost applications - rated
for 2000HP
4.6L Block: 3.552" Std Bore - 3.543" Std Stroke |
Comp. Ratio |
- | |||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 44cc | Ring Set | Part # each |
3.552 | 3.543 | 5.933 | 1.220 | call | .866 x 2.250 | -9.5cc | 10.0 | 09053552 $399.99 | 30300RS $106.25 |
3.562 | 3.543 | 5.933 | 1.220 | call | .866 x 2.250 | -9.5cc | 10.0 | 09053562 $399.99 | 30301RS $106.25 |
3.572 | 3.543 | 5.933 | 1.220 | call | .866 x 2.250 | -9.5cc | 10.1 | 09053572 $399.99 | 30302RS $106.25 |
3.582 | 3.543 | 5.933 | 1.220 | call | .866 x 2.250 | -9.5cc | 10.1 | 09053582 $399.99 | 30303RS $106.25 |
3.552 | 3.543 | 5.933 | 1.220 | call | .866 x 2.250 | -13.5cc | 9.5 | 09053552 $399.99 | 30304RS $106.25 |
3.562 | 3.543 | 5.933 | 1.220 | call | .866 x 2.250 | -13.5cc | 9.5 | 09053562 $399.99 | 30305RS $106.25 |
3.572 | 3.543 | 5.933 | 1.220 | call | .866 x 2.250 | -13.5cc | 9.6 | 09053572 $399.99 | 30306RS $106.25 |
3.582 | 3.543 | 5.933 | 1.220 | call | .866 x 2.250 | -13.5cc | 9.6 | 09053582 $399.99 | 30307RS $106.25 |
3.552 | 3.750 | 5.850 | 1.200 | call | .866 x 2.250 | -13.5cc | 10.0 | 09053552 $399.99 | 30308RS $106.25 |
3.562 | 3.750 | 5.850 | 1.200 | call | .866 x 2.250 | -13.5cc | 10.0 | 09053562 $399.99 | 30309RS $106.25 |
3.572 | 3.750 | 5.850 | 1.200 | call | .866 x 2.250 | -13.5cc | 10.1 | 09053572 $399.99 | 30310RS $106.25 |
3.582 | 3.750 | 5.850 | 1.200 | call | .866 x 2.250 | -13.5cc | 10.1 | 09053582 $399.99 | 30311RS $106.25 |
3.552 | 3.750 | 5.850 | 1.200 | call | .866 x 2.250 | -17.5cc | 9.5 | 09053552 $399.99 | 30312RS $106.25 |
3.562 | 3.750 | 5.850 | 1.200 | call | .866 x 2.250 | -17.5cc | 9.5 | 09053562 $399.99 | 30313RS $106.25 |
3.572 | 3.750 | 5.850 | 1.200 | call | .866 x 2.250 | -17.5cc | 9.6 | 09053572 $399.99 | 30314RS $106.25 |
3.582 | 3.750 | 5.850 | 1.200 | call | .866 x 2.250 | -17.5cc | 9.6 | 09053582 $399.99 | 30315RS $106.25 |
Page 33
Ford MOD2K 4.6L DOHC 4V SERIES
3D milling on piston crowns for ready to install finish
Inboard forging design with fully machined under crown
for maximum strength
Valve pockets designed to work with most aftermarket cylinder
heads
Side gas ports for better ring seal
Moly skirt coating for friction loss and skirt wear protection
Top ring down dimension: .325"
Ratios figured for .040 head gasket @ 8.937 Deck
Premium 1.5mm x 1.5mm x 3.0mm ring package included
Premium H-13 .225W wrist pins included chamfered for round
wire locks
Valve pocket depth: 0.165" intake and .070" exhaust
2618 material for High HP-NOS-Boost applications - rated
for 2000HP
4.6L Block: 3.552" Std Bore - 3.543" Std Stroke |
Comp. Ratio |
||||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 52cc | Ring Set | Part # each |
3.552 | 3.543 | 5.933 | 1.220 | call | .866 x 2.250 | -1.8cc | 10.0 | 09053552 $399.99 | 30316RS $106.25 |
3.562 | 3.543 | 5.933 | 1.220 | call | .866 x 2.250 | -1.8cc | 10.0 | 09053562 $399.99 | 30317RS $106.25 |
3.572 | 3.543 | 5.933 | 1.220 | call | .866 x 2.250 | -1.8cc | 10.1 | 09053572 $399.99 | 30318RS $106.25 |
3.582 | 3.543 | 5.933 | 1.220 | call | .866 x 2.250 | -1.8cc | 10.1 | 09053582 $399.99 | 30319RS $106.25 |
3.552 | 3.543 | 5.933 | 1.220 | call | .866 x 2.250 | -5.5cc | 9.5 | 09053552 $399.99 | 30320RS $106.25 |
3.562 | 3.543 | 5.933 | 1.220 | call | .866 x 2.250 | -5.5cc | 9.5 | 09053562 $399.99 | 30321RS $106.25 |
3.572 | 3.543 | 5.933 | 1.220 | call | .866 x 2.250 | -5.5cc | 9.6 | 09053572 $399.99 | 30322RS $106.25 |
3.582 | 3.543 | 5.933 | 1.220 | call | .866 x 2.250 | -5.5cc | 9.6 | 09053582 $399.99 | 30323RS $106.25 |
3.552 | 3.750 | 5.850 | 1.200 | call | .866 x 2.250 | -5.5cc | 10.0 | 09053552 $399.99 | 30324RS $106.25 |
3.562 | 3.750 | 5.850 | 1.200 | call | .866 x 2.250 | -5.5cc | 10.0 | 09053562 $399.99 | 30325RS $106.25 |
3.572 | 3.750 | 5.850 | 1.200 | call | .866 x 2.250 | -5.5cc | 10.1 | 09053572 $399.99 | 30326RS $106.25 |
3.582 | 3.750 | 5.850 | 1.200 | call | .866 x 2.250 | -5.5cc | 10.1 | 09053582 $399.99 | 30327RS $106.25 |
3.552 | 3.750 | 5.850 | 1.200 | call | .866 x 2.250 | -9.5cc | 9.5 | 09053552 $399.99 | 30328RS $106.25 |
3.562 | 3.750 | 5.850 | 1.200 | call | .866 x 2.250 | -9.5cc | 9.5 | 09053562 $399.99 | 30329RS $106.25 |
3.572 | 3.750 | 5.850 | 1.200 | call | .866 x 2.250 | -9.5cc | 9.6 | 09053572 $399.99 | 30330RS $106.25 |
3.582 | 3.750 | 5.850 | 1.200 | call | .866 x 2.250 | -9.5cc | 9.6 | 09053582 $399.99 | 30331RS $106.25 |
Page 34
Ford MOD2K 5.0L COYOTE SERIES
Factory piston oil squiters must be removed when using
this product
3D milling on piston crowns for ready to install finish
Designed to work with Gen 1,2 and 3 (DI) cylinder heads
Inboard forging design with fully machined under crown
for maximum strength
Valve pockets designed to work with most aftermarket cylinder
heads
Side gas ports for better ring seal
Moly skirt coating for friction loss and skirt wear protection
Top ring down dimension: .325"
Ratios figured for .040 head gasket @ 8.937 Deck
Premium 1.5mm x 1.5mm x 3.0mm ring package included
Premium H-13 .225W wrist pins included chamfered for round
wire locks
Valve pocket depth: 0.100" intake and .100" exhaust
2618 material for High HP-NOS-Boost applications - rated
for 2000HP
GEN 1 & 2 5.0L Block: 3.630" Std Bore - 3.650" Std Stroke | Comp. Ratio | - | |||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 57cc | Ring Set | Part # each |
3.630 | 3.650 | 5.933 | 1.169 | call | .866 x 2.250 | 8.0cc | 11.5 | 09053630 $399.99 | 30332RS |
3.635 | 3.650 | 5.933 | 1.169 | call | .866 x 2.250 | 8.0cc | 11.6 | 09053630 $399.99 | 30333RS |
3.640 | 3.650 | 5.933 | 1.169 | call | .866 x 2.250 | 8.0cc | 11.6 | 09053640 $399.99 | 30334RS |
3.650 | 3.650 | 5.933 | 1.169 | call | .866 x 2.250 | 8.0cc | 11.6 | 09053650 $399.99 | 30335RS |
3.630 | 3.650 | 5.933 | 1.169 | call | .866 x 2.250 | 5.0cc | 11.0 | 09053630 $399.99 | 30336RS |
3.635 | 3.650 | 5.933 | 1.169 | call | .866 x 2.250 | 5.0cc | 11.0 | 09053630 $399.99 | 30337RS |
3.640 | 3.650 | 5.933 | 1.169 | call | .866 x 2.250 | 5.0cc | 11.1 | 09053640 $399.99 | 30338RS |
3.650 | 3.650 | 5.933 | 1.169 | call | .866 x 2.250 | 5.0cc | 11.1 | 09053650 $399.99 | 30339RS |
3.630 | 3.650 | 5.933 | 1.169 | call | .866 x 2.250 | 1.8cc | 10.5 | 09053630 $399.99 | 30340RS |
3.635 | 3.650 | 5.933 | 1.169 | call | .866 x 2.250 | 1.8cc | 10.5 | 09053630 $399.99 | 30341RS |
3.640 | 3.650 | 5.933 | 1.169 | call | .866 x 2.250 | 1.8cc | 10.6 | 09053640 $399.99 | 30342RS |
3.650 | 3.650 | 5.933 | 1.169 | call | .866 x 2.250 | 1.8cc | 10.6 | 09053650 $399.99 | 30343RS |
3.630 | 3.650 | 5.933 | 1.169 | call | .866 x 2.250 | -2.0cc | 10.0 | 09053630 $399.99 | 30344RS |
3.635 | 3.650 | 5.933 | 1.169 | call | .866 x 2.250 | -2.0cc | 10.0 | 09053630 $399.99 | 30345RS |
3.640 | 3.650 | 5.933 | 1.169 | call | .866 x 2.250 | -2.0cc | 10.0 | 09053640 $399.99 | 30346RS |
3.650 | 3.650 | 5.933 | 1.169 | call | .866 x 2.250 | -2.0cc | 10.1 | 09053650 $399.99 | 30347RS |
3.630 | 3.650 | 5.933 | 1.169 | call | .866 x 2.250 | -6.0cc | 9.5 | 09053630 $399.99 | 30348RS |
3.635 | 3.650 | 5.933 | 1.169 | call | .866 x 2.250 | -6.0cc | 9.5 | 09053630 $399.99 | 30349RS |
3.640 | 3.650 | 5.933 | 1.169 | call | .866 x 2.250 | -6.0cc | 9.5 | 09053640 $399.99 | 30350RS |
3.650 | 3.650 | 5.933 | 1.169 | call | .866 x 2.250 | -6.0cc | 9.6 | 09053650 $399.99 | 30351RS |
GEN 3 5.0L Block: 3.661" Std Bore - 3.650" Std Stroke | Comp. Ratio | - | |||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 57cc | Ring Set | Part # each |
3.661 | 3.650 | 5.933 | 1.165 | call | .866 x 2.250 | 8.0cc | 11.6 | 09053662 $399.99 | 30352RS |
3.681 | 3.650 | 5.933 | 1.165 | call | .866 x 2.250 | 8.0cc | 11.7 | 09053682 $399.99 | 30353RS |
3.661 | 3.650 | 5.933 | 1.165 | call | .866 x 2.250 | 1.0cc | 10.5 | 09053662 $399.99 | 30354RS |
3.681 | 3.650 | 5.933 | 1.165 | call | .866 x 2.250 | 1.0cc | 10.6 | 09053682 $399.99 | 30355RS |
Page 36
Big Block Chevy 24°/26° MARINE
FLAT TOP SERIES
3D milling on piston crowns for ready to install finish
Moly skirt coating for friction loss and skirt wear protection
Top ring down dimension: .325"
Ratios figured for .041 head gasket
Premium 1.5mm x 1.5mm x 4.0mm ring package included
Premium 8620 .185W wrist pins chamfered for roundwire locks
included
Valve pocket depth: 0.325" intake and 0.000"
exhaust
2618 material
Ratio Figured For 9.800" Deck Height | Comp. Ratio CC | - | |||||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 110 | 118 | 124 | Ring Set | Part # each |
4.250 | 4.000 | 6.135 | 1.645 | call | .990 x 2.930 | -3.0 | 8.5 | 8.1 | 7.7 | 09714250 | 70200 $186.25 |
4.280 | 4.000 | 6.135 | 1.645 | call | .990 x 2.930 | -3.0 | 8.6 | 8.1 | 7.8 | 09714280 | 70201 $186.25 |
4.310 | 4.000 | 6.135 | 1.645 | call | .990 x 2.930 | -3.0 | 8.7 | 8.2 | 7.9 | 09714310 | 70202 |
4.320 | 4.000 | 6.135 | 1.645 | call | .990 x 2.930 | -3.0 | 8.8 | 8.3 | 8.0 | 09714320 | 70203 |
4.250 | 4.000 | 6.385 | 1.395 | call | .990 x 2.930 | -3.0 | 8.5 | 8.1 | 7.7 | 09714250 | 70204 $186.25 |
4.280 | 4.000 | 6.385 | 1.395 | call | .990 x 2.930 | -3.0 | 8.6 | 8.1 | 7.8 | 09714280 | 70205 $186.25 |
4.310 | 4.000 | 6.385 | 1.395 | call | .990 x 2.930 | -3.0 | 8.7 | 8.2 | 7.9 | 09714310 | 70206 |
4.320 | 4.000 | 6.385 | 1.395 | call | .990 x 2.930 | -3.0 | 8.8 | 8.3 | 8.0 | 09714320 | 70207 |
Page 37
Big Block Chevy
24°/26° MARINE DISH SERIES
3D milling on piston crowns for ready to install finish
D-shaped dish design for ideal quench for marine grade
gas applications.
Moly skirt coating for friction loss and skirt wear protection
Top ring down dimension: .300"
Ratios figured for .041 head gasket
Premium 1.5mm x 1.5mm x 4.0mm ring package included
Premium 8620 .185W wrist pins chamfered for roundwire locks
included
Valve pocket depth: 0.325" intake and 0.000"
exhaust
2618 material
Ratio Figured For 9.780" Deck Height | Comp. Ratio CC | - | |||||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 110 | 118 | 124 | Ring Set | Part # each |
4.470 | 4.000 | 6.135 | 1.645 | call | .990 x 2.930 | -15.0 | 8.5 | 8.1 | 7.8 | 09714470 | 70208 $186.25 |
4.500 | 4.000 | 6.135 | 1.645 | call | .990 x 2.930 | -15.0 | 8.6 | 8.2 | 7.9 | 09714500 | 70209 $186.25 |
4.505 | 4.000 | 6.135 | 1.645 | call | .990 x 2.930 | -15.0 | 8.6 | 8.2 | 7.9 | 09714500 | 70210 $186.25 |
4.530 | 4.000 | 6.135 | 1.645 | call | .990 x 2.930 | -18.0 | 8.5 | 8.1 | 7.8 | 09714530 | 70211 $186.25 |
4.560 | 4.000 | 6.135 | 1.645 | call | .990 x 2.930 | -18.0 | 8.6 | 8.2 | 7.9 | 09714560 | 70212 $186.25 |
4.570 | 4.000 | 6.135 | 1.645 | call | .990 x 2.930 | -18.0 | 8.7 | 8.2 | 8.0 | 09714570 | 70213 $186.25 |
4.580 | 4.000 | 6.135 | 1.645 | call | .990 x 2.930 | -20.0 | 8.6 | 8.2 | 7.9 | 09714580 | 70214 $186.25 |
4.590 | 4.000 | 6.135 | 1.645 | call | .990 x 2.930 | -20.0 | 8.6 | 8.2 | 7.9 | 09714590 | 70215 $186.25 |
4.600 | 4.000 | 6.135 | 1.645 | call | .990 x 2.930 | -20.0 | 8.6 | 8.2 | 8.0 | 09714600 | 70216 $186.25 |
4.470 | 4.000 | 6.385 | 1.395 | call | .990 x 2.930 | -15.0 | 8.5 | 8.1 | 7.8 | 09714470 | 70217 $186.25 |
4.500 | 4.000 | 6.385 | 1.395 | call | .990 x 2.930 | -15.0 | 8.6 | 8.2 | 7.9 | 09714500 | 70218 $186.25 |
4.505 | 4.000 | 6.385 | 1.395 | call | .990 x 2.930 | -15.0 | 8.6 | 8.2 | 7.9 | 09714500 | 70219 $186.25 |
4.530 | 4.000 | 6.385 | 1.395 | call | .990 x 2.930 | -18.0 | 8.5 | 8.1 | 7.8 | 09714530 | 70220 $186.25 |
4.560 | 4.000 | 6.385 | 1.395 | call | .990 x 2.930 | -18.0 | 8.6 | 8.2 | 7.9 | 09714560 | 70221 $186.25 |
4.570 | 4.000 | 6.385 | 1.395 | call | .990 x 2.930 | -18.0 | 8.7 | 8.2 | 8.0 | 09714570 | 70222 $186.25 |
4.580 | 4.000 | 6.385 | 1.395 | call | .990 x 2.930 | -20.0 | 8.6 | 8.2 | 7.9 | 09714580 | 70223 $186.25 |
4.590 | 4.000 | 6.385 | 1.395 | call | .990 x 2.930 | -20.0 | 8.6 | 8.2 | 7.9 | 09714590 | 70224 $186.25 |
4.600 | 4.000 | 6.385 | 1.395 | call | .990 x 2.930 | -20.0 | 8.6 | 8.2 | 8.0 | 09714600 | 70225 $186.25 |
4.250 | 4.250 | 6.385 | 1.270 | call | .990 x 2.930 | -10.0 | 8.5 | 8.1 | 7.8 | 09714250 | 70226 $186.25 |
4.280 | 4.250 | 6.385 | 1.270 | call | .990 x 2.930 | -10.0 | 8.7 | 8.2 | 7.9 | 09714280 | 70227 $186.25 |
4.310 | 4.250 | 6.385 | 1.270 | call | .990 x 2.930 | -14.0 | 8.5 | 8.1 | 7.8 | 09714310 | 70228 |
4.320 | 4.250 | 6.385 | 1.270 | call | .990 x 2.930 | -14.0 | 8.5 | 8.1 | 7.8 | 09714320 | 70229 |
4.470 | 4.250 | 6.385 | 1.270 | call | .990 x 2.930 | -24.0 | 8.5 | 8.1 | 7.8 | 09714470 | 70230 $186.25 |
4.500 | 4.250 | 6.385 | 1.270 | call | .990 x 2.930 | -24.0 | 8.6 | 8.2 | 7.9 | 09714500 | 70231 $186.25 |
4.505 | 4.250 | 6.385 | 1.270 | call | .990 x 2.930 | -24.0 | 8.6 | 8.2 | 7.9 | 09714500 | 70232 $186.25 |
4.530 | 4.250 | 6.385 | 1.270 | call | .990 x 2.930 | -28.0 | 8.5 | 8.1 | 7.8 | 09714530 | 70233 $186.25 |
4.560 | 4.250 | 6.385 | 1.270 | call | .990 x 2.930 | -28.0 | 8.6 | 8.2 | 7.9 | 09714560 | 70234 $186.25 |
4.570 | 4.250 | 6.385 | 1.270 | call | .990 x 2.930 | -28.0 | 8.6 | 8.2 | 7.9 | 09714570 | 70235 $186.25 |
4.580 | 4.250 | 6.385 | 1.270 | call | .990 x 2.930 | -30.0 | 8.5 | 8.1 | 7.9 | 09714580 | 70236 $186.25 |
4.590 | 4.250 | 6.385 | 1.270 | call | .990 x 2.930 | -30.0 | 8.5 | 8.2 | 7.9 | 09714590 | 70237 $186.25 |
4.600 | 4.250 | 6.385 | 1.270 | call | .990 x 2.930 | -30.0 | 8.6 | 7.2 | 7.9 | 09714600 | 70238 $186.25 |
Ratio Figured For 10.180" Deck Height | Comp. Ratio CC | - | |||||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 110 | 118 | 124 | Ring Set | Part # each |
4.470 | 4.500 | 6.535 | 1.395 | call | .990 x 2.930 | -32.0 | 8.5 | 8.1 | 7.9 | 09714470 | 70239 $186.25 |
4.500 | 4.500 | 6.535 | 1.395 | call | .990 x 2.930 | -32.0 | 8.6 | 8.2 | 8.0 | 09714500 | 70240 $186.25 |
4.505 | 4.500 | 6.535 | 1.395 | call | .990 x 2.930 | -32.0 | 8.6 | 8.2 | 8.0 | 09714500 | 70241 $186.25 |
4.530 | 4.500 | 6.535 | 1.395 | call | .990 x 2.930 | -36.0 | 8.5 | 8.1 | 7.9 | 09714530 | 70242 $186.25 |
4.560 | 4.500 | 6.535 | 1.395 | call | .990 x 2.930 | -36.0 | 8.6 | 8.2 | 8.0 | 09714560 | 70243 $186.25 |
4.570 | 4.500 | 6.535 | 1.395 | call | .990 x 2.930 | -39.0 | 8.5 | 8.1 | 7.9 | 09714570 | 70244 $186.25 |
4.580 | 4.500 | 6.535 | 1.395 | call | .990 x 2.930 | -39.0 | 8.5 | 8.2 | 7.9 | 09714580 | 70245 $186.25 |
4.590 | 4.500 | 6.535 | 1.395 | call | .990 x 2.930 | -39.0 | 8.5 | 8.2 | 7.9 | 09714590 | 70246 $186.25 |
4.600 | 4.500 | 6.535 | 1.395 | call | .990 x 2.930 | -39.0 | 8.6 | 8.2 | 8.0 | 09714600 | 70247 $186.25 |
Page 38
MERCURY 7.4L 454 MAGNUM/MPI SERIES
3D milling on piston crowns for ready to install finish
Direct replacement piston for the Mercury/Quicksilver Part#
737-881714T
Moly skirt coating for friction loss and skirt wear protection
Top ring down dimension: .290"
Ratios figured for .051 head gasket
Premium 1.5mm x 1.5mm x 4.0mm ring package included
Premium 8620 .155W wrist pins chamfered for roundwire locks
included
Valve pocket depth: 0.115" intake and 0.000"
exhaust
4032 material
4.250" Std Bore - 1.645" Std C.D.- 9.800" Std Deck Height Ratio Figured For 9.800" Deck Height |
Comp. Ratio |
- | |||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 118cc | Ring Set | Part # each |
4.250 | 4.000 | 6.135 | 1.645 | 646 | .990 x 2.930 | -0.70cc | 7.8 | 09714250 | 70000 $188.75 |
4.251 | 4.000 | 6.135 | 1.645 | call | .990 x 2.930 | -0.70cc | 7.8 | 09714250 | 70001 $188.75 |
4.252 | 4.000 | 6.135 | 1.645 | call | .990 x 2.930 | -0.70cc | 7.8 | 09714250 | 70002 $188.75 |
4.253 | 4.000 | 6.135 | 1.645 | call | .990 x 2.930 | -0.70cc | 7.8 | 09714250 | 70003 $188.75 |
4.254 | 4.000 | 6.135 | 1.645 | call | .990 x 2.930 | -0.70cc | 7.8 | 09714250 | 70004 $188.75 |
4.255 | 4.000 | 6.135 | 1.645 | call | .990 x 2.930 | -0.70cc | 7.8 | 09714250 | 70005 $188.75 |
4.280 | 4.000 | 6.135 | 1.645 | call | .990 x 2.930 | -0.70cc | 7.9 | 09714280 | 70006 $188.75 |
Ratio Figured For 9.790" Deck Height |
Comp. Ratio |
- | |||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 118cc | Ring Set | Part # each |
4.250 | 4.000 | 6.135 | 1.635 | call | .990 x 2.930 | -0.70cc | 7.8 | 09714250 | 70007 $188.75 |
4.251 | 4.000 | 6.135 | 1.635 | call | .990 x 2.930 | -0.70cc | 7.8 | 09714250 | 70008 $188.75 |
4.252 | 4.000 | 6.135 | 1.635 | call | .990 x 2.930 | -0.70cc | 7.8 | 09714250 | 70009 $188.75 |
4.253 | 4.000 | 6.135 | 1.635 | call | .990 x 2.930 | -0.70cc | 7.8 | 09714250 | 70010 $188.75 |
4.254 | 4.000 | 6.135 | 1.635 | call | .990 x 2.930 | -0.70cc | 7.8 | 09714250 | 70011 $188.75 |
4.255 | 4.000 | 6.135 | 1.635 | call | .990 x 2.930 | -0.70cc | 7.8 | 09714250 | 70012 $188.75 |
4.280 | 4.000 | 6.135 | 1.635 | call | .990 x 2.930 | -0.70cc | 7.9 | 09714280 | 70013 $188.75 |
Ratio Figured For 9.780" Deck Height |
Comp. Ratio |
- | |||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 118cc | Ring Set | Part # each |
4.250 | 4.000 | 6.135 | 1.625 | call | .990 x 2.930 | -0.70cc | 7.8 | 09714250 | 70014 $188.75 |
4.251 | 4.000 | 6.135 | 1.625 | call | .990 x 2.930 | -0.70cc | 7.8 | 09714250 | 70015 $188.75 |
4.252 | 4.000 | 6.135 | 1.625 | call | .990 x 2.930 | -0.70cc | 7.8 | 09714250 | 70016 $188.75 |
4.253 | 4.000 | 6.135 | 1.625 | call | .990 x 2.930 | -0.70cc | 7.8 | 09714250 | 70017 $188.75 |
4.254 | 4.000 | 6.135 | 1.625 | call | .990 x 2.930 | -0.70cc | 7.8 | 09714250 | 70018 $188.75 |
4.255 | 4.000 | 6.135 | 1.625 | call | .990 x 2.930 | -0.70cc | 7.8 | 09714250 | 70019 $188.75 |
4.280 | 4.000 | 6.135 | 1.625 | call | .990 x 2.930 | -0.70cc | 7.9 | 09714280 | 70020 $188.75 |
Page 39
MERCURY 7.4L 454 MAGNUM/MPI SERIES continued
Ratio Figured For 9.770" Deck Height | Comp. Ratio | - | - | ||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 118cc | Ring Set | Part # each |
4.250 | 4.000 | 6.135 | 1.615 | call | .990 x 2.930 | -0.70cc | 7.8 | 09714250 | 70021 $188.75 |
4.251 | 4.000 | 6.135 | 1.615 | call | .990 x 2.930 | -0.70cc | 7.8 | 09714250 | 70022 $188.75 |
4.252 | 4.000 | 6.135 | 1.615 | call | .990 x 2.930 | -0.70cc | 7.8 | 09714250 | 70023 $188.75 |
4.253 | 4.000 | 6.135 | 1.615 | call | .990 x 2.930 | -0.70cc | 7.8 | 09714250 | 70024 $188.75 |
4.254 | 4.000 | 6.135 | 1.615 | call | .990 x 2.930 | -0.70cc | 7.8 | 09714250 | 70025 $188.75 |
4.255 | 4.000 | 6.135 | 1.615 | call | .990 x 2.930 | -0.70cc | 7.8 | 09714250 | 70026 $188.75 |
4.280 | 4.000 | 6.135 | 1.615 | call | .990 x 2.930 | -0.70cc | 7.9 | 09714280 | 70027 $188.75 |
Page 40
MERCURY 8.1L 496 MAGNUM SERIES
3D milling on piston crowns for ready to install finish
Direct replacement piston for the Mercury/Quicksilver
Part# 735-883515002 (Port)
Direct replacement piston for the Mercury/Quicksilver
Part# 735-881592002 (Starboard)
Moly skirt coating for friction loss and skirt wear protection
Top ring down dimension: .200"
Ratios figured for .051 head gasket
Premium 1.5mm x 1.5mm x 4.0mm ring package included
Premium 8620 .165W wrist pins chamfered for roundwire
locks included
Valve pocket depth: 0.125" intake and 0.000"
exhaust
4032 material
4.250" Std Bore - 1.365" Std C.D.- 10.231"
Std Deck Height Ratio Figured For 10.231" Deck Height |
Comp. Ratio |
- | |||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 118cc | Ring Set | Part # each |
4.250 | 4.370 | 6.695 | 1.365 | 575 | 1.040 x 2.930 | -0.40cc | 8.9 | 09714250 | 70028 $188.75 |
4.251 | 4.370 | 6.695 | 1.365 | call | 1.040 x 2.930 | -0.40cc | 8.9 | 09714250 | 70029 $188.75 |
4.252 | 4.370 | 6.695 | 1.365 | call | 1.040 x 2.930 | -0.40cc | 8.9 | 09714250 | 70030 $188.75 |
4.253 | 4.370 | 6.695 | 1.365 | call | 1.040 x 2.930 | -0.40cc | 8.9 | 09714250 | 70031 $188.75 |
4.254 | 4.370 | 6.695 | 1.365 | call | 1.040 x 2.930 | -0.40cc | 8.9 | 09714250 | 70032 $188.75 |
4.255 | 4.370 | 6.695 | 1.365 | call | 1.040 x 2.930 | -0.40cc | 8.9 | 09714250 | 70033 $188.75 |
4.280 | 4.370 | 6.695 | 1.365 | call | 1.040 x 2.930 | -0.40cc | 9.0 | 09714280 | 70034 $188.75 |
Ratio Figured For 10.221" Deck Height |
Comp. Ratio |
- | |||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 118cc | Ring Set | Part # each |
4.250 | 4.370 | 6.695 | 1.355 | call | 1.040 x 2.930 | -0.40cc | 8.9 | 09714250 | 70035 $188.75 |
4.251 | 4.370 | 6.695 | 1.355 | call | 1.040 x 2.930 | -0.40cc | 8.9 | 09714250 | 70036 $188.75 |
4.252 | 4.370 | 6.695 | 1.355 | call | 1.040 x 2.930 | -0.40cc | 8.9 | 09714250 | 70037 $188.75 |
4.253 | 4.370 | 6.695 | 1.355 | call | 1.040 x 2.930 | -0.40cc | 8.9 | 09714250 | 70038 $188.75 |
4.254 | 4.370 | 6.695 | 1.355 | call | 1.040 x 2.930 | -0.40cc | 8.9 | 09714250 | 70039 $188.75 |
4.255 | 4.370 | 6.695 | 1.355 | call | 1.040 x 2.930 | -0.40cc | 8.9 | 09714250 | 70040 $188.75 |
4.280 | 4.370 | 6.695 | 1.355 | call | 1.040 x 2.930 | -0.40cc | 9.0 | 09714280 | 70041 $188.75 |
Ratio Figured For 10.211" Deck Height |
Comp. Ratio |
- | |||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 118cc | Ring Set | Part # each |
4.250 | 4.370 | 6.695 | 1.345 | call | 1.040 x 2.930 | -0.40cc | 8.9 | 09714250 | 70042 $188.75 |
4.251 | 4.370 | 6.695 | 1.345 | call | 1.040 x 2.930 | -0.40cc | 8.9 | 09714250 | 70043 $188.75 |
4.252 | 4.370 | 6.695 | 1.345 | call | 1.040 x 2.930 | -0.40cc | 8.9 | 09714250 | 70044 $188.75 |
4.253 | 4.370 | 6.695 | 1.345 | call | 1.040 x 2.930 | -0.40cc | 8.9 | 09714250 | 70045 $188.75 |
4.254 | 4.370 | 6.695 | 1.345 | call | 1.040 x 2.930 | -0.40cc | 8.9 | 09714250 | 70046 $188.75 |
4.255 | 4.370 | 6.695 | 1.345 | call | 1.040 x 2.930 | -0.40cc | 8.9 | 09714250 | 70047 $188.75 |
4.280 | 4.370 | 6.695 | 1.345 | call | 1.040 x 2.930 | -0.40cc | 9.0 | 09714280 | 70048 $188.75 |
Page 41
MERCURY 8.1L 496 MAGNUM SERIES
Ratio Figured For 10.201" Deck Height | Comp. Ratio | - | - | ||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 118cc | Ring Set | Part # each |
4.250 | 4.370 | 6.695 | 1.335 | call | 1.040 x 2.930 | -0.40cc | 8.9 | 09714250 | 70049 $188.75 |
4.251 | 4.370 | 6.695 | 1.335 | call | 1.040 x 2.930 | -0.40cc | 8.9 | 09714250 | 70050 $188.75 |
4.252 | 4.370 | 6.695 | 1.335 | call | 1.040 x 2.930 | -0.40cc | 8.9 | 09714250 | 70051 $188.75 |
4.253 | 4.370 | 6.695 | 1.335 | call | 1.040 x 2.930 | -0.40cc | 8.9 | 09714250 | 70052 $188.75 |
4.254 | 4.370 | 6.695 | 1.335 | call | 1.040 x 2.930 | -0.40cc | 8.9 | 09714250 | 70053 $188.75 |
4.255 | 4.370 | 6.695 | 1.335 | call | 1.040 x 2.930 | -0.40cc | 8.9 | 09714250 | 70054 $188.75 |
4.280 | 4.370 | 6.695 | 1.335 | call | 1.040 x 2.930 | -0.40cc | 9.0 | 09714280 | 70055 $188.75 |
Page 42
MERCURY 8.2L 502 MAG/MPI, 500EFI &
525EFI SERIES
3D milling on piston crowns for ready to install finish
Direct replacement piston for the Mercury/Quicksilver Part#
737-827664
(8.2L Mag/MPI Gen 6)
Direct replacement piston for the Mercury/Quicksilver Part#
700-8M0005739
(500EFI & 525EFI)
Moly skirt coating for friction loss and skirt wear protection
Top ring down dimension: .305"
Ratios figured for .051 head gasket
Premium 1.5mm x 1.5mm x 4.0mm ring package included
Premium 8620 .155W wrist pins chamfered for roundwire locks
included
Valve pocket depth: 0.280" intake and 0.000"
exhaust
4032 material
4.470" Std Bore - 1.645" Std C.D.- 9.800" Std Deck Height Ratio Figured For 9.800" Deck Height | Comp. Ratio | - | ||||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 118cc | Ring Set | Part # each | |
4.470 | 4.000 | 6.135 | 1.645 | 688 | .990 x 2.930 | 3.3cc | 8.6 | 09714470 | 70056 $188.75 | |
4.471 | 4.000 | 6.135 | 1.645 | call | .990 x 2.930 | 3.3cc | 8.6 | 09714470 | 70057 $188.75 | |
4.472 | 4.000 | 6.135 | 1.645 | call | .990 x 2.930 | 3.3cc | 8.6 | 09714470 | 70058 $188.75 | |
4.473 | 4.000 | 6.135 | 1.645 | call | .990 x 2.930 | 3.3cc | 8.6 | 09714470 | 70059 $188.75 | |
4.474 | 4.000 | 6.135 | 1.645 | call | .990 x 2.930 | 3.3cc | 8.6 | 09714470 | 70060 $188.75 | |
4.475 | 4.000 | 6.135 | 1.645 | call | .990 x 2.930 | 3.3cc | 8.6 | 09714470 | 70061 $188.75 | |
4.500 | 4.000 | 6.135 | 1.645 | call | .990 x 2.930 | 3.3cc | 8.7 | 09714500 | 70062 $188.75 | |
Ratio Figured For 9.790" Deck Height | Comp. Ratio | - | ||||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 118cc | Ring Set | Part # each | |
4.470 | 4.000 | 6.135 | 1.635 | call | .990 x 2.930 | 3.3cc | 8.6 | 09714470 | 70063 $188.75 | |
4.471 | 4.000 | 6.135 | 1.635 | call | .990 x 2.930 | 3.3cc | 8.6 | 09714470 | 70064 $188.75 | |
4.472 | 4.000 | 6.135 | 1.635 | call | .990 x 2.930 | 3.3cc | 8.6 | 09714470 | 70065 $188.75 | |
4.473 | 4.000 | 6.135 | 1.635 | call | .990 x 2.930 | 3.3cc | 8.6 | 09714470 | 70066 $188.75 | |
4.474 | 4.000 | 6.135 | 1.635 | call | .990 x 2.930 | 3.3cc | 8.6 | 09714470 | 70067 $188.75 | |
4.475 | 4.000 | 6.135 | 1.635 | call | .990 x 2.930 | 3.3cc | 8.6 | 09714470 | 70068 $188.75 | |
4.500 | 4.000 | 6.135 | 1.635 | call | .990 x 2.930 | 3.3cc | 8.7 | 09714500 | 70069 $188.75 | |
|
Comp. Ratio | |||||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 118cc | Ring Set | Part # each | |
4.470 | 4.000 | 6.135 | 1.625 | call | .990 x 2.930 | 3.3cc | 8.6 | 09714470 | 70070 $188.75 | |
4.471 | 4.000 | 6.135 | 1.625 | call | .990 x 2.930 | 3.3cc | 8.6 | 09714470 | 70071 $188.75 | |
4.472 | 4.000 | 6.135 | 1.625 | call | .990 x 2.930 | 3.3cc | 8.6 | 09714470 | 70072 $188.75 | |
4.473 | 4.000 | 6.135 | 1.625 | call | .990 x 2.930 | 3.3cc | 8.6 | 09714470 | 70073 $188.75 | |
4.474 | 4.000 | 6.135 | 1.625 | call | .990 x 2.930 | 3.3cc | 8.6 | 09714470 | 70074 $188.75 | |
4.475 | 4.000 | 6.135 | 1.625 | call | .990 x 2.930 | 3.3cc | 8.6 | 09714470 | 70075 $188.75 | |
4.500 | 4.000 | 6.135 | 1.625 | call | .990 x 2.930 | 3.3cc | 8.7 | 09714500 | 70076 $188.75 |
Page 43
MERCURY 8.2L
502 MAG/MPI, 500EFI & 525EFI SERIES
Ratio Figured For 9.770" Deck Height | Comp. Ratio | - | - | ||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 118cc | Ring Set | Part # each |
4.470 | 4.000 | 6.135 | 1.615 | call | .990 x 2.930 | 3.3cc | 8.6 | 09714470 | 70077 $188.75 |
4.471 | 4.000 | 6.135 | 1.615 | call | .990 x 2.930 | 3.3cc | 8.6 | 09714470 | 70078 $188.75 |
4.472 | 4.000 | 6.135 | 1.615 | call | .990 x 2.930 | 3.3cc | 8.6 | 09714470 | 70079 $188.75 |
4.473 | 4.000 | 6.135 | 1.615 | call | .990 x 2.930 | 3.3cc | 8.6 | 09714470 | 70080 $188.75 |
4.474 | 4.000 | 6.135 | 1.615 | call | .990 x 2.930 | 3.3cc | 8.6 | 09714470 | 70081 $188.75 |
4.475 | 4.000 | 6.135 | 1.615 | call | .990 x 2.930 | 3.3cc | 8.6 | 09714470 | 70082 $188.75 |
4.500 | 4.000 | 6.135 | 1.615 | call | .990 x 2.930 | 3.3cc | 8.7 | 09714500 | 70083 $188.75 |
Page 44
MERCURY 565EFI SERIES
3D milling on piston crowns for ready to install finish
Direct replacement piston for the Mercury/Quicksilver Part#
700-8M0064630
Moly skirt coating for friction loss and skirt wear protection
Top ring down dimension: 210"
Ratios figured for .051 head gasket
Premium 1.5mm x 1.5mm x 4.0mm ring package included
Premium H-13 .195W wrist pins chamfered for roundwire locks
included
Valve pocket depth: 0.130" intake and 0.000"
exhaust
2618 material
4.466" Std Bore - 1.287" Std C.D.- 9.800" Std Deck Height Ratio Figured For 9.800" Deck Height |
Comp. Ratio | - | |||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 118cc | Ring Set | Part # each |
4.466 | 4.250 | 6.385 | 1.285 | 571 | .984 x 2.650 | -0.55cc | 9.1 | 09714470 | 70084 $188.75 |
4.467 | 4.250 | 6.385 | 1.285 | call | .984 x 2.650 | -0.55cc | 9.1 | 09714470 | 70085 $188.75 |
4.468 | 4.250 | 6.385 | 1.285 | call | .984 x 2.650 | -0.55cc | 9.1 | 09714470 | 70086 $188.75 |
4.469 | 4.250 | 6.385 | 1.285 | call | .984 x 2.650 | -0.55cc | 9.1 | 09714470 | 70087 $188.75 |
4.470 | 4.250 | 6.385 | 1.285 | call | .984 x 2.650 | -0.55cc | 9.1 | 09714470 | 70088 $188.75 |
4.471 | 4.250 | 6.385 | 1.285 | call | .984 x 2.650 | -0.55cc | 9.1 | 09714470 | 70089 $188.75 |
4.496 | 4.250 | 6.385 | 1.285 | call | .984 x 2.650 | -0.55cc | 9.2 | 09714500 | 70090 $188.75 |
Ratio Figured For 9.790" Deck Height | Comp. Ratio | - | |||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 118cc | Ring Set | Part # each |
4.466 | 4.250 | 6.385 | 1.275 | call | .984 x 2.650 | -0.55cc | 9.1 | 09714470 | 70091 $188.75 |
4.467 | 4.250 | 6.385 | 1.275 | call | .984 x 2.650 | -0.55cc | 9.1 | 09714470 | 70092 $188.75 |
4.468 | 4.250 | 6.385 | 1.275 | call | .984 x 2.650 | -0.55cc | 9.1 | 09714470 | 70093 $188.75 |
4.469 | 4.250 | 6.385 | 1.275 | call | .984 x 2.650 | -0.55cc | 9.1 | 09714470 | 70094 $188.75 |
4.470 | 4.250 | 6.385 | 1.275 | call | .984 x 2.650 | -0.55cc | 9.1 | 09714470 | 70095 $188.75 |
4.471 | 4.250 | 6.385 | 1.275 | call | .984 x 2.650 | -0.55cc | 9.1 | 09714470 | 70096 $188.75 |
4.496 | 4.250 | 6.385 | 1.275 | call | .984 x 2.650 | -0.55cc | 9.2 | 09714500 | 70097 $188.75 |
Ratio Figured For 9.780" Deck Height | Comp. Ratio | - | |||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 118cc | Ring Set | Part # each |
4.466 | 4.250 | 6.385 | 1.265 | call | .984 x 2.650 | -0.55cc | 9.1 | 09714470 | 70098 $188.75 |
4.467 | 4.250 | 6.385 | 1.265 | call | .984 x 2.650 | -0.55cc | 9.1 | 09714470 | 70099 $188.75 |
4.468 | 4.250 | 6.385 | 1.265 | call | .984 x 2.650 | -0.55cc | 9.1 | 09714470 | 70100 $188.75 |
4.469 | 4.250 | 6.385 | 1.265 | call | .984 x 2.650 | -0.55cc | 9.1 | 09714470 | 70101 $188.75 |
4.470 | 4.250 | 6.385 | 1.265 | call | .984 x 2.650 | -0.55cc | 9.1 | 09714470 | 70102 $188.75 |
4.471 | 4.250 | 6.385 | 1.265 | call | .984 x 2.650 | -0.55cc | 9.1 | 09714470 | 70103 $188.75 |
4.496 | 4.250 | 6.385 | 1.265 | call | .984 x 2.650 | -0.55cc | 9.2 | 09714500 | 70104 $188.75 |
Page 45
MERCURY 565EFI SERIES
Ratio Figured For 9.770" Deck Height | Comp. Ratio | - | - | ||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 118cc | Ring Set | Part # each |
4.466 | 4.250 | 6.385 | 1.255 | call | .984 x 2.650 | -0.55cc | 9.1 | 09714470 | 70105 $188.75 |
4.467 | 4.250 | 6.385 | 1.255 | call | .984 x 2.650 | -0.55cc | 9.1 | 09714470 | 70106 $188.75 |
4.468 | 4.250 | 6.385 | 1.255 | call | .984 x 2.650 | -0.55cc | 9.1 | 09714470 | 70107 $188.75 |
4.469 | 4.250 | 6.385 | 1.255 | call | .984 x 2.650 | -0.55cc | 9.1 | 09714470 | 70108 $188.75 |
4.470 | 4.250 | 6.385 | 1.255 | call | .984 x 2.650 | -0.55cc | 9.1 | 09714470 | 70109 $188.75 |
4.471 | 4.250 | 6.385 | 1.255 | call | .984 x 2.650 | -0.55cc | 9.1 | 09714470 | 70110 $188.75 |
4.496 | 4.250 | 6.385 | 1.255 | call | .984 x 2.650 | -0.55cc | 9.2 | 09714500 | 70111 $188.75 |
Page 46
MERCURY 575SCI SERIES
3D milling on piston crowns for ready to install finish
Direct replacement piston for the Mercury/Quicksilver Part#
798-849022T1
Moly skirt coating for friction loss and skirt wear protection
Top ring down dimension: .385"
Ratios figured for .051 head gasket
Premium 1.5mm x 1.5mm x 4.0mm ring package included
Premium H-13 .195W wrist pins chamfered for roundwire locks
included
Valve pocket depth: 0.295" intake and 0.000"
exhaust
2618 material
4.470" Std Bore - 1.641" Std C.D.- 9.800" Std Deck Height Ratio Figured For 9.800" Deck Height |
Comp. Ratio | - | |||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 118cc | Ring Set | Part # each |
4.470 | 4.000 | 6.135 | 1.641 | 673 | .990 x 2.650 | -13.0cc | 7.7 | 09714470 | 70112 $188.75 |
4.471 | 4.000 | 6.135 | 1.641 | call | .990 x 2.650 | -13.0cc | 7.7 | 09714470 | 70113 $188.75 |
4.472 | 4.000 | 6.135 | 1.641 | call | .990 x 2.650 | -13.0cc | 7.7 | 09714470 | 70114 $188.75 |
4.473 | 4.000 | 6.135 | 1.641 | call | .990 x 2.650 | -13.0cc | 7.7 | 09714470 | 70115 $188.75 |
4.474 | 4.000 | 6.135 | 1.641 | call | .990 x 2.650 | -13.0cc | 7.8 | 09714470 | 70116 $188.75 |
4.475 | 4.000 | 6.135 | 1.641 | call | .990 x 2.650 | -13.0cc | 7.8 | 09714470 | 70117 $188.75 |
4.500 | 4.000 | 6.135 | 1.641 | call | .990 x 2.650 | -13.0cc | 7.8 | 09714500 | 70118 $188.75 |
Ratio Figured For 9.790" Deck Height | Comp. Ratio | - | |||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 118cc | Ring Set | Part # each |
4.470 | 4.000 | 6.135 | 1.631 | call | .990 x 2.650 | -13.0cc | 7.7 | 09714470 | 70119 $188.75 |
4.471 | 4.000 | 6.135 | 1.631 | call | .990 x 2.650 | -13.0cc | 7.7 | 09714470 | 70120 $188.75 |
4.472 | 4.000 | 6.135 | 1.631 | call | .990 x 2.650 | -13.0cc | 7.7 | 09714470 | 70121 $188.75 |
4.473 | 4.000 | 6.135 | 1.631 | call | .990 x 2.650 | -13.0cc | 7.7 | 09714470 | 70122 $188.75 |
4.474 | 4.000 | 6.135 | 1.631 | call | .990 x 2.650 | -13.0cc | 7.8 | 09714470 | 70123 $188.75 |
4.475 | 4.000 | 6.135 | 1.631 | call | .990 x 2.650 | -13.0cc | 7.8 | 09714470 | 70124 $188.75 |
4.500 | 4.000 | 6.135 | 1.631 | call | .990 x 2.650 | -13.0cc | 7.8 | 09714500 | 70125 $188.75 |
Ratio Figured For 9.780" Deck Height | Comp. Ratio | - | |||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 118cc | Ring Set | Part # each |
4.470 | 4.000 | 6.135 | 1.621 | call | .990 x 2.650 | -13.0cc | 7.7 | 09714470 | 70126 $188.75 |
4.471 | 4.000 | 6.135 | 1.621 | call | .990 x 2.650 | -13.0cc | 7.7 | 09714470 | 70127 $188.75 |
4.472 | 4.000 | 6.135 | 1.621 | call | .990 x 2.650 | -13.0cc | 7.7 | 09714470 | 70128 $188.75 |
4.473 | 4.000 | 6.135 | 1.621 | call | .990 x 2.650 | -13.0cc | 7.7 | 09714470 | 70129 $188.75 |
4.474 | 4.000 | 6.135 | 1.621 | call | .990 x 2.650 | -13.0cc | 7.8 | 09714470 | 70130 $188.75 |
4.475 | 4.000 | 6.135 | 1.621 | call | .990 x 2.650 | -13.0cc | 7.8 | 09714470 | 70131 $188.75 |
4.500 | 4.000 | 6.135 | 1.621 | call | .990 x 2.650 | -13.0cc | 7.8 | 09714500 | 70132 $188.75 |
Page 47
MERCURY 575SCI SERIES
Ratio Figured For 9.770" Deck Height | Comp. Ratio | - | - | ||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 118cc | Ring Set | Part # each |
4.470 | 4.000 | 6.135 | 1.611 | call | .990 x 2.650 | -13.0cc | 7.7 | 09714470 | 70133 $188.75 |
4.471 | 4.000 | 6.135 | 1.611 | call | .990 x 2.650 | -13.0cc | 7.7 | 09714470 | 70134 $188.75 |
4.472 | 4.000 | 6.135 | 1.611 | call | .990 x 2.650 | -13.0cc | 7.7 | 09714470 | 70135 $188.75 |
4.473 | 4.000 | 6.135 | 1.611 | call | .990 x 2.650 | -13.0cc | 7.7 | 09714470 | 70136 $188.75 |
4.474 | 4.000 | 6.135 | 1.611 | call | .990 x 2.650 | -13.0cc | 7.8 | 09714470 | 70137 $188.75 |
4.475 | 4.000 | 6.135 | 1.611 | call | .990 x 2.650 | -13.0cc | 7.8 | 09714470 | 70138 $188.75 |
4.500 | 4.000 | 6.135 | 1.611 | call | .990 x 2.650 | -13.0cc | 7.8 | 09714500 | 70139 $188.75 |
Page 48
MERCURY 600SCI, 662SCI & 700SCI SERIES
3D milling on piston crowns for ready to install finish
Direct replacement piston for the Mercury/Quicksilver Part#
798-843231T01
Moly skirt coating for friction loss and skirt wear protection
Top ring down dimension: .285"
Ratios figured for .051 head gasket
Premium 1.5mm x 1.5mm x 4.0mm ring package included
Premium H-13 .195W wrist pins chamfered for roundwire locks
included
Valve pocket depth: 0.000" intake and 0.000"
exhaust
2618 material
4.470" Std Bore - 1.415" Std C.D.- 9.800" Std Deck Height Ratio Figured For 9.800" Deck Height |
Comp. Ratio | - | |||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 118cc | Ring Set | Part # each |
4.470 | 4.000 | 6.385 | 1.415 | 590 | .984 x 2.650 | -21.5cc | 7.7 | 09714470 | 70140 $188.75 |
4.471 | 4.000 | 6.385 | 1.415 | call | .984 x 2.650 | -21.5cc | 7.7 | 09714470 | 70141 $188.75 |
4.472 | 4.000 | 6.385 | 1.415 | call | .984 x 2.650 | -21.5cc | 7.7 | 09714470 | 70142 $188.75 |
4.473 | 4.000 | 6.385 | 1.415 | call | .984 x 2.650 | -21.5cc | 7.7 | 09714470 | 70143 $188.75 |
4.474 | 4.000 | 6.385 | 1.415 | call | .984 x 2.650 | -21.5cc | 7.7 | 09714470 | 70144 $188.75 |
4.475 | 4.000 | 6.385 | 1.415 | call | .984 x 2.650 | -21.5cc | 7.7 | 09714470 | 70145 $188.75 |
4.500 | 4.000 | 6.385 | 1.415 | call | .984 x 2.650 | -21.5cc | 7.7 | 09714500 | 70146 $188.75 |
Ratio Figured For 9.790" Deck Height | Comp. Ratio | - | |||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 118cc | Ring Set | Part # each |
4.470 | 4.000 | 6.385 | 1.405 | call | .984 x 2.650 | -21.5cc | 7.7 | 09714470 | 70147 $188.75 |
4.471 | 4.000 | 6.385 | 1.405 | call | .984 x 2.650 | -21.5cc | 7.7 | 09714470 | 70148 $188.75 |
4.472 | 4.000 | 6.385 | 1.405 | call | .984 x 2.650 | -21.5cc | 7.7 | 09714470 | 70149 $188.75 |
4.473 | 4.000 | 6.385 | 1.405 | call | .984 x 2.650 | -21.5cc | 7.7 | 09714470 | 70150 $188.75 |
4.474 | 4.000 | 6.385 | 1.405 | call | .984 x 2.650 | -21.5cc | 7.7 | 09714470 | 70151 $188.75 |
4.475 | 4.000 | 6.385 | 1.405 | call | .984 x 2.650 | -21.5cc | 7.7 | 09714470 | 70152 $188.75 |
4.500 | 4.000 | 6.385 | 1.405 | call | .984 x 2.650 | -21.5cc | 7.7 | 09714500 | 70153 $188.75 |
Ratio Figured For 9.780" Deck Height | Comp. Ratio | - | |||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 118cc | Ring Set | Part # each |
4.470 | 4.000 | 6.385 | 1.395 | call | .984 x 2.650 | -21.5cc | 7.7 | 09714470 | 70154 $188.75 |
4.471 | 4.000 | 6.385 | 1.395 | call | .984 x 2.650 | -21.5cc | 7.7 | 09714470 | 70155 $188.75 |
4.472 | 4.000 | 6.385 | 1.395 | call | .984 x 2.650 | -21.5cc | 7.7 | 09714470 | 70156 $188.75 |
4.473 | 4.000 | 6.385 | 1.395 | call | .984 x 2.650 | -21.5cc | 7.7 | 09714470 | 70157 $188.75 |
4.474 | 4.000 | 6.385 | 1.395 | call | .984 x 2.650 | -21.5cc | 7.7 | 09714470 | 70158 $188.75 |
4.475 | 4.000 | 6.385 | 1.395 | call | .984 x 2.650 | -21.5cc | 7.7 | 09714470 | 70159 $188.75 |
4.500 | 4.000 | 6.385 | 1.395 | call | .984 x 2.650 | -21.5cc | 7.7 | 09714500 | 70160 $188.75 |
Page 49
MERCURY 600SCI, 662SCI & 700SCI SERIES
Ratio Figured For 9.770" Deck Height | Comp. Ratio | - | - | ||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 118cc | Ring Set | Part # each |
4.470 | 4.000 | 6.385 | 1.385 | call | .984 x 2.650 | -21.5cc | 7.7 | 09714470 | 70161 $188.75 |
4.471 | 4.000 | 6.385 | 1.385 | call | .984 x 2.650 | -21.5cc | 7.7 | 09714470 | 70162 $188.75 |
4.472 | 4.000 | 6.385 | 1.385 | call | .984 x 2.650 | -21.5cc | 7.7 | 09714470 | 70163 $188.75 |
4.473 | 4.000 | 6.385 | 1.385 | call | .984 x 2.650 | -21.5cc | 7.7 | 09714470 | 70164 $188.75 |
4.474 | 4.000 | 6.385 | 1.385 | call | .984 x 2.650 | -21.5cc | 7.7 | 09714470 | 70165 $188.75 |
4.475 | 4.000 | 6.385 | 1.385 | call | .984 x 2.650 | -21.5cc | 7.7 | 09714470 | 70166 $188.75 |
4.500 | 4.000 | 6.385 | 1.385 | call | .984 x 2.650 | -21.5cc | 7.7 | 09714500 | 70167 $188.75 |
Page 50
MERCURY 850SCI, 1025SCI, 1075SCI &1200SCI
SERIES
3D milling on piston crowns for ready to install finish
Direct replacement piston for the Mercury/Quicksilver Part#
2700-842604A06
Moly skirt coating for friction loss and skirt wear protection
Top ring down dimension: .290"
Ratios figured for .051 head gasket
Premium 1.5mm x 1.5mm x 4.0mm ring package included
DLC coated H-13 .210W tapered wrist pins chamfered for
roundwire
locks included
Valve pocket depth: 0.075" intake and 0.000"
exhaust
2618 material
4.500" Std Bore - 1.380" Std C.D.- 10.200"
Std Deck Height Ratio Figured For 10.200" Deck Height |
Comp. Ratio | - | ||||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 124cc | Ring Set | Part # each | |
4.500 | 4.375 | 6.535 | 1.380 | 668 | .990 x 2.930 | -0.20cc | 7.9 | 09714500 | 70168 $188.75 | |
4.501 | 4.375 | 6.535 | 1.380 | call | .990 x 2.930 | -0.20cc | 7.9 | 09714500 | 70169 $188.75 | |
4.502 | 4.375 | 6.535 | 1.380 | call | .990 x 2.930 | -0.20cc | 7.9 | 09714500 | 70170 $188.75 | |
4.503 | 4.375 | 6.535 | 1.380 | call | .990 x 2.930 | -0.20cc | 7.9 | 09714500 | 70171 $188.75 | |
4.504 | 4.375 | 6.535 | 1.380 | call | .990 x 2.930 | -0.20cc | 7.9 | 09714500 | 70172 $188.75 | |
4.505 | 4.375 | 6.535 | 1.380 | call | .990 x 2.930 | -0.20cc | 7.9 | 09714500 | 70173 $188.75 | |
4.530 | 4.375 | 6.535 | 1.380 | call | .990 x 2.930 | -0.20cc | 8.0 | 09714530 | 70174 $188.75 | |
Ratio Figured For 10.190" Deck Height | Comp. Ratio | - | ||||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 124cc | Ring Set | Part # each | |
4.500 | 4.375 | 6.535 | 1.370 | call | .990 x 2.930 | -0.20cc | 7.9 | 09714500 | 70175 $188.75 | |
4.501 | 4.375 | 6.535 | 1.370 | call | .990 x 2.930 | -0.20cc | 7.9 | 09714500 | 70176 $188.75 | |
4.502 | 4.375 | 6.535 | 1.370 | call | .990 x 2.930 | -0.20cc | 7.9 | 09714500 | 70177 $188.75 | |
4.503 | 4.375 | 6.535 | 1.370 | call | .990 x 2.930 | -0.20cc | 7.9 | 09714500 | 70178 $188.75 | |
4.504 | 4.375 | 6.535 | 1.370 | call | .990 x 2.930 | -0.20cc | 7.9 | 09714500 | 70179 $188.75 | |
4.505 | 4.375 | 6.535 | 1.370 | call | .990 x 2.930 | -0.20cc | 7.9 | 09714500 | 70180 $188.75 | |
4.530 | 4.375 | 6.535 | 1.370 | call | .990 x 2.930 | -0.20cc | 8.0 | 09714530 | 70181 $188.75 | |
Ratio Figured For 10.180" Deck Height | Comp. Ratio | - | ||||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 124cc | Ring Set | Part # each | |
4.500 | 4.375 | 6.535 | 1.360 | call | .990 x 2.930 | -0.20cc | 7.9 | 09714500 | 70182 $188.75 | |
4.501 | 4.375 | 6.535 | 1.360 | call | .990 x 2.930 | -0.20cc | 7.9 | 09714500 | 70183 $188.75 | |
4.502 | 4.375 | 6.535 | 1.360 | call | .990 x 2.930 | -0.20cc | 7.9 | 09714500 | 70184 $188.75 | |
4.503 | 4.375 | 6.535 | 1.360 | call | .990 x 2.930 | -0.20cc | 7.9 | 09714500 | 70185 $188.75 | |
4.504 | 4.375 | 6.535 | 1.360 | call | .990 x 2.930 | -0.20cc | 7.9 | 09714500 | 70186 $188.75 | |
4.505 | 4.375 | 6.535 | 1.360 | call | .990 x 2.930 | -0.20cc | 7.9 | 09714500 | 70187 $188.75 | |
4.530 | 4.375 | 6.535 | 1.360 | call | .990 x 2.930 | -0.20cc | 8.0 | 09714530 | 70188 $188.75 |
Page 51
MERCURY 850SCI, 1025SCI, 1075SCI &1200SCI
SERIES
Ratio Figured For 10.170" Deck Height | Comp. Ratio | - | - | ||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | 124cc | Ring Set | Part # each |
4.500 | 4.375 | 6.535 | 1.350 | call | .990 x 2.930 | -0.20cc | 7.9 | 09714500 | 70189 $188.75 |
4.501 | 4.375 | 6.535 | 1.350 | call | .990 x 2.930 | -0.20cc | 7.9 | 09714500 | 70190 $188.75 |
4.502 | 4.375 | 6.535 | 1.350 | call | .990 x 2.930 | -0.20cc | 7.9 | 09714500 | 70191 $188.75 |
4.503 | 4.375 | 6.535 | 1.350 | call | .990 x 2.930 | -0.20cc | 7.9 | 09714500 | 70192 $188.75 |
4.504 | 4.375 | 6.535 | 1.350 | call | .990 x 2.930 | -0.20cc | 7.9 | 09714500 | 70193 $188.75 |
4.505 | 4.375 | 6.535 | 1.350 | call | .990 x 2.930 | -0.20cc | 7.9 | 09714500 | 70194 $188.75 |
4.530 | 4.375 | 6.535 | 1.350 | call | .990 x 2.930 | -0.20cc | 8.0 | 09714530 | 70195 $188.75 |
Page 52
MERCURY 1100 & 1350 QC4V SERIES
3D milling on piston crowns for ready to install finish
Direct replacement piston for the Mercury/Quicksilver Part#
700-8M0058439
Moly skirt coating for friction loss and skirt wear protection
Top ring down dimension: .250"
Ratios figured for .051 head gasket
Premium 1.5mm x 1.5mm x 3.0mm ring package included
DLC coated H-13 .250W wrist pins chamfered for roundwire
locks included
Valve pocket depth: 0.120" intake and 0.000"
exhaust
2618 material
4.570" Std Bore - 1.297" Std C.D | Comp. Ratio | - | - | ||||||
Bore | Stroke | Rod | C.D. | Weight | Pin | CC's | Factory CC | Ring Set | Part # each |
4.570 | 4.210 | Factory | 1.297 | 615 | 1.024 x 2.350 | -38.0cc | Factory Comp. | 09724570 | 70196 $188.75 |
