MASTER ENGINE REBUILD KITS & PARTS

Home




HEAVY DUTY CRANKSHAFT SOURCE



New Aftermarket Crankshaft Catalog
AGRICULTURAL | INDUSTRIAL
CONSTRUCTION | TRUCK APPLICATIONS

MAKES
Allis Chalmers David Brown
Case/Case IH Detroit Diesel
Caterpillar Deutz
Continental Fiat
Cummins Ford/New Holland
International Harvester Mack
Isuzu Mitsubishi
John Deere Perkins
Komatsu General Motors
Kubota Mercedes Benz
. Scania
. Shibaura
. Standard
. Volvo
. Yanmar

These crankshaft are all new not turned. Bearings are extra.
Part numbers with $0.00 Not available yet.
Missing prices on other part numbers not avaialble yet.
We Have You Covered!**
**Manufacturer’s names, numbers, symbols, and
descriptions are for reference purposes only and in no way
imply that any part is the product of said manufacturer(s)



All New — across 20 OEMs
Built to match or exceed OEM specifications

 The Right Parts To Transform

 CRANKSHAFT INSTALLATION TIPS
1. COMPARISON:
Set your original and replacement crankshafts
side by side and verify they are the same. Check
forging numbers, stroke, nose, flange, pilot hole,
bolt pattern, dowel holes, and keyways.
2. CLEAN:
Ensure that all castings and oil passages are clean
and free of metal particles, dirt, rust, and debris.
3. INSPECT:
Thoroughly inspect the condition of all castings
and machined surfaces prior to installation.
Inspect the main journals, paying special attention
to the line bore.
4. CHANGEOVER:
Remove any necessary components from your
original crankshaft and attach to the replacement
crankshaft. Changeover components can include
(but are not limited to): Dampers, Pulleys, Gears,
Counterweights, Bolts, Keys, Dowel Pins, Spacers,
Etc...
5. INSTALL BEARINGS:
Check the markings on the back of each bearing
prior to installation to ensure it is the appropriate
size (STD, .010, .020, etc...). Carefully insert
each bearing paying special attention to oil hole
alignment and placement of the locking tab.
6. CLEARANCES:
Carefully lay the crankshaft in the block and
check all oil clearances using Plastigage and
the original engine manufacturer’s suggested
method for installation. Crankshaft should rotate
freely.
7. CONNECTING ROD INSTALLATION:
Ensure connecting rod bolts are covered to
prevent them from contacting the crankshaft
journal. Carefully move the piston and connecting
rod assembly in the bore until the connecting rod
is seated on the crankshaft. Check rod bearing oil
clearances (refer to Step 6).
8. PRIME OIL SYSTEM:
Pressure prime the oiling system before starting
the engine. Always crank engine for oil pressure
before initial start-up.


Page 4
ALLIS CHALMERS
Part No. | Description
5002N $543.97 | Allis Chalmers®
G138, G149, Early G160

Part No. | Description
5006N $558.96 | Allis Chalmers®
G226, W226 (WD45)


Part No. Engine Specification Replace/ Notes
5002N $543.97 G138
G149
G160		 Stroke: 3.875” (98.425mm)
Rod Ø: 1.9365-1.9375” (49.187-49.213mm)
Main Ø: 2.7480-2.7490” (69.799-69.825mm)
Neck: Straight, 1-Bolt, 1-Key
Flange: 4-Bolt
Weight: 37 lbs.

227550

For Early G160 crankshafts. Be sure to compare forging numbers.
5006N $558.96 G226
W226		 Stroke: 4.50” (114.3mm)
Rod Ø: 2.3740-2.3750” (60.30-60.325mm)
Main #1 Ø: 2.4355-2.4365” (61.862-61.887mm)
Main #2 & #3 Ø: 2.4770-2.4780” (62.916-62.941mm)
Neck: Straight, 1-Bolt, 1-Key
Flange: 4-Bolt
Weight: 50 lbs.

226535

Variable main journal Ø used primarily in the Allis Chalmers WD45. Does NOT fit D17 applications.
7543N $739.80 115, 159
Fiat
8035.04		 Stroke: 4.33” (109.982mm)
Rod Ø: 2.312” (58.7248mm)
Main Ø: 2.999” (76.1746mm)
Neck: Threaded
Flange: 7 bolt holes. Rear seal surface diameter 4.330”
Weight: 65 lbs.		 4679789, 72094402V, 4785106

RELIANCE

Page 5
CASE
Part No. Engine Specification Replace/ Notes
5306N $343.51 G126
G148		 Stroke: 4.125” (104.775mm)
Rod Ø: 1.9365-1.9375” (49.187-49.213mm)
Main Ø: 2.2490-2.250” (57.125-57.15mm)
Neck: Straight, Threaded
Flange: 4-Bolt
Weight: 43 lbs.

G11164, G11700, G11701, G10071

Not compatible with cylinder blocks (m) G1235.Early models only, 1955-1960.
5307N $657.55 G148B
G159		 Stroke: 4.125” (104.775mm)
Rod Ø: 2.0605-2.0615” (52.337-52.362mm)
Main Ø: 2.6230-2.6240” (66.624-66.65mm)
Neck: Straight, Threaded
Flange: 4-Bolt, Splined Pilot Hole
Weight: 50 lbs.

G11708, G11709, 967731, A37210

Late models only, 1961-1966Splined pilot hole. For bushed pilot hole, see 5307NB.
5307NB G148B
G159		 Stroke: 4.125” (104.775mm)
Rod Ø: 2.0605-2.0615” (52.337-52.362mm)
Main Ø: 2.6230-2.6240” (66.624-66.65mm)
Neck: Straight, Threaded
Flange: 4-Bolt, Bushed Pilot Hole
Weight: 50 lbs.		 G11708, G11709, 967731, A37210

Late models only, 1961-1966Bushed pilot hole. For splined pilot hole, see 5307N.
5310N $544.99 G188D Stroke: 4.125” (104.775mm)
Rod Ø: 2.0605-2.0615” (52.337-52.362mm)
Main Ø: 2.8730-2.8740” (72.974-72.9996mm)
Neck: Threaded, 2-Key
Flange: 4-Bolt, Bushed Pilot Hole
Weight: 76 lbs.		 A151015, G11740, G11741, A39151

Bushed pilot hole. For splined pilot hole, see 5314N.
5314N $544.99 G188D Stroke: 4.125” (104.775mm)
Rod Ø: 2.0605-2.0615” (52.337-52.362mm)
Main Ø: 2.8730-2.8740” (72.974-72.9996mm)
Neck: Threaded, 2-Key
Flange: 4-Bolt, Splined Pilot Hole
Weight: 76 lbs.

A151015, G11740, G11741, A39151

Splined pilot hole. For bushed pilot hole, see 5310N.
5315N $691.58 D207 Stroke: 4.125” (104.775mm)
Rod Ø: 2.2480-2.2490” (57.099-57.125mm)
Main Ø: 2.8730-2.8740” (72.974-72.9996mm)
Neck: Straight, Threaded, 2-Key
Flange: 4-Bolt
Weight: 77 lbs.

A144011, 976321

Not compatible with turbocharged applications.
5309N $789.53
BG251
G251
251S
A267
267BD
A284
301BD
301BG
336BD		 Stroke: 5.00” (127mm)
Rod Ø: 2.7480-2.7490” (69.799-69.825mm)
Main Ø: 2.9980-2.9990” (76.149-76.175mm)
Neck: Straight, 1-Bolt, 1-Key
Flange: 6-Bolt
Weight: 95 lbs.

A166001, 010700, A22578, 966772

Small Main style. For Large Main style, see 5316N.
NOTE: Uses a bolt-on style center gear (gear not included).
5316N
$1,055.04		 336BDT Stroke: 5.00” (127mm)
Rod Ø: 2.9980-2.9990” (76.149-76.175mm)
Main Ø: 3.4980-3.4990” (88.849-88.875mm)
Neck: Straight, 1-Bolt, 1-Key
Flange: 6-Bolt
Weight: 95 lbs.

A65109, A61983, 969266, A58722, A155438

Large Main style. For Small Main style, see 5309N.
NOTE: Uses a weld-on style center gear (gear included).

Page 6
CASE

5314N $544.99 | Case®
G188D

5733N $656.78 | Case®
6-590, 6T-590

Part No. Engine Specifcation Replace/ Notes
5734N $544.99 4-390  4T-390 Stroke: 4.724" (119.99mm)
Rod Ø: 2.7160-2.7170" (68.986-69.012mm)
Main Ø: 3.2672-3.2682" (82.987-83.012mm)
Neck: 4-Bolt, 1-Key
Flange: 8-Bolt
Weight: 93 lbs.		 J908031, J918323, 3903827, 3907803, 3929036
5733N $656.78 6-590  6T-590 Stroke: 4.724” (119.99mm)
Rod Ø: 2.7160-2.7170” (68.986-69.012mm)
Main Ø: 3.2672-3.2682” (82.987-83.012mm)
Neck: 4-Bolt, 1-Key
Flange: Flat, 8-Bolt
Weight: 128 lbs.		 J908032, 3907804, 3929037, 3907604, 3908032 -
Not compatible with applications using bolt-on  crankshaft speed sensor.
5735N $971.19 6-830  6T-830 Stroke: 5.3150” (135.001mm)
Rod Ø: 2.9916-2.9926” (75.987-76.012mm)
Main Ø: 3.8568-3.8588” (97.963-98.014mm)
Neck: Straight, 4-Bolt, 1-Key
Flange: 8-Bolt, 1-Dowel
Weight: 174 lbs.		 3917320, 3917443 3918986, 390562, 3914584,  728533
9917N $1,865.53 674 CID  11.0L Stroke: 5.709” (145.009mm)
Rod Ø: 3.3162-3.3171” (84.231-84.254mm)
Main Ø: 3.9999-4.00080” (101.597-101.62mm)
Neck: 1-Bolt, 1-Key
Flange: Flat, 8-Bolt, 3-Dowel
Weight: 275 lbs.		 A46516, 247-5171, 3122739, 342060, 56163M,  A45907

NOTE: Used in Case 2870, 4890, and 4894 Wheel  tractors.

Page 7
CATERPILLAR
Part No. Engine Specification Replace/ Notes
5442N $2,920.57 D330 Stroke: 5.500” (139.7mm)
Rod Ø: 2.9987-3.0003“ (76.167-76.208mm)
Main Ø: 3.4990-3.500” (88.875-88.9mm)
Neck: Tapered, 1-Bolt, 1-Key
Flange: 9-Bolt
Weight: 146 lbs.		 8M4505, 8M4504, 8M4506, 2M5170, 4M9950, 2S5570,5S5251, 9H2725, 4M9960
NOTE: Left-hand helical, 40-tooth front gear.
5469N $6,439.00 D342 Stroke: 8.000” (203.2mm)
Rod Ø: 3.6230-3.6250” (92.024-92.075mm)
Main Ø: 4.2590-4.2610” (108.179-108.229mm)
Neck: 1-Bolt, 1-Key
Flange: Flat, 6-Bolt
Weight: 235 lbs.		 6N2823
5412N $3,598.31 1693
D343		 Stroke: 6.500” (165.1mm)
Rod Ø: 3.5395-3.5405“ (89.903-89.929mm)
Main Ø: 4.4995-4.5005” (114.287-114.313mm)
Neck: 12-Bolt, 1-Dowel
Flange: Centering Ring, 12-Bolt
Weight: 400 lbs.		 7M9200, 2P3840, 2P3839, 2P3841
5430N $819.23 3204 Stroke: 5.00” (127mm)
Rod Ø: 2.7489-2.7505” (69.822-69.863mm)
Main Ø: 3.4984-3.5000” (88.859-88.900mm)
Neck: 1-Bolt, 2-Key
Flange: Centering Ring, 8-Bolt
Weight: 119 lbs.		 1W9771, 4N0012, 4N111X, 6N8290, 1W0400, 4N0111,4N1111, 7N5137, 0R1206, 0R1209, 0R5024, 0R5164,0R5474, 0R5560
NOTE: 40-Tooth, 0.906" (23.0124mm) wide front gear.
5493N $1,600.02 3208 Stroke: 5.00” (127mm)
Rod Ø: 2.7490-2.7502” (69.825-69.855mm)
Main Ø: 3.4989-3.5001” (88.872-88.903mm)
Neck: 2.125” Ø, Straight, 1-Bolt, 1-Key
Flange: 10-Bolt, 1-Dowel
Weight: 128 lbs.		 2W0085, 9N6221, 9N0300, 9N0303, 4N8454, 4N8453,9N6220, 2W8453, 4N9054, 4N9055, 9N6304, 9N0305,9N300, 9N6202, 9N6220, 0R5051, 0R5053, 0R5163
Replaces 8-bolt cranks if extra bolt holes are plugged
5471N $971.19 3304 PC Stroke: 6.00” (152.4mm)
Rod Ø: 2.9987-3.0003“ (76.167-76.208mm)
Main Ø: 3.4990-3.5000” (88.875-88.9mm)
Neck: Tapered, 1-Bolt, 1-Key
Flange: Flat, 9-Bolt
Weight: 152 lbs..		 2P1491, 2P1686, 2P6213, 2P6214, 2P6217, 2W7960,2Y4504, 3Y1613, 4N7692, 4N7694, 4N7695, 4N9694,5C3834, 5S3835, 5S5251, 5S5252, 9S771, 0R1212,0R1214, 0R5021, 0R5166, 0R5167, 0R5169, 0R5170
NOTE: For Precombustion ("PC") engines. Front gear width: 0.932" (23.6728mm). Thurst width of 1.593" (40.4622mm).
5422N $1,226.15 3304 DI Stroke: 6.00” (152.4mm)
Rod Ø: 2.9987-3.0003“ (76.167-76.208mm)
Main Ø: 3.4990-3.5000” (88.875-88.9mm)
Flange: Flat, 9-Bolt
Weight: 175 lbs.		 368-5912, 2W7960
NOTE: For Direct Injected ("DI") engines. Front gear width: 1.168" (29.6672mm)
5472N $1,579.06 3306 PC Stroke: 6.000” (152.4mm)
Rod Ø: 2.9987-3.0003“ (76.167-76.208mm)
Main Ø: 3.4990-3.5000” (88.875-88.9mm)
Neck: Tapered, 1-Bolt, 1-Key
Flange: 9-Bolt
Weight: 200 lbs..		 5S5870, 8M4502, 1P1390, 2P2842, 4N7696, 9S2270
Precombustion. 40-Tooth, Left-Hand Helical Front Gear. Front Trust Width: 1.685" (42.799mm)


Page 8
CATERPILLAR
Part No. Engine Specification Replace/ Notes
5423N $1,069.01 3306 DI Stroke: 6.000” (152.4mm)
Rod Ø: 2.9987-3.0003“ (76.167-76.208mm)
Main Ø: 3.4990-3.5000” (88.875-88.9mm)
Neck: Tapered, 1-Bolt, 1-Key
Flange: 9-Bolt
Weight: 200 lbs.

5S5870, 8M4502, 1P1390, 2P2842, 4N7696, 9S2270

Direct Injected. Front Trust Width: 1.590" (40.39mm)
5425N $2,410.52 3406
3406A
3406B		 Stroke: 6.500” (165.1mm)
Rod Ø: 3.8192-3.8208“ (97.008-97.048mm)
Main Ø: 4.7492-4.7508” (120.63-120.67mm)
Neck: 12-Bolt, 1-Dowel
Flange: Centering Ring, 12-Bolt
Weight: 400 lbs.		 7C4859, 1W6207, 2W2585, 6N3906, 2W2300, 1W62061170456, 6N3906, 6N3907, 7C3536, 9Y9112, 0R5026,0R5129, 0R5132
5498N $2,724.93 3406C
3406E
C15		 Stroke: 6.500” (165.1mm)
Rod Ø: 3.5425-3.5441” (88.98-90.02mm)
Main Ø: 4.7492-4.7508” (120.63-120.67mm)
Neck: 6-Bolt, 1-Dowel
Flange: Centering Ring, 12-Bolt
Weight: 400 lbs.

6I1453, 4P9121, 7C3536, 9Y9112, 160-1799

Will NOT fit C15 ACERT engines. See 5455N $3,703.11 for C15 ACERT engines.NOTE: Can replace 5485N $3,842.78 with gear change. Machined groove on #2 counterweight for timing sensor.
5437N $3,220.71 3408 Stroke: 6.000” (152.4mm)
Rod Ø: 3.8192-3.8208” (97.008-97.048mm)
Main Ø: 4.7492-4.7508” (120.63-120.67mm)
Neck: Centering Ring, 12-Bolt
Flange: Centering Ring, 12-Bolt, 1-Dowel
Weight: 400 lbs.

1W5009, 1W5008

Late style with 9 counterweights.
5494NHG 3412 Stroke: 6.000” (152.4mm)
Rod Ø: 3.8192-3.8208” (97.008-97.048mm)
Main Ø: 4.7492-4.7508” (120.630-120.670mm)
Neck: Centering Ring, 12-Bolt
Flange: Centering Ring, 12-Bolt, 1-Dowel
Weight: 550 lbs.

213-3203, 0R5069, 1W6213, 0R5070, 2W4088, 0R5339, 4N0012, 2619648, 1W6212, 0R5070, 1W6213, 0R5339, 4N0012, 261-9647, 0R5069

Helical tooth front gear.
5494NSG 3412 Stroke: 6.000” (152.4mm)
Rod Ø: 3.8192-3.8208” (97.008-97.048mm)
Main Ø: 4.7492-4.7508” (120.630-120.670mm)
Neck: Centering Ring, 12-Bolt
Flange: Centering Ring, 12-Bolt, 1-Dowel
Weight: 550 lbs.

213-3203, 0R5069, 1W6213, 0R5070, 2W4088, 0R5339, 4N0012, 2619648, 1W6212, 0R5070, 1W6213, 0R5339, 4N0012, 261-9647, 0R5069

Straight tooth front gear
5494N 3412 Stroke: 6.000” (152.4mm)
Rod Ø: 3.8192-3.8208” (97.008-97.048mm)
Main Ø: 4.7492-4.7508” (120.630-120.670mm)
Neck: Centering Ring, 12-Bolt
Flange: Centering Ring, 12-Bolt, 1-Dowel
Weight: 550 lbs.

213-3203, 0R5069, 1W6213, 0R5070, 2W4088, 0R5339, 4N0012, 2619648, 1W6212, 0R5070, 1W6213, 0R5339, 4N0012, 261-9647, 0R5069

Front gear not included.
5510N $0.00 3508 Stroke: 7.480” (189.992mm)
Rod Ø: 5.3140-5.3160” (134.9756- 135.0264mm)
Main Ø: 6.2982-6.3002” (159.97428- 160.02508mm)
Weight: 984 lbs.		 152-7625

Page 9
CATERPILLAR
Part No. Engine Specification Replace/ Notes
5511N $0.00 3508 Stroke: 7.480” (189.992mm)
Rod Ø: 5.3140-5.3160” (134.9756- 135.0264mm)
Main Ø: 6.2982-6.3002” (159.97428- 160.02508mm)
Weight: 984 lbs.		 153-3928
5441N $2,061.17 C7 early
3116
3126		 Stroke: 5.00” (127mm)
Rod Ø: 2.7551-2.7567“ (69.98-70.02mm)
Main Ø: 3.5425-3.5441” (89.98-90.02mm)
Neck: Straight, 4-Bolt, 1-Key
Flange: Centering Ring, 8-Bolt, 1-Dowel
Weight: 160 lbs.

105-1725, 4W3498, 101-3228, 4P5121, 227-5480,7W5206, 271-5658

NOTE: Straight, 50-tooth front gear. Non-reluctor ringstyle.
5460N $1,911.15 C7 ACERT ACERT
Stroke: 5.00” (127mm)
Rod Ø: 2.7551-2.7567“ (69.98-70.02mm)
Main Ø: 3.5425-3.5441” (89.98-90.02mm)
Neck: Straight, 4-Bolt, 1-Key
Flange: Centering Ring, 8-Bolt, 1-Dowel
Weight: 155 lbs.		 222-3900, 227-5480, 271-5658, 282-7956
5444N $2,145.01 C9
C9 ACERT		 Stroke: 5.870” (149.0mm)
Rod Ø: 3.1486-3.1504“ (79.979-28.550mm)
Main Ø: 4.0937-4.0953” (103.979- 104.020mm)
Neck: Straight, 4-Bolt
Flange: Centering Ring, 8-Bolt, 1-Dowel
Weight: 220 lbs.

261-1544

Straight, 50-tooth front gear.
5468N $2,515.32 C9
C9 ACERT		 "Stroke: 5.870” (149.0mm)
Rod Ø: 3.1486-3.1504“ (79.979-28.550mm)
Main Ø: 4.0937-4.0953” (103.979- 104.020mm)
Neck: Straight, 4-Bolt
Flange: Centering Ring, 8-Bolt, 1-Dowel
Weight: 220 lbs."		 282-7958
5449N $3,842.85 C10 "Stroke: 5.5118” (140.00mm)
Rod Ø: 3.2275-3.2291“ (81.980-82.020mm)
Main Ø: 4.2512-4.2528” (107.980- 108.020mm)
Neck: Straight, 6-Bolt
Flange: 8-Bolt, 1-Dowel
Weight: 250 lbs."		 132-3211
5450N $3,356.50 C10 "Stroke: 5.5118” (140.00mm)
Rod Ø: 3.2275-3.2291“ (81.980-82.020mm)
Main Ø: 4.2512-4.2528” (107.980- 108.020mm)
Neck: Straight, 6-Bolt
Flange: 8-Bolt, 1-Dowel
Weight: 250 lbs."		 169-4187, 326-4278
5451N $3,356.50 C10 Stroke: 5.5118” (140.00mm)
Rod Ø: 3.2275-3.2291“ (81.980-82.020mm)
Main Ø: 4.2512-4.2528” (107.980- 108.020mm)
Neck: Straight, 6-Bolt
Flange: 8-Bolt, 1-Dowel
Weight: 250 lbs.

119-3751, 116-1081, 116-1080

Front Gear: 1.290" (32.77mm) wide.

Page 10
CATERPILLAR
Part No. Engine Specification Replace/ Notes
5452N $2,048.15 C11 ACERT "Stroke: 5.5120” (140.00mm)
Rod Ø: 3.5031-3.5047” (88.980-89.200mm)
Main Ø: 4.2512-4.2528” (107.980-108.020mm)
Neck: Straight, 6-Bolt
Flange: 8-Bolt, 1-Dowel
Weight: 292 lbs."		 207-8503
5453N $3,318.83 C12 "Stroke: 5.9055” (150.00mm)
Rod Ø: 3.5031-3.5047” (88.979-89.019mm)
Main Ø: 4.2512-4.2528” (107.980-108.121mm)
Neck: Straight, 6-Bolt
Flange: 8-Bolt, 1-Dowel
Weight: 187 lbs."		 169-4189, 116-1072, 326-4280
5413N $1,991.30 C13 ACERT "Stroke: 6.1811” (157.00mm)
Rod Ø: 3.5031-3.5047” (88.980-89.200mm)
Main Ø: 4.2512-4.2528” (107.980-108.020mm)
Neck: Straight, 6-Bolt
Flange: 8-Bolt, 1-Dowel
Weight: 276 lbs."		 313-3997, 221-9364, 312-4593, 195-0306
5498N $2,724.93 C15
3406C
3406E		 Stroke: 6.500” (165.1mm)
Rod Ø: 3.5425-3.5441” (88.98-90.02mm)
Main Ø: 4.7492-4.7508” (120.63-120.67mm)
Neck: 6-Bolt, 1-Dowel
Flange: Centering Ring, 12-Bolt
Weight: 400 lbs.

6I1453, 4P9121, 7C3536, 9Y9112

Will NOT fit C15 ACERT engines. See 5455N $3,703.11 for C15 ACERT engines.NOTE: Can replace 5485N $3,842.78 with gear change. Machined groove on #2 counterweight for timing sensor.
5485N $3,842.78 C15 Stroke: 6.500” (165.1mm)
Rod Ø: 3.5425-3.5441” (88.98-90.02mm)
Main Ø: 4.7492-4.7508” (120.63-120.67mm)
Neck: 6-Bolt, 1-Dowel
Flange: Centering Ring, 12-Bolt
Weight: 400 lbs.

160-1799

Will NOT fit C15 ACERT engines. See 5455N $3,703.11 for C15 ACERT engines.NOTE: Can be replaced by 5498N $2,724.93 with gear change. Ma­chined groove on #2 counterweight for timing sensor.
5455N $3,703.11 C15 ACERT Stroke: 6.7320” (165.1mm)
Rod Ø: 3.8181.3.8197” (96.980-97.020mm)
Main Ø: 4.7492-4.7508” (120.63-120.67mm)
Neck: 6-Bolt
Flange: Centering Ring, 12-Bolt, 1-Dowel
Weight: 416 lbs.

221-9360, 221-9358, 195-0312

For ACERT engines ONLY.
5454N $4,681.29 C16 Stroke: 6.750” (171.450mm)
Rod Ø: 3.5425-3.5441“ (89.980-90.020mm)
Main Ø: 4.7492-4.7508” (120.630-120.670mm)
Neck: Straight, 6-Bolt
Flange: 12-Bolt, 1-Dowel
Weight: 280 lbs.		 1155-6632, 132-1116

Page 11
CATERPILLAR
Part No. Engine Specification Replace/ Notes
5457N $8,357.00 C18 Stroke: 7.205” (183.00mm)
Rod Ø: 3.5425-3.5441” (89.980-90.020mm)
Main Ø: 4.7492-4.7508” (120.63-120.67mm)
Neck: Centering Ring, 12-Bolt
Flange: Centering Ring, 12-Bolt, 1-Dowel
Weight: 447 lbs.		 189-4918, 195-0314, 189-4917
5478N $9,247.50 C27 ACERT Stroke: 6.000” (152.400mm)
Rod Ø: 3.8192-3.8208” (97.008-97.048mm)
Main Ø: 4.7492-4.7508” (120.630-120.670mm)
Neck: 12-Bolt
Flange: 12-Bolt, 1-Dowel
Weight: 295 lbs.		 225-6053, 219-4453
5479N $9,144.75 C32 ACERT Stroke: 6.500” (165.000mm)
Rod Ø: 3.8192-3.8208” (97.008-97.048mm)
Main Ø: 4.7492-4.7508” (120.630-120.670mm)
Neck: 12-Bolt
Flange: 12-Bolt, 1-Dowel
Weight: 295 lbs.		 224-3252, 219-4454, 384-9908
7452N $1,242.12 3024C
C2.2		 Stroke: 3.9370” (100mm)
Rod Ø: 2.0458-2.0463” (84.000-84.019mm)
Main Ø: 2.6755-2.6760” (67-957-67.970mm)
Neck: Tapered, Threaded
Flange: Lip Seal
Weight: 78 lbs.

115256990, P770, P771

100.00mm Stroke
5411N $3,458.57 3046 Stroke: 4.7244” (120.00mm)
Rod Ø: 2.2817-2.2823” (57.955-57.970mm)
Main Ø: 3.0691-3.0697” (77.955-77.970mm)
Neck: Threaded, 2-Key
Flange: 6-Bolt, 2-Dowel
Weight: 125 lbs.		 32B20-10010, 107-0922
7429N10 3054 Stroke: 5.00” (127mm)
Rod Ø: 2.4990-2.50” (63.475-63.5mm)
Main Ø: 2.9980-2.9990” (76.149-76.175mm)
Neck: Splined, 3-Bolt, 1-Key
Flange: Lip Seal, 10-Bolt, 1-Dowel
Weight: 75 lbs.

7C8214, 4P9948, 071Z724149, ZZ90082, 139-7018, Z13071, 221-8057, 7C3184, 3131-5666

Verify number of bolt and dowel holes on rear flange of original crankshaft.
7431N10 3054C
3054E		 Stroke: 5.00” (127mm)
Rod Ø: 2.4990-2.50” (63.475-63.5mm)
Main Ø: 2.9980-2.9990” (76.149-76.175mm)
Neck: Splined, 3-Bolt, 1-Key
Flange: Lip Seal, 10-Bolt, 1-Dowel
Weight: 85 lbs.

ZZ90239, 232-7400

Verify number of bolt and dowel holes on rear flange of original crankshaft.
5443N $879.51 3056 Stroke: 5.00” (127mm)
Rod Ø: 2.4990-2.50” (63.475-63.50mm)
Main Ø: 2.9980-2.9990” (76.149-76.175mm)
Neck: Straight, 3-Bolt, 2-Key
Flange: 10-Bolt, 2-Dowel
Weight: 102 lbs.		 193-0159, 234-0207

Page 12
CATERPILLAR
Part No. Engine Specification Replace/ Notes
5445N $909.65 3056E Stroke: 5.000” (127mm)
Rod Ø: 2.4990-2.500” (63.4746-63.500mm)
Main Ø: 2.9980-2.9990” (76.1492-76.1746mm)
Weight: 102 lbs."		 1930159, 2340207, 240-8467
5456N $1,548.07 3064 Stroke: 5.118” (129.997mm)
Rod Ø: 2.3600-2.3608” (59.944-59.964mm)
Main Ø: 3.5410-.5420” (89.941-89.967mm)
Neck: Threaded, 2-Key
Flange: Flat, 6-Bolt, 2-Dowel
Weight: 95 lbs.

5I7844, 5I5610, 5I5611, 135-2419

NOTE: Helical style gear.
5476N $1,222.73 3066 Stroke: 5.118” (129.997mm)
Rod Ø: 2.3600-2.3608” (59.944-59.964mm)
Main Ø: 3.5410-3.5420” (89.941-89.967mm)
Neck: Straight, Threaded, 2-Key
Flange: Flat, 6-Bolt, 2-Dowel
Weight: 140 lbs.

125-3005, 5I7671, 080-6127, 08C127

NOTE: Has a shoulder in front of center main to allowfor detachable gear.
5436N $1,404.39 C4.4 Stroke: 5.00” (127mm)
Rod Ø: —
Main Ø: 3.3067-3.3075” (83.99 to 84.01MM)
Neck: —
Flange: —
Weight: —"		 2327400, 3642829
5447N $1,774.15 C6.6 ACERT "Stroke: 5.000” (127.000mm)
Rod Ø: 2.8339-2.8346” (71.980-72.000mm)
Main Ø: 3.3067-3.3075” (83.99 to 84.01mm)"		 3749163, 2767387, 2767388
5448N $1,637.15 C7.1 ACERT "Stroke: 5.315” (135.000mm)
Rod Ø: 2.8335-2.8342” (71.970-71.990mm)
Main Ø: 3.3067-3.3075” (83.990-84.010mm)"		 3764074

Page 13
CONTINENTAL
Part No. | Description
6002N $461.14 | Continental® Z120
6003N $495.91 | Continental® Z129, Z134

Part No. Engine Specification Replace/ Notes
6002N $461.14 Z120 Stroke: 3.750” (95.25mm)
Rod Ø: 1.9365-1.9375” (49.187-49.213mm)
Main Ø: 2.2490-2.2500” (57.125-57.15mm)
Neck: Straight, 1-Bolt, 2-Key
Flange: 4-Bolt
Weight: 35 lbs.		 1750280M1, Z120C500

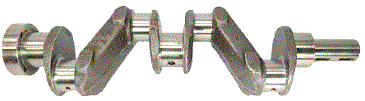

6003N $495.91 Z129
Z134		 Stroke: 3.875” (98.425mm)
Rod Ø: 1.9365-1.9375” (49.187-49.213mm)
Main Ø: 2.2490-2.2500” (57.125-57.15mm)
Neck: Straight, 1-Bolt, 2-Key
Flange: 4-Bolt
Weight: 35 lbs.		 1750169M1, Z129C500, Z134C500, 830686M91,Z129C205
6005N Z145 Stroke: 4.06” (103.124mm)
Rod Ø: 1.937” (49.199mm)
Main Ø: 2.2500” (57.15mm)
Neck: Straight, 1-Bolt, 2-Key
Weight: 42 lbs.		 1047539M1, Z145C100, Z145C600
6001N $0.00 G176 Stroke: 4.375” (111.125mm)
Rod Ø: 2.0615-2.0625” (52.362-52.388mm)
Main Ø: 2.3740-2.3750” (60.3-60.325mm)
Neck: Straight, 1-Bolt, 1-Key
Weight: 46 lbs.		 G176C300, 830756M91

Page 14
CUMMINS
Part No. Engine Specification Replace/ Notes
5755N $1,300.10 ISF 3.8L Stroke: 4.5276” (115.000mm)
Rod Ø: 2.7150-2.7170” (68.962-69.013mm)
Main Ø: 3.2662-3.2682” (82.962-83.013mm)
Neck: Straight, 6-Bolt
Flange: 8-Bolt, 1-Dowel
Weight: 98 lbs		 5261376, 52861375, 2831335, 1DA50887
5734N $544.99 4B 3.9L
4BT 3.9L
4BTA 3.9L		 Stroke: 4.724” (119.99mm)
Rod Ø: 2.7160-2.7170” (68.966-69.012mm)
Main Ø: 3.2672-3.2682” (82.987-83.012mm)
Neck: 4-Bolt, 1-Key
Flange: 8-Bolt
Weight: 93 lbs.		 3903827, 3907803, 3929036, 3908031, J908031,J918323, 9P902418
5795N $1,299.58 QSB 3.9L Stroke: 4.7244” (120.00mm)
Rod Ø: 2.7160-2.7170” (68.966-69.012mm)
Main Ø: 3.2672-3.2682” (82.987-83.012mm)
Neck: Straight, 6-Bolt, 1-Dowel
Flange: 8-Bolt
Weight: 100 lbs.

3929027, 4896764, 2831067, 3929036, 4025081,3915258

NOTE: Front gear width: 0.40" (10.16mm). Rear gear width: 1.25" (31.79mm)
5790N $852.41 QSB 4.5L
B4.5 RGT		 Stroke: 4.882” (124.000mm)
Rod Ø: 2.7160-2.7170” (68.986-69.012mm)
Main Ø: 3.2672-3.2682” (82.987-83.012mm)
Neck: 6-Bolt, 1-Dowel
Flange: 8-Bolt, 2-Dowel
Weight: 120 lbs.		 3974634, 3974539, 3968176, 3968177
5733N $656.78 6B 5.9L
6BT 5.9L
6BTA 5.9L		 Stroke: 4.724” (119.99mm)
Rod Ø: 2.7160-2.7170” (68.986-69.012mm)
Main Ø: 3.2672-3.2682” (82.987-83.012mm)
Neck: 4-Bolt, 1-Key
Flange: 8-Bolt
Weight: 128 lbs.

3907804, 3929037, 3907604, 3908032

Not compatible with applications using bolt-on sensor.
5794N $1,921.43 ISB 5.9L Stroke: 4.7244” (120.000mm)
Rod Ø: 2.7160-2.7170” (68.986-69.012mm)
Main Ø: 3.2672-3.2682” (82.987-83.012mm)
Neck: Straight, 4-Bolt, 1-Dowel
Flange: 8-Bolt, 2” (50.8mm) Pilot Hole
Weight: 130 lbs.

3946437, 3964040, 3978482, 4980462, 3944243,3941199, 3915258

Compatible with CNH/Iveco 667TA engines. Can replace 5733N. For applications with automatic transmissions only.
5743N $1,313.56 ISB 5.9L Stroke: 4.7244”
Rod Ø: 2.7160-2.7170”
Main Ø: 3.2672-3.2682”
Neck: 4 bolt with helical gear
Flange: 8 bolt holes, Lip Seal
Weight: 150 lbs.		 3941199 3944243, 3944204
5731N $1,362.47 ISB 6.7L Stroke: 4.7200” (120.000mm)
Rod Ø: 2.7150-2.7170” (68.960-69.010mm)
Main Ø: 3.2670” (82.987mm)
Neck: 6-Bolt, 1-Dowel
Flange: 8-Bolt
Weight: 140 lbs.

2830476, 2830477, 4934566, 3942441, 3929627, 4896766

Rear gear train.

Page 15
CUMMINS
Part No. Engine Specification Replace/ Notes
5798N $13.91 QSB 6.7L Stroke: 4.7200” (120.000mm)
Rod Ø: 2.7150-2.7170” (68.960-69.010mm)
Main Ø: 3.2670” (82.987mm)
Neck: 6-Bolt, 1-Dowel
Flange: 8-Bolt
Weight: 140 lbs.

2831071, 4899397

Rear gear train. Intended for off-road applications only.
5791N $952.15 QSB 6.7L Stroke: 4.88188” (124.00mm)
Rod Ø: 2.7150-2.7170” (68.962-69.013mm)
Main Ø: 3.2662-3.2682” (82.962-83.013mm)
Neck: Straight, 6-Bolt, 1-Dowel
Flange: 8-Bolt
Weight: 140 lbs.		 3974538, 4934862, 3974635, 4934861, 4935869
5735N $971.19 6C 8.3L
6CT 8.3L
6CTA 8.3L		 Stroke: 5.3150” (135.001mm)
Rod Ø: 2.9916-2.9926” (75.987-76.012mm)
Main Ø: 3.8568-3.8588” (97.963-98.014mm)
Neck: Straight, 4-Bolt, 1-Key
Flange: 8-Bolt, 1-Dowel
Weight: 174 lbs.		 3917320, 3917443 3918986, 390562, 3914584, 728533
5748N $897.35 155
V378
VT378		 Stroke: 3.750” (95.250mm)
Rod Ø: 2.4990-2.5000” (63.475-63.500mm)
Main Ø: 3.4990-3.5000” (88.875-88.900mm)
Neck: Straight, 5-Bolt
Flange: 8-Bolt, 1-Key
Weight: 125 lbs.		 195240
5749N $1,006.13 210
V504
VT504		 Stroke: 3.750” (95.250mm)
Rod Ø: 2.4990-2.5000” (63.475-63.500mm)
Main Ø: 3.4990-3.5000” (88.875-88.900mm)
Neck: Straight, 5-Bolt
Flange: 8-Bolt, 1-Key
Weight: 150 lbs.		 194840, AR60473, 719840
5792N $1,383.43 ISL Stroke: 5.6890” (144.500mm)
Rod Ø: 2.9921-2.9931” (76.000-76.026mm)
Main Ø: 3.8588-3.8595” (98.006-98.032mm)
Neck: 5-Bolt, 1-Key
Flange: 8-Bolt, 1-Dowel
Weight: 160 lbs.		 3965010, 3965011, 3965012
5721N $2,165.97 L10 Stroke: 5.354” (135.992mm)
Rod Ø: 3.1097-3.1107” (78.986-79.012mm)
Main Ø: 4.4888-4.4904” (114.016-114.056mm)
Neck: 5-Bolt, 1-Key, OAL: 2.625” (66.675mm)
Flange: 8-Bolt, 2-Dowel
Weight: 250 lbs.

3819989, 3803898, 3073707

5-Bolt "Short Nose" style, OAL: 2.625" (66.675mm) Interchangable with 5739N. if you replace: Vibration Damper 3819976, Adaptor 3819977, & hardware.
5736N $1,907.45 L10 Stroke: 5.354” (135.992mm)
Rod Ø: 3.1097-3.1107” (78.986-79.012mm)
Main Ø: 4.4888-4.4904” (114.016-114.056mm)
Neck: 5-Bolt, 1-Key, OAL: 3.25” (82.55mm)
Flange: 8-Bolt, 2-Dowel
Weight: 250 lbs.

3819624

5-Bolt "Long Nose" style, OAL: 3.25" (82.55mm)

Page 16
CUMMINS
Part No. Engine Specification Replace/ Notes
5739N L10 Stroke: 5.354” (135.992mm)
Rod Ø: 3.1097-3.1107” (78.986-79.012mm)
Main Ø: 4.4888-4.4904” (114.016-114.056mm)
Neck: 6-Bolt, 1-Key, OAL: 2.72” (69.088mm)
Flange: 8-Bolt, 2-Dowel

3803898, 3027931, 3819989

6-Bolt "Short Nose" style, OAL: 2.72" (69.088mm) Interchangable with 5721N. if you replace: Vibration Damper 3511829, Adaptor 3046414, & hardware.
5741N $1,746.75 M11 Stroke: 5.790” (147.066mm)
Rod Ø: 3.1083-3.1107” (78.951-79.012mm)
Main Ø: 4.4888-4.4904” (114.016-114.056mm)
Neck: 5-Bolt, 1-Dowel
Flange: 8-Bolt
Weight: 250 lbs.

3073707

Right-hand helical, 40-tooth front gear.
5710N $2,165.97 855NT
Series		 Stroke: 6.000” (152.4mm)
Rod Ø: 3.1240-3.1250” (79.35-79.375mm)
Main Ø: 4.4990-4.5000” (114.275-114.3mm)
Neck: Straight, 6-Bolt, 1-Key
Flange: 6-Bolt
Weight: 370 lbs.

0131, 101109, 10846, 110760, 111786, 124310,12821, 130186, 144016, 211980, 247-5001, 3000140, 3024923, 56711, AR1937, H56711, NH0123

Big Cam style. See 5715N $2,629.00 for Small Cam style.
5715N $2,629.00 855NT
Series		 Stroke: 6.000” (152.4mm)
Rod Ø: 3.1240-3.1250” (79.35-79.375mm)
Main Ø: 4.4990-4.5000” (114.275-114.3mm)
Neck: Tapered, 1-Bolt, 1-Key
Flange: 6-Bolt
Weight: 370 lbs.

101109, 110760, 111789, 121610, 123410, 130186,135030, 136530, 142770, 142960, 162186, 181030, 187640, 196410, 202180, 208460, 208470, 247-5049,3001588, 3029340, 42960

Small Cam style. See 5710N. for Big Cam style
5738N $2,089.11 N14 Stroke: 6.000” (152.4mm)
Rod Ø: 3.4970-3.4995” (88.824-88.887mm)
Main Ø: 4.4970-4.5000” (114.224-114.3mm)
Neck: 6-Bolt, 1-Key
Flange: 6-Bolt
Weight: 370 lbs.		 3064291
5793N $1,278.18 IISC
QSC
8.3L		 Stroke: 5.315” (135.001mm)
Rod Ø: 2.9921-2.9931” (76.000-76.026mm)
Main Ø: 3.8588-3.8595” (98.006-98.032mm)
Neck: 4 Bolt
Flange: 8 Bolt, 1 Dowle
Weight: 187 lbs.		 3965008, 3965006, 3965007
5728N $0.00 QSL Stroke: 5.6890”
Rod Ø: 2.9906-2.9926”
Main Ø: 3.8568-3.8588”
Neck: 4 bolt
Flange: 1 dowel, 8 bolt, Flat seal
Weight: 250 lbs.		 5257218
5727N $6,288.30 QSK19 Stroke: 6.25”
Rod Ø: 3.9970-4.0000” (105.524-101.600mm)
Main Ø: 5.4975-5.5000” (139.637-139.700mm)
Neck: 6 Bolt
Flange: 1 dowel, 8 bolt, Flat seal
Weight: 500 lbs..		 4916790, 4371597, 4916789, 4917120, 4371598, 4916739

Page 17
CUMMINS
Part No. Engine Specification Replace/ Notes
5799N $2,410.52 ISX
QSX		 Stroke: 6.653” (139.00mm)
Rod Ø: 3.7000-3.7020” (93.980-94.020mm)
Main Ø: 4.9999-5.0007” (126.980-127.020mm)
Neck: 8-Bolt, 1-Dowel
Flange: 12-Bolt, 1-Dowel
Weight: 380 lbs.		 4925762, 3681910, 4925761, 4319022, 3680962, 3680715
5750N $5,891.00 ISX-12 Stroke: 5.906” (150.000mm)
Rod Ø: 3.7002-3.7014” (93.985-94.015mm)
Main Ø: 4.9200-4.9220” (124.980-125.020mm)
Neck: 12 Bolt, 2 dowel
Flange: 10 Bolt, 1 Dowel, centering ring
Weight: 300 lbs.		 2883164, 2882731
5704N $3,692.15 KT1150
K19 Series
K Series
KT Series		 Stroke: 6.250” (158.75mm)
Rod Ø: 3.9985-4.0000” (101.562-101.6mm)
Main Ø: 5.4985-5.5000” (139.662-139.7mm)
Neck: 6-Bolt, 1-Key, 1-Dowel
Flange: 9-Bolt
Weight: 525 lbs.

3096362, 3016098, 3016096, 3003000, 3201082, 3005357, 206910, 3016096,

Has integral counterweights.
5740N $0.00 K38
KT38
KTA38
KT2300
KT Series		 Stroke: 6.2589” (158.976mm)
Rod Ø: 4.2470-4.2500” (107.874-107.95mm)
Main Ø: 6.4975-6.5000” (165.037-165.1mm)
Neck: 8-Bolt, Bolt Pattern Ø: 3.05” (77.47mm)
Weight: 795 lbs.

3630076, 3630058, 3630075, 3630072, 3176428, 3176424

This is the updated bolt pattern. The earlier version can be upgraded to this style with: Spacer 3069781, Adapter 3069776, and a pulley (part number varies by application).
5766N $0.00 G50
K50
GTA50
QSK50		 Stroke: 6.2589”
Rod Ø: 4.2470-4.2500”
Main Ø: 6.4975-6.5000”
Neck: 12-Bolt, 1-Dowel
Flange: 12-Bolt, 2-Dowel
Weight: 1100 lbs.		 3626832, 3629276, 33172928, 3627642, 3648618, 4098998

Page 18
DAVID BROWN
Part No. | Description
5321N $506.45 | David Brown® AD 4/49

Part No. Engine Specification Replace/ Notes
5399N $548.00 AD 3/55 Stroke: 4.500” (114.3mm)
Rod Ø: 2.3730-2.3735” (60.274-60.287mm)
Main Ø: 2.4990-2.4995” (63.475-63.487mm)
Neck: Splined, 1-Bolt
Flange: 4-Bolt, 1-Dowel
Weight: 85 lbs.		 K961726, 05700AB, 8629, A906675MF, K912017
5318N $876.77 AD 4/47 Stroke: 4.500” (114.3mm)
Rod Ø: 2.2480-2.2485” (57.099-57.112mm)
Main Ø: 2.4990-2.4995” (63.475-63.487mm)
Neck: Splined, Threaded
Flange: 4-Bolt, 1-Dowel
Weight: 115 lbs.		 D1061, D908453, 5176, 9016, D3891, D901620
5321N $506.45 AD 4/49 Stroke: 4.000” (101.6mm)
Rod Ø: 2.3730-2.3735” (60.274-60.287mm)
Main Ø: 2.4990-2.4995” (63.475-63.487mm)
Neck: Splined, Threaded, 1-Key
Flange: 4-Bolt, 1-Dowel
Weight: 70 lbs.		 D917985, 961007
5312N $621.84 AD 4/55
Small Main		 Stroke: 4.500” (114.3mm)
Rod Ø: 2.3730-2.3735” (60.274-60.287mm)
Main Ø: 2.4990-2.4995” (63.475-63.487mm)
Neck: Splined, Threaded, 1-Key
Flange: 4-Bolt, 1-Dowel
Weight: 67 lbs.

D905196, D179935, 917935, 2338423, K928416, K210100

Small Main style. See 5317N $607.87 for Large Main style engines.
5317N $607.87 AD 4/55
Large Main		 Stroke: 4.500” (114.3mm)
Rod Ø: 2.4980-2.4985” (63.4492-63.4619mm)
Main Ø: 2.6240-2.6245” (66.6496-66.6623mm)
Neck: Splined, Threaded, 1-Key
Flange: 4-Bolt, 1-Dowel
Weight: 68 lbs.

D928415, K963412, K928416, 43322, D928

Large Main style. See 5312N $621.84 for Small Main style engines.

Page 19
DETROIT DIESEL
Part No. Engine Specification Replace/ Notes
6278N $1,921.43 6V-71 Stroke: 5.000” (127mm)
Rod Ø: 2.9985-3.0002” (76.162-76.205mm)
Main Ø: 4.4985-4.50002” (114.262-114.305mm)
Neck: Straight, 1-Bolt, 3-Key
Flange: 6-Bolt
Weight: 160 lbs.		 5146733, 5117906, 5146572, 5119906
6279N $2,363.25 8V-71 Stroke: 5.000” (127mm)
Rod Ø: 2.9985-3.0002” (76.162-76.205mm)
Main Ø: 4.4985-4.50002” (114.262-114.305mm)
Neck: Straight, 1-Bolt, 3-Key
Flange: 8-Bolt
Weight: 200 lbs.		 5103264, 5119906, 5117908, 5144867
6203N $971.19 6V-92 Stroke: 5.000”
Rod Ø: 2.9990-3.000”
Main Ø: 4.4990-4.5000”
Weight: 160 lbs.

8926922

Left-hand rotation applications only.
6204N $1,299.58 6V-92 Stroke: 5.000” (127mm)
Rod Ø: 2.9990-3.000” (76.175-76.2mm)
Main Ø: 4.4990-4.5000” (114.275-114.3mm)
Neck: Straight, 1-Bolt, 3-Key
Flange: 6-Bolt
Weight: 160 lbs.

8926419, 8926921, 5144862, 5145300

Right-hand rotation applications only.
6206N $2,102.95 11.1L
60 Series		 Stroke: 5.472” (138.989mm)
Rod Ø: 3.3450-3.3460” (84.963-84.988mm)
Main Ø: 4.9200-4.9210” (124.968-124.993mm)
Neck: Straight, 12-Bolt, 1-Key
Flange: Flat, 12-Bolt
Weight: 350 lbs.		 8929238, 8929413
6205N $3,048.25 12.7L
60 Series		 Stroke: 6.299” (159.995mm)
Rod Ø: 3.3450-3.3460” (84.963-84.988mm)
Main Ø: 4.9200-4.9210” (124.968-124.993mm)
Neck: Straight, 12-Bolt, 1-Key
Flange: 12-Bolt
Weight: 350 lbs.		 8929239, 23527965, 23515598
6208N $3,458.57 12.7L
60 Series		 Stroke: 6.299” (159.995mm)
Rod Ø: 3.7390-3.7400” (94.975-95.000mm)
Main Ø: 4.9200-4.9210” (124.968-124.993mm)
Neck: 6-Bolt
Flange: 12-Bolt
Weight: 350 lbs.

23527771

DDEC5 engines.
6209N $3,318.83 12.7L
60 Series		 Stroke: 6.299” (159.995mm)
Rod Ø: 3.3450-3.3460” (84.963-84.988mm)
Main Ø: 4.9200-4.9210” (124.968-124.993mm)
Neck: 6-Bolt
Flange: 12-Bolt
Weight: 350 lbs.

23518646

DDEC5 engines. Front gear not included

Page 20
DETROIT DIESEL
Part No. Engine Specification Replace/ Notes
6207N $2,870.15 14.0L
60 Series		 Stroke: 6.599” (165.075mm)
Rod Ø: 3.7390-3.7400” (94.975-95.000mm)
Main Ø: 4.9200-4.9210” (124.975-125.000mm)
Neck: Straight, 6-Bolt, 1-Key
Flange: 12-Bolt
Weight: 350 lbs.		 23527225, 23522887
6307N $4,103.15 DD13 Stroke: 6.142” (156.000mm)
Rod Ø: 3.7394-3.7401” (94.982-95.000mm)
Main Ø: 4.4882” (114.000mm)		 471.031.0601
6308N $5,938.95 DD15 Stroke: 6.420” (163.000mm)
Rod Ø: 3.9362-3.9370” (99.980-100.000mm)
Main Ø: 4.7236-4.7245” (119-980-120.000mm)		 472.031.0301
6309N $5,379.99 DD16 Stroke: 6.732” (171.000mm)
Rod Ø: 3.9362-3.9370” (99.980-100.000mm)
Main Ø: 4.7236-4.7245” (119-980-120.000mm)		 473.031.0001, 473.031.0201

RELIANCE

Page 21
Deutz®
Part No. Engine Specification Replace/ Notes
7512N F1L511 Stroke: 4.134” (105.000mm)
Rod Ø: 2.0461-2.0468” (51.971-51.990mm)
Main Ø: 2.5185-2.5193” (63.971-63.990mm)

2233635

Bolt-on counterweights.
7533N F2L511 Stroke: 4.134” (105.000mm)
Rod Ø: 2.0461-2.0468” (51.971-51.990mm)
Main Ø: 2.5185-2.5193” (63.971-63.990mm)

04152745, 20050551102

Bolt-on counterweights.
7534N F2L511 Stroke: 4.134” (105.000mm)
Rod Ø: 2.0461-2.0468” (51.971-51.990mm)
Main Ø: 2.5185-2.5193” (63.971-63.990mm)

04152745, 20050551102

Integrated counterweights.
7521N F2L912 Stroke: 4.724” (119.9896mm)
Rod Ø: 2.3599-2.3606” (59.94146-59.95924mm)
Main Ø: 2.4398-2.4405” (61.97092-61.9887mm)

02232854, 02929337, 04152591, 3371552, 20050591203

Without counterweights.
7523N F3L912 Stroke: 4.724” (119.9896mm)
Rod Ø: 2.3599-2.3606” (59.94146-59.95924mm)
Main Ø: 2.4398-2.4405” (61.97092-61.9887mm)

02929338, 04152646, 210556, 2136928, 20050591203

Bolt-on counterweights.
7513N F3L912 Stroke: 4.724” (119.9896mm)
Rod Ø: 2.3599-2.3606” (59.94146-59.95924mm)
Main Ø: 2.4398-2.4405” (61.97092-61.9887mm)

M2931044

New generation engine.
7524N F4L912 Stroke: 4.724” (119.9896mm)
Rod Ø: 2.3599-2.3606” (59.94146-59.95924mm)
Main Ø: 2.4398-2.4405” (61.97092-61.9887mm)

02138819, 0292340, 04152903, 20050591204

Bolt-on counterweights.
7526N F4L912 Stroke: 4.724” (119.9896mm)
Rod Ø: 2.3599-2.3606” (59.94146-59.95924mm)
Main Ø: 2.4398-2.4405” (61.97092-61.9887mm)

02929339, 20050591214

Bolt-on counterweights.

Page 22
Deutz®
Part No. Engine Specification Replace/ Notes
7514N F4L912 Stroke: 4.724” (119.9896mm)
Rod Ø: 2.3599-2.3606” (59.94146-59.95924mm)
Main Ø: 2.4398-2.4405” (61.97092-61.9887mm)

M2931048

New generation engine.
7525N F5L912 Stroke: 4.724” (119.9896mm)
Rod Ø: 2.3599-2.3606” (59.94146-59.95924mm)
Main Ø: 2.4398-2.4405” (61.97092-61.9887mm)		 M292378
7527N $0.00 F6L912 Stroke: 4.724” (119.9896mm)
Rod Ø: 2.3599-2.3606” (59.94146-59.95924mm)
Main Ø: 2.4398-2.4405” (61.97092-61.9887mm)
Weight: 67 lbs.

02929342, 04151011, 2136993, 2136932, 20050591206

Bolt-on counterweights.
7515N BF4L913 Stroke: 4.9213” (125.00102mm)
Rod Ø: 2.5973-2.5980” (65.97142-65.9892mm)
Main Ø: 2.9516-2.9524” (74.97064-74.99096mm)		 M4150526
7516N F4L913
BF4L913		 Stroke: 4.9213” (125.00102mm)
Rod Ø: 2.5973-2.5980” (65.97142-65.9892mm)
Main Ø: 2.9516-2.9524” (74.97064-74.99096mm)

M2931050

New generation engine.
7517N F5L913 Stroke: 4.921” (124.9934mm)
Rod Ø: 2.3599-2.3610” (59.94146-59.9694mm)
Main Ø: 2.7548-2.7555” (69.97192-69.9897mm)		 M3018669
7518N F6L913 Stroke: 4.921” (124.9934mm)
Rod Ø: 2.3599-2.3610” (59.94146-59.9694mm)
Main Ø: 2.7548-2.7555” (69.97192-69.9897mm)		 M2139148
7532N BF6L913
BF6L913C		 Stroke: 4.9213” (125.00102mm)
Rod Ø: 2.5973-2.5980” (65.97142-65.9892mm)
Main Ø: 2.9516-2.9524” (74.97064-74.99096mm)		 M2139405

Page 23
Deutz®
Part No. Engine Specification Replace/ Notes
7519N F4L914
BF4L914		 Stroke: 5.197” (132.000mm)
Rod Ø: 2.5973-.5980” (65.971-65.990mm)
Main Ø: 2.9516-2.9524” (74.971-74.990mm)		 M2931492
7520N F6L914
BF6L914		 Stroke: 5.197” (132.000mm)
Rod Ø: 2.5973-.5980” (65.971-65.990mm)
Main Ø: 2.9516-2.9524” (74.971-74.990mm)		 D2931400
7528N F6L413F Stroke: 5.118” (129.9972mm)
Rod Ø: 2.9517-2.9528” (74.97318-75.00112mm)
Main Ø: 3.7382-3.7397” (94.95028-3.7397mm)		 M2422049
7522N BF8L513
BF8L413F		 Stroke: 5.118” (129.9972mm)
Rod Ø: 2.9517-2.9528” (74.97318-75.00112mm)
Main Ø: 3.7382-3.7397” (94.95028-3.7397mm)		 M2144317
7542N F3L1011B
F3L1011		 Stroke: 4.1338” (104.99852mm)
Rod Ø: 2.1642-2.1650” (54.97068-54.991mm)
Main Ø: 2.7547-2.7555” (69.96938-69.9897mm)

M4270229

105mm hub.
7529N F2L1011 Stroke: 4.409” (111.9886mm)
Rod Ø: 2.1642-2.1650” (54.97068-54.991mm)
Main Ø: 2.7547-2.7555” (69.96938-69.9897mm)		 M2931735
7530N F2L2011
F2L2011F		 Stroke: 4.409” (111.9886mm)
Rod Ø: 2.1642-2.1650” (54.97068-54.991mm)
Main Ø: 2.7547-2.7555” (69.96938-69.9897mm)		 M4270231
7531N BF4M1012 Stroke: 4.134” (105.0036mm)
Rod Ø: 2.1650-2.1660” (54.991-55.0164mm)
Main Ø: 2.7555-2.7566” (69.9897-70.01764mm)		 D2929934

Page 24
DEUTZ®
Part No. | Description
7514N | Deutz® F4L912
7527N $0.00 | Deutz® F6L912
Part No. Engine Specification Replace/ Notes
7535N BF4M1013 Stroke: 5.118” (129.9972mm)
Rod Ø: 2.6764-2.6772” (67.98056-68.00088mm)
Main Ø: 3.3457-3.3464” (84.98078-84.99856mm)		 M2929962
7536N BF6M1015 Stroke: 5.7087” (145.00098mm)
Rod Ø: 3.4635-3.4641” (87.9729-87.98814mm)
Main Ø: 4.0540-4.0546” (102.9716-102.98684mm)		 D2931466
7537N BF8M1015 Stroke: 5.7087” (145.00098mm)
Rod Ø: 3.4635-3.4641” (87.9729-87.98814mm)
Main Ø: 4.0540-4.0546” (102.9716-102.98684mm)		 D2931466

FIAT
1721N $1,027.50 8035.04 Stroke: 4.3307” (110.000mm)
Rod Ø: 2.3122-2.3127” (58.730-58.743mm)
Main Ø: 2.9995-3.0000” (76.187-76.200mm)		 72094402V, 4785106
1731N $924.75 8045.04
8041.04		 Stroke: 4.330” (109.982mm)
Rod Ø: 2.3122-2.3127” (58.730-58.743mm)
Main Ø: 2.9995-2.9999” (76.187-76.197mm)
Flange: 7 bolt flange, 114mm rear seal
Weight: 48.5 lbs.		 312990681, 4785104, 4682232, 312906442, 4785103

Page 25
FORD/NEW HOLLAND
Part No. Engine Specification Replace/ Notes
1606N $1,020.65 H843 Stroke: 3.310” (84.074 MM)
Rod Ø: 1.8884-1.8888” (47.965-47.976 MM)
Main Ø: 2.6755-2.6760” (67.958-67.970 MM)
Weight: 25 lbs.

83941932, SBA115256260, SBA115256261

Used in New Holland 1710 compact utility tractors.
1574N T853 Stroke: 3.940” (100.076mm)
Rod Ø: 2.3602-2.3610” (59.949-59.969mm)
Main Ø: 2.6750-2.6760” (67.945-67.97mm)
Weight: 44 lbs.

83941938, SBA115256470, SBA115256471

Used in New Holland 1910 compact utility tractors.
1582N $607.68 120 Stroke: 3.750” (95.250mm)
Rod Ø: 2.0935-2.0945” (53.175-53.200mm)
Main Ø: 2.2480-2.2490” (57.099-57.125mm)
Weight: 45 lbs.

83941938, SBA115256470, SBA115256471

Used in Ford 2N, 8N, & 9N tractors.
1583N $698.70 134
172G
192G		 Stroke: 3.600” (91.44mm)
Rod Ø: 2.2980-2.2988” (58.369-58.39mm)
Main Ø: 2.4980-2.4988” (63.449-63.47mm)
Neck: Splined, 1-Key
Flange: Flat, 6-Bolt, 1-Dowel
Weight: 65 lbs.		 B9NN6303
1584N $746.65 144
172D
192D		 Stroke: 3.600” (91.44mm)
Rod Ø: 2.2980-2.2988” (58.369-58.39mm)
Main Ø: 2.4980-2.4988” (63.449-63.47mm)
Neck: Splined, 1-Key
Flange: Flat, 6-Bolt, 1-Dowel
Weight: 65 lbs.

EZJL6300BA, B9NN6302B

NOTE: Has counterbalancer drive gear on center.
1586N $774.05 220 Stroke: 4.524-4.528” (114.91-115.011mm)
Rod Ø: 2.4997-2.5005” (63.492-63.513mm)
Main Ø: 3.0002-3.0010” (76.205-76.225mm)
Neck: Straight, 1-Bolt, 1-Key, OAL: 3.015” (76.581mm)
Flange: Flat, 6-Bolt, 1-Dowel
Weight: 78 lbs.

E1ADDN6303F, E1ADDNND, E1ADDNN6303E, E1ADDN­N6303D

Dagenham / Dorset diesel. Early model engines. See 1585N $802.79 for late model engines.
1585N $802.79 220 Stroke: 4.524-4.528” (114.91-115.011mm)
Rod Ø: 2.4997-2.5005” (63.492-63.513mm)
Main Ø: 3.0002-3.0010” (76.205-76.225mm)
Neck: Stepped, 1-Bolt, 1-Key, OAL: 2.772” (70.4088mm)
Flange: Flat, 6-Bolt, 2-Dowel
Weight: 77 lbs.

E1ADDN6306B

Dagenham / Dorset diesel. Late model engines. See 1586N $774.05 for early model engines.
1587N $608.28 220
BSD666		 Stroke: 4.4000”
Rod Ø: 2.7496-2.7504”
Main Ø: 3.3713-3.3723”
Neck: 1 Bolt Hole, 1 Keyway
Flange: Flat, 6 Bolt Holes, 1 Dowel Hole
Weight: 80 lbs.

713F6303AAA, 2701E6303

Dorset diesel

Page 26
FORD/NEW HOLLAND
Part No. Engine Specification Replace/ Notes
1589N $787.75 158D
158G		 Stroke: 3.801” (96.545mm)
Rod Ø: 2.7496-2.7504” (69.840-69.860mm)
Main Ø: 3.3713-3.3723” (85.631-85.656mm)
Neck: 1-Bolt, 1-Key
Flange: 6-Bolt, 1-Dowel
Weight: 72 lbs.		 C5NE6303N, F0NN63000PA
1590N $472.65 175D
192D
BSD329		 Stroke: 4.200” (106.68mm)
Rod Ø: 2.7496-2.7500” (69.84-69.85mm)
Main Ø: 3.3713-3.3723” (85.631-85.656mm)
Neck: 1-Bolt, 1-Key
Flange: Centering Ring, 6-Bolt, 1-Dowel
Weight: 83 lbs.		 E0NN6303AA, C5NE6303L, C5NE6303R, C5NE6305
1591N $472.65 183D
201D
BSD333		 Stroke: 4.400” (111.76mm)
Rod Ø: 2.7496-2.7500” (69.84-69.85mm)
Main Ø: 3.3713-3.3723” (85.631-85.656mm)
Neck: 1-Bolt, 1-Key
Flange: Centering Ring, 6-Bolt, 1-Dowel
Weight: 101 lbs.		 F0NN6303MA, C5NE6303N, C5TE6303, E5NN6306N
1595N76 233
256
BSD442		 Stroke: 4.203” (106.756mm)
Rod Ø: 2.6244-2.6252” (66.66-66.68mm)
Main Ø: 3.3713-3.3723” (85.631-85.656mm)
Neck: 1-Bolt, 1-Key
Flange: Centering Ring, 6-Bolt, 1-Dowel
Weight: 105 lbs.

C5NE6303K

Includes "M" style, 76-tooth balancer drive gear.
1595N78 233
256
BSD442		 Stroke: 4.203” (106.756mm)
Rod Ø: 2.6244-2.6252” (66.66-66.68mm)
Main Ø: 3.3713-3.3723” (85.631-85.656mm)
Neck: 1-Bolt, 1-Key
Flange: Centering Ring, 6-Bolt, 1-Dowel
Weight: 105 lbs.

C5NE6303K

Includes "M" style, 78-tooth balancer drive gear.
1598N76 268
BSD444		 Stroke: 4.400” (111.76mm)
Rod Ø: 2.7496-2.7504” (69.84-69.86mm)
Main Ø: 3.3713-3.3723” (85.631-85.656mm)
Neck: 1-Bolt, 1-Key
Flange: Centering Ring, 6-Bolt, 1-Dowel
Weight: 103 lbs.

E5NN6303DA, E5NN6303FA, D9NN6303AA, E5NN­6303CA, D9NN6303A

Includes "M" style, 76-tooth balancer drive gear.
1598N78 268
BSD444		 Stroke: 4.400” (111.76mm)
Rod Ø: 2.7496-2.7504” (69.84-69.86mm)
Main Ø: 3.3713-3.3723” (85.631-85.656mm)
Neck: 1-Bolt, 1-Key
Flange: Centering Ring, 6-Bolt, 1-Dowel
Weight: 103 lbs.

E5NN6303DA, E5NN6303FA, D9NN6303AA, E5NN­6303CA, D9NN6303A

Includes "M" style, 78-tooth balancer drive gear.
1614N $787.75 304
BSD450		 Stroke: 5.0000” (127.000mm)
Rod Ø: 2.7490-2.7504” (69.825-69.860mm)
Main Ø: 3.3713-3.3723” (85.631-85.656mm)
Weight: 79 lbs.		 E9NN6303DB

Page 27
FORD/NEW HOLLAND
Part No. | Description

1595N76 | Ford® 233, 256, BSD442

1598N78 | Ford® 268, BSD444

Part No. Engine Specification Replace/ Notes
1592N 401
BSD666		 Stroke: 4.400” (111.76mm)
Rod Ø: 2.7496-2.7504” (69.84-69.86mm)
Main Ø: 3.3713-3.3723” (85.631-85.656mm)
Neck: 1-Bolt, 1-Key
Flange: Flat, 6-Bolt, 1-Dowel
Weight: 135 lbs.		 E3HN6303AA, E3HN6303AB, E6HN6303CB, E6HN6303CC, C7NN6303, C7NN6303A
1605N $787.75 6.0L Stroke: 4.1340” (105.000mm)
Rod Ø: 2.7160-2.7170” (68.99-69.01mm)
Main Ø: 3.1885-3.1895” (80.987-81.013mm)
Weight: 79 lbs.

3C3Z-6303-AARM

F-series truck applications 02-07.
1602N $1,030.65 6.4L Stroke: 4.1340” (105.000mm)
Rod Ø: 2.8341-2.8351” (71.987-72.013mm)
Main Ø: 3.1885-3.1895” (80.987-81.013mm)
Neck: Stepped, 4-Bolt, 1-Dowel
Flange: 6-Bolt
Weight: 71

1000197420

F-series truck applications 08-10.
1617N $1,009.58 6.7L Stroke: 4.2510” (108.000mm)
Rod Ø: 2.8330-2.8340” (71.983-72.003mm)
Main Ø: 3.1880-3.1890” (80.983-81.003mm)
Weight: 81 lbs.

RFBC30-AB

F-series truck applications 11-16.
1620N $911.05 ECOTORQ,
9.0L		 Stroke: 72X2
Rod Ø: 95mm
Main Ø: 81mm
Neck: 7 bolt
Flange: 7 bolt, 1 dowel Lip seal
Weight: 150 lbs.		 FH1-6302-AA
1626N $911.05 ECOTORQ,
12.7L		 Stroke: 80X2
Rod Ø: 93mm
Main Ø: 112mm
Weight: 330 lbs.		 GC46-6303-AB


Page 28
INTERNATIONAL / NAVISTAR
Part No. Engine Specification Replace/ Notes
6750N $433.19 C60 Stroke: 2.750” (69.85mm)
Rod Ø: 1.4980-1.4990” (38.049-38.075mm)
Main Ø: 1.6230-1.6240” (41.224-41.25mm)
Weight: 35 lbs.		 353743R93, 251264R1, 357247R1
6760N $356.34 BD144
BD154
G164		 Stroke: 4.000” (101.600mm)
Rod Ø: 1.749-1.750” (44.425-44.450mm)
Main Ø: 2.124-2.125” (53.950-53.975mm)
Neck: Threaded, 2-Key
Flange: 4-Bolt, 2-Dowel
Weight: 38 lbs.		 353743R93, 251264R1, 357247R1
6797N $1,089.15 D155 Stroke: 4.38”
Rod Ø: 2.519”
Main Ø: 3.149”
Neck: 3 Bolt Holes
Flange: Lip Seal, 7 bolt holes, 1 dowel
Weight: 58 lbs.

305950R1

Small Throws
6713N $593.90 D206 Stroke: 4.380” (111.252mm)
Rod Ø: 2.5185-2.5193” (63.9699-63.99022mm)
Main Ø: 3.1485-3.1492” (79.9719-79.98968mm)
Neck: Straight, 3-Bolt
Flange: Flat, 7-Bolt, 1-Dowel
Weight: 83 lbs.

3055787R92, 32889-R2, 3132889R2, 3132889R1, 3132968R93

Center Gear: 0.3937" (10.00mm) wide, helical, 80-tooth (included but not installed).
6719N $663.77 D239
DT239
D246		 Stroke: 5.059” (128.499mm)
Rod Ø: 2.5185-2.5193” (63.97-63.99mm)
Main Ø: 3.1484-3.1492” (79.969-79.99mm)
Neck: Straight, 3-Bolt, 1-Key
Flange: 7-Bolt, 1-Dowel
Weight: 81 lbs.		 313276243R92, 3144624R92, 3132982R94, 3144626R92, 182752R2, 2744406R1, 3132752R3
6793N $997.33 D268
DT268		 Stroke: 5.500” (137.9mm)
Rod Ø: 2.5185-2.5193” (63.97-63.99mm)
Main Ø: 3.1485-3.1492” (79.9719-79.98968mm)
Neck: Straight, 3-Bolt
Flange: Flat, 7-Bolt, 1-Dowel
Weight: 91 lbs.

3228376R91, A097292, 528R279, 218528R1, 218528R2, 218528R3, 3218528R1

Includes straight, 90-tooth center gear.
6791N $2,322.15 D358
DT358		 Stroke: 5.059” (128.499mm)
Rod Ø: 2.5185-2.5193” (63.97-63.99mm)
Main Ø: 3.1484-3.1492” (79.969-79.99mm)
Neck: 3-Bolt
Flange: 7-Bolt, 1-Dowel
Weight: 150 lbs.		 3059514R1, 3136036R95
6799N Navistar
D360
DT360		 Stroke: 5.085” (129.159mm)
Rod Ø: 2.9977-2.9990” (76.142-76.175mm)
Main Ø: 3.3742-3.3755” (85.705-85.738mm)
Neck: 3-Bolt, 1-Key
Flange: 8-Bolt
Weight: 83 lbs.

1809953C91, 1809954C1

Truck applications only.

  Page 29
INTERNATIONAL / NAVISTAR
Part No. | Description

6732N $1,753.74 | International®
D466, DT466, DT466B, DT466C

Part No. Engine Specification Replace/ Notes
5734N $544.99 C-240
4-390
4T-390		 Stroke: 4.724” (119.99mm)
Rod Ø: 2.7160-2.7170” (68.986-69.012mm)
Main Ø: 3.2672-3.2682” (82.987-83.012mm)
Neck: 4-Bolt, 1-Key
Flange: 8-Bolt
Weight: 93 lbs.		 3903827, 3907803, 3929036, J908031, J918323
5733N $656.78 6-590
6T-590		 Stroke: 4.724” (119.99mm)
Rod Ø: 2.7160-2.7170” (68.986-69.012mm)
Main Ø: 3.2672-3.2682” (82.987-83.012mm)
Neck: 4-Bolt, 1-Key
Flange: Flat, 8-Bolt
Weight: 128 lbs.

3907804, 3929037, 3907604, 3908032

Not compatible with applications using bolt-on crankshaft speed sensor.
6730N $0.00 D414
DT414		 Stroke: 4.750” (120.65mm)
Rod Ø: 2.9977-2.9990” (76.142-76.175mm)
Main Ø: 3.3742-3.3755” (85.705-85.738mm)
Neck: Straight, 3-Bolt, 1-Key
Flange: 8-Bolt
Weight: 200 lbs.		 675050C1, 675668C92
6731N $1,746.75 D436
DT436		 Stroke: 5.004” (128.016mm)
Rod Ø: 2.9977-2.9990” (76.142-76.175mm)
Main Ø: 3.3742-3.3755” (85.705-85.738mm)
Neck: Straight, 3-Bolt, 1-Key
Flange: 8-Bolt
Weight: 180 lbs.		 675051C1, 675663C92
6732N $1,753.74 Navistar
D466
DT466
DT466B
DT466C		 Stroke: 5.350” (128.499mm)
Rod Ø: 2.9977-2.9990” (76.142-76.175mm)
Main Ø: 3.3742-3.3755” (85.705-85.738mm)
Neck: Straight, 3-Bolt, 1-Key
Flange: 8-Bolt
Weight: 200 lbs.

675669C93, 675591C2, 1816975C1, 675591C1, 675591C, 675591C3, 675591C4

For mechanical injection engines up to 1994. Truck and Agricultural applications.
6736N Navistar
DT466E
DT466NGD		 Stroke: 5.3504” (135.900mm)
Rod Ø: 3.1494-3.1506” (79.995-80.025mm)
Main Ø: 3.5344-3.5356” (89.774-89.804mm)
Neck: Straight, 3-Bolt, 1-Dowel, 1-Key
Flange: Centering Ring, 12-Bolt, 1-Dowel
Weight: 200 lbs.

1830596C91

For New Generation Diesel engines with electronic injection from 1995-2000.
6775N $1,082.99 Navistar
MaxxForce
7.2L		 Stroke: 68.5X2
Rod Ø: 63
Main Ø: 86
Neck: 4 bolt
Flange: 8 Bolt, Lip seal
Weight: 150 lbs.		 7000412C19


Page 30
ISUZU
Part No. | Description

9808N $621.84 | Isuzu®
4JB1

9899N $775.56 | Isuzu®
4HK1

Part No. Engine Specification Replace/ Notes
9810N $621.84 4BD1 Stroke: 4.646” (118.008mm)
Rod Ø: 2.5167-2.5175” (63.924-63.945mm)
Main Ø: 3.1462-3.1471” (79.913-79.936mm)		 .
9899N $775.56 4HK1 Stroke: 4.9213” (125.000mm)
Rod Ø: 2.5945-2.5953” (65.902-65.922mm)
Main Ø (1,2,4,5): 3.2246-3.2254” (81.905-81.925mm)
Main Ø (3): 3.2241-3.2248” (81.891-81.911mm)
Weight: 89 lbs.		 .
9808N $621.84 4JB1 Stroke: 4.016” (102.006mm)
Rod Ø: 2.0833-2.0839” (52.916-52.931mm)
Main Ø: 2.7526-2.7532” (69.916-69.931mm)		 Intended for use in the 4.239 engines, ESN 769620 and up, with 2.36" (60mm) neck.
9806N $1,069.01 4JB1 Stroke: 4.016” (102.006mm)
Rod Ø: 2.0833-2.0839” (52.916-52.931mm)
Main Ø: 2.7526-2.7532” (69.916-69.931mm)		 .
9806N $1,069.01 5785
6130
6BD1
6BF1		 Stroke: 4.64”
Rod Ø: 2.517”
Main Ø: 3.147”
Neck: Threaded, 1 keyway
Flange: 6 bolts, 1 dowel
Weight: 220 lbs.		 1123104370

Page 31
JOHN DEERE
Part No. Engine Specification Replace/ Notes
7990N $621.84 3TNE84
3TNV84/T
3TNE88
3TNV88		 Stroke: 3.543” (90.000mm)
Rod Ø: 1.8879-1.8883” (47.952-47.962mm)
Main Ø: 2.1240-2.1245” (53.952-53.962mm)
Neck: 1-Bolt, 2-Key
Flange: Flat, 6-Bolt, 1-Dowel
Weight: 30 lbs.		 Y129001-21100
7985N $952.15 3T84
3T90		 Stroke: 3.5433” (91.000mm)
Rod Ø: 2.1240-2.1244” (53.95-53.96mm)
Main Ø: 2.7540-2.7550” (69.951-69.977mm)
Neck: Stepped, 2 keyWays, 1 Bolt
Flange: Flat Seal, 6 Bolt, 1 Dowel
Weight: 49 lbs.		 721250-21700. CS-384, CH10676, CH20055
7935N $909.91 78
3T80		 Stroke: 3.346” (84.999mm)
Rod Ø: 1.9665-1.9669” (49.949-49.959mm)
Main Ø: 2.7539-2.7543” (69.949-69.959mm)
Weight: 34 lbs.		 3T80, 721150-21700, CH10659
7994N $1,069.01 4TNE84/T
4TNV84/T
4TNE88
4TNV88		 Stroke: 3.543” (90.000mm)
Rod Ø: 1.8879-1.8883” (47.952-47.962mm)
Main Ø: 2.1240-2.1245” (53.952-53.962mm)
Neck: Straight, 1-Bolt, 2-Key
Flange: Flat, 6-Bolt, 1-Dowel
Weight: 35 lbs.

Y129407-21000, AM881224, AM878619

Intended for use in non-balanced applications. Crankshaft not designed to accept balancer gear.
6833N $668.53 3.152
3.164
3.179D
3029D
3.179T
3029T		 Stroke: 4.328” (109.931mm)
Rod Ø: 2.7480-2.7490” (69.799-69.825mm)
Main Ø: 3.1230-3.1240” (79.324-79.35mm)
Neck: 1-Bolt, 1-Key
Flange: 4-Bolt, 1-Dowel
Weight: 75 lbs.

AT18031, T23516, T20031, RE46896

Intended for use in the 3029 liter designated engine series. Not the 2.9L PowerTech™ engine series
6826N $621.84 4.202
4.219
4.239D
4.239T		 Stroke: 4.330” (109.982mm)
Rod Ø: 2.7480-2.7490” (69.799-69.825mm)
Main Ø: 3.1236-3.1244” (79.339-79.36mm)
Neck: 1-Bolt, 1-Key, OAL: 1.42” (36mm)
Flange: 4-Bolt, 1-Dowel
Weight: 98 lbs.

AT18030, R23517, R81959, R94644, RE48748

Intended for use in the 4.239 engines, ESN up to 769619, with 1.42" (36mm) neck.
6851N $668.53 4.239D
4039D
4.239T
4039T		 Stroke: 4.330” (109.982mm)
Rod Ø: 2.7480-2.7490” (69.799-69.825mm)
Main Ø: 3.1236-3.1244” (79.339-79.36mm)
Neck: 1-Bolt, 1-Key, OAL: 2.36” (60mm)
Flange: 4-Bolt, 1-Dowel
Weight: 101 lbs.

R23909, R97926, R97928, R121018, R81959, R979266, RE20585, RE65224

Intended for use in the 4.239 engines, ESN 769620 and up, with 2.36" (60mm) neck.
6813N $621.84 4.276D
4045D
4.276T
4045T		 Stroke: 5.000” (127mm)
Rod Ø: 3.0630-3.0640” (77.8-77.826mm)
Main Ø: 3.1229-3.1240” (79.324-79.350mm)
Neck: 1-Bolt, OAL: 1.42” (36mm)
Flange: 4-Bolt, 1-Dowel
Weight: 113 lbs.

RE56792, RE71439, R54501

Intended for engines with 1.42" (36mm) neck.Intended for use in the 4045 liter designated engine series. Not the 4.5L PowerTech™ engine series.

Page 32
JOHN DEERE

Part No. Engine Specification Replace/ Notes
6852N $621.84 4.276D
4045D
4.276T
4045T		 Stroke: 5.000” (127mm)
Rod Ø: 3.0630-3.0640” (77.8-77.826mm)
Main Ø: 3.1229-3.1240” (79.324-79.350mm)
Neck: 1-Bolt, OAL: 2.36” (60mm)
Flange: 4-Bolt, 1-Dowel
Weight: 113 lbs.

RE54883, RE33485, R90825, R120009

Intended for engines with 2.36" (60mm) neck.Intended for use in the 4045 liter designated engine series. Not the 4.5L PowerTech™ engine series.
6837N $712.67 6.303
6.329
6.359D
6059D
6.359T
6059T		 Stroke: 4.330” (109.982mm)
Rod Ø: 2.7480-2.7490” (69.799-69.825mm)
Main Ø: 3.1236-3.1244” (79.339-79.36mm)
Neck: 1-Bolt, 1-Key
Flange: 4-Bolt, 1-Dowel
Weight: 122 lbs.		 AT22562, R108568, T23266, R108679, R45541,RE502190
6820N $957.22 6.414D
6068D
6.414T
6068T		 Stroke: 5.000” (127mm)
Rod Ø: 3.0630-3.0640” (77.8-77.826mm)
Main Ø: 3.1229-3.1240” (79.324-79.350mm)
Neck: 1-Bolt
Flange: 4-Bolt, 1-Dowel
Weight: 121 lbs.

RE45517, R54619, RE33687, RE502191

Intended for use in the 6068 liter designated engine series. Not the 6.8L PowerTech™ engine series.
6809N $1,842.65 4.254
4.270		 Stroke: 4.750” (120.65mm)
Rod Ø: 2.9980-2.9990” (76.149-76.175mm)
Main Ø: 3.3715-3.3725” (85.636-85.662mm)
Neck: 1-Bolt, 1-Key
Flange: Flat, 4-Bolt, 2-Dowel
Weight: 125 lbs.

AR26428, R40570, R26540

Verify flange confi guration when ordering.Intended for use in the 4.270 engines, ESN up to 280000. Balancer drive gear included.
6841N $2,322.15 4.270 Stroke: 4.750” (120.65mm)
Rod Ø: 2.9980-2.9990” (76.149-76.175mm)
Main Ø: 3.3715-3.3725” (85.636-85.662mm)
Neck: 1-Bolt, 1-Key
Flange: Centering Ring, 4-Bolt, 1-Dowel
Weight: 125 lbs.

AR40485, R40570, R46498

Verify flange confi guration when ordering.Intended for use in the 4.270 engines, ESN 280001 and up. Balancer drive gear included.
6822N $1,600.02 6.381
6.404D		 Stroke: 4.750” (120.65mm)
Rod Ø: 2.9980-2.9990” (76.149-76.175mm)
Main Ø: 3.3715-3.3725” (85.636-85.662mm)
Neck: 1-Bolt
Flange: Flat, 4-Bolt, 1-Dowel
Weight: 160 lbs.

RE42674, AR26431, R26560, RE63292

Intended for use in the 6.404 engine, ESN up to 214999. Includes oil pump drive gear.
6823N $1,641.95 6.404D
6.404T
6.404A
6.466D
6.466T
6.466A
6076 Series		 Stroke: 4.750” (120.65mm)
Rod Ø: 2.9980-2.9990” (76.149-76.175mm)
Main Ø: 3.3715-3.3725” (85.636-85.662mm)
Neck: 1-Bolt, 2-Key
Flange: Centering Ring, 6-Bolt, 1-Dowel
Weight: 160 lbs.

AR96189, R26540, R26560, R56919, R56934, RE63451, RE53422

Intended for use in the 6.404 engine, ESN 215000 and up.Intended for use in the 6076 engine, ESN up to 187657.

Page 33
JOHN DEERE
Part No. Engine Specification Replace/ Notes
6823N $1,641.95
6.466D
6.466T
6.466A
6076 Series		 Stroke: 4.750” (120.65mm)
Rod Ø: 2.9980-2.9990” (76.149-76.175mm)
Main Ø: 3.3715-3.3725” (85.636-85.662mm)
Neck: 1-Bolt, 2-Key
Flange: Centering Ring, 6-Bolt, 1-Dowel
Weight: 160 lbs.

AR96189, R26540, R26560, R56919, R56934, RE63451, RE53422

Intended for use in the 6076 engine, ESN up to 187657.
6855N $1,739.90 6076T
6076A
6076H		 Stroke: 4.750” (120.65mm)
Rod Ø: 2.9980-2.9990” (76.149-76.175mm)
Main Ø: 3.3720-3.3730” (85.649-85.674mm)
Neck: 1-Bolt, 2-Key OAL: 3.4” (86.36mm)
Flange: Centering Ring, 6-Bolt, 1-Dowel
Weight: 167 lbs.

RE53201, R104855, RE42671, RE63293

Intended for use in the 6076 engine, ESN 187658 and up.Neck is 3.4" (86.36mm) from shoulder of the first main. Includes oil pump drive gear.
6857N $1,596.05 6076T
6076A
6076H		 Stroke: 4.750” (120.65mm)
Rod Ø: 2.9980-2.9990” (76.149-76.175mm)
Main Ø: 3.3720-3.3730” (85.649-85.674mm)
Neck: 1-Bolt, 2-Key, OAL: 3” (76.2mm)
Flange: Centering Ring, 6-Bolt, 1-Dowel
Weight: 167 lbs.

RG23551, RE53199

Intended for use in the 6076 engine, ESN 187658 and up.Neck is 3" (76.2mm) from shoulder of the first main. Includes oil pump drive gear.
6821N $2,397.50 6.619A
6.619T
6.101A
6.101T
6.531D
6.531T
6.531A		 Stroke: 5.000” (127.000mm)
Rod Ø: 3.4980-3.4990” (88.849-88.875mm)
Main Ø: 3.7480-3.7490” (95.199-95.225mm)
Neck: 1-Bolt
Flange: 6-Bolt, 2-Dowel
Weight: 265 lbs.		 AR92533, AR36350, AR47403, AR69264, AR78403, R36350, R57730, R63476, R63478
6897N $668.53 PowerTech
3029
2.9L		 Stroke: 4.328” (109.931mm)
Rod Ø: 2.7480-2.7490” (69.799-69.825mm)
Main Ø: 3.1230-3.1240” (79.324-79.35mm)
Neck: 1-Bolt, 1-Key
Flange: 4-Bolt, 1-Dowel
Weight: 74 lbs.

RE50979 R101223, RE521348

Intended for use in the 3029 2.9L PowerTech™ engine series
6858N $803.51 PowerTech
4045
4.5L		 Stroke: 5.000” (127mm)
Rod Ø: 3.0630-3.0640” (77.8-77.826mm)
Main Ø: 3.1229-3.1240” (79.324-79.350mm)
Neck: Straight, Single Step, 4-Bolt, 1-Dowel
Flange: 4-Bolt, 1-Dowel
Weight: 107 lbs.

RE504638, RE50618, R113596

Single step, straight nose (FIG # 3).Intended for use in the 4045 4.5L PowerTech™ engine series.
6861N $924.72 PowerTech
4045
4.5L		 Stroke: 5.000” (127mm)
Rod Ø: 3.0630-3.0640” (77.8-77.826mm)
Main Ø: 3.1229-3.1240” (79.324-79.350mm)
Neck: Straight, Double Step, 4-Bolt, 1-Dowel
Flange: 4-Bolt, 1-Dowel
Weight: 107 lbs.

R113596

Double step, straight nose (FIG # 2).Intended for use in the 4045 4.5L PowerTech™ engine series.
6862N $924.72 PowerTech
404
54.5L		 Stroke: 5.000” (127mm)
Rod Ø: 3.0630-3.0640” (77.8-77.826mm)
Main Ø: 3.1229-3.1240” (79.324-79.350mm)
Neck: Tapered, 1-Bolt, 1-Dowel
Flange: 4-Bolt, 1-Dowel
Weight: 107 lbs.

RE506195, R503715

Tapered nose. (FIG # 1) Intended for use in the 4045 4.5L PowerTech™ engine series.

Page 34
JOHN DEERE
Part No. | Description

6897N $668.53 | John Deere®
3029, 2.9D, 2.9T

6826N $621.84 | John Deere®
4.202, 4.219, 4.239D, 4.239T

Part No. Engine Specification Replace/ Notes
6859N $1,069.01 PowerTech
6068
6.8L		 Stroke: 5.000” (127mm)
Rod Ø: 3.0630-3.0640” (77.8-77.826mm)
Main Ø: 3.1229-3.1240” (79.324-79.350mm)
Neck: Straight, Double Step, 4-Bolt, 1-Dowel
Flange: 6-Bolt, 1-Dowel
Weight: 150 lbs.

R116076, RE504639, RE515785

Straight nose. (FIG # 2)Intended for use in the 6068 6.8L PowerTech™ engine series.
6860N $1,069.01 PowerTech
6068
6.8L		 Stroke: 5.000” (127mm)
Rod Ø: 3.0630-3.0640” (77.8-77.826mm)
Main Ø: 3.1229-3.1240” (79.324-79.350mm)
Neck: Tapered, 1-Bolt, 1-Key
Flange: 6-Bolt, 1-Dowel
Weight: 150 lbs.

RE505921, R503470

Tapered nose. (FIG # 1)Intended for use in the 6068 6.8L PowerTech™ engine series
6869N $2,020.75 PowerTech
6081 Series
8.1L		 Stroke: 5.059” (127.000mm)
Rod Ø: 2.9980-2.9990” (76.149-76.175mm)
Main Ø: 3.7480-3.7491” (95.199-95.227mm)
Neck: Straight, 1-Bolt, 2-Key
Flange: Centering Ring, 6-Bolt, 1-Dowel
Weight: 165 lbs.

RE535300, RE55522, R35502, RE530437

For engines with high-pressure common rail fuel systems.Intended for use in the 6081 8.1L PowerTech™ engine series, ESN 142157 and up.Both gears are straight-tooth.
6899N $2,026.23 PowerTech
6081 Series
8.1L		 Stroke: 5.059” (127.000mm)
Rod Ø: 2.9980-2.9990” (76.149-76.175mm)
Main Ø: 3.7480-3.7491” (95.199-95.227mm)
Neck: Straight, 1-Bolt, 2-Key
Flange: Centering Ring, 6-Bolt, 1-Dowel
Weight: 165 lbs.

RE534314

DO NOT use in engines with high-pressure common rail fuel systems.Intended for use in the 6081 8.1L PowerTech™ engine series, ESN up to 142156.Both gears are helical tooth.
6890N $3,458.57 PowerTech
6090 Series
9.0L		 Stroke: 5.059” (127.000mm)
Rod Ø: 2.9980-2.9990” (76.149-76.175mm)
Main Ø: 3.7480-3.7491” (95.199-95.227mm)
Flange: 6-Bolt, 1-Dowel
Weight: 225 lbs.

RE540429, R526075

Intended for use in the 6090 9.0L PowerTech™ engine series.
6891N $3,458.57 PowerTech
6090 Series
9.0L		 Stroke: 5.059” (127.000mm)
Rod Ø: 2.9980-2.9990” (76.149-76.175mm)
Main Ø: 3.7480-3.7491” (95.199-95.227mm)
Flange: 10-Bolt, 1-Dowel
Weight: 225 lbs.

RE548603, R525587, RE533517

Intended for use in the 6090 9.0L PowerTech™ engine series.

Page 35
KOMATSU
Part No. Engine Specification Replace/ Notes
6999N $1,226.15 4D95
S4D95
S4D95L		 Stroke: Variable, see REPLACES section for options
Rod Ø: 2.2441-2.2447” (57.000-57.015mm)
Main Ø: 2.7559-2.7565” (70.000-70.015mm)
Neck: 1-Bolt
Flange: 6-Bolt, 1-Dowel
Weight: 56 lbs.

6207-31-1201

Stroke: 3.7401" (95.00mm)
6998N $950.75 4D95
S4D95
S4D95L		 Stroke: Variable, see REPLACES section for options
Rod Ø: 2.2441-2.2447” (57.000-57.015mm)
Main Ø: 2.7559-2.7565” (70.000-70.015mm)
Neck: 1-Bolt
Flange: 6-Bolt, 1-Dowel
Weight: 56 lbs.

6204-31-1110, 6204-31-1200

Stroke: 4.5276" (115.00mm)
5734N $544.99 4D102 Stroke: 4.724” (119.99mm)
Rod Ø: 2.7160-2.7170” (68.966-69.012mm)
Main Ø: 3.2672-3.2682” (82.987-83.012mm)
Neck: 4-Bolt, 1-Key
Flange: 8-Bolt
Weight: 93 lbs.		 3903827, 3907803, 3929036, 3908031, J908031,J918323, 9P902418
6901N $1,593.76 4D120
4D130		 Stroke: 6.299” (159.995mm)
Rod Ø: 2.9505-2.9515” (74.943-74.968mm)
Main Ø: 3.7370-3.7380” (94.920-94.945mm)
Weight: 190 lbs.		 6110-33-1112, 6115-31-1110
6908N $1,375.45 6D95
S6D95		 Stroke: 4.5276” (115.00mm)
Rod Ø: 2.2441-2.2447” (57.000-57.015mm)
Main Ø: 2.7559-2.7565” (70.000-70.015mm)
Neck: 1-Bolt, 1-Key
Flange: Flat, 6-Bolt, 1-Dowel
Weight: 105 lbs.

6206-31-1110, 6207-31-1110, 6207-31-1100

Only for engines with stroke: 4.5276" (115.00mm)
5733N $656.78 6D102 Stroke: 4.724” (119.99mm)
Rod Ø: 2.7160-2.7170” (68.986-69.012mm)
Main Ø: 3.2672-3.2682” (82.987-83.012mm)
Neck: 4-Bolt, 1-Key
Flange: 8-Bolt
Weight: 128 lbs.

3907804, 3929037, 3907604, 3908032

Not compatible with applications using bolt-on sensor.
6902N $1,369.45 6D105
S6D105		 Stroke: 4.921” (124.993mm)
Rod Ø: 2.5957-2.5965” (65.931-65.951mm)
Main Ø: 3.3426-3.3445” (84.902-84.95mm)
Neck: 1-Bolt, 1-Key
Flange: Flat, 6-Bolt
Weight: 148 lbs.		 6136-31-1110, 6138-31-1110
6996N $2,188.53 6D110 Stroke: 4.921” (124.993mm)
Rod Ø: 2.5957-2.5964” (65.931-65.949mm)
Main Ø: 3.3437-3.3445” (84.93-84.95mm)
Weight: 150 lbs.		 6138-31-1010

Page 36
KOMATSU
Part No. Engine Specification Replace/
Notes
6912N $1,465.87 6D108 Stroke: 5.1181” (130.000mm)
Rod Ø: 2.7533-2.7539” (69.935-69.950mm)
Main Ø: 3.7376-3.7382” (94.935-94.950mm)
Weight: 165 lbs.		 6222-31-1110
5735N $971.19 6D114 Stroke: 5.3150” (135.001mm)
Rod Ø: 2.9916-2.9926” (75.987-76.012mm)
Main Ø: 3.8568-3.8588” (97.963-98.014mm)
Neck: Straight, 4-Bolt, 1-Key
Flange: 8-Bolt, 1-Dowel
Weight: 174 lbs.

3917320, 3917443 3918986, 390562, 3914584, 728533

Left-hand helical,
42-tooth front gear.
6909N $1,735.76 S6D125 Stroke: 5.905” (149.987mm)
Rod Ø: 3.1468-3.1476” (79.930-79.950mm)
Main Ø: 4.3279-4.3287” (109.930-109.950mm)
Weight: 275 lbs.		 6151-31-1110
6905N $3,248.96 6D140 Stroke: 6.490” (149.987mm)
Rod Ø: 3.5406-3.5413” (89.931-89.949mm)
Main Ø: 4.7217-4.7224” (119.931-119.949mm)
Weight: 345 lbs.		 6211-31-1010
6900N $5,799.21 6D155 Stroke: 6.693” (170.00mm)
Rod Ø: 3.8583” (98.00mm)
Main Ø: 4.1732” (106.00mm)
Weight: 540 lbs.		 6127-31-1012, 6127-31-1011, 6127-31-1114
6907N $9,152.97 6D170 Stroke: 6.693” (170.00mm)
Rod Ø: 4.2512-4.2520” (107.98-108.001mm)
Main Ø: 5.5108-5.5118” (139.974-140.00mm)
Weight: 560 lbs.		 6162-33-1131, 6162-33-1402
6920N $8,279.60 S6D170 Stroke: 6.693” (170.00mm)
Rod Ø: 4.2512-4.2520” (107.98-108.001mm)
Main Ø: 5.5108-5.5118” (139.974-140.00mm)
Weight: 560 lbs.		 6162-33-1201, 6162-33-1202
6921N $7,685.70 SAA6D170 Stroke: 6.693” (170.00mm)
Rod Ø: 4.2511-4.2520” (107.978-108.000mm)
Main Ø: 5.5108-5.5118” (139.975-140.000mm)
Weight: 560 lbs.		 6240-31-1101, 6240-31-1301
6922N $8,943.36 SAA6D170E-5 Stroke: 6.693” (170.00mm)
Rod Ø: 4.2512-4.2520” (107.98-108.001mm)
Main Ø: 5.5108-5.5118” (139.974-140.00mm)
Weight: 560 lbs.		 6245-31-1100, 6245-31-13

Page 37
KUBOTA
Part No. Engine Specification Replace/ Notes
7544N $668.53 D1301 Stroke: 3.230” (82.042mm)
Rod Ø: 1.7307-1.7313” (43.96-43.975mm)
Main Ø: 2.0441-2.0449” (51.92-51.94mm)		 1532-23010
7545N $834.30 V1903
V2003		 Stroke: 3.638” (92.405mm)
Rod Ø: 1.8488-1.8494” (46.96-46.975mm)
Main Ø: 2.0441-2.0449” (51.92-51.94mm)		 17116-2301

MACK
7005N $1,774.15 E6-Series Stroke: 6.000” (152.40mm)
Rod Ø: 2.9970-2.9990” (76.124-76.175mm)
Main Ø: 3.9980-3.9990” (101.549-101.575mm)
Weight: 251 lbs.		 456GC5113, 456GCF586
7021N $0.00 E7-Series Stroke: 6.500” (165.1mm)
Rod Ø: 3.2470-3.2480” (82.474-82.499mm)
Main Ø: 4.4966-4.4974” (114.214-114.234mm)
Neck: Straight, 1-Bolt
Flange: Flat, 6-Bolt, 1-Dowel
Weight: 290 lbs.		 456CFG5128, 456CFG5137
7025N MP8 Stroke: 6.220” (158.00mm)
Rod Ø: 3.8976” (99.00mm)
Main Ø: 4.2511-4.2520” (107.978-108.000mm)		 20486222

MITSUBISHI
5456N $1,548.07 S4K Stroke: 5.118” (129.997mm)
Rod Ø: 2.3600-2.3608” (59.944-59.964mm)
Main Ø: 3.5410-.5420” (89.941-89.967mm)
Neck: Threaded, 2-Key
Flange: Flat, 6-Bolt, 2-Dowel
Weight: 95 lbs.

5I7844, 5I5610, 5I5611, 135-2419

NOTE: Helical style gear.
5410N4 S4S Stroke: 4.7244” (120.00mm)
Rod Ø: 2.2817-2.2823” (57.955-57.970mm)
Main Ø: 3.0691-3.0697” (77.955-77.970mm)
Neck: Threaded, 1-Key
Flange: Lip Seal, 4-Bolt & 6-Bolt Available
Weight: 68 lbs.

32A20-00010

4-Bolt rear flange
5410N6 S4S Stroke: 4.7244” (120.00mm)
Rod Ø: 2.2817-2.2823” (57.955-57.970mm)
Main Ø: 3.0691-3.0697” (77.955-77.970mm)
Neck: Threaded, 1-Key
Flange: Lip Seal, 4-Bolt & 6-Bolt Available
Weight: 68 lbs.

32A20-00010

6-Bolt rear flange
5411N $3,458.57 S6S Stroke: 4.7244” (120.00mm)
Rod Ø: 2.2817-2.2823” (57.955-57.970mm)
Main Ø: 3.0691-3.0697” (77.955-77.970mm)
Neck: Threaded, 2-Key
Flange: 6-Bolt, 2-Dowel
Weight: 125 lbs.		 32B20-10010, 107-0922
8882N $0.00 0.00 S12R Stroke: 90X2
Rod Ø: 125mm
Main Ø: 170mm
Weight: 1037 lbs.

38E20-0010, 37720-10011, 37720-10012, 37720-10013, 37720-10V96, 37720-101V3

Special Order
8884N $0.00 S16R Stroke: 4.7244” (120.00mm)
Rod Ø: 2.2817-2.2823” (57.955-57.970mm)
Main Ø: 3.0691-3.0697” (77.955-77.970mm)
Weight: 1257 lbs.

38F20-00101, 37820-10011, 37820-20010, 37820-20013

Special Order

Page 38
PERKINS
Part No. Engine Specification Replace/ Notes
7406N $398.26 4.99
4.107
4.108		 Stroke: 3.500” (88.900mm)
Rod Ø: 1.9993-2.0001” (79.930-79.950mm)
Main Ø, Front & Center: 2.2480-2.2485” (57.099-57.112mm)
Main Ø, Rear: 2.2475-2.2480” (57.087-57.099mm)
Neck: 1-Bolt, 2-Key
Flange: Flat, 5-Bolt, Rope Seal
Weight: 46 lbs.

31315824, 84417, U5BG0056, ZZ90022, ZZ90124, ZZ90160

2 key neck, Rope sealNOTE: Flange has minimum size pilot opening. Can bemachined out to accomodate various applications.
7404N $321.40 3.152 Stroke: 5.000” (127.000mm)
Rod Ø: 2.2484-2.2492” (57.109-57.13mm)
Main Ø: 2.7485-2.7493” (69.812-69.832mm)
Neck: Keyed, 1-Bolt
Flange: Flat, 6-Bolt, 1-Dowel, Rope Seal
Weight: 52 lbs.

026005M1, 735287M91, 736532M91, 3637454M91, 31312419, 84402, 31312436, 31312441 SD260034, 31312700, 467, 82892, U5BG0031, ZZ90148, ZZ90084, ZZ90116

Keyed neck, rope seal.Bolt-on counterweights (not included).
7424N $1,090.49 3.152 Stroke: 5.000” (127.000mm)
Rod Ø: 2.2484-2.2492” (57.109-57.13mm)
Main Ø: 2.7485-2.7493” (69.812-69.832mm)
Neck: Splined, 1-Bolt, 1-Key, 3.400” (86.36mm) OAL
Flange: Flat, 6-Bolt, 1-Dowel, Rope Seal
Weight: 52 lbs.

31312437, 84399

Splined neck Rope sealNeck OAL: 3.400" (86.36mm), Keyway: 1.24" (31.496mm).
7418N $398.26 3.152 Stroke: 5.000” (127.000mm)
Rod Ø: 2.2484-2.2492” (57.109-57.13mm)
Main Ø: 2.7485-2.7493” (69.812-69.832mm)
Neck: Keyed, 1-Bolt
Flange: Flat, 6-Bolt, 1-Dowel, Lip Seal
Weight: 52 lbs.		 3637410M91, 637399M91, 026053M, 31312701, 94464, 31312707, 31315135, 94458, U5BG0027, ZZ90078, ZZ90150, ZZ90122Keyed neck, lip seal.Bolt-on counterweights (not included).
7405N $582.22 4.203 Stroke: 5.000” (127.000mm)
Rod Ø: 2.2480-2.2490” (57.099-57.125mm)
Main Ø: 2.7480-2.7490” (69.799-69.825mm)
Neck: 1-Bolt, 1-Key
Flange: Flat, 6-Bolt, 1-Dowel, Rope Seal
Weight: 55 lbs.

026008M1, 3638473M91, 3637399M91, 736186M1, 736186M1, 736187M01, 736187M91, 736534M91, 737309M91, 742742M91, 31315135, 31315138, 31315145, 31315148, 31315167, 31315127, 31315184, 31315144, 83426, 84407, 85811, 92484, 92485, U5BG0017, U5BG0028, ZZ90121

Keyed neck, rope seal.
7420N $428.78 4.203 Stroke: 5.000” (127.000mm)
Rod Ø: 2.2480-2.2490” (57.099-57.125mm)
Main Ø: 2.7480-2.7490” (69.799-69.825mm)
Neck: Splined
Flange: Rope Seal
Weight: 55 lbs.

742682M91, 94435, ZZ90119

Splined neck, rope seal.
7426N $449.58 4.203 Stroke: 5.000” (127.000mm)
Rod Ø: 2.2480-2.2490” (57.099-57.125mm)
Main Ø: 2.7480-2.7490” (69.799-69.825mm)
Neck: 1-Bolt, 1-Key
Flange: Flat, 6-Bolt, 1-Dowel, Lip Seal
Weight: 55 lbs.

026032M1, 3637458M91, 742344M91, 31315182, 31315184, 94441, 94454, 94455, 026033, Z90111

Keyed neck, lip seal.
7414N $894.58 4.203 Stroke: 5.000” (127.000mm)
Rod Ø: 2.2480-2.2490” (57.099-57.125mm)
Main Ø: 2.7480-2.7490” (69.799-69.825mm)
Neck: Splined, 1-Bolt, 1-Key
Flange: Flat, 6-Bolt, 1-Dowel, Lip Seal
Weight: 55 lbs.

31315181

Splined neck, lip seal.

Page 39
PERKINS
Part No. Engine Specification Replace/ Notes
7412N $621.84 4.212 Stroke: 4.500” (114.3mm)
Rod Ø: 2.4990-2.4995” (63.475-63.487mm)
Main Ø: 2.9985-2.9990” (76.162-76.175mm)
Neck: Splined, 1-Key
Flange: Rope Seal
Weight: 60 lbs.

737189M91, 737982M91, 3637457M91, 85719, 85814, ZZ90076, ZZ90100

Splined neck, rope seal.
7413N $678.15 4.212 Stroke: 4.500” (114.3mm)
Rod Ø: 2.4990-2.4995” (63.475-63.487mm)
Main Ø: 2.9985-2.9990” (76.162-76.175mm)
Neck: Splined, 1-Key
Flange: Lip Seal
Weight: 60 lbs.

3637453M91, 742873M91, 94430, ZZ90077

Splined neck, lip seal.
7408N $621.84 4.236
4.248		 Stroke: 5.000” (127.000mm)
Rod Ø: 2.4988-2.4996” (63.47-63.49mm)
Main Ø: 2.9984-2.9992” (76.159-76.18mm)
Neck: Splined, 1-Bolt, 1-Key
Flange: Flat, 6-Bolt, 1-Dowel, Rope Seal
Weight: 75 lbs.

736829M91, 3637789M91, 3639541M1, 31315911, 31315921, 31315912, 31315881, 31315884, 68050, 84422, 85721, 84421, U5BG0054, ZZ90093

Splined neck, rope seal.Crankshaft is non-counter- weighted. See 7408CW for counterweighted.
7408NCW 4.236
4.248		 Stroke: 5.000” (127.000mm)
Rod Ø: 2.4988-2.4996” (63.47-63.49mm)
Main Ø: 2.9984-2.9992” (76.159-76.18mm)
Neck: Splined, 1-Bolt, 1-Key
Flange: Flat, 6-Bolt, 1-Dowel, Rope Seal
Weight: 75 lbs.

3637789M91, 3639541M1, 7340893M1, 736946M91, 736829M91, 738226M91, 31315911, 31315912, 31315921, 31315881, 31315884, 84422, 85721, 84421, 68050, U5BG0054, ZZ90093

Splined neck, rope seal.Crankshaft is counterweighted. See 7408N $621.84 for non-counter- weighted
7416N6 4.236
4.248		 Stroke: 5.000” (127.000mm)
Rod Ø: 2.4988-2.4996” (63.47-63.49mm)
Main Ø: 2.9984-2.9992” (76.159-76.18mm)
Neck: Splined, 1-Bolt, 1-Key
Flange: 6-Bolt, 1-Dowel, Lip Seal
Weight: 75 lbs.

73629M91, 31315631, 31315641, 31315664, 31315871, 26042, 85821, 94433, 94434, U5BG0052, ZZ90122,

1-Bolt splined neck, lip seal, 6 bolt flange.For 12 bolt see 7416N12.
7416N12 4.2364.248 Stroke: 5.000” (127.000mm)
Rod Ø: 2.4988-2.4996” (63.47-63.49mm)
Main Ø: 2.9984-2.9992” (76.159-76.18mm)
Neck: Splined, 1-Bolt, 1-Key
Flange: 12-Bolt, 1-Dowel, Lip Seal
Weight: 75 lbs.

73629M91, 31315631, 31315641, 31315664, 31315870, 31315980, 31315871, U5BG0052, 26042, 85821, 94433, 94434, ZZ90122

1-Bolt splined neck, lip seal, 12-bolt flange.For 6 bolt see 7416N6
7429N6 4.236
4.248
1004.40 Series
Phaser
90 Series		 Stroke: 5.000” (127.000mm)
Rod Ø: 2.4988-2.4996” (63.47-63.49mm
Main Ø: 2.9984-2.9992” (76.159-76.18mm)
Neck: Splined, 3-Bolt, 1-Key
Flange: 6-Bolt, 1-Dowel, Lip Seal
Weight: 75 lbs..

741747M1, 3637401M91, 31315870, 31315980, 31315981, 31315982, 31315991, 94435, 94436, U5BG0024, ZZ90119, ZZ90202, ZZ90082, ZZ90081, ZZ90143

3-Bolt splined neck, lip seal, 6-bolt flange.For 10 bolt see 7429N10. For 12 bolt see 7429N12
7429N10 4.236
4.248
1004.40 Series
Phaser
90 Series		 Stroke: 5.000” (127.000mm)
Rod Ø: 2.4988-2.4996” (63.47-63.49mm)
Main Ø: 2.9984-2.9992” (76.159-76.18mm)
Neck: Splined, 3-Bolt, 1-Key
Flange: 10-Bolt, 1-Dowel, Lip Seal
Weight: 75 lbs.

3637401M91, 741747M1, 31315870, 31315980, 31315981, 31315982, 31315991, 94435, 94436, ZZ90082, U5BG0024, ZZ90081, ZZ90143, ZZ90119, ZZ90202

3-Bolt splined neck, lip seal, 10-bolt flange.For 6 bolt see 7429N6. For 12 bolt see 7429N12

Page 40
PERKINS
Part No. Engine Specification Replace/ Notes
7429N12 4.236
4.248
1004.40 Series
Phaser		 Stroke: 5.000” (127.000mm)
Rod Ø: 2.4988-2.4996” (63.47-63.49mm)
Main Ø: 2.9984-2.9992” (76.159-76.18mm)
Neck: Splined, 3-Bolt, 1-Key
Flange: 12-Bolt, 1-Dowel, Lip Seal
Weight: 75 lbs.

3637401M91, 741747M1, 31315870, 31315980, 31315981, 31315982, 31315991, 94435, 94436, U5BG0024, ZZ90082, ZZ90081, ZZ90143, ZZ90119, ZZ90202

3-Bolt splined neck, lip seal, 12-bolt flange.For 6 bolt see 7429N6. For 10 bolt see 7429N10.
7430N $668.53 1004 Stroke: 5.00”
Rod Ø: 2.4986-2.4994”
Main Ø: 2.9982-2.9990”
Neck: splined, 3 bolt holes
Flange: lip seal 10 bolt 1 dowel
Weight: 98 lbs.

ZZ90222

Splined neck, lip seal.
7407N $894.58 6.354.2 Stroke: 5.000” (127.000mm)
Rod Ø: 2.4988-2.4996” (63.47-63.49mm)
Main Ø: 2.9984-2.9992” (76.159-76.18mm)
Neck: Splined, 1-Bolt, 1-Key
Flange: Flat, 12-Bolt, Rope Seal
Weight: 98 lbs..

742150M1, 736902M1, 31322317, 31325016, 31322301, 31325019, 31322302, 31325022, 31322321, 31325023, 31322322, 31325025, 31322351, 31325028, 31322421, 31325036, 31323202, 31325042, 31323207, 31323251, 31322361, 31322363, 31322364, 68063, 85727, U5BG0045, ZZ90089

Splined neck, rope seal.
7402N $698.67 6.354.2 Stroke: 5.000” (127.000mm)
Rod Ø: 2.4988-2.4996” (63.47-63.49mm)
Main Ø: 2.9984-2.9992” (76.159-76.18mm)
Neck: Splined, 1-Bolt, 1-Key
Flange: Flat, 12-Bolt, 1-Dowel, Lip Seal
Weight: 98 lbs.

742160M1, 742161M1, 31323261, 31323262, 94443, 94460, 94468, U5BG0048, ZZ90090

Splined neck, lip seal.
7499N $0.00 6.354.4 Stroke: 5.000”
Rod Ø: 2.4988-2.4996”
Main Ø: 2.9984-2.9996”
Neck: Stepped, 2 Keyed, 3 bolt
Flange: Rope Seal, 12 bolt
Weight: 97 lbs.

3637408M91, U5BG0037, ZZ90113

Keyed neck, Rope seal
7498N $917.90 6.354.4
A6.354.4
T6.354.4		 Stroke: 5.000” (127.000mm)
Rod Ø: 2.4988-2.4996” (63.47-63.49mm)
Main Ø: 2.9984-2.9992” (76.159-76.18mm)
Neck: Splined, 3-Bolt, 1-Key
Flange: 12-Bolt, Lip Seal
Weight: 98 lbs.

748751M1, 3637404M91, 31314021, 313111021, 68076, ZZ90086, ZZ90113,

Splined neck, lip seal.
7490N $775.56 6.354.4
1006.60 Series
Phaser Series		 Stroke: 5.000” (127.000mm)
Rod Ø: 2.4988-2.4996” (63.47-63.49mm)
Main Ø: 2.9984-2.9992” (76.159-76.18mm)
Neck: 3-Bolt, 1-Key
Flange: 11-Bolt, 1-Dowel, Lip Seal
Weight: 98 lbs.

3637019M91, 3638402M91, U5BG0042, ZZ90085, ZZ90087, ZZ90218

Keyed, 3-bolt neck, lip seal.
7451N $621.84 104.22
404C.22
404C.22T		 Stroke: 3.54331” (90.000mm)
Rod Ø: 2.04582-2.04626” (51.964-51.975mm)
Main Ø: 2.67550-2.67597” (67.957-67.970mm)
Neck: Tapered, Threaded
Flange: Lip Seal
Weight: 78 lbs.

115256750, 115256990, P770, P771

Threaded neck, Lip seal90.00mm Stroke

Page 41
PERKINS
Part No. Engine Specification Replace/ Notes
7452N $1,242.12 104.22
404C.22
404C.22T		 Stroke: 3.9370” (100.000mm)
Rod Ø: 2.04582-2.04626” (51.964-51.975mm)
Main Ø: 2.67550-2.67597” (67.957-67.970mm)
Neck: Tapered, Threaded
Flange: Lip Seal
Weight: 78 lbs.

115256750, 115256990

Threaded neck, Lip seal100.00mm Stroke
7423N 1103-Series Stroke: 5.000” (127.000mm)
Rod Ø: 2.4986-2.4994” (63.466-63.486mm)
Main Ø: 2.9982-2.9990” (76.155-76.176mm)
Neck: Splined, 3-Bolt
Flange: 6-Bolt, 1-Dowel, Lip Seal
Weight: 52 lbs.

4181V017

Splined neck, lip seal.
7495N $668.53 1103 Stroke: 5.000”
Rod Ø: 2.486-2.4994”
Main Ø: 2.9982-2.9990”
Neck: Splied, 3 bolt
Flange: Lip Seal, 6 bolt, 1 pin
Weight: 69 lbs.

4225400M1, 4225301M91, 4225301V91, M4181V017, P4181V017, P771338, H4181V017, 4181V017

Splined neck, lip seal.
7431N10 1104-Srs Stroke: 5.000” (127.000mm)
Rod Ø: 2.4986-2.4994” (63.466-63.486mm)
Main Ø: 2.9982-2.9990” (76.155-76.176mm)
Neck: Splined, 3-Bolt
Flange: 10-Bolt, 1-Dowel, Lip Seal
Weight: 85 lbs.

ZZ90239, ZZ90222

Splined neck, lip seal.
7432N $834.30 1106 Series Stroke: 5.000” (127.000mm)
Rod Ø: 2.4986-2.4994” (63.466-63.486mm)
Main Ø: 2.9982-2.9990” (76.155-76.176mm)
Neck: 3-Bolt, 1-Key
Flange: 10-Bolt, 2-Dowel, Lip Seal
Weight: 98 lbs.

3637019M1, 4225497M1, ZZ90213, ZZ90228

Keyed neck, lip seal

Page 42
Part No. Engine Specification Replace/ Notes
GENERAL MOTORS
1284N $698.70 6.5L Stroke: 3.8189” (97.000mm)
Rod Ø: 2.3982-2.3992” (60.914-60.94mm)
Main Ø: 2.9495-2.9503” (74-917-74.94mm)
Weight: 80 lbs.

23502592

Intended for truck applications 92-02 with 1-piece rear seal. Can be used in turbo and naturally aspirated engines.

MERCEDES BENZ
3001N $1,586.05 OM904 Stroke: 5.1181” (130.000mm)
Rod Ø: 2.7557-2.7565” (69.995-70.015mm)
Main Ø: 3.3854-3.3862” (85.990-86.010mm)
Weight: 100 lbs.		 904.030.1002
8895N $1,041.06 OM602LA Stroke: 3.638” (92.400mm)
Rod Ø: 1.8878-1.8884” (47.950-47.965mm)
Main Ø: 2.2815-2.2821” (57.950-57.965mm)
Neck: Smooth Neck, 1 Bolt, 1 1 Key way
Flange: Lip seal, 6 Bolt Holes, 1 Dowel
Weight: 70 lbs.		 602.031.2501, 602.030.0801

SCANIA
9917N $1,865.53 674 CID
11.0L		 Stroke: 5.709” (145.009mm)
Rod Ø: 3.3162-3.3171” (84.231-84.254mm)
Main Ø: 3.9999-4.00080” (101.597-101.62mm)
Neck: 1-Bolt, 1-Key
Flange: Flat, 8-Bolt, 3-Dowel
Weight: 275 lbs.

A46516, 247-5171, 3122739, 342060, 56163M, A45907

NOTE: Used in Case 2870, 4890, and 4894 Wheel tractors

Page 43
SHIBAURA
7451N $621.84 N844L-C
N844LT-C		 Stroke: 3.54331” (90.000mm)
Rod Ø: 2.04582-2.04626” (51.964-51.975mm)
Main Ø: 2.67550-2.67597” (67.957-67.970mm)
Neck: Tapered, Threaded
Flange: Lip Seal
Weight: 78 lbs.

115256750, 115256990, P770, P771

90.00mm Stroke
7452N $1,242.12 N844L-C
N844LT-C		 Stroke: 3.9370” (100.000mm)
Rod Ø: 2.04582-2.04626” (51.964-51.975mm)
Main Ø: 2.67550-2.67597” (67.957-67.970mm)
Neck: Tapered, Threaded
Flange: Lip Seal
Weight: 78 lbs.

115256990, P770, P771

100.00mm Stroke
1606N $1,020.65 H843 Stroke: 3.310” (84.074 MM)
Rod Ø: 1.8884-1.8888” (47.965-47.976 MM)
Main Ø: 2.6755-2.6760” (67.958-67.970 MM)
Weight: 25 lbs.

83941932, SBA115256260, SBA115256261

Used in New Holland 1710 compact utility tractors.
1574N T853 Stroke: 3.940” (100.076mm)
Rod Ø: 2.3602-2.3610” (59.949-59.969mm)
Main Ø: 2.6750-2.6760” (67.945-67.97mm)
Weight: 44 lbs.

83941938, SBA115256470, SBA115256471

Used in New Holland 1910 compact utility tractors.

STANDARD
6006N $421.93 80mm
85mm
87mm		 Stroke: 3.594” (91.2876mm)
Rod Ø: 2.08” (52.832mm)
Main Ø: 2.488” (63.1952mm)
Neck: Straight, 1-Bolt
Flange: 4-Bolt, 2-Peg
Weight: 40 lbs.		 825216M1, 10801235 TEA20, TED20

VOLVO
8001N $3,248.96 D13 Stroke: 6.220” (158.000mm)
Rod Ø: 3.898” (99.000mm)
Main Ø: 4.2520” (108.000mm)
Weight: 300 lbs.		 21230583

Page 44
YANMAR
Part No. | Description
7990N $621.84 | Yanmar®
3TNE84, 3TNV84, 3TNV84T, 3TNE88, 3TNV88

Part No. Engine Specification Replace/ Notes
7905N 2T84A
2T90
2TR16
2TR17
2TR20
2TR20A		 Stroke: 3.543” (89.992mm)
Rod Ø: 2.1240-2.1246” (53.95-53.965mm)
Main Ø: 2.7539-2.7545” (69.949-69.964mm)		 724450-21702, 724764-21700, DTR1-3
7935N $909.91 78
3T80		 Stroke: 3.346” (84.999 MM)
Rod Ø: 1.9665-1.9669” (49.949-49.959 MM)
Main Ø: 2.7539-2.7543” (69.949-69.959 MM)
Weight: 34 lbs.		 3T80, 721150-21700, CH10659
7990N $621.84 3TNE84
3TNV84
3TNV84T
3TNE88
3TNV88		 Stroke: 3.543” (90.000mm)
Rod Ø: 1.8879-1.8883” (47.952-47.962mm)
Main Ø: 2.1240-2.1245” (53.952-53.962mm)
Neck: 1-Bolt, 2-Key
Flange: Flat, 6-Bolt, 1-Dowel
Weight: 30 lbs.		 Y129001-21100
7985N $952.15 3T84
3T90		 Stroke: 3.5433” (91.000 MM)
Rod Ø: 2.1240-2.1244” (53.95-53.96 MM)
Main Ø: 2.7540-2.7550” (69.951-69.977 MM)
Neck: Stepped, 2 keyWays, 1 Bolt
Flange: Flat Seal, 6 Bolt, 1 Dowel
Weight: 49 lbs.		 721250-21700. CS-384, CH10676, CH20055
7994N $1,069.01 4TNE84
4TNE84T
4TNV84
4TNV84T
4TNE88
4TNV88		 Stroke: 3.543” (90.000mm)
Rod Ø: 1.8879-1.8883” (47.952-47.962mm)
Main Ø: 2.1240-2.1245” (53.952-53.962mm)
Neck: Straight, 1-Bolt, 2-Key
Flange: Flat, 6-Bolt, 1-Dowel
Weight: 35 lbs.

Y129407-21000, AM881224, AM878619

Intended for use in non-balanced applications. Crankshaft not designed to accept balancer gear.
7992N $668.53 4TNE94 Stroke: 3.9370” (100.000mm)
Rod Ø: 2.2816-2.2820” (57.952-57.962mm)
Main Ø: 2.5572-2.5576” (64.952-64.962mm)
Neck: Straight, 1-Bolt, 1-Key, 1-Pin
Flange: Flat, 6-Bolt, 1-Dowel
Weight: 50 lbs.		 129900-21000
7993N $621.84 4TNV94 Stroke: 3.9370” (100.000mm)
Rod Ø: 2.2816-2.2820” (57.952-57.962mm)
Main Ø: 2.5572-2.5576” (64.952-64.962mm)
Neck: Tapered, 1-Bolt, 1-Key
Flange: Flat, 6-Bolt, 1-Dowel
Weight: 50 lbs.		 129900-21000

Top of Page

HOME
