MASTER ENGINE REBUILD KITS & PARTS

Home

Don't forget to save to favorites

Call Toll Free to Order and Purchase Parts only at: 1-866-700-5877

Hours: 9:00 AM to 5:00 PM Monday - Friday mountain time (Utah)

Electric Radiator Fans ---- Push Rods ----

Roller Rocker Arms ----Stud Girdles ----

Timing Chain Covers ----

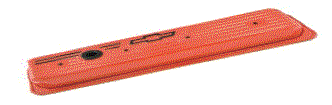

Harmonic Balancers ---- Valve Covers
High Performance Electric Fans
These fans help prevent overheating in stop-and-go traffic, designed to fit the most popular cars and trucks, increase gas mileage, improve engine performance, free the waterpump pulley for more RPM, and install in minutes with simple hand tools. Ultra thin design to fit cramped locations. Reinforced glass filled polypropylene blade and plastic housing for minimized weight. Nylon tie mounting kit included. Nominal fan size is based upon approximate overall assembly diameter.

S-Blade Fans
A. 67011 $55.94 10-inch Electric Fan
B. 67013 $62.38 12-inch Electric Fan
C. 67018 $77.44 14-inch Electric Fan
D. 67027 $81.59 16-inch Electric Fan

Straight Blade Fans
E. 67010 $55.94 10-inch Electric Fan
F. 67012 $62.38 12-inch Electric Fan
G. 67014 $77.44 14-inch Electric Fan
H. 67016 $81.59 16-inch Electric Fan

 Diameter  10"  12 $64.40 "  14"  16"
 Thickness  2-1/2"  2-1/2"  4"  4"
 Motor RPM 3000  3000  2500  2000
 AMP Draw 7  7  8  9
 Fuse Size AMP 25  25  30  30
 CFM 1000  1200  1650  2100


 A. 67011 $55.94 10-inch Electric Fan
 B. 67013 $62.38 12-inch Electric Fan
 C. 67018 $77.44 14-inch Electric Fan
 D. 67027 $81.59 16-inch Electric Fan
E. 67010 $55.94 10-inch Electric Fan
 F. 67012 $62.38 12-inch Electric Fan
 G. 67014 $77.44 14-inch Electric Fan
H. 67016 $81.59 16-inch Electric Fan


15’’ Electric Fans with Thermostat
Your stock fan robs your engine of up to 15 or more horsepower! Replace it with a rugged fan equipped with an adjustable 180°-240°F thermostat. Bolts to your radiator supports using sturdy brackets. With a heavy-duty motor, and 15" diameter, this unit pulls up to 2,800 cfm of air, cooling vehicles with up to 250+ HP (without air) and 220+ HP (with air). Overall: 18" x 16-1/8" x 4". Amp draw, 14 amps.
67015 $248.13 Straight Blade 15" Mustang Fan w/ Thermostat
67028 $248.13 S-Blade 15" Mustang Fan w/ Thermostat
67017 $248.13 Straight Blade 15" Universal Fan w/ Thermostat
67029 $248.13 S-Blade 15" Universal Fan w/ Thermostat




 Thermosat

FAN CONTROLLERS
NEW! Variable Speed Fan Controller with Digital Display
Maintaining a consistent engine temperature is a more efficient way to keep your engine cool. Many other fan controllers turn the fan on when the engine is getting too hot, and turn off after expending a lot of energy cooling it. This can lead to amperage spikes, excessive fan wear, and plenty of undesired fan noise. These problems can all be reduced substantially with PROFORM's new variable speed controller. This variable speed fan controller makes the fan or fans run at whatever speed is needed to maintain a consistent temperature. The controller receives a temperature signal from the radiator with either a push-in, or thread-in brass probe. The fan controller processes this signal and runs the fan(s) at the correct speed needed to maintain the desired temperature. The weather resistant billet aluminum housing with bright digital display ensures easy setting by simply pushing + or - to set the temperature. By simply pressing the Mode button, the digital display will show temperature in F° & C°,as well as the amperage being used by the fan(s). The controller can accommodate one or two 12v volt brushed motor fans. To substantially reduce amperage spikes, the controller soft starts the fan(s) by slowly ramping up to the required speed. Mounting hardware, and necessary electrical connections included. Adjustable Electric Fan Controllers
PROFORM’s premium adjustable fan controllers make adding a thermostat to your cooling system easy. Fan activation is adjustable between 150 and 240 degrees F. These fan controllers are recommended for race and street applications.

NEW! 69596 $119.87 Variable Speed Fan Controller with Digital Display



69598 $71.87 Thread-in Probe Controller
69599 $70.38 Push-in Probe Controller

 Thread-in Probe Controller

 Push-in Probe Controller


15-Inch Electric Fans with Thermostat
Your stock fan robs your engine of up to 15 or more horsepower! Replace it with a rugged, Bowtie Emblem, universal-fit fan equipped with an adjustable 180°-240°F. thermostat. Bolts to your radiator supports using sturdy brackets. With a heavy-duty motor, highly angled blades, and 15" diameter, this unit pulls up to 2,800 cfm of air, cooling engines with up to 250+ HP (without air) and 220+ HP (with air).
Overall: 18" x 16-1/8" x 4". Amp draw, 14 amps.
141-647 $304.25 Bowtie 15-inch Electric Fan with thermostat


 Thermostat


Bowtie High Performance Electric Fans
These reversible fans help prevent overheating in stop-and-go traffic, designed to fit the most popular cars and trucks, increases gas mileage, improves engine performance, frees the waterpump pulley for more RPM, installs in minutes with simple hand tools, 10", 12 $64.40 ", 14" and 16" fans are reversible (mounts in front or back of radiator). Ultra thin design to fit cramped locations. Reinforced glass filled polypropylene blade and plastic housing for minimized weight. Nylon tie mounting kit included. Nominal fan size is based upon approximate overall assembly diameter
A. 141-641 $84.58 10-inch Electric Fan
B. 141-642 $94.34 12-inch Electric Fan
C. 141-644 $117.10 14-inch Electric Fan
D. 141-646 $123.38 16-inch Electric Fan

 A.

 B.

 C.

 D.

 Diameter  10"  12 $64.40 "  14"  16"
 Thickness 2-1/2"  2-1/2"  4"  4"
 Motor RPM 3000  3000   2500 2000
 AMP Draw 7  7  8  9
Fuse Size AMP 25  25  30  30
 CFM 1000  1200  1650  2100


Extruded Aluminum Roller- Rocker Arms Kits+
Rid your engine of internal friction with roller-tipped rocker arms. The race proven full needle bearing, fulcrum and roller tip not only unleash horsepower, they also lengthen valve train component life and reduce wear and tear on valve stem tips. Precision machined to insure consistency and ratio accuracy. 16 extruded aluminum roller rockers and 16 poly locks. For clamshell Packaging, where not denoted, add "C" to part number.


 Engine  Year  Rocker Arm Style  Body Style Mounting
Style		  Nut Style  Ratio  Stud  Self-
Aligning		  Fasteners
Included		  Maximum Spring
Diameter (in)		  Part #
Your Cost
 Chevy Small-Block Gen I 1955-
1986		  Full Roller Narrow  Stud Polylock  1.5 Ratio  3/8"  No  Yes  1.400 in.  66907 $251.57
$220.03
 Chevy Small-Block Gen I 1955-
1986		  Full Roller Narrow  Stud Polylock  1.6 Ratio  3/8"  No  Yes  1.400 in.  66908 $251.57
 Chevy Small-Block Gen I 1955-
1986		  Full Roller Standard  Stud Polylock  1.5 Ratio 7/16"  No  Yes  1.400 in.  66909 $251.57
 Chevy Small-Block Gen I 1955-
1986		  Full Roller Standard   Stud Polylock  1.6 Ratio 7/16"  No  Yes  1.400 in.  66910 $251.57
 Chevy Small-Block Gen I 1955-
1986		  Full Roller Narrow   Stud Polylock  1.5 & 1.6Ratio  3/8"  No  Yes  1.400 in. 66920C $304.76
 Chevy Small-Block 1987-
2000		  Full Roller  Narrow  Stud Polylock  1.5 Ratio  3/8" Yes  Yes   1.400 in.  66914 $304.78
 Chevy Small-Block 1987-
2000		 Full Roller   Narrow Stud  Polylock  1.6 Ratio  3/8" Yes  Yes   1.400 in.  66915 $304.76
 Chevy Big-Block 1958-
2000		 Full Roller  Standard  Stud  Polylock   1.7 Ratio 7/16" No  Yes   1.500 in.  66913 $280.52
 Ford 289-302-351 1963-
2001		 Full Roller   Narrow Stud  Polylock   1.6 Ratio  3/8" No  Yes   1.500 in.  66911 $251.57
 Ford 289-302-351 1963-
2001		 Full Roller  Standard  Stud  Polylock   1.6 Ratio 7/16" No  Yes   1.500 in.  66912 $222.20
 Ford 302-351W, Pedestal
Mount		 1974-
1994		 Full Roller  Standard  Pedestal   Bolt  1.6 Ratio 5/16" No  Yes   1.500 in.  66879 $330.35
Ford 302-351W, Pedestal
Mount 		 1974-
1994		 Full Roller  Standard  Pedestal   Bolt  1.7 Ratio 5/16"  No  Yes   1.500 in.  66878 $330.35
Ford 302-351W, Pedestal
Mount 		 1974-
1994		 Full Roller  Standard  Pedestal   Bolt   1.6 & 1.7
Ratio		 5/16"   No Yes  1.500 in.   66876 $330.35
Ford 302 Boss 351C, 429-460
(385Series) 		 1968-
1997 		 Full Roller  Standard  Stud Polylock  1.73
Ratio 		 7/16"   No  Yes  1.500 in. 66861C $316.82
Chrysler LA  1971-
1989		 Roller Tip  Standard Shaft  n/a   1.5 Ratio  n/a  No  No   1.550 in.  66869 $477.68
Chrysler
B/RB		 1959-
1978		 Roller Tip  Standard Shaft  n/a   1.5 Ratio   n/a No  No   1.550 in.  66868 $477.68
Oldsmobile
260-455 V8		 1964-
1990		 Full Roller  Standard Stud  Polylock  1.6 Ratio  7/16" No  Yes   1.500 in. 66860C $316.82
Pontiac
265-455 V8		 1955-
1981		 Full Roller  Narrow Stud  Polylock  1.5 Ratio  7/16"  No  Yes   1.500 in.  67481 $239.26
Pontiac 265-455 V8  1955-
1981		 Full Roller  Standard Stud  Polylock  1.65
Ratio 		 7/16"  No  Yes   1.500 in.  67482 $239.26
AMC
287-401 		 1963-
1979

Full Roller
  Narrow Stud  Polylock

1.6 Ratio
  3/8" No  Yes   1.400 in.  67480 $242.41

+Product is legal only for off-highway use (except in CA or states that have adopted CA emission standards), racing use or for use on pre-emission-controlled motor vehicle/engines (pre-1966 domestic vehicles certified to CA standards, pre-1968 domestic vehicles certified to federal standards and all pre-1968 foreign vehicles), per manufacturer's application guide.

















PROFORM Race Series Heavy-Duty Extruded Aluminum Roller-Rocker Arms+ Designed for up to 10,000 RPM. This heavy duty design features an oversized body and fulcrum with a triangulated profile for additional rigidity and strength. Accommodates most oversized valve springs. American-made cage bearings are in self-contained bearing-cups for extra low friction wear. Each set includes 16 extruded aluminum roller rockers and 16 poly locks.
For clamshell packaging, where not denoted, add "C" to part number.

Chevy Small-Block Gen I 1955-1986

 Part #
Your Cost		  Ratio  Stud
 66928 $257.05  1.5 Ratio  3/8”
 66929 $267.08  1.6 Ratio  3/8”
 66931 $257.06  1.6 Ratio  7/16”

Blue Anodized, Full Roller Style, Wide Body, For Studs, Nut Style Polylock included, Not self aligning, Extruded Aluminum


Buick 455 Shaft-Mounted Billet Aluminum Roller Rockers
Take your Buick valve train to the next level of performance with a friction reducing roller rocker system. This shaft mounted roller rocker system will fit standard stage 1 and 2 cylinder heads, and is designed for 1.65 Ratio. Part Number: 66864 $766.85











NOTE: Pushrod hole in cylinder head
may require additional clearance.










Stamped Steel Rocker Arms for Chevrolet V8 Engines
The super affordable way to reduce internal valve train friction and
valve stem wear.
Extra long slotse liminate rocker to stud interference.

 Engine  Year  Rocker Arm Style  Ratio  Stud  Part #
Your Cost
Chevy Small-Block Gen I  1955-
1986 		 Non-roller  1.5 Ratio  3/8"  66905 $95.04
Chevy Big-Block  1958-
2000 		 Non-roller  1.7 Ratio  7/16"  66921 $151.11
Chevy Small-Block Gen I   1955-
1986 		 Roller Tip  1.5 Ratio  3/8"  66906B $140.91
Chevy Small-Block Gen I  1955-
1986 		 Roller Tip  1.6 Ratio  3/8"  66922 $126.47

NOTE: Sixteen rockers, anti-gall grooved balls and nuts per package.

Additional Components
SBC Guide Plates 5/16 in.
Flat Style 66880 $17.93
Raised Style 66881 $17.93
Rocker Arm Poly Locks
For 3/8 in. Studs 66935 $36.27
For 7/16 in. Studs 66936 $36.29

Chrysler Steel Rocker Arm Shaft
LA Engines; OEM Diameter 66867 $94.15
B/RB Engines OEM Diameter 66866 $94.15

Grooved Ball & Nuts
For 3/8 in.-24 Thread Studs 66924C $26.35

Chevy Small Block Rocker & Push Rod Kit - 66923C $131.67
All you need for a quick performance upgrade in one affortable kit. Kit Includes: P/N: 66905 $95.04 7.5 Ratio Steel Roller Rockers P/N: 66890C $38.50 3-Piece Pushrod (5176 in.; Stock Length)














Chrysler Stamped Rocker Arms
Proven OEM quality, increase wear resistance, fatigue and tensil strength for your Chrysler Muscle.
Part Number: 66872 $150.13
Engine Make/Size: Chrysler LA 1971 - 1989
Body Style: Standard
Mounting Style: Shaft
Ratio: 1.5 Ratio
Max. Spring Diameter: 1.460 in.
Self-Aligning: No
Material: Steel
Finish: Natural Black


1-Piece, 2-Piece & High-Performance 3-Piece Pushrods
PROFORM Pushrods are heat-treated with a .065 wall thickness and made from premium 4130 chrome moly steel.
Designed for use with guide plates and featuring a black gloss finish.
Featuring either premium 1, 2 or 3-piece designs and a variety of Chevy, Ford, Chrysler and GM applications these pushrods are precision formed with specified radius for optimum wear characteristics with minimal metal-to-metal friction.

Wall Thickness: .065 in. Material: 4130 Chrome Moly Finish: Gloss Black
 Part # Your Cost  Pushrod Style  Engine Make/Size  Diameter (in.)  Exhaust / Intake Overall Length  Oiling
66406C $120.42 1-Piece  Chevy Small Block (262-400)  3/8 in.  7.800 in.  Yes
66405C $120.42 1-Piece  Chevy Small Block (262-400)  5/16 in.  7.050 in.  Yes
66404C $120.42 1 1-Piece  Chevy Small Block (262-400)  5/16 in.  7.210 in.  Yes
66891C $113.67 1-Piece  Chevy Small Block (262-400)  5/16 in.  7.800 in.  Yes
66892C $118.46

1-Piece
 Chevy Small Block (262-400)  5/16 in.  7.800 in. Plus
.100 in. 		 Yes
66402C $101.02

1-Piece
 Chevy Small Block (262-400)  5/16 in.  7.800 in. Plus
.160 in. 		 Yes
66403C $120.42 1-Piece  Chevy Small Block (262-400)  5/16 in.  7.800 in. Plus .200 in. Yes
66890C $38.50 3-Piece  Chevy Small Block (262-400)  5/16 in.   7.800 in.  Yes
66889C $38.50 3-Piece  Chevy Small Block (262-400)  5/16 in.  7.800 in. Plus
.100 in. 		 Yes
66408C $134.14 4 3-Piece  Chevy Big Block (396-502)  7/16 in.  9.250 in. /
8.280 in. 		 Yes
66407C $120.42 1-Piece  Chevy Big Block (396-502)  3/8 in.  9.250 in. /
8.280 in. 		 Yes
66409C $120.42 1-Piece  Chevy Big Block (396-502)  3/8 in.  9.250" / 8.280" Plus .405 in. Yes
66894C $45.05 3-Piece  Chevy Big Block (396-502)  3/8 in.  9.250 in. /
8.280 in. 		 Yes
66882C $42.77 3-Piece  GM LS Engines  5/16 in.  7.400 in.  Yes
66415C $120.42 1-Piece  Pontiac (287-455)  5/16 in.  9.165 in.  Yes
66427C $120.42 2 1-Piece  Oldsmobile (260-403)  3/8 in.  8.350 in.  Yes
66423C $120.42 1 1-Piece  Ford Small Block (289-302)  5/16 in.  6.350 in.  Yes
66410C $120.42 1-Piece  Ford Small Block (289-302)  5/16 in.  6.800 in.  Yes
66413C $120.42 1-Piece  Ford Small Block (351C)  5/16 in.  8.375 in.  Yes
66414C $120.42 1-Piece  Ford 429 (Super Cobra Jet)  5/16 in.  8.700 in.  Yes
66425C $133.30 3 2-Piece  Ford FE  3/8 in.  10.506 in.  No
66426C $143.24 2 2-Piece  Ford FE  3/8 in.  9.080 in.  No
66417C $128.68 2 2-Piece  Chrysler LA (273-360)  3/8 in.  7.190 in.  No
66418C $120.42 3 2-Piece  Chrysler LA (273-360)   3/8 in.  7.350 in.   No
66419C $143.24 2 2-Piece  Chrysler B (383-400)   3/8 in. 8.100 in.  No
66420C $143.24 3 2-Piece  Chrysler B (383-400)  3/8 in.  8.459 in.  No
66421C $157.98 2 2-Piece  Chrysler RB (413-440)  3/8 in.  8.975 in.  No
66422C $133.30 3 2-Piece  Chrysler RB (413-440)  3/8 in.  9.100 in.  No

1For Use with OE Roller Lifters. 2For Use with Hydraulic Lifters. 3For Use with Adjustable Solid Lifters.
4Both Tips are Press Fit/Ball.

Aluminum Stud Girdles
Stud Girdles reduce flex and part breakage. Increased valve-train rigidity helps minimize energy loss. Each set comes with aluminum stabilizers and poly locks. Two pieces per set.

 Engine  Year  Description Part #
Your Cost
 Chevy Small-Block Gen I  1955-1986  For use with 3/8” Stud  66950 $165.75
 Chevy Small-Block Gen I  1955-1986  For use with 7/16” Stud  66951 $165.75
 Chevy Big-Block  1958-2000  For use with 7/16” Stud  66981 $228.64
 Ford 289-302-351  1963-2001  For Use with 7/16” Stud; Factory  66984 $145.98

 66950 $165.75 and 66951 $165.75

 66981 $228.64

 66984 $145.98

Buick and AMC Timing Chain Covers
The PROFORM Buick (400-455) and AMC (304-401) Engine Timing Chain Covers have a great look that will enhance your engine's compartment, while greatly reducing potential leaks. Made from die-cast aluminum for strength without the excess weight. Both featuring a natural finish, these covers are manufactured with an OEM design, and 100 percent new, not reman or refurbished, to exact factory specifications and tolerances. Crankshaft oil seal and water pump dowels included.

AMC Timing Cove - Outside view

















AMC Front Timing Chain Cover
Engine Make/Year:AMC 360-401 (1970-1979)
Cover Material: Die-Cast Aluminum
Cover Style: One-piece
Cover Color: Natural
Seal Included: Yes
Water Pump Dowels Included: Yes
Part Number/Your Cost: 69500 $241.12

Inside view

Buick Timng Chain Cover - Outside view












Buick Front Timing Chain Cover
Engine Make/Year: Buick 400-455 (1965-1976)
Cover Material: Die-Cast Aluminum
Cover Style: One-piece
Cover Color: Natural
Seal Included: Yes
Water Pump Dowels Included: No
Part Number/Your Cost: 69510 $354.97
Inside View


Buick Front Timing Chain Cover
Inside View











Chrysler B/B Timing Chain Covers
Stock height steel timing chain cover with timing tab included.
Fits 383-440.
66193 $45.93 Chrome
66194 $45.93 Black


HARMONIC BALANCERS
Fits Chevy small and big block engines. These are brand-new OE replacement harmonic balancers. Affordable pricing eliminates the need to clean your old stock balancer. Enhance your balancer by adding the patented balancer covers below.

Outside View
OEM Replacement: Yes
Material: Nodular iron
Finish: Natural
Bolt Hole Count: 3

Inside View

Application
Small Block Chevy 305-350 V8; 1972 to 1987 | Big Block Chevy 402-454 V8;
1970 to 1986 | Pontiac 326-455 V8; 1962 to 1979 | Buick
215-455 V8; 1963 to 1977 | Oldsmobile 215-455 V8; 1963 to 1984

 Part #
Your Cost
  Application  Engine Balance  Degree
Markings		  Outside
Diameter		  Crank
Bore		  Nose OD  Overall
Width		  Ring
Width
 66508 $122.80

Big Block Chevy 396, 402,427 V8 1967 -1969

 Internal   Yes  7.00 in.  1.60 in.  2.33 in.  2.69 in.  1.38 in.
 66509 $106.69 Chevy Small Block 350 V8 1984 to 1995  Internal  No  6.75 in.  1.25 in.  1.76 in.  2.34 in.  1.19 in.
 66510 $106.69 Chevy Small Block 262-400 V8; 1955 to 1995  Internal  Yes  6.75 in.  1.25 in.  1.76 in.  2.34 in.  1.19 in.
 66511 $102.44 Chevy Small Block 262-400 V8; 1955 to 1995  Internal  Yes  8.00 in.  1.25 in.  1.76 in.  2.34 in.  1.32 in.
 66512 $120.39 Big Block Chevy 454 V8; Pre-1989  External  Yes  8.00 in.  1.60 in.  2.33 in.  2.69 in.  1.73 in.
 66513 $101.88 Chevy Small Block 400 V8; 1970 to 1980  External  Yes  8.00 in.  1.25 in.  1.76 in.  2.34 in.  1.51 in.

Harmonic Balance Covers
These patented harmonic balancer covers offer improved readability, more stable Top Dead Center indication and timing accuracy, enhanced appearance for a previously ignored underhood area, and the elimination of timing tapes which are inevitably flung off. They are available in chrome and black, resulting in parts with the appearance of $200 balancers. Each cover is distinctively marked with the famous Bowtie Emblem, Top Dead Center and the proper timing degrees. Aluminum. U.S. Patent 5,675,078.


6-3/4" Chevy® Small-Block, Big-Block
141-727 $46.56 Black
141-725 $46.56 Chrome


8" Chevy® Small-Block
141-728 $46.56 Black
141-726 $46.56 Chrome
Chevy® Big-Block
141-730 $41.40 Black
141-729 $46.56 Chrome
















Slant-Edge Valve Covers for Chevy Small Block Gen I Engines
Chevy Small Block 262 to 400 Engines (1959-1986) Innovative, die-cast aluminum valve covers, with an aggressive, Slant-Edge design, will make your engine stand out at the show! The premium offering showcases the iconic Bowtie & CHEVERLOT Emblem, and allows more internal clearance than most other valve covers due to our innovative mold designs that are at the forefront of modern die-casting technology. Available in 16 different styles, choose the look that meets YOUR unique style. For Chevy Small Block 262 to 400 Gen I (1959-1986) applications. Equipped with air breather and PCV grommets, unless specified otherwise. Sold in pairs.




Pictures of just some of the valve covers




 Part #
Your Cost
  Emblem Style  Finish  Valve Cover
Style		  Valve Cover Bolt
Pattern		  Material  Baffled  Breather Grommets
Included		 PCV Grommets
Included
 141-920 $374.30 Raised Emblem on Recessed Blackfield  Polished  Tall  Perimeter Bolt  Die Cast Aluminum  Yes  Yes  Yes
 141-921 $361.83 Raised/Milled Emblem Black  Crinkle  Tall  Perimeter Bolt  Die Cast Aluminum  Yes  Yes  Yes
 141-922 $486.61 Raised Emblem on Recessed Blackfield  Chrome  Tall  Perimeter Bolt  Die Cast Aluminum  Yes  Yes  Yes
 141-923 $361.83 Recessed Blue & Red Emblem  Metallic Gray  Tall  Perimeter Bolt  Die Cast Aluminum  Yes  Yes  Yes
 141-924 $361.83 Raised/Milled Emblem Chevy  Orange  Tall  Perimeter Bolt  Die Cast Aluminum  Yes  Yes  Yes
 141-925 $361.83 Raised/Milled Emblem Cast  Gray Crinkle  Tall  Perimeter Bolt  Die Cast Aluminum  Yes  Yes  Yes
 141-926 $343.44 No Logos or Emblems  Polished  Tall  Perimeter Bolt  Die Cast Aluminum  Yes  Yes  Yes
 141-927 $374.30 Recessed Red & Black Emblem Polished    Tall  Perimeter Bolt  Die Cast Aluminum  Yes  Yes  Yes
 141-928 $361.83 Recessed Red Emblem Black Crinkle    Tall  Perimeter Bolt  Die Cast Aluminum  Yes  Yes  Yes
 141-930 $486.61 Recessed Red & Black Emblem Chrome    Tall  Perimeter Bolt  Die Cast Aluminum  Yes  Yes  Yes
 141-931 $409.82 Raised/Milled Emblem Red    Tall  Perimeter Bolt  Die Cast Aluminum  Yes  Yes  Yes
 141-932 $409.82 Raised/Milled Emblem Blue    Tall  Perimeter Bolt  Die Cast Aluminum  Yes  Yes  Yes
 141-933 $409.82 Raised/Milled Emblem Green    Tall  Perimeter Bolt  Die Cast Aluminum  Yes  Yes  Yes
 141-934 $375.04 Raised/Milled Emblem Yellow    Tall  Perimeter Bolt  Die Cast Aluminum  Yes  Yes  Yes
 141-935 $409.82 Raised/Milled Emblem White    Tall  Perimeter Bolt  Die Cast Aluminum  Yes  Yes  Yes
 141-939 $299.52 Raised Emblem Powdercoat Ready    Tall  Perimeter Bolt  Die Cast Aluminum  Yes  Yes  Yes

Technical Note:
Production height (short) Chevy Gen I Stamped Steel Valve Covers, with baffles will not clear most stud girdle applications.







Stamped Steel Valve Covers for Chevy Small Block Gen I Engines
Chevy Small Block 262 to 400 Engines (1959-1986)
These Bowtie & CHEVROLET Emblem valve covers are manufactured from high-quality, heavy-gauge stamped steel, 20% thicker than typical aftermarket valve covers,
greatly reducing the likelihood of leakage around the valve cover flange area caused by fasteners being over-torqued. Designed to fit Small Block Chevy 262-400 Engines
1955 to 1986, these valve covers are offered in either tall or production height (short). Oil restricting baffles are offered in all valve covers (except 141-101) for those who wish to maintain the PCV hookup. Equipped with air breather hole and PCV grommets, unless specified otherwise. Sold in pairs

.

Pictures of some of the valve covers


 Part #
Your Cost
  Emblem Style  Finish  Valve Cover
Style		  Valve Cover Bolt
Pattern		  Material  Baffled  Breather Grommets
Included		 PCV Grommets
Included
 141-361 $94.43 Recessed Blue & Red Emblem  Metallic Gray  Tall  Perimeter Bolt  Stamped Steel  Yes  Yes  Yes
 141-712 $299.43 Recessed Red Emblem  Carbon-Style  Tall  Perimeter Bolt  Stamped Steel  Yes  Yes  Yes
 141-751 $122.85 Recessed Red Emblem  Black Crinkle  Tall  Perimeter Bolt  Stamped Steel  Yes  Yes  Yes
 141-750 $105.44 Recessed Red Emblem   Black Crinkle  Short  Perimeter Bolt  Stamped Steel  Yes  Yes  Yes
 141-784 $119.38 Recessed Black Emblem   Chevy Orange  Tall  Perimeter Bolt  Stamped Steel  Yes  Yes  Yes
 141-905 $127.90 Recessed Red & Black Emblem  Chrome  Tall  Perimeter Bolt  Stamped Steel  Yes  Yes  Yes
 141-899 $104.27 Recessed Red & Black Emblem   Chrome  Short  Perimeter Bolt  Stamped Steel  Yes  Yes  Yes
 141-103 $111.62 Embossed Emblem   Chrome  Tall  Perimeter Bolt  Stamped Steel  Yes  Yes  Yes
 141-102 $93.02 Embossed Emblem   Chrome  Short  Perimeter Bolt  Stamped Steel  Yes  Yes  Yes
 141-101 $111.62 Embossed Emblem   Chrome  Tall  Perimeter Bolt  Stamped Steel  Yes  Yes  Yes

Technical Note:
Production height (short) Chevy Gen I Stamped Steel Valve Covers, with baffles will not clear most stud girdle applications.












Die-Cast Aluminum Valve Covers for Chevy Small Block Gen I Engines
Chevy Small Block 262 to 400 Engines (1959-1986) These premium valve covers are die-cast aluminum, manufactured to GM specifications, equipped with internal oil drippers and GMdesigned baffles. Available with raised/milled Bowtie and CHEVERLOT Emblem in addition to the traditional recessed emblems with red and/or black inlaid paint. Tall Style, equipped with removable baffles and grommets. Sold in pairs.


 Part #
Your Cost
  Emblem Style  Finish  Valve Cover
Style		  Valve Cover Bolt
Pattern		  Material  Baffled  Breather Grommets
Included		 PCV Grommets
Included
141-108 $201.08 Recessed Red & Black Emblem   Polished  Tall  Perimeter Bolt  Die Cast Aluminum  Yes  Yes  Yes
 141-116 $240.11 Recessed Red Emblem   Black Crinkle  Tall  Perimeter Bolt  Die Cast Aluminum  Yes  Yes  Yes
 141-117 $448.19 Recessed Red & Black Emblem   Chrome  Tall  Perimeter Bolt  Die Cast Aluminum  Yes  Yes  Yes
 141-118 $240.11 Recessed Black Emblems Chevy   Orange  Tall  Perimeter Bolt  Die Cast Aluminum  Yes  Yes  Yes
 141-119 $240.11 Raised/Milled Emblem   Black Crinkle  Tall  Perimeter Bolt  Die Cast Aluminum  Yes  Yes  Yes
 141-120 $240.11 Raised/Milled Emblem   Chevy Orange  Tall  Perimeter Bolt  Die Cast Aluminum  Yes  Yes  Yes
 141-121 $448.19 Recessed Red Emblem   Carbon-Style  Tall  Perimeter Bolt  Die Cast Aluminum  Yes  Yes  Yes

Technical Note:
Production height (short) Chevy Gen I Stamped Steel Valve Covers, with baffles will not clear most stud girdle applications.








2-Piece Die-Cast Aluminum Chevy Small-Block Gen I Valve Covers
Chevy Small Block 262 to 400 Engines (1959-1986) Patented 2-Piece Die-Cast Aluminum Chevy Small-Block Valve Covers feature the popular Bowtie & CHEVROLET Bowtie Emblem, allow you to easily check your valve train while the engine is running. The diagonal cut of the top section ensures no mess and the gaskets ensure a tight seal. Each valve cover features oversize bolts for fast removal, a top and bottom section, roller rocker and stud girdle clearance and a retained gasket. Available in six style choices. Allen wrench, removable OEM style baffle and grommets included. Sold in pairs. U.S. Pat. Nos. 7,343,890, D543,998S

Just some of the pictures below



 Part #
Your Cost
  Emblem Style  Finish  Valve Cover
Style		  Valve Cover Bolt
Pattern		  Material  Baffled  Breather Grommets
Included		 PCV Grommets
Included
141-910 $204.26 Recessed Red & Black Emblem  Polished  Tall  Perimeter Bolt  Die Cast Aluminum  Yes  Yes  Yes
 141-912 $357.45 Recessed Red Emblem  Chrome  Tall  Perimeter Bolt  Die Cast Aluminum  Yes  Yes  Yes
 141-913 $204.26 Raised/Milled Emblem  Polished  Tall  Perimeter Bolt  Die Cast Aluminum  Yes  Yes  Yes
 41-914 1 Raised/Milled Emblem  Black Crinkle  Tall  Perimeter Bolt  Die Cast Aluminum  Yes  Yes  Yes
 141-915 $306.34 No Logos or Emblems  Polished  Tall  Perimeter Bolt  Die Cast Aluminum  Yes  Yes  Yes
 141-911 $192.52 Red Recessed Emblem  Black Crinkle  Tall  Perimeter Bolt  Die Cast Aluminum  Yes  Yes  Yes

Technical Note:
Will not fit cylinder head 12340034 or similar (with three rectangular raised internal sections near the valve cover mounting surface), unless such sections are milled off.











Slant-Edge Center Bolt Valve Covers for Chevy Small-Block Gen II Chevy Small Block 305-350 Engines (1987-pre-LS)
The wildly popular Slant-Edge look for Gen I and LS enthusiasts has been implemented on the Chevy Small Block Gen II Engines! Generous internal clearance for larger valve train setups and raised/recessed emblems are just two of the distinctive features of this valve cover. Seven choices will be released with raised or recessed Bowtie & CHEVROLET Emblem, or no emblems at all for a completely customized look. Tall, with removable baffle. Grommets, and mounting bolts included.

Sold in pairs. U.S. Pat. D727,362.

 Part #
Your Cost
  Emblem Style  Finish  Valve Cover
Style		  Valve Cover Bolt
Pattern		  Material  Baffled  Breather Grommets
Included		 PCV Grommets
Included
141-840 $355.81 Raised/Milled Emblem   Black Crinkle Tall  Center Bolt Die Cast Aluminum  Yes  Yes  Yes
 141-841 $355.81 Raised/Milled Emblem Chevy   Orange  Tall  Center Bolt Die Cast Aluminum  Yes  Yes  Yes
 141-842 $355.81 Raised/Milled Emblem Cast   Gray Crinkle  Tall  Center Bolt  Die Cast Aluminum  Yes  Yes  Yes
 141-843 $343.25 Recessed Red & Black Emblem   Polished  Tall  Center Bolt  Die Cast Aluminum  Yes  Yes  Yes
 141-844 $458.43 Recessed Red & Black Emblem   Chrome Tall  Center Bolt  Die Cast Aluminum  Yes  Yes  Yes
 141-845 $355.81 Recessed Red Emblem   Black Crinkle Tall  Center Bolt  Die Cast Aluminum  Yes  Yes  Yes
 141-846 $343.25 No Emblems or Logos   Polished  Tall  Center Bolt  Die Cast Aluminum  Yes  Yes  Yes













Center Bolt Valve Covers for Chevy Small Block Gen II Engines
Chevy Small Block 305-350 Engines (1987-pre-LS)
These premium valve covers are die-cast aluminum, or stamped steel (20% thicker than typical
aftermarket valve covers) manufactured to GM specifications, equipped with internal oil drippers and GM-designed baffles. Both tall and short styles are available. Featuring the Bowtie & CHEVROLET Emblem, Bowtie with painted stripes, or no emblems at all, choose the configuration for you with eight different options. Supplied with mounting bolts, stainless steel & rubber washers
(also available separately as 141-133). All valve covers with baffle come with baffle and grommets.

Sold in pairs.







 Part #
Your Cost
  Emblem Style  Finish  Valve Cover
Style		  Valve Cover Bolt
Pattern		  Material  Baffled  Breather Grommets
Included		 PCV Grommets
Included
141-130 $233.48 Recessed Red & Black Emblem

Polished

 Tall  Center Bolt Die Cast Aluminum  Yes  Yes  Yes
 141-131 $233.48 Recessed Red Emblem   Black Crinkle  Tall  Center Bolt Die Cast Aluminum  Yes  Yes  Yes
 141-132 $442.60 Recessed Red & Black Emblem   Chrome  Tall  Center Bolt  Die Cast Aluminum  Yes  Yes  Yes
 141-134 $205.29 No Logos or Emblems   Polished  Tall  Center Bolt  Die Cast Aluminum  Yes  Yes  Yes
 141-105 $281.27 Embossed Red Emblem  Chrome Tall  Center Bolt  Die Cast Aluminum  Yes  Yes  Yes
 141-107 $195.68 Embossed Red Emblem   Chrome Short Center Bolt  Steel Yes  Yes  NO
 141-907 $244.00 Embossed Red Emblem   Black Crinkle  Short Center Bolt  Steel Yes  Yes  NO

141-908 $223.29

 Recessed Red & Blue Emblem  Metallic Gray  Short  Center Bolt  Steel      No

141-918 $244.00

 Embossed Black Emblem Chevy  Orange  Short  Center Bolt  Steel      No

Technical Note:
Production height (short) Chevy Gen I Stamped Steel Valve Covers, with baffles will not clear most stud girdle applications.













HOT Parts for Your LS Engine!
Still trying to find your LS engine amongst a congestion of wires, tubes, and ignition coils?
Not Any More! Through innovative engineering, PROFORM has developed a valve cover that will take your stock LS engine, and give it a totally personalized look. These new valve covers are taller than stock valve covers, and can accommodate a wide variety of large valve train applications. Seven choices, with raised or recessed Chevrolet and Bowtie emblems, LSX ® emblem or no emblems at all for a self-customized look.
Mounting studs, and oil-restricting baffles are included. Includes threaded mounting holes for the Integrated Coil Bracket. Sold in Pairs. U.S. Pat. D657,798.






 Part #
Your Cost
  Emblem Style  Finish  Valve Cover
Style		  Valve Cover Bolt
Pattern		  Material  Baffled  Breather Grommets
Included		 PCV Grommets
Included
141-261 $395.29 Raised/Milled Emblem Chevy Orange Tall  Center Bolt Die Cast Aluminum  Yes  No  No
 141-262 $395.29 Raised/Milled Emblem  Black Crinkle  Tall  Center Bolt Die Cast Aluminum  Yes  No  No
 141-263 $395.29 Raised/Milled Emblem  Cast Gray Crinkle  Tall  Center Bolt  Die Cast Aluminum  Yes  No  No
 141-264 $407.40 Recessed Red & Black Emblem  Polished  Tall  Center Bolt  Die Cast Aluminum  Yes  No  No
 141-265 $550.45 Recessed Red & Black Emblem  Chrome Tall  Center Bolt  Die Cast Aluminum  Yes  No  No
 141-266 $385.55 No Emblems or Logos  Polished Tall  Center Bolt  Die Cast Aluminum  Yes  No  No
 141-256 $389.46 Raised/Milled "LSX" Emblem  Black Crinkle  Tall  Center Bolt  Die Cast Aluminum  Yes  No  No
 141-257 $395.29 Raised/Milled "LSX" Emblem  Chevy Orange          No  No










Chevy Big-Block Mark IV, Gen V/VI Valve Covers
Chevy Big Block 396-454 Engines (1965-1996)
These Big Block Valve Covers feature the iconic Bowtie & CHEVROLET Emblem embossed or recessed with inlaid paint. There are eleven configurations to make a style all your own. Manufactured to meet GM specifications with either heavy-gauge steel (20% thicker than typical aftermarket valve covers) or high-quality die-cast aluminum and OE designed baffle. Grommets included.
Sold in pairs.

Pictures of some of valve covers




 Part #
Your Cost
  Emblem Style  Finish  Valve Cover
Style		  Valve Cover Bolt
Pattern		  Material  Baffled  Breather Grommets
Included		 PCV Grommets
Included
 141-140 $505.25 Recessed Red & Black Emblem

Chrome

 Tall  Perimeter Bolt  Die Cast Aluminum  Yes  Yes  Yes
 141-141 $283.43 Recessed Red Emblem Black Crinkle  Tall  Perimeter Bolt  Die Cast Aluminum  Yes  Yes  Yes
 141-142 $408.82 Recessed Red & Black Emblem  Polished  Tall  Perimeter Bolt  Die Cast Aluminum  Yes  Yes  Yes
 141-787 $183.07 Recessed Black Emblem  Chevy Orange  Tall  Perimeter Bolt  Stamped Steel  Yes  Yes  Yes
141-115 $170.38 Embossed Emblem  Chrome  Tall  Perimeter Bolt  Stamped Steel  Yes  Yes  Yes
 141-811 $188.38 Recessed Red Emblem  Black Crinkle  Tall  Perimeter Bolt  Stamped Steel  Yes  Yes  Yes
 141-813 $193.13 Recessed Red & Black Emblem  Chrome Tall  Perimeter Bolt  Stamped Steel  Yes  Yes  Yes
 141-114 $167.49 Embossed Emblem Chrome  Short Perimeter Bolt  Stamped Steel  Yes  Yes  Yes
 141-810 $175.37 Recessed Red Emblem  Black Crinkle  Short Perimeter Bolt  Stamped Steel  Yes  Yes  Yes
 141-812 $170.56 Recessed Red & Black Emblem Chrome  Short Perimeter Bolt  Stamped Steel  Yes  Yes  Yes
 141-789 $175.37 Recessed Black Emblem Chevy Orange  Short  Perimeter Bolt  Stamped Steel  Yes  Yes  Yes

Technical Note:
Short (production height) and/or baffled valve covers will not clear most stud girdle applications.



Top of page

HOME
