SFI-Rated Racing steel dampers ----

SFI-Rated Gold Steel flex plates & SFI Flexplates ----

SFI-Rated Diesel Flexplates ----

SFI-Rated Billet Steel Flywheels ----

SFI-Rated Billet Aluminum Flywheels ----

Platinum Series Shaft Mount Rocker Arm Systems

PQx® LS Alloy Steel Drop-In Roller Rocker Arm Systems ----

GM LS series stud mount Roller ROCKER ARMS ----

PRW Stud Mount Rocker Arms ----



SFI-RATED Racing Steel Dampers

PQx® SFI-Rated Racing Steel Dampers
PRW SFI Certified steel dampers are perfect for the weekend warrior or the all out racer. Unless otherwise identified, this series of steel-elastomer racing dampers is OEM compatible and designed to work with the accessories and mounting brackets specified for the model years identified. Many features have been added to broaden the spectrum of fitment and adaptability. The inner hub and outer ring are manufactured from high quality billet steel or forgings, with heated elastomer injected under high pressure between the two component parts. Inner and outer grooved ridgelines further secure the inner hub to the outer ring. All dampers feature primary laser etched timing marks and useful timing indicators generally provided at 90°, 180°, and 270° whenever possible. Some models include secondary timing marks for ancillary keyways or expanded model year applications. These products are available in black automotive grade epoxy.

  • Meets SFI 18.1 specification
  • Easy to read laser engraved timing marks
  • Accurate crank bore for a proper pressed fit
  • Manufactured from high grade billet carbon steel forgings
  • Injected with elastomer between the inner hub and outer ring
  • Available in black epoxy or polished steel and epoxy clear coat
  • Externally balanced dampers include removable counterweights

 PN- 2428340 $225.75
CHEVY 262-350, 1955-87

PN- 2446040 $234.80
FORD 429-460 BB, 1986-97

 Application
  Diameter  Balance  Weight

 Part # __ Your Cost
 AMC/JEEP 304, 360, 401 V8 1970-91 6.80" OD  External  9.30 lbs   2440141 $280.47
 CHEVY 262-350, 1955-00, Gen I, Small Block Chevy V8 6.75" OD   Internal  12.20 lbs   2426540 $189.56
 CHEVY 262-350, 1955-00, Gen I, Small Block Chevy V8, Specialty SBC Lightweight Damper 6.10" OD   Internal  14.50 lbs   2432740 $207.65
 CHEVY 262-350, 1955-00, Gen I, Small Block Chevy V8 8.00" OD   Internal  8.40 lbs   2428340 $225.75
 CHEVY 396-427, 1965-72, Mark IV, Big Block Chevy V8 8.00" OD   Internal  12.90 lbs   2439640 $225.75
 CHEVY 400, 1970-80, Gen I, 400 & 383 Small Block Chevy V8 6.75" OD   External  15.50 lbs   2438341 $203.13
 CHEVY 400, 1970-80, Gen I, 400 & 383 Small Block Chevy V8 8.00" OD   External  13.70 lbs   2440041 $230.27
 CHEVY 454 & 502, 1970-00, Mark IV, Gen V & VI, Big Block Chevy V8 8.00" OD   External  14.40 lbs   2445441 $225.75
 CHEVY 4.3L-5.7L, 1993-97, Gen II, LT1 GM Camaro/Firebird, 1994-95, Chevy & Buick/GM Full-Size Cars 7.50" OD   Internal  12.45 lbs   2435040 $281.85
 CHEVY 5.7L, 1997-02, Gen III, LS1 Camaro/Firebird 7.50" OD  Internal  13.90 lbs  2434640 $252.89
 CHEVY CORVETTE 5.7L-7.0L, 1997-07, Gen III/IV, GM LS1 & LS6 Corvette Engines 7.50" OD   Internal  11.75 lbs   2436440 $250.18
 CHEVY-GM, 5.3L-6.2L, 2002-08, Gen III/IV, Cadillac, Chevy, GMC, L92 Truck & SUV 7.70" OD  Internal  12.5 lbs  2432340 $280.04
 FORD 221-289, 351W, 302B, 1963-69, Small Block Ford V8, 28 oz 6.40" OD  External  10.25 lbs  2428941 $229.36
 FORD 221-289, 351W, 302B, 1963-69, Early Model SB Ford, Lightweight, 28 oz 6.40" OD  External  8.20 lbs  2428951 $234.80
 FORD 302-351W, 1981-95, Late Model SB Ford, Lightweight, 50 o. 6.40" OD  External  8.80 lbs  2430251 $237.51
 FORD 302-351W, 1981-95, Late Model SB Ford, 50 oz 6.40" OD  External  11.00 lbs  2430241 $234.80
 FORD 352-428, 1957-77, Big Block FE Ford 6.50" OD  Internal  12.30 lbs  2439040 $270.99
 FORD 429-460, 1986-97, Big Block w/ OEM 3/16” Keyway; 1/4” Keyway 180º from OEM Standard 6.70" OD  Internal  9.60 lbs  2446040 $234.80
 FORD 4.6L 2V-4V, 1995-04, w/ Integral Serpentine Pulley 6.80" OD  Internal  7.10 lbs  2428140 $225.75
 FORD 4.6L, 2005-09 Modular Motor, 2005 & Later 4.6L 3V Ford 7.50" OD  Internal  11.50 lbs  2428150 $252.89

PQx® SFI-RATED RACING STEEL DAMPERS

 PN 2431841 $234.80
MOPAR 273-360, 1964-2003

PN 2438940 $225.75
PONTIAC 326-455, 1961-79

 Application
  Diameter  Balance  Weight

 Part # __ Your Cost
 MOPAR 273-360, 1964-03 LA & Magnum, Small Block Chrysler V8, Includes 3 Counterweights 7.30" OD  Int / Ext  9.00 lbs  2431841 $234.80
 MOPAR 426 HEMI®, 1964-71, Chrysler 426 Street HEMI® V8 7.30" OD  Internal  8.70 lbs  2442639 $234.80
 MOPAR 426 HEMI®, 1964-71, Chrysler 426 Race HEMI® V8 7.30" OD  Internal  8.70 lbs  2442640 $234.80
 MOPAR 383-440 "B" & "RB", 1959-79, Chrysler Big Block "B" & "RB" V8 7.30" OD  Int / Ext  8.70 lbs  2444041 $234.80
 MOPAR/JEEP 5.7L (345), 2004-09, 5.7L HEMI® (Dodge & Chrysler) V8 6.80" OD  Int / Ext  7.20 lbs  2434541 $239.32
 MOPAR/JEEP 6.1L (370), 2005-08, 6.1L HEMI® (Dodge & Chrysler) V8 7.40" OD  Internal  7.30 lbs  2437041 $243.76
 MOPAR/DODGE VIPER V-10, 1992-Up 6.95" OD External  6.80 lbs  2451540
 OLDS 330-455, 1964-80, Olds V8 Engines 6.50" OD  External  10.00 lbs  2445541 $225.75
 PONTIAC 326-455, 1961-79, Pontiac V8 Engines w/ 1969 or Later Timing Chain Cover 6.90" OD  Internal  10.00 lbs  2438940 $225.75
 PONTIAC 326-421 1959-67, 3 Piece Design, Includes Removable Black 6061-T6 Billet Aluminum Pulley 5.50" OD  Internal  9.82 lbs  2442101 $263.35
 PONTIAC 326-421 1959-67, 3 Piece Design, Includes Removable Silver 6061-T6 Billet Aluminum Pulley 5.50" OD  Internal  9.90 lbs  2442102 -$259.47
 PONTIAC 4.3L-5.7L, 1993-97 Gen II, LT1 GM Camaro/Firebird, 1994-95, Chevy/Buick/GM Full-Size Cars  7.50" OD  Internal  12.45 lbs 2435040 $281.85

PQx® SFI-Rated Dampers for Imports

 PN 2416840 $194.08
NISSAN 1.6L-2.8L L4 & L6, 1970-83

 Application
  Diameter  Balance  Weight  Finish

 Part # Your Cost
  HONDA-
ACURA 1.6L-1.8L "B" Series, 1994-01, Honda B-16, Acura GSR & Type R Engines		 5.6" OD  Internal  3.20 lbs  Black  2411040 $225.75
 NISSAN 1.6L-2.8L L4 & L6, 1970- 83, Nissan L-Series Engines 6.90" OD  Interna  l 4.00 lbs  Black  2416840 $194.08

SFI-rated Racing FluidGel™ dampers

PQx® SFI-Rated Racing FluidGel™ Dampers
These dampers are made with an internal steel inertia ring that is surrounded by a high viscosity silicone gel. The inertia ring “floats” in the silicone gel to combat the engine harmonics at all RPM ranges. External balance applications feature a removable hub in order to accurately blueprint the engine and balance the assembly. These products are available in black epoxy, chrome or polished steel with an epoxy clear coat.• Meets SFI 18.1 specification

  • Easy to read laser engraved timing marks
  • Accurate crank bore for a proper pressed fit
  • Manufactured from billet carbon steel forgings
  • Available in a black epoxy finish or polished steel
  • Externally balanced dampers include removable counterweights



 PN 2535001 $243.85
CHEVY 262-350, 348-409 1955-95

PN 2546001 $251.98
FORD 332-428 FE, 429-460 1958-97


 Application
  Diameter  Balance  Weight  Finish

 Part # Your Cost
 CHEVY 262-350, 348-409, 1955-95 6.25" OD  Internal  8.85 lbs  Black  2535001 $243.85
 CHEVY 262-350, 348-409 1955-95 (Except LT & LS 5.7L) 6.25" OD  Internal  8.85 lbs  Polished/
Chrome 		 2535018 $241.06
 CHEVY 396-427, 1965-72, Mark IV, Big Block Chevy V8 6.25" OD  Internal  9.10 lbs  Black  2542701 $270.99
 CHEVY 396-502 1965-Up, OEM & Aftermarket Neutral Balance Cranks 8.00” OD  Internal  16.50 lbs  Black  2539600 $259.23
 CHEVY 400, 1970-80, Gen I, 400 & 383 Small Block Chevy V8 7.25" OD  External  14.25 lbs  Black  2540001 $261.94
 CHEVY 400, 1970-80, Gen I, 400 & 383 Small Block Chevy V8 7.25" OD  External  14.25 lbs  Polished/
Chrome 		 2540018 $271.25
 CHEVY 454 & 502, 1970-00, Mark IV, Gen V & VI, Big Block Chevy V8 8.00” OD  External  17.25 lbs  Black  2545401 $270.08
 CHEVY 454 & 502, 1970-00, Mark IV, Gen V & VI, Big Block Chevy V8 8.00” OD  External  17.25 lbs  Polished/
Chrome 		 2545418 $301.44
 FORD 289-351W, 1963-Up, OEM & Aftermarket Neutral Balance Cranks 6.54” OD  Internal  11.8 lbs  Black  2530200 $260.13
 FORD 289-351W 1963-97, 28 oz, Removable Hub 6.54" OD  External  12.20 lbs  Black  2530201 $261.94
 FORD 302/HO 1981-95, 50 oz, Removable Hub 6.54” OD  External  13.40 lbs  Black  2530202 $270.99
 FORD 332-428 FE, 429-460 1958-97* 7.25" OD  Internal  13.00 lbs  Black  2546001*

*Keyway machining may be required for some OEM & Aftermarket cranks

SFI-rated FluidGel™ serpentine pulley dampers

PQx® SFI-Rated Racing FluidGel™
Serpentine Pulley Dampers

  • UnderDrive dampers free up horsepower
  • Constructed from billet carbon steel forgings
  • Available in standard or with a 25% UnderDrive
  • Feature easy to read laser etching timing marks
  • Includes alternator pulley; shorter drive belt is required
  • Meets SFI specification 18.1 and combats engine harmonics at all RPM ranges
  • Features an internal steel inertia ring surrounded by a high viscosity silicone gel

 PN 2528101 $270.99
FORD 4.6L (Except Mach I)
1996-04, UnderDrive

PN 2510901 $260.13
BMW Mini Cooper,
2001-06 Gen 1, Tritec 1.6 L

 PN 2534602 $300.44
GM 4.6L, 5.3, 5.7L, 6.0L LS Series 1998-08, UnderDrive

 Application  Detail  Weight

 Part # Your Cost
 BMW Mini Cooper, 2001-06 Gen 1, Tritec 1.6 L, Supercharged Only  138mm, Black, OEM Standard Drive  8.45 lbs 2510900 $270.99
 BMW Mini Cooper, 2001-06 Gen 1, Tritec 1.6 L, Naturally Aspirated  127mm, Black, 8.7% UnderDrive 7.50 lbs  2510901 $260.13
 BMW Mini Cooper, 2001-06 Gen 1, Tritec 1.6 L, Naturally Aspirated  138mm, Black, OEM Standard Drive 8.35 lbs  2510902 $280.94
 FORD 4.6L Mustang (Except Mach I) 1996-04  Black, 25% UnderDrive 7.15 lbs  2528101 $270.99
 CHEVY-GM 5.7L/6.0L LS Series for Camaro, Firebird, GTO, 1998-06  Black, 25% UnderDrive 11.40 lbs  2534601 $225.75
 CHEV-GM Trucks/SUV 4.8L, 5.3L, 6.0L, 6.2l LS Series 1999-14, w/ Keyway, Includes Alt Pulley  Black, 25% UnderDrive 11.40 lbs  2534602 $300.44
 CHEV-GM 5.7L/6.0L LS Series for Camaro, Firebird, GTO, 1998-06  Black, OEM Standard Drive 11.40 lbs  2534621 $251.08
 GM 4.8L, 5.3L, 5.7L, 6.0L 1998-08, Chevy, Buick, Cadillac, GMC, & Hummer LS Series  Black, OEM Standard Drive 11.40 lbs  2534622 $300.85

Damper Accessories

Harmonic Damper Bolts
Crankshafts flex and your damper absorbs incredible amounts of energy. PRW harmonic damper bolts will ensure that your balancer is locked into position. These feature a 1/4" thick wide-area washer and an extra tall 12-point head that accepts a deep socket to eliminate the fear of stripping the head when torqued to specification.

• 180,000 PSI rating
• Extra tall 12 pt head
• Includes 1/4" thick wide area washer

 PN 1042265 $25.52 CHEVY SB 265-400, 12 Point

 HARMONIC DAMPER BOLTS

 Application

 Part # Your Cost
 CHEVY SB 265-400, 12 Point 1042265 $25.52
 FORD 289-460 (Except 351C), 12 Point 1042289 $25.52
 FORD 351C, 12 Point, 5/8" Wrenching 1042351 $22.75
 LS SERIES, GM Gen III/IV, 12 Point, 1-1/16" Wrenching 1042346 $31.09
 PONTIAC 350-455, 12 Point 1042389 $23.68

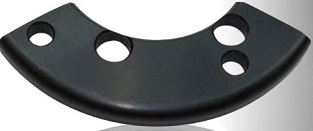

DAMPER COUNTERWEIGHTS

 PN 2394014
MOPAR SB 340, Chrysler, 1972-73

 PN 2391103 $17.65 AMC 401 V8

 DAMPER COUNTERWEIGHTS

 Application
  Weight

 Part # Your Cost
 AMC 360 V8 16.96 oz  2391101 $17.65
 AMC 304 V8 14.24 oz  2391102 $16.73
 AMC 401 V8 24.32 oz  2391103 $17.65
 CHEVY SB 400 16.80 oz  2391001 $23.94
 CHEVY SB 400 11.20 oz  2391003 $13.12
 CHEVY BB Chevy 454/502 15.20 oz  2391005 $14.17
 FORD SB (28 oz) 19.20 oz  2391006 $18.55
 FORD SB (50 oz) 28.80 oz  2391007 $21.98
 MOPAR SB 360, Chrysler, 1971-92 18.40 oz  2391012 $16.73
 MOPAR SB 360, Chrysler, 1993-97 10.72 oz  2391013 $14.94
 MOPAR SB 340, Chrysler, 1972-73 3.68 oz  2391014 $12.21
 MOPAR BB, Chrysler 11.04 oz  2391015 $16.73
 MOPAR BB, Chrysler 4.64 oz  2391016 $12.21
 OLDS V8 17.92 oz  2391022 $21.26

Harmonic Damper Pulley Spacers
PRW Harmonic Balancer Spacers are constructed from high quality aluminum to meet various demands of the performance and racing industry. The chart below illustrates some of the correct spacer applications to assist the installer to use OEM and aftermarket pulleys and other components for performance and racing engines. Please refer to the installation instructions for specific data for vehicle fitment.
 PN 2381009 $34.83 FRONT, STEEL, 0.95” Thick for SB Ford w/ Belt Driven Blower

PN 2381007 $38.45 FRONT, 0.95” Thick for SB Ford

 PULLEY SPACERS FOR HARMONIC DAMPERS

 Application

Part # Your Cost
 FORD 289-351W 1963-87, 4 Hole Aftermarket Billet Aluminum Spacer, Black Anodized 2593021 $26.69
 FORD 351W-C / 400M, 302 (5.0L) 1969-80, 0.350” Thick, 4-Bolt Pulley, Black Anodized 2381006 $26.69
 FORD 302 (5.0L) / 351W, 1980-95, 0.950” Thick, 4-Bolt Pulley, Black Anodized 2381007 $38.45
 FORD 351 HO, 351W, 302 (5.0L) 1980-95, 0.875” Thick, 4-Bolt Pulley, Black Anodized 2381008 $38.45
 FORD 302 (5.0L) / 351W, 1980-95, 0.950” Thick Steel for Applications w/ Belt Driven Supercharger 2381009 $34.83
 MOPAR 426 Street or Race HEMI® (Use w/ PN (2442639 or 2442640) 2381013 $26.69

SFI-Rated Gold Series Steel Flexplates
SFI Certified, .035” thicker than stock flexplates, designed and built for racing, and manufactured to exceed OEM specifications. Features double-welded ring gears designed to withstand the RPM and stress of engine torque associated with high stall converters. PRW Chromoly Steel Flexplates are OEM Compatible.

 PN 1840100 $108.13 AMC/JEEP 304-401 1971-77

 PN 1834600 $85.51 GM LS Series

All PRW gold series sfi-rated flexplates are oem compatible

CHROMOLY Gold Series SFI-RATED FLEXPLATES

 Application
See Flexplate Footnotes Below for Bolt Circle Info
  Balance  Teeth   Bolt Circle

 Part # Your Cost
 AMC/JEEP 304-401 1971-77, 3.8/4.2L I-6 1969-88 External  164   3, 4 1840100 $108.13
 AMC/JEEP 304-401 1971-77, 3.8/4.2L I-6 1969-88 Internal  164  3, 4  1840102 $108.13
 BUICK 403-455 1967-76, TH350 & TH400 External  166  6, 7  1845507 $88.22
 CADILLAC 368-500 1968-84 Internal  166  6, 7  1850001 $108.13
 CHEVY 1957-85, 90° V6, 2 Piece Rear Seal Internal  168  6, 7  1835001 $76.46
 CHEVY SB 1957-85, 90° V6, 2 Piece Rear Seal Internal  153  6, 8  1835002 $70.12
 CHEVY 350 1986-97, 1 Piece Rear Seal External  168  6, 7  1835003 $85.51
 CHEVY SB 1986-97, 90° V6, 1 Piece Rear Seal External  153  6  1835004 $78.27
 CHEVY 350 1986-97, 1 Piece Rear Seal Internal  168  6, 7  1835005 $78.27
 CHEVY SB 1986-97, 90° V6, 1 Piece Rear Seal Internal  153  6  1835006 $78.27
 CHEVY 400/383 1970-80, 2 Piece Rear Seal External  168  6, 7  1840000 $76.46
 CHEVY 454 1970-90, 2 Piece Rear Seal External  168  6, 7  1845400 $76.46
 CHEVY 454 Gen V/VI 1991-97, 1 Pc Rear Seal, 14.13" OD  External 168  6, 7  1845401 $80.98
 CHEVY 8.1L, 2001-07, 6 Bolt Convertor Internal  168  9  1849600 $90.03
 FORD 4.6L Modular V8 1992-09, 6 Bolt Crankshaft Internal  164  1  1828100 $78.27
 FORD 289-351W 1963-82 Internal  164  1  1830200 $79.17
 FORD 289-351W 1963-82, 28 oz External  164  1  1830201 $79.17
 FORD 302 1982-95, 50 oz External  164  1  1830202 $80.98
 FORD 289-351W, 1963-82 Internal  157  2  1830203 $80.98
 FORD 289-351W 1963-82, 28 oz External  157  2  1830204 $79.17
 FORD 302 1982-95, 50 oz External  157  2  1830205 $79.17
 FORD 289-351W/C/M/400 1963-88, C-6, 28 oz External  164  1  1835100 $83.69
 FORD FE 352-428 1957-Up Internal  184  1  1839000 $90.03
 FORD FE 427-428 1966-70 & 429/460. C-6, 28 oz External  184  1  1842801 $90.03
 FORD 429/460, 332-428 FE, 1968-97, 28 oz Internal  164  1  1846003 $88.22
 FORD 429/460, 332-428 FE, 1968-97 External  164  1  1846004 $88.22
 GM LS Series, LS1/LS2/LS3/LS6 & 4.8L/5.3L/6.0L/6.2L 1997-Up Internal  168  5, 6  1834600 $85.51
 MOPAR/JEEP 5.7L/6.1L Mod HEMI® 2002-Up, 8 Bolt Crankshaft (Will Not Fit 545/65RFE) Internal  131  13  1834500 $90.03
 MOPAR SB & BB 1956-Up, 6 Bolt Crankshaft Internal   - 3, 4  1831801
 OLDS V8 1968-90, TH350 & TH400 External  166  6, 7  1845505 $85.51
 PONTIAC 326-455 1957-79, TH350 & TH400, PowerGlide External  166  6, 7  1845500 $85.51
 PONTIAC 326-455 1967-79, TH350 & TH400, P/Glide Internal  166  6, 7  1845501 $85.51


FLEXPLATE FOOTNOTES
1. 4 x 11.40" Ford 2. 4 x 10.50" Ford 3. 4 x 11.125"
Mopar		 4. 4 x 10.00" Mopar 5. 3 x 11.00" GM 6. 3 x 10.75" GM 7. 3 x 11.50" GM
8. 3 x 9.75" GM 9. 6 x 11.50" GM 10. 6 x 11.00" GM 11. 6 x 12.25"
Mopar		 12. 3 x 10.50" GM 13. 8 x 12" Mopar 14. 3 - T350 and
3 - T400 Specialty

SFI-Rated Platinum Series Steel Flexplates

PQx® Xtreme Duty Platinum SFI-Rated Flexplates
Xtreme Duty SFI-Rated Flexplates are engineered to handle extreme performance applications and designed to take the punishment of today’s high horsepower engines. The 4mm thick centerplate provides a solid foundation for these new designs. Ring gears are precision welded to meet SFI specifications, utilizing robotic machinery and a coldwelding process. Platinum Series Flexplates are engineered for excellence and are rigorously inspected throughout the manufacturing cycle to ensure that our customers receive the quality that they have come to expect from PRW.

  • Exceeds SFI Specification 29.1
  • Ford applications small bell adapts to GM torque convertor
  • Ford crankshaft adapters available for use with GM torque converters
 PN 1845431 $117.17 CHEVY 454 1970-90, Early, 0.187” Thick Core, High Integrity Design

 PN 1834610 $112.65 GM LS Series, High Integrity Design


PQx® XTREME DUTY SFI-RATED FLEXPLATES, HIGH INTEGRITY DESIGN

 Application
See Flexplate Footnotes Below for Bolt Circle Info
  Balance  Teeth   Bolt Circle

 Part # Your Cost
 CHEVY SB 1957-85, 90° V6, 2 Piece Rear Seal Internal  153  6, 8  1832730 $105.42
 CHEVY SB/BB 1957-85, 90° V6, 2 Piece Rear Seal, Includes 2001-07 8.1L BB Internal  168  6, 8, 9  1835030 $108.13
 CHEVY 454 1970-90, 2 Piece Rear Seal External  168  6, 7, 8  1845431 $117.17
 CHEVY 454/502 Gen V/VI 1991-97, 1 Piece Rear Seal External  168  6, 7, 8  1850231 $117.17
 GM LS Series, LS1, LS2, LS3, LS6 & 4.8L, 5.3L, 6.0L, 6.2L 1997-Up **Will Fit Turbo 350 & 400 Transmissions w/ Adapter Internal  168  5, 6  1834610 $112.65
 GM LS Series, LS1, LS2, LS3, LS6 & 4.8L, 5.3L, 6.0L, 6.2L 1997-Up **Will Fit Specialty 6-bolt Turbo 350 & 400 Convertors w/ Adapter Internal  168  6, 9, 10, 12  1834614 $121.70
 MOPAR SB & BB 1956-91, 6 Bolt Crankshaft, 4mm Thick Centerplate Internal  -  3, 4  1844010 $67.41

FLEXPLATE FOOTNOTES
1. 4 x 11.40" Ford 2. 4 x 10.50" Ford 3. 4 x 11.125"
Mopar		 4. 4 x 10.00" Mopar 5. 3 x 11.00" GM 6. 3 x 10.75" GM 7. 3 x 11.50" GM
8. 3 x 9.75" GM 9. 6 x 11.50" GM 10. 6 x 11.00" GM 11. 6 x 12.25"
Mopar		 12. 3 x 10.50" GM 13. 8 x 12" Mopar 14. 3 - T350 and
3 - T400 Specialty

Tech Tip: What's the difference between PRW's High Integrity and High Inertia Designs? Both are manufactured for high-horsepower applications. High Integrity designs are lightened for quicker throttle response. Perfect for off-road, road racing or use on the street. The High Inertia designs are manufactured with a robust solid flat plate of cold-rolled steel for harder drag race launches and improved 60-foot times.

PQx® XTREME DUTY SFI-RATED FLEXPLATES, HIGH INERTIA DESIGN
High inertia design for trans-brake applications! Tech Tip!: All Small Bell Flexplates may require special torque converter
 PN 1834620 $121.70 GM LS Series, High Inertia Quick-Launch Design, Internal Design


 Application
See Flexplate Footnotes Below for Bolt Circle Info
  Balance  Teeth   Bolt Circle

 Part # Your Cost
 CHEVY SB 1957-85, 90° V6, 2 Piece Rear Seal Internal  153  6, 8 1832720 $105.42
 CHEVY SB/BB, Includes 2001-07 8.1L BB, 2 Piece Rear Seal Internal  168  6, 8, 9  1835021 $126.22
 CHEVY 454 1970-90, 2 Piece Rear Seal External  168  6, 7, 8  1845420 $117.17
 FORD 4.6L DOHC 1992-06, 6 Bolt Crank Internal  164  1, 2, 6, 7  1828110 $103.60
 FORD 4.6L DOHC 1992-06, 8 Bolt Crank Internal  164  1, 2, 6, 7  1828111 $103.60
 FORD 289-351W 1963-95, Eagle Crank, Small Bell Internal  164  1, 2, 6, 7  1830210 $103.60
 FORD 289-351W 1963-82, 28 oz, Small Bell External  164

1, 2, 6, 7

 1830211 $105.42
 FORD 302 1982-95, 50 oz External  164

1, 2, 6, 7

 1830212 $106.31
 FORD 289-351W 1963-95, Eagle Crank, Small Bell Internal  157  2, 6  1830213 $103.60
 FORD 289-351W 1963-82, 28 oz External  157  2, 6  1830214 $105.42
 FORD 302 1982-95, 50 oz External  157  2, 6  1830215 $106.31
 FORD 429-460 1966-97 External  164  1, 6, 7 1846010 $117.17
 FORD 429-460, Eagle Crank Internal  164  1, 6, 7  1846011 $117.17

  *Small & Big Block Ford applications feature both Ford & GM converter pattern
 GM LS Series, LS1, LS2, LS3, LS6 & 4.8L, 5.3L, 6.0L, 6.2L 1997-U
**Will Fit Turbo 350 & 400 Transmissions w/ Adapter		 Internal  168  6, 9, 10, 12  1834620 $121.70
 GM LS Series, LS1, LS2, LS3, LS6 & 4.8L, 5.3L, 6.0L, 6.2L 1997-U
**Will Fit Specialty 6-bolt Turbo 350 & 400 Convertors w/ Adapte		 Internal  168  6, 9, 10, 12  1834624 $135.27
MOPAR 5.7L/6.1L Mod HEMI®, 2002-Up, 8 Bolt Crankshaft (Will Not Fit 545/65RFE) Internal  131  13  1837010 $123.51
 OLDS V8 1968-90 External  166  6, 7  1845512 $90.03
 OLDS V8 Includes Diesel 1968-90 Neutral  166  6, 7  1845513 $117.17
 PONTIAC 326-455 1957-79 External  166  6, 7  1845502 $117.17
 PONTIAC 326-455 1957-79 Neutral  166  6, 7  1845503 $117.17

FLEXPLATE FOOTNOTES
1. 4 x 11.40" Ford 2. 4 x 10.50" Ford 3. 4 x 11.125"
Mopar		 4. 4 x 10.00" Mopar 5. 3 x 11.00" GM 6. 3 x 10.75" GM 7. 3 x 11.50" GM
8. 3 x 9.75" GM 9. 6 x 11.50" GM 10. 6 x 11.00" GM 11. 6 x 12.25"
Mopar		 12. 3 x 10.50" GM 13. 8 x 12" Mopar 14. 3 - T350 and
3 - T400 Specialty













FORD & GM CRANK SLEEVE ADAPTERS
_________________  ___________________
Application

Part # Your Cost
 FORD, for Use w/ PQx Series SBF to GM Transmission 1800302 $21.26
 FORD, for Use w/ PQx Series BBF to GM Transmission 1800460 $21.26
 GM LS, Adapter for Older GM Converter to LS Engine 1800346 $23.98

SFI-Rated Diesel Flexplates
PQx® SFI-Rated Signature Series Diesel Steel Flexplates
Modified Cummins engines deliver power and torque that can crack or shatter the stock flexplate. The PRW Signature Series steel flexplates are manufactured from billet steel forgings, designed and built to withstand 1,500 lbs. ft. of torque. All are precision-balanced, laser engraved, and SFI 29.3 approved for use in high output diesel applications.
 PN 1840821 $406.71 Dodge Cummins 6.7L, Black Oxide

 PQx® SFI-RATED DIESEL SIGNATURE SERIES STEEL FLEXPLATES

 Application
  Balance  Teeth  Weight  Part # Your Cost
 DODGE 5.9L Cummins 1994-07, One Piece Billet Steel, Meets SFI Diesel Spec 29.3, Black Oxide Internal  152  11.5 lbs  1835921 $406.71
 DODGE 6.7L Cummins 2007-Up, One Piece Billet Steel, Meets SFI Diesel Spec 29.3, Black Oxide Internal  152  12.25 lbs  1840821 $406.71


PQx® SFI-Rated Platinum Series Diesel Steel Flexplates

 PN- 1835910 $177.80 Dodge Cummins 5.9L

The PQx® SFI-Rated Platinum Series Diesel Steel Flexplates are engineered to handle extreme performance applications and designed to take the punishment of today’s high horsepower engines. The 4mm thick centerplate provides a solid foundation for these new designs. Ring gears are precision welded to meet SFI specifications, utilizing robotic machinery and a cold-welding process. Platinum Series Diesel Flexplates are engineered for excellence and are rigorously inspected throughout the manufacturing cycle to ensure that our customers receive the quality that they have come to expect from PRW.



• Exceeds SFI Specification 29.1
• Ideal for stock to mildly modified
• Excellent alternative for heavy duty towing requirement
• OEM Compatible as listed

 SFI-RATED DIESEL PLATINUM SERIES STEEL FLEXPLATES


 Application
  Balance  Teeth  Weight  Part # Your Cost
 DODGE 5.9L Cummins 1994-07 (Prior Years May Require Aftermarket Transmission Spacer) Internal  152  9.75 lbs  1835910 $177.80
 DODGE 6.7L Cummins 2007-Up Internal 152 9.70 lbs 1840810 $180.51 Internal  152  9.70 lbs  1840810 $180.51
 FORD 6.0L/6.4L Powerstroke Diesel, 2003-2007 363ci for 5R110 Trans NEW! External  141  9.39 lbs  1836311 $175.99
 FORD 7.3L Powerstroke Diesel, 1989-2006 445ci for E4OD or 4R100 Transmissions NEW! External  155  9.53 lbs  1844511 $177.80


SFI-Rated BILLET
STEEL Flywheels
PQx® SFI-Rated Billet Steel Flywheels
PRW flywheels are CAD engineered, and precision CNC machined from 1045 billet steel. Each flywheel is balanced and carefully inspected throughout the manufacturing process. PRW steel flywheels are SFI Certified and feature removable counterweights for versatility.

• SFI certified
• CNC machined
• CAD engineered
• Bolt-on counterweight
• Made from 1045 billet steel forgings

 PN 1635080 $307.18 CHEVY 265-427

 PN 1626500 $243.85 CHEVY SB

 PQx® SFI-RATED BILLET STEEL FLYWHEELS


 Application
See Flywheel Footnotes below for Additional Information
 Teeth  Balance  Weight  Part # Your Cost
 AMC-JEEP 343-360-390 1966-71 NEW! 164  Internal  30.5 lbs  1634380 $352.42
 AMC-JEEP 360 V8 1972-91 NEW! 164  External  31.5 lbs.  1636081 $361.78
 AMC-JEEP 360 V8 1972-83 NEW! 164  External  31.5 lbs.  1630481 $361.47
 AMC-JEEP 360 V8 1972-91 NEW! 164  External  31.5 lbs  1640181 $377.75
 CHEVY 265-427 1955-85, Circle Track Spec [Requires High Performance Clutch] 153  Internal  18 lbs  1626500 $243.85
 CHEVY 265-427 V6/V8 1955-85 [Requires High Performance Clutch] 168  Internal  21.4 lbs  1628300 $243.85
 CHEVY 305-350 1986-92, 1 Piece Rear Seal [See Notes 1, 3, 4] 153  Internal  29 lbs  1630580 $307.18
 CHEVY 305-350 1986-92, 1 Piece Rear Seal [See Notes 1, 3, 4] 153  External  29.3 lbs  1630581 $311.71
 CHEVY 327-427 1963-85 (Except 400) & 572 GM Crate Motor [See Notes 1, 3, 4] 153  Internal  29 lbs  1632780 $280.04
 CHEVY 265-427 1955-85 (Except 400) & 572 GM Crate Motor [See Notes 1, 3, 5] 168  Internal  30 lbs  1635080 $307.18
 CHEVY 383 1986-92, 1 Piece Rear Seal, SCAT/Eagle Stroker [See Notes 1, 3, 4] 153  External  29 lbs  1640061 $316.23
 CHEVY 383-400 1970-85 [See Notes 1, 3, 4] 153  External  29 lbs   1640071 $316.23
 CHEVY 383-400 1970-85 [See Notes 1, 3, 5]  168  External  30 lbs 1640081 $316.23
 CHEVY 454 1970-90, 2 Piece Rear Seal [See Notes 1, 3, 4]  153  External  29 lbs 1645471 $323.47
 CHEVY 454 1990-00, 1 Piece Rear Seal [See Notes 1, 3, 4]  153   External  29.6 lbs 1645472 $323.47
 CHEVY 454 1970-90, 2 Piece Rear Seal [See Notes 1, 2, 5]  168  Internal  31 lbs 1645480 $323.47
 CHEVY 454 1970-90, 2 Piece Rear Seal [See Notes 1, 2, 5]  168  External  31 lbs 1645481 $327.99
 CHEVY 454 1990-00, 1 Piece Rear Seal [See Notes 1, 2, 5]  168  External  31 lbs 1645482 $327.99
 CHEVY 502 1991-Up, 1 Piece Rear Seal, Steel Crank [See Notes 1, 3, 4]  153  External  29 lbs 1650272 $318.94
 CHEVY 502 1991-Up, 1 Piece Rear Seal, Steel Crank [See Notes 1, 2, 5]  168  External  30 lbs 1650282 $318.94

FLEXPLATE FOOTNOTES
1. 4 x 11.40" Ford 2. 4 x 10.50" Ford 3. 4 x 11.125"
Mopar		 4. 4 x 10.00" Mopar 5. 3 x 11.00" GM 6. 3 x 10.75" GM 7. 3 x 11.50" GM
8. 3 x 9.75" GM 9. 6 x 11.50" GM 10. 6 x 11.00" GM 11. 6 x 12.25"
Mopar		 12. 3 x 10.50" GM 13. 8 x 12" Mopar 14. 3 - T350 and
3 - T400 Specialty

 PN 1628981 $302.66
FORD Small Block, w/ Removable Counterweight

 PQx® SFI-RATED BILLET STEEL FLYWHEELS


 Application
See Flywheel Footnotes below for Additional Information
 Teeth  Balance  Weight  Part # Your Cost
 FORD 4.6L 1996-04 SOHC-DOHC, 6 Bolt [See Notes 5, 9, 10, 12] 164  Internal  26.30 lbs  1628100 $270.99
 FORD 4.6L 1992-08 Modular V8, 8 Bolt 164  Internal  26.55 lbs  1628180 $316.23
 FORD 260-302 1964-95 [See Notes 1, 3, 4, 10] 157  Internal  23.40 lbs  1628980 $298.13
 FORD 260-289 1964-69, 28 in-oz [See Notes 1, 3, 4, 5, 10] 157  External  23.95 lbs  1628981 $302.66
 FORD 302 5.0L 1980-95, 50 in-oz [See Notes 1, 3, 4, 5, 10] 157  External  24.10 lbs  1628982 $304.47
 FORD 289-302-351 1963-95 [See Notes 3, 4, 9, 10] 164  Internal  30.20 lbs  1630280 $298.13
 FORD 289-302-351 1963-79, 28 in-oz [See Notes 3, 4, 9, 10] 164  External  30.45 lbs  1630281 $313.52
 FORD 302 5.0L 1980-95, 50 in-oz [See Notes 3, 4, 9, 10] 164  External  33.90 lbs  1630282 $316.23
 FORD FE 332-427 1963-74, [See Notes 5, 7, 9] 184  Internal  33.00 lbs  1642780 $329.80
 FORD 332-428 1963-74, 28 in-oz [See Notes 5, 7, 9] 184  External  33.25 lbs  1642781 $338.85
 FORD 332-427 1963-74 [See Notes 5, 7, 9] 184  Internal  34.00 lbs  1642880 $332.51
 FORD FE BB 332-428 1966-70, 28 in-oz [See Notes 5, 7, 9] 184  External  34.30 lbs  1642881 $337.04
 FORD 429-460 1969-78 [See Notes 5, 7, 9] 176  Internal  33.00 lbs  1642980 $311.71
 FORD 429-460 1969-78, 28 in-oz [See Notes 5, 7, 9] 176  External   33.30 lbs  1642981 $338.85
 FORD 460 1979-99 [See Notes 5, 7, 9] 176  Internal  35.15 lbs  1646080 $316.23
 FORD 429-460 1979-99 [See Notes 5, 7, 9] 176  External  35.45 lbs  1646081 $327.99
 GM (5.7L) LS1-LS6 1998-08, OEM Replacement [See Notes 2, 11] 168  Internal  25.45 lbs  1634680 $316.23
 CHEV 265-427 1955-85 NEW! 168  Internal  36.00 lbs  1635090 $316.23
 CHEV SB 383-400 1970-85 NEW! 168  External  36.00 lbs  1640091 $329.80
 CHEV, 1970-90 BB 454 NEW ! 168  External  36.00 lbs  1645491 $334.33
 MOPAR 225 Slant 6 1960-87, 318, 340 1964-99, 383, 400, 440 1964-78, 6 Bolt, Clutch Pattern- 10", 10.5", 10.95" B&B, 10" & 10.5" Long, & 10" Diaphrams 130   Internal  20.38 lbs  1631880 $334.33
 PONTIAC 326-455 1964-85, Removable 2.50" Crankshaft Pilot Ring & Counterweight [See Notes 1, 2, 3, 4] 166  External  30.40 lbs  1645570 $334.33
 PONTIAC 326-455 1964-85, 2.50" or 2.75" Crankshaft Pilot [See Notes 1, 2, 3, 4] 166  Internal  30.35 lbs  1645571 $316.23

FLEXPLATE FOOTNOTES
1. 4 x 11.40" Ford 2. 4 x 10.50" Ford 3. 4 x 11.125"
Mopar		 4. 4 x 10.00" Mopar 5. 3 x 11.00" GM 6. 3 x 10.75" GM 7. 3 x 11.50" GM
8. 3 x 9.75" GM 9. 6 x 11.50" GM 10. 6 x 11.00" GM 11. 6 x 12.25"
Mopar		 12. 3 x 10.50" GM 13. 8 x 12" Mopar 14. 3 - T350 and
3 - T400 Specialty


SFI-Rated BILLET ALUMINUM Flywheels

PQx® SFI-Rated Aluminum Flywheels PRW billet aluminum flywheels are manufactured from the highest quality 6061-T6 billet aluminum. These flywheels feature excellent heat dissipation and weight reduction. The replaceable friction surface is constructed from 1045 steel and attached with military-grade fasteners. PRW billet aluminum flywheels also feature a forged heat-treated steel ring gear, secured with button screws. Dowel pins included where required.

• Manufactured from 6061-T6 billet aluminum • Excellent heat dissipation and weight reduction • Replaceable friction plate for long term durability

 PN 1928100 $352.42
Ford, 4.6L Modular V8, 6 Bolt

 PN 193500
CHEVY SB 262-400 V6/V8, BB V8 396-427, & “WB” 348-409, Includes 383/400 Counterweight

PQx® SFI-RATED BILLET ALUMINUM FLYWHEELS


 Application
See Flywheel Footnotes below for Additional Information
 Teeth  Balance  Weight  Part # Your Cost
 CHEVY SBC, WBC, BBC, 1955-85 Small Block 262-400 V6/V8, Big Block V8 396-427 & 572, and "W" Block 348-409 NEW!  153  Neutral  13.00 lbs 1932700 $440.22
 CHEVY SB 262-400 V6/V8, 1955-85, BB V8 396-427, & "WB" 348-409, Includes 383/400 Counterweight 168  Internal  13.90 lbs  1935000 $352.42
 CHEVY BB 454-502 1970-00, w/ Early/Late Bolt-On Counterweights 168  External  15.00 lbs  1945400 $334.33
 CHEVY BB 454 1970-90, w/ Early Design Bolt-On Counterweight 168  External  14.00 lbs  1945401 $361.47
 C $33.04 HEVY, 1991-Up BB 454-502 NEW! 153  External  14.00 lbs  1950200 $334.33
 CHEVY BB502, 1991-Up, w/ Bolt-On Counterweigh t 168  External  14.00 lbs  1950201 $361.47
FORD 4.6L 1992-08 Modular V8, 12 lbs, 6 Bolt 164  Internal  12.25 lbs  1928100 $352.42
 FORD 4.6L 1992-08 Modular V8, 12 lbs, 8 Bolt 164  Internal  12.30 lbs  1928101 $352.42
 FORD 289-351W, Includes 28 & 50 oz Counterweights 157  External  11.25 lbs  1928900 $352.42
 GM 1997-Up LS1/LS2 168  Internal  11.65 lbs  1934600 $361.47


CLUTCH PATTERN REFERENCES
 PRW diagram for Ford long style & GM,, Ford, Chrysler - Borg & Beck clutch patterns

CLUTCH PATTERN REFERENCE CHART
 Make  Clutch
Diameter		  Clutch Style  Bolt to Bolt
Spacing		  Mounting Bolt
Thread Size		  Dowel Pins
Required
Chrysler  10” or 10.4”  BB/D  5-13/16  3/8-16 UNC  No
Chrysler  11” or 12”  BB/D  6-5/16”  3/8-16 UNC  No
GM  10” or 10.4”  BB/D  5-13/16”  3/8-16 UNC  No
GM  11” or 12”  BB/D  6-5/16”  3/8-16 UNC  No
GM LS1  11” or 11.5”  BB/D  6-5/16”  10mm x 1.50  Yes
GM LT1  11” (Pull Type)  BB/D  5-13/16”  3/8-16 UNC  No
Ford  10” (Long Pattern)  D  3-1/8”  5/16-18 UNC  No
Ford  10” or 10.5”  Long  3-1/8”  5/16-18 UNC  No
Ford 1986-Up  10.4” (Mustang)  D  5-5/8”  8mm x 1.25  Yes
Ford  11”  Long  3-3/8”  5/16-18 UNC  No
Ford  11”  D  6-3/16”  3/8-16 UNC  No
Ford 4.6L  11” (Mustang)  D  6-3/16”  8mm x 1.25  Yes
Ford  11.5”  Long  3-9/16”  5/16-18 UNC  No

 FLYWHEEL FOOTNOTES
1. 10”, 10.5”, 10.95” B & B-
Diaphragm 		 2. 11” & 12” B &
B-
Diaphragm 		 3. 10” & 10.5” Long  4. 10” Diaphragm

5. 11” Long
w/ 5/16” Bolts

 6. 11” Long-
Diaphragm w/ 3/8”
Bolts
7. 11.5” & 12”
Long-
Diaphragm 		 8. 12” Long-8 Bolt
Cover

9. 11” Diaphragm Ford Trucks Even Pattern

 10. 10.5” Mustang
Diaphragm w/ 8mm
Bolts 		 11. 12” LS1
Diaphragm w/ 10mm
Bolts 		 12. 11” Mustang
w/ Dowel Pin
2000 & Up


Platinum Series Shaft Mount Rocker Arm Systems

PQx® MOPAR SHAFT MOUNT ROCKER SYSTEMS
PQx® Mopar Stainless Steel & Aluminum Rocker Arm Systems platinum series shaft mount rocker arm systems PRW Mopar Shaft Mount Rocker Arm systems are complete with everything needed to improve the performance of your stock Mopar or aftermarket cylinder heads. The custom alloy steel CNC machined castings incorporate silicone bronze bushings, roller tips, cup-style adjusters and 12 point lightweight locking nuts.

The 2024 extruded aluminum rocker bodies utilize precision cylindrical needle and cage bearing assemblies, roller tips, and ball-type adjusters with 12 point lock nuts. Both systems include 4135 steel alloy shafts, the finest quality hold downs, studs, fasteners, shims, spacers, pushrod length checkers and installation tools complete the assortment.

Tech Tip!: Mopar ball-style adjusters require cup-style
Tech Tip!: Mopar cup-style adjusters require ball-style pushrods.

SPECIAL NOTE: PRW rocker systems are designed for use with performance-rated camshafts, pushrods and other related components. Open Spring Pressure Ratings (OSPR) should be determined by following camshaft and pushrod manufacturers' published ratings of component parts.

  PN 3231812 $614.81 MOPAR 273-360 Stainless Steel Shaft Mount Rocker Arms (Left)

PN 3331812 $578.62 MOPAR 273-360 Aluminum
Shaft Mount Rocker Arms (Right)

Shaft Mounted rocker kit - PN 3344013 $596.72 MOPAR 383-440, 2024 Billet Aluminum, Complete Kit


SPECIAL NOTE: PRW rocker systems are designed for use with performance-rated camshafts, pushrods and other related components. Open Spring Pressure Ratings (OSPR) should be determined by following camshaft and pushrod manufacturers' published ratings of component parts.

 PN 3344013 $596.72 MOPAR 383-440, 6061-T6 Billet Aluminum, Complete Kit

STAINLESS STEEL
Complete Kit Includes: 16 Rockers, Hardened Shafts, Hold Downs, Spacers & Shims, Cup-Style Push Rod Adjusters & Push Rod Length Checkers

 Application
  OSPR  Ratio Part # Your Cost
 MOPAR 273-360, 1964-91, "LA" 750 lbs  1.5  3231811 $614.81
 MOPAR 273-360, 1964-91, "LA" 750 lbs   1.6  3231812 $614.81
 MOPAR 383-440, 1959-78, "B" & "RB" 750 lbs  1.5  3244011 $623.86
 MOPAR 383-440, 1959-78, "B" & "RB" 750 lbs  1.6  3244012 $623.86
 MOPAR 383-440, 1959-78, "B" & "RB"  750 lbs

1.7
 3244013 $632.91

BILLET ALUMINUM
Complete Kit Includes: 16 Rockers, Hardened Shafts, Hold Downs, Spacers & Shims,
Ball-Style Push Rod Adjusters & Push Rod Length Checkers

 Application
  OSPR  Ratio Part # Your Cost
 MOPAR 273-360, 1964-91, "LA" 650 lbs  1.5   3331811 $569.57
 MOPAR 273-360, 1964-91, "LA" 650 lbs  1.6  3331812 $578.62
 MOPAR 383-440, 1959-78, "B" & "RB" 650 lbs  1.5  3344011 $578.62
 MOPAR 383-440,1959-78, "B" & "RB" 650 lbs  1.6  3344012 $587.67
 MOPAR 383-440, 1959-78, "B" & "RB" 650 lbs  1.7  3344013 $596.72
 MOPAR 383-440, "B" & "RB", Edelbrock Victor & Other
Wedge Heads w/ .650" Offset Intake Valves NEW!		 650 lbs  1.5  3544021 $741.49
 MOPAR 383-440, "B" & "RB", Edelbrock Victor & Other
Wedge Heads w/ .650" Offset Intake Valves NEW!		 650 lbs  1.6  3544022 $741.49

*May not be legal for sale or use on pollution controlled motor vehicles
OSPR = Open Spring Pressure Ratings


PQx® FORD FE SHAFT MOUNT ROCKER SYSTEMS

Complete Kit Includes: 16 Rockers, Hardened Shafts, Individually Numbered Billet Aluminum Rocker Shaft Supports & Spacers, PRW Aircraft Quality Studs, 12 Point Nuts, Shims, Ball-Style Valve Lash Adjusters & Push Rod Length Checkers

Featuring a refined design, these Ford FE shaft rocker systems are specifically designed to fit all Low-rise, Medium-rise and Tall Port OEM production heads, Edelbrock brand and other aftermarket cylinder heads, fulfilling the needs of racers and performance engine builders at every level. This complete rocker arm system is available with Platinum Series 2024 aluminum alloy or custom alloy steel rocker bodies (with silicone bronze bushings) and ball-style valve lash adjusters. The set includes chromoly alloy steel shafts, individually numbered billet aluminum rocker shaft supports and spacers, PRW aircraft quality studs and 12 point nuts. Both systems feature a double pedestal shaft mount. Other related hardware and shims are included for a custom installation.

Double end pedestals for added strength
 PN 3339022 -$663.85 FORD 352-428 FE Aluminum Shaft Mount Rocker Arms

 PN 3239022 $759.58 FORD 352-428 FE, Stainless Steel, Complete Kit

PQx® FORD FE SHAFT MOUNT ROCKER SYSTEM
Complete Kit Includes: 16 Rockers, Hardened Shafts, Individually Numbered Billet Aluminum Rocker Shaft Supports & Spacers, PRW Aircraft Quality Studs, 12 Point Nuts, Shims, Ball-Style Valve Lash Adjusters & Push Rod Length Checkers

 Application
  OSPR  Ratio Part # Your Cost
 FORD 352-428 FE, 1958-76, 17-4ph Stainless Steel 850 lbs   1.75 3239022 $759.58
 FORD 352-428 FE, 1958-76, 2024 Billet Aluminum 750 lbs  1.75  3339022 -$663.85

*May not be legal for sale or use on pollution controlled motor vehicles
*Does not work on tunnel portheads.
OSPR = Open Spring Pressure Ratings


SPECIAL NOTE: PRW racing and performance rocker arm systems must be matched to the specifications provided by your camshaft manufacturer and other performance parts suppliers. The installer is responsible to assure that aftermarket cylinder heads and other valvetrain components are compatible with one another. Not designed for use with OEM-Rated pushrods. Custom pushrod information is available to assist you below. (coming soon).


PQx® Shaft Mount Aluminum Rocker Arm Systems
Performance Quotient aluminum rocker arms are made from 2024 aluminum alloy extrusions. Each rocker body is relieved for extra valve spring clearance and anodized for added strength. CNC machined billet steel pedestals, ground steel alloy rocker shafts, PRW SCM-4135 alloy steel fasteners and needle roller bearings from the finest manufacturers in the world comprise the foundation of these rocker arm systems. These complete kits include pushrod length checkers, components and hardware required for a professional installation.



PQx® Shaft Mount Aluminum Rocker Arm Systems

 Application
  OSPR  Ratio Part # Your Cost
 CHEVY Small Block 262-400 650 lbs   1.5  3335001 $714.34
 CHEVY Small Block 262-400 650 lbs   1.6  3335003 $723.39
 CHEVY Small Block 262-400, 1.5 Exh/1.6 Int, Split Ratio Set 650 lbs   1.5/1.6  3335013 $732.44
 FORD Small Block 289-351W 650 lbs   1.6  3330201 $714.34
 FORD Small Block 289-351W 650 lbs   1.7  3330202 $683.54

See Application List Below For Compatible Heads
*May not be legal for sale or use on pollution controlled motor vehicles
OSPR = Open Spring Pressure Ratings


Big Block Chevy Shaft System
Performance Quotient Big Block Chevy Shaft Mount Rocker Arms are the ultimate replacements for OEM and aftermarket heads. These 2024 aluminum bodied rockers are able to easily handle today’s aggressive springs and cam profiles.

 PN 3345431 $813.87
CHEVY BB, Brodix-2, GM OEM
|
PN 9528104 $41.53 Rocker Arm Stand Shim Kit, for BBC 33 Series Rocker Systems 0.930” OD x 0.450" ID x 16 Ea (Thickness: 0.175”, 0.150”, 0.115”, 0.050”, 0.030”) 80 Pieces


PQx® BBC ALUMINUM SHAFT MOUNT ROCKER ARM SYSTEMS

 Application
  OSPR  Ratio Part # Your Cost
 CHEVY BB, Brodix-2, GM OEM 750 lbs  1.7  3345431 $813.87

See Application List Below For Compatible Heads
*May not be legal for sale or use on pollution controlled motor vehicles


PQx® LS ALUMINUM SHAFT MOUNT ROCKER ARM SYSTEMS

 PN 3534631 $868.16 GM, LS1 5.7/6.0L Gen III, 1.7 Ratio

PQx® LS ALUMINUM SHAFT MOUNT ROCKER ARM SYSTEMS

 Application
  OSPR  Ratio Part # Your Cost
 GM LS1, LS2, LS6 Gen III Cathedral Port Heads, 2024 Aluminum Bodies 650 lbs  1.7  3534631 $868.16
 GM LS1, LS2, LS6 Gen III Cathedral Port Heads, 2024 Aluminum Bodies 650 lbs  1.8  3534632 $868.16
 GM L92, LS3 Gen III Rectangular Port Heads, 2024 Aluminum Bodies 750 lbs  1.7  3536431 $868.16
 GM L92, LS3 3336431 -$1,154.88 Gen III Rectangular Port Heads, 2024 Aluminum Bodies 750 lbs  1.8  3536432 $868.16

See Application List Below For Compatible Heads
*May not be legal for sale or use on pollution controlled motor vehicles
OSPR = Open Spring Pressure Ratings

 COMPATIBLE CYLINDER HEAD APPLICATIONS

 3335001, 3335003, & 3335013 $732.44
SBC Application List
 Chevy OEM   Early Model Heads w/ Standard Pivot and Std. Offset Vortec, Fast Burn, Late Model Bowtie, LT1/LT4
 AFR   165cc-225cc w/ Standard Stud Spacing
 All Pro   #200, #220, & SP Head, Street-Strip & 305-23
 Brodix   -8, -10, -11, Track 1, FB 1000
 Dart Iron Eagle/Sportsman II
 Edelbrock Victor Jr./ E-Tec.
 GM Performance 23º Aluminum
 Profiler 23º Small Block Chevy, P/N 176
 Pro Topline 23º Small Block Chevy
 RHS 23º Pro Action
 Trick Flow  23º Small Block Chevy & Super 23 SBC
 World Products  SR/Sportsman II

 3345431 $813.87 BBC Application List
 GM OEM  24º
 Brodix  Brodix-2

 3330201 $714.34 & 3330202 $683.54 SBF Application List
 AFR  225cc Outlaw Race Heads
 Edelbrock  Performer & Victor Jr.
 Ford  SVO Windsor & GT 40
 RHS  Pro-Action

 3334611, 3334612, 3334631 -$1,058.60 & 3334632 -$1,058.60
LS Application List
 GM  OEM LS1/LS2/LS6 Style, Cathedral Port Heads

 3336431 -$1,154.88 & 3336432 LS Application List
 GM  OEM LS3/L92 Style, Rectangular Port Heads

Tech Tip!: PRW Pro Series rocker arms are designed for heavier valve trains, higher spring pressures, roller cams and lifters. The fulcrums are matched to the precision bearings to support operational loads above 650 lbs. Keep in mind that operational loads far exceed open spring pressures. A rocker arm rated at 450 lbs of open spring pressure operates at a much higher operational load; with the higher RPM comes more load.

SPECIAL NOTE: Open Spring Pressure Ratings (OSPR) are determined by camshaft and pushrod manufacturers' published ratings. Not designed for use with OEM-Rated pushrods. High lift roller cams may require 210 degree specialty pushrod ends.


Modern Muscle Rocker Arm Systems
PQx® Mopar Modular HEMI® Rocker Arms
These specialty rockers are investment cast from alloy steel with siliconebronze bushings that incorporates standard OEM oiling. The surface of each rocker is tumbled to reduce stress risers and the top-lines are hand-polished for a professional appearance. The system will support high-performance valve springs that exceed the limit of hydraulic lifters. If utilized with solid lifter rollers, final valve lash adjustment requires the use of “lash caps”. Pre-assembled for easy installations.

• Hand polished
• Investment cast
• Tumbled surface to reduce stress risers
• Requires no additional machining to your
cylinder heads or spark plug towers

 PN 3234513 $1,266.27 MOPAR 5.7L, 6.1L, & 6.4L HEMI® Rocker Kit
(Half of Kit Pictured, Kit Comes with 4 Shafts and 16 Rocker Arms)

PQx® MOPAR MODULAR HEMI® ROCKER ARMS

 Application
  OSPR  Ratio Part # Your Cost
 MOPAR 5.7L, 6.1L, 6.4L 2005-11 Modular HEMI®, Kit Includes: 16 Rockers, Hardened Shafts, & Mounting Hardware NEW!

450 lbs

 1.6
 3234513 $1,266.27

*May not be legal for sale or use on pollution controlled motor vehicles
OSPR = Open Spring Pressure Ratings


PQx® LS Alloy Steel Drop-In
Roller Rocker Arm Systems

Designed as a drop-in system that replaces the OEM valvetrain; these PRW engineered rocker arms feature friction reducing roller needle bearings and heat treated Cr40 nose rollers to minimize scrubbing. The bodies are 17-4ph polished stainless steel and feature a lifetime warranty. The systems include Grade 12.9 fasteners and are a bolt-on replacement for factory systems.

UPGRADE WITH DROP-IN DESIGNS THAT CONVERT TO FULL ROLLER SYSTEMS!



PQx® LS ALLOY STEEL Roller ROCKER ARMS

 Application
  OSPR  Ratio Part # Your Cost
 GM LS1/LS2/LS6, 5.7L-6.0L 1997-Up, Cathedral Port,Includes 8mm Grade 12.9 Hex Socket Fasteners NEW! 400 lbs  1.7   0234631 -$388.10
 GM LS3/L92 6.0L-6.2L 2007-Up, w/ Offset Intake, Square Port, Includes 8mm Grade 12.9 Hex Socket Fasteners NEW! 400 lbs  1.7   0236431 -$361.34

*May not be legal for sale or use on pollution controlled motor vehicles
OSPR = Open Spring Pressure Ratings


GM LS series stud mount
Roller ROCKER ARMS
GM LS Series Adjustable Roller Rocker Arm Systems These specially engineered rocker arms are available in 6061-T6 billet aluminum or investment cast alloy steel. Both designs feature full compliment roller bearings, Cr40 roller tips, and bearing steel fulcrums. Rocker bodies are machine tumbled and hand polished to reduce stress risers and improve strength. The engine builder may select and utilize high performance valve springs to maximize the effect of virtually any solid lifter or hydraulic camshaft profile.

SPECIAL NOTE: Open Spring Pressure Ratings (OSPR) are determined by camshaft and pushrod manufacturers' published ratings. Not designed for use with OEM-Rated pushrods. High lift roller cams may require 210 degree specialty pushrod ends.

• Adjustable billet aluminum or alloy steel full roller rocker arm systems
• Rocker arm studs, pushrod guide plates, and RockerLocs™ included
• Minor pushrod bore hole machining may be required
• OEM valve covers may require baffle modification
• PRW valve covers or risers recommended

 Studs & Guide Plates Included with Systems

 PN 0234612 -$484.04 GM LS1 5.7L

PN 0334618 -$441.41 GM LS1 5.7L

GM LS STUD MOUNT STAINLESS Roller ROCKER ARMS

 Application
  OSPR  Ratio Part # Your Cost
 GM LS1 5.7L 1997-08, 1.7 x 3/8” x 8mm
5/16” Guide Plates & 3/8” Studs, Kit		 750 lbs  1.7   0234611 -$484.04
 GM LS1 5.7L 1997-08, 1.8 x 3/8” x 8mm
5/16” Guide Plates & 3/8” Studs, Kit		 750 lbs  1.8  0234612 -$484.04

*May not be legal for sale or use on pollution controlled motor vehicles
OSPR = Open Spring Pressure Ratings

LS STUD MOUNT ALUMINUM Roller ROCKER ARMS

 Application
  OSPR  Ratio Part # Your Cost
 GM LS1 5.7L 1997-08, 1.7 x 3/8” x 8mm
5/16” Guide Plates & 3/8” Studs, Kit		 650 lbs  1.7  0334618 -$441.41
 GM LS1 5.7L 1997-08, 1.8 x 3/8” x 8mm
5/16” Guide Plates & 3/8” Studs, Kit		 650 lbs  1.8  0334619 -$441.41

*May not be legal for sale or use on pollution controlled motor vehicles
OSPR = Open Spring Pressure Ratings


PRW Stud Mount Rocker Arms

 LS OEM rocker
 Sportsman series
rocker arms

Ford sportsman
aluminum full roller
rocker arms

 Pro series BILLET
Aluminum Rocker Arms

PRO SERIES
STAINLESS STEEL
ROCKER ARMS

 ROCKER ARM STYLE
  OSPR (See
Special
Note
Below)		  Precision
Ground
Fulcrum
Bearings		  PRW
RockerLocs.
Included		  Available
in
Split-Ratio
Sets
 TO BE DETERMINED 250 lbs .      x
 SPORTSMAN SERIES ROCKER ARMS 350 lbs    x  x
 FORD SPORTSMAN ALUMINUM FULL ROLLER ROCKER ARMS 350 lbs  x  x  x
 PRO SERIES BILLET ALUMINUM ROCKER ARMS 650 lbs  x  x   x
 PRO SERIES STAINLESS STEEL ROCKER ARMS 850 lbs  x  x   x

*May not be legal for sale or use on pollution controlled motor vehicles.
SPECIAL NOTE: OSPR (Open Spring Pressure Rating) assumes that the engine builder is utilizing equally
matched component parts throughout the valvetrain assembly. Pro-Series rocker arms are designed for
aftermarket high-performance pushrods.


SPORTSMAN SERIES ROCKER ARMS
PRW Sportsman Steel Stud Mount Roller Tip Rocker Arms are the ideal choice for a large cross-section of engines; whether it is a mild street rebuild or the performance requirements of off-track, circle track and drag racing. The PRW 4340 chromoly steel rocker bodies feature a longer pivot slot for higher lift cam-shafts and are much stronger than stamped steel, so rocker arm flex is negligible. The roller tip minimizes scrubbing (the result of the valve stem pushing hard against the valve guide), reducing friction and freeing up an additional 15 to 30 horsepower over stock rockers.

SPECIAL NOTE: Open Spring Pressure Ratings (OSPR) are determined by camshaft and pushrod manufacturers' published ratings.

  • PRW ROCKERLOCS™ included
  • Roller tip minimizes scrubbing
  • Rated at 350 lbs open spring pressure
  • Stronger than stamped steel rocker bodies
  • 4340 steel rocker bodies and heat-treated pivot balls
  • Excellent performance alternative compared to stock rockers

Tech Tip!: Never install new rockers dry. They must be lubricated during initial start-up with the proper lubricant to avoid permanent damage. All PRW rocker arms should be thoroughly cleaned and soaked in oil prior to installation. Utilize CMD Valve Train Assembly Lube (Part #’s 1299882 $4.07 & 1299884 $20.36 Refer to page 37) on each rocker arm, pivot ball, pushrod cup and roller tip to prevent damage to new parts.

 PN 0830201 -$163.19 FORD 289-351W,
Investment Cast 4340 Alloy Steel,
Pivot Balls Included

 Pivot Balls for Slotted Rocker Arm,
3/8” and 7/16” Available

 RockerLocs™, 7/16”,
Stepped (PN 1200340 $38.45 )

 SPORTSMAN STEEL ROLLER TIP ROCKERS

 Application
  Stud  Ratio  Part # Your Cost
 AMC V8 1970-91 3/8”  1.6  0830201 -$163.19 *
 CHEVY 262-400 1955-86 3/8”  1.5  0835001 -$163.19 *
 CHEVY 262-400 1987-00, Self-Align 3/8”  1.5  0835002 -$177.64
 CHEVY 262-400 1955-86, 1.6 x 3/8" 3/8”  1.6  0835004 -$163.19 *
 CHEVY 262-400 1987-00, Self-Align 3/8”  1.6  0835005 -$177.64
 CHEVY 262-400 1955-86, Split Ratio Set 3/8”  1.5/1.6  0835014 -$192.08 *
 CHEVY 262-400 1987-00, Self-Align, Split Ratio Set 3/8”  1.5/1.6  0835015 -$192.08
 CHEVY 262-400 1987-00, Self-align, Split Ratio Set 3/8”  1.52/1.6  0835016 -$201.71
 CHEVY 262-400 1955-86 3/8”  1.52   0835018 -$163.19 *
 CHEVY 262-400 1987-00, Self-Align 3/8”  1.52  0835019 -$163.19
 CHEVY 262-400 1955-86 7/16”  1.5   0835020 -$163.19 *
 CHEVY 262-400 1955-86 7/16”  1.6  0835021 -$163.19 *
 CHEVY 262-400 1955-86, Split Ratio Set 7/16”  1.5/1.6  0835022 -$196.89 *
 CHEVY 396-454 1965-00 7/16”  1.72  0845403 -$165.85
 FORD 289-351W 1962-01 3/8”  1.6  0830201 -$163.19 *
 FORD 289-351W 1962-01, Self-Align 3/8”  1.6  0830202 -$172.82
 FORD 289-351W 1962-01 3/8”  1.7  0830203 -$163.19 *
 FORD 289-351W 1962-01, Self-Align 3/8”  1.7  0830204 -$163.19
 FORD 289-351W 1962-01, Split Ratio Set 3/8”  1.6/1.7  0830209 -$192.08 *
 FORD 289-351W 1962-01, Self-Align, Split Ratio Set 3/8”  1.6/1.7  0830210 -$192.08
 FORD Boss 302, 351C-M, 400, 429-460 1968-97 7/16”  1.7  0846000 -$169.93 *
 OLDS V8 1964-80 3/8”  1.6  0845511 -$169.93 *
 PONTIAC 287-455 & 4.3L V8 1958-81 7/16”  1.52  0845501 -$169.93 *
 PONTIAC 287-455 & 4.3L V8 1958-81 7/16”  1.65  0845502 -$169.93 *
 PONTIAC 301-455 1958-81, Split Ratio Set 7/16” 7/16”  1.52/1.65  0845505 -$202.25 *
*Screw-In Studs and Guide Plates Required
*May not be legal for sale or use on pollution controlled motor vehicles.



FORD SPORTSMAN ALUMINUM FULL ROLLER TOCKER ARMS

PRW Sportsman Adjustable Pedestal Billet Aluminum Rocker Arms for Ford (5.0L) & 351 Windsor engines are manufactured from high strength 6061-T6 billet aluminum and utilize an adjustable pedestal that will help prevent excessive side-to-side movement of the rocker tip on valve. Each rocker is specially machined to allow for larger springs and retainers with full friction reducing needle bearings for added durability. The nose rollers and shafts are Cr40 steel, heat-treated and hardened to resist the severity of racing and to minimize scrubbing. Each rocker body is ceramic media polished, assembled and carefully inspected to provide our customers with some of the finest quality available to the racing and performance industry.
  • 1.6 ratio
  • Features 5/16” studs
  • Fully adjustable pedestal
  • Chromoly pushrods required
  • Manufactured from 6061-T6 billet aluminum
  • Features full complement friction reducing needle bearings
  • Installation may require new pushrod length for proper geometry
SPECIAL NOTE: Open Spring Pressure Ratings (OSPR) are directly related to camshaft and pushrod manufacturers' published ratings for equally matched component parts.

 PN 0335101 -$353.02 FORD 302 & 351W,
6061-T6 Aluminum Pedestal Mount
|
 PN 1203518 $39.35 FORD SB 351W, Rocker Arm Stand for PN 0335101 -$353.02 , 16 Each

PN 1203519 Shim Kit


FORD SPORTSMAN ALUMINUM FULL ROLLER ROCKER ARMS

 Application
  OSPR  Ratio Part # Your Cost
 FORD 302 (5.0L) & 351W 1978-95, Adjustable, Includes Pedestal Stand & PRW Hardware
*May not be legal for sale or use on pollution controlled motor vehicles		 450 lbs  1.6  0335101 -$353.02

 FORD SPORTSMAN SPECIALTY PARTS
 Replacement Pedestal Stand FORD SB 351W, for PN 0335101 -$353.02 Series Rocker Arm, 19.5mm Tall, Alloy Steel, Black Oxide, Set of 16 1203517 $39.35
 Replacement Pedestal Stand FORD SB 351W, for PN 0335101 -$353.02 Series Rocker Arm, 21mm Tall, Alloy Steel, Black Oxide, Set of 16     1203518 $39.35
 Shim Kit 16 Each 0.030”/0.060”, Set of 32     1203519


PRO SERIES BILLET ALUMINUM ROCKER ARMS

PRW aluminum rockers are used around the world by professional racers, engine builders and hot rod enthusiasts, offering outstanding power and performance advantages for street, strip and track applications. Made from high strength 6061-T6 aluminum extrusions, each piece is precision CNC machined and finished by hand to ensure that our customers receive the very best PRW has to offer. PRW stud mount aluminum rockers are specially machined to allow for larger springs and retainers with full compliment needle bearings for added durability. The nose rollers and shafts are Cr40 steel, heat-treated and hardened to minimize the wear that naturally occurs between the roller tip and the valve stem.

  • PRW ROCKERLOCS™ included
  • Chromoly pushrods required
  • Rated at 650 lbs open spring pressure
  • Available for self-aligning applications and in split-sets
  • Wide assortment of ratios to suit almost any cam profile
  • Full compliment needle bearings for smooth friction free operation

SPECIAL NOTE: Open Spring Pressure Ratings (OSPR) are directly related to camshaft and pushrod manufacturers' published ratings for equally matched component parts. Pro-Series rocker arms are designed for aftermarket highperformance pushrods.

Tech Tip!: Many aftermarket and OEM style cylinder heads easily adapt to various stud mount rocker arm applications, other than those published by the manufacturer. PRW Big Block Chevrolet rocker arms (for example) are commonly used by machine shops and engine builders on many of the Ford Boss 302, Modified engines and Big Block 429-460 cylinder heads. Before purchasing rocker arms for your engine, consult with your engine builder to confirm their preference.

 PN 0335005 -$283.35 CHEVY 262-400 1955-86, Self-Align

Included

Studs Available in 3/8” or 7/16”.

PRO SERIES BILLET ALUMINUM ROCKER ARMS

 Application
  Stud  Ratio  Part # Your Cost
 AMC V8 1967-79 7/16”  1.6  0330205 -$287.52
 CHEVY 262-400 1955-86 3/8”  1.5  0335001 -$283.35
 CHEVY 262-400 1955-86, Self-Align 3/8”  1.5  0335002 -$254.66
 CHEVY 262-400 1955-86 3/8”  1.6  0335004 -$283.35
 CHEVY 262-400 1955-86, Self-Align 3/8”  1.6  0335005 -$283.35
 CHEVY 262-400 1955-86 7/16”  1.5  0335009 -$283.35
 CHEVY 262-400 1955-86, Self-Align 7/16”  1.5  0335010
 CHEVY 262-400 1955-86 7/16”  1.6  0335012 -$283.35
 CHEVY 262-400 1955-86, Self-Align 7/16”  1.6  0335013
 CHEVY 262-400 1955-86, Split Ratio Set 3/8”  1.5/1.6  0335014 -$311.43
 CHEVY 262-400 1955-86, Self-Align, Split Ratio Set 3/8”  1.5/1.6  0335015
 CHEVY 262-400 1955-86, Split Ratio Set 7/16”  1.5/1.6  0335016 -$311.43
 CHEVY 262-400 1955-86, Self-Align, Split Ratio Set 7/16”   1.5/1.6 0335017
 CHEVY 262-400 1987-00, Vortec, Narrow Body 3/8”   1.5 0335018 -$286.47
 CHEVY 262-400 1987-00, Vortec, Narrow Body, Self-Align 3/8”   1.5 0335019 -$283.35
 CHEVY 262-400 1987-00, Vortec, Narrow Body 3/8”  1.6  0335020 -$283.35
 CHEVY 262-400 1987-00, Vortec, Narrow Body, Self-Align 3/8”  1.6  0335021 -$283.35
 CHEVY 262-400 1955-86 3/8”  1.65  0335022 -$283.35
 CHEVY 262-400 1955-86, Self-Align 3/8”  1.65  0335023 -$283.35
 CHEVY 262-400 1987-00, Vortec, Narrow Body, Self-Align 7/16”  1.5  0335024 -$283.35
 CHEVY 262-400 1955-86 7/16”  1.65  0335025 -$283.35
 CHEVY 262-400 1987-00 Vortec, Narrow Body, Self-Align 7/16”  1.6  0335026 -$283.35
 CHEVY 262-400 1955-86, AFR 227/235 AM Heads 7/16”  1.6  0335027 -$311.43
 CHEVY 396-454 1965-00 7/16”  1.6  0345401
|
*Screw-In Studs and Guide Plates Required
*May not be legal for sale or use on pollution controlled motor vehicles


PRO SERIES Billet ALUMINUM ROCKER ARMS
Tech Tip!: When purchasing stud mount rocker arms for your build, confirm with your engine builder various preference related to valve train operation and component parts. Ford applications are specific to the engines listed in the chart above, but keep in mind that there are many crossover part numbers that easily interchange between various OEM and aftermarket cylinder heads. Contact your local dealer or distributor for advice related PRW part number interchangeability.

 PN 0345404 -$309.35 CHEVY 396-454, 6061-T6 Aluminum

PRW Custom 4135 Rocker Studs, Available for Most Applications

PRO SERIES BILLET ALUMINUM ROCKER ARMS

 Application
  Stud  Ratio  Part # Your Cost
 CHEVY 396-454 1966-00 7/16”  1.7  0345402 -$309.35
 CHEVY 396-454 1966-00 7/16”   1.72  0345403 -$309.35
 CHEVY 396-454 1966-00 7/16”  1.8  0345404 -$309.35
 CHEVY 396-454 1966-00, Split Ratio Set 7/16”  1.7/1.8  0345409 -$342.62
 FORD 289-351W 1962-01, OLDS 350-455 1964-80 3/8"  1.6  0330201 -$287.52
 FORD 289-351W 1962-01, Self-Align 3/8”   1.6  0330202 -$287.52
 FORD 289-351W 1962-01 3/8”  1.7  0330203 -$287.52
 FORD 289-351W 1962-01, Self-Align 3/8”  1.7  0330204 -$287.52
 FORD 289-351W 1962-01 7/16”  1.6  0330205 -$287.52
 FORD 289-351W 1962-01, Self-Align 7/16”  1.6  0330206 -$287.52
 FORD 289-351W 1962-01 7/16”  1.7  0330207 -$287.52
 FORD 289-351W 1962-01, Self-Align 7/16”  1.7  0330208 -$287.52
 FORD 289-351W 1962-01, Split Ratio Set 3/8”  1.6/1.7  0330209 -$319.75
 FORD 289-351W 1962-01, Self-Align, Split Ratio Set 3/8”  1.6/1.7  0330210 -$319.75
 FORD 289-351W 1962-01, Split Ratio Set 7/16”  1.6/1.7  0330211 -$319.75
 FORD 289-351W 1962-01, Self-Align, Split Ratio Set 7/16”  1.6/1.7  0330212 -$319.75
 FORD Boss 351C-M, 400, 429, 460 1968-97 7/16”  1.6  0346000 -$309.35
 FORD Boss 351C-M, 400, 429, 460 1968-97 7/16”  1.65  0346001 -$309.35
 FORD Boss 351C-M, 400, 429, 460 1968-97 7/16”  1.73  0346002 -$309.35
 GM Gen III 5.7L 1997-08, 1.7 x 3/8" x 5/16" Guide Plates & 3/8" Studs, Kit 3/8”  1.7  0334618 -$441.41
 GM Gen III 5.7L 1997-08, 1.8 x 3/8" x 5/16" Guide Plates & 3/8” Studs, Kit 3/8”  1.8  0334619 -$441.41
 OLDS 350-455 1964-80 7/16”  1.6  0330205 -$287.52
 PONTIAC 287-455 & 4.3L V8 1958-81 7/16”  1.52  0345501 -$309.35
 PONTIAC 287-455 & 4.3L V8 1958-81 7/16”  1.65  0345502 -$309.35
 PONTIAC 301-455 1959-81  7/16”

 1.6
 0330205 -$287.52

*Screw-In Studs and Guide Plates Required
*May not be legal for sale or use on pollution controlled motor vehicles


Top of Page

HOME
