MASTER ENGINE REBUILD KITS & PARTS

Home

KA24DE 2.4L ENGINE

KA24 - ECONOMICAL "H" BEAM STEEL CONNECTING RODS  240SX 1989-1998

KA24 - PRO SERIES TURBO TUFF "I" BEAM STEEL CONNECTING RODS Nissan KA24DE

KA24 - PRO SERIES VALVE SPRINGS RETAINERS AND LOCKS & Kits Nissan KA24DE

SRD20, SRD20E. SRD20DET 2.0L ENGINES

PLATINUM SERIES LIGHTWEIGHT PISTONS NISSAN SR20DE/DET Nissan 180SX/200SX/Sentra 2.0L SR20DE/DET 16V (.866"/22mm x 2.250" Pin)

PLATINUM SERIES LIGHTWEIGHT PISTONS NISSAN SR20DE/DET Nissan 180SX/200SX/Sentra 2.0L SR20DE/DET 16V (.866"/22mm x 2.250" Pin)

SR20 - ECONOMICAL "H" BEAM STEEL CONNECTING RODS Nissan 2.0 SR20DE, SR20DET ( 1991-2002)

SR20 - PRO SERIES TURBO TUFF "I" BEAM STEEL CONNECTING RODS Nissan 2.0 SR20DE, SR20DET ( 1991-2002)

SR20 - RACE SERIES VALVES NISSAN SENTRA SE-R 2.0L - DOHC 16 VALVE ( SR20DE ) - 1991 - 1998 NISSAN SENTRA SE-R 2.0L - DOHC 16 VALVE ( SR20DET ) - 1991 - 1998 NISSAN SENTRA SE-R 2.0L - DOHC 16 VALVE ( SR20DE, SR20DET ) - 1991 - 1998

SR20 - PRO SERIES VALVE SPRINGS RETAINERS AND LOCKS & KITS Nissan SR20DE/SR20DET

RB25DETT, RB26DE, RB26DET, RB26DETT 2.6L ENGINES

Nissan RB26 Piston Kits   73.7mm STD STROKE (2.6L)   77.7mm STROKER (2.7L)

RB26 - ECONOMICAL "H" BEAM STEEL CONNECTING RODS Nissan 2.6 Skyline RB25DE(T) / RB26DETT

RB26 - PRO SERIES TURBO TUFF "I" BEAM STEEL CONNECTING RODS Nissan 2.6L Skyline RB25DE(T) / RB26DETT

RB26 - RACE SERIES VALVES Nissan Skyline GTR 2.6L - DOHC 24 Valve (RB26DETT) 1992-2001

RB26 - PRO SERIES VALVE SPRINGS RETAINERS AND LOCKS & Kits Nissan RB26DETT   Nissan RB26DETT

NISSAN PATROL TB48 ENGINES

TB48 - RACE SERIES VALVES NISSAN PATROL St-S, St-L, Ti 4.8L - DOHC 24 VALVE ( VTC ) TB48 - PRO SERIES VALVE SPRINGS RETAINERS AND LOCKS & KITS Nissan Patrol TB48

NISSAN VQ35DE, VQ35DET 3.5L ENGINES

VQ35 - PLATINUM SERIES LIGHTWEIGHT PISTONS Nissan 350Z, Maxima, Altima and Infiniti G35 2003-2007 .866"/22mm x 2.500" Pin x .150" Wall

VQ35 - ECONOMICAL "H" BEAM STEEL CONNECTING RODS Nissan VQ35DE(T) ( 2002-Up Altima/Maxima and 2003-Up 350Z )

VQ35 - PRO SERIES TURBO TUFF "I" BEAM STEEL CONNECTING RODS NISSAN 3.5L V6 - DOHC 24 VALVE ( VQ35DE, VQ35DET )

VQ35 - RACE SERIES VALVES NISSAN 3.5L V6 - DOHC 24 VALVE ( VQ35DE, VQ35DET )

VQ35 - PRO SERIES VALVE SPRINGS RETAINERS AND LOCKS & KITS Nissan VQ35DET

RB30, RB30E, RB30E/T 3.0L ENGINES

RB30 - ECONOMICAL "H" BEAM STEEL CONNECTING RODS NISSAN RB30

RB30 - PRO SERIES TURBO TUFF "I" BEAM STEEL CONNECTING RODS RB30E/T

RB30 - RACE SERIES VALVES   Nissan RB 30E/T SOHC 12 Valve

VG30D, VG30DTT ENGINES 3.0L

VG30 - RACE SERIES VALVES / EXTREME DUTY VALVES NISSAN 300 ZX 3.0L - DOHC 24 VALVE ( VG30D - TURBO VG30DTT ) - 1990 - 1996

NISSAN 3.8L VR38DETT ENGINES

PLATINUM SERIES LIGHTWEIGHT PISTONS NISSAN GT-R 3.8L VR38DETT 88.4mm STOCK STROKE

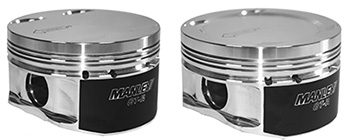

PLATINUM SERIES LIGHTWEIGHT PISTONS NISSAN GT-R 3.8L VR38DETT 94.4mm STROKER

VR38DETT - Turbo Tuff Design Pistons w/ .990 wrist pins

VR-38 PRO SERIES TURBO TUFF "I" BEAM STEEL CONNECTING RODS  GT-R 3.8L VR38DETT VR38 - Pro Series Tri-Beam Design GT-R 3.8L VR38DETT

VR38 - RACE SERIES VALVES / EXTREME DUTY VALVES Nissan GT-R 3.8L - DOHC 24 Valve (VR38DETT)

KA24 - ECONOMICAL "H" BEAM STEEL CONNECTING RODS

KA24 - ECONOMICAL "H" BEAM STEEL CONNECTING RODS Manley "H" Beam connecting rods are manufactured from 4340 forgings to the same exacting standards developed and approved by our original equipment customers. There is a vast difference in quality between a Manley "H" Beam and the "other" inexpensive H-Beams on the market. Weight matched to +/- 1.5 grams. Perfectly round big and small ends. Bend and twist is tightly controlled. Cap fasteners are 3/8" ARP 2000.

Part # Your Cost	Center to Center	Big End Bore	Big End Width	Pin	Pin Bore	Gram Weight
240SX 1989-1998
14006-4 $531.40	6.495"	2.086"	.973"	.827" (21mm)	.8281"	618

KA24 - PRO SERIES TURBO TUFF "I" BEAM STEEL CONNECTING RODS Manley Pro Series connecting rods are forged from aircraft quality 4340 vacuum degassed material. Each rod is fully machined in the Manley Lakewood, NJ factory to the highest standards. Our signature "Turbo Tuff" design combines the appropriate weight and rugged strength for ultimate horsepower applications. Each rod is shot peened after machining and magnafluxed. Bores are round and without taper. Bend and twist is tightly controlled. Cap fasteners are 3/8" APR 2000 cap screws. These rods are also available with ARP 625+ fasteners. To order, affix an "R6" to the part number.

Part # Your Cost	Center to Center	Big End Bore	Big End Width	Pin	Pin Bore	Gram Weight
Nissan KA24DE
14401-4 $1,023.76	6.495"	2.086"	.973"	.827" ( 21 mm )	.8281"	656

KA24 - PRO SERIES VALVE SPRINGS RETAINERS AND LOCKS

KA24 - PRO SERIES VALVE SPRINGS RETAINERS LOCKS & KITS Manley valve springs are wound from super clean alloy. Each design minimizes stress to ensure long service life with high lift camshafts. Titanium retainers are manufactured in our own double spindle CNC machines to exacting tolerances and precise installed height specifications. Valve locks are manufactured in our own Swiss turning centers with rigid control over the all-important angle to ensure precise mating with the retainer.

VALVE SPRINGS

Part # Your Cost	Qty.	O.D./ I.D. Outer Inner	Seat Pres.	Open Pres.	Stock/ Max Lift	Coil Bind	Rate (lbs. /in.)	Retainer #
Nissan KA24DE
22160-16 $291.75	16 pcs.	1.180"/ .870 .865/ .660	73 @ 1.400"	191 @ 1.050" 228 @ .900"	0.350" 0.500"	.850"	310	23160-16 $239.85

TITANIUM RETAINERS

.			Valve Stem	.	Dimensions
Part # Your Cost	Qty.	Spring		Deg.	A	B	C	Step	Height
Nissan KA24DE
23160-16 $239.85	16 pcs.	22160-16 $291.75	7.0mm	7°	1.150"	.850"	.650"	.080"	Stock

SPRING AND RETAINER KITS

Part # Your Cost	Qty.	Max Net Lift	Spring #	Retainer #
Nissan KA24DE
26160 $568.38	1 kit	.500"	22160-16 $291.75	23160-16 $239.85

Nissan RB26 Piston Kit

RB26DETT Piston Kits 2618 high strength material Offset wrist pin for quiet start-ups .150" wall Premium Chrome Moly pin (Standard Series) or 9310 alloy .210" wall pin (Extreme Duty Series) included Pressure balance groove Premium Steel top rings with Napier seconds and round wire locks included Recommended piston clearance .0035" measured .850" from the bottom of the oil ring

Part # Your Cost

Extreme Duty Part # Your Cost

Bore Size (mm)

Over Size

Rod Length

Stroke

Comp. Comp. Dist.

Dome Vol. (cc)

Cyl. Head (cc)

Comp. Ratio

Piston Type

Piston Wt / Gms

Included Ring Set

73.7mm STD STROKE (2.6L)

643002C-6 $1,077.64

643002CE-6 $1,269.32

86.25

+.25mm

4.783"

73.7

1.181"

+20

66.5

9.0

Dome

TBA

47862-6 $244.08

643005C-6 $1,077.64

643005CE-6 $1,269.32

86.50

+.5mm

4.783"

73.7

1.181"

+20

66.5

9.0

Dome

TBA

47865-6 $244.08

643007C-6 $1,077.64

643007CE-6 $1,269.32

86.75

+.75mm

4.783"

73.7

1.181"

+20

66.5

9.0

Dome

TBA

47867-6 $244.08

643010C-6 $1,077.64

643010CE-6 $1,269.32

87.00

+1.0mm

4.783"

73.7

1.181"

+20

66.5

9.0

Dome

TBA

47870-6 $244.08

77.7mm STROKER (2.7L)

643102C-6 $1,077.64

643102CE-6 $1,269.32

86.25

+.25mm

4.783"

77.7

1.103"

+17

66.5

9.0

Dome

TBA

47862-6 $244.08

643105C-6 $1,077.64

643105CE-6 $1,269.32

86.50

+.5mm

4.783"

77.7

1.103"

+17

66.5

9.0

Dome

TBA

47865-6 $244.08

643107C-6 $1,077.64

643107CE-6 $1,269.32

86.75

+.75mm

4.783"

77.7

1.103"

+17

66.5

9.0

Dome

TBA

47867-6 $244.08

643110C-6 $1,077.64

643110CE-6 $1,269.32

87.00

+1.0mm

4.783"

77.7

1.103"

+17

66.5

9.0

Dome

TBA

47870-6 $244.08

Common Features Crown Thickness: .320" (Including Dome) Top Ring: 1.0mm, .225" down Second Ring: 1.2mm Oil Ring: 2.8mm Pin Included: Standard Series: Premium Chrome Moly P/N 42243 (.150" wall, 91 grams, 2.250" long, 21mm dia.) Extreme Duty Series: 9310 Alloy P/N 42543 (.210" wall, 117 grams, 2.250" long, 21mm dia.) Round Wire Locks: P/N 42270

RB26 - ECONOMICAL "H" BEAM STEEL CONNECTING RODS Manley "H" Beam connecting rods are manufactured from 4340 forgings to the same exacting standards developed and approved by our original equipment customers. There is a vast difference in quality between a Manley "H" Beam and the "other" inexpensive H-Beams on the market. Weight matched to +/- 1.5 grams. Perfectly round big and small ends. Bend and twist is tightly controlled. Cap fasteners are 3/8" ARP 2000.

Part # Your Cost	Center to Center	Big End Bore	Big End Width	Pin	Pin Bore	Gram Weight
Nissan 2.6 Skyline RB25DE(T) / RB26DETT
14028-6 $797.09	4.783"	2.008"	.857"	.827" ( 21 mm )	.8281"	473

RB26 - PRO SERIES TURBO TUFF "I" BEAM STEEL CONNECTING RODS Manley Pro Series connecting rods are forged from aircraft quality 4340 vacuum degassed material. Each rod is fully machined in the Manley Lakewood, NJ factory to the highest standards. Our signature "Turbo Tuff" design combines the appropriate weight and rugged strength for ultimate horsepower applications. Each rod is shot peened after machining and magnafluxed. Bores are round and without taper. Bend and twist is tightly controlled. Cap fasteners are 3/8" APR 2000 cap screws. These rods are also available with ARP 625+ fasteners. To order, affix an "R6" to the part number.

Part # Your Cost	Center to Center	Big End Bore	Big End Width	Pin	Pin Bore	Gram Weight
Nissan 2.6 Skyline RB25DE(T) / RB26DETT
14411-6 $1,535.64	4.783"	2.008"	.857"	.827" ( 21 mm )	.8281"	610
14418-6 $1,535.64	4.783"	2.008"	.857"	.866" ( 22 mm )	.8671"	608

RB26 - RACE SERIES VALVES Manley valves have set the standard for excellence in quality, material and design in the performance world for four decades. Manufactured from proven Race Master materials, Manley valves feature chrome stems, hard tips, fully machined surfaces and swirl polished radii. Many applications are Pro Flow design for maximum air flow. Note: Manley Performance strongly recommends that customers check their valve guide size in order to achieve the proper valve stem to guide clearance. Guides may need to be honed when replacing stock factory valves.

Part #	Type	Head	Stem	O/A Length	Tip Lgth	Under- head Angle/ Radius	Marg.	Seat Width	Top of Head
Nissan Skyline GTR 2.6L - DOHC 24 Valve (RB26DETT) 1992-2001
11163-12 $425.88 *	Exh.	30.15 mm	7 mm/ .2740"	101.52 mm	3.5 mm	15° x 1/2"	.065"	.080"	9° Dish
11165-12 $425.88 *	Exh.	31.15 mm	7 mm/ .2740"	101.52 mm	3.5 mm	15° x 1/2"	.065"	.080"	9° Dish
11162-12 $300.47	Int.	34.6 mm	6 mm/ .2362"	102.34 mm	3.5 mm	Pro Flo: 22° x 5/16"	.050"	.075"	17° Dish
11164-12 $300.47	Int.	35.6 mm	6 mm/ .2362"	102.34 mm	3.5 mm	Pro Flo: 22° x 5/16"	.050"	.075"	17° Dish
* Both of these exhaust valves feature a 1mm Stem reduction in the keeper groove area to allow the use of the same valve springs, retainers and locks as the intake valves.

RB26 - PRO SERIES VALVE SPRINGS RE
TAINERS AND LOCKS
  Nissan RB26DETT

RB26 - PRO SERIES VALVE SPRINGS RETAINERS AND LOCKS & Kits Manley valve springs are wound from super clean alloy. Each design minimizes stress to ensure long service life with high lift camshafts. Titanium retainers are manufactured in our own double spindle CNC machines to exacting tolerances and precise installed height specifications. Valve locks are manufactured in our own Swiss turning centers with rigid control over the all-important angle to ensure precise mating with the retainer.

VALVE SPRINGS

Part # Your Cost	Qty.	O.D./ I.D. Outer Inner	Seat Pres.	Open Pres.	Stock/ Max Lift	Coil Bind	Rate (lbs. /in.)	Retainer #
Nissan RB26DETT
22175-24 $167.29	24 pcs.	1.100"/ .775"	80 @ 1.535"	197 @ 1.140" 237 @ 1.000"	0.395" 0.535"	0.950"	294	23175-24 $359.80

||TITANIUM RETAINERS

.			Valve Stem	.	Dimensions
Part # Your Cost	Qty.	Spring		Deg.	A	B	C	Step	Height	Valve Locks
Nissan RB26DETT
23175-24 $359.80	24 pcs.	22175-24 $167.29	6.0mm	6°	1.050"	.760"		.080"	Stock	13012-8 $51.77

VALVE LOCKS

Part # Your Cost	Qty.	Valve Stem	Groove Type	Angle	Wgt. / Pr.
Nissan RB26DETT
13012-8 $51.77	8 pr.	6.0 mm / .2362"	Bead Loc®	6°	1.4 gms

SPRING AND RETAINER KITS

Part # Your Cost	Qty.	Max Net Lift	Spring #	Retainer #
Nissan RB26DETT
26175 $474.38	1 kit	.535"	22175-24 $167.29	23175-24 $359.80
26175K $621.70	1 kit (Includes 13012-8. valve locks)	.535"	22175-24 $167.29	23175-24 $359.80

RB30 - ECONOMICAL "H" BEAM STEEL CONNECTING RODS Manley "H" Beam connecting rods are manufactured from 4340 forgings to the same exacting standards developed and approved by our original equipment customers. There is a vast difference in quality between a Manley "H" Beam and the "other" inexpensive H-Beams on the market. Weight matched to +/- 1.5 grams. Perfectly round big and small ends. Bend and twist is tightly controlled. Cap fasteners are 7/16" ARP 8740 for the "H" Beam and 7/16" ARP 2000 for the H-Plus.

Part # Your Cost	Center to Center	Big End Bore	Big End Width	Pin	Pin Bore	Gram Weight
Nissan RB30
14018-6 $797.09	5.995"	2.087"	.850"	.827" ( 21 mm )	.8281"	603
14018R6-6 (H-Plus)	5.995"	2.087"	.850"	.827" ( 21 mm )	.8281"	603

RB30 - PRO SERIES TURBO TUFF "I" BEAM STEEL CONNECTING RODS Manley Pro Series connecting rods are forged from aircraft quality 4340 vacuum degassed material. Each rod is fully machined in the Manley Lakewood, NJ factory to the highest standards. Our signature "Turbo Tuff" design combines the appropriate weight and rugged strength for ultimate horsepower applications. Each rod is shot peened after machining and magnafluxed. Bores are round and without taper. Bend and twist is tightly controlled. Cap fasteners are 7/16" APR 2000 cap screws. These rods are also available with ARP 625+ fasteners. To order, affix an "R6" to the part number.

Part # Your Cost	Center to Center	Big End Bore	Big End Width	Pin	Pin Bore	Gram Weight
RB30E/T
14428-6 $1,535.64	5.995"	2.087"	.856"	.827" ( 21 mm )	.8281"	624

RB30 - RACE SERIES VALVES Manley valves have set the standard for excellence in quality, material and design in the performance world for four decades. Manufactured from proven Race Master materials, Manley valves feature chrome stems, hard tips, fully machined surfaces and swirl polished radii. Note: Manley Performance strongly recommends that customers check their valve guide size in order to achieve the proper valve stem to guide clearance. Guides may need to be honed when replacing stock factory valves.

Part # Your Cost	Type	Head	Stem	O/A Length	Tip Lgth	Under- head Angle/ Radius	Marg.	Seat Width	Top of Head
Nissan RB30E/T SOHC 12 Valve
11185-6 $150.24	Exh.	35.1mm	8.0mm/ .3136"	124.59mm	4.45mm	25° x 7/16"	.065"	.100"	18° Dish
11187-6 $150.24	Exh.	36.1mm	8.0mm/ .3136"	124.59mm	4.45mm	25° x 7/16"	.065"	.100"	18° Dish
11182-6 $150.24	Int.	42.1mm	7.0mm/ .2750"	125.68mm	4.45mm	10° x 3/8"	.050"	.080"	5° Dish
11184-6 $150.24	Int.	43.1mm	7.0mm/ .2750"	125.68mm	4.45mm	10° x 3/8"	.050"	.080"	5° Dish

PLATINUM SERIES LIGHTWEIGHT PISTON KITS NISSAN SR20DE/DET 2618 high strength material; Lightweight design with offset wrist pin for quiet start-ups .150" wall Premium Chrome Moly pin (Standard Series) included P/N 42251 9310 alloy .210" wall pin (Extreme Duty Series) included P/N 42551 Pressure balance groove Will accommodate +1mm valve sizes Premium Steel top ring sets and round wire locks included Recommended piston clearance: .0035" measured 1.100" from the bottom of the oil ring

Part # Your Cost	Extreme Duty Part # Your Cost	Bore Size (mm)	Over Size	Rod Length	Stk. mm	Comp. Comp. Dist.	Dome Vol. (cc)	Comp. Ratio	Piston Type	Piston Wt / Gms	Included Ring Set
Nissan 180SX/200SX/Sentra 2.0L SR20DE/DET 16V (.866"/22mm x 2.250" Pin)
638000C-4 $718.43	638000CE-4 $846.21	86	STD	5.365"	86	1.260"	-12	9.0	Dish	335	46860-4 $162.73
638002C-4 $718.43	638002CE-4 $846.21	86.25	+.25mm	5.365"	86	1.260"	-12	9.0	Dish	340	46862-4 $162.73
638005C-4 $718.43	638005CE-4 $846.21	86.5	+.5mm 345 46865-4 $162.73	5.365"	86	1.260"	-12	9.0	Dish	345	46865-4 $162.73
638010C-4 $718.43	638010CE-4 $846.21	87	+1.0mm	5.365"	86	1.260"	-12	9.0	Dish	350	46870-4 $162.73

SR20 - ECONOMICAL "H" BEAM STEEL CONNECTING RODS Manley "H" Beam connecting rods are manufactured from 4340 forgings to the same exacting standards developed and approved by our original equipment customers. There is a vast difference in quality between a Manley "H" Beam and the "other" inexpensive H-Beams on the market. Weight matched to +/- 1.5 grams. Perfectly round big and small ends. Bend and twist is tightly controlled. Cap fasteners are 3/8" ARP 2000.

Part # Your Cost	Center to Center	Big End Bore	Big End Width	Pin	Pin Bore	Gram Weight
Nissan 2.0 SR20DE, SR20DET ( 1991-2002 )
14023-4 $531.40	5.365"	2.008"	.900"	.866" ( 22 mm )	.8671"	512

SR20 - PRO SERIES TURBO TUFF "I" BEAM STEEL CONNECTING RODS Manley Pro Series connecting rods are forged from aircraft quality 4340 vacuum degassed material. Each rod is fully machined in the Manley Lakewood, NJ factory to the highest standards. Our signature "Turbo Tuff" design combines the appropriate weight and rugged strength for ultimate horsepower applications. Each rod is shot peened after machining and magnafluxed. Bores are round and without taper. Bend and twist is tightly controlled. Cap fasteners are 3/8" APR 2000 cap screws. These rods are also available with ARP 625+ fasteners. To order, affix an "R6" to the part number.

Part # Your Cost	Center to Center	Big End Bore	Big End Width	Pin	Pin Bore	Gram Weight
Nissan 2.0 SR20DE, SR20DET ( 1991-2002 )
14408-4 $1,023.76	5.365"	2.008"	.900"	.866" ( 22 mm )	.8671"	574

SR20 - RACE SERIES VALVES Manley valves have set the standard for excellence in quality, material and design in the performance world for four decades. Manufactured from proven Race Master materials, Manley valves feature chrome stems, hard tips, fully machined surfaces and swirl polished radii. Many applications are Pro Flow design for maximum air flow. Note: Manley Performance strongly recommends that customers check their valve guide size in order to achieve the proper valve stem to guide clearance. Guides may need to be honed when replacing stock factory valves.

< < < < < < < < < <

Part # Your Cost	Type	Head	Stem	O/A Length	Tip Lgth	Under- head Angle/ Radius	Marg.	Seat Width	Top of Head
NISSAN SENTRA SE-R 2.0L - DOHC 16 VALVE ( SR20DE ) - 1991 - 1998
11109-8 $200.31	Exh.	30.15 mm	6 mm/ .2362"	102.4 mm	3.5 mm	25° x 11/32"	.065"	.080"	20° Dish
11111-8 $200.31	Exh.	31.15 mm	6 mm/ .2362"	102.4 mm	3.5 mm	25° x 11/32"	.065"	.080"	20° Dish
NISSAN SENTRA SE-R 2.0L - DOHC 16 VALVE ( SR20DET ) - 1991 - 1998
11145-8 $283.92 *	Exh.	30.15 mm	7 mm/ .2740"	102.4 mm	3.5 mm	15° x 1/2"	.065"	.080"	9° Dish
11147-8 $283.92 *	Exh.	31.15 mm	7 mm/ .2740"	102.4 mm	3.5 mm	15° x 1/2"	.065"	.080"	9° Dish
NISSAN SENTRA SE-R 2.0L - DOHC 16 VALVE ( SR20DE, SR20DET ) - 1991 - 1998
11110-8 $200.31	Int.	34.15 mm	6 mm/ .2362"	101.4 mm	3.5 mm	Pro Flo: 22° x 5/16"	.050"	.075"	17° Dish
11112-8 $200.31	Int.	35.15 mm	6 mm/ .2362"	101.4 mm	3.5 mm	Pro Flo: 22° x 5/16"	.050"	.075"	17° Dish
* Both of these exhaust valves feature a 1mm Stem reduction in the keeper groove area to allow the use of the same valve springs, retainers and locks as the intake valves.

SR20 - PRO SERIES VALVE SPRINGS RETAINERS LOCKS & KITS Manley valve springs are wound from super clean alloy. Each design minimizes stress to ensure long service life with high lift camshafts. Titanium retainers are manufactured in our own double spindle CNC machines to exacting tolerances and precise installed height specifications. Valve locks are manufactured in our own Swiss turning centers with rigid control over the all-important angle to ensure precise mating with the retainer.

VALVE SPRINGS

Part # Your Cost	Qty.	O.D./ I.D. Outer Inner	Seat Pres.	Open Pres.	Stock/ Max Lift	Coil Bind	Rate (lbs. /in.)	Retainer #
Nissan SR20DE/SR20DET
22165-16 $138.29	16 pcs.	1.160"/ .835"	90 @ 1.550"	185 @ 1.170" 225 @ 1.010"	0.380" 0.540"	.960"	248	23165-16 $239.85

TITANIUM RETAINERS
< <

			Valve Stem		Dimensions
Part # Your Cost	Qty.	Spring		Deg.	A	B	C	Step	Height
Nissan SR20DE/SR20DET
23165-16 $239.85	16 pcs.	22165-16 $138.29	6.0mm	6°	1.150"	.825"	X	.080"	Stock

VALVE LOCKS

Part #	Qty.	Valve Stem	Groove Type	Angle	Wgt. / Pr.
Nissan
13012-8 $51.77	8 pr.	6.0 mm / .2362"	Bead Loc®	6°	1.4 gms

SPRING AND RETAINER KITS

Part # Your Cost	Qty.	Max Net Lift	Spring #	Retainer #
Nissan SR20DE/SR20DET
26165 $340.35	1 kit	.540"	22165-16 $138.29	23165-12
26165K $438.57	1 kit (Includes 13012-8 $51.77 valve locks)	.540"	22165-16 $138.29	23165-12

TB48 - RACE SERIES VALVES Manley valves have set the standard for excellence in quality, material and design in the performance world for four decades. Manufactured from proven Race Master materials, Manley valves feature chrome stems, hard tips, fully machined surfaces and swirl polished radii. Many applications are Pro Flow design for maximum air flow. Note: Manley Performance strongly recommends that customers check their valve guide size in order to achieve the proper valve stem to guide clearance. Guides may need to be honed when replacing stock factory valves.

< < < < < < < < < < < < <

Part # Your Cost	Type	Head	Stem	O/A Length	Tip Lgth	Under- head Angle/ Radius	Marg.	Seat Width	Top of Head
NISSAN PATROL St-S, St-L, Ti 4.8L - DOHC 24 VALVE ( VTC )
11141-12 $472.20	Exh.	33.5 mm	6.96 mm/ .2740"	98.3 mm	3.56 mm	25° x 3/8"	.050"	.100"	Flat Face
11143-12 $472.20	Exh.	34.7 mm	6.96 mm/ .2740"	98.3 mm	3.56 mm	25° x 3/8"	.050"	.100"	Flat Face
11177-12 $458.46	Exh.	35 mm	6.96 mm/ .2740"	98.3 mm	3.56 mm	25° X 3/8"	.050"	.100"	Flat Face
11179-12 $458.46	Exh.	35 mm	6.96 mm/ .2740"	98.3 mm	3.56 mm	25° X 3/8"	.050"	.100"	20° Dish
11181-12 $458.46	Exh.	35.5 mm	6.96 mm/ .2740"	98.3 mm	3.56 mm	25° X 3/8"	.050"	.100"	Flat Face
11183-12 $458.46	Exh.	35.5 mm	6.96 mm/ .2740"	98.3 mm	3.56 mm	25° X 3/8"	.050"	.100"	20° Dish
11142-12 $472.20	Int.	38.5 mm	6.96 mm/ .2740"	100.21 mm	3.56 mm	Pro Flo: 12° X 3/8"	.045"	.100"	Flat Face
11144-12 $472.20	Int.	39.7 mm	6.96 mm/ .2740"	100.21 mm	3.56 mm	Pro Flo: 12° X 3/8"	.045"	.100"	Flat Face
11174-12 $458.46	Int.	40 mm	6.96 mm/ .2740"	100.21 mm	3.56 mm	Pro Flo: 12° X 3/8"	.045"	.100"	Flat Face
11176-12 $458.46	Int.	40 mm	6.96 mm/ .2740"	100.21 mm	3.56 mm	Pro Flo: 12° X 3/8"	.045"	.100"	7° Dish
11178-12 $458.46	Int.	40.5 mm	6.96 mm/ .2740"	100.21 mm	3.56 mm	Pro Flo: 12° X 3/8"	.045"	.100"	Flat Face
11180-12 $458.46	Int.	40.5 mm	6.96 mm/ .2740"	100.21 mm	3.56 mm	Pro Flo: 12° X 3/8"	.045"	.100"	7° Dish

TB48 - PRO SERIES VALVE SPRINGS RETAINERS LOCKS & KITS Manley valve springs are wound from super clean alloy. Each design minimizes stress to ensure long service life with high lift camshafts. Titanium retainers are manufactured in our own double spindle CNC machines to exacting tolerances and precise installed height specifications. Valve locks are manufactured in our own Swiss turning centers with rigid control over the all-important angle to ensure precise mating with the retainer.

VALVE SPRINGS

Part # Your Cost	Qty.	O.D./ I.D. Outer Inner	Seat Pres.	Open Pres.	Stock/ Max Lift	Coil Bind	Rate (lbs. /in.)	Retainer #
Nissan Patrol TB48
22155-24 $167.29	24 pcs.	1.100"/ .775"	75 @ 1.550"	191 @ 1.165" 237 @ 1.100"	.385" .550"	.950"	294	23155-24 $359.80

TITANIUM RETAINERS
< <

.			Valve Stem	.	Dimensions
Part # Your Cost	Qty.	Spring		Deg.	A	B	C	Step	Wgt / Grams
Nissan Patrol TB48
23155-24 $359.80	24 pcs.	22155	6.0 mm	6°	1.050"	.760"	-----	.080"	7

SPRING AND RETAINER KITS

Part # Your Cost	Qty.	Max Net Lift	Spring #	Retainer #
Nissan Patrol TB48
26155 $474.38	1 kit	.550"	22155-24 $167.29	23155-24 $359.80

VG30 - RACE SERIES VALVES / EXTREME DUTY VALVES| Manley valves have set the standard for excellence in quality, material and design in the performance world for four decades. Manufactured from proven Race Master materials, Manley valves feature chrome stems, hard tips, fully machined surfaces and swirl polished radii. Many applications are Pro Flow design for maximum air flow. For extreme conditions, XtremeAlloy material is available for custom exhaust valves. Please contact the factory direct for more details. Note: Manley Performance strongly recommends that customers check their valve guide size in order to achieve the proper valve stem to guide clearance. Guides may need to be honed when replacing stock factory valves.

< < < < <

Part # Your Cost	Type	Head	Stem	O/A Length	Tip Lgth	Under- head Angle/ Radius	Marg.	Seat Width	Top of Head
NISSAN 300 ZX 3.0L - DOHC 24 VALVE ( VG30D - TURBO VG30DTT ) - 1990 - 1996
11105-12 $300.47	Exh.	29.5 mm	6 mm/ .2362"	103.65 mm	3.5 mm	25° x 11/32"	.065"	.080"	20° Dish
11107-12 $300.47	Exh.	30.5 mm	6 mm/ .2362"	103.65 mm	3.5 mm	25° x 11/32"	.065"	.080"	20° Dish
11106-12 $300.47	Int.	34 mm	6 mm/ .2362"	103.13 mm	3.5 mm	Pro Flo: 22° x 5/16"	.050"	.075"	17° Dish
11108-12 $300.47	Int.	35 mm	6 mm/ .2362"	103.13 mm	3.5 mm	Pro Flo: 22° x 5/16"	.050"	.075"	17° Dish

PLATINUM SERIES LIGHTWEIGHT PISTON KITS NISSAN GT-R 3.8 VR38DETT 88.4mm STOCK STROKE Manley pistons are machined of high strength 2618 material. Each design is lightweight yet robust enough to deliver long service life. Offset wrist pin design is utilized for quiet start-ups. Perfect ring groove to skirt squareness is achieved through our unique "one fixturing" manufacturing method that assures maximum horsepower. All GT-R pistons come with moly coated skirts. round wire locks, premium chrome moly wrist pins, and premium steel top ring with napier second sets from Total Seal are included with every kit at no additional charge. 9310 alloy upgraded wrist pins are available. 2618 high strength material Offset wrist pin for quiet start-ups .180" x 2.500" wall Premium Chrome Moly pin (Standard 625 Series) included .210" x 2.500" wall Premium Chrome Moly pin (Standard 634 Series) included 9310 alloy .210" wall pin (Extreme Duty Series) included P/N 42546 Turbo Tuff/DLC .250" wall P/N 42745 and .300" wall P/N 42746 upgrades available Pressure balance groove Will accommodate +1mm valve sizes Premium Steel 1.2mm top ring set with 1.2mm Napier second ring and 9-13lb. tension 3mm oil ring included .260 Crown thickness Round wire locks included

Part # Your Cost	Extreme Duty Part # Your Cost	95.5mm Bore Grade Range	Rod Length	Stk. mm	Comp. Comp. Dist.	Dome Vol. (cc)	Comp. Ratio	Piston Type	Piston Wt / Gms	Included Ring Set
88.4mm STOCK STROKE
625GR1-1 $221.97 *	625EGR1-1 $254.34 *	95.5 Grade 1	6.500"	88.4	1.350"	-1.5	9.25	Flat Top	449	46956-6 $395.32
625GR2-1 $221.97 *	625EGR2-1 $254.34 *	95.5 Grade 2	6.500"	88.4	1.350"	-1.5	9.25	Flat Top	449	46956-6 $395.32
625GR3-1 $221.97 *	625EGR3-1 $254.34 *	95.5 Grade 3	6.500"	88.4	1.350"	-1.5	9.25	Flat Top	449	46956-6 $395.32
634010C-6 $1,331.80	634010CE-6 $1,525.99	99.0	6.500"	88.4	1.350"	-2	9.8	Flat Top	488	46990-6 $395.32
634015C-6 $1,331.80	634015CE-6 $1,525.99	99.5	6.500"	88.4	1.350"	-2	9.9	Flat Top	493	46996-6 $395.32

* These pistons feature skirt s that correspond to the OEM Grade 1, 2 or 3 bores resulting in a piston to wall clearance range of .0032" - .0039". Check the bore grades on the back of your block and order the appropriate quantities of Grade 1, 2 or 3 pistons. (Sold as -1 individual pieces, not sets.)

PLATINUM SERIES LIGHTWEIGHT PISTON KITS NISSAN GT-R 3.8 VR38DETT 94.4mm STROKER 2618 high strength material Offset wrist pin for quiet start-ups .210" x 2.500" wall Premium Chrome Moly pin (Standard Series) included 9310 alloy .210" wall pin (Extreme Duty Series) included P/N 42546 Turbo Tuff/DLC .250" wall P/N 42745 and .300" wall P/N 42746 upgrades available Pressure balance groove Will accommodate +1mm valve sizes Premium Steel top ring set with Napier second ring and 9-13 lb. tension oil ring included Round wire locks included

Part # Your Cost	Extreme Duty Part # Your Cost	Bore Size (mm)	Rod Length	Stk. mm	Comp. Dist.	Dome Vol. (cc)	Comp. Ratio	Piston Type	Piston Wt / Gms	Included Ring Set
94.4mm STROKER
633GR1-1 $221.97 *	633EGR1-1 $254.34 *	95.5 Grade 1	6.500"	94.4	1.232"	-1.5	9.8	Flat Top	423	46956-6 $395.32
633GR2-1 $221.97 *	633EGR2-1 $254.34 *	95.5 Grade 2	6.500"	94.4	1.232"	-1.5	9.8	Flat Top	423	46956-6 $395.32
633GR3-1 $221.97 *	633EGR3-1 $254.34 *	95.5 Grade 3	6.500"	94.4	1.232"	-1.5	9.8	Flat Top	423	46956-6 $395.32
635010C-6 $1,331.80	635010CE-6 $1,525.99	99.0	6.500"	94.4	1.232"	-7	9.8	Dish	460	46990-6 $395.32
635015C-6	635015CE-6	99.5	6.500"	94.4	1.232"	-7	9.9	Dish	465	46996-6 $395.32

* These pistons feature skirt s that correspond to the OEM Grade 1, 2 or 3 bores resulting in a piston to wall clearance range of .0032" - .0039". Check the bore grades on the back of your block and order the appropriate quantities of Grade 1, 2 or 3 pistons. (Sold as -1 individual pieces, not sets.)

VR38DETT - Turbo Tuff Design Piston KITS 2618 high strength material Offset wrist pin for quiet start-ups .200"-.250" tapered wall .990" diam. Turbo Tuff/DLC pin included Asymetrical skirt design Lateral gas ports (12 places) Pressure balance groove Will accommodate +1mm valve sizes Premium Steel top ring set with Napier second ring and 9-13 lb. tension oil ring included Round wire locks included

Part # Your Cost	Bore Size (mm)	Rod Length	Stk. mm	Disp.	Comp. Comp. Dist.	Dome Vol. (cc)	Comp. Ratio	Piston Type	Piston Wt / Gms	Included Ring Set
641000CE-6 $2,932.75 *	98.0	6.500"	88.4	4.08L	1.350"	-2	9.8	Flat Top	TBA	46980-6 $395.32
641010CE-6 $2,932.75 *	99.0	6.500"	88.4	4.12L	1.350"	-2	9.9	Flat Top	TBA	46990-6 $395.32

* These pistons are designed for use with Manley connecting rod P/N 15444-6 $2,504.53 that are made for a .990" wrist pin size Common Features Crown Thickness: .240" Top Ring: 1.2mm, .280" down Second Ring: 1.5mm Napier profile Oil Ring: 3.0mm Intake Valve Notch: .105" / 2.67mm Round Wire Locks: P/N 42245 Pin Included: Turbo Tuff/DLC P/N 42747 ( .200"-.250" wall, 188 grams, 2.500" long, .990" dia. ) Recommended Piston Clearance: .0035" measured 1.100" from bottom of oil ring

VR-38 PRO SERIES TURBO TUFF "I" BEAM STEEL CONNECTING RODS Manley Pro Series connecting rods are forged from aircraft quality 4340 vacuum degassed material. Each rod is fully machined in the Manley Lakewood, NJ factory to the highest standards. Our signature "Turbo Tuff" design combines the appropriate weight and rugged strength for ultimate horsepower applications. Each rod is shot peened after machining and magnafluxed. Bores are round and without taper. Bend and twist is tightly controlled. Like our "Turbo Tuff" series, our 300M rods utilize all of the same machining processes and our held to the same high standards but are made from 300M alloy. Cap fasteners are 7/16" APR 2000 cap screws. Horsepower range for the 4340 rods is 1,250+ and 1,400+ for the 300M.

Part # Your Cost	Center to Center	Big End Bore	Big End Width	Pin	Pin Bore	Gram Weight
GT-R 3.8 VR38DETT *
14424-6 $1,535.64	6.500"	2.323"	.897"	.9055" (23 mm)	.9063"	733
GT-R 3.8 VR38DETT 300M alloy Lightweight design *
15424-6 $2,504.53	6.500"	2.323"	.897"	.9055" (23 mm)	.9063"	733
GT-R 3.8 VR38DETT 300M alloy Heavyweight design
15524-6 $2,504.53	6.500"	2.323"	.897"	.9055" (23 mm)	.9063"	805
* 14424. and 15424. are drop in designs - no balancing required

VR38 - Pro Series Tri-Beam Design Tapered I-Beam with undercut beam profile optimizes strength-to-weight Ribbed pin end surround helps to maintain Pin Bore roundness Pin oil holes at 10:00 and 2:00 improve Pin Bore lubrication Large radius cap corners with a shallow bolt spotface improves crank end fatigue strength

Part # Your Cost	Center to Center	Big End Bore	Big End Width	Pin	Pin Bore	Gram Weight
GT-R 3.8 VR38DETT
14424TB-6	6.500"	2.323"	.897"	.9055" (23mm)	.9063"	745
GT-R 3.8 VR38DETT 300M alloy
15424TB-6	6.500"	2.323"	.897"	.9055" (23mm)	.9063"	730

VR38 - RACE SERIES VALVES / EXTREME DUTY VALVES Manley valves have set the standard for excellence in quality, material and design in the performance world for four decades. Manufactured from proven Race Master materials, Manley valves feature chrome stems, hard tips, fully machined surfaces and swirl polished radii. Many applications are Pro Flow design for maximum air flow. Note: Manley Performance strongly recommends that customers check their valve guide size in order to achieve the proper valve stem to guide clearance. Guides may need to be honed when replacing stock factory valves. For extreme conditions, XtremeAlloy material is available for custom exhaust valves. Please contact the factory direct for more details.

< < < < < <

Part # Your Cost	Type	Head	Stem	O/A Length	Tip Lgth	Under- head Angle/ Radius	Marg.	Seat Width	Top of Head
Nissan GT-R 3.8L - DOHC 24 Valve (VR38DETT)
11193-12 $791.83	Exh.	32.15 mm	5.96 mm / .2345"	92 mm	2.16 mm	25° x 11/32"	.060"	.100"	Dimple
11195-12 $791.83	Exh.	33.15 mm	5.96 mm / .2345"	92 mm	2.16 mm	25° x 11/32"	.060"	.100"	Dimple
11190-12 $425.88	Int.	37.15 mm	5.97 mm / .2350"	95 mm	4.95 mm	25° x 11/32"	.050"	.100"	Flat Face
11192-12 $425.88	Int.	38.15 mm	5.97 mm / .2350"	95 mm	4.95 mm	25° x 11/32"	.050"	.100"	Flat Face
NOTE: Tip area is reduced in to 5.46mm for compatibility with factory locks and retainers.

VQ35 - PLATINUM SERIES LIGHTWEIGHT PISTON KITS| Manley pistons are machined of high strength 2618 material. Each design is lightweight yet robust enough to deliver long service life. Offset wrist pin design is utilized for quiet start-ups. Perfect ring groove to skirt squareness is achieved through our unique "one fixturing" manufacturing method that assures maximum horsepower. All pistons come with moly coated skirts. Round wire locks, premium chrome moly wrist pins, and premium steel top ring sets from Total Seal are included with every kit at no additional charge. 9310 alloy upgraded wrist pins are available.

Part # Your Cost	Extreme Duty Part # Your Cost	Bore Size (mm)	Rod Length	Stk. mm	Comp. Dist.	Dome Vol. (cc)	Cyl. Head (cc)	Comp. Ratio	Piston Type	Piston Wt / Gms	Included Ring Set
Nissan 350Z, Maxima, Altima and Infiniti G35 2003-2007 .866"/22mm x 2.500" Pin x .150" Wall
623000C-6 $1,085.20	95.50	STD	5.680"	81.4	1.167"	-12	57	8.5	Dish	TBA	46955-6 $253.35
623002C-6 $1,085.20	95.75	+.25mm	5.680"	81.4	1.167"	-12	57	8.5	Dish	TBA	46957-6 $253.35
623005C-6 $1,085.20	96.00	+.5mm	5.680"	81.4	1.167"	-12	57	8.5	Dish	TBA	46960-6 $253.35
623010C-6 $1,085.20	96.50	+1.0mm	5.680"	81.4	1.167"	-12	57	8.5	Dish	TBA	46965-6 $253.35
623100C-6 $1,085.20	95.50	STD	5.680"	81.4	1.167"	+7	57	11.0	Dome	TBA	46955-6 $253.35
623102C-6 $1,085.20	95.75	+.25mm	5.680"	81.4	1.167"	+7	57	11.0	Dome	TBA	46957-6 $253.35
623105C-6 $1,085.20	96.00	+.5mm	5.680"	81.4	1.167"	+7	57	11.0	Dome	TBA	46960-6 $253.35
623110C-6 $1,085.20	96.50	+1.0mm	5.680"	81.4	1.167"	+7	57	11.0	Dome	TBA	46965-6 $253.35

VQ35 - ECONOMICAL "H" BEAM STEEL CONNECTING RODS Manley "H" Beam connecting rods are manufactured from 4340 forgings to the same exacting standards developed and approved by our original equipment customers. There is a vast difference in quality between a Manley "H" Beam and the "other" inexpensive H-Beams on the market. Weight matched to +/- 1.5 grams. Perfectly round big and small ends. Bend and twist is tightly controlled. Cap fasteners are 3/8" ARP 2000.

Part # Your Cost	Center to Center	Big End Bore	Big End Width	Pin	Pin Bore	Gram Weight
Nissan VQ35DE(T) ( 2002-Up Altima/Maxima and 2003-Up 350Z )
14019-6 $797.09	5.680"	2.165"	.820"	.866" ( 22 mm )	.8671"	510

VQ35 - PRO SERIES TURBO TUFF "I" BEAM STEEL CONNECTING RODS Manley Pro Series connecting rods are forged from aircraft quality 4340 vacuum degassed material. Each rod is fully machined in the Manley Lakewood, NJ factory to the highest standards. Our signature "Turbo Tuff" design combines the appropriate weight and rugged strength for ultimate horsepower applications. Each rod is shot peened after machining and magnafluxed. Bores are round and without taper. Bend and twist is tightly controlled. Cap fasteners are 3/8" APR 2000 cap screws. Horsepower range for these rods is 1000+. These rods are also available with ARP 625+ fasteners. To order, affix an "R6" to the part number.

Part # Your Cost	Center to Center	Big End Bore	Big End Width	Pin	Pin Bore	Gram Weight
Nissan VQ35DE(T) (2002-Up Altima/Maxima and 2003-Up 350Z)
14406-6 $1,535.64	5.680"	2.165"	.820"	.866" ( 22 mm )	.8671"	605

VQ35 - RACE SERIES VALVES Manley valves have set the standard for excellence in quality, material and design in the performance world for four decades. Manufactured from proven Race Master materials, Manley valves feature chrome stems, hard tips, fully machined surfaces and swirl polished radii. Many applications are Pro Flow design for maximum air flow. Note: Manley Performance strongly recommends that customers check their valve guide size in order to achieve the proper valve stem to guide clearance. Guides may need to be honed when replacing stock factory valves.

< < < < < < <

Part # Your Cost	Type	Head	Stem	O/A Length	Tip Lgth	Under- head Angle/ Radius	Marg.	Seat Width	Top of Head
NISSAN 3.5L V6 - DOHC 24 VALVE ( VQ35DE, VQ35DET )
11149-12 $425.88	Exh.	31.5 mm	6 mm/ .2362"	94 mm	3.5 mm	25° x 11/32"	.065"	.080"	20° Dish
11151-12 $425.88	Exh.	32 mm	6 mm/ .2362"	94 mm	3.5 mm	25° x 11/32"	.065"	.080"	20° Dish
11153-12 $425.88	Exh.	32.5 mm	6 mm/ .2362"	94 mm	3.5 mm	25° x 11/32"	.065"	.080"	20° Dish
11148-12 $425.88	Int.	37 mm	6 mm/ .2362"	96.5 mm	3.5 mm	Pro Flo: 22° x 5/16"	.050"	.075"	17° Dish
11150-12 $425.88	Int.	37.5 mm	6 mm/ .2362"	96.5 mm	3.5 mm	Pro Flo: 22° x 5/16"	.050"	.075"	17° Dish
11152-12 $425.88	Int.	38 mm	6 mm/ .2362"	96.5 mm	3.5 mm	Pro Flo: 22° x 5/16"	.050"	.075"	17° Dish

VQ35 - PRO SERIES VALVE SPRINGS RETAINERS LOCKS & KITS Manley valve springs are wound from super clean alloy. Each design minimizes stress to ensure long service life with high lift camshafts. Titanium retainers are manufactured in our own double spindle CNC machines to exacting tolerances and precise installed height specifications. Valve locks are manufactured in our own Swiss turning centers with rigid control over the all-important angle to ensure precise mating with the retainer.

VALVE SPRINGS

Part # Your Cost	Qty.	O.D./ I.D. Outer Inner	Seat Pres.	Open Pres.	Stock/ Max Lift	Coil Bind	Rate (lbs. /in.)	Retainer #
Nissan VQ35DET
22170-24 $268.66	24 pcs.	.990"/ .710"	80 @ 1.425"	175 @ 1.050" 195 @ .970"	0.375" 0.455"	.920"	253"	23170-24 $359.80

TITANIUM RETAINERS
< <

.			Valve Stem Dia.	.	Dimensions
Part # Your Cost	Qty.	Spring		Deg.	A	B	C	Step	Height
Nissan VQ35DET
23170-24 $359.80	24 pcs.	22170-24 $268.66	5.5mm	6°	0.960"	.690"	X	.140	Stock

SPRING AND RETAINER KITS

Part # Your Cost	Qty.	Max Net Lift	Spring #	Retainer #
Nissan VQ35DET
26170 $565.61	1 kit	.455"	22170-24 $268.66	23170-24 $359.80

Top of Page

HOME
