MITSUBISHI

4B11 - PLATINUM SERIES LIGHTWEIGHT PISTONS

4B11 - ECONOMICAL "H" BEAM STEEL CONNECTING RODS

4B11 - PRO SERIES TURBO TUFF "I" BEAM STEEL CONNECTING RODS

4B11 - PRO SERIES VALVE SPRINGS RETAINERS LOCKS & KITS

4B11 - Mitsubishi 4B11T (EVO X) Stroker Crankshafts

4G63/4G63T CRANKSHAFTS - BEARINGS - CONNECTING RODS - PISTON KITS
CHOOSE THE ABOVE PARTS FOR A ROTATING ASSEMBLY

4G63/4G63T Connecting rods

Stainless steel valves

Spring/Retainer Kits.

4G63/4G63T Piston Kits

Mitsubishi Eclipse GS/GST/GSX-Eagle Talon TSi 90-93.5 (6 Bolt) - 4G63/4G63T Piston Kits

88mm STD STROKE (2.0L)

100mm STROKER (2.3L)

.

Mitsubishi Eclipse GST/GSX-Eagle Talon Tsi 93.5-99 (7 Bolt) - 4G63/4G63T Evo VIII, IX 03-06 4G63T 4G63 / 4G64 - Turbo Tuff Design
Piston Kit

88mm STD STROKE (2.0L)

Mitsubishi Eclipse GST/GSX-Eagle Talon TSi 93.5-99 (7 Bolt) - 4G63/4G63T Evo VIII, IX 03-06 4G63T Piston Kits

  88mm STD STROKE (2.0L)

94mm STROKER (2.1L)

100mm STROKER (2.3L)

Mitsubishi 4G64 w/ 4G63 Head 95-99 .866"/22mm x 2.250" Pin x .150" Wall
Piston Kits

  88mm DE-STROKED (2.1L)

  94mm DE-STROKED (2.2L)

  100mm STD STROKE (2.4L)

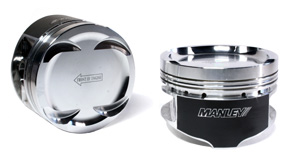

4G63 / 4G64 - PLATINUM SERIES
LIGHTWEIGHT FORGED PISTONS

4G63 / 4G64 - PLATINUM SERIES
LIGHTWEIGHT PISTON KITS

Manley pistons are machined of high strength 2618 material. Each design is lightweight yet robust enough to deliver long service life. Offset wrist pin design is utilized for quiet start-ups. Perfect ring groove to skirt squareness is achieved through our unique "one fixturing" manufacturing method that assures maximum horsepower. All pistons come with moly coated skirts. Round wire locks, premium chrome moly wrist pins, and premium steel top ring sets from Total Seal are included with every kit at no additional charge. 9310 alloy upgraded wrist pins are available.

DSM cyl. head volume = 47cc
EVO cyl. head volume = 43cc

Part #
Your Cost Extreme Duty Part #
Your Cost Bore Size
(mm) Over
Size Rod
Lgth. Stk. Comp.
Dist.. Dome
Vol. (cc) Cyl.
Head (cc) Comp.
Ratio Piston
Type Piston
Wt / Gms Included
Ring Set

Mitsubishi Eclipse GS/GST/GSX-Eagle Talon TSi 90-93.5 (6 Bolt) - 4G63/4G63T

88mm STD STROKE (2.0L)

605000C-4 $718.43 605000CE-4 $846.21 85 STD 150 88 1.375" -12 47 8.5 Dish 340 46850-4 $162.73

605005C-4 $718.43 605005CE-4 $846.21 85.5 +.5mm 150 88 1.375" -12 47 8.5 Dish 344 46855-4 $162.73

605010C-4 $718.43 605010CE-4 $846.21 86 +1.0mm 150 88 1.375" -12 47 8.5 Dish 348 46860-4 $162.73

605100C-4 $718.43 605100CE-4 $846.21 85 STD 150 88 1.375" -8 47 9 Dish 349 46850-4 $162.73

605105C-4 $718.43 605105CE-4 $846.21 85.5 +.5mm 150 88 1.375" -8 47 9 Dish 356 46855-4 $162.73

605110C-4 $718.43 605110CE-4 $846.21 86 +1.0mm 150 88 1.375" -8 47 9 Dish 365 46860-4 $162.73

Part #
Your Cost Extreme Duty Part #
Your Cost Bore Size
(mm) Over
Size Rod
Lgth. Stk. Comp.
Dist.. Dome
Vol. (cc) Cyl.
Head (cc) Comp.
Ratio Piston
Type Piston
Wt / Gms Included
Ring Set

100mm STROKER (2.3L)

607005C-4 $718.43 607005CE-4 $846.21 85.5 +.5mm 150 100 1.130" -22 47 8.5 Dish 300 46855-4 $162.73

Part #
Your Cost Extreme Duty Part #
Your Cost Bore Size
(mm) Over
Size Rod
Lgth. Stk. Comp.
Dist.. Dome
Vol. (cc) Cyl.
Head (cc) Comp.
Ratio Piston
Type Piston
Wt / Gms Included
Ring Set

Mitsubishi Eclipse GST/GSX-Eagle Talon TSi 93.5-99 (7 Bolt) - 4G63/4G63T Evo VIII, IX 03-06 4G63T

88mm STD STROKE (2.0L)

606000C-4 $718.43 606000CE-4 $846.21 85 STD 150 88 1.375" -12 47 / 43 8.5 / 9.0 Dish 337 46850-4 $162.73

606005C-4 $718.43 606005CE-4 $846.21 85.5 +.5mm 150 88 1.375" -12 47 / 43 8.5 / 9.0 Dish 341 46855-4 $162.73

606010C-4 $718.43 606010CE-4 $846.21 86 +1.0mm 150 88 1.375" -12 47 / 43 8.5 / 9.0 Dish 345 46860-4 $162.73

606015C-4 $718.43 606015CE-4 $846.21 86.5 +1.5mm 150 88 1.375" -12 47 / 43 8.5 / 9.0 Dish 349 46865-4 $162.73

606020C-4 $718.43 606020CE-4 $846.21 87 +2.0mm 150 88 1.375" -12 47 / 43 8.5 / 9.0 Dish 354 46870-4 $162.73

606100C-4 $718.43 606100CE-4 $846.21 85 STD 150 88 1.375" -8 47 / 43 9.0 / 9.5 Dish 342 46850-4 $162.73

606105C-4 $718.43 606105CE-4 $846.21 85.5 +.5mm 150 88 1.375" -8 47 / 43 9.0 / 9.5 Dish 350 46855-4 $162.73

606110C-4 $718.43 606110CE-4 $846.21 86 +1.0mm 150 88 1.375" -8 47 / 43 9.0 / 9.5 Dish 358 46860-4 $162.73

606115C-4 $718.43 606115CE-4 $846.21 86.5 +1.5mm 150 88 1.375" -8 47 / 43 9.0 / 9.5 Dish 350 46865-4 $162.73

606120C-4 $718.43 606120CE-4 $846.21 87 +2.0mm 150 88 1.375" -8 47 / 43 9.0 / 9.5 Dish 359 46870-4 $162.73

606200C-4 $718.43 606200CE-4 $846.21 85 STD 150 88 1.375" -2.5 47 / 43 10.0 / 10.5 Flat Top 339 46850-4 $162.73

606205C-4 $718.43 606205CE-4 $846.21 85.5 +.5mm 150 88 1.375" -2.5 47 / 43 10.0 / 10.5 Flat Top 347 46855-4 $162.73

606210C-4 $718.43 606210CE-4 $846.21 86 +1.0mm 150 88 1.375" -2.5 47 / 43 10.0 / 10.5 Flat Top 355 46860-4 $162.73

606215C-4 $718.43 606215CE-4 $846.21 86.5 +1.5mm 150 88 1.375" -2.5 47 / 43 10.0 / 10.5 Flat Top 352 46865-4 $162.73

606220C-4 $718.43 606220CE-4 $846.21
87 +2.0mm 150
88 1.375"
-2.5 47 / 43 10.0 / 10.5 Flat Top 360 46870-4 $162.73

617000C-4 $718.43 617000CE-4 $846.21 85 STD 156, 88 1.130" -12 47 / 43 8.5 / 9.0 Dish 298 46850-4 $162.73

617005C-4 $718.43 617005CE-4 $846.21 85.5 +.5mm 156, 88 1.130" -12 47 / 43 8.5 / 9.0 Dish 305 46855-4 $162.73

617010C-4 $718.43 617010CE-4 $846.21 86 +1.0mm 156, 88 1.130" -12 47 / 43 8.5 / 9.0 Dish 313 46860-4 $162.73

617015C-4 $718.43 617015CE-4 $846.21 86.5 +1.5mm 156, 88 1.130" -12 47 / 43 8.5 / 9.0 Dish 312 46865-4 $162.73

617020C-4 $718.43 617020CE-4 $846.21 87 +2.0mm 156, 88 1.130" -12 47 / 43 8.5 / 9.0 Dish 320 46870-4 $162.73

Part #
Your Cost Extreme Duty Part #
Your Cost Bore Size
(mm) Over
Size Rod
Lgth. Stk. Comp.
Dist.. Dome
Vol. (cc) Cyl.
Head (cc) Comp.
Ratio Piston
Type Piston
Wt / Gms Included
Ring Set

94mm STROKER (2.1L)

618000C-4 $718.43 618000CE-4 $846.21 85 STD 150 94 1.248" -17 47 / 43 8.5 / 9.0 Dish 311 46850-4 $162.73

618005C-4 $718.43 618005CE-4 $846.21 85.5 +.5mm 150 94 1.248" -17 47 / 43 8.5 / 9.0 Dish 319 46855-4 $162.73

618010C-4 $718.43 618010CE-4 $846.21 86 +1.0mm 150 94 1.248" -17 47 / 43 8.5 / 9.0 Dish 327 46860-4 $162.73

618015C-4 $718.43 618015CE-4 $846.21 86.5 +1.5mm 150 94 1.248" -17 47 / 43 8.5 / 9.0 Dish 327 46865-4 $162.73

618020C-4 $718.43 618020CE-4 $846.21 87 +2.0mm 150 94 1.248" -17 47 / 43 8.5 / 9.0 Dish 334 46870-4 $162.73

618200C-4 $718.43 618200CE-4 $846.21 85 STD 150 94 1.248" -8 47 / 43 10.0 / 10.5 Dish 322 46850-4 $162.73

618205C-4 $718.43 618205CE-4 $846.21 85.5 +.5mm 150 94 1.248" -8 47 / 43 10.0 / 10.5 Dish 328 46855-4 $162.73

618210C-4 $718.43 618210CE-4 $846.21 86 +1.0mm 150 94 1.248" -8 47 / 43 10.0 / 10.5 Dish 337 46860-4 $162.73

618215C-4 $718.43 618215CE-4 $846.21 86.5 +1.5mm 150 94 1.248" -8 47 / 43 10.0 / 10.5 Dish 335 46865-4 $162.73

618220C-4 $718.43 618220CE-4 $846.21 87 +2.0mm 150 94 1.248" -8 47 / 43 10.0 / 10.5 Dish 344 46870-4 $162.73

619000C-4 $718.43 619000CE-4 $846.21 85 STD 156, 94 1.012" -17 47 / 43 8.5 / 9.0 Dish 272 46850-4 $162.73

619005C-4 $718.43 619005CE-4 $846.21 85.5 +.5mm 156, 94 1.012" -17 47 / 43 8.5 / 9.0 Dish 277 46855-4 $162.73

619010C-4 $718.43 619010CE-4 $846.21 86 +1.0mm 156, 94 1.012" -17 47 / 43 8.5 / 9.0 Dish 287 46860-4 $162.73

619015C-4 $718.43 619015CE-4 $846.21 86.5 +1.5mm 156, 94 1.012" -17 47 / 43 8.5 / 9.0 Dish 289 46865-4 $162.73

619020C-4 $718.43 619020CE-4 $846.21 87 +2.0mm 156, 94 1.012" -17 47 / 43 8.5 / 9.0 Dish 296 46870-4 $162.73

619200C-4 $718.43 619200CE-4 $846.21 85 STD 156, 94 1.012" -8 47 / 43 10.0 / 10.5 Dish 283 46850-4 $162.73

619205C-4 $718.43 619205CE-4 $846.21 85.5 +.5mm 156, 94 1.012" -8 47 / 43 10.0 / 10.5 Dish 290 46855-4 $162.73

619210C-4 $718.43 619210CE-4 $846.21 86 +1.0mm 156, 94 1.012" -8 47 / 43 10.0 / 10.5 Dish 293 46860-4 $162.73

619215C-4 $718.43 619215CE-4 $846.21 86.5 +1.5mm 156, 94 1.012" -8 47 / 43 10.0 / 10.5 Dish 295 46865-4 $162.73

619220C-4 $718.43 619220CE-4 $846.21 87 +2.0mm 156, 94 1.012" -8 47 / 43 10.0 / 10.5 Dish 302 46870-4 $162.73

Part #
Your Cost Extreme Duty Part #
Your Cost Bore Size
(mm) Over
Size Rod
Lgth. Stk. Comp.
Dist.. Dome
Vol. (cc) Cyl.
Head (cc) Comp.
Ratio Piston
Type Piston
Wt / Gms Included
Ring Set

100mm STROKER (2.3L)

608000C-4 $718.43 608000CE-4 $846.21 85 STD 150 100 1.130" -22 47 / 43 8.5 / 9.0 dish 291 46850-4 $162.73

608005C-4 $718.43 608005CE-4 $846.21 85.5 +.5mm 150 100 1.130" -22 47 / 43 8.5 / 9.0 dish 295 46855-4 $162.73

608010C-4 $718.43 608010CE-4 $846.21 86 +1.0mm 150 100 1.130" -22 47 / 43 8.5 / 9.0 dish 299 46860-4 $162.73

608015C-4 $718.43 608015CE-4 $846.21 86.5 +1.5mm 150 100 1.130" -22 47 / 43 8.5 / 9.0 dish 300 46865-4 $162.73

608020C-4 $718.43 608020CE-4 $846.21 87 +2.0mm 150 100 1.130" -22 47 / 43 8.5 / 9.0 dish 308 46870-4 $162.73

617000C-4 $718.43 617000CE-4 $846.21 85 STD 150 100 1.130" -12 47 / 43 10.0 / 10.5 Dish 298 46850-4 $162.73

617005C-4 $718.43 617005CE-4 $846.21 85.5 +.5mm 150 100 1.130" -12 47 / 43 10.0 / 10.5 Dish 305 46855-4 $162.73

617010C-4 $718.43 617010CE-4 $846.21 86 +1.0mm 150 100 1.130" -12 47 / 43 10.0 / 10.5 Dish 313 46860-4 $162.73

617015C-4 $718.43 617015CE-4 $846.21 86.5 +1.5mm 150 100 1.130" -12 47 / 43 10.0 / 10.5 Dish 312 46865-4 $162.73

617020C-4 $718.43 617020CE-4 $846.21 87 +2.0mm 150 100 1.130" -12 47 / 43 10.0 / 10.5 Dish 320 46870-4 $162.73

Part #
Your Cost Extreme Duty Part #
Your Cost Bore Size
(mm) Over
Size Rod
Lgth. Stk. Comp.
Dist.. Dome
Vol. (cc) Cyl.
Head (cc) Comp.
Ratio Piston
Type Piston
Wt / Gms Included
Ring Set

Mitsubishi 4G64 w/ 4G63 Head 95-99 .866"/22mm x 2.250" Pin x .150" Wall

88mm DE-STROKED (2.1L)

606015C-4 $718.43 606015CE-4 $846.21 86.5 STD 156 88 1.375" -12 47 / 43 8.5 / 9.0 dish 349 46865-4 $162.73

606020C-4 $718.43 606020CE-4 $846.21 87 +.5mm 156 88 1.375" -12 47 / 43 8.5 / 9.0 dish 354 46870-4 $162.73

606115C-4 $718.43 606115CE-4 $846.21 86.5 STD 156 88 1.375" -8 47 / 43 9.0 / 9.5 dish 350 46865-4 $162.73

606120C-4 $718.43 606120CE-4 $846.21 87 +.5mm 156 88 1.375" -8 47 / 43 9.0 / 9.5 dish 359 46870-4 $162.73

606215C-4 $718.43 606215CE-4 $846.21 86.5 STD 156 88 1.375" -2.5 47 / 43 10.0 / 10.5 Flat Top 352 46865-4 $162.73

606220C-4 $718.43 606220CE-4 $846.21 87 +.5mm 156 88 1.375" -2.5 47 / 43 10.0 / 10.5 Flat Top 360 46870-4 $162.73

617015C-4 $718.43 617015CE-4 $846.21 86.5 STD 162 88 1.130" -12 47 / 43 8.5 / 9.0 dish 312 46865-4 $162.73

617020C-4 $718.43 617020CE-4 $846.21 87 +.5mm 162 88 1.130" -12 47 / 43 8.5 / 9.0 dish 320 46870-4 $162.73

Part #
Your Cost Extreme Duty Part #
Your Cost Bore Size
(mm) Over
Size Rod
Lgth. Stk. Comp.
Dist.. Dome
Vol. (cc) Cyl.
Head (cc) Comp.
Ratio Piston
Type Piston
Wt / Gms Included
Ring Set

94mm DE-STROKED (2.2L)

618015C-4 $718.43 618015CE-4 $846.21 86.5 STD 156 94 1.248" -17 47 / 43 8.5 / 9.0 dish 327 46865-4 $162.73

618020C-4 $718.43 618020CE-4 $846.21 87 +.5mm 156 94 1.248" -17 47 / 43 8.5 / 9.0 dish 334 46870-4 $162.73

618215C-4 $718.43 618215CE-4 $846.21 86.5 STD 156 94 1.248" -8 47 / 43 10.0 / 10.5 dish 335 46865-4 $162.73

618220C-4 $718.43 618220CE-4 $846.21 87 +.5mm 156 94 1.248" -8 47 / 43 10.0 / 10.5 dish 344 46870-4 $162.73

619015C-4 $718.43 619015CE-4 $846.21 86.5 STD 162 94 1.012" -17 47 / 43 8.5 / 9.0 dish 289 46865-4 $162.73

619020C-4 $718.43 619020CE-4 $846.21 87 +.5mm 162 94 1.012" -17 47 / 43 8.5 / 9.0 dish 296 46870-4 $162.73

619215C-4 $718.43 619215CE-4 $846.21 86.5 STD 162 94 1.012" -8 47 / 43 10.0 / 10.5 dish 295 46865-4 $162.73

619220C-4 $718.43 619220CE-4 $846.21 87 +.5mm 162 94 1.012" -8 47 / 43 10.0 / 10.5 dish 302 46870-4 $162.73

Part #
Your Cost Extreme Duty Part #
Your Cost Bore Size
(mm) Over
Size Rod
Lgth. Stk. Comp.
Dist.. Dome
Vol. (cc) Cyl.
Head (cc) Comp.
Ratio Piston
Type Piston
Wt / Gms Included
Ring Set

100mm STD STROKE (2.4L)

613000C-4 $718.43 613000CE-4 $846.21 86.5 STD 150 100 1.375" -23.5 47 / 43 8.5 / 9.0 dish 338 46865-4 $162.73

613005C-4 $718.43 613005CE-4 $846.21 87 +.5mm 150 100 1.375" -23.5 47 / 43 8.5 / 9.0 dish 346 46870-4 $162.73

606015C-4 $718.43 606015CE-4 $846.21 86.5 STD 150 100 1.375" -12 47 / 43 10.0 / 10.5 dish 349 46865-4 $162.73

606020C-4 $718.43 606020CE-4 $846.21 87 +.5mm 150 100 1.375" -12 47 / 43 10.0 / 10.5 dish 354 46870-4 $162.73

608015C-4 $718.43 608015CE-4 $846.21 86.5 STD 156 100 1.130" -22 47 / 43 8.6 / 9.1 dish 300 46865-4 $162.73

608020C-4 $718.43 608020CE-4 $846.21 87 +.5mm 156 100 1.130" -22 47 / 43 8.6 / 9.1 dish 307 46870-4 $162.73

617015C-4 $718.43 617015CE-4 $846.21 86.5 STD 156 100 1.130" -12 47 / 43 10.0 / 10.5 dish 312 46865-4 $162.73

617020C-4 $718.43 617020CE-4 $846.21 87 +.5mm 156 100 1.130" -12 47 / 43 10.0 / 10.5 dish 320 46870-4 $162.73

Mitsubishi Eclipse GST/GSX-Eagle Talon Tsi 93.5-99 (7 Bolt) - 4G63/4G63T Evo VIII, IX 03-06 4G63T
Turbo Tuff Design Piston Kit

4G63 / 4G64 - Turbo Tuff Design

2618 high strength material
2.250 x .250" wall 9310 alloy pin included P/N 42552
Pressure balance groove
Will accommodate +1mm valve sizes
Vertical Gas Ports designed for high HP Race Engines
Premium Steel top rings with Napier seconds and round wire locks included
Recommended piston clearance .0035" measured 1.100" from the bottom of the oil ring

Part #
Youe Cost Bore Size
(mm) Over
Size Rod
Lgth. Stk. Comp.
Dist.. Dome
Vol. (cc) Cyl.
Head (cc) Comp.
Ratio Piston
Type Piston
Wt / Gms Included
Ring Set

Mitsubishi Eclipse GST/GSX-Eagle Talon Tsi 93.5-99 (7 Bolt) - 4G63/4G63T Evo VIII, IX 03-06 4G63T

88mm STD STROKE (2.0L)

606300CE-4 $1,020.95 85 STD 150 88 1.375" -12 47 / 43 8.5 / 9.0 Dish TBA 46850-4 $162.73

606305CE-4 $1,020.95 85.5 +.5mm 150 88 1.375" -12 47 / 43 8.5 / 9.0 Dish TBA 46855-4 $162.73

606310CE-4 $1,020.95 86 +1.0mm 150 88 1.375" -12 47 / 43 8.5 / 9.0 Dish TBA 46860-4 $162.73

606400CE-4 $1,020.95 85 STD 150 88 1.375" -2.5 47 / 43 10.0 / 10.5 Flat Top TBA 46850-4 $162.73

606405CE-4 $1,020.95 85.5 +.5mm 150 88 1.375" -2.5 47 / 43 10.0 / 10.5 Flat Top TBA 46855-4 $162.73

606410CE-4 $1,020.95 86 +1.0mm 150 88 1.375" -2.5 47 / 43 10.0 / 10.5 Flat Top TBA 46860-4 $162.73

Common Features
Crown Thickness: .320"
Top Ring: 1.2mm, .350" down
Second Ring: 1.2mm
Oil Ring: 2.8mm
Valve Notches: .205" Int., 205" Exh.
Pin Included: 9310 Alloy P/N 42552
( .250" wall, 139 grams, 2.250" long, 22mm dia. )
Round Wire Locks: P/N 42270

Connecting Rods

4G63 / 4G64 - ECONOMICAL "H" BEAM STEEL CONNECTING RODS

Manley "H" Beam connecting rods are manufactured from 4340 forgings to the same exacting standards developed and approved by our original equipment customers. There is a vast difference in quality between a Manley "H" Beam and the "other" inexpensive H-Beams on the market. Weight matched to +/- 1.5 grams. Perfectly round big and small ends. Bend and twist is tightly controlled. Cap fasteners are 3/8" ARP 2000 for the H-Beam and H-Tuff and 3/8" ARP Custom Age 625+ for the H-Tuff Plus. H-Tuff and H-Tuff Plus Series have a heavier beam for higher boost applications.

Part #
Your Cost Center
to
Center Big End Bore Big End Width Pin Diameter Pin Bore Gram Weight

  Eagle Talon SOHC to DOHC 2.0L 420A

14004-4 $0.00 5.472" 2.008" 1.031" .827" (21mm) .8281" 562

  Mitsubishi Eclipse GS, GST 2.0 ( 6 Bolt 4G63, 4G63T 1990-1992 )

14021-4 $531.40 5.905" 1.890" 1.115" .827" (21 mm) .8281" 573

  Mitsubishi Eclipse GS, GST, GSX Eagle Talon TSi 2.0 (6 Bolt 4G63, 4G63T 1990-1993.5)

14002-4 $531.40 5.905" 1.890" 1.115" .866" (22 mm) .8671" 573

Mitsubishi Eclipse GST, GSX Eagle Talon TSi 2.0 (7 Bolt 4G63, 4G63T 1993.5-1999 ) Mitsubishi Evolution VIII, IX (4G63T 2003-2006)

14022-4 $531.40 5.905" 1.890" 1.038" .866" (22 mm) .8671" 580

15022-4 $593.06 (H-Tuff) 5.905" 1.890" 1.038" .866"(22mm) .8671" 635

15022R6-4 $933.31
(H-Tuff Plus) 5.905" 1.890" 1.038" .866"(22mm) .8671" 635

Mitsubishi Eclipse GST, GSX Eagle Talon TSi (7 Bolt 4G63, 4G63T 1993.5-1999) Mitsubishi Evolution VIII, IX (4G63T 2003-2006) - .237"/6mm Longer

14020-4 $531.40 6.142" 1.890" 1.038" .866" (22 mm) .8671" 575

15020-4 $593.06 (H-Tuff) 6.142" 1.890" 1.038" .866"(22mm) .8671" 635

15020R6-4 $933.31
(H-Tuff Plus) 6.142" 1.890" 1.038" .866"(22mm) .8671" 635

4G63 / 4G64 - PRO SERIES TURBO TUFF "I" BEAM STEEL CONNECTING RODS

Manley Pro Series connecting rods are forged from aircraft quality 4340 vacuum degassed material. Each rod is fully machined in the Manley Lakewood, NJ factory to the highest standards. Our signature "Turbo Tuff" design combines the appropriate weight and rugged strength for ultimate horsepower applications. Each rod is shot peened after machining and magnafluxed. Bores are round and without taper. Bend and twist is tightly controlled. Cap fasteners are 3/8" APR 2000 cap screws.

These rods are also available with ARP 625+ fasteners. To order, affix an "R6" to the part number.

Part #
Your Cost Center
to
Center Big End Bore Big End Width Pin Diameter Pin Bore Gram Weight

  Mitsubishi Eclipse GS, GST 2.0, GSX Eagle Talon TSi ( 6 Bolt 4G63, 4G63T 1990-1993.5 )

14413-4 $1,023.76 5.905" 1.890" 1.115" .827" (21 mm) .8281" 690

14407-4 $1,023.76 5.905" 1.890" 1.115" .866" (22 mm) .8671" 690

  Mitsubishi Eclipse GS, GST 2.0, GSX Eagle Talon TSi ( 6 Bolt 4G63, 4G63T 1990-1993.5 ) - .237"/6mm Longer

14426-4 $1,023.76 6.142" 1.890" 1.115" .866" (22 mm) .8671" 700

  Mitsubishi Eclipse GST, GSX Eagle Talon TSi 2.0 (7 Bolt 4G63, 4G63T 1993.5-1999 ) Mitsubishi Evolution VIII, IX (4G63T 2003-2006)

14403-4 $1,023.76 5.905" 1.890" 1.038" .866" (22 mm) .8671" 675

14400-4 $1,023.76 * 5.905" 1.890" 1.038" .866" (22 mm) .8671" 637

  Mitsubishi Eclipse GST, GSX Eagle Talon TSi 2.0 (7 Bolt 4G63, 4G63T 1993.5-1999), Mitsubishi Evolution VIII, IX (4G63T 2003-2006) - .237"/6mm Longer

14421-4 $1,023.76 6.142" 1.890" 1.038" .866" (22 mm) .8671" 694

  Mitsubishi Eclipse GST, GSX Eagle Talon TSi 2.0 (7 Bolt 4G63, 4G63T 1993.5-1999), Mitsubishi Evolution VIII, IX (4G63T 2003-2006) - .473"/12mm Longer

14422-4 $1,023.76 6.378" 1.890" 1.038" .866" (22 mm) .8671" 703

*Utilizes lighter weight straight beam design for stroker applications.

4G63 / 4G64 - PRO SERIIES 300 M ALLOY

Forged from 300 M aircraft quality material
Fully machined to produce the lightest and strongest rod possible Shot peened and 100% magnafluxed 3/8" ARP 2000 cap fasteners Horsepower range for these rods is 1,300+ H.P. with ARP 2000 fasteners and 1,500 H.P. with ARP 625+ fasteners

Part #
Your Cost Center
to
Center Big End Bore Big End Width Pin Diameter Pin Bore Gram Weight

Mitsubishi Eclipse GST, GSX Eagle Talon TSi 2.0 (7 Bolt 4G63, 4G63T 1993.5-1999 ) Mitsubishi Evolution VIII, IX (4G63T 2003-2006)

15403-4 $1,443.77 5.905" 1.890" 1.038" .866" (22 mm) .8671" 685

15403R6-4 $1,617.26
ARP 625+ 5.905" 1.890" 1.038" .866" (22 mm) .8671" 685

4G63 / 4G64 - RACE SERIES VALVES

Manley valves have set the standard for excellence in quality, material and design in the performance world for four decades. Manufactured from proven Race Master materials, Manley valves feature chrome stems, hard tips, fully machined surfaces and swirl polished radii. Many applications are Pro Flow design for maximum air flow.

Note: Manley Performance strongly recommends that customers check their valve guide size in order to achieve the proper valve stem to guide clearance. Guides may need to be honed when replacing stock factory valves.

Part #
Your Cost
Type
Head Diameter
Stem Diameter
O/A Length
Tip Length
Under-- head Angle/
Radius
Margin
Seat Width
Top of Head

  MITSUBISHI ECLIPSE GS, GST 2.0L - DOHC 16 VALVE ( 4G63-4G63T ) 1990 - 2000

11133-8 $200.31 Exh. 30.5 mm 6.54 mm/
.2575" 109.7 mm 3.8 mm Pro Flo: 22° x 7/16" .065" .080" 17° Dish

11161-8 $200.31 Exh. 31.0 mm 6.54 mm / .2575" 109.7 mm 3.8 mm Pro Flo: 22° x 7/16" .065" .080" 17° Dish

11135-8 $200.31 Exh. 31.5 mm 6.54 mm
/.2575" 109.7 mm 3.8 mm Pro Flo: 22° x 7/16" .065" .080" 17° Dish

11134-8 $200.31 Int. 34 mm 6.57 mm
/.2587" 109.7 mm 3.8 mm Pro Flo: 20° x 11/32" .050" .075" 15° Dish

11160-8 $200.31 Int. 34.5 mm 6.57 mm / .2587" 109.7 mm 3.8 mm Pro Flo: 20° x 11/32" .050" .075" 15° Dish

11136-8 $200.31 Int. 35 mm 6.57 mm/.2587" 109.7 mm 3.8 mm Pro Flo: 20° x 11/32" .050" .075" 15° Dish

4G63 / 4G64 - PRO SERIES VALVE SPRINGS RETAINERS LOCKS & KITS

Manley valve springs are wound from super clean alloy. Each design minimizes stress to ensure long service life with high lift camshafts. Titanium retainers are manufactured in our own double spindle CNC machines to exacting tolerances and precise installed height specifications. Valve locks are manufactured in our own Swiss turning centers with rigid control over the all-important angle to ensure precise mating with the retainer.
.

VALVE SPRINGS

Part #
Your Cost
Quantity O.D./
I.D.
Outer
Inner Seat Pres. Open Pressure Stock/
Max Lift Coil Bind Rate (lbs.
/in.) Retainer #

  Mitsubishi 4G63-4G63T DOHC 16 Valve (1990-2006) DSM / EVO

22125-16 $111.52 16 pcs. 1.100"/
.775" 66 @ 1.580" 175 @ 1.210"
237 @ 1.000" 0.370"
0.580" .950" 294 23125-16 $239.85

  Mitsubishi 4G63-4G63T DOHC 16 Valve (1990-1999) DSM

22115-16 $360.45 16 pcs. 1.160"/
.870"
.865"/
.660" 104 @ 1.580" 237 @ 1.210"
269 @ 1.120" 0.370"
0.460" 1.070" 359 23115-16 $239.85

TITANIUM RETAINERS

. Valve Stem
Diameter . Dimensions .

Part #
Your Cost
Quantity Spring Degree A B C Step Height Valve Locks

  Mitsubishi 4G63-4G63T DOHC 16 Valve (1990-2006)

23125-16 $239.85 16 pcs. 22125-16 $111.52 6.6 mm 6° 1.050" .760" ----- .140" Stock 13016-8 $51.77

  Mitsubishi 4G63-4G63T DOHC 16 Valve (1990-1999)

23115-16 $239.85 16 pcs. 22115-16 $360.45 6.6 mm 6° 1.050" .850" .610" .040" Stock 13016-8 $51.77

VALVE LOCKS

Part #
Your Cost
Quantity Valve Stem Groove Type Angle Wgt. / Pr.

  Mitsubishi 4G63-4G63T

13016-8 $51.77 8 pr. 6.56 mm / .2581" Bead Loc® 6° 1.3 gms

SPRING AND RETAINER KITS

Part #
Your Cost
Quantity Max Net Lift Spring # Retainer #

  Mitsubishi 4G63-4G63T DSM / EVO DOHC 16 Valve (1990-2006)

26125 $316.25 1 kit 0.580" 22125-16 $111.52 23125-16 $239.85

26125K $414.48 1 kit (Includes 13016-8 $51.77 valve locks) 0.580" 22125-16 $111.52 23125-16 $239.85

  Mitsubishi 4G63-4G63T DSM DOHC 16 Valve (1990-1999)

26115 $630.18 1 kit 0.460" 22115-16 $360.45 23115-16 $239.85

26115K $728.41 1 kit (Includes 13016-8 $51.77 valve locks) 0.460" 22115-16 $360.45 23115-16 $239.85

CRANKSHAFTS - BEARINGS - CONNECTING RODS - PISTON KITS
CHOOSE THE ABOVE PARTS FOR A ROTATING ASSEMBLY

(see instuctios below)

4G63 / 4G64 - Mitsubishi 4G63/4G64 7 Bolt Crankshafts
Forged "Race Series" For Street / Strip

Premium heat treated forgings
Special teardrop, diagonal oiling features not found on stock OEM style cranks
Better performance at High RPM
Stress Relieved Shot Peened
Nitrided
100% Magnafluxed

Forged Part No.
Your Cost Stroke Weight

190100 $909.17 88mm 33.5 lbs

190120 100mm 37 lbs

4G63 / 4G64 -
Mitsubishi 4G63/4G64 7 Bolt Crankshafts

Fully Machined "Turbo Tuff Series" Billet For High Horsepower / High Boost Applications

4340 Billet
Multi-step heat treatment process
Stress Relieved and Shot Peened
Nitrided
100% Magnafluxed
Special teardrop diagonal oiling
Knife-edged counterweights

Manley Turbo Tuff Series Billet Mitsubishi crankshafts now feature uniquely designed, ultra-lightweight, fully contoured counterweights resulting in reduced windage and maximum performance.

Billet Part No.
Your Cost Stroke Weight

190100B $1,883.26 88mm 32 lbs

190110B $1,883.26 94mm 32.5 lbs

190120B $1,883.26 100mm 33.5 lbs

190120BSLW $2,201.47 100mm 29.5 lbs

Ordering a Manley Mitsubishi Rotating Assembly is as easy as 1-2-3...

1. Choose your Crankshaft part number based on stroke and style (for Mitsubishi either Forged Race Series or Turbo Tuff Billet) and order the corresponding Rod and Main bearing part numbers shown.

2. Choose your connecting rod part number.

3. Choose your piston part number based on desired bore size and compression ratio (piston pins, locks and rings are included).

CRANKS

Premium heat treated forgings or lightweight 4340 billet
Multi-step heat treatment process and Nitrided for added strength
Stress relieved, shot-peened, and 100% magnafluxed
Fully profiled knife-edged counterweights on the billet forgings

RODS

4340 material forgings or aircraft quality 300M material for extreme boost
Fully machined, heat treated, stress relieved, shot peened, and 100% magnafluxed
Big and small end bores are final honed to a tolerance of ± .0002"
Bend and twist is tightly controlled
Weight matched to +/- 1.5 grams
H-Beam comes standard with 3/8" ARP 2000 bolts
H-Plus comes standard with 3/8" ARP 625+ bolts
I-Beam and 300M comes standard with 3/8" ARP 2000 bolts (affix an R6 suffix for ARP 625+ bolt upgrade)

PISTONS

High strength 2618 alloy forgings
Exacting ring groove squareness to cylinder wall provides maximum horsepower
Offset wrist pin design
Moly coated skirts

RINGS

1.2 x 1.2 x 2.8mm 4G63/4G64/EJ20
1.2 x 1.2 x 2.0mm EJ25
Total Seal steel tops standard
Rings included in piston kits

BEARINGS

Premium ACL Race Series with narrowed rod bearings

4G63 / 4G64 - Mitsubishi 7 Bolt 4G63 STD Stroke Series 2.0L
Forged "Race Series" 88mm Stroke Crank w/150mm Rods

. . . . . Compression
Ratio

Crank P/N Type
Your Cost Rod P/N Desc. Bearing P/N Desc.
Your Cost Piston P/N
Your Cost Piston
Desc. 43cc 47cc

190100 $909.17 Forged 14022-4 $531.40
150mm H-Beam
or
14022R6-4
150mm H-Plus
or
14400-4 $1,023.76
150mm LW I-Beam
or
14403-4 $1,023.76
150mm TT I-Beam
or
15403-4 $1,443.77
150mm 300M I-Beam 30060 $66.08
Rod
&
33060 $111.04 Mains Only
or
33060T $120.92
Mains w/ Thrusts 606000C-4 $718.43 85mm/ -12cc Dish 9.0 8.5

606005C-4 $718.43 85.5mm/ -12cc Dish 9.0 8.5

606010C-4 $718.43 86mm/ -12cc Dish 9.0 8.5

606015C-4 $718.43 86.5mm/ -12cc Dish 9.0 8.5

606020C-4 $718.43 87mm/ -12cc Dish 9.0 8.5

606100C-4 $718.43 85mm/ -8cc Dish 9.5 9.0

606105C-4 $718.43 85.5mm/ -8cc Dish 9.5 9.0

606110C-4 $718.43 86mm/ -8cc Dish 9.5 9.0

606115C-4 $718.43 86.5mm/ -8cc Dish 9.5 9.0

606120C-4 $718.43 87mm/ -8cc Dish 9.5 9.0

606200C-4 $718.43 85mm/ -2.5cc Flat Top 10.5 10.0

606205C-4 $718.43 85.5mm/ -2.5cc Flat Top 10.5 10.0

606210C-4 $718.43 86mm/ -2.5cc Flat Top 10.5 10.0

606215C-4 $718.43 86.5mm/ -2.5cc Flat Top 10.5 10.0

606220C-4 $718.43 87mm/ -2.5cc Flat Top 10.5 10.0

4G63 / 4G64 - Mitsubishi 7 Bolt 4G63 STD Stroke Series 2.0L
Forged "Race Series" 88mm Stroke Crank w/156mm Rods

. . . . . Compression
Ratio

Crank P/N Type
Your Cost Rod P/N Desc. Bearing P/N Desc.
Your Cost Piston P/N
Your Cost Piston
Desc. 43cc 47cc

190100 $909.17 Forged 14020-4 $531.40
156mm H-Beam
or
14020R6-4
156mm H-Plus
or
14421-4 $1,023.76
156mm TT I-Beam 30060 $66.08
Rod
&
33060 $111.04 Mains Only
or
33060T $120.92
Mains w/ Thrusts 617000C-4 $718.43 85mm/ -12cc Dish 9.0 8.5

617005C-4 $718.43 85.5mm/ -12cc Dish 9.0 8.5

617010C-4 $718.43 86mm/ -12cc Dish 9.0 8.5

617015C-4 $718.43 86.5mm/ -12cc Dish 9.0 8.5

617020C-4 $718.43 87mm/ -12cc Dish 9.0 8.5

4G63 / 4G64 - Mitsubishi 4G63 7 Bolt Stroker Series 2.1L
"Turbo Tuff" Billet 94mm Stroke Cranks w/150mm Rods

. . . . . Compression
Ratio

Crank P/N Type
Your Cost Rod P/N Desc. Bearing P/N Desc.
Your Cost Piston P/N
Your Cost Piston
Desc. 43cc 47cc

190110B $1,883.26 Billet 14022-4 $531.40
150mm H-Beam
or
14022R6-4
150mm H-Plus
or
14400-4 $1,023.76
150mm LW I-Beam
or
14403-4 $1,023.76
150mm TT I-Beam
or
15403-4 $1,443.77
150mm 300M I-Beam 30060 $66.08
Rod
&
33060 $111.04 Mains Only
or
33060T $120.92
Mains w/ Thrusts 618000C-4 $718.43 85mm/ -17cc Dish 9.0 8.5

618005C-4 $718.43 85.5mm/ -17cc Dish 9.0 8.5

618010C-4 $718.43 86mm/ -17cc Dish 9.0 8.5

618015C-4 $718.43 86.5mm/ -17cc Dish 9.0 8.5

618020C-4 $718.43 87mm/ -17cc Dish 9.0 8.5

618200C-4 $718.43 85mm/ -8cc Dish 10.5 10.0

618205C-4 $718.43 85.5mm/ -8cc Dish 10.5 10.0

618210C-4 $718.43 86mm/ -8cc Dish 10.5 10.0

618215C-4 $718.43 86.5mm/ -8cc Dish 10.5 10.0

618220C-4 $718.43 87mm/ -8cc Dish 10.5 10.0

4G63 / 4G64 - Mitsubishi 7 Bolt 4G63 Stroker Series 2.1L
"Turbo Tuff" Billet 94mm Stroke Cranks w/156mm Rods

. . . . . Compression
Ratio

Crank P/N Type
Your Cost Rod P/N Desc. Bearing P/N Desc.
Your Cost Piston P/N
Your Cost Piston
Desc. 43cc 47cc

190110B $1,883.26 Billet 14020-4 $531.40
156mm H-Beam
or
14020R6-4
156mm H-Plus
or
14421-4 $1,023.76
156mm TT I-Beam 30060 $66.08
Rod
&
33060 $111.04 Mains Only
or
33060T $120.92
Mains w/ Thrusts 619000C-4 $718.43 85mm/ -17cc Dish 9.0 8.5

619005C-4 $718.43 85.5mm/ -17cc Dish 9.0 8.5

619010C-4 $718.43 86mm/ -17cc Dish 9.0 8.5

619015C-4 $718.43 86.5mm/ -17cc Dish 9.0 8.5

619020C-4 $718.43 87mm/ -17cc Dish 9.0 8.5

619200C-4 $718.43 85mm/ -8cc Dish 10.5 10.0

619205C-4 $718.43 85.5mm/ -8cc Dish 10.5 10.0

619210C-4 $718.43 86mm/ -8cc Dish 10.5 10.0

619215C-4 $718.43 86.5mm/ -8cc Dish 10.5 10.0

619220C-4 $718.43 87mm/ -8cc Dish 10.5 10.0

4G63 / 4G64 - Mitsubishi 4G63 7 Bolt Stroker Series 2.3L

Forged "Race Series" & "Turbo Tuff" Billet 100mm Stroke Cranks w/150mm Rods

. . . . . Compression
Ratio

Crank P/N Type
Your Cost Rod P/N Desc. Bearing P/N Desc.
Your Cost Piston P/N
Your Cost Piston
Desc. 43cc 47cc

190120 Forged
or
190120B $1,883.26 Billet 14022-4 $531.40
150mm H-Beam
or
14022R6-4
150mm H-Plus
or
14400-4 $1,023.76
150mm LW I-Beam
or
14403-4 $1,023.76
150mm TT I-Beam
or
15403-4 $1,443.77
150mm 300M I-Beam 30060 $66.08
Rod
&
33060 $111.04 Mains Only
or
33060T $120.92
Mains w/ Thrusts 608000C-4 $718.43 85mm/ -22cc Dish 9.0 8.5

608005C-4 $718.43 85.5mm/ -22cc Dish 9.0 8.5

608010C-4 $718.43 86mm/ -22cc Dish 9.0 8.5

608015C-4 $718.43 86.5mm/ -22cc Dish 9.0 8.5

608020C-4 $718.43 87mm/ -22cc Dish 9.0 8.5

4G63 / 4G64 - Mitsubishi 4G64 7 Bolt De-Stroked Series 2.1L
Forged "Race Series" 88mm Stroke Crank w/156mm Rods

. . . . . Compression
Ratio

Crank P/N Type
Your Cost Rod P/N Desc. Bearing P/N Desc.
Your Cost Piston P/N
Your Cost Piston
Desc. 43cc 47cc

190100 $909.17 Forged 14020-4 $531.40
156mm H-Beam
or
14020R6-4
156mm H-Plus
or
14421-4 $1,023.76
156mm TT I-Beam 30060 $66.08
Rod
&
33060 $111.04 Mains Only
or
33060T $120.92
Mains w/ Thrusts 606015C-4 $718.43 86.5mm/ -12cc Dish 9.0 8.5

606020C-4 $718.43 87mm/ -12cc Dish 9.0 8.5

606115C-4 $718.43 86.5mm/ -8cc Dish 9.5 9.0

606120C-4 $718.43 87mm/ -8cc Dish 9.5 9.0

606215C-4 $718.43 86.5mm/ -2.5cc Flat Top 10.5 10.0

. 606220C-4 $718.43 87mm/ -2.5cc
Flat Top 10.5 10.0

4G63 / 4G64 - Mitsubishi 4G64 7 Bolt De-Stroked Series 2.1L
Forged "Race Series" 88mm Stroke Crank w/162mm Rods

. . . . . Compression
Ratio

Crank P/N Type
Your Cost Rod P/N Desc. Bearing P/N Desc.
Your Cost Piston P/N
Your Cost Piston
Desc. 43cc 47cc

190100 $909.17 Forged 14422-4 $1,023.76
162mm TT I-Beam 30060 $66.08
Rod
&
33060 $111.04 Mains Only
or
33060T $120.92
Mains w/ Thrusts 617015C-4 $718.43 86.5mm/ -12cc Dish 9.0 8.5

617020C-4 $718.43 87mm/ -12cc Dish 9.0 8.5

4G63 / 4G64 - Mitsubishi 4G64 7 Bolt De-Stroked Series 2.2L
"Turbo Tuff" Billet 94mm Stroke Crank w/156mm Rods

. . . . . Compression
Ratio

Crank P/N Type
Your Cost Rod P/N Desc. Bearing P/N Desc.
Your Cost Piston P/N
Your Cost Piston
Desc. 43cc 47cc

190110B $1,883.26 Billet 14020-4 $531.40
156mm H-Beam
or
14020R6-4
156mm H-Plus
or
14421-4 $1,023.76
156mm TT I-Beam 30060 $66.08
Rod
&
33060 $111.04 Mains Only
or
33060T $120.92
Mains w/ Thrusts 618015C-4 $718.43 86.5mm/ -17cc Dish 9.0 8.5

618020C-4 $718.43 87mm/ -17cc Dish 9.0 8.5

618215C-4 $718.43 86.5mm/ -8cc Dish 10.5 10.0

618220C-4 $718.43 87mm/ -8cc Dish 10.5 10.0

4G63 / 4G64 - Mitsubishi 4G64 7 Bolt De-Stroked Series 2.2L
"Turbo Tuff" Billet 94mm Stroke Crank w/162mm Rods

. . . . . Compression
Ratio

Crank P/N Type
Your Cost Rod P/N Desc. Bearing P/N Desc.
Your Cost Piston P/N
Your Cost Piston
Desc. 43cc 47cc

190110B $1,883.26 Billet 14422-4 $1,023.76
162mm TT I-Beam 30060 $66.08
Rod
&
33060 $111.04 Mains Only
or
33060T $120.92
Mains w/ Thrusts 619015C-4 $718.43 86.5mm/ -17cc Dish 9.0 8.5

619020C-4 $718.43 87mm/ -17cc Dish 9.0 8.5

619215C-4 $718.43 86.5mm/ -8cc Dish 10.5 10.0

619220C-4 $718.43 87mm/ -8cc Dish 10.5 10.0

4G63 / 4G64 - Mitsubishi 4G64 7 Bolt Std Stroker Series 2.4L

Forged "Race Series" & "Turbo Tuff" Billet 100mm Stroke Cranks w/ 150mm Rods

. . . . . Compression
Ratio

Crank P/N Type
Your Cost Rod P/N Desc. Bearing P/N Desc.
Your Cost Piston P/N
Your Cost Piston
Desc. 43cc 47cc

190120 Forged
or
190120B $1,883.26 Billet 14022-4 $531.40
150mm H-Beam
or
14022R6-4
150mm H-Plus
or
14400-4 $1,023.76
150mm LW I-Beam
or
14403-4 $1,023.76
150mm TT I-Beam
or
15403-4 $1,443.77
150mm 300M I-Beam 30060 $66.08
Rod
&
33060 $111.04 Mains Only
or
33060T $120.92
Mains w/ Thrusts 613000C-4 $718.43 86.5mm/ -23.5cc Dish 9.0 8.5

613005C-4 $718.43 87mm/ -23.5cc Dish 9.0 8.5

606015C-4 $718.43 86.5mm/ -12cc Dish 10.5 10.0

606020C-4 $718.43 87mm/ -12cc Dish 10.5 10.0

4G63 / 4G64 - Mitsubishi 4G64 7 Bolt Std Stroker Series 2.4L

Forged "Race Series" & "Turbo Tuff" Billet 100mm Stroke Cranks w/ 156mm Rods

. . . . . Compression
Ratio

Crank P/N Type
Your Cost Rod P/N Desc. Bearing P/N Desc.
Your Cost Piston P/N
Your Cost Piston
Desc. 43cc 47cc

190120 Forged
or
190120B $1,883.26 Billet 14020-4 $531.40
156mm H-Beam
or
14020R6-4
156mm H-Plus
or
14421-4 $1,023.76
156mm TT I-Beam 30060 $66.08
Rod
&
33060 $111.04 Mains Only
or
33060T $120.92
Mains w/ Thrusts 608015C-4 $718.43 86.5mm/ -22cc Dish 9.1 8.6

608020C-4 $718.43 87mm/ -22cc Dish 9.1 8.6

617015C-4 $718.43 86.5mm/ -12cc Dish 10.5 10.0

617020C-4 $718.43 87mm/ -12cc Dish 10.5 10.0

4G63 / 4G64 - Mitsubishi 4G63/4G64 7 Bolt Crankshafts
Forged "Race Series" For Street / Strip

Premium heat treated forgings
Special teardrop, diagonal oiling features not found on stock OEM style cranks
Better performance at High RPM
Stress Relieved Shot Peened
Nitrided
100% Magnafluxed

Forged Part No. Stroke Weight

190100 $909.17 88mm 33.5 lbs

190120 100mm 37 lbs

4G63 / 4G64 -
Mitsubishi 4G63/4G64 7 Bolt Crankshafts
Fully Machined "Turbo Tuff Series" Billet For High Horsepower / High Boost Applications

4340 Billet
Multi-step heat treatment process
Stress Relieved and Shot Peened
Nitrided
100% Magnafluxed
Special teardrop diagonal oiling
Knife-edged counterweights

Manley Turbo Tuff Series Billet Mitsubishi crankshafts now feature uniquely designed, ultra-lightweight, fully contoured counterweights resulting in reduced windage and maximum performance.

Billet Part No. Stroke Weight

190100B $1,883.26 88mm 32 lbs

190110B $1,883.26 94mm 32.5 lbs

190120B $1,883.26 100mm 33.5 lbs

190120BSLW $2,201.47 100mm 29.5 lbs

Ordering a Manley Mitsubishi Rotating Assembly is as easy as 1-2-3...

1. Choose your Crankshaft part number based on stroke and style (for Mitsubishi either Forged Race Series or Turbo Tuff Billet) and order the corresponding Rod and Main bearing part numbers shown.

2. Choose your connecting rod part number.

3. Choose your piston part number based on desired bore size and compression ratio (piston pins, locks and rings are included).

Ordering all of the required components for your rotating assembly from Manley will result in extra $ savings. Please contact your Manley representative for more details.

CRANKS

Premium heat treated forgings or lightweight 4340 billet
Multi-step heat treatment process and Nitrided for added strength
Stress relieved, shot-peened, and 100% magnafluxed
Fully profiled knife-edged counterweights on the billet forgings

RODS

4340 material forgings or aircraft quality 300M material for extreme boost
Fully machined, heat treated, stress relieved, shot peened, and 100% magnafluxed
Big and small end bores are final honed to a tolerance of ± .0002"
Bend and twist is tightly controlled
Weight matched to +/- 1.5 grams
H-Beam comes standard with 3/8" ARP 2000 bolts
H-Plus comes standard with 3/8" ARP 625+ bolts
I-Beam and 300M comes standard with 3/8" ARP 2000 bolts (affix an R6 suffix for ARP 625+ bolt upgrade)

PISTONS

High strength 2618 alloy forgings
Exacting ring groove squareness to cylinder wall provides maximum horsepower
Offset wrist pin design
Moly coated skirts

RINGS

1.2 x 1.2 x 2.8mm 4G63/4G64/EJ20
1.2 x 1.2 x 2.0mm EJ25
Total Seal steel tops standard
Rings included in piston kits

BEARINGS

Premium ACL Race Series with narrowed rod bearings

4G63 / 4G64 - Mitsubishi 7 Bolt 4G63 STD Stroke Series 2.0L Forged "Race Series" 88mm Stroke Crank w/150mm Rods

. . . . . Compression
Ratio

Crank P/N Type
Your Cost Rod P/N Desc. Bearing P/N Desc.
Your Cost Piston P/N
Your Cost Piston
Desc. 43cc 47cc

190100 $909.17 Forged 14022-4 $531.40
150mm H-Beam
or
14022R6-4
150mm H-Plus
or
14400-4 $1,023.76
150mm LW I-Beam
or
14403-4 $1,023.76
150mm TT I-Beam
or
15403-4 $1,443.77
150mm 300M I-Beam 30060 $66.08
Rod
&
33060 $111.04 Mains Only
or
33060T $120.92
Mains w/ Thrusts 606000C-4 $718.43 85mm/ -12cc Dish 9.0 8.5

606005C-4 $718.43 85.5mm/ -12cc Dish 9.0 8.5

606010C-4 $718.43 86mm/ -12cc Dish 9.0 8.5

606015C-4 $718.43 86.5mm/ -12cc Dish 9.0 8.5

606020C-4 $718.43 87mm/ -12cc Dish 9.0 8.5

606100C-4 $718.43 85mm/ -8cc Dish 9.5 9.0

606105C-4 $718.43 85.5mm/ -8cc Dish 9.5 9.0

606110C-4 $718.43 86mm/ -8cc Dish 9.5 9.0

606115C-4 $718.43 86.5mm/ -8cc Dish 9.5 9.0

606120C-4 $718.43 87mm/ -8cc Dish 9.5 9.0

606200C-4 $718.43 85mm/ -2.5cc Flat Top 10.5 10.0

606205C-4 $718.43 85.5mm/ -2.5cc Flat Top 10.5 10.0

606210C-4 $718.43 86mm/ -2.5cc Flat Top 10.5 10.0

606215C-4 $718.43 86.5mm/ -2.5cc Flat Top 10.5 10.0

606220C-4 $718.43 87mm/ -2.5cc Flat Top 10.5 10.0

4G63 / 4G64 - Mitsubishi 7 Bolt 4G63 STD Stroke Series 2.0L Forged "Race Series" 88mm Stroke Crank w/156mm Rods

. . . . . Compression
Ratio

Crank P/N Type
Your Cost Rod P/N Desc. Bearing P/N Desc.
Your Cost Piston P/N
Your Cost Piston
Desc. 43cc 47cc

190100 $909.17 Forged 14020-4 $531.40
156mm H-Beam
or
14020R6-4
156mm H-Plus
or
14421-4 $1,023.76
156mm TT I-Beam 30060 $66.08
Rod
&
33060 $111.04 Mains Only
or
33060T $120.92
Mains w/ Thrusts 617000C-4 $718.43 85mm/ -12cc Dish 9.0 8.5

617005C-4 $718.43 85.5mm/ -12cc Dish 9.0 8.5

617010C-4 $718.43 86mm/ -12cc Dish 9.0 8.5

617015C-4 $718.43 86.5mm/ -12cc Dish 9.0 8.5

617020C-4 $718.43 87mm/ -12cc Dish 9.0 8.5

4G63 / 4G64 - Mitsubishi 4G63 7 Bolt Stroker Series 2.1L "Turbo Tuff" Billet 94mm Stroke Cranks w/150mm Rods

. . . . . Compression
Ratio

Crank P/N Type
Your Cost Rod P/N Desc. Bearing P/N Desc.
Your Cost Piston P/N
Your Cost Piston
Desc. 43cc 47cc

190110B $1,883.26 Billet 14022-4 $531.40
150mm H-Beam
or
14022R6-4
150mm H-Plus
or
14400-4 $1,023.76
150mm LW I-Beam
or
14403-4 $1,023.76
150mm TT I-Beam
or
15403-4 $1,443.77
150mm 300M I-Beam 30060 $66.08
Rod
&
33060 $111.04 Mains Only
or
33060T $120.92
Mains w/ Thrusts 618000C-4 $718.43 85mm/ -17cc Dish 9.0 8.5

618005C-4 $718.43 85.5mm/ -17cc Dish 9.0 8.5

618010C-4 $718.43 86mm/ -17cc Dish 9.0 8.5

618015C-4 $718.43 86.5mm/ -17cc Dish 9.0 8.5

618020C-4 $718.43 87mm/ -17cc Dish 9.0 8.5

618200C-4 $718.43 85mm/ -8cc Dish 10.5 10.0

618205C-4 $718.43 85.5mm/ -8cc Dish 10.5 10.0

618210C-4 $718.43 86mm/ -8cc Dish 10.5 10.0

618215C-4 $718.43 86.5mm/ -8cc Dish 10.5 10.0

618220C-4 $718.43 87mm/ -8cc Dish 10.5 10.0

4G63 / 4G64 - Mitsubishi 7 Bolt 4G63 Stroker Series 2.1L "Turbo Tuff" Billet 94mm Stroke Cranks w/156mm Rods

. . . . . Compression
Ratio

Crank P/N Type
Your Cost Rod P/N Desc. Bearing P/N Desc.
Your Cost Piston P/N
Your Cost Piston
Desc. 43cc 47cc

190110B $1,883.26 Billet 14020-4 $531.40
156mm H-Beam
or
14020R6-4
156mm H-Plus
or
14421-4 $1,023.76
156mm TT I-Beam 30060 $66.08
Rod
&
33060 $111.04 Mains Only
or
33060T $120.92
Mains w/ Thrusts 619000C-4 $718.43 85mm/ -17cc Dish 9.0 8.5

619005C-4 $718.43 85.5mm/ -17cc Dish 9.0 8.5

619010C-4 $718.43 86mm/ -17cc Dish 9.0 8.5

619015C-4 $718.43 86.5mm/ -17cc Dish 9.0 8.5

619020C-4 $718.43 87mm/ -17cc Dish 9.0 8.5

619200C-4 $718.43 85mm/ -8cc Dish 10.5 10.0

619205C-4 $718.43 85.5mm/ -8cc Dish 10.5 10.0

619210C-4 $718.43 86mm/ -8cc Dish 10.5 10.0

619215C-4 $718.43 86.5mm/ -8cc Dish 10.5 10.0

619220C-4 $718.43 87mm/ -8cc Dish 10.5 10.0

4G63 / 4G64 - Mitsubishi 4G63 7 Bolt Stroker Series 2.3L Forged "Race Series" & "Turbo Tuff" Billet 100mm Stroke Cranks w/150mm Rods

. . . . . Compression
Ratio

Crank P/N Type
Your Cost Rod P/N Desc. Bearing P/N Desc.
Your Cost Piston P/N
Your Cost Piston
Desc. 43cc 47cc

190120 Forged
or
190120B $1,883.26 Billet 14022-4 $531.40
150mm H-Beam
or
14022R6-4
150mm H-Plus
or
14400-4 $1,023.76
150mm LW I-Beam
or
14403-4 $1,023.76
150mm TT I-Beam
or
15403-4 $1,443.77
150mm 300M I-Beam 30060 $66.08
Rod
&
33060 $111.04 Mains Only
or
33060T $120.92
Mains w/ Thrusts 608000C-4 $718.43 85mm/ -22cc Dish 9.0 8.5

608005C-4 $718.43 85.5mm/ -22cc Dish 9.0 8.5

608010C-4 $718.43 86mm/ -22cc Dish 9.0 8.5

608015C-4 $718.43 86.5mm/ -22cc Dish 9.0 8.5

4G63 / 4G64 - Mitsubishi 4G64 7 Bolt De-Stroked Series 2.1L Forged "Race Series" 88mm Stroke Crank w/156mm Rods

. . . . . Compression
Ratio

Crank P/N Type
Your Cost Rod P/N Desc. Bearing P/N Desc.
Your Cost Piston P/N
Your Cost Piston
Desc. 43cc 47cc

190100 $909.17 Forged 14020-4 $531.40
156mm H-Beam
or
14020R6-4
156mm H-Plus
or
14421-4 $1,023.76
156mm TT I-Beam 30060 $66.08
Rod
&
33060 $111.04 Mains Only
or
33060T $120.92
Mains w/ Thrusts 606015C-4 $718.43 86.5mm/ -12cc Dish 9.0 8.5

606020C-4 $718.43 87mm/ -12cc Dish 9.0 8.5

606115C-4 $718.43 86.5mm/ -8cc Dish 9.5 9.0

606120C-4 $718.43 87mm/ -8cc Dish 9.5 9.0

606215C-4 $718.43 86.5mm/ -2.5cc Flat Top 10.5 10.0

606220C-4 $718.43 87mm/ -2.5cc Flat Top 10.5 10.0

4G63 / 4G64 - Mitsubishi 4G64 7 Bolt De-Stroked Series 2.1L Forged "Race Series" 88mm Stroke Crank w/162mm Rods

. . . . . Compression
Ratio

Crank P/N Type
Your Cost Rod P/N Desc. Bearing P/N Desc.
Your Cost Piston P/N
Your Cost Piston
Desc. 43cc 47cc

190100 $909.17 Forged 14422-4 $1,023.76
162mm TT I-Beam 30060 $66.08
Rod
&
33060 $111.04 Mains Only
or
33060T $120.92
Mains w/ Thrusts 617015C-4 $718.43 86.5mm/ -12cc Dish 9.0 8.5

617020C-4 $718.43 87mm/ -12cc Dish 9.0 8.5

4G63 / 4G64 - Mitsubishi 4G64 7 Bolt De-Stroked Series 2.2L "Turbo Tuff" Billet 94mm Stroke Crank w/156mm Rods

. . . . . Compression
Ratio

Crank P/N Type
Your Cost Rod P/N Desc. Bearing P/N Desc.
Your Cost Piston P/N
Your Cost Piston
Desc. 43cc 47cc

190110B $1,883.26 Billet 14020-4 $531.40
156mm H-Beam
or
14020R6-4
156mm H-Plus
or
14421-4 $1,023.76
156mm TT I-Beam 30060 $66.08
Rod
&
33060 $111.04 Mains Only
or
33060T $120.92
Mains w/ Thrusts 618015C-4 $718.43 86.5mm/ -17cc Dish 9.0 8.5

618020C-4 $718.43 87mm/ -17cc Dish 9.0 8.5

618215C-4 $718.43 86.5mm/ -8cc Dish 10.5 10.0

618220C-4 $718.43 87mm/ -8cc Dish 10.5 10.0

4G63 / 4G64 - Mitsubishi 4G64 7 Bolt De-Stroked Series 2.2L"Turbo Tuff" Billet 94mm Stroke Crank w/162mm Rods

. . . . . Compression
Ratio

Crank P/N Type
Your Cost Rod P/N Desc. Bearing P/N Desc.
Your Cost Piston P/N
Your Cost Piston
Desc. 43cc 47cc

190110B $1,883.26 Billet 14422-4 $1,023.76
162mm TT I-Beam 30060 $66.08
Rod
&
33060 $111.04 Mains Only
or
33060T $120.92
Mains w/ Thrusts 619015C-4 $718.43 86.5mm/ -17cc Dish 9.0 8.5

619020C-4 $718.43 87mm/ -17cc Dish 9.0 8.5

619215C-4 $718.43 86.5mm/ -8cc Dish 10.5 10.0

619220C-4 $718.43 87mm/ -8cc Dish 10.5 10.0

4G63 / 4G64 - Mitsubishi 4G64 7 Bolt Std Stroker Series 2.4L Forged "Race Series" & "Turbo Tuff" Billet 100mm Stroke Cranks w/ 150mm Rods

. . . . . Compression
Ratio

Crank P/N Type
Your Cost Rod P/N Desc. Bearing P/N Desc.
Your Cost Piston P/N
Your Cost Piston
Desc. 43cc 47cc

190120 Forged
or
190120B $1,883.26 Billet 14022-4 $531.40
150mm H-Beam
or
14022R6-4
150mm H-Plus
or
14400-4 $1,023.76
150mm LW I-Beam
or
14403-4 $1,023.76
150mm TT I-Beam
or
15403-4 $1,443.77
150mm 300M I-Beam 30060 $66.08
Rod
&
33060 $111.04 Mains Only
or
33060T $120.92
Mains w/ Thrusts 613000C-4 $718.43 86.5mm/ -23.5cc Dish 9.0 8.5

613005C-4 $718.43 87mm/ -23.5cc Dish 9.0 8.5

606015C-4 $718.43 86.5mm/ -12cc Dish 10.5 10.0

606020C-4 $718.43 87mm/ -12cc Dish 10.5 10.0

4G63 / 4G64 - Mitsubishi 4G64 7 Bolt Std Stroker Series 2.4L Forged "Race Series" & "Turbo Tuff" Billet 100mm Stroke Cranks w/ 156mm Rods

. . . . . Compression
Ratio

Crank P/N Type
Your Cost Rod P/N Desc. Bearing P/N Desc.
Your Cost Piston P/N
Your Cost Piston
Desc. 43cc 47cc

190120 Forged
or
190120B $1,883.26 Billet 14020-4 $531.40
156mm H-Beam
or
14020R6-4
156mm H-Plus
or
14421-4 $1,023.76
156mm TT I-Beam 30060 $66.08
Rod
&
33060 $111.04 Mains Only
or
33060T $120.92
Mains w/ Thrusts 608015C-4 $718.43 86.5mm/ -22cc Dish 9.1 8.6

608020C-4 $718.43 87mm/ -22cc Dish 9.1 8.6

617015C-4 $718.43 86.5mm/ -12cc Dish 10.5 10.0

617020C-4 $718.43 87mm/ -12cc Dish 10.5 10.0

4B11 - Mitsubishi 4B11T (EVO X)

4B11 - PLATINUM SERIES LIGHTWEIGHT PISTONS

Manley pistons are machined of high strength 2618 material. Each design is lightweight yet robust enough to deliver long service life. Offset wrist pin design is utilized for quiet start-ups. Perfect ring groove to skirt squareness is achieved through our unique "one fixturing" manufacturing method that assures maximum horsepower. All pistons come with moly coated skirts. Round wire locks, premium chrome moly wrist pins, and premium steel top ring sets from Total Seal are included with every kit at no additional charge. 9310 alloy upgraded wrist pins are available.

Part #
Your Cost Extreme Duty Part #
Your Cost Bore Size
(mm) Over
Size Rod
Lgth. Stk. Comp.
Dist.. Dome
Vol. (cc) Cyl.
Head (cc) Comp.
Ratio Piston
Type Piston
Wt / Gms Included
Ring Set

Mitsubishi EVO X 08-Up - 4B11T .9055"/23mm x 2.250" Pin x .180" Wall

86mm STD STROKE (2.0L)

614000C-4 $718.43 614000CE-4 $846.21 86 STD 143.66 86 1.313" -5 49 9.0 Dish 337 46860-4 $162.73

614005C-4 $718.43 614005CE-4 $846.21 86.5 +.5mm 143.66 86 1.313" -5 49 9.0 Dish 343 46865-4 $162.73

614100C-4 $718.43 614100CE-4 $846.21 86 STD 143.66 86 1.313" +2 49 10.0 Dome TBA 46860-4 $162.73

614105C-4 $718.43 614105CE-4 $846.21 86.5 +.5mm 143.66 86 1.313" +2 49 10.0 Dome TBA 46865-4 $162.73

94mm STROKER (2.2L)

624000C-4 $718.43 624000CE-4 $846.21 86 STD 143.66 94 1.155" -11 49 9.0 Dish 308 46860-4 $162.73

624005C-4 $718.43 624005CE-4 $846.21 86.5 +.5mm 143.66 94 1.155" -11 49 9.0 Dish 315 46865-4 $162.73

624100C-4 $718.43 624100CE-4 $846.21 86 STD 143.66 94 1.155" -3.5 49 10.0 Dish TBA 46860-4 $162.73

624105C-4 $718.43 624105CE-4 $846.21 86.5 +.5mm 143.66 94 1.155" -3.5 49 10.0 Dish TBA 46865-4 $162.73

4B11 - TURBO TUFF ® DESIGN

2618 high strength material
2.250 x .210" wall 9310 alloy pin included P/N 42553
Pressure balance groove
Will accommodate +1mm valve sizes
Vertical Gas Ports designed for high HP Race Engines
Premium Steel top rings with Napier seconds and round wire locks included
Recommended piston clearance .0035" measured 1.100" from the bottom of the oil ring

Part #
Your Cost
Bore Size (mm) Over
Size Rod
Lgth. Stk. Comp.
Dist.. Dome
Vol. (cc) Cyl.
Head (cc) Comp.
Ratio Piston
Type Piston
Wt / Gms Included
Ring Set

86mm STROKER (2.0L)

614200CE-4 $1,020.95 86 STD 143.66 86 1.313" -5 49 9.0 Dish TBA 46860-4 $162.73

614205CE-4 $1,020.95 86.5 STD 143.66 86 1.313" -5 49 9.0 Dish TBA 46865-4 $162.73

614300CE-4 $1,020.95 86 STD 143.66 86 1.313" +2 49 10.0 Dome TBA 46860-4 $162.73

614305CE-4 $1,020.95 86.5 STD 143.66 86 1.313" +2 49 10.0 Dome TBA 46865-4 $162.73

94mm STROKER (2.2L)

624200CE-4 $1,020.95 86 STD 143.66 94 1.155" -11 49 9.0 Dish TBA 46860-4 $162.73

624205CE-4 $1,020.95 86.5 +.5mm 143.66 94 1.155" -11 49 9.0 Dish TBA 46865-4 $162.73

624300CE-4 $1,020.95 86 STD 143.66 94 1.155" -3.5 49 10.0 Dish TBA 46860-4 $162.73

624305CE-4 $1,020.95 86.5 +.5mm 143.66 94 1.155" -3.5 49 10.0 Dish TBA 46865-4 $162.73

Common Features
Crown Thickness: .320"
Top Ring: 1.2mm, .350" down
Second Ring: 1.2mm
Oil Ring: 2.8mm
Valve Notches: .175" Int., 175" Exh.
Pin Included: 9310 Alloy P/N 42553 (.210" wall, 132 grams, 2.250" long, 23mm dia.)
Round Wire Locks: P/N 42262

4B11 - ECONOMICAL "H" BEAM STEEL CONNECTING RODS

Manley "H" Beam connecting rods are manufactured from 4340 forgings to the same exacting standards developed and approved by our original equipment customers. There is a vast difference in quality between a Manley "H" Beam and the "other" inexpensive H-Beams on the market. Bend and twist is tightly controlled. Weight matched to +/- 1.5 grams. Cap fasteners are 3/8" ARP 2000 for the H-Beam and H-Tuff and 3/8" ARP Custom Age 625+ for the H-Tuff Plus.

Part #
Your Cost Center
to
Center Big End Bore Big End Width Pin Diameter Pin Bore Gram Weight

Mitsubishi EVO X 4B11T (2008-Up)

14029-4 $531.40 5.656" 2.165" .860" .9055" (23 mm) .9063" 527

Mitsubishi EVO X 4B11T (2008-Up) - H-Tuff Series with heavier beam for higher boost applications

15029-4 $593.06 (H-Tuff) 5.656" 2.165" .860" .9055" (23mm) .9063" 620

15029R6-4 $933.31 (H-Tuff Plus) 5.656" 2.165" .860" .9055" (23mm) .9063" 620

4B11 - PRO SERIES TURBO TUFF "I" BEAM STEEL CONNECTING RODS

Manley Pro Series connecting rods are forged from aircraft quality 4340 vacuum degassed material. Each rod is fully machined in the Manley Lakewood, NJ factory to the highest standards. Our signature "Turbo Tuff" design combines the appropriate weight and rugged strength for ultimate horsepower applications. Each rod is shot peened after machining and magnafluxed. Bores are round and without taper. Bend and twist is tightly controlled. Cap fasteners are 3/8" APR 2000 cap screws. Cap fasteners are 3/8" ARP 2000 for the H-Tuff and 3/8" ARP Custom Age 625+ for the H-Tuff Plus

These rods are also available with ARP 625+ fasteners. To order, affix an "R6" to the part number.

Part #
Your Cost Center
to
Center Big End Bore Big End Width Pin Diameter Pin Bore Gram Weight

Mitsubishi EVO X 4B11T (2008-Up)

14409-4 $1,023.76 5.656" 2.165" .860" .9055" (23 mm) .9063" 620

4B11 - PRO SERIES VALVE SPRINGS RETAINERS LOCKS & KITS

Manley valve springs are wound from super clean alloy. Each design minimizes stress to ensure long service life with high lift camshafts. Titanium retainers are manufactured in our own double spindle CNC machines to exacting tolerances and precise installed height specifications. Valve locks are manufactured in our own Swiss turning centers with rigid control over the all-important angle to ensure precise mating with the retainer.

VALVE SPRINGS

Part #
Your Cost
Qty. O.D./
I.D.
Outer
Inner Seat Pres. Open Pressure Stock/
Max Lift Coil Bind Rate (lbs. /in.) Retainer #

Mitsubishi EVO X 4B11T DOHC 16 Valve (2008-Up)

22195-16 $179.10 16 pcs. .990"/
.710" 86 @ 1.400" 180 @ 1.030"
195 @ .970" 0.370"
0.430" .920" 253 23195-16 $239.85

TITANIUM RETAINERS

. Valve Stem
Dia. . Dimensions .

Part #
Your Cost
Qty. Spring Deg. A B C Step Height Valve Locks

Mitsubishi EVO X 4B11T DOHC 16 Valve (2008-Up)

23195-16 $239.85 16 pcs. 22195-16 $179.10 5.5 mm 7.5° .960" .690" -- .100" Stock --

SPRING AND RETAINER KITS

Part #
Your Cost
Quantity Max Net Lift Spring # Retainer #

Mitsubishi EVO X 4B11T DOHC 16 Valve (2008-Up)

26195 $377.10 1 kit 0.430" 22195-16 $179.10 23195-16 $239.85

4B11 - Mitsubishi 4B11T (EVO X) Stroker Crankshafts
Fully Machined "Turbo Tuff Series" Billet
For High Horsepower / High Boosted Applications

4340 Billet
Multi-step heat treatment process
Stress Relieved and Shot Peened
Nitrided
100% Magnafluxed
Special teardrop diagonal oiling
Knife-edged counterweights

Forged Part No.
Your Cost Stroke Weight

190230B $1,883.26 94mm 37 lbs

Ordering a Manley Mitsubishi Rotating Assembly is as easy as 1-2-3...

1. Choose your Crankshaft part number based on stroke and style (for Mitsubishi either Forged Race Series or Turbo Tuff Billet) and order the corresponding Rod and Main bearing part numbers shown.

2. Choose your connecting rod part number.

3. Choose your piston part number based on desired bore size and compression ratio (piston pins, locks and rings are included).

Ordering all of the required components for your rotating assembly from Manley will result in extra $ savings. Please contact your Manley representative for more details.

CRANKS

Premium heat treated forgings or lightweight 4340 billet
Multi-step heat treatment process and Nitrided for added strength
Stress relieved, shot-peened, and 100% magnafluxed
Fully profiled knife-edged counterweights on the billet forgings

RODS

4340 material forgings or aircraft quality 300M material for extreme boost
Fully machined, heat treated, stress relieved, shot peened, and 100% magnafluxed
Big and small end bores are final honed to a tolerance of ± .0002"
Bend and twist is tightly controlled
Weight matched to +/- 1.5 grams
H-Beam comes standard with 3/8" ARP 2000 bolts
H-Plus comes standard with 3/8" ARP 625+ bolts
I-Beam and 300M comes standard with 3/8" ARP 2000 bolts (affix an R6 suffix for ARP 625+ bolt upgrade)

PISTONS

High strength 2618 alloy forgings
Exacting ring groove squareness to cylinder wall provides maximum horsepower
Offset wrist pin design
Moly coated skirts

RINGS

1.2 x 1.2 x 2.8mm 4G63/4G64/EJ20
1.2 x 1.2 x 2.0mm EJ25
Total Seal steel tops standard
Rings included in piston kits

BEARINGS

Premium ACL Race Series with narrowed rod bearings

4B11 - Mitsubishi 4B11T (EVO X) Stroker Series 2.2L
"Turbo Tuff" Billet 94mm Stroke Crank w/143.66mm Rods

. . . . . Comp.
Ratio

Crank P/N Your Cost
Type Rod P/N Desc. Bearing P/N Desc. Piston P/N Piston
Desc. 49cc

190230B $1,883.26 Billet 14029-4 $531.40
143.66mm H-Beam
or
14029R6-4
143.6mm H-Plus
or
14409-4 $1,023.76
143.66mm TT I-Beam 30090 $90.00
Rod
&
33090 $161.66 Mains Only
or
33090T $194.66
Mains w/ Thrusts 624000C-4 $718.43 86mm/ -11cc Dish 9.0

624005C-4 $718.43 86.5mm/ -11cc Dish 9.0

Top of Page

HOME

Engine Rebuild & Assembly	Balancing & Blueprinting	Cylinder Heads
Engine Rebuild Kits	Engine Start-up	Other Related Web Sites Page 1
Crankshafts	Degree Cam	Other Related Web Sites Page 2
Purchase warranty & Return Information	About the owner of RPM	Frequently Asked Questions
MASTER ENGINE REBUILD KITS & PARTS

Part # Your Cost	Extreme Duty Part # Your Cost	Bore Size (mm)	Over Size	Rod Lgth.	Stk.	Comp. Dist..	Dome Vol. (cc)	Cyl. Head (cc)	Comp. Ratio	Piston Type	Piston Wt / Gms	Included Ring Set
Mitsubishi Eclipse GS/GST/GSX-Eagle Talon TSi 90-93.5 (6 Bolt) - 4G63/4G63T
88mm STD STROKE (2.0L)
605000C-4 $718.43	605000CE-4 $846.21	85	STD	150	88	1.375"	-12	47	8.5	Dish	340	46850-4 $162.73
605005C-4 $718.43	605005CE-4 $846.21	85.5	+.5mm	150	88	1.375"	-12	47	8.5	Dish	344	46855-4 $162.73
605010C-4 $718.43	605010CE-4 $846.21	86	+1.0mm	150	88	1.375"	-12	47	8.5	Dish	348	46860-4 $162.73
605100C-4 $718.43	605100CE-4 $846.21	85	STD	150	88	1.375"	-8	47	9	Dish	349	46850-4 $162.73
605105C-4 $718.43	605105CE-4 $846.21	85.5	+.5mm	150	88	1.375"	-8	47	9	Dish	356	46855-4 $162.73
605110C-4 $718.43	605110CE-4 $846.21	86	+1.0mm	150	88	1.375"	-8	47	9	Dish	365	46860-4 $162.73
Part # Your Cost	Extreme Duty Part # Your Cost	Bore Size (mm)	Over Size	Rod Lgth.	Stk.	Comp. Dist..	Dome Vol. (cc)	Cyl. Head (cc)	Comp. Ratio	Piston Type	Piston Wt / Gms	Included Ring Set
100mm STROKER (2.3L)
607005C-4 $718.43	607005CE-4 $846.21	85.5	+.5mm	150	100	1.130"	-22	47	8.5	Dish	300	46855-4 $162.73

Part # Your Cost	Extreme Duty Part # Your Cost	Bore Size (mm)	Over Size	Rod Lgth.	Stk.	Comp. Dist..	Dome Vol. (cc)	Cyl. Head (cc)	Comp. Ratio	Piston Type	Piston Wt / Gms	Included Ring Set
Mitsubishi Eclipse GST/GSX-Eagle Talon TSi 93.5-99 (7 Bolt) - 4G63/4G63T Evo VIII, IX 03-06 4G63T
88mm STD STROKE (2.0L)
606000C-4 $718.43	606000CE-4 $846.21	85	STD	150	88	1.375"	-12	47 / 43	8.5 / 9.0	Dish	337	46850-4 $162.73
606005C-4 $718.43	606005CE-4 $846.21	85.5	+.5mm	150	88	1.375"	-12	47 / 43	8.5 / 9.0	Dish	341	46855-4 $162.73
606010C-4 $718.43	606010CE-4 $846.21	86	+1.0mm	150	88	1.375"	-12	47 / 43	8.5 / 9.0	Dish	345	46860-4 $162.73
606015C-4 $718.43	606015CE-4 $846.21	86.5	+1.5mm	150	88	1.375"	-12	47 / 43	8.5 / 9.0	Dish	349	46865-4 $162.73
606020C-4 $718.43	606020CE-4 $846.21	87	+2.0mm	150	88	1.375"	-12	47 / 43	8.5 / 9.0	Dish	354	46870-4 $162.73
606100C-4 $718.43	606100CE-4 $846.21	85	STD	150	88	1.375"	-8	47 / 43	9.0 / 9.5	Dish	342	46850-4 $162.73
606105C-4 $718.43	606105CE-4 $846.21	85.5	+.5mm	150	88	1.375"	-8	47 / 43	9.0 / 9.5	Dish	350	46855-4 $162.73
606110C-4 $718.43	606110CE-4 $846.21	86	+1.0mm	150	88	1.375"	-8	47 / 43	9.0 / 9.5	Dish	358	46860-4 $162.73
606115C-4 $718.43	606115CE-4 $846.21	86.5	+1.5mm	150	88	1.375"	-8	47 / 43	9.0 / 9.5	Dish	350	46865-4 $162.73
606120C-4 $718.43	606120CE-4 $846.21	87	+2.0mm	150	88	1.375"	-8	47 / 43	9.0 / 9.5	Dish	359	46870-4 $162.73
606200C-4 $718.43	606200CE-4 $846.21	85	STD	150	88	1.375"	-2.5	47 / 43	10.0 / 10.5	Flat Top	339	46850-4 $162.73
606205C-4 $718.43	606205CE-4 $846.21	85.5	+.5mm	150	88	1.375"	-2.5	47 / 43	10.0 / 10.5	Flat Top	347	46855-4 $162.73
606210C-4 $718.43	606210CE-4 $846.21	86	+1.0mm	150	88	1.375"	-2.5	47 / 43	10.0 / 10.5	Flat Top	355	46860-4 $162.73
606215C-4 $718.43	606215CE-4 $846.21	86.5	+1.5mm	150	88	1.375"	-2.5	47 / 43	10.0 / 10.5	Flat Top	352	46865-4 $162.73
606220C-4 $718.43	606220CE-4 $846.21	87	+2.0mm	150	88	1.375"	-2.5	47 / 43	10.0 / 10.5	Flat Top	360	46870-4 $162.73
617000C-4 $718.43	617000CE-4 $846.21	85	STD	156,	88	1.130"	-12	47 / 43	8.5 / 9.0	Dish	298	46850-4 $162.73
617005C-4 $718.43	617005CE-4 $846.21	85.5	+.5mm	156,	88	1.130"	-12	47 / 43	8.5 / 9.0	Dish	305	46855-4 $162.73
617010C-4 $718.43	617010CE-4 $846.21	86	+1.0mm	156,	88	1.130"	-12	47 / 43	8.5 / 9.0	Dish	313	46860-4 $162.73
617015C-4 $718.43	617015CE-4 $846.21	86.5	+1.5mm	156,	88	1.130"	-12	47 / 43	8.5 / 9.0	Dish	312	46865-4 $162.73
617020C-4 $718.43	617020CE-4 $846.21	87	+2.0mm	156,	88	1.130"	-12	47 / 43	8.5 / 9.0	Dish	320	46870-4 $162.73

Part # Your Cost	Extreme Duty Part # Your Cost	Bore Size (mm)	Over Size	Rod Lgth.	Stk.	Comp. Dist..	Dome Vol. (cc)	Cyl. Head (cc)	Comp. Ratio	Piston Type	Piston Wt / Gms	Included Ring Set
94mm STROKER (2.1L)
618000C-4 $718.43	618000CE-4 $846.21	85	STD	150	94	1.248"	-17	47 / 43	8.5 / 9.0	Dish	311	46850-4 $162.73
618005C-4 $718.43	618005CE-4 $846.21	85.5	+.5mm	150	94	1.248"	-17	47 / 43	8.5 / 9.0	Dish	319	46855-4 $162.73
618010C-4 $718.43	618010CE-4 $846.21	86	+1.0mm	150	94	1.248"	-17	47 / 43	8.5 / 9.0	Dish	327	46860-4 $162.73
618015C-4 $718.43	618015CE-4 $846.21	86.5	+1.5mm	150	94	1.248"	-17	47 / 43	8.5 / 9.0	Dish	327	46865-4 $162.73
618020C-4 $718.43	618020CE-4 $846.21	87	+2.0mm	150	94	1.248"	-17	47 / 43	8.5 / 9.0	Dish	334	46870-4 $162.73
618200C-4 $718.43	618200CE-4 $846.21	85	STD	150	94	1.248"	-8	47 / 43	10.0 / 10.5	Dish	322	46850-4 $162.73
618205C-4 $718.43	618205CE-4 $846.21	85.5	+.5mm	150	94	1.248"	-8	47 / 43	10.0 / 10.5	Dish	328	46855-4 $162.73
618210C-4 $718.43	618210CE-4 $846.21	86	+1.0mm	150	94	1.248"	-8	47 / 43	10.0 / 10.5	Dish	337	46860-4 $162.73
618215C-4 $718.43	618215CE-4 $846.21	86.5	+1.5mm	150	94	1.248"	-8	47 / 43	10.0 / 10.5	Dish	335	46865-4 $162.73
618220C-4 $718.43	618220CE-4 $846.21	87	+2.0mm	150	94	1.248"	-8	47 / 43	10.0 / 10.5	Dish	344	46870-4 $162.73
619000C-4 $718.43	619000CE-4 $846.21	85	STD	156,	94	1.012"	-17	47 / 43	8.5 / 9.0	Dish	272	46850-4 $162.73
619005C-4 $718.43	619005CE-4 $846.21	85.5	+.5mm	156,	94	1.012"	-17	47 / 43	8.5 / 9.0	Dish	277	46855-4 $162.73
619010C-4 $718.43	619010CE-4 $846.21	86	+1.0mm	156,	94	1.012"	-17	47 / 43	8.5 / 9.0	Dish	287	46860-4 $162.73
619015C-4 $718.43	619015CE-4 $846.21	86.5	+1.5mm	156,	94	1.012"	-17	47 / 43	8.5 / 9.0	Dish	289	46865-4 $162.73
619020C-4 $718.43	619020CE-4 $846.21	87	+2.0mm	156,	94	1.012"	-17	47 / 43	8.5 / 9.0	Dish	296	46870-4 $162.73
619200C-4 $718.43	619200CE-4 $846.21	85	STD	156,	94	1.012"	-8	47 / 43	10.0 / 10.5	Dish	283	46850-4 $162.73
619205C-4 $718.43	619205CE-4 $846.21	85.5	+.5mm	156,	94	1.012"	-8	47 / 43	10.0 / 10.5	Dish	290	46855-4 $162.73
619210C-4 $718.43	619210CE-4 $846.21	86	+1.0mm	156,	94	1.012"	-8	47 / 43	10.0 / 10.5	Dish	293	46860-4 $162.73
619215C-4 $718.43	619215CE-4 $846.21	86.5	+1.5mm	156,	94	1.012"	-8	47 / 43	10.0 / 10.5	Dish	295	46865-4 $162.73
619220C-4 $718.43	619220CE-4 $846.21	87	+2.0mm	156,	94	1.012"	-8	47 / 43	10.0 / 10.5	Dish	302	46870-4 $162.73

Part # Your Cost	Extreme Duty Part # Your Cost	Bore Size (mm)	Over Size	Rod Lgth.	Stk.	Comp. Dist..	Dome Vol. (cc)	Cyl. Head (cc)	Comp. Ratio	Piston Type	Piston Wt / Gms	Included Ring Set
100mm STROKER (2.3L)
608000C-4 $718.43	608000CE-4 $846.21	85	STD	150	100	1.130"	-22	47 / 43	8.5 / 9.0	dish	291	46850-4 $162.73
608005C-4 $718.43	608005CE-4 $846.21	85.5	+.5mm	150	100	1.130"	-22	47 / 43	8.5 / 9.0	dish	295	46855-4 $162.73
608010C-4 $718.43	608010CE-4 $846.21	86	+1.0mm	150	100	1.130"	-22	47 / 43	8.5 / 9.0	dish	299	46860-4 $162.73
608015C-4 $718.43	608015CE-4 $846.21	86.5	+1.5mm	150	100	1.130"	-22	47 / 43	8.5 / 9.0	dish	300	46865-4 $162.73
608020C-4 $718.43	608020CE-4 $846.21	87	+2.0mm	150	100	1.130"	-22	47 / 43	8.5 / 9.0	dish	308	46870-4 $162.73
617000C-4 $718.43	617000CE-4 $846.21	85	STD	150	100	1.130"	-12	47 / 43	10.0 / 10.5	Dish	298	46850-4 $162.73
617005C-4 $718.43	617005CE-4 $846.21	85.5	+.5mm	150	100	1.130"	-12	47 / 43	10.0 / 10.5	Dish	305	46855-4 $162.73
617010C-4 $718.43	617010CE-4 $846.21	86	+1.0mm	150	100	1.130"	-12	47 / 43	10.0 / 10.5	Dish	313	46860-4 $162.73
617015C-4 $718.43	617015CE-4 $846.21	86.5	+1.5mm	150	100	1.130"	-12	47 / 43	10.0 / 10.5	Dish	312	46865-4 $162.73
617020C-4 $718.43	617020CE-4 $846.21	87	+2.0mm	150	100	1.130"	-12	47 / 43	10.0 / 10.5	Dish	320	46870-4 $162.73

Part # Your Cost	Extreme Duty Part # Your Cost	Bore Size (mm)	Over Size	Rod Lgth.	Stk.	Comp. Dist..	Dome Vol. (cc)	Cyl. Head (cc)	Comp. Ratio	Piston Type	Piston Wt / Gms	Included Ring Set
Mitsubishi 4G64 w/ 4G63 Head 95-99 .866"/22mm x 2.250" Pin x .150" Wall
88mm DE-STROKED (2.1L)
606015C-4 $718.43	606015CE-4 $846.21	86.5	STD	156	88	1.375"	-12	47 / 43	8.5 / 9.0	dish	349	46865-4 $162.73
606020C-4 $718.43	606020CE-4 $846.21	87	+.5mm	156	88	1.375"	-12	47 / 43	8.5 / 9.0	dish	354	46870-4 $162.73
606115C-4 $718.43	606115CE-4 $846.21	86.5	STD	156	88	1.375"	-8	47 / 43	9.0 / 9.5	dish	350	46865-4 $162.73
606120C-4 $718.43	606120CE-4 $846.21	87	+.5mm	156	88	1.375"	-8	47 / 43	9.0 / 9.5	dish	359	46870-4 $162.73
606215C-4 $718.43	606215CE-4 $846.21	86.5	STD	156	88	1.375"	-2.5	47 / 43	10.0 / 10.5	Flat Top	352	46865-4 $162.73
606220C-4 $718.43	606220CE-4 $846.21	87	+.5mm	156	88	1.375"	-2.5	47 / 43	10.0 / 10.5	Flat Top	360	46870-4 $162.73
617015C-4 $718.43	617015CE-4 $846.21	86.5	STD	162	88	1.130"	-12	47 / 43	8.5 / 9.0	dish	312	46865-4 $162.73
617020C-4 $718.43	617020CE-4 $846.21	87	+.5mm	162	88	1.130"	-12	47 / 43	8.5 / 9.0	dish	320	46870-4 $162.73

Part # Your Cost	Extreme Duty Part # Your Cost	Bore Size (mm)	Over Size	Rod Lgth.	Stk.	Comp. Dist..	Dome Vol. (cc)	Cyl. Head (cc)	Comp. Ratio	Piston Type	Piston Wt / Gms	Included Ring Set
94mm DE-STROKED (2.2L)
618015C-4 $718.43	618015CE-4 $846.21	86.5	STD	156	94	1.248"	-17	47 / 43	8.5 / 9.0	dish	327	46865-4 $162.73
618020C-4 $718.43	618020CE-4 $846.21	87	+.5mm	156	94	1.248"	-17	47 / 43	8.5 / 9.0	dish	334	46870-4 $162.73
618215C-4 $718.43	618215CE-4 $846.21	86.5	STD	156	94	1.248"	-8	47 / 43	10.0 / 10.5	dish	335	46865-4 $162.73
618220C-4 $718.43	618220CE-4 $846.21	87	+.5mm	156	94	1.248"	-8	47 / 43	10.0 / 10.5	dish	344	46870-4 $162.73
619015C-4 $718.43	619015CE-4 $846.21	86.5	STD	162	94	1.012"	-17	47 / 43	8.5 / 9.0	dish	289	46865-4 $162.73
619020C-4 $718.43	619020CE-4 $846.21	87	+.5mm	162	94	1.012"	-17	47 / 43	8.5 / 9.0	dish	296	46870-4 $162.73
619215C-4 $718.43	619215CE-4 $846.21	86.5	STD	162	94	1.012"	-8	47 / 43	10.0 / 10.5	dish	295	46865-4 $162.73
619220C-4 $718.43	619220CE-4 $846.21	87	+.5mm	162	94	1.012"	-8	47 / 43	10.0 / 10.5	dish	302	46870-4 $162.73

Part # Your Cost	Extreme Duty Part # Your Cost	Bore Size (mm)	Over Size	Rod Lgth.	Stk.	Comp. Dist..	Dome Vol. (cc)	Cyl. Head (cc)	Comp. Ratio	Piston Type	Piston Wt / Gms	Included Ring Set
100mm STD STROKE (2.4L)
613000C-4 $718.43	613000CE-4 $846.21	86.5	STD	150	100	1.375"	-23.5	47 / 43	8.5 / 9.0	dish	338	46865-4 $162.73
613005C-4 $718.43	613005CE-4 $846.21	87	+.5mm	150	100	1.375"	-23.5	47 / 43	8.5 / 9.0	dish	346	46870-4 $162.73
606015C-4 $718.43	606015CE-4 $846.21	86.5	STD	150	100	1.375"	-12	47 / 43	10.0 / 10.5	dish	349	46865-4 $162.73
606020C-4 $718.43	606020CE-4 $846.21	87	+.5mm	150	100	1.375"	-12	47 / 43	10.0 / 10.5	dish	354	46870-4 $162.73
608015C-4 $718.43	608015CE-4 $846.21	86.5	STD	156	100	1.130"	-22	47 / 43	8.6 / 9.1	dish	300	46865-4 $162.73
608020C-4 $718.43	608020CE-4 $846.21	87	+.5mm	156	100	1.130"	-22	47 / 43	8.6 / 9.1	dish	307	46870-4 $162.73
617015C-4 $718.43	617015CE-4 $846.21	86.5	STD	156	100	1.130"	-12	47 / 43	10.0 / 10.5	dish	312	46865-4 $162.73
617020C-4 $718.43	617020CE-4 $846.21	87	+.5mm	156	100	1.130"	-12	47 / 43	10.0 / 10.5	dish	320	46870-4 $162.73

Part # Youe Cost	Bore Size (mm)	Over Size	Rod Lgth.	Stk.	Comp. Dist..	Dome Vol. (cc)	Cyl. Head (cc)	Comp. Ratio	Piston Type	Piston Wt / Gms	Included Ring Set
Mitsubishi Eclipse GST/GSX-Eagle Talon Tsi 93.5-99 (7 Bolt) - 4G63/4G63T Evo VIII, IX 03-06 4G63T
88mm STD STROKE (2.0L)
606300CE-4 $1,020.95	85	STD	150	88	1.375"	-12	47 / 43	8.5 / 9.0	Dish	TBA	46850-4 $162.73
606305CE-4 $1,020.95	85.5	+.5mm	150	88	1.375"	-12	47 / 43	8.5 / 9.0	Dish	TBA	46855-4 $162.73
606310CE-4 $1,020.95	86	+1.0mm	150	88	1.375"	-12	47 / 43	8.5 / 9.0	Dish	TBA	46860-4 $162.73
606400CE-4 $1,020.95	85	STD	150	88	1.375"	-2.5	47 / 43	10.0 / 10.5	Flat Top	TBA	46850-4 $162.73
606405CE-4 $1,020.95	85.5	+.5mm	150	88	1.375"	-2.5	47 / 43	10.0 / 10.5	Flat Top	TBA	46855-4 $162.73
606410CE-4 $1,020.95	86	+1.0mm	150	88	1.375"	-2.5	47 / 43	10.0 / 10.5	Flat Top	TBA	46860-4 $162.73

Part # Your Cost	Center to Center	Big End Bore	Big End Width	Pin Diameter	Pin Bore	Gram Weight
Eagle Talon SOHC to DOHC 2.0L 420A
14004-4 $0.00	5.472"	2.008"	1.031"	.827" (21mm)	.8281"	562
Mitsubishi Eclipse GS, GST 2.0 ( 6 Bolt 4G63, 4G63T 1990-1992 )
14021-4 $531.40	5.905"	1.890"	1.115"	.827" (21 mm)	.8281"	573
Mitsubishi Eclipse GS, GST, GSX Eagle Talon TSi 2.0 (6 Bolt 4G63, 4G63T 1990-1993.5)
14002-4 $531.40	5.905"	1.890"	1.115"	.866" (22 mm)	.8671"	573
Mitsubishi Eclipse GST, GSX Eagle Talon TSi 2.0 (7 Bolt 4G63, 4G63T 1993.5-1999 ) Mitsubishi Evolution VIII, IX (4G63T 2003-2006)
14022-4 $531.40	5.905"	1.890"	1.038"	.866" (22 mm)	.8671"	580
15022-4 $593.06 (H-Tuff)	5.905"	1.890"	1.038"	.866"(22mm)	.8671"	635
15022R6-4 $933.31 (H-Tuff Plus)	5.905"	1.890"	1.038"	.866"(22mm)	.8671"	635
Mitsubishi Eclipse GST, GSX Eagle Talon TSi (7 Bolt 4G63, 4G63T 1993.5-1999) Mitsubishi Evolution VIII, IX (4G63T 2003-2006) - .237"/6mm Longer
14020-4 $531.40	6.142"	1.890"	1.038"	.866" (22 mm)	.8671"	575
15020-4 $593.06 (H-Tuff)	6.142"	1.890"	1.038"	.866"(22mm)	.8671"	635
15020R6-4 $933.31 (H-Tuff Plus)	6.142"	1.890"	1.038"	.866"(22mm)	.8671"	635

Part # Your Cost	Type	Head Diameter	Stem Diameter	O/A Length	Tip Length	Under-- head Angle/ Radius	Margin	Seat Width	Top of Head
MITSUBISHI ECLIPSE GS, GST 2.0L - DOHC 16 VALVE ( 4G63-4G63T ) 1990 - 2000
11133-8 $200.31	Exh.	30.5 mm	6.54 mm/ .2575"	109.7 mm	3.8 mm	Pro Flo: 22° x 7/16"	.065"	.080"	17° Dish
11161-8 $200.31	Exh.	31.0 mm	6.54 mm / .2575"	109.7 mm	3.8 mm	Pro Flo: 22° x 7/16"	.065"	.080"	17° Dish
11135-8 $200.31	Exh.	31.5 mm	6.54 mm /.2575"	109.7 mm	3.8 mm	Pro Flo: 22° x 7/16"	.065"	.080"	17° Dish
11134-8 $200.31	Int.	34 mm	6.57 mm /.2587"	109.7 mm	3.8 mm	Pro Flo: 20° x 11/32"	.050"	.075"	15° Dish
11160-8 $200.31	Int.	34.5 mm	6.57 mm / .2587"	109.7 mm	3.8 mm	Pro Flo: 20° x 11/32"	.050"	.075"	15° Dish
11136-8 $200.31	Int.	35 mm	6.57 mm/.2587"	109.7 mm	3.8 mm	Pro Flo: 20° x 11/32"	.050"	.075"	15° Dish

Part # Your Cost	Quantity	O.D./ I.D. Outer Inner	Seat Pres.	Open Pressure	Stock/ Max Lift	Coil Bind	Rate (lbs. /in.)	Retainer #
Mitsubishi 4G63-4G63T DOHC 16 Valve (1990-2006) DSM / EVO
22125-16 $111.52	16 pcs.	1.100"/ .775"	66 @ 1.580"	175 @ 1.210" 237 @ 1.000"	0.370" 0.580"	.950"	294	23125-16 $239.85
Mitsubishi 4G63-4G63T DOHC 16 Valve (1990-1999) DSM
22115-16 $360.45	16 pcs.	1.160"/ .870" .865"/ .660"	104 @ 1.580"	237 @ 1.210" 269 @ 1.120"	0.370" 0.460"	1.070"	359	23115-16 $239.85

.			Valve Stem Diameter	.	Dimensions					.
Part # Your Cost	Quantity	Spring	Valve Stem Diameter	Degree	A	B	C	Step	Height	Valve Locks
Mitsubishi 4G63-4G63T DOHC 16 Valve (1990-2006)
23125-16 $239.85	16 pcs.	22125-16 $111.52	6.6 mm	6°	1.050"	.760"	-----	.140"	Stock	13016-8 $51.77
Mitsubishi 4G63-4G63T DOHC 16 Valve (1990-1999)
23115-16 $239.85	16 pcs.	22115-16 $360.45	6.6 mm	6°	1.050"	.850"	.610"	.040"	Stock	13016-8 $51.77

Part # Your Cost	Quantity	Valve Stem	Groove Type	Angle	Wgt. / Pr.
Mitsubishi 4G63-4G63T
13016-8 $51.77	8 pr.	6.56 mm / .2581"	Bead Loc®	6°	1.3 gms

Part # Your Cost	Quantity	Max Net Lift	Spring #	Retainer #
Mitsubishi 4G63-4G63T DSM / EVO DOHC 16 Valve (1990-2006)
26125 $316.25	1 kit	0.580"	22125-16 $111.52	23125-16 $239.85
26125K $414.48	1 kit (Includes 13016-8 $51.77 valve locks)	0.580"	22125-16 $111.52	23125-16 $239.85
Mitsubishi 4G63-4G63T DSM DOHC 16 Valve (1990-1999)
26115 $630.18	1 kit	0.460"	22115-16 $360.45	23115-16 $239.85
26115K $728.41	1 kit (Includes 13016-8 $51.77 valve locks)	0.460"	22115-16 $360.45	23115-16 $239.85

Forged Part No. Your Cost	Stroke	Weight
190100 $909.17	88mm	33.5 lbs
190120	100mm	37 lbs

Billet Part No. Your Cost	Stroke	Weight
190100B $1,883.26	88mm	32 lbs
190110B $1,883.26	94mm	32.5 lbs
190120B $1,883.26	100mm	33.5 lbs
190120BSLW $2,201.47	100mm	29.5 lbs

.	.	.	.	.	Compression Ratio
Crank P/N Type Your Cost	Rod P/N Desc.	Bearing P/N Desc. Your Cost	Piston P/N Your Cost	Piston Desc.	43cc	47cc
190100 $909.17 Forged	14022-4 $531.40 150mm H-Beam or 14022R6-4 150mm H-Plus or 14400-4 $1,023.76 150mm LW I-Beam or 14403-4 $1,023.76 150mm TT I-Beam or 15403-4 $1,443.77 150mm 300M I-Beam	30060 $66.08 Rod & 33060 $111.04 Mains Only or 33060T $120.92 Mains w/ Thrusts	606000C-4 $718.43	85mm/ -12cc Dish	9.0	8.5
			606005C-4 $718.43	85.5mm/ -12cc Dish	9.0	8.5
			606010C-4 $718.43	86mm/ -12cc Dish	9.0	8.5
			606015C-4 $718.43	86.5mm/ -12cc Dish	9.0	8.5
			606020C-4 $718.43	87mm/ -12cc Dish	9.0	8.5
			606100C-4 $718.43	85mm/ -8cc Dish	9.5	9.0
			606105C-4 $718.43	85.5mm/ -8cc Dish	9.5	9.0
			606110C-4 $718.43	86mm/ -8cc Dish	9.5	9.0
			606115C-4 $718.43	86.5mm/ -8cc Dish	9.5	9.0
			606120C-4 $718.43	87mm/ -8cc Dish	9.5	9.0
			606200C-4 $718.43	85mm/ -2.5cc Flat Top	10.5	10.0
			606205C-4 $718.43	85.5mm/ -2.5cc Flat Top	10.5	10.0
			606210C-4 $718.43	86mm/ -2.5cc Flat Top	10.5	10.0
			606215C-4 $718.43	86.5mm/ -2.5cc Flat Top	10.5	10.0
			606220C-4 $718.43	87mm/ -2.5cc Flat Top	10.5	10.0

Forged Part No.	Stroke	Weight
190100 $909.17	88mm	33.5 lbs
190120	100mm	37 lbs

Billet Part No.	Stroke	Weight
190100B $1,883.26	88mm	32 lbs
190110B $1,883.26	94mm	32.5 lbs
190120B $1,883.26	100mm	33.5 lbs
190120BSLW $2,201.47	100mm	29.5 lbs

Part # Your Cost	Bore Size (mm)	Over Size	Rod Lgth.	Stk.	Comp. Dist..	Dome Vol. (cc)	Cyl. Head (cc)	Comp. Ratio	Piston Type	Piston Wt / Gms	Included Ring Set
86mm STROKER (2.0L)
614200CE-4 $1,020.95	86	STD	143.66	86	1.313"	-5	49	9.0	Dish	TBA	46860-4 $162.73
614205CE-4 $1,020.95	86.5	STD	143.66	86	1.313"	-5	49	9.0	Dish	TBA	46865-4 $162.73
614300CE-4 $1,020.95	86	STD	143.66	86	1.313"	+2	49	10.0	Dome	TBA	46860-4 $162.73
614305CE-4 $1,020.95	86.5	STD	143.66	86	1.313"	+2	49	10.0	Dome	TBA	46865-4 $162.73
94mm STROKER (2.2L)
624200CE-4 $1,020.95	86	STD	143.66	94	1.155"	-11	49	9.0	Dish	TBA	46860-4 $162.73
624205CE-4 $1,020.95	86.5	+.5mm	143.66	94	1.155"	-11	49	9.0	Dish	TBA	46865-4 $162.73
624300CE-4 $1,020.95	86	STD	143.66	94	1.155"	-3.5	49	10.0	Dish	TBA	46860-4 $162.73
624305CE-4 $1,020.95	86.5	+.5mm	143.66	94	1.155"	-3.5	49	10.0	Dish	TBA	46865-4 $162.73

Part # Your Cost	Qty.	O.D./ I.D. Outer Inner	Seat Pres.	Open Pressure	Stock/ Max Lift	Coil Bind	Rate (lbs. /in.)	Retainer #
Mitsubishi EVO X 4B11T DOHC 16 Valve (2008-Up)
22195-16 $179.10	16 pcs.	.990"/ .710"	86 @ 1.400"	180 @ 1.030" 195 @ .970"	0.370" 0.430"	.920"	253	23195-16 $239.85

.			Valve Stem Dia.	.	Dimensions					.
Part # Your Cost	Qty.	Spring	Valve Stem Dia.	Deg.	A	B	C	Step	Height	Valve Locks
Mitsubishi EVO X 4B11T DOHC 16 Valve (2008-Up)
23195-16 $239.85	16 pcs.	22195-16 $179.10	5.5 mm	7.5°	.960"	.690"	--	.100"	Stock	--

.	.	.	.	.	Comp. Ratio
Crank P/N Your Cost Type	Rod P/N Desc.	Bearing P/N Desc.	Piston P/N	Piston Desc.	49cc
190230B $1,883.26 Billet	14029-4 $531.40 143.66mm H-Beam or 14029R6-4 143.6mm H-Plus or 14409-4 $1,023.76 143.66mm TT I-Beam	30090 $90.00 Rod & 33090 $161.66 Mains Only or 33090T $194.66 Mains w/ Thrusts	624000C-4 $718.43	86mm/ -11cc Dish	9.0
190230B $1,883.26 Billet			624005C-4 $718.43	86.5mm/ -11cc Dish	9.0
