MASTER ENGINE REBUILD KITS & PARTS

Home

Chevrolet PowerPak Forged Pistons

Turbo Charger Index page

Mahle Performance Piston Ring Sets

Mahle 1990 & Older Gasket Catalog.

Mahle 91 & Newer Gasket Catalog.

Mahle Performance Gasket Catalog. (below)

MAHLE PERFOMANCE GASKETS

• Head gaskets......................................Page 3
• Intake manifold gaskets.....................Page 4
• Valve cover and oil pan gaskets.........Page 5
• Header gaskets...................................Page 6
• AMC V8 ...........................................Page 7
• Buick V8...........................................Page 7
• Chevrolet V8 LS................................Page 8
• Chevrolet V8 Small Block..................Page 9
• Chevrolet V8 Big Block....................Page 14
• Chrysler V8 HEMI...........................Page 17
• Chrysler V8 Small Block..................Page 17
• Chrysler V8 Big Block......................Page 19
• Ford V8 Small Block........................Page 20
• Ford V8 SOHC Modular..................Page 23
• Ford V8 Modular SOHC/DOHC......Page 23
• Ford V8 DOHC Coyote....................Page 23
• FORD V8 SOHC MODULAR 5.4L..Page 23
• Ford V8 Big Block............................Page 24
• Oldsmobile V8..................................Page 25
• Pontiac V8........................................Page 26
• Fel-Pro Interchanges.........................Page 28
• SCE Interchanges..............................Page 30
• Cometic Interchanges........................Page 31



  Use Of MAHLE performance gaskets products in aircraft or other specialty equipment may be a violation of Local, State or Federal Regulatory Agency laws, rules and regulations. These products are intended solely for automotive applications. Under absolutely NO circumstances should these products ever be used in non-automotive applications including, without limitation, aircraft engines, medical equipment, atomic energy devices or reactors. “Federal, State and local laws restrict the removal, rendering inoperative, or in some cases the modification of factory installed emission devices or systems. California restricts the use of parts which could increase emissions in vehicles designed for use on public streets or highways. The sale or installation on emission controlled vehicles of certain emission control components not approved by the California Air Resources Board, which alter or modify the original design or performance of such vehicle’s emission control system is prohibited. Someof the parts listed and offered for sale in this Catalog. may fall within the above restrictions. Such parts are intended only for use on off-road vehicles competing in competitive events or on other types of vehicles which are exempt from the applicable emission control laws. Installation of these parts on vehicles subject to emission control laws may be prohibited.” MAHLE Aftermarket recommends that the applicable emission control laws be reviewed before considering the installation of add-on or modified parts.

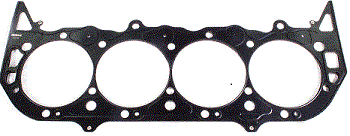

  MLS Head Gaskets MAHLE performance MLS head gaskets are comprised of 3 stainless steel layers. Sealing beads surround the Combustion chamber and coolant passages emphasizing clamp load in these specific areas. Precision tooling provides optimum bead height, width, profile, and bore concentricity. • Comprised of multiple embossed layers of FKM (fluoroelastomer coated) and uncoated 301 stainless steel • Handle any application from naturally aspirated to boost or nitrous

  • Embossed outer layers of the gasket meet the demands of a variety of harsh sealing environments, load conditions and sealing surface finishes • Design requires less clamp load creating less bore distortion and conforms load distribution across the sealing surface • Center or shim layer is an uncoated stainless steel layer which can be varied to accommodate multiple Thickness requirements • No sealants or re-torque required

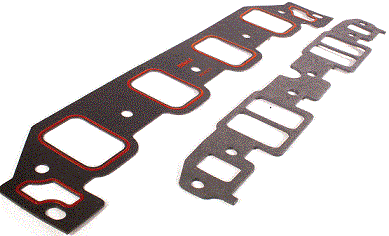

  Intake Manifold Gaskets


  MAHLE performance intake gaskets are designed to allow the engine builder to trim the gaskets for an exact fit on stock or modified ports. The base fiber material is offered with and without a steel core and resists coolant, gasoline, alcohol, and oil. Silicone bead sealed ports provide sealing strength needed around port openings and eliminate leak paths. • Conformable fiber material with double perforated steel core • Silicone bead sealed ports to help maintain seal under high vacuum applications and long exposure to fuel and oil • Intended for high vacuum race engines as well as performance applications • Long service life in marine, performance street and towing applications • Proven port shapes for factory performance and aftermarket racing heads • Easy trimming to match modified port shapes • Thickness range of .030” to .120” to compensate for manifold variations

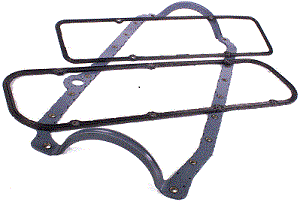

  Valve Cover and Oil Pan Gaskets High density cork rubber and laminated cork composite gaskets result in a compressible gasket without leak paths. Typically these gaskets are thicker than a standard passenger vehicle gasket. Steel core laminate valve cover gaskets are a great choice for the professional racer. Fiber laminated over a steel core will provide maximum compression and torque retention in high vacuum conditions. These gaskets are coated with Teflon for better sealing characteristics and easier gasket removal. Molded rubber valve cover gaskets provide greater ease of installation as well as superior sealing characteristics in an on-again/off-again situation. These gaskets are constructed with a rigid carrier and compression limiters to prevent over-tightening. Silicone rubber materials provide a long service life and multiple sealing beads prevent oil leaks. Valve Cover Gaskets • Severe duty fiber faced steel core with laminated anti-stick coating • Enhanced compressibility for good sealing and lateral rigidity • Prevents blowouts under high pressures • Recommended for cast valve covers or sheet metal valve covers • Safe for all fuels in naturally aspirated, supercharged and nitrous applications Also available: high density cork rubber and laminated silicone/cork valve cover gaskets for the budget minded street performance applications





  Molded Rubber Valve Cover Gaskets


  • Silicone molded rubber, steel/plastic inner carrier with compression limiters to prevent over tightening and easy installation • Superior sealing characteristics • Provide dependable sealing in all conditions • Race inspired designs and materials • Surpass the quality and ability of a typical cork rubber gasket

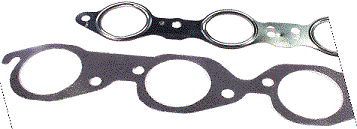

  Exhaust Header Gaskets MAHLE Performance exhaust header gaskets consist of a Graphite-Kevlar® composite fiber facing material attached to both sides of a perforated steel core. This material is much stronger than paper, resisting burnout from high temperatures; it has the ability to seal slightly warped surfaces, with excellent torque retention. Manufactured from a high grade 301 stainless steel, MLS header gaskets feature an embossed spring steel bead which maintains torque set and creates a strong seal around exhaust ports with resistance to flange motion. These gaskets will not burn or push out and requires no additional sealers. MLS Header Gaskets • Manufactured from high grade 301 stainless steel that will not burn through or blow out • Embossed spring steel maintains torque and will not require additional sealers • Stand up to extremely high temperatures produced by racing applications Graphite Header Gaskets • Graphite blend facing with perforated steel core • Mechanically clinched on both sides to the facing • Highly conformable • Withstands and transfers extreme heat through the material • Available for specialized racing applications to stock heads





  Page 7
  AMC V8


  304, 360, 390, 401 Engines
  Intake Manifold Gasket Sets
  Part No	Application Notes	Port Size	Materials/ Construction	Port Shape		Thick- ness
  MS20108 $64.12	Stock, Edelbrock Performer RPM and Indy 401-SR	1.100” x 2.200”	Laminated Fiber, Silicone Bead Sealed Ports	Rectangle		.060”
  MS20109 $58.44	Stock, Edelbrock Performer RPM and Indy 401-SR	1.100” x 2.200”	Laminated Fiber	Rectangle		.120”
  Exhaust Header Gaskets
  Part No	Application Notes	Port Size	Materials/ Construction	Port Shape		Thick- ness
  MS19971 $11.24	Stock, Edelbrock Performer RPM and Indy 401-SR	1.150” x 1.700”	Graphite-Kevlar Composite w/ Perforated Steel Core	Dog Leg		.060”
  MS19972 $47.06	Stock	1.225” x 1.750”	Graphite-Kevlar Composite w/ Perforated Steel Core	Rectangle		.060”
  Valve Cover Gasket Sets
  Part No	Application Notes		Materials/ Construction				Thick- ness
  VS50831 $48.10	Stock, Edelbrock Performer RPM, Indy 401SR		Laminated Cork/Composite				.125”
  VS50832 $51.51	Stock, Edelbrock Performer RPM, Indy 401SR		Laminated Cork/Composite				.250”
  Oil Pan Gasket Sets
  Part No	Application Notes	Materials/ Construction					Thick- ness
  OS32503 $36.34	-	Rubberized Fiber					.093”



  BUICK V8


  400, 430, 455 Engines
  Cylinder Head Gaskets
  Part No	Application Notes	Combus- tion Seal	Materials/ Construction	Bore	Thick- ness	Volume
  55046 $176.16	-	-	Multi- Layered Steel Steel	4.385”	.040”	10




  Intake Manifold Gasket Sets
  Part No	Application Notes	Port Size	Materials/ Construction	Port Shape		Thick- ness
  MS20104 $64.26	Stage 1, Edelbrock Performer RPM and TA Performance Stage 1 SE	1.100” x 2.375”	Laminated Fiber, Silicone Bead Sealed Ports	Rectangle		.060”
  MS20105 $58.51	Stage 3	1.310” x 2.400”	Laminated Fiber, Silicone Bead Sealed Ports	Rectangle		.060”
  MS20106 $64.12	Stage 4	1.600” x 2.550”	Laminated Fiber, Silicone Bead Sealed Ports	Rectangle		.060”




BUICK V8 (cont.)

400, 430, 455 Engines (cont.)
Intake Manifold Gasket Sets (cont.)
Part No	Application Notes	Port Size	Materials/ Construction	Port Shape		Thick- ness
MS20107 $64.12	Stage 1 Large Port and TA Performance Stage 1 TE	1.220” x 2.520”	Laminated Fiber, Silicone Bead Sealed Ports	Rectangle		.060”
Exhaust Header Gaskets
Part No	Application Notes	Port Size	Materials/ Construction	Port Shape		Thick- ness
MS19973 $47.85	Stock Stage 1, Edelbrock Performer RPM, T/A Performance Stage 1 SE and Stage 1 TE	1.200” x 2.000”	Graphite-Kevlar Composite w/ Perforated Steel Core	Rectangle		.060”
MS19974 $46.34	Stock Stage 2	2.000”	Graphite-Kevlar Composite w/ Perforated Steel Core	Round		.060”
Valve Cover Gasket Sets
Part No	Application Notes	Materials/ Construction				Thick- ness
VS50828 $63.93	Stock, Edelbrock Performer RPM, TA Performance Eliminator	Laminated Cork/Composite				.250”
VS50829 $45.34	Stock, Edelbrock Performer RPM, TA Performance Eliminator	Laminated Cork/Composite				.125”
VS50830 $39.95	Stock, Edelbrock Performer RPM, TA Performance Eliminator	Premium Cork Rubber				.180”
Oil Pan Gasket Sets
Part No	Application Notes	Materials/ Construction				Thick- ness
OS32502 $52.54	-	Rubberized Fiber				.093”

Page 8
CHEVROLET V8 LS

LS1, LS6 / 6.0L LS2 / 6.2L LS3 Engines
Cylinder Head Gaskets
Part No	Application Notes	Combus- tion Seal	Materials/ Construction	Bore	Thick- ness	Volume
55041 $179.92	LS1, LS2, LS3, LS6	-	Multi- Layered Steel Steel	3.910”	.051”	10.1
55042 $172.87	LS1, LS2, LS3, LS6	-	Multi- Layered Steel Steel	4.060”	.051”	10.9
55043 $166.09	LS1, LS2, LS3, LS6	-	Multi- Layered Steel Steel	4.100”	.051”	11.1
55044 $177.22	LS1, LS2, LS3, LS6	-	Multi- Layered Steel Steel	4.130”	.051”	11.3
55045 $166.09	LS1, LS2, LS3, LS6	-	Multi- Layered Steel Steel	4.190”	.051”	11.6

CHEVROLET V8 LS (cont.)

LS1, LS6 / 6.0L LS2 / 6.2L LS3 Engines (cont.)
Intake Manifold Gasket Sets
Part No	Application Notes	Port Size	Materials/ Construction	Port Shape		Thick- ness
MS20056 $85.96	LS1 / LS2 / LS6 4 Barrel w/ Rectangle Ports	1.150” x 3.375”	Laminated Fiber	Cathedral		.030”
MS20057 $37.37	LS1 / LS2 / LS6 4 Barrel w/ Rectangle Ports	1.150” x 3.375”	Laminated Fiber, Silicone Bead Sealed Ports	Cathedral		.060”
MS20058 $47.72	LS1 / LS2 / LS6 4 Barrel w/ Rectangle Ports	1.150” x 3.375”	Laminated Fiber	Cathedral		.120”
MS20059 $49.85	LS7 / C5R / World LS7X w/ Rectangle Ports	1.375” x 2.410”	Laminated Fiber	Rectangle		.030”
MS20060 $51.24	LS7 / C5R / World LS7X w/ Rectangle Ports	1.375” x 2.410”	Laminated Fiber, Silicone Bead Sealed Ports	Rectangle		.060”
MS20061 $68.69	LS7 / C5R / World LS7X w/ Rectangle Ports	1.375” x 2.410”	Laminated Fiber	Rectangle		.120”
MS20062 $56.40	LSX 454 CT	-	Laminated Fiber, Silicone Bead Sealed Ports	Rectangle		.060”
MS20063 $73.99	LSX 454 DR	-	Laminated Fiber, Silicone Bead Sealed Ports	Rectangle		.060”
MS20064 $73.99	L92	1.250” x 2.500”	Laminated Fiber	Rectangle		.030”
MS20065 $52.34	L92	1.250” x 2.500”	Laminated Fiber, Silicone Bead Sealed Ports	Rectangle		.060”
MS20066 $68.69	L92	1.250” x 2.500”	Laminated Fiber	Rectangle		.120”

Page 9
CHEVROLET V8 SMALL BLOCK

262, 265, 267, 283, 302, 305, 307, 327, 350, 400 Engines
Cylinder Head Gaskets
Part No	Application Notes	Combus- tion Seal	Materials/ Construction	Bore	Thick- ness		Volume
55028 $68.85	-	-	Multi- Layered Steel Steel	4.060”	.040”		8.5
55031 $158.01	-	-	Multi- Layered Steel Steel	4.165”	.040”		9
55032 $163.98	-	-	Multi- Layered Steel Steel	4.200”	.040”		9.1
3514SG $85.52	-	-	Graphite	3.840”	.045”		8.4
1178SG $68.83	-	-	Graphite	4.160”	.045”		9.8
5746 $34.07	-	-	Graphite	4.100”	.026”		5.4
54108SCR $134.67	-	-	Solid Core Composite	4.166”	.042”		9.5
3432SG $44.76	-	-	Graphite	4.190”	.045”		10
1178SCR $18.06	-	-	Solid Core Composite	4.190”	.044”		9.8
5898 $110.43	Gen II	-	Graphite	4.100”	.026”		5.4
1178BS $35.34	-	-	Stainless Steel	4.100”	.020”		4.1

CHEVROLET V8 SMALL BLOCK (cont.)

262, 265, 267, 283, 302, 305, 307, 327, 350, 400 Engines (cont.)
Intake Manifold Gasket Sets
Part No	Application Notes	Port Size	Materials/ Construction	Port Shape	Thick- ness
MS20009 $65.26	GM Performance Vortec Tapered Port	2.100”	Laminated Fiber, Silicone Bead Sealed Ports	Tapered	.060”
MS20010 $44.93	23 Degree Stock Port	1.200” x 2.010”	Laminated Fiber, Silicone Bead Sealed Ports	Stock	.060”
MS20012 $38.41	GM Performance 18 Degree, Brodix 18C	1.265” x 2.180”	Laminated Fiber, Silicone Bead Sealed Ports	Stock	.060”
MS20013 $44.71	Pro Action/RHS 14 Degree Two Piece Intake, Note Requires 4 Gaskets Due to Spacer	1.365” x 2.195”	Laminated Fiber, Silicone Bead Sealed Ports	-	.060”
MS20014 $75.78	23 Degree Medium Port	1.250” x 2.200”	Laminated Fiber, Silicone Bead Sealed Ports	-	.060”
MS20015 $36.37	Dart Little Chief	1.440” x 2.295”	Laminated Fiber, Silicone Bead Sealed Ports	Oval	.060”
MS20016 $52.43	Brodix WP287, 12X, 12RP	1.410” x 2.500”	Laminated Fiber, Silicone Bead Sealed Ports	-	.060”
MS20017 $46.03	23 Degree Large Port	1.300” x 2.250”	Laminated Fiber, Silicone Bead Sealed Ports	-	.060”
MS20018 $36.59	23 Degree Medium Port, Brodix 8, 10, 11, 11X, Track 1, Track IX	1.250” x 2.200”	Laminated Fiber	-	.120”
MS20019 $47.31	23 Degree Extra Large Race Port, Brodix 12SP-S	1.380” x 2.300”	Laminated Fiber, Silicone Bead Sealed Ports	-	.060”
MS20020 $36.48	Pro Action/RHS 14 Degree Valley Cover	-	Laminated Fiber, Silicone Bead Sealed Ports	-	.060”
MS20021 $42.35	GM Performance SB2.2 Mirror Port Valley Cover	-	Laminated Fiber, Silicone Bead Sealed Ports	-	.060”
MS20022 $42.35	23 Degree Extra Large Race Port, Brodix 12SP-S	1.380” x 2.300”	Laminated Fiber	-	.120”
MS20023 $48.85	Dart - Buick	1.600” x 2.900”	Laminated Fiber, Silicone Bead Sealed Ports	Rectangle	.060”
MS20024 $63.82	GM Performance Splayed (Canted) Valve Head, Trim to Fit	1.500” x 2.000”	Laminated Fiber, Silicone Bead Sealed Ports	-	.060”
MS20025 $62.33	GM Performance SB2.2 Mirror Port, Trim to Fit	1.390” x 1.900”	Laminated Fiber, Silicone Bead Sealed Ports	-	.060”

CHEVROLET V8 SMALL BLOCK (cont.)

262, 265, 267, 283, 302, 305, 307, 327, 350, 400 Engines (cont.)
Intake Manifold Gasket Sets (cont.)
Part No	Application Notes	Port Size	Materials/ Construction	Port Shape	Thick- ness
MS20026 $56.07	Brodix 1010	1.500” x 2.300”	Laminated Fiber, Silicone Bead Sealed Ports	-	.060”
MS20027 $67.20	Brodix Canted Valve	1.500” x 2.300”	Laminated Fiber, Silicone Bead Sealed Ports	-	.060”
MS20028 $68.96	Brodix -12 Series, 15 Series	1.300” x 2.200”	Laminated Fiber, Silicone Bead Sealed Ports	-	.060”
MS20029 $67.20	Brodix Head Hunter	1.335” x 2.170”	Laminated Fiber, Silicone Bead Sealed Ports	-	.060”
MS20030 $67.20	Pro Action/RHS 23 Degree	1.265” x 2.195”	Laminated Fiber, Silicone Bead Sealed Ports	-	.060”
MS20031 $67.20	Pro Action/RHS 14 Degree	1.365” x 2.195”	Laminated Fiber, Silicone Bead Sealed Ports	-	.060”
MS20032 $67.06	Pro Action/RHS 12 Degree Two Piece Intake	1.520” x 2.100”	Laminated Fiber, Silicone Bead Sealed Ports	-	.060”
MS20033 $62.27	GM Performance Vortec Tapered Port	2.100”	Laminated Fiber	Tapered	.120”
MS20034 $55.34	23 Degree Stock Port	1.200” x 2.000”	Laminated Fiber	-	.120”
MS20035 $41.65	GM Performance Splayed (Canted) Valve Head, Trim to Fit	1.500” x 2.000”	Laminated Fiber	-	.120”
MS20036 $77.92	LT-1 / LT-4 Engines Tapered Port	2.250”	Laminated Fiber, Silicone Bead Sealed Ports	Tapered	.060”
MS20037 $56.33	Pro Action/RHS 12 Degree Valley Cover	-	Laminated Fiber, Silicone Bead Sealed Ports	-	.060”
95128SG $32.78	Stock W/ Block Heat Crossover	1.230” x 1.990”	Graphite	-	-
95070SG $46.26	Stock or Small Race	1.280” x 2.090”	Graphite	-	-
Exhaust Header Gaskets
Part No	Application Notes	Port Size	Materials/ Construction	Port Shape	Thick- ness
95016SG $35.34	-	1.630”	Graphite	Round	-
95090SG $49.64	-	1.370” x 1.400”	Graphite	Rectangle	-
95094SG $44.82	-	1.500” x 1.500”	Graphite	Square	-
MS19975 $48.86	Square Port Headers and 400cid Truck Square Port Cast Manifolds	1.450” x 1.450”	Graphite-Kevlar Composite w/ Perforated Steel Core	Stock Square	.060”

CHEVROLET V8 SMALL BLOCK (cont.)

262, 265, 267, 283, 302, 305, 307, 327, 350, 400 Engines (cont.)
Exhaust Header Gaskets (cont.)
Part No	Application Notes	Port Size	Materials/ Construction	Port Shape	Thick- ness
MS19976 $42.24	Fastburn Heads, LT1-LT4, ZZ430 Stock Manifolds, Gasket Matches Cylinder Head Port Shape	1.450” x 1.375”	Graphite-Kevlar Composite w/Perforated Steel Core	D-Port	.060”
MS19977 $33.40	AJPE, All Pro, Brodix 12 and 13 Degree Heads with Raised “D” Ports, 7 Bolt Pattern	1.750” x 1.600”	Graphite-Kevlar Composite w/Perforated Steel Core	D-Port	.060”
MS19978 $48.14	GMCP 18 Degree, Brodix 18C and Pro Action/RHS Small Block Heads with GM 18 Degree 6 Bolt Pattern	1.740” x 1.600”	Graphite-Kevlar Composite w/Perforated Steel Core	Oval	.060”
MS19979 $59.06	Dart-Buick 8 Bolt Pattern fits only Dart-Buick SBC Heads	1.590” x 1.560”	Graphite-Kevlar Composite w/Perforated Steel Core	Square	.060”
MS19980 $46.79	GMCP Splayed Valve, 2 Bolts Per Port @45 Degree Angle	1.875”	Graphite-Kevlar Composite w/ Perforated SteelCore	Round	.060”
MS19981 $43.62	GMCP SB2.2 Mirror Port 8 Bolt Pattern	1.800” x 1.600”	Graphite-Kevlar Composite w/Perforated Steel Core	Rounded Rectangle	.060”
MS19982 $60.89	Stock	1.355” x 1.485”	Graphite-Kevlar Composite w/ Perforated Steel Core	Stock	.060”
MS19983 $39.35	Hooker Style Adapter Plate, Dual Bolt Pattern, For use between header and plate or plate and head	1.350” x 1.700”	Graphite-Kevlar Composite w/Perforated Steel Core	Rounded Rectangle	.060”
MS19984 $47.52	Hooker / Stahl Combination 7 Bolt Pattern Slotted Holes, Outer ports round and inner ports have flats along center	1.875”	Graphite-Kevlar Composite w/ Perforated Steel Core	Round	.060”
MS19985 $49.10	Edelbrock Performer, Brodix Track 1 with Stock 6 Bolt Pattern	1.500” x 1.675”	Graphite-Kevlar Composite w/ Perforated Steel Core	D-Port	.060”
MS20113 $23.58	-	1.450” x 1.480”	Multi- Layered Steel Steel	Square	.030”
MS20114 $99.62	-	1.500”	Multi- Layered Steel Steel	Round	.030”
MS20115 $99.62	-	1.450” x 1.600”	Multi- Layered Steel Steel	Square	.030”

CHEVROLET V8 SMALL BLOCK (cont.)

262, 265, 267, 283, 302, 305, 307, 327, 350, 400 Engines (cont.)
Exhaust Header Gaskets (cont.)
Part No	Application Notes	Port Size	Thick- ness
MS20116 $99.62	-	1.625”	.030”
Valve Cover Gasket Sets
Part No	Application Notes	Materials/ Construction	Thick- ness
VS50755 $147.64	1959-1985 All	Molded Rubber / Steel Carrier w/ Load Limiters	.225”
VS50762 $63.76	Dart-Buick SBC Cylinder Heads	Laminated Cork/Composite	.250”
VS50763 $55.40	CHEVROLET Splayed Valve Cylinder Heads	Steel Core Composite, Teflon Coated on One Side	.080”
VS50764 $89.40	CHEVROLET SB2.2 casting no. 12480011	Steel Core Composite, Teflon Coated on One Side	.080”
VS50765 $102.03	SBC 12 & 18 degree Heads	Steel Core Composite, Teflon Coated on One Side	.080”
VS50766 $94.89	CHEVROLET Splayed Valve Cylinder Heads	Laminated Cork/Composite	.250”
VS50767 $61.58	CHEVROLET SB2.2 casting no. 12480011	Laminated Cork/Composite	.250”
VS50768 $61.58	1986-1997 SBC with center bolt covers	Laminated Cork/Composite	.250”
VS50769 $61.30	1959-1985 All	Laminated Cork/Composite	.250”
VS50770 $62.27	SBC 12 & 18 degree Heads	Laminated Cork/Composite	.125”
VS50771 $44.82	1986-1997 SBC with center bolt covers	Steel Core Composite, Teflon Coated on One Side	.080”
VS50772 $92.99	SBC 12 & 18 degree Heads	Laminated Cork/Composite	.250”
Oil Pan Gasket Sets
Part No	Application Notes	Materials/ Construction	Thick- ness
OS30572TC $25.06	1980-1985 Thick Front Seal RH Dipstick	Cork with Metal Carrier	-
OS30568ZTC $18.76	1975-1979 Thick Front Seal LH Dipstick	Cork with Metal Carrier	-
OS32522 $73.34	1957-1974 Thin Front Seal LH Dipstick	Rubberized Fiber	.093”
OS32523 $26.49	1975-1979 Thick Front Seal LH Dipstick	Rubberized Fiber	.093”
OS32457 $24.44	1975-1979 Thick Front Seal LH Dipstick	Molded Rubber / Steel Carrier w/ Load Limiters	.185”
OS32496B $34.99	1986-1997 1pc Rear Main Thick Front Seal RH Dipstick	Molded Rubber / Rigid Carrier	.185”
CHEVROLET V8 SMALL BLOCK (cont.)
262, 265, 267, 283, 302, 305, 307, 327, 350, 400 Engines (cont.)
Oil Pan Gasket Sets
Part No	Application Notes	Materials/ Construction	Thick- ness
OS32525 $11.96	1986-1997 1pc Rear Main Thick Front Seal RH Dipstick	Steel Core Laminate, Teflon Coated on One Side	.080

Page 14
CHEVROLET V8 BIG BLOCK

396, 402, 427, 454, 496, 502, 510, 540, 572 Engines
Cylinder Head Gaskets
Part No	Application Notes	Combus- tion Seal	Materials/ Construction	Bore	Thick- ness		Volume
55033 $168.21	Gen4	-	Multi- Layered Steel	4.320”	.040”		10
55034 $180.60	Gen4	-	Multi- Layered Steel Steel	4.540”	.040”		10.8
55035 $176.01	Gen4	-	Multi- Layered Steel Steel	4.580”	.040”		10.9
55036 $179.66	Gen4	-	Multi- Layered Steel Steel	4.630”	.040”		11.1
55037 $179.92	Gen5/6	-	Multi- Layered Steel Steel	4.375”	.040”		10.2
55038 $180.60	Gen5/6	-	Multi- Layered Steel Steel	4.540”	.040”		10.8
55039 $172.46	Gen5/6	-	Multi- Layered Steel Steel	4.580”	.040”		10.9
55040 $179.66	Gen5/6	-	Multi- Layered Steel Steel	4.630”	.040”		11.1
3884SG $34.48	Gen4	-	Graphite	4.520”	.045”		11.5
4886 $120.88	Gen5/6	-	Graphite	4.578”	.042”		11
4918 $83.74	Gen5 with Gen4 Heads	-	Graphite	4.578”	.042”		11
Intake Manifold Gasket Sets
Part No	Application Notes	Port Size	Materials/ Construction	Port Shape		Thick- ness
MS20039 $50.64	Stock Oval Port	1.800” x 2.030”	Laminated Fiber, Silicone Bead Sealed Ports	Oval		.060”
MS20040 $46.03	Dart Big Chief, Brodix Big Duke Rectangle Port	1.875” x 2.425”	Laminated Fiber, Silicone Bead Sealed Ports	Rectangle		.060”
MS20041 $48.31	Brodix / Pontiac Siamesed Port Early Pro Stock Casting Number 5427	1.920” x 2.700”	Laminated Fiber, Silicone Bead Sealed Ports	Rectangle		.060”
MS20042 $50.69	Hi-Perf Rectangle, Merlin, Brodix BB1 through 4, Edelbrock 454 RPM	1.800” x 2.530”	Laminated Fiber, Silicone Bead Sealed Ports	Rectangle		.060”
MS20043 $43.38	Hi-Perf Rectangle, Merlin, Brodix BB1 through 4, Edelbrock 454 RPM	1.800” x 2.530”	Laminated Fiber	Rectangle		.120”
MS20044 $51.55	Large Rectangle, Merlin 3, Merlin X, Dart 360, Edelbrock Victor, Canfield 310	1.800” x 2.500”	Laminated Fiber, Silicone Bead Sealed Ports	Rectangle		.060”
MS20045 $39.38	Large Rectangle, Merlin 3, Merlin X, Dart 360, Edelbrock Victor, Canfield 310	1.800” x 2.500”	Laminated Fiber	Rectangle		.120”

CHEVROLET V8 BIG BLOCK (cont.)

396, 402, 427, 454, 496, 502, 510, 540, 572 Engines (cont.)
Intake Manifold Gasket Sets (cont.)
Part No	Application Notes	Port Size	Materials/ Construction	Port Shape	Thick- ness
MS20046 $50.13	Intake Blank for Standard Configuration Heads	Trim to Fit	Laminated Fiber	-	.060”
MS20047 $43.79	Brodix BB-3 Xtra Oval	1.820” x 2.540”	Laminated Fiber, Silicone Bead Sealed Ports	Oval	.060”
MS20048 $74.02	Dart Big M	1.720” x 2.720”	Laminated Fiber, Silicone Bead Sealed Ports	-	.060”
MS20049 $74.02	CFE BMF 405cc	1.800” x 2.800”	Laminated Fiber, Silicone Bead Sealed Ports	-	.060”
MS20050 $73.86	Pro Action/RHS 320, 360 Heads	1.725” x 2.450”	Laminated Fiber, Silicone Bead Sealed Ports	Rectangle	.060”
MS20051 $74.02	Dart Big Chief CNC	Trim to Fit	Laminated Fiber	-	.060”
MS20052 $79.98	Dart Big Chief, Brodix Big Duke Small Oval	1.650” x 2.450”	Laminated Fiber, Silicone Bead Sealed Ports	Oval	.060”
MS20053 $77.95	Dart Big Chief, Brodix Big Duke Large Oval	1.950” x 2.650”	Laminated Fiber, Silicone Bead Sealed Ports	Oval	.060”
MS20054 $77.95	Dart Big Chief, Brodix Big Duke Large Oval	1.950” x 2.650”	Laminated Fiber	Oval	.120”
MS20055 $85.96	Dart Big Chief, Brodix Big Duke Rectangle Port	1.875” x 2.425”	Laminated Fiber	Rectangle	.120”
95008SG $34.99	Large Rectangle	1.800” x 2.520”	Graphite	Rectangle	-
Exhaust Header Gaskets
Part No	Application Notes	Port Size	Materials/ Construction	Port Shape	Thick- ness
95021SG $41.79	-	1.820” x 1.880”	Graphite	Square	-
95100SG $45.20	-	2.1300”	Graphite	Round	-
MS19986 $45.79	-	1.875”	Graphite-Kevlar Composite w/Perforated Steel Core	Round	.060”
MS19987 $46.26	-	2.400”	Graphite-Kevlar Composite w/Perforated Steel Core	XL Round	.060”
MS20117 $99.62	-	1.850” x 1.900”	Multi- Layered Steel Steel	Square	.030”
MS20118 $107.53	-	1.920”	Multi- Layered Steel Steel	Round	.030”
MS20119 $112.30	-	2.000”	Multi- Layered Steel Steel	Round	.030”
MS20120 $107.53	-	2.130”	Multi- Layered Steel Steel	Round	.030”
MS20121 $112.30	-	2.200”	Multi- Layered Steel Steel	Round	.030”
MS20122 $107.53	-	2.250”	Multi- Layered Steel Steel	Round	.030”

CHEVROLET V8 BIG BLOCK (cont.)

396, 402, 427, 454, 496, 502, 510, 540, 572 Engines (cont.)
Valve Cover Gasket Sets
Part No	Application Notes	Materials/ Construction	Thick- ness
VS38420H $18.13	BBC with Standard Bolt Pattern	High Temp Cork with Metal Carrier	-
VS38420TC $24.31	BBC with Standard Bolt Pattern	Cork with Metal Carrier	-
VS50169 $80.54	BBC with Standard Bolt Pattern	Molded Rubber	-
VS50757 $142.01	BBC with Standard Bolt Pattern	Molded Rubber / Steel Carrier w/ Load Limiters	.235”
VS50773 $61.58	Dart Big Chief, Brodix Big Duke, Dart Olds Casting #22538816, Early Pontiac Pro Stock and Similar 4.840 Bore Center, Raised Port Cylinder Heads	Steel Core Composite, Teflon Coated on One Side	.080”
VS50774 $101.71	Dart Big Chief, Brodix Big Duke, Dart Olds Casting #22538816, Early Pontiac Pro Stock and Similar 4.840 Bore Center, Raised Port Cylinder Heads	Laminated Cork/Composite	.125”
VS50775 $57.44	Dart Big Chief, Brodix Big Duke, Dart Olds Casting #22538816, Early Pontiac Pro Stock and Similar 4.840 Bore Center, Raised Port Cylinder Heads	Laminated Cork/Composite	.250”
VS50776 $83.38	BBC with Standard Bolt Pattern	Steel Core Composite, Teflon Coated on One Side	.080”
VS50777 $101.71	BBC with Standard Bolt Pattern	Laminated Cork/Composite	.125”
VS50778 $43.03	BBC with Standard Bolt Pattern	Laminated Cork/Composite	.250”
VS50779 $78.74	BBC with Standard Bolt Pattern	Fuel Resistant High Temperature Composite	.060”
VS50780 $87.96	Rhere Morrison Raptor	Steel Core Composite, Teflon Coated on One Side	.080”
VS50781 $113.08	Big Chief	Steel Core Composite, Teflon Coated on One Side	.080”
VS50782 $103.09	Fulton 5.2”BS	Steel Core Composite, Teflon Coated on One Side	.080”
VS50783 $104.98	AJPE 4.9”BS Pro Stock	Steel Core Composite, Teflon Coated on One Side	.080”
VS50784 $113.34	Fulton / CFE 5.0”BS	Steel Core Composite, Teflon Coated on One Side	.080”
VS50785 $113.08	AJPE 5.0” BS Pro Stock	Steel Core Composite, Teflon Coated on One Side	.080”
VS50786 $113.08	Brodix BP PB 5.0”BS	Steel Core Composite, Teflon Coated on One Side	.080”

CHEVROLET V8 BIG BLOCK (cont.)

396, 402, 427, 454, 496, 502, 510, 540, 572 Engines (cont.)
Oil Pan Gasket Sets
Part No	Application Notes	Materials/ Construction			Thick- ness
OS32511 $35.59	Chevrolet Big Block 1965 - 1990	Rubberized Fiber			.093”
OS32512 $31.75	Side Rails Trimmed for Rod Clearance	Steel Core Laminate, Teflon Coated on One Side			.080
OS32484 $17.68	Chevrolet Big Block 1965 - 1990, Side Rails Trimmed for Rod Clearance	Molded Rubber / Steel Carrier w/ Load Limiters			.185”
OS32513 $59.38	Bolt Holes at Main Cap Centerlines, Side Rails Trimmed for Rod Clearance	Steel Core Laminate, Teflon Coated on One Side			.080
OS32514 $51.40	Chevrolet Big Block 1991 - 2000	Molded Rubber / Rigid Carrier			.185”
OS32487 $55.72	DRCE/Merlin BBC Blocks	Steel Core Laminate, Teflon Coated on One Side			.080
OS32488 $54.83	Wet Sump Moroso Aluminum and Similar Pans, Rail Gaskets are Clearanced to Match Pan	Steel Core Laminate, Teflon Coated on One Side			.062”

Page 17
CHRYSLER V8 HEMI

5.7L Engines
Cylinder Head Gaskets
Part No	Application Notes	Combus- tion Seal	Materials/ Construction	Bore	Thick- ness	Volume
55051 $159.92	2003 - 2015 Right Side	-	Multi- Layered Steel Steel	3.950”	.027”	5.5
55052 $153.26	2003 - 2015 Left Side	-	Multi- Layered Steel Steel	3.950”	.027”	5.5
6.1L Engines
Cylinder Head Gaskets
Part No	Application Notes	Combus- tion Seal	Materials/ Construction	Bore	Thick- ness	Volume
55053 $153.26	2005 - 2010	-	Multi- Layered Steel Steel	4.100”	.040”	8.8

CHRYSLER V8 SMALL BLOCK

318, 340, 360 Engines
Cylinder Head Gaskets
Part No	Application Notes	Combus- tion Seal	Materials/ Construction	Bore	Thick- ness	Volume
55054 $168.08	-	-	Multi- Layered Steel Steel	4.040”	.040”	8.5
55055 $153.08	-	-	Multi- Layered Steel Steel	4.080”	.040”	8.7
55056 $153.08	-	-	Multi- Layered Steel Steel	4.125”	.040”	8.9
3536SG $87.90	-	-	Graphite	4.090”	.045”	9.4

CHRYSLER V8 SMALL BLOCK (cont.)

318, 340, 360 Engines (cont.)
Intake Manifold Gasket Sets
Part No	Application Notes	Port Size	Materials/ Construction	Port Shape	Thick- ness
MS20084 $54.54	Stock 2 Barrel	1.050” x 2.187”	Laminated Fiber, Silicone Bead Sealed Ports	-	.060”
MS20085 $51.58	Stock 4 Barrel and Magnum	1.175” x 2.275”	Laminated Fiber, Silicone Bead Sealed Ports	-	.060”
MS20086 $47.85	Mopar W7-W8 Race Heads	1.400” x 2.150”	Laminated Fiber, Silicone Bead Sealed Ports	-	.060”
MS20087 $65.99	Mopar W7-W8 Race Heads	1.400” x 2.150”	Laminated Fiber	-	.120”
Exhaust Header Gaskets
Part No	Application Notes	Port Size	Materials/ Construction	Port Shape	Thick- ness
95095SG $43.55	-	1.250” x 1.750”	Graphite	-	-
MS19991 $45.23	Stock 4 Barrel with Prominent Angle in Lower Port Corners	1.100” x 1.700”	Graphite-Kevlar Composite w/Perforated Steel Core	Rectangle	.060”
MS19992 $47.99	W7, W8, W9 Race Heads with 7 bolts, Three Sections to Allow for Injectors	1.800” x 1.750”	Graphite-Kevlar Composite w/ Perforated Steel Core	Rounded Rectangle	.060”
MS19993 $45.09	W2 Race Head	1.880”	Graphite-Kevlar Composite w/Perforated Steel Core	Round	.060”
MS20123 $124.53	-	1.310” x 1.640”	Multi- Layered Steel Steel	-	.030”
Valve Cover Gasket Sets
Part No	Application Notes	Materials/ Construction				Thick- ness
VS39569H $19.68	273-360 and W2/W9 Heads	High Temp Cork with Metal Carrier				-
VS50802 $72.84	273-360 and W2/W9 Heads	Steel Core Composite, Teflon Coated on One Side				.080”
VS50803 $84.26	273-360 and W2/W9 Heads	Laminated Cork/Composite				.125”
VS50804 $40.68	273-360 and W2/W9 Heads	Laminated Cork/Composite				.250”
VS50805 $67.99	5.2L-5.9L Magnum	Laminated Cork & Cut-resistant Fiber				.125”
VS50806 $44.52	5.2L-5.9L Magnum	Laminated Cork & Cut-resistant Fiber				.250”
VS50807 $59.44	5.2L-5.9L Magnum	Steel Core Composite, Teflon Coated on One Side				.080”

CHRYSLER V8 SMALL BLOCK (cont.)

318, 340, 360 Engines (cont.)
Oil Pan Gasket Sets
Part No	Application Notes	Materials/ Construction					Thick- ness
OS30520YTC $20.71	1970-1991 318, 340	Cork with Metal Carrier					-
OS30520ZTC $20.27	1971-1991 360	Cork with Metal Carrier					-
OS32493 $43.41	1964 - 1969	Rubberized Fiber					.093”
OS32114 $25.87	1991-2003 318	Molded Rubber / Steel Carrier w/ Load Limiters					.185”
OS32115 $60.17	1991-2003 360	Molded Rubber / Steel Carrier w/ Load Limiters					.185”

Page 19
CHRYSLER V8 BIG BLOCK

361, 383, 400, 413, 426, 440 Engines
Cylinder Head Gaskets
Part No	Application Notes	Combus- tion Seal	Materials/ Construction	Bore	Thick- ness	Volume
55057 $153.08	Wedge Head	-	Multi- Layered Steel Steel	4.350”	.040”	10
55058 $162.18	Wedge Head	-	Multi- Layered Steel Steel	4.380”	.040”	10.1
3464VC $47.26	-	-	Graphite	4.430”	.045”	11.1

Exhaust Header Gaskets
Part No	Application Notes	Port Size	Materials/ Construction	Port Shape	Thick- ness
95026SG $40.68	-	1.430” x 1.750”	Graphite	Square	-
MS19994 $47.02	426/572 Street Hemi / Crate Hemi	1.745” x 1.745”	Graphite-Kevlar Composite w/ Perforated Steel Core	Square	.060”
MS19995 $33.40	Max Wedge, Large Port Standard 6 Bolt Pattern, Indy 572, 600 and Mopar B1	1.700” x 1.500”	Graphite-Kevlar Composite w/ Perforated Steel Core	Square	.060”
MS20124 $107.53	-	1.780” x 1.460”	Multi- Layered Steel Steel	-	.030”
Valve Cover Gasket Sets
Part No	Application Notes	Materials/ Construction			Thick- ness
VS38322H $21.59	-	High Temp Cork with Metal Carrier			-
VS50759 $173.56	383-440 Wedge 6 Bolt Valve Covers	Molded Rubber / Steel Carrier w/ Load Limiters			.230”
VS50808 $92.19	383-440 Wedge 6 Bolt Valve Covers	Steel Core Composite			.080”
VS50809 $84.26	B1 Head	Steel Core Composite			.080”
VS50810 $92.43	B1 Head	Laminated Cork/Composite			.125”
VS50811 $60.74	B1 Head	Laminated Cork/Composite			.250”
VS50812 $69.67	B1 T/S Head	Laminated Cork/Composite			.125”
VS50813 $60.74	Koffel B1 T/S Head	Laminated Cork/Composite			.250”
VS50814 $81.16	383-440 Wedge 6 Bolt Valve Covers	Laminated Cork/Composite			.125”
VS50815 $58.44	383-440 Wedge 6 Bolt Valve Covers	Laminated Cork/Composite			.250”
VS50816 $69.85	B1 Head	Fuel Resistant High Temperature Composite			.060”
VS50817 $69.37	383-440 Wedge 6 Bolt Valve Covers	Fuel Resistant High Temperature Composite			.060”

CHRYSLER V8 BIG BLOCK (cont.)

361, 383, 400, 413, 426, 440 Engines (cont.)
Valve Cover Gasket Sets
Part No	Application Notes	Materials/ Construction					Thick- ness
VS50818 $69.37	Koffel B1 T/S Head	Fuel Resistant High Temperature Composite					.060”
VS50819 $69.20	Koffel B1 T/S Head	Steel Core Composite					.080”
Oil Pan Gasket Sets
Part No	Application Notes	Materials/ Construction					Thick- ness
OS31416TC $16.03	Chrysler Factory Block	Cork with Metal Carrier					-
OS32504 $36.34	Chrysler Factory Block	Rubberized Fiber					.093”
OS32505 $22.89	Chrysler Race Block, AJPE, BAE, KB	Steel Core Laminate, Teflon Coated on One Side					.087”
OS32506 $81.89	Chrysler Factory Block	Steel Core Laminate, Teflon Coated on One Side					.087”
OS32507 $89.75	Chrysler Factory Block	Molded Rubber / Steel Carrier w/ Load Limiters					.185”
426 Hemi Engines
Valve Cover Gasket Sets
Part No	Application Notes	Materials/ Construction					Thick- ness
VS50758 $161.47	-	Molded Rubber / Steel Carrier w/ Load Limiters					.225”
VS50820 $85.58	Hemi NHRA .3125” Holes	Steel Core Composite, Teflon Coated on One Side					.080”
VS50821 $136.46	Hemi NHRA .1250” Holes	Steel Core Composite, Teflon Coated on One Side					.080”
VS50822 $124.41	BAE / AJPE Hemi	Steel Core Composite, Teflon Coated on One Side					.080”

Page 20
FORD V8 SMALL BLOCK

260, 289, 302, 351W Engines
Cylinder Head Gaskets
Part No	Application Notes	Combus- tion Seal	Materials/ Construction	Bore	Thick- ness	Volume
55059 $162.18	-	-	Multi- Layered Steel Steel	4.080”	.040”	8.6
55060 $167.35	-	-	Multi- Layered Steel Steel	4.155”	.040”	9
3428SG $33.10	-	-	Solid Core Composite	4.080”	.042”	9.4
3428SCR $57.49	-	-	Solid Core Composite	4.080”	.042”	8.8
Intake Manifold Gasket Sets
Part No	Application Notes	Port Size	Materials/ Construction	Port Shape		Thick- ness
MS20069 $31.04	Stock w/ Small Race Port, World Products Windsor and Windsor Aluminum	1.100” x 2.000”	Laminated Fiber, Silicone Bead Sealed Ports	-		.060”

FORD V8 SMALL BLOCK (cont.)

260, 289, 302, 351W Engines (cont.)
Intake Manifold Gasket Sets (cont.)
Part No	Application Notes	Port Size	Materials/ Construction	Port Shape	Thick- ness
MS20070 $57.00	FORD Motorsport GT40, N351 Sportsman, Edelbrock Victor Junior, TFS Twisted Wedge and Brodix T1F	1.315” x 2.150”	Laminated Fiber, Silicone Bead Sealed Ports	-	.060”
MS20071 $50.43	Trick Flow R Series	1.370” x 2.300”	Laminated Fiber, Silicone Bead Sealed Ports	-	.060”
MS20072 $39.95	SVO Yates C3 Large Port	1.850” x 2.225”	Laminated Fiber, Silicone Bead Sealed Ports	-	.060”
MS20073 $56.72	SVO Yates C3, M5049 C302	1.475” x 2.310”	Laminated Fiber, Silicone Bead Sealed Ports	-	.060”
MS20076 $47.88	Edelbrock Victor XL Port 18 Degree and 15 Degree Heads	1.500” x 2.250”	Laminated Fiber, Silicone Bead Sealed Ports	-	.060”
Exhaust Header Gaskets
Part No	Application Notes	Port Size	Materials/ Construction	Port Shape	Thick- ness
95025SG $43.85	-	1.130” x 1.530”	Graphite	-	-
MS19998 $49.13	Flowtech, Headman with Standard Bolt Pattern	1.075” x 1.785”	Graphite-Kevlar Composite w/ Perforated Steel Core	Oval	.060”
MS19999 $62.65	SVO N351 Sportsman, Brodix T1F	1.600” x 1.775”	Graphite-Kevlar Composite w/Perforated Steel Core	Oval	.060”
MS20000 $64.17	Trick Flow R Series, Pro Action/RHS Angled Bolt Pattern	1.875”	Graphite-Kevlar Composite w/ Perforated Steel Core	Round	.060”
MS20001 $51.89	SVO C302 / B351	1.750”	Graphite-Kevlar Composite w/Perforated Steel Core	Round	.060”
MS20002 $56.33	SVO Yates, M6049 C302	2.000” x 1.750”	Graphite-Kevlar Composite w/Perforated Steel Core	Square	.060”
MS20125 $104.91	351W	1.520” x 1.570”	Multi- Layered Steel Steel	Square	.030”
MS20126 $99.62	N351	1.127” x 1.750”	Multi- Layered Steel Steel	-	.030”
MS20127 $99.62	Yates, 8 Ind Ports	1.725” x 1.890”	Multi- Layered Steel Steel	Square	.030”

FORD V8 SMALL BLOCK (cont.)

260, 289, 302, 351W Engines (cont.)
Valve Cover Gasket Sets
Part No	Application Notes	Materials/ Construction				Thick- ness
VS38300H $17.79	-	High Temp Cork with Metal Carrier				-
VS50203 $53.86	-	Molded Rubber w/ Backbone				-
VS50756 $135.49	-	Molded Rubber / Steel Carrier w/ Load Limiters				.225”
VS50788 $102.82	FORD 289-351W all	Steel Core Composite, Teflon Coated on One Side				.080”
VS50791 $74.92	FORD 289-351W, 5.0L	Laminated Cork/Composite				.250”
VS50792 $69.88	FORD 289-351W, 5.0L	Laminated Cork/Composite				.125”
VS50793 $41.12	FORD 289-351W, 5.0L	Fuel Resistant High Temperature Composite				.060”
Oil Pan Gasket Sets
Part No	Application Notes	Materials/ Construction				Thick- ness
OS30541 $30.28	1969-1993 351W	Cork with Metal Carrier				-
OS32516 $7.76	-	Rubberized Fiber				.093”
OS32490 $50.72	1969-1993 351W	Rubberized Fiber				.093”
OS32491 $31.82	1962-1982 260-302 Windsor, 1983-1995 5.0L Windsor	Molded Rubber / Steel Carrier w/ Load Limiters				.185”
351C, 351 Boss, 351CJ, 351M, 400 Engines
Intake Manifold Gasket Sets
Part No	Application Notes	Port Size	Materials/ Construction	Port Shape	Thick- ness
MS20074 $53.13	Stock 2 Barrel	1.515” x 2.140”	Laminated Fiber, Silicone Bead Sealed Ports	Rounded Rectangle	.060”
MS20075 $48.40	Stock 4 Barrel	1.900” x 2.660”	Laminated Fiber, Silicone Bead Sealed Ports	Rounded Rectangle	.060”
Exhaust Header Gaskets
Part No	Application Notes	Port Size	Materials/ Construction	Port Shape	Thick- ness
95081SG $52.10	-	1.600” x 1.950”	Graphite	-	-
Valve Cover Gasket Sets
Part No	Application Notes	Materials/ Construction				Thick- ness
VS50787 $113.08	FORD 351C-400M, Boss 302 & SVO/Yates Cylinder Heads	Steel Core Composite				.080”
VS50789 $81.65	FORD 351C-400M, Boss 302 & SVO/Yates Cylinder Heads	Laminated Cork/Composite				.125”
VS50790 $45.44	FORD 351C-400M, Boss 302 & SVO/ Yates Cylinder Heads	Laminated Cork/Composite				.250”

|

FORD V8 SMALL BLOCK (cont.)

351C, 351 Boss, 351CJ, 351M, 400 Engines (cont.)
Valve Cover Gasket Sets
Part No	Application Notes	Materials/ Construction				Thick- ness
VS50794 $65.47 $71.80	FORD 351C-400M, Boss 302 & SVO/ Yates Cylinder Heads	Fuel Resistant High Temperature Composite				.060”
Oil Pan Gasket Sets
Part No	Application Notes	Materials/ Construction				Thick- ness
OS30543 $22.41	Cleveland / Modified	Cork with Metal Carrier				-
OS32518 $46.37	Cleveland / Modified	Rubberized Fiber				.093”
OS32492 $35.13	1969-1997 351W	Molded Rubber / Steel Carrier w/ Load Limiters				.185”

Page 23
FORD V8 SOHC MODULAR

-
4.6L Engines
Cylinder Head Gaskets
Part No	Application Notes	Combus- tion Seal	Materials/ Construction	Bore	Thick- ness	Volume
55065 $214.55	3V Left Side 2005 - 2010	-	Multi- Layered Steel Steel	3.700”	.030”	5.4
55066 $156.84	3V Right Side 2005 - 2010	-	Multi- Layered Steel Steel	3.700”	.030”	5.4
FORD V8 MODULAR SOHC / DOHC
4.6L, 5.4L Engines
Cylinder Head Gaskets
Part No	Application Notes	Combus- tion Seal	Materials/ Construction	Bore	Thick- ness	Volume
55067 $156.84	Left Side	-	Multi- Layered Steel Steel	3.662”	.030”	5.1
55068 $156.84	Right Side	-	Multi- Layered Steel Steel	3.662”	.030”	5.1
Oil Pan Gasket Sets
Part No	Application Notes	Materials/ Construction				Thick- ness
OS32517 $30.34	-	Molded Rubber / Steel Carrier w/ Load Limiters				.185”
FORD V8 DOHC COYOTE
5.0L Engines
Cylinder Head Gaskets
Part No	Application Notes	Combus- tion Seal	Materials/ Construction	Bore	Thick- ness	Volume
55063 $46.68	Left Side 2011 - 2015	-	Multi- Layered Steel Steel	3.700”	.040”	9.2
55064 $214.55	Right Side 2011 - 2015	-	Multi- Layered Steel Steel	3.700”	.040”	9.2
55014 $113.30	Left Side 2015 - Present	Stopper	Multi- Layered Steel Steel	3.700”	.040”	7.2
55015 $210.24	Right Side 2015 - Present	Stopper	Multi- Layered Steel Steel	3.700”	.040”	7.2

|

FORD V8 SOHC MODULAR

5.4L Engines
Cylinder Head Gaskets
Part No	Application Notes	Combus- tion Seal	Materials/ Construction	Bore	Thick- ness		Volume
55069 $156.84	3V Left Side 2004 - 2014	-	Multi- Layered Steel Steel	3.700”	.030”		5.4
55070 $156.84	3V Right Side 2004 - 2014	-	Multi- Layered Steel Steel	3.700”	.030”		5.4

Page
FORD V8 BIG BLOCK

332, 352, 390, 406, 427, 428, 428CJ, 428SCJ Engines
Intake Manifold Gasket Sets
Part No	Application Notes	Port Size	Materials/ Construction	Port Shape	Thick- ness
MS20083 $77.95	FE Medium Riser, Edelbrock Performer RPM FE	1.400” x 2.100”	Laminated Fiber, Silicone Bead Sealed Ports	Rectangle	.060”
95009SG $31.19	-	1.460” x 2.400”	Graphite	-	-

Valve Cover Gasket Sets
Part No	Application Notes	Materials/ Construction	Thick- ness
VS38308R $19.00	352-428SCJ BBF	High Temp Cork with Metal Carrier	-
VS50799 $78.65	352-428 FE	Laminated Cork/Composite	.125”
VS50800 $49.26	352-428 FE	Laminated Cork/Composite	.250”
VS50801 $65.71	352-428 FE	Fuel Resistant High Temperature Composite	.060”
429, 460 Engines

Cylinder Head Gaskets
Part No	Application Notes	Combus- tion Seal	Materials/ Construction	Bore	Thick- ness	Volume
55061 $164.12	-	-	Multi- Layered Steel Steel	4.440”	.040”	10.1

Intake Manifold Gasket Sets
Part No	Application Notes	Port Size	Materials/ Construction	Port Shape		Thick- ness
MS20077 $58.19	Stock Oval Port, Exc CJ/SCJ	2.000” x 2.250”	Laminated Fiber	Oval		.060”
MS20078 $55.72	Cobra Jet, Super Cobra Jet Oval Port	2.200” x 2.560”	Laminated Fiber, Silicone Bead Sealed Ports	Oval		.060”
MS20079 $55.40	FORD Racing A460, TFS A460	1.860” x 2.520”	Laminated Fiber, Silicone Bead Sealed Ports	Rectangle		.060”
MS20080 $56.24	FORD Racing A460, TFS A460	1.860” x 2.520”	Laminated Fiber	Rectangle		.120”
MS20081 $71.37	FORD Racing M6049 B460	1.800” x 1.950”	Laminated Fiber, Silicone Bead Sealed Ports	Oval		.060”
MS20082 $54.13	FORD Racing C460 Wedge	1.800” x 2.600”	Laminated Fiber, Silicone Bead Sealed Ports	Rectangle		.060”
95109SG $49.29	Stock Oval Port, Exc CJ/SCJ	1.980” x 2.260”	Graphite	-		-
95074SG $35.37	Cobra Jet, Super Cobra Jet Oval Port	2.230” x 2.600”	Graphite	-		-

Page 24
FORD V8 BIG BLOCK (cont.)

429, 460 Engines (cont.)
Exhaust Header Gaskets
Part No	Application Notes	Port Size	Materials/ Construction	Port Shape	Thick- ness
95091SG $43.82	Except CJ, SCJ	1.500” x 2.100”	Graphite	Oval	-
MS19996 $48.58	Cobra Jet, Super Cobra Jet and FORD Racing 460 Sportsman Heads	1.520” x 2.500”	Graphite-Kevlar Composite w/Perforated Steel Core	Oval	.060”
MS19997 $57.03	FORD Racing A460, 2000 and Later Design with 4.900” Bore Centers	2.020” x 2.070”	Graphite-Kevlar Composite w/Perforated Steel Core	Rounded Rectangle	.060”
MS20128 $92.46	-	-	Multi- Layered Steel Steel	Oval	.030”

Valve Cover Gasket Sets
Part No	Application Notes	Materials/ Construction	Thick- ness
VS38421 $82.47	1968-1987 429-460	Cork with Metal Carrier	-
VS50795 $73.30	1968-1987 429-460	Steel Core Composite	.080”
VS50796 $95.57	1968-1987 429-460	Laminated Cork/Composite	.125”
VS50797 $49.26	1968-1987 429-460	Laminated Cork/Composite	.250”
VS50798 $70.61	1968-1987 429-460	Fuel Resistant High Temperature Composite	.060”
Oil Pan Gasket Sets
Part No	Application Notes	Materials/ Construction	Thick- ness
OS30540TC $20.13	1968-1988 All	Cork with Metal Carrier	-
OS32520 $28.34	1968-1989 429, Exc Boss, 460	Rubberized Fiber	.093”
OS32494 $30.20	1968-1998 429, 460	Molded Rubber / Steel Carrier w/ Load Limiters	.185”

Page 25
OLDSMOBILE V8

330, 350, 400, 403, 425, 455 Engines
Cylinder Head Gaskets
Part No	Application Notes	Combus- tion Seal	Materials/ Construction	Bore	Thick- ness		Volume
55047 $159.92	-	-	Multi- Layered Steel Steel	4.200”	.040”		9.2

Intake Manifold Gasket Sets
Part No	Application Notes	Port Size	Materials/ Construction	Port Shape	Thick- ness
MS20093 $64.44	Stock Small Block	1.320” x 2.025”	Laminated Fiber, Silicone Bead Sealed Ports	Stock	.060”
MS20094 $61.38	Stock Big Block and Edelbrock Performer RPM	1.500” x 2.575”	Laminated Fiber, Silicone Bead Sealed Ports	Stock	.060”
MS20095 $60.00	Batten Head as Cast	1.350” x 2.250”	Laminated Fiber, Silicone Bead Sealed Ports	Rectangle	.060”
MS20096 $74.40	Batten Head Ported	1.500” x 2.530”	Laminated Fiber, Silicone Bead Sealed Ports	Rectangle	.060”
95014SG $39.79	Stock Big Block and Edelbrock Performer RPM	1.400” x 2.430”	Graphite	Stock	-

OLDSMOBILE V8 (cont.)

330, 350, 400, 403, 425, 455 Engines (cont.)
Exhaust Header Gaskets
Part No	Application Notes	Port Size	Materials/ Construction	Port Shape	Thick- ness
95028SG $46.72	Stock	-	Graphite	Square	-
MS19988 $46.82	Batten Head	1.800” x 1.575”	Graphite-Kevlar Composite w/Perforated Steel Core	Square	.060”
MS20129 $107.53	Stock	1.450” x 1.920”	Multi- Layered Steel Steel	Square	.030”

Valve Cover Gasket Sets
Part No	Application Notes	Materials/ Construction	Thick- ness
VS38305 $35.19	Stock, Edelbrock Performer RPM, Batten	Cork with Metal Carrier	-
VS50825 $52.81	Stock, Edelbrock Performer RPM, Batten	Fuel Resistant High Temperature Composite	.060”
VS50826 $92.19	Stock, Edelbrock Performer RPM, Batten	Laminated Cork/Composite	.125”
VS50827 $54.62	Stock, Edelbrock Performer RPM, Batten	Laminated Cork/Composite	.250”
Oil Pan Gasket Sets
Part No	Application Notes	Materials/ Construction	Thick- ness
OS30534TC $20.86	1965-1976 All V8	Cork with Metal Carrier	-
OS32510 $274.27	1965-1976 All V8	Rubberized Fiber	.093”
OS32501 $81.76	1965-1976 All V8	Steel Core Laminate, Teflon Coated on One Side	.087”

Page 26
PONTIAC V8

326, 350, 400, 428, 455 Engines
Cylinder Head Gaskets
Part No	Application Notes	Combus- tion Seal	Materials/ Construction	Bore	Thick- ness	Volume
55048 $164.09	-	-	Multi- Layered Steel Steel	3.950”	.040”	8.8
55049 $159.92	-	-	Multi- Layered Steel Steel	4.160”	.040”	9.1
55050 $159.92	-	-	Multi- Layered Steel Steel	4.200”	.040”	9.3

Intake Manifold Gasket Sets
Part No	Application Notes	Port Size	Materials/ Construction	Port Shape	Thick- ness
MS20097 $76.30	Stock Port	1.075” x 2.025”	Laminated Fiber, Silicone Bead Sealed Ports	Stock	.060”
MS20098 $59.65	Modified Port	1.060” x 2.100”	Laminated Fiber, Silicone Bead Sealed Ports	Stock	.060”
MS20099 $65.93	Modified Port	1.125” x 2.240”	Laminated Fiber, Silicone Bead Sealed Ports	Stock	.060”

PONTIAC V8 (cont.)

326, 350, 400, 428, 455 Engines (cont.)
Intake Manifold Gasket Sets (cont.)
Part No	Application Notes	Port Size	Materials/ Construction	Port Shape	Thick- ness
MS20100 $59.51	Modified Port, Extra Material at Top for Porting	1.125” x 2.240”	Laminated Fiber, Silicone Bead Sealed Ports	Stock	.060”
MS20101 $64.26	Modified Port	1.175” x 2.300”	Laminated Fiber, Silicone Bead Sealed Ports	Stock	.060”
MS20102 $41.65	Modified Port	1.135” x 2.350”	Laminated Fiber, Silicone Bead Sealed Ports	Stock	.060”
MS20103 $64.26	Ram Air / Super Duty, Edelbrock Performer and Edelbrock Performer RPM	1.075” x 2.200”	Laminated Fiber, Silicone Bead Sealed Ports	Stock	.060”
Exhaust Header Gaskets
Part No	Application Notes	Port Size	Materials/ Construction	Port Shape	Thick- ness
MS19989 $49.55	Gasket Match 455cid Factory Heads with “D” Center ports and Oval Outers	1.900”	Graphite-Kevlar Composite w/Perforated Steel Core	D-Port	.060”
MS19990 $51.64	Stock, Edelbrock Performer and Edelbrock Performer RPM heads	1.875”	Graphite-Kevlar Composite w/ Perforated Steel Core	Round	.060”
MS20130 $107.53	-	-	Multi- Layered Steel Steel	D-Port	.030”
Valve Cover Gasket Sets
Part No	Application Notes	Materials/ Construction			Thick- ness
VS38291XH $30.82	-	Cork with Metal Carrier			-
VS50754 $52.78	-	Molded Rubber / Steel Carrier w/ Load Limiters			.245”
VS50823 $124.47	-	Laminated Cork/Composite			.125”
VS50824 $46.03	-	Laminated Cork/Composite			.250”
Oil Pan Gasket Sets
Part No	Application Notes	Materials/ Construction			Thick- ness
OS32508 $132.02	1959-1976 All V8 Includes 3 and 5 Tab Rear Seals	Rubberized Fiber			.093”
OS32509 $33.24	1959-1974 All V8	Molded Rubber / Steel Carrier w/ Load Limiters			.185”

Page 28
FEL-PRO INTERCHANGES

MAHLE	Fel-Pro		MAHLE	Fel-Pro
55028 $68.85	1142		MS19989 $49.55	1436
55031 $158.01	1143		MS19990 $51.64	1424
55032 $163.98	1144		MS19991 $45.23	1432
55033 $168.21	1071		MS19992 $47.99	1480
55035 $176.01	1075		MS19994 $47.02	1462
55036 $179.66	1077		MS19996 $48.58	1420
55037 $179.92	1071		MS19997 $57.03	1422
55039 $172.46	1075		MS19998 $49.13	1467
55040 $179.66	1077		MS19999 $62.65	1427
55041 $179.92	1160 L-053 /		MS20000 $64.17	1417
	1160 R-053		MS20001 $51.89	1431
55043 $166.09	1161 L-053 /		MS20002 $56.33	1433
	1161 R-053
55045 $166.09	1162 L-053 /		MS20009 $65.26	1255
	1162 R-053		MS20010 $44.93	1256
55051 $159.92	26588L-032		MS20012 $38.41	1282
55052 $153.26	26588R-032		MS20013 $44.71	1282S
55057 $153.08	26515-041		MS20014 $75.78	1205
55058 $162.18	26515-041		MS20015 $36.37	1289
55059 $162.18	1133		MS20016 $52.43	1263
55060 $167.35	1134		MS20017 $46.03	1206
55065 $214.55	1141L		MS20018 $36.59	1266
55066 $156.84	1141R		MS20019 $47.31	1207 / 1209
55067 $156.84	1141L		MS20020 $36.48	1254
55068 $156.84	1141R		MS20021 $42.35	1242
55069 $156.84	1141L		MS20022 $42.35	1267
55070 $156.84	1141R		MS20023 $48.85	1259
MS19971 $11.24	1434		MS20024 $63.82	1296
MS19973 $47.85	1479		MS20025 $62.33	12373
MS19975 $48.86	1405		MS20039 $50.64	1212
MS19976 $42.24	1470		MS20040 $46.03	1298
MS19977 $33.40	1409		MS20041 $48.31	1249
MS19978 $48.14	1482		MS20042 $50.69	1211
MS19979 $59.06	1446		MS20043 $43.38	1239
MS19980 $46.79	1456 / 1484		MS20044 $51.55	1275 / 12523
MS19981 $43.62	1437		MS20045 $39.38	12755
MS19982 $60.89	1426		MS20046 $50.13	1290
MS19983 $39.35	1408		MS20056 $85.96	1312-1
MS19984 $47.52	1407		MS20057 $37.37	1312-3
MS19985 $49.10	1406		MS20058 $47.72	1312-5
MS19986 $45.79	1411		MS20069 $31.04	1250
MS19987 $46.26	1490		MS20070 $57.00	1262
-	-		MS20071 $50.43	1262R

FEL-PRO INTERCHANGES

MAHLE	Fel-Pro		MAHLE	Fel-Pro
MS20072 $39.95	1229		VS50763 $55.40	1641
MS20073 $56.72	1265		VS50764 $89.40	16551
MS20074 $53.13	1240		VS50765 $102.03	1644
MS20075 $48.40	1228		VS50768 $61.58	1648
MS20077 $58.19	1230		VS50769 $61.30	1604
MS20078 $55.72	1231		VS50773 $61.58	1664
MS20079 $55.40	12213		VS50775 $57.44	1634.
MS20080 $56.24	12215		VS50776 $83.38	1660
MS20081 $71.37	12353		VS50777 $101.71	1606.
MS20083 $77.95	1247		VS50778 $43.03	1630
MS20084 $54.54	1243		VS50788 $102.82	1684
MS20085 $51.58	1213		VS50789 $81.65	1615
MS20086 $47.85	13003		VS50790 $45.44	1636
MS20087 $65.99	13005		VS50791 $74.92	1645
MS20094 $61.38	1356		VS50792 $69.88	1613
MS20101 $64.26	1233		VS50795 $73.30	1643
MS20104 $64.26	1357		VS50802 $72.84	1650 / 1681
MS20118 $107.53	1495		VS50803 $84.26	1609
MS20120 $107.53	1496		VS50804 $40.68	1646
MS20122 $107.53	1497		VS50808 $92.19	1612
.	.		VS50812 $69.67	1695
OS32457 $24.44	1880		VS50813 $60.74	1695
OS32484 $17.68	1884R		VS50814 $81.16	1611
OS32487 $55.72	1891		VS50815 $58.44	1611
OS32490 $50.72	1810		VS50821 $136.46	1629
OS32493 $43.41	1805 / 1806		VS50822 $124.41	1665
OS32504 $36.34	1808		VS50823 $124.47	1623
OS32505 $22.89	1834		VS50824 $46.03	1627
OS32508 $132.02	1814		VS50828 $63.93	1678
OS32511 $35.59	1804		.
OS32512 $31.75	1893
OS32513 $59.38	1863
OS32514 $51.40	1866 $69.79
OS32516 $7.76	1809
OS32518 $46.37	1811
OS32520 $28.34	1812
OS32522 $73.34	1802
OS32523 $26.49	1803
OS32525 $11.96	1839
VS50755 $147.64	1628
VS50756 $135.49	1684
VS50757 $142.01	1635
VS50762 $63.76	1638

Page 30
SCE INTERCHANGES

MAHLE	SCE		MAHLE	SCE
MS19971 $11.24	129080		MS20018 $36.59	111103
MS19972 $47.06	129081		MS20019 $47.31	211107
MS19973 $47.85	171080		MS20019 $47.31	211107
MS19974 $46.34	171081		MS20020 $36.48	211121
MS19975 $48.86	111080		MS20021 $42.35	211115
MS19976 $42.24	111087		MS20022 $42.35	111113
MS19976 $42.24	111087		MS20023 $48.85	211129
MS19977 $33.40	111083		MS20024 $63.82	211104
MS19978 $48.14	111089		MS20025 $62.33	211114
MS19979 $59.06	111286		MS20026 $56.07	211137
MS19980 $46.79	111284		MS20027 $67.20	211130
MS19980 $46.79	111284		MS20028 $68.96	211125
MS19981 $43.62	111085		MS20029 $67.20	211135
MS19982 $60.89	111081		MS20030 $67.20	211123
MS19983 $39.35	111084		MS20031 $67.20	211124
MS19984 $47.52	111285		MS20032 $67.06	211131
MS19985 $49.10	111082		MS20033 $62.27	111120
MS19986 $45.79	113080		MS20034 $55.34	111106
MS19987 $46.26	113084		MS20035 $41.65	111105
MS19988 $46.82	179082		MS20036 $77.92	211127
MS19989 $49.55	128080		MS20037 $56.33	211132
MS19990 $51.64	128081		MS20039 $50.64	213101
MS19991 $45.23	169081		MS20040 $46.03	218101
MS19992 $47.99	169082		MS20041 $48.31	213140
MS19993 $45.09	169084		MS20042 $50.69	213102
MS19994 $47.02	166080		MS20043 $43.38	113103
MS19995 $33.40	164080		MS20044 $51.55	213115
MS19996 $48.58	135081		MS20044 $51.55	213115
MS19997 $57.03	135082		MS20045 $39.38	113116
MS19998 $49.13	136083		MS20046 $50.13	213100
MS19999 $62.65	136082		MS20047 $43.79	213105
MS20000 $64.17	136084		MS20048 $74.02	213104
MS20001 $51.89	152083		MS20049 $74.02	213108
MS20002 $56.33	152081		MS20050 $73.86	213107
MS20009 $65.26	211119		MS20051 $74.02	218108
MS20010 $44.93	211101		MS20052 $79.98	218102
MS20012 $38.41	211118		MS20053 $77.95	218104
MS20013 $44.71	211122		MS20054 $77.95	118105
MS20014 $75.78	211102		MS20056 $85.96	119133
MS20015 $36.37	211136		MS20057 $37.37	219134
MS20016 $52.43	211126		MS20058 $47.72	119135
MS20017 $46.03	211128		MS20059 $49.85	119101

MAHLE	SCE
MS20060 $51.24	219102
MS20061 $68.69	119106
MS20062 $56.40	219107
MS20063 $73.99	219108
MS20064 $73.99	119104
MS20065 $52.34	219103
MS20066 $68.69	119105
MS20069 $31.04	236101
MS20070 $57.00	236102
MS20071 $50.43	236108
MS20072 $39.95	252105
MS20073 $56.72	252107
MS20074 $53.13	252101
MS20075 $48.40	252103
MS20076 $47.88	236103
MS20077 $58.19	135101
MS20078 $55.72	235102
MS20079 $55.40	235104
MS20080 $56.24	135106
MS20081 $71.37	235103
MS20083 $77.95	234101
MS20084 $54.54	269101
MS20085 $51.58	269104
MS20086 $47.85	269105
MS20087 $65.99	169108
MS20093 $64.44	279101
MS20094 $61.38	279102
MS20095 $60.00	279103
MS20096 $74.40	279104
MS20097 $76.30	228101
MS20098 $59.65	228102
MS20099 $65.93	228103
MS20100 $59.51	228104
MS20101 $64.26	228105
MS20102 $41.65	228106
MS20103 $64.26	228107
MS20104 $64.26	271101
MS20105 $58.51	271102
MS20106 $64.12	271103
MS20107 $64.12	271104
MS20108 $64.12	229101
MS20109 $58.44	129106

SCE INTERCHANGES

MAHLE	SCE		MAHLE	SCE
OS32457 $24.44	211093		VS50777 $101.71	213075
OS32487 $55.72	213192		VS50779 $78.74	213079
OS32490 $50.72	136091		VS50781 $113.08	218077
OS32496B $34.99	211092		VS50783 $104.98	215178
OS32502 $52.54	171090		VS50785 $113.08	255178
OS32504 $36.34	164090		VS50787 $113.08	252178
OS32506 $81.89	264090		VS50789 $81.65	252175
OS32508 $132.02	128090		VS50791 $74.92	236176
OS32510 $274.27	179090		VS50793 $41.12	236177
OS32512 $31.75	213194		VS50795 $73.30	235178
OS32514 $51.40	213091		VS50797 $49.26	235176
OS32518 $46.37	152090		VS50799 $78.65	234175
OS32522 $73.34	111091		VS50801 $65.71	234177
OS32525 $11.96	211098		VS50803 $84.26	269175
VS50763 $55.40	211274		VS50805 $67.99	269171
VS50765 $102.03	211178		VS50807 $59.44	269179
VS50767 $61.58	211172		VS50809 $84.26	264072
VS50769 $61.30	211076		VS50811 $60.74	264079
VS50771 $44.82	211278		VS50813 $60.74	265076
VS50773 $61.58	218078		VS50815 $58.44	264076
VS50775 $57.44	218076		VS50817 $69.37	264074
VS50776 $83.38	213078		VS50818 $69.37	265077

Page 31

MAHLE	SCE
VS50819 $69.20	265078
VS50821 $136.46	266075
VS50823 $124.47	228175
VS50825 $52.81	279178
VS50827 $54.62	279176
VS50829 $45.34	271175
VS50831 $48.10	229075
VS50832 $51.51	229076

COMETIC INTERCHANGES

MAHLE	Cometic		MAHLE	Cometic
55014 $113.30	H3213SPF040S		55054 $168.08	C5633-040
55015 $210.24	H3212SPF040S		55055 $153.08	C5622-040
55028 $68.85	C5245-040		55056 $153.08	C5457-040
55031 $158.01	C5248-040		55057 $153.08	C5460-040
55032 $163.98	C5249-040		55058 $162.18	C5461-040
55033 $168.21	C5816-040		55059 $162.18	C5480-040
55034 $180.60	C5330-040		55060 $167.35	C5483-040
55035 $176.01	H1174SPP040S		55061 $164.12	C5666-040
55036 $179.66	C5331-040		55063 $46.68	C5287-040
55037 $179.92	C5332-040		55064 $214.55	C5286-040
55038 $180.60	C5333-040		55065 $214.55	C5969-030
55039 $172.46	H1177SP2040S		55066 $156.84	C5970-030
55040 $179.66	C5334-040		55067 $156.84	C5118-030
55041 $179.92	C5475-051		55067 $156.84	C5118-030
55042 $172.87	C5751-051		55068 $156.84	C5119-030
55043 $166.09	C5489-051		55068 $156.84	C5119-030
55044 $177.22	C5317-051		55069 $156.84	C5971-030
55045 $166.09	C5319-051		55070 $156.84	C5972-030
55046 $176.16	C5754-040		MS20113 $23.58	C5892-030
55047 $159.92	C5809-040		MS20114 $99.62	C5891-030
55048 $164.09	C5710-040		MS20115 $99.62	C5894-030
55049 $159.92	C5711-040		MS20116 $99.62	C5893-030
55050 $159.92	C5769-040		MS20117 $99.62	C5897-030
55051 $159.92	C5467-027		MS20118 $107.53	C5896-030
55052 $153.26	C5468-027		MS20119 $112.30	C5349-030
55053 $153.26	C5876-040		MS20120 $107.53	C5996-030

MAHLE	Cometic
MS20121 $112.30	C5350-030
MS20122 $107.53	C5251-030
MS20123 $124.53	C5901-030
MS20124 $107.53	C5902-030
MS20125 $104.91	C15176-030
MS20126 $99.62	C5899-030
MS20127 $99.62	C5665-040
MS20128 $92.46	C5900-030
MS20129 $107.53	C5904-030
MS20130 $107.53	C5905-030
VS50754 $52.78	C5044
VS50755 $147.64	C5973
VS50756 $135.49	C5974
VS50757 $142.01	C5975
VS50758 $161.47	C5976
VS50759 $173.56	C5983

Top of Page

HOME
