Icon KB Premium Forged Pistons & Rings for Chevrolet SBC, BBC from RPM

Icon Premium Forged Pistons, Wrist pins, Rings & Lock Rings
Table Of Contents

Page 1

HEAD DESIGN
This section will help you match the head type with the description in the catalog . The head design may not be exact but should give a close approxi- mation of what the piston will look like .
D-Cup Design

D-Cup - Maintains quench design and keeps the piston rim level all the way around
Step-Dish Design

Step-dish maintains the full quench while lowering the rest of piston rim below deck . This design allows for a big volume dish on long strokes while still maintaining the quench .

Flat-Top Design

Circular Dish Design

Circular Dish Design - Has no quench and the dish is just lowered below the rim of the piston.

Dome Design

Dome Design - Has raised area above the quench portion of the piston. LIGHT WEIGHT TOOL
• Length 2.250 X .927 Diameter / 88 Gram
Part No. R-71
• Length 2.500 X .927 Diameter / 98 $1.15 Gram
Part No. R-60
• Length 2.750 X .912 Diameter / 105 Gram
Part No. R-72
• Length 2.750 X .927 Diameter / 107 Gram
Part No. R-61
• Length 2.750 X .984 Diameter / 107 Gram
Part No. R-73
• Length 3.007 X .927 Diameter / 118 Gram
Part No. R-20

COMPRESSION RATIOS
ICON calculates its compression ratio based on a .030 oversize, zero deck, and a .040 quench. These ratios are given as a guideline. To get exact ratios you must calculate them based on exact numbers attained from your parts.

WARRANTY
ICON Performance Piston products (part of U.E.&M.) are sold without warranty or guarantee of any kind. ICON Performance Pistons shall not under any circumstances be liable for special, incidental or consequential damages of any kind from the purchase, installation, or use of these products.
ICON Performance Pistons makes no guarantee or warranty on emissions.

TABLE OF CONTENTS
Premium Forged Pistons, wrist pins & Ring kits

Piston Ring Listings 2

Tech Tips and Piston Orientation 3–4

Premium Forged Pistons 5

AMC Premium Forged Pistons 6

Chevrolet Premium Forged SBC Pistons 6–20

Chevrolet Premiium Forged BBC Pistons 20-25

Chrysler SB Premium
Forged Piston 26–28

Chrysler BB Premium
Forged Pistons 28-34

Chrysler Hemi Premium Forged Pistons 35

Ford - Mercury Flat Head Premium Forged Pistons 36

Ford Modular Premium Forged Pistons 4.6L to 5.4L 36–38

Ford Windsor Premium Forged Pistons 289 to 427 38-45

Ford Cleveland 351-402 Premium Forged Pistons 46-47

Ford FE 390-482 Premium Forged Pistons 48-51

Ford 429-460 to 545 Premium Forged Pistons 51-55

Olds 455 Premium Forged Pistons 56

Pontiac 400-505 Premium Forged Pistons 57–59

FHR Forged Pistons . . . . . . . . . . 61
GM FHR Forged . . . . . . . . . 63-64
Chevrolet FHR Forged . . . . . . 65-72
Chrysler FHR Forged . . . . . . . 73-74
Ford FHR Forged . . . . . . . . . 74-76
Pontiac FHR Forged . . . . . . . . . . 76
Sport Compact . . . . . .. . . .. . .. . 77
Chrysler Sport Compact . . . . . . . 79
Ford Sport Compact . . . . . . . . . . 79
Honda Sport Compact . . . . . . 79-80
Mitsubishi Sport Compact . . . . . . 80
Nissan Sport Compact . . . . . .. 81-82
Subaru Sport Compact . . . . . 82-84
Toyota Sport Compact. . . . . . . . . 85
Numerical Listing . . . . . . . . . 86-89
Diametrical Listing . . . . . . . . . 90-92

Page 2

PISTON & RING KITS

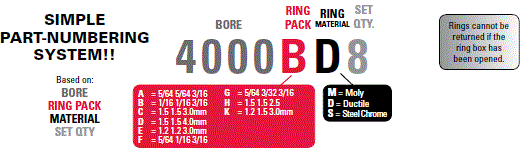

Ordering ICON’s new piston and ring kits has been made easy. The kit number uses standard ICON part numbers and adds a “KT” suffix to indicate kit. The alpha character at the end shows what ring material is used in the kit.

PISTON RING LISTING

PART # . . Sizes

3312BD8 $169.23 STD 0.030 0.063 . .

3445DD4 $169.23 STD .5mm .75mm 1.0mm 1.5mm

3445ED4 $60.02 STD .5mm .75mm 1.0mm .

3445ES4 $61.53 STD .5mm .75mm 1.0mm .

3551CD8 $72.59 0.005 0.010 0.020 0.030 .

3622DS4 $61.53 (92mm) STD .25mm .50mm .75mm 1.0mm

3736AM8 $82.45 STD 0.020 0.030 0.040 0.060

3736BD8 $204.33 STD 0.020 0.030 0.040 0.060

3736CD8.025 $281.26 0.025 0.035 0.045 0.065 .

3736ES8.014 $143.99 0.014
0.064 0.024 0.034 0.044 0.054

3780BD4 $169.23 STD 0.020 0.030 0.040 .

3780CD8 $76.90 0.020 0.030 0.040 0.060 .

3780CS8 $76.92 STD
0.040 0.005 0.010 0.020 0.030

3780CS8-N $76.92 STD 0.015 0.025 0.035 0.045

3875AM8 $86.72 STD 0.020 0.030 0.040 0.060

3898CM8 $113.22 STD 0.002 0.005 0.010 .

3898CD8.002 $113.22 0.002 0.010 0.020 . .

3898ES8 $200.00 STD 0.007 0.010 0.015 .

3910AM8 $92.30 STD 0.020 0.030 0.040 0.060

3910BD8.030 $173.45 0.030 0.040 0.060 . .

3917CD8 $117.54 STD 0.010 0.020 0.030 0.040

3917LS4 STD .25mm .5mm . .

4000AD8 $153.85 0.030 0.040 0.060 . .

4000AM4 $51.67 STD 0.020 0.030 0.040 0.060

4000AM8 $61.53 STD 0.020 0.030 0.040 0.060

0.07 0.08 0.1 . .

4000BD8 $128.59 0.005 0.025 0.035 0.045 0.065

0.07 0.08 . . .

4000BM8 $107.69 STD 0.020 0.030 0.040 0.060

4000CD8 $97.85 0.005 0.010 0.015 0.025 0.035

0.045 0.065 0.07 0.075 0.085

4000CM8 $97.85 STD 0.005 0.010 0.020 0.030

0.040 0.060 0.065 0.07 0.08

4000ES8 $148.32 STD 0.005 0.010 0.015 0.020

0.035 0.065 0.07 0.075 0.08

0.085 . . . .

4050GM8 $76.92 STD 0.020 0.030 0.040 0.060

4055CS8 $113.22 STD 0.010 0.020 0.030 0.040

4062AM8.030 $254.63 0.030 0.040 0.060 . .

4080AM8.030 $128.60 0.030 . . . .

4120AM8 $128.60 STD 0.030 0.040 0.060 .

4120BD8 $153.85 STD 0.035 0.045 0.065 .

4125AD8 $184.62 STD 0.030 0.040 0.060 .

4125AM8 $76.92 STD
0.100 0.020 0.030 0.040 0.060

4125BD8.005 $128.60 0.005 0.010 0.025 0.035 0.045

. 0.065 . . . .

4125BM8 $123.07 STD 0.020 0.030 0.040 0.060

4125CD8.005 $173.45 0.005 0.025 0.035 0.045 0.065

4130AM8 $138.46 STD 0.020 0.030 0.040 0.060

4130BD8 0.030 0.040 0.060 . .

4151BD8.035 $153.85 0.035 0.045 0.065 . .

4151FM8 $148.32 STD 0.030 0.040 0.060 .

4165AM8 $148.32 STD 0.030 0.040 0.060 .

4165BD8.005 $173.45 0.005 0.035 0.045 0.065 .

4250AD8.030 $188.94 0.030 0.040 0.060 . .

4250AM8.005 $76.92.92 STD 0.005 0.010 0.020 0.030

0.040 0.060 0.07 0.08 0.1

4250BD8 $117.54 0.005 0.020 0.035 0.040 0.065

0.07 0.1 0.125 . .

4300AM8.030 $153.85 0.030 0.040 0.060 . .

4312AM8 $153.85 0.030 0.040 0.060 . .

4320AM8 $138.46 STD 0.020 0.030 0.040 0.060

0.005 0.020 0.035 0.040 0.055

4320BD8.060 0.060 0.065 . . .

4342AM8 $153.85 STD 0.020 0.030 0.040 0.060

4342BD8.040 $349.79 STD 0.040 0.060 . .

4360AM8 $97.83 STD 0.020 0.030 0.040 0.060

4360BD8 $148.32 STD 0.020 0.035 0.040 0.060

0.065 0.085 . . .

4466BD8.004 $148.32 0.004 0.034 0.064 0.1 0.134

4500BD8.005 $148.32 0.005 0.025 0.035 0.045 0.065

4500JS8.005 $229.56 0.005 0.010 0.015 0.030 0.035

0.065 0.105 0.115 0.13 .

Page 3
FORGED ICON TECH TIPS

Calculating Ring End Gap
Top ring: bore x gap factor (see chart on page 5 for your application) = ring end gap example: 4.030” bore x .004” factor (street naturally aspirated) = .016” minimum ring gap
Second ring: Naturally Aspirated - .004” per inch of bore min. Boosted - .005” per inch of bore min.

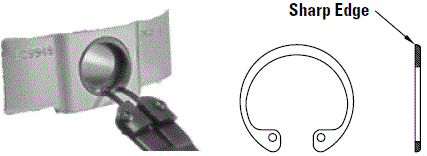

Lock Ring Installation

Tru-arc lock rings – used in FHR series
1. Install with open end of lock ring facing down.
Do not over compress lock, just enough to start in pin hole.
2. Install sharp outer edge of lock facing out.

Spiral lock rings – used in PREMIUM series
1. Spring the lock about 1/2” to 3/4” to
get your thumb between the coils.
. 2. Insert tang into groove. Slightly twist
your wrist towards the groove angling
the lock downward into the groove.
. 3. Using a small flat screwdriver push
down on the lock to push it into the
groove. Continue in a circular rotation.
Do not try and spiral the lock in.
.

Oil Support Rail

Applications where the wrist pin is intersecting the oil groove require an Oil Support Rail to bridge the gap the wrist pin cut out has made. All three of the oil control rings are installed on top of the support rail.
Special Note: Raised dimple on support rail is positioned down and indexed in the open area the wrist pin has made in the oil ring groove.

Piston Nomenclature

Compression Height
Centerline of wrist pin to top of piston, do not include dome height.
. Offset Wrist Pin
The short side of the offset must be
towards the thrust face of the engine.
. Measuring Point
Measure even with the bottom of the wrist pin pad and 90° to the pin.
.

Page 4

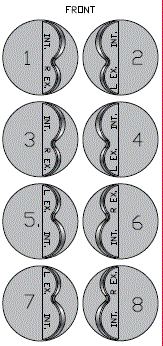

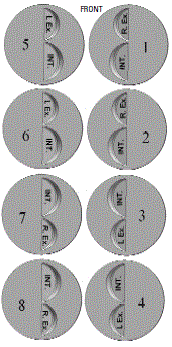

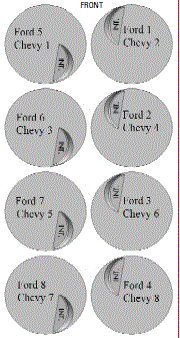

PISTON ORIENTATION

Quench is the area behind the valves. This area should match the flat area
on your cylinder head.
Proper quench promotes cooling of the piston and can be effective in reducing detonation. Checking cylinder heads: icon suggests checking cylinder
heads with clay or some other method before final assembly
to assure proper piston to head clearance.

CHEVY V-6 262
4 LEFTS AND
2 RIGHTS. CHEVY 302,305, 327, 334, 350, 377,383, 400, 434
CHRY 318, 340, 360, 383, 400, 408, 440, 450, 463, 468, 493, 498, 505, 520
PONTIAC 389, 400, 428, 455 BUICK 455
. FORD 289, 302, 331, 347, 351W, 372W,
383W, 393W, 408W, 416W, 418W
.

FORD 390FE, 406FE, 410FE, 427FE 428FE, 438FE, 452FE, 455FE, 482FE
. FORD CLEVLAND 351C & W/C, 377C, 387C, 402C
FORD BB 429, 460, 502, 520, 545
CHEVY BB 396/402, 427, 454, 489, 502, 540
.

OLDS 403,455
. TOYOTA 22R YRS
1985 AND NEWER
.

Page 5

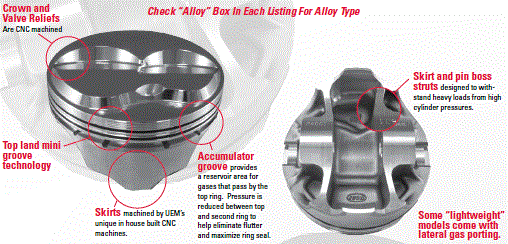

PREMIUM FORGED

2618 and 4032 Alloy
Premium Forged series “Off the Shelf” pistons loaded with Premium Forged features found in custom made pistons.
2618 Alloy material has less than 1% silicon content and is formulated and heat treated for the most demanding performance applications such as very high compression ratios, boosted application and nitrous. 2618 Alloy does have
high thermal expansion which requires larger piston to wall clearance than 4032 alloy.
2618 Alloy applications come with triple wound Spiral Locks
4032 Alloy material has 11% silicon content which controls the thermal expansion so a tighter piston to wall clearance
may be used over the 2618 alloy. The additional silicon will also increase wearability on the skirts and pin bores making this an ideal material for street and some boosted applications.

2618 ALLOY GENERAL
CLEARANCE GUIDE LINES

Application Top Ring End Gap Factor Piston/ Wall
3.500- 4.100 Piston/ Wall
4.100 & UP

Street Naturally Aspirated 0.004 .0035- .0045 .0045- .0055

Street Towing 0.0045 .0040- .0050 .0050- .0060

Street Nitrous Or Supercharged 0.005 .0045- .0055 .0055- .0065

Circle Track 2 Bbl Or Restrictor 0.004 .0040- .0050 .0055- .0065

Circle Track Unrestricted 0.004 .0045- .0065 .0055- .0075

Circle Track Alcohol Injection 0.004 .0045- .0065 .0055- .0075

Circle Track Alcohol Carb 0.0045 .0050- .0070 .0060- .0080

Drag Gasoline 0.004 .0050- .0070 .0060- .0080

Drag Alcohol 0.004 .0040- .0070 .0050- .0080

Drag Supercharged Or Nitrous 0.005 .0060- .0090 .0070- .0100

Drag Supercharged Alcohol 0.005 .0050- .0070 .0060- .0080

Marine Naturally Aspirated 0.004 .0045- .0060 .0055- .0070

Marine Supercharged 0.0045 .0055- .0070 .0065- .0080

Propane 0.004 .0035- .0070 .0045- .0080

Final piston clearance should be based solely on the demands of the application . Clearance has been built into the piston, measure piston prior to final hone .

4032 ALLOY GENERAL
CLEARANCE GUIDE LINES

APPLICATION TOP RING Factor PISTON/ WALL
3.500-4.100 PISTON/ WALL
4.100 & UP

Street Naturally Aspirated 0.004 .0025- .0035 .0035- .0045

Street Towing 0.0045 .0030- .0040 .0040- .0050

Street Nitrous Or Supercharged 0.005 .0035- .0045 .0045- .0055

Circle Track 2 Bbl Or Restrictor 0.004 .0030- .0040 .0045- .0055

Circle Track Unrestricted 0.004 .0035- .0055 .0045- .0065

Circle Track Alcohol Injection 0.004 .0035- .0055 .0045- .0065

Circle Track Alcohol Carb 0.0045 .0040- .0060 .0050- .0070

Drag Gasoline 0.004 .0040- .0060 .0050- .0070

Drag Alcohol 0.004 .0030- .0060 .0040- .0070

Drag Supercharged Or Nitrous 0.005 .0050- .0080 .0060- .0090

Drag Supercharged Alcohol 0.005 .0040- .0060 .0050- .0070

Marine Naturally Aspirated 0.004 .0035- .0050 .0045- .0060

Marine Supercharged 0.0045 .0045- .0060 .0055- .0070

Propane 0.004 .0030- .0060 .0040- .0070

Final piston clearance should be based solely on the demands of the application . Clearance has been built into the piston, measure piston prior to final hone .

Page 6

Premium Forged
AMC / JEEP 4.6L - INLINE 6 CYL. 4 .0 Stroker D-CUP DISH
Piston, rings & lock ring kits

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

3.875 3.895 9.450" 4032 N/A

OVERSIZES:
.020 / .030 / .040 / .060
RING PACK: 2-5/64" / 1-3/16"
RINGSET PART NO: 3875AM8 $86.72 Notes: Offset Pin . Press Fit Only . Use 4 .0 Block and Rods with 258ci crank

PART
No. Piston & Ring Kit ROD C/H PIN DISH DOME C/R
60cc Gram Weight Top
Land Valve RLF Depth DIA.
Intake Valve RLF Depth DIA.
Exhaust

IC945KTM.020 $782.43 6.123 1.353 931 D-cup 10.8cc 10.7 439/ 170 .245" .000" - 0.000" .000" - 0 .000"

IC944KTM.020 $758.60 6.123 1.353 .931 D-cup 21cc 9.6 437/ 170 .245" .000" - .000" .000" - 0 .000"

IC668KTM.020 $782.43 6.123 1.353 .931 CIR . DISH 27cc 8.8 416/ 170 .250" .000" - 0.000" .000" - 0 .000"

Premium Forged
GM LS 4.8L - 5.3L / 5.7L / 6.0L-6.2L
15° VALVE ANGLE 9.240" DECK

New LS lineup has two levels, PREMIUM and ELITE, to match the best features and alloy to the performance applica.. on demands.

PREMIUM

PREMIUM are fully machined from 4032 alloy for street/strip and mild power adders (boost / nitrous).
Piston and ring kits are supplied with new performance 1.2mm steel moly top and 1.2mm duc.. le iron napier second with a 3.0mm oil.

FEATURES:
Off set Wrist pins
2nd Land Accumulator Grooves
Round Wire Locks
M42 $27.83 Skirt Coating Standard ALLOY: 4032
Lock Rings: BR8894-1 $1.15
Ring Pack:
1.2mm, 1.2mm, 3.0mm

GM 4.8L - 5.3L BLOCK

Piston Set Piston and Ring Kit CI Bore Stroke Rod C.H. Pin
Dia. CC Crown Gram Wgt. Piston
Pin Top
Land Comp.
ratiio cc
64.5...68.4 UEM Ring #

IC545C $86.69 IC545CKTS $765.59 327 3.78 3.622 6.098 1.331 .945 3cc Flat Top 403/ 124 .275 9.7 9.3 3780CS8-N $76.92

IC545C.010 $86.69 IC545CKTS.010 $765.59 327 3.79 3.622 6.098 1.331 .945 3cc Flat Top 403/ 124 .275 9.7 9.3 3780CS8.015-N $76.92

IC545C.020 $86.69 IC545CKTS.020 $765.59 327 3.8 3.622 6.098 1.331 .945 3cc Flat Top 403/ 124 .275 9.7 9.3 3780CS8.025-N $76.92

IC545C.030 $86.69 IC545CKTS.030 $765.59 327 3.81 3.622 6.098 1.331 .945 3cc Flat Top 403/ 124 .275 9.7 9.3 3780CS8.035-N $76.92

IC545C.040 $86.69 IC545CKTS.040 $765.59 327 3.82 3.622 6.098 1.331 .945 3cc Flat Top 403/ 124 .275 9.7 9.3 3780CS8.045-N $76.92

IC546C $103.46 IC546CKTS $893.09 327 3.78 3.622 6.125 1.304 .927 3cc Flat Top 399/ 124 .275 9.7 9.3 3780CS8-N $76.92

IC546C.010 $103.46 IC546CKTS.010 $893.09 327 3.78 3.622 6.125 1.304 .927 3cc Flat Top 399/ 124 .275 9.7 9.3 3780CS8.015-N $76.92

IC546C.020 $103.46 IC546CKTS.020 $893.09 327 3.78 3.622 6.125 1.304 .927 3cc Flat Top 399/ 124 .275 9.7 9.3 3780CS8.025-N $76.92

IC546C.030 $103.46 IC546CKTS.030 $893.09 327 3.78 3.622 6.125 1.304 .927 3cc Flat Top 399/ 124 .275 9.7 9.3 3780CS8.035-N $76.92

IC546C.040 $103.46 IC546CKTS.040 $893.09 327 3.78 3.622 6.125 1.304 .927 3cc Flat Top 399/ 124 .275 9.7 9.3 3780CS8.045-N $76.92

IC547C $89.45 IC547CKTS $786.74 327 3.78 3.622 6.098 1.331 .945 -5cc Dome 425/ 124 .275 10.7 10.2 3780CS8-N $76.92

IC547C.010 $89.45 IC547CKTS.010 $786.74 327 3.79 3.622 6.098 1.331 .945 -5cc Dome 425/ 124 .275 10.7 10.2 3780CS8.015-N $76.92

IC547C.020 $89.45 IC547CKTS.020 $786.74 327 3.8 3.622 6.098 1.331 .945 -5cc Dome 425/ 124 .275 10.7 10.2 3780CS8.025-N $76.92

IC547C.030 $89.45 IC547CKTS.030 $786.74 327 3.81 3.622 6.098 1.331 .945 -5cc Dome 425/ 124 .275 10.7 10.2 3780CS8.035-N $76.92

IC547C.040 $89.45 IC547CKTS.040 $786.74 327 3.82 3.622 6.098 1.331 .945 -5cc Dome 425/ 124 .275 10.7 10.2 3780CS8.045-N $76.92

IC548C $103.52 IC548CKTS $897.19 327 3.78 3.622 6.125 1.304 .927 -5cc Dome 425/ 124 .275 10.7 10.2 3780CS8-N $76.92

IC548C.010 $103.52 IC548CKTS.010 $897.19 327 3.79 3.622 6.125 1.304 .927 -5cc Dome 425/ 124 .275 10.7 10.2 3780CS8.015-N $76.92

IC548C.020 $103.52 IC548CKTS.020 $897.19 327 3.8 3.622 6.125 1.304 .927 -5cc Dome 425/ 124 .275 10.7 10.2 3780CS8.025-N $76.92

IC548C.030 $103.52 IC548CKTS.030 $897.19 327 3.81 3.622 6.125 1.304 .927 -5cc Dome 425/ 124 .275 10.7 10.2 3780CS8.035-N $76.92

IC548C.040 $103.52 IC548CKTS.040 $897.19 327 3.82 3.622 6.125 1.304 .927 -5cc Dome 425/ 124 .275 10.7 10.2 3780CS8.045-N $76.92

Premium Forged
GM 5.7L LS1/LS6 BLOCK
15° VALVE ANGLE 9.240" DECK

FEATURES:
Offset Wrist pins
2nd Land Accumulator Grooves
Round Wire Locks
M42 $27.83 Skirt Coating Standard ALLOY: 4032
Lock Rings: BR8894-1 $1.15
Ring Pack:
1.2mm, 1.2mm, 3.0mm

GM 5.7L LS1/LS6 BLOCK

Piston Set Piston and Ring Kit CI Bore Stroke Rod C.H. Pin
Dia. CC Crown Gram Wgt. Piston
Pin Top
Land Comp.
ratiio cc
64.5...68.4 UEM Ring #

IC549C.007 $83.79 IC549CKTS.007 $846.83 346 3.905 3.622 6.125 1.304 .927 3cc Flat Top 430 / 121 245 10.2 9.7 3898ES8.007 $200.00

IC549C.015 $83.79 IC549CKTS.015 $846.83 346 3.913 3.622 6.125 1.304 .927 3cc Flat Top 430 / 121 245 10.2 9.7 3898ES8.015 $200.00

IC550C.007 $127.22 IC550CKTS.007 $1,195.49 346 3.905 3.622 6.125 1.304 .927 -10cc Dome 463 / 121 245 12.0 11.2 3898ES8.007 $200.00

IC550C.015 $127.22 IC550CKTS.015 $1,195.49 346 3.913 3.622 6.125 1.304 .927 -10cc Dome 463 / 121 250 12.0 11.2 3898ES8.015 $200.00

PREMIUM Continued on Page 7

Page 7

CHEVROLET LS ENGINE, continued

GM 6.0L LS2 BLOCK.15° VALVE ANGLE 9.240" DECK

FEATURES:
Offsset Wrist pins
2nd Land Accumulator Grooves
Round Wire Locks
M42 $27.83 Skirt Coating Standard Alloy 4032
Lock Rings: BR8894-1 $1.15
Ring Pack:
1.2mm, 1.2mm, 3.0mm

GM 6.0L LS2 BLOCK 15° VALVE ANGLE 9.240" DECK

Piston Set Piston &
Ring Set CI Bore Stroke Rod C.H. Pin
Dia. CC Crown Gram Wgt. Piston
Pin Top
Land Comp.
ratiio cc
64.5...68.4 UEM Ring #

IC551C $100.66 IC551CKTS $937.86 365 4.00 3.622 6.125 1.304 .927 4cc Flat Top 456/ 121 .275 10.4 10.0 4000ES8 $148.32

IC551C.005 $100.66 IC551CKTS.005 $937.86 365 4.005 3.622 6.125 1.304 .927 4cc Flat Top 456/ 121 .275 10.4 10.0 4000ES8.005 $148.32

IC551C.010 $100.66 IC551CKTS.010 $937.86 365 4.010 3.622 6.125 1.304 .927 4cc Flat Top 456/ 121 .275 10.4 10.0 4000ES8.010 $148.32

IC551C.020 $100.66 IC551CKTS.020 $937.86 365 4.020 3.622 6.125 1.304 .927 4cc Flat Top 456/ 121 .275 10.4 10.0 4000ES8.020 $148.32

IC551C.030 $100.66 IC551CKTS.030 $937.86 365 4.030 3.622 6.125 1.304 .927 4cc Flat Top 456/ 121 .275 10.4 10.0 4000ES8.030 $148.32

IC551C.065 $100.66 IC551CKTS.065 $937.86 375 4.065 3.622 6.125 1.304 .927 4cc Flat Top 456/ 121 .275 10.7 10.3 4000ES8.065 $148.32

IC551C.070 $100.66 IC551CKTS.070 $937.86 375 4.07 3.622 6.125 1.304 .927 4cc Flat Top 456/ 121 .275 10.7 10.3 4000ES8.070 $148.32

IC551C.075 $100.66 IC551CKTS.075 $937.86 375 4.075 3.622 6.125 1.304 .927 4cc Flat Top 456/ 121 .275 10.7 10.3 4000ES8.075 $148.32

IC551C.080 $100.66 IC551CKTS.080 $937.86 375 4.080 3.622 6.125 1.304 .927 4cc Flat Top 456/ 121 .275 10.7 10.3 4000ES8.080 $148.32

IC552C $97.86 IC552CKTS $921.05 403 4.000 4.000 6.125 1.115 .927 4cc Flat Top 418 / 121 .275 11.4 11.0 4000ES8 $148.32

IC552C.005 $97.86 IC552CKTS.005 $921.05 403 4.005 4.00 6.125 1.115 .927 4cc Flat Top 418 / 121 .275 11.4 11.0 4000ES8.005 $148.32

IC552C.010 $97.86 IC552CKTS.010 $921.05 403 4.010 4.00 6.125 1.115 .927 4cc Flat Top 418 / 121 .275 11.4 11.0 4000ES8.010 $148.32

IC552C.020 $97.86 IC552CKTS.020 $921.05 403 4.02 4.00 6.125 1.115 .927 4cc Flat Top 418 / 121 .275 11.4 11.0 4000ES8.020 $148.32

IC552C.030 $97.86 IC552CKTS.030 $921.05 403 4.030 .004 6.125 1.115 .927 4cc Flat Top 418 / 121 .275 11.4 11.0 4000ES8.030 $148.32

IC552C.065 $97.86 IC552CKTS.065 $921.05 414 4.065 4.00 6.125 1.115 .927 4cc Flat Top 418 / 121 .275 11.7 11.2 4000ES8.065 $148.32

IC552C.070 $97.86 IC552CKTS.070 $921.05 414 4.07 4.00 6.125 1.115 .927 4cc Flat Top 418 / 121 .275 11.7 11.2 4000ES8.070 $148.32

IC552C.075 $97.86 IC552CKTS.075 $921.05 414 4.075 4.00 6.125 1.115 .927 4cc Flat Top 418 / 121 .275 11.7 11.2 4000ES8.075 $148.32

IC552C.080 $97.86 IC552CKTS.080 $921.05 414 4.08 4.00 6.125 1.115 .927 4cc Flat Top 418 / 121 .275 11.7 11.2 4000ES8.080 $148.32

IC553C $93.66 IC553CKTS $887.45 365 4.00 3.622 6.125 1.304 .927 12.5cc Dish 460 / 121 .275 9.5 9.2 4000ES8 $148.32

IC553C.005 $93.66 IC553CKTS.005 $887.45 365 4.005 3.622 6.125 1.304 .927 12.5cc Dish 460 / 121 .275 9.5 9.2 4000ES8.005 $148.32

IC553C.010 $93.66 IC553CKTS.010 $887.45 365 4.010 3.622 6.125 1.304 .927 12.5cc Dish 460 / 121 .275 9.5 9.2 4000ES8.010 $148.32

IC553C.020 $93.66 IC553CKTS.020 $887.45 365 4.020 3.622 6.125 1.304 .927 12.5cc Dish 460 / 121 0.28 9.5 9.2 4000ES8.020 $148.32

IC553C.030 $93.66 IC553CKTS.030 $887.45 365 4.030 3.622 6.125 1.304 .927 12.5cc Dish 460 / 121 .275 9.5 9.2 4000ES8.030 $148.32

IC553C.065 $93.66 IC553CKTS.065 $887.45 375 4.065 3.622 6.125 1.304 .927 12.5cc Dish 460 / 121 .275 9.8 9.4 4000ES8.065 $148.32

IC553C.070 $93.66 IC553CKTS.070 $887.45 375 4.070 3.622 6.125 1.304 .927 12.5cc Dish 460 / 121 .275 9.8 9.4 4000ES8.070 $148.32

IC553C.075 $93.66 IC553CKTS.075 $887.45 375 4.075 3.622 6.125 1.304 .927 12.5cc Dish 460 / 121 .275 9.8 9.4 4000ES8.075 $148.32

IC553C.080 $93.66 IC553CKTS.080 $887.45 375 4.080 3.622 6.125 1.304 .927 12.5cc Dish 460 / 121 .275 9.8 9.4 4000ES8.080 $148.32

ELITE

ELITE are fully machined from 2618 Alloy for higher horsepower naturally aspirated and power adder applications.
Features include anodized crown and top land, UltraWear M42 $27.83 skirt coating and 4130 series wrist pins. Piston and ring kits include performance 1.2mm steel moly top and 1.2mm ductile iron napier second with a 3.0mm oil.

GM 5.7L LS1/LS6 BLOCK
15° VALVE ANGLE 9.240" DECK

FEATURES:
Offsset Wrist pins
2nd Land Accumulator Grooves
Round Wire Locks
M42 $27.83 Skirt Coating Standard Alloy 2618
Lock Rings: BR8894-1 $1.15
Ring Pack:
1.2mm, 1.2mm, 3.0mm

GM 5.7L LS1/LS6 BLOCK
15° VALVE ANGLE 9.240" DECK

Piston Set Piston and Ring Set CI Bore Stroke Rod C.H. Pin
Dia. CC Crown Gram Wgt. Piston
Pin Top
Land Comp.
ratiio cc
64.5...68.4 UEM Ring #

IC521CA $110.40 IC521CAKTS $1,059.73 346 3.898 3.622 6.098 1.331 .945 4cc Flat Top 433 / 124 .245 10.0 9.6 3898ES8 $200.00

IC521CA.005 $110.40 IC521CAKTS.005 $1,059.73 346 3.905 3.622 6.098 1.331 .945 4cc Flat Top 433 / 124 .245 10.0 9.6 3898ES8.007 $200.00

IC521CA $110.40 .015 IC521CAKTS.015 $1,059.73 346 3.913 3.622 6.098 1.331 .945 4cc Flat Top 433 / 124 .245 10.0 9.6 3898ES8.015 $200.00

IC520CA $121.67 IC520CAKTS $1,153.47 382 3.898 4.00 6.125 1.115 .927 4cc Flat Top 395 / 121 .245 11.0 10.5 3898ES8 $200.00

IC520CA.005 $121.67 IC520CAKTS.005 $1,153.47 382 3.905 4.00 6.125 1.115 .927 4cc Flat Top 395 / 121 .245 11.0 10.5 3898ES8.007 $200.00

IC520CA.015 $121.67 IC520CAKTS.015 $1,153.47 382 3.913 4.00 6.125 1.115 .927 4cc Flat Top 395 / 121 .245 11.0 10.5 3898ES8.015 $200.00

IC525CA $110.40 IC525CAKTS $1,059.73 346 3.898 3.622 6.125 1.304 .927 16.5cc Dish 426 / 121 .245 8.8 8.5 3898ES8 $200.00

IC525CA.005 $110.40 IC525CAKTS.005 $1,059.73 346 3.905 3.622 6.125 1.304 .927 16.5cc Dish 426 / 121 .245 8.8 8.5 3898ES8.007 $200.00

IC525CA.015 $110.40 IC525CAKTS.015 $1,059.73 346 3.913 3.622 6.125 1.304 .927 16.5cc Dish 426 / 121 .245 8.8 8.5 3898ES8.015 $200.00

IC526CA $110.40 IC526CAKTS $1,059.73 382 3.898 4.00 6.125 1.115 .927 10cc Dish 394 / 121 .245 10.3 9.9 3898ES8 $200.00

IC526CA.005 $110.40 IC526CAKTS.005 $1,059.73 382 3.905 4.00 6.125 1.115 .927 10cc Dish 394 / 121 .245 10.3 9.9 3898ES8.007 $200.00

IC526CA.015 $110.40 IC526CAKTS.015 $1,059.73 382 3.913 4.00 6.125 1.115 .927 10cc Dish 394 / 121 .245 10.3 9.9 3898ES8.015 $200.00

ELITE Continued on Page 8

Page 8
ELITE Premium Forged Series
CHEVROLET LS ENGINE, continued

GM 6.0L-6.2L LS2/LS3/LSA/LS9/L99 BLOCK
15° VALVE ANGLE 9.240" DECK

FEATURES:
Offsset Wrist pins
2nd Land Accumulator Grooves
Round Wire Locks
M42 $27.83 Skirt Coating Standard Alloy 2618
Lock Rings: BR8894-1 $1.15
Ring Pack:
1.2mm, 1.2mm, 3.0mm

GM 6.0L-6.2L LS2/LS3/LSA/LS9/L99 BLOCK
15° VALVE ANGLE 9.240" DECK

Piston Set Piston and Ring Set CI Bore Stroke Rod C.H. Pin
Dia. CC Crown Gram Wgt. Piston
Pin Top
Land Comp.
ratiio cc
64.5...68.4 UEM Ring #

IC528CA $121.67 IC528CAKTS $1,105.92 365 4.00 3.622 6.125 1.304 .927 4cc Flat Top 456 / 108 .275 10.5 10.0 4000ES8.005 $148.32

IC528CA.005 $121.67 IC528CAKTS.005 $1,105.92 365 4.005 3.622 6.125 1.304 .927 4cc Flat Top 456 / 108 .275 10.5 10.0 4000ES8.010 $148.32

IC528CA.010 $121.67 IC528CAKTS.010 $1,105.92 365 4.01 3.622 6.125 1.304 .927 4cc Flat Top 456 / 108 .275 10.5 10.0 4000ES8.015 $148.32

IC528CA.030 $121.67 IC528CAKTS.030 $1,105.92 365 4.030 3.622 6.125 1.304 .927 4cc Flat Top 456 / 108 .275 10.5 10.0 4000ES8.035 $148.32

IC528CA.065 $121.67 IC528CAKTS.065 $1,105.92 375 4.065 3.622 6.125 1.304 .927 4cc Flat Top 456 / 108 .275 10.7 10.3 4000ES8.070 $148.32

IC528CA.070 $121.67 IC528CAKTS.070 $1,105.92 375 4.07 3.622 6.125 1.304 .927 4cc Flat Top 456 / 108 .275 10.7 10.3 4000ES8.075 $148.32

IC528CA.075 $121.67 IC528CAKTS.075 $1,105.92 375 4.075 3.622 6.125 1.304 .927 4cc Flat Top 456 / 108 .275 10.7 10.3 4000ES8.080 $148.32

IC528CA.080 $121.67 IC528CAKTS.080 $1,105.92 375 4.08 3.622 6.125 1.304 .927 4cc Flat Top 456 / 108 .275 10.7 10.3 4000ES8.085 $148.32

IC531CA $116.12 IC531CAKTS $1,063.89 403 4.000 4.000 6.125 1.115 .927 4cc Flat Top 418 / 121 .275 11.5 11.0 4000ES8.005 $148.32

IC531CA.005 $116.12 IC531CAKTS.005 $1,063.89 403 4.005 4.000 6.125 1.115 .927 4cc Flat Top 418 / 121 .275 11.5 11.0 4000ES8.010 $148.32

IC531CA.010 $116.12 IC531CAKTS.010 $1,063.89 403 4.010 4.000 6.125 1.115 .927 4cc Flat Top 418 / 121 .275 11.5 11.0 4000ES8.015 $148.32

IC531CA.03 IC531CAKTS.030 $1,063.89 403 4.030 4.000 6.125 1.115 .927 4cc Flat Top 418 / 121 .275 11.5 11.0 4000ES8.035 $148.32

IC531CA.065 $116.12 IC531CAKTS.065 $1,063.89 414 4.065 4.000 6.125 1.115 .927 4cc Flat Top 418 / 121 .275 11.7 11.2 4000ES8.070 $148.32

IC531CA.070 $116.12 IC531CAKTS.070 $1,063.89 414 4.070 4.000 6.125 1.115 .927 4cc Flat Top 418 / 121 .275 11.7 11.2 4000ES8.075 $148.32

IC531CA.075 $116.12 IC531CAKTS.075 $1,063.89 414 4.075 4.000 6.125 1.115 .927 4cc Flat Top 418 / 121 .275 11.7 11.2 4000ES8.080 $148.32

IC531CA.080 $116.12 IC531CAKTS.080 $1,063.89 414 4.080 4.000 6.125 1.115 .927 4cc Flat Top 418 / 121 .275 11.7 11.2 4000ES8.085 $148.32

IC533CA $121.67 IC533CAKTS $1,105.92 403 4.00 4.00 6.125 1.115 .927 8cc Dish 422 / 121 .275 11.0 10.5 4000ES8.005 $148.32

IC533CA.005 $121.67 IC533CAKTS.005 $1,105.92 403 4.005 4.00 6.125 1.115 .927 8cc Dish 422 / 121 .275 11.0 10.5 4000ES8.010 $148.32

IC533CA.010 $121.67 IC533CAKTS.010 $1,105.92 403 4.01 4.00 6.125 1.115 .927 8cc Dish 422 / 121 .275 11.0 10.5 4000ES8.015 $148.32

IC533CA.030 $121.67 IC533CAKTS.030 $1,105.92 403 4.030 4.00 6.125 1.115 .927 8cc Dish 422 / 121 .275 11.0 10.5 4000ES8.035 $148.32

IC533CA.065 $121.67 IC533CAKTS.065 $1,105.92 414 4.065 4.00 6.125 1.115 .927 8cc Dish 422 / 121 .275 11.3 10.8 4000ES8.070 $148.32

IC533CA.070 $121.67 IC533CAKTS.070 $1,105.92 414 4.07 4.00 6.125 1.115 .927 8cc Dish 422 / 121 .275 11.3 10.8 4000ES8.075 $148.32

IC533CA.075 $121.67 IC533CAKTS.075 $1,105.92 414 4.075 4.00 6.125 1.115 .927 8cc Dish 422 / 121 .275 11.3 10.8 4000ES8.080 $148.32

IC533CA.080 $121.67 IC533CAKTS.080 $1,105.92 414 4.08 4.00 6.125 1.115 .927 8cc Dish 422 / 121 .275 11.3 10.8 4000ES8.085 $148.32

IC529CA $121.67 IC529CAKTS $1,105.92 403 4.000 4.000 6.125 1.115 .927 15cc Dish 422 / 121 .275 10.2 9.8 4000ES8.005 $148.32

IC529CA.005 $121.67 IC529CAKTS.005 $1,105.92 403 4.005 4.000 6.125 1.115 .927 15cc Dish 422 / 121 .275 10.2 9.8 4000ES8.010 $148.32

IC529CA.010 $121.67 IC529CAKTS.010 $1,105.92 403 4.010 4.000 6.125 1.115 .927 15cc Dish 422 / 121 .275 10.2 9.8 4000ES8.015 $148.32

IC529CA.030 $121.67 IC529CAKTS.030 $1,105.92 403 4.030 4.000 6.125 1.115 .927 15cc Dish 422 / 121 .275 10.2 9.8 4000ES8.035 $148.32

IC529CA.065 $121.67 IC529CAKTS.065 $1,105.92 414 4.065 4.000 6.125 1.115 .927 15cc Dish 422 / 121 .275 10.5 10.0 4000ES8.070 $148.32

IC529CA.070 $121.67 IC529CAKTS.070 $1,105.92 414 4.070 4.000 6.125 1.115 .927 15cc Dish 422 / 121 .275 10.5 10.0 4000ES8.075 $148.32

IC529CA.075 $121.67 IC529CAKTS.075 $1,105.92 414 4 4.075 4.000 6.125 1.115 .927 15cc Dish 422 / 121 .275 10.5 10.0 4000ES8.080 $148.32

IC529CA.080 $121.67 IC529CAKTS.080 $1,105.92 414 4.080 4.000 6.125 1.115 .927 15cc Dish 422 / 121 .275 10.5 10.0 4000ES8.085 $148.32

IC530CA $123.13 IC530CAKTS $1,122.72 365 4.00 3.622 6.125 1.304 .927 12.5 Dish 460 / 121 .275 9.6 9.2 4000ES8.005 $148.32

IC530CA.005 $123.13 IC530CAKTS.005 $1,122.72 365 4.005 3.622 6.125 1.304 .927 12.5 Dish 460 / 121 .275 9.6 9.2 4000ES8.010 $148.32

IC530CA.010 $123.13 IC530CAKTS.010 $1,122.72 365 4.01 3.622 6.125 1.304 .927 12.5 Dish 460 / 121 .275 9.6 9.2 4000ES8.015 $148.32

IC530CA.030 $123.13 IC530CAKTS.030 $1,122.72 365 4.030 3.622 6.125 1.304 .927 12.5 Dish 460 / 121 .275 9.6 9.2 4000ES8.035 $148.32

IC530CA.065 $123.13 IC530CAKTS.065 $1,122.72 375 4.065 3.622 6.125 1.304 .927 12.5 Dish 460 / 121 .275 9.8 9.4 4000ES8.070 $148.32

IC530CA.070 $123.13 IC530CAKTS.070 $1,122.72 375 4.07 3.622 6.125 1.304 .927 12.5 Dish 460 / 121 .275 9.8 9.4 4000ES8.075 $148.32

IC530CA.075 $123.13 IC530CAKTS.075 $1,122.72 375 4.075 3.622 6.125 1.304 .927 12.5 Dish 460 / 121 .275 9.8 9.4 4000ES8.080 $148.32

IC530CA.080 $123.13 IC530CAKTS.080 $1,122.72 375 4.08 3.622 6.125 1.304 .927 12.5 Dish 460 / 121 .275 4000ES8.085 $148.32

IC532CA $118.89 IC532CAKTS $1,084.82 403 4.00 4.00 6.125 1.115 .927 20 Dish 413 / 121 .275 9.7 4000ES8.005 $148.32

IC532CA.005 $118.89 IC532CAKTS.005 $1,084.82 403 4.005 4.00 6.125 1.115 .927 20 Dish 413 / 121 .275 9.7 4000ES8.010 $148.32

IC532CA.010 $118.89 IC532CAKTS.010 $1,084.82 403 4.01 4.00 6.125 1.115 .927 20 Dish 413 / 121 .275 9.7 4000ES8.015 $148.32

IC532CA.030 $118.89 IC532CAKTS.030 $1,084.82 403 4.030 4.00 6.125 1.115 .927 20 Dish 413 / 121 .275 9.7 4000ES8.035 $148.32

IC532CA.065 $118.89 IC532CAKTS.065 $1,084.82 414 4.065 4.00 6.125 1.115 .927 20 Dish 413 / 121 .275 10 4000ES8.070 $148.32

IC532CA.070 $118.89 IC532CAKTS.070 $1,084.82 414 4.07 4.00 6.125 1.115 .927 20 Dish 413 / 121 .275 10 4000ES8.075 $148.32

IC532CA.075 $118.89 IC532CAKTS.075 $1,084.82 414 4.075 4.00 6.125 1.115 .927 20 Dish 413 / 121 .275 10 4000ES8.080 $148.32

IC532CA.080 $118.89 IC532CAKTS.080 $1,084.82 414 4.08 4.00 6.125 1.115 .927 20 Dish 413 / 121 .275 10 4000ES8.085 $148.32

IC534CA $127.22 IC534CAKTS $1,147.92 412 4.000 4.100 6.125 1.065 .927 20 Dish 413 / 121 260 9.9 9.5 4000ES8.005 $148.32

IC534CA.005 $127.22 IC534CAKTS.005 $1,147.92 412 4.005 4.10 6.125 1.065 .927 20 Dish 413 / 121 .260 9.9 9.5 4000ES8.010 $148.32

IC534CA.010 $127.22 IC534CAKTS.010 $1,147.92 412 4.01 4.10 6.125 1.065 .927 20 Dish 413 / 121 .260 9.9 9.5 4000ES8.015 $148.32

IC534CA.030 $127.22 IC534CAKTS.030 $1,147.92 412 4.030 4.10 6.125 1.065 .927 20 Dish 413 / 121 .260 9.9 9.5 4000ES8.035 $148.32

IC534CA.065 $127.22 IC534CAKTS.065 $1,147.92 424 4.065 4.10 6.125 1.065 .927 20 Dish 413 / 121 .260 10.2 9.8 4000ES8.070 $148.32

IC534CA.070 $127.22 IC534CAKTS.070 $1,147.92 424 4.07 4.10 6.125 1.065 .927 20 Dish 413 / 121 .260 10.2 9.8 4000ES8.075 $148.32

IC534CA.075 $127.22 IC534CAKTS.075 $1,147.92 424 4.075 4.10 6.125 1.065 .927 20 Dish 413 / 121 .260 10.2 9.8 4000ES8.080 $148.32

IC534CA.080 $127.22 IC534CAKTS.080 $1,147.92 424 4.08 4.10 6.125 1.065 .927 20 Dish 413 / 121 .260 10.2 9.8 4000ES8.085 $148.32

Piston Set Piston and Ring Set CI Bore Stroke Rod C.H. Pin
Dia. CC Crown Gram Wgt. Piston
Pin Top
Land Comp.
ratiio cc
64.5...68.4 UEM Ring #

Page 9
Premium Forged - For Piston and Ring Kit add "KTD".
CHEVROLET W-HEAD | 409 / 348 STROKER
• 409 STROKER
CHEVROLET 409-V8 DOME-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.3125 3.500 9.600" 2618 PRG110-3 $1.15

Oversizes: .038 / .048 / .068 / .078
Ring Pack: 2-1/16" / 1-3/16"
Ring Set Part No. 4320BD8 Notes: Centered Pin. Compression Height Is To
The Top Of The Dome. Uses BB 440 Chrysler Ring
Set.

PART #
Piston & Ring Kit ROD C/H PIN Dish/Dome C/R Gram
Weight Top
Land Valve-RLF
Depth-Dia.
INT • EXH

IC959KTD $1,035.87 6.010 2.307 .990 x 3.000" DOME /2V -89.1cc 10.0 758/158 .198" .135" - 2.320" / .135" - 2.062"

IC979KTD.038 $1,135.34 6.135 2.182 .990 x 3.000" DOME /2V -89.1cc 10.0 743/158 .198" .135" - 2.320" / .135" - 2.062"

CHEVROLET 427-V8 DOME-2V 348 Stroker

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.125 4.000 9.600" 2618 PRG110-3 $1.15

Oversizes: .030 / .040 / .060
Ring Pack:
2-1/16" / 1-3/16"
Ring Set Part No.
4125BD8 Notes: Centered Pin. Compression Height Is To
The Top Of The Dome. Stroked 348 Chevy.

PART #
Piston & Ring Kit ROD C/H PIN Dish/Dome C/R Gram
Weight Top
Land Valve-RLF
Depth-Dia.
INT • EXH

IC958KTD.030 $1,107.29 6.135 1.932 .990 x 2.750" DOME /2V -89.1cc 10.8 642/141 .198" .135" - 2.320" / .135" - 2.062"

C HEVROLET 468-V8 DOME-2V 409 Stroker

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.3125 4.000 9.600" 2618 PRG110-3 $1.15

Oversizes: .038 / .048 / .068 / .078
Ring Pack:
2-1/16" / 1-3/16"
Ring Set Part No.
4320BD8 Notes: Centered Pin. Compression Height Is
To The Top Of The Dome. Uses BB 440 Chrysler
Ring Set.

PART #
Piston & Ring Kit ROD C/H PIN Dish/Dome C/R Gram
Weight Top
Land Valve-RLF
Depth-Dia.
INT • EXH

IC960KTD.038 $1,135.34 6.135 1.932 .990 x 3.000" DOME /2V -89.1cc 11.0 698/158 .198" .180" - 2.320" / .135" - 2.062"

CHEVROLET SBC
CHEVROLET 302-V8 DOME-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.000 3.000 9.025" 2618 PRJ100-3 $1.15

Oversizes: STD / .030 / .040 / .060
Ring Pack:
2-1/16" / 1-3/16"
Ring Set Part No. 4000BD8 $128.59 Notes:
Centered Pin.

PART #
Piston & Ring Kit ROD C/H PIN Dish/
Dome C/R
58cc64cc76cc Gram
Weight Top
Land Valve-RLF Depth-Dia.
INT • EXH

IC802KTD $873.50 5.700 1.805 .927 x 2.750" .250" H/Dome - 9.7cc 12.1 11.0 9.4 552/132 .220" ,264" - 2.200" /.264" - 1.880"

IC803KTD $965.82 5.700 1.805 .927 x 2.750" .400" H/Dome - 12.7cc 12.7 11.5 9.8 560/132 .220" ,264" - 2.200" /.264" - 1.880"

Page 10
CHEVROLET SBC, continued
ELITE Premium Forged Series
CHEVROLET 305-V8 L/W FLAT TOP-2V
Premium Forged - For Piston and Ring Kit add "KTD".

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.000 3.000 9.025" 2618 PRJ100-3 $1.15

Oversizes: ¹ .010 / .020 / .030 / .040 / .050 / .060 / .064
**STD/.020 / .030 / .040 / .060
Ring Pack:
2-1.2mm / 1-3.0mm 2-1.5mm / 1-3.0mm *.020 Not Available
Ring Set Part No. 3736CD8 Notes: Lateral Gas Ports. Centered Pin.

PART #
Piston & Ring Kit ROD C/H PIN Dish/
Dome C/R
58cc64cc76cc Gram
Weight Top
Land Valve-RLF
Depth-Dia.
INT • EXH

IC957KTD.020 $1,030.25 ** 5.700 1.565 .927 x 2.225" FT/2V 3.4cc 10.2 9.5 8.3 405/105 .270" .241" - 2.100" /.221" -1.760"

IC967KTD.030 $1,030.25 * 6.000 1.265 .927 x 2.225" FT/2V 3.4cc 10.2 9.5 8.3 365/105 .310" .241" - 2.100" / .221" - 1.760"

IC704LCAKTS.010 $1,230.54 5.700 1.550 .927 x 2.225" FT/2V 1.6cc 10.4 9.6 8.4 393/105 .180" .196" - 2.100" / .145" - 1.760"

CHEVROLET 305-V8 FLAT TOP-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

3.736 3.480 9.025" 2618 PRJ100-3 $1.15

Oversizes: STD / .030 / .040 / .060
Ring Pack:
2-1/16" / 1-3/16"
Ring Set Part No. 3736BD8 $204.33 Notes:
Centered Pin.

PART #
Piston & Ring Kit ROD C/H PIN Dish/
Dome C/R
58cc64cc76cc Gram
Weight Top
Land Valve-RLF
Depth-Dia.
INT • EXH

IC830KTD $1,051.19 5.700 1.565 .927 x 2.500" FT/2V 3.2cc 10.3 9.5 8.3 428/107 .260" .225" - 2.000" / .196" - 1.680"

IC832KTD $1,051.19 6.000 1.265 .927 x 2.500" FT/2V 3.2cc 10.3 9.5 8.3 376/107 .230" .225" - 2.000" / .196" - 1.680"

CHEVROLET 305-V8 FLAT TOP-4V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

3.736 3.480 9.025" 2618 PRJ100-3 $1.15

Oversizes: STD / .030 / .040 / .060
Ring Pack:
2-1/16" / 1-3/16"
Ring Set Part No. 3736BD8 $204.33 Notes:
4 Symmetrical Valve Reliefs. Centered Pin.
For Classes Requiring 4 Valve Reliefs.

PART #
Piston & Ring Kit ROD C/H PIN Dish/
Dome C/R
58cc64cc76cc Gram
Weight Top
Land Valve-RLF
Depth-Dia.
INT • EXH

IC831KTD $937.80 5.700 1.565 .927 x 2.500" FT/4V 5.3cc 10.0 9.3 8.2 420/107 .260" .205" - 2.000" / .205" - 2.000"

IC833KTD $1,051.19 6.000 1.265 .927 x 2.500" FT/4V 5.3cc 10.0 9.3 8.2 370/107 .230" .205" - 2.000" / .205" - 2.000"

CHEVROLET 327-V8 FLAT TOP-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.000 3.250 9.025" 2618 PRJ100-3 $1.15

Oversizes: STD / .030 / .040 / .060
Ring Pack:
2-1/16" / 1-3/16"
Ring Set Part No.
3736BD8 $204.33 Notes:
Centered Pin.

PART #
Piston & Ring Kit ROD C/H PIN Dish/
Dome C/R
58cc64cc76cc Gram
Weight Top
Land Valve-RLF
Depth-Dia.
INT • EXH

IC792KTD $844.14 5.700 1.678 .927 x 2.750" FT/2V 4.9cc 10.5 9.8 8.6 518/132 .222" .264" - 2.200" / .264" - 1.880"

IC790KTD $965.82 6.000 1.385 .927 x 2.750" FT/2V 4.9cc 10.5 9.8 8.6 463/132 .222" .264" - 2.200" / .264" - 1.880"

Page 11
CHEVROLET SBC, continued PREMIUM
ELITE Premium Forged Series
CHEVROLET 327-V8 DOME-2V
Premium Forged - For Piston and Ring Kit add "KTD".

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.000 3.250 9.025" 2618 PRJ100-3 $1.15

Oversizes: STD / .030 / .040 / .060
Ring Pack:
2-1/16" / 1-3/16"
Ring Set Part No.
4000BD8 $128.59 Notes:

PART #
Piston & Ring Kit ROD C/H PIN Dish/
Dome C/R
58cc64cc76cc Gram
Weight Top
Land Valve-RLF
Depth-Dia.
INT • EXH

IC793KTD $905.74 5.700 1.678 .927 x 2.750" .163" S/Dome - 6.3cc 12.3 11.3 9.7 559/132 .222" .264" - 2.200" / .264" - 1.880"

IC791KTD $965.82 6.000 1.385 .927 x 2.750" .163" S/Dome - 6.3cc 12.3 11.3 9.7 502/132 .222" .264" - 2.200" / .264" - 1.880"

IC817KTD $965.82 6.000 1.385 .927 x 2.750" .250" H/Dome - 9.7cc 13.0 11.9 10.1 472/132 .220" .264" - 2.200" / .264" - 1.880"

IC818KTD $965.80 6.000 1.385 .927 x 2.750" .400" H/Dome - 12.7cc 13.7 12.4 10.5 480/132 .220" .264" - 2.200" / .264" - 1.880"

CHEVROLET 334-V8 STEP-DISH-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

3.736 3.750 9.025" 2618 PRJ100-3 $1.15

Oversizes: STD / .030 / .040 / .060
Ring Pack:
2-1/16" / 1-3/16"
Ring Set Part No.
3736BD8 $204.33 Notes:
Centered Pin.

PART #
Piston & Ring Kit ROD C/H PIN Dish/
Dome C/R
58cc64cc76cc Gram
Weight Top
Land Valve-RLF
Depth-Dia.
INT • EXH

IC834KTD $1,051.19 5.700 1.433 .927 x 2.500" S-DISH 10cc 10.1 9.4 8.3 415/107 .320" .225" - 2.000" / .196" - 1.680"

IC835KTD $1,051.19 6.000 1.133 .927 x 2.500" S-DISH 10cc 10.1 9.4 8.3 356/107 .240" .225" - 2.000" / .196" - 1.680"

CHEVROLET 350-V8 STEP-DISH-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.000 3.480 9.025" 2618 PRJ100-3 $1.15

Oversizes: STD / .030 / .040 / .060
Ring Pack:
2-1/16" / 1-3/16"
Ring Set Part No.
3736BD8 $204.33 Notes:
Centered Pin.

PART #
Piston & Ring Kit ROD C/H PIN Dish/
Dome C/R
58cc64cc76cc Gram
Weight Top
Land Valve-RLF
Depth-Dia.
INT • EXH

IC726KTD $873.53 5.700 1.565 .927 x 2.750" S-DISH 18.6cc 9.6 9.0 8.0 514/132 .289" .264" - 2.200" / .264" - 1.880"

IC731KTD $965.82 6.000 1.265 .927 x 2.750" S-DISH 18.6cc 9.6 9.0 8.0 514/132 .289" .264" - 2.200" / .264" - 1.880"

CHEVROLET 350-V8 L/W FLAT TOP-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.000 3.480 9.025" 2618 PRJ100-3 $1.15

Oversizes:
Ring Pack:
2-1.5mm / 1-3.0mm
Ring Set Part No. Notes:

PART #
Piston & Ring Kit ROD C/H PIN.927 x 2.500" Dish/
Dome C/R
58cc64cc76cc Gram
Weight Top
Land Valve-RLF
Depth-Dia.
INT • EXH

IC971KTD $951.79 5.700 1.565 .927 x 2.500" FT/2V 2.1cc 11.6 10.7 9.4 452/102 .277" .209" - 2.080" / .157" - 1.880"

Page 12
CHEVROLET SBC, continued
ELITE Premium Forged Series
Premium Forged - For Piston and Ring Kit add "KTD".
CHEVROLET 350-V8 L/W FLAT TOP-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.000 3.480 9.025" 2618 PRJ100-3 $1.15

Oversizes: STD / .030 / .040 / .060
Ring Pack:
2-1.5mm / 1-3.0mm
Ring Set Part No.
4000CD8 $97.85 Notes:
Lateral Gas Ports. Centered Pin.
Deep Valve Reliefs for “Flat Milled” Heads With 23
Degree Valve Angles.

PART #
Piston & Ring Kit ROD C/H PIN Dish/
Dome C/R
58cc64cc76cc Gram
Weight Top
Land Valve-RLF
Depth-Dia.
INT • EXH

IC604KTD $1,042.92 6.000 1.250 .927 x 2.500" FT/2V 8.9cc 10.6 9.9 8.8 380/119 .240" .385" - 2.200" / .300" - 1.720"

CHEVROLET 350-V8 L/W FLAT TOP-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.000 3.480 9.025" 2618 PRJ100-3 $1.15

Oversizes:
Ring Pack:
2-1.5mm / 1-3.0mm
Ring Set Part No.
4000CD8 $97.85 Notes:
Centered Pin.

PART #
Piston & Ring Kit ROD C/H PIN Dish/
Dome C/R
58cc64cc76cc Gram
Weight Top
Land Valve-RLF
Depth-Dia.
INT • EXH

IC623KTD $951.79 6.000 1.250 .927 x 2.500" FT/2V 4.7cc 11.2 10.4 9.2 392/102 .231" .275" - 2.200" / .250" - 1.880"

OVAL TRACK
CHEVROLET 350-V8 FLAT TOP-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.000 3.480 9.025 4032 BR8894-1 $1.15

Oversizes: ¹ .005 /.010/ .020 / .030 / .040 / .050/ .060
.005 /.030 / .040 / .060
Ring Pack:
2-1.5mm / 1-3.0mm
Ring Set Part No.
4000CD8 $97.85 Notes: 4032 Alloy. Centered pin. Round wire locks. *ANODIZED CROWN AND TOP RING GROOVE WITH
UPGRADED WRIST PIN **ANODIZED TOP WITH LINE2LINE SKIRT COATING.
SOLD AS PISTON AND RING KIT ONLY 1.2, 1.2, 3.0mm RING PACK

PART #
Piston & Ring Kit ROD C/H PIN Dish/
Dome C/R
58cc64cc76cc Gram
Weight Top
Land Valve-RLF
Depth-Dia.
INT • EXH

¹ S02733LCAK 5.700 1.550 .927 x 2.500" FT/2V 5cc 11.0 10.3 9.0 465/117 .215 .258/2.200" .258"/2.200"

IC500KTD.005 $909.92 5.700 1.550 .927 x 2.500" FT/2V 5cc 11.0 10.3 9.0 446/118 .215 .258/2.200" .258"/2.200"

IC501AKTD.005 $1,023.22 * 5.700 1.550 .927 x 2.500" FT/2V 5cc 11.0 10.3 9.0 446/118 .215 .258/2.200" .258"/2.200"

IC502KTD.005 $909.92 6.000 1.250 .927 x 2.500" FT/2V 5cc 11.0 10.3 9.0 400/118 .215 .258/2.200" .258"/2.200"

IC518LCAK.005 ** 6.000 1.250 .927 x 2.500" FT/2V 4.1cc 11.0 10.3 9.0 396/117 .180 .275/2.200" .213"/1.880"

CHEVROLET 350-V8 FLAT TOP-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.000 3.480 9.025" 2618 PRJ100-3 $1.15

Oversizes: STD / .020 /.030 / .040 / .060 [.065 / .080]*
Ring Pack:
2-1/16" / 1-3/16"
Ring Set Part No.
4000BD8 $128.59 Notes:
Centered Pin.

PART #
Piston & Ring Kit ROD C/H PIN Dish/
Dome C/R
58cc64cc76cc Gram
Weight Top
Land Valve-RLF
Depth-Dia.
INT • EXH

IC717KTD $891.62 * 5.700 1.565 .927 x 2.750" FT/2V 4.9cc 11.2 10.4 9.1 499/132 .222" .264" - 2.200" / .264" - 1.880"

IC702KTD $925.27 6.000 1.265 .927 x 2.750" FT/2V 4.9cc 11.2 10.4 9.1 439/132 .222" .264" - 2.200" / .264" - 1.880"

Page 13
CHEVROLET SBC, continued
ELITE Premium Forged Series
Premium Forged - For Piston and Ring Kit add "KTD".
CHEVROLET 350-V8 L/W DOME-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.000 3.480 9.025" 2618 PRJ100-3 $1.15

Oversizes:
Ring Pack: STD /.030 / .040 / .060
2-1.5mm / 1-3.0mm
Ring Set Part No.
4000CD8 $97.85 Notes:
Lateral Gas Ports. Centered Pin. Fits Aftermarket 64cc Cylinder Heads.

PART #
Piston & Ring Kit ROD C/H PIN Dish/
Dome C/R
64cc Gram
Weight Top
Land Valve-RLF
Depth-Dia.
INT • EXH

IC976KTD $1,079.22 6.000 1.25 .927 x 2.500" .400" S/Dome - 11cc 12.9 433/119 .232" . 300" - 2.200" /
.300" - 1.880"

CHEVROLET 350-V8 L/W DOME-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.000 3.480 9.025" 2618 PRJ100-3 $1.15

Oversizes: STD /.030 / .040 / .060
Ring Pack:
2-1.5mm / 1-3.0mm
Ring Set Part No.
4000CD8 $97.85 Notes: Lateral Gas Ports. Centered Pin. Fits
Aftermarket 50cc Cylinder Heads. 21.5° Valve
Angle.

PART #
Piston & Ring Kit ROD C/H PIN Dish/
Dome C/R
50cc Gram
Weight Top
Land Valve-RLF
Depth-Dia.
INT • EXH

IC977KTD $1,079.22 6.000 1.250 .927 x 2.500" .200" S/Dome - 2.6cc 14.0 409/119 .232" .317" - 2.240" / .284" - 1.800"

CHEVROLET 350-V8 DOME-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.000 3.480 9.025" 2618 PRJ100-3 $1.15

Oversizes: STD / .020 / .030 / .040 / .060
Ring Pack:
2-1/16" / 1-3/16"
Ring Set Part No.
4000BD8 $128.59 Notes: Centered Pin. Fits Vortec Cylinder Heads.

PART #
Piston & Ring Kit ROD C/H PIN Dish/
Dome C/R
58cc64cc76cc Gram
Weight Top
Land Valve-RLF
Depth-Dia.
INT • EXH

IC727KTD $965.82 5.700 1.565 .927 x 2.750" .163" S/Dome - 6.3cc 13.1 12.0 10.3 526/132 .222" .262" - 2.200" / .264" - 1.880"

IC800KTD $965.82 5.700 1.565 .927 x 2.750" .250" H/Dome - 10cc 13.9 12.7 10.8 505/132 .220" .262" - 2.200" / .264" - 1.880"

IC801KTD $965.82 5.700 1.565 .927 x 2.750" .400" H/Dome - 13cc 14.6 13.3 11.2 513/132 .220" .262" - 2.200" / .264" - 1.880"

IC732KTD $965.82 6.000 1.265 .927 x 2.750" .163" S/Dome - 6.3cc 13.1 12.0 10.3 469/132 .222" .262" - 2.200" / .264" - 1.880"

IC798KTD $965.82 6.000 1.265 .927 x 2.750" .250" H/Dome - 10cc 13.9 12.7 10.8 446/132 .220" .262" - 2.200" / .264" - 1.880"

IC799KTD $965.82 6.000 1.265 .927 x 2.750" .400" H/Dome - 13cc 14.6 13.3 11.2 454/132 .220" .262" - 2.200" / .264" - 1.880"

CHEVROLET 353-V8 FLAT TOP-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.125 3.250 9.025" 2618 PRJ100-3 $1.15

Oversizes: STD / .030 / .040 / .060
Ring Pack:
2-1/16" / 1-3/16"
Ring Set Part No.
4125BD8 Notes: Centered Pin.

PART #
Piston & Ring Kit ROD C/H PIN Dish/
Dome C/R
58cc64cc76cc Gram
Weight Top
Land Valve-RLF
Depth-Dia.
INT • EXH

IC765KTD $979.85 6.000 1.380 .927 x 2.750" FT/2V 4.8cc 11.1 10.3 9.1 508/132 .200" .264" - 2.200" / .264" - 1.880"

Page 14
CHEVROLET SBC, continued
ELITE Premium Forged Series
Premium Forged - For Piston and Ring Kit add "KTD".
CHEVROLET 363-V8 L/W DOME-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.000 3.562 9.025" 2618 PRJ100-3 $1.15

Oversizes: STD / .030 / .040 / .060
Ring Pack:
2-1.5mm / 1-3.0mm
Ring Set Part No.
4000CD8 $97.85 Notes: Lateral Gas Ports. Centered Pin.
Fits Aftermarket 64cc Cylinder Heads.

PART #
Piston & Ring Kit ROD C/H PIN Dish/
Dome C/R
64cc Gram
Weight Top
Land Valve-RLF
Depth-Dia.
INT • EXH

IC605KTD $1,079.20 6.000 1.219 .927 x 2.500" .400" S/Dome - 11cc 13.1 431/119 .220" .300" - 2.200" / .300" - 1.880"

CHEVROLET 370-V8 L/W DOME-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.000 3.625 9.025" 2618 PRJ100-3 $1.15

Oversizes: STD / .030 / .040 / .060
Ring Pack:
2-1.5mm / 1-3.0mm
Ring Set Part No.
4000CD8 $97.85 Notes: Lateral Gas Ports. Centered Pin. Fits Aftermarket 64cc Cylinder
Heads.

PART #
Piston & Ring Kit ROD C/H PIN Dish/
Dome C/R
64cc Gram
Weight Top
Land Valve-RLF
Depth-Dia.
INT • EXH

IC606KTD $1,079.22 6.000 1.187 .927 x 2.500" .400" H/Dome - 11cc 13.3 430/119 .221" .300" - 2.200" / .300" - 1.880"

CHEVROLET 377-V8 STEP-DISH-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.125 3.480 9.025" 2618 PRJ100-3 $1.15

Oversizes: STD / .030 / .040 / .060
Ring Pack:
2-1/16" / 1-3/16"
Ring Set Part No.
4125BD8 Notes: Centered Pin.

PART #
Piston & Ring Kit ROD C/H PIN Dish/
Dome C/R
58cc64cc76cc Gram
Weight Top
Land Valve-RLF
Depth-Dia.
INT • EXH

IC761KTD $979.85 5.700 1.561 .927 x 2.750" S-DISH 15.2cc 10.4 9.8 8.7 541/132 .259" .264" - 2.200" / .264" - 1.880"

IC764KTD $979.85 6.000 1.261 .927 x 2.750" S-DISH 15.2cc 10.4 9.8 8.7 479/132 .259" .264" - 2.200" / .264" - 1.880"

CHEVROLET 377-V8 FLAT TOP-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.125 3.480 9.025" 2618 PRJ100-3 $1.15

Oversizes:
Ring Pack:
2-1/16" / 1-3/16"
Ring Set Part No. Notes:

PART #
Piston & Ring Kit ROD C/H PIN Dish/
Dome C/R
58cc64cc76cc Gram
Weight Top
Land Valve-RLF
Depth-Dia.
INT • EXH

IC759KTD $979.85 5.700 1.561 .927 x 2.750" FT/2V 4.8cc 11.8 11.0 9.6 539/132 .220" .264" - 2.200" / .264" - 1.880"

IC762KTD $979.85 6.000 1.261 .927 x 2.750" FT/2V 4.8cc 11.8 11.0 9.6 478/132 .220" .264" - 2.200" / .264" - 1.880"

Page 15
CHEVROLET SBC, continued
ELITE Premium Forged Series
Premium Forged - For Piston and Ring Kit add "KTD".
CHEVROLET 377-V8 DOME-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.125 3.480 9.025" 2618 PRJ100-3 $1.15

Oversizes: .030 / .040 / .060
Ring Pack:
2-1/16" / 1-3/16"
Ring Set Part No.
4125BD8 Notes: Centered Pin. Fits Vortec Cylinder Heads

PART #
Piston & Ring Kit ROD C/H PIN Dish/
Dome C/R
58cc64cc76cc Gram
Weight Top
Land Valve-RLF
Depth-Dia.
INT • EXH

IC760KTD.030 $979.85 5.700 1.561 .927 x 2.750" .163" S/Dome - 6.3cc 13.8 12.6 10.8 573/132 .220" .264" - 2.200" / .264" - 1.880"

IC763KTD.030 $979.85 6.000 1.26 .927 x 2.750" .163" S/Dome - 6.3cc 13.8 12.6 10.8 508/132 .220" .264" - 2.200" / .264" - 1.880"

CHEVROLET 383-V8 STEP-DISH-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.000 3.750 9.025" 2618 PRJ100-3 $1.15

Oversizes: STD / .030 / .040 / .060
Ring Pack:
2-1/16" / 1-3/16"
Ring Set Part No.
4000BD8 $128.59 Notes: Centered Pin.

PART #
Piston & Ring Kit ROD C/H PIN Dish/
Dome C/R
58cc64cc76cc Gram
Weight Top
Land Valve-RLF
Depth-Dia.
INT • EXH

IC735KTD $838.54 5.700 1.425 .927 x 2.750" S-DISH 18.6cc 10.2 9.6 8.6 486/132 .289" .264" - 2.200" / .264" - 1.880"

IC734KTD $926.63 6.000 1.125 .927 x 2.750" S-DISH 18.6cc 10.2 9.6 8.6 422/132 .273" .264" - 2.200" / .264" - 1.880"

CHEVROLET 383-V8 FLAT TOP-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.000 3.750 9.025" 4032 BR8894-1 $1.15

Oversizes: .005 / .030 / .040 / .060
Ring Pack:
2-1.5mm / 1-3.0mm
Ring Set Part No.
4000CD8 $97.85 Notes: 4032 Alloy. Centered pin. Round wire locks.

PART #
Piston & Ring Kit ROD C/H PIN Dish/
Dome C/R
58cc64cc76cc Gram
Weight Top
Land Valve-RLF
Depth-Dia.
INT • EXH

IC503KTD.005 $953.32 6.000 1.125 .927 x 2.500" FT/2V 5cc 11.8 11.0 9.7 384/118 .215 .258/2.200" .258/2.200"

CHEVROLET 383-V8 FLAT TOP-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.000 3.75 9.025" 2618 PRJ100-3 $1.15

Oversizes: STD / .030 / .040 / .060
Ring Pack:
2-1/16" / 1-3/16"
Ring Set Part No.
4000BD8 $128.59 Notes: Centered Pin.
*IC718 Available in .020.

PART #
Piston & Ring Kit ROD C/H PIN Dish/
Dome C/R
58cc64cc76cc Gram
Weight Top
Land Valve-RLF
Depth-Dia.
INT • EXH

IC728KTD $904.25 5.700 1.425 .927 x 2.750" FT/2V 4.9cc 12.0 11.1 9.8 476/132 .222" .264" - 2.200" / .264" - 1.880"

IC718KTD $863.74
* 6.000 1.125 .927 x 2.750" FT/2V 4.9cc 12.0 11.1 9.8 410/132 .222 .264" - 2.200" / .264" - 1.880"

Page 16
CHEVROLET SBC, continued
ELITE Premium Forged Series
Premium Forged - For Piston and Ring Kit add "KTD".
CHEVROLET 383-V8 L/W DOME-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.000 3.750 9.025" 2618 PRJ100-3 $1.15

Oversizes: OVERSIZES: STD / .030 / .040 / .060
Ring Pack:
2-1.5mm / 1-3.0mm
Ring Set Part No.
4000CD8 $97.85 Notes: Lateral Gas Ports. Centered Pin. Fits Aftermarket
64cc Cylinder Heads.

PART #
Piston & Ring Kit ROD C/H PIN Dish/
Dome C/R
64cc Gram
Weight Top
Land Valve-RLF
Depth-Dia.
INT • EXH

IC970KTD $1,079.22 6.000 1.125 .927 x 2.500" .400" S/Dome - 11cc 13.8 421/119 .221" .300" - 2.200" / .300" - 1.880"

CHEVROLET 383-V8 L/W DOME-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.000 3.750 9.025" 2618 PRJ100-3 $1.15

Oversizes: STD / .030 / .040 / .060
Ring Pack:
2-1.5mm / 1-3.0mm
Ring Set Part No.
4000CD8 $97.85 Notes: Lateral Gas Ports. Centered Pin. Fits Aftermarket
50cc Cylinder Heads. 21.5° Valve Angle.

PART #
Piston & Ring Kit ROD C/H PIN Dish/
Dome C/R
50cc Gram
Weight Top
Land Valve-RLF
Depth-Dia.
INT • EXH

IC972KTD $1,079.22 6.000 1.125 .927 x 2.500" .181" S/Dome - 2cc 14.8 296/119 .221" .317" - 2.240" / .284" - 1.800"

CHEVROLET 383-V8 DOME-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.000 3.750 9.025" 2618 PRJ100-3 $1.15

Oversizes: STD / .030 / .040 / .060
Ring Pack:
2-1/16" / 1-3/16"
Ring Set Part No.
4000BD8 $128.59 Notes: Centered Pin. Fits Vortec Cylinder Heads.

PART #
Piston & Ring Kit ROD C/H PIN Dish/
Dome C/R
58cc64cc76cc Gram
Weight Top
Land Valve-RLF
Depth-Dia.
INT • EXH

IC737KTD $965.82 5.700 1.425 927 x 2.750" .163" S/Dome - 6.3cc 14.1 12.9 11.0 526/132 .222" .264" - 2.200" / .264" - 1.880"

IC796KTD $965.82 5.700 1.425 927 x 2.750" .250" H/Dome - 10cc 14.9 13.6 11.5 481/132 .220" .264" - 2.200" / .264" - 1.880"

IC797KTD $965.82 5.700 1.425 927 x 2.750" .400" H/Dome - 13cc 15.7 14.2 12.0 490/132 .220" .264" - 2.200" / .264" - 1.880"

IC733KTD $876.27 6.000 1.125 927 x 2.750" .163" S/Dome - 6.3cc 14.1 12.9 11.0 441/132 .220" .264" - 2.200" / .264" - 1.880"

IC794KTD $879.10 6.000 1.125 927 x 2.750" .250" H/Dome - 10cc 14.9 13.6 11.5 418/132 .220" .264" - 2.200" / .264" - 1.880"

IC795KTD $965.82 927 x 2.750" .400" H/Dome - 13cc 15.7 14.2 12.0 427/132 .220" .264" - 2.200" / .264" - 1.880"

CHEVROLET 388-V8 L/W DOME-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.125 3.625 9.025" 2618 PRJ100-3 $1.15

Oversizes:
Ring Pack:
2-1/16" / 1-3/16"
Ring Set Part No. Notes: Lateral Gas Ports. Centered Pin.
Fits Aftermarket 64cc Cylinder Heads.

PART #
Piston & Ring Kit ROD C/H PIN Dish/
Dome C/R
64cc Gram
Weight Top
Land Valve-RLF
Depth-Dia.
INT • EXH

IC608KTD $1,149.34 6.000 1.187 .927 x 2.500" .400" H/Dome - 11cc 14.0 455/119 .221" .300" - 2.200" / .300" - 1.880"

Page 17
CHEVROLET SBC, continued
ELITE Premium Forged Series
Premium Forged - For Piston and Ring Kit add "KTD".
CHEVROLET 395-V8 L/W FLAT TOP-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.000 3.875 9.025" 2618 PRJ100-3 $1.15

Oversizes: STD / .030 / .040 / .060
Ring Pack:
2-1.5mm / 1-3.0mm
Ring Set Part No.
4000CD8 $97.85 Notes: Centered Pin. Fits Aftermarket 64cc Cylinder
Heads.

PART #
Piston & Ring Kit ROD C/H PIN Dish/Dome C/R
64cc Gram
Weight Top
Land Valve-RLF
Depth-Dia.
INT • EXH

IC978KTD $1,026.13 6.000 1.062 .927 x 2.500" FT/2V 6.3cc 11.3 356/119 .221" .300" - 2.200" / .300" - 1.880"

CHEVROLET 395-V8 L/W DOME-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.000 3.875 9.025" 2618 PRJ100-3 $1.15

Oversizes: STD / .030 / .040 / .060
Ring Pack:
2-1.5mm / 1-3.0mm
Ring Set Part No.
4000CD8 $97.85 Notes: Lateral Gas Ports. Centered Pin. Fits
Aftermarket 64cc Cylinder Heads.

PART #
Piston & Ring Kit ROD C/H PIN Dish/Dome C/R
64cc Gram
Weight Top
Land Valve-RLF
Depth-Dia.
INT • EXH

IC963KTD $1,079.20 6.000 1.062 .927 x 2.500" .400" S/Dome - 11cc 14.2 433/119 .221" .285" - 2.200" / .224" - 1.880"

CHEVROLET 395-V8 L/W DOME-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.000 3.875 9.025" 2618 PRJ100-3 $1.15

Oversizes: STD / .030 / .040 / .060
Ring Pack:
2-1.5mm / 1-3.0mm
Ring Set Part No.
4000CD8 $97.85 Notes: Lateral Gas Ports. Centered Pin. Fits Aftermarket
50cc Cylinder Heads. 21.5° Valve Angle.

PART #
Piston & Ring Kit ROD C/H PIN Dish/
Dome C/R
50cc Gram
Weight Top
Land Valve-RLF
Depth-Dia.
INT • EXH

IC964KTD $1,079.22 6.000 1.062 .927 x 2.500" .068" S/Dome - 2.9cc 14.2 370/119 .221" .322" - 2.240" / .284" - 1.800"

CHEVROLET 400-V8 L/W DOME-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.125 3.750 9.025" 2618 PRJ100-3 $1.15

Oversizes: STD / .030 / .040 / .060
† STD / .010 / .020 / .025 / .030 / .040 / .060
Ring Pack:
2-1.5mm / 1-3.0mm
Ring Set Part No.
4125CD8 Notes: Lateral Gas Ports. Centered Pin.
Fits Aftermarket 64cc Cylinder Heads.
*Fits with Brodix IIx ASCS Head.

PART #
Piston & Ring Kit ROD C/H PIN Dish/
Dome C/R
58cc64cc76cc Gram
Weight Top
Land Valve-RLF
Depth-Dia.
INT • EXH

IC609KTD $1,149.34 * 6.000 1.125 .927 x 2.500" .285" S/Dome - 9cc 15.4 14.0 12.0 440/119 .211" .300" - 2.200" / .300" - 1.880"

IC640KTD $1,227.72 † 6.125 1.000 .927 x 2.500" .212" DOME - 7cc 14.9 13.6 11.7 435/119 .202" .320" - 2.200" / .257" - 1.720"

Page 18
CHEVROLET SBC, continued
ELITE Premium Forged Series
Premium Forged - For Piston and Ring Kit add "KTD".
CHEVROLET 400-V8 STEP-DISH-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.125 3.750 9.025" 2618 PRG110-3 $1.15

Oversizes: STD / .030 / .040 / .060
Ring Pack:
2-1/16" / 1-3/16"
Ring Set Part No.
4125BD8 Notes: Centered Pin.

PART #
Piston & Ring Kit ROD C/H PIN Dish/
Dome C/R
58cc64cc76cc Gram
Weight Top
Land Valve-RLF
Depth-Dia.
INT • EXH

IC754KTD $1,016.27 5.700 1.425 .927 x 2.750" S-DISH 15.2cc 11.2 10.5 9.3 525/132 .251" .264" - 2.200" / .264" - 1.880"

IC753KTD $979.85 5.700 1.425 .927 x 2.750" S-DISH 26.6cc 9.9 9.4 8.5 535/132 .253" .289" - 2.200" / .289" - 1.880"

IC758KTD $999.39 6.000 1.125 .927 x 2.750" S-DISH 15.2cc 11.2 10.5 9.3 459/132 .250" .264" - 2.200" / .264" - 1.880"

IC757KTD $953.34 6.000 1.125 .927 x 2.750" S-DISH 26.6cc 9.9 9.4 8.5 463/132 .230" .289" - 2.200" / .289" - 1.880"

CHEVROLET 400-V8 FLAT TOP-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.125 3.750 9.025" 2618 PRJ100-3 $1.15

Oversizes: STD / .030 / .040 / .060
Ring Pack:
2-1/16" / 1-3/16"
Ring Set Part No.
4125BD8 Notes: Centered Pin.

PART #
Piston & Ring Kit ROD C/H PIN Dish/
Dome C/R
58cc64cc76cc Gram
Weight Top
Land Valve-RLF
Depth-Dia.
INT • EXH

IC751KTD $979.85 5.700 1.425 .927 x 2.750” FT/2V 4.8cc 12.6 11.7 10.3 517/132 .200” .264”-2.200” / .264”-1.880”

IC755KTD $979.85 6.000 1.125 .927 x 2.750” FT/2V 4.8cc 12.6 11.7 10.3 449/132 .223” .264”-2.200” / .264”-1.880”

CHEVROLET 400-V8 DOME-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.125 3.750 9.025" 2618 PRJ100-3 $1.15

Oversizes: STD / .030 / .040 / .060
Ring Pack:
2-1/16" / 1-3/16"
Ring Set Part No. Notes: Solid Dome. Centered Pin. Fits Vortec Cylinder Heads. Does not fit Bodix Track 1 heads.

PART #
Piston & Ring Kit ROD C/H PIN Dish/
Dome C/R
58cc64cc76cc Gram
Weight Top
Land Valve-RLF
Depth-Dia.
INT • EXH

IC752KTD $979.85 5.700 1.425 .927 x 2.750” .163” DOME -6.3cc 14.8 13.5 11.6 547/132 .200” .262”-2.200” / .262”-1.880”

IC756KTD $1,007.83 6.000 1.125 .927 x 2.750” .163” DOME -6.3cc 14.8 13.5 11.6 483/132 .223” .264”-2.200” / .264”-1.880”

CHEVROLET 421–V8 L/W DOME-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.125 3.875 9.025" 2618 PRJ100-3 $1.15

Oversizes: STD / .020 / .030 / .040 / .060
Ring Pack:
2-1.5mm / 1-3.0mm
Ring Set Part No.
4125CD8 Notes: Lateral Gas Ports. Centered Pin. Fits Aftermarket
64cc Cylinder Heads.
Fits Brodix 11 x head.

PART #
Piston & Ring Kit ROD C/H PIN Dish/Dome C/R
64cc Gram
Weight Top
Land Valve-RLF
Depth-Dia.
INT • EXH

IC965KTD $1,058.27 6.000 1.062 .927 x 2.500” .205” H-DOME -7.8cc 14.0 427/119 .221” .286”-2.200” / .224”-1.880”

Page 19
CHEVROLET SBC, continued
ELITE Premium Forged Series
CHEVROLET 421–V8 L/W FLAT TOP-2V
Premium Forged - For Piston and Ring Kit add "KTD".

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.125 3.875 9.025" 2618 PRG110-3 $1.15

Oversizes: STD / .020 / .030 / .040 / .060
Ring Pack:
2-1.5mm / 1-3.0mm
Ring Set Part No.
4125CD8 Notes: Lateral Gas Ports. Centered Pin. Fits
Aftermarket 50cc Cylinder Heads. 21.5° Valve Angle.

PART #
Piston & Ring Kit ROD C/H PIN Dish/Dome C/R
50cc Gram
Weight Top
Land Valve-RLF
Depth-Dia.
INT • EXH

IC966KTD $1,049.89 6.000 1.062 .927 x 2.500” FT/2V 7.1cc 14.0 421/11 .221” .322”-2.240” / .283”-1.800”

CHEVROLET 434–V8 L/W DISH-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.125 4.000 9.025" 2618 PRJ100-3 $1.15

Oversizes: STD / .030 / .040 / .060
Ring Pack:
2-1.5mm / 1-3.0mm
Ring Set Part No.
4125CD8 Notes: Symmetrical Valve Reliefs. Centered Pin.

PART #
Piston & Ring Kit ROD C/H PIN Dish/Dome C/R
64cc Gram
Weight Top
Land Valve-RLF
Depth-Dia.
INT • EXH

IC612KTD $842.67 6.000 1.000 .927 x 2.500” DISH 20cc 10.6 00/107 .220” .326”-2.200” / .326”-2.200”

CHEVROLET 434–V8 L/W FLAT TOP-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.125 4.000 9.025" 2618 PRJ100-3 $1.15

Oversizes: STD / .030 / .040 / .060
Ring Pack:
2-1.5mm / 1-3.0mm
Ring Set Part No.
4125CD8 Notes: Symmetrical Valve Reliefs. Centered

PART #
Piston & Ring Kit ROD C/H PIN Dish/Dome C/R
64cc Gram
Weight Top
Land Valve-RLF
Depth-Dia.
INT • EXH

IC611KTD $1,149.34 6.000 1.000 .927 x 2.500” FT/2V 8cc 12.0 388/119 .206” .326”-2.200” / .326”-2.200”

CHEVROLET 434–V8 STEP-DISH-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.125 4.000 9.025" 2618 PRJ100-3 $1.15

Oversizes: STD / .030 / .040 / .060
Ring Pack:
2-1/16” / 1-3/16
Ring Set Part No.
4125BD8 Notes: Centered Pin.

PART #
Piston & Ring Kit ROD C/H PIN Dish/
Dome C/R
58cc64cc76cc Gram
Weight Top
Land Valve-RLF
Depth-Dia.
INT • EXH

IC851KTD $949.05 6.000 1.015 .927 x 2.750” S-DISH 15.2cc 11.8 11.1 9.9 430/132 .185” .307”-2.280” / .264”-1.880”

IC850KTD $979.85 6.000 1.015 .927 x 2.750” S-DISH 26.5cc 10.5 10.0 9.0 391/132 .190” .289”-2.200” / .289”-1.880”

Page 20
CHEVROLET SBC, continued
ELITE Premium Forged Series
Premium Forged - For Piston and Ring Kit add "KTD".
CHEVROLET 434–V8 FLAT TOP-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.125 4.000 9.025" 2618 PRG110-3 $1.15

Oversizes: STD / .030 / .040 / .060
Ring Pack:
2-1/16" / 1-3/16"
Ring Set Part No.
4125BD8 Notes: Centered Pin.

PART #
Piston & Ring Kit ROD C/H PIN Dish/
Dome C/R
58cc64cc76cc Gram
Weight Top
Land Valve-RLF
Depth-Dia.
INT • EXH

IC849KTD $979.85 6.000 1.015 .927 x 2.750” FT/2V 4.8cc 13.4 12.4 10.9 422/13 .180” .264”-2.200” / .264”-1.880”

CHEVROLET 434–V8 DOME-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.125 4.000 9.025" 2618 PRJ100-3 $1.15

Oversizes: **STD / .030 / .040 / .060
† STD / .010 / .020 / .025 / .030 / .040 / .060
Ring Pack:
2-1.5mm / 1-3.0mm
Ring Set Part No.
4125BD8, *4125CD8 Notes: Solid Dome. Centered Pin. Fits Vortec
Cylinder Heads. *Metric Ring Pack 2-1.5mm,
1-3mm with lateral gas porting. No ring set for
.010" through Icon.

PART #
Piston & Ring Kit ROD C/H PIN Dish/
Dome C/R
58cc64cc76cc Gram
Weight Top
Land Valve-RLF
Depth-Dia.
INT • EXH

ßIC893KTD $979.85 ** 6.000 1.015 .927 x 2.750¨ .180¨ DOME -7cc 16.3 14.9 12.7 457/132 .180¨ .264¨-2.200¨ / .264¨-1.880¨

IC640KTD $1,227.72 †* 6.000 1.000 .927 x 2.500¨ .212¨ DOME -7cc 16.3 14.9 12.7 435/119 .202¨ .320¨-2.200¨ / .257¨-1.880¨

CHEVROLET BBC
CHEVROLET 427–V8 FLAT TOP-1V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.250 3.760 9.800” 2618 PRG110-3 $1.15

Oversizes: STD / .030 / .040 / .060 / .070 / .100
Ring Pack:
2-1/16” / 1-3/16”
Ring Set Part No.
4250BD8 $117.54 Notes: Centered Pin.

PART #
Piston & Ring Kit ROD C/H PIN Dish/
Dome C/R cc
96.5 108 119 Gram
Weight Top
Land Valve-RLF
Depth-Dia.
INT • EXH

IC776KTD $970.09 6.135 1.765 .990 x 2.750” FT/1V 3cc 9.7 8.4 7.7 629/141 .360” .287”-2.300” / .000”-0.000”

IC784KTD $957.54 6.385 1.520 .990 x 2.750” FT/1V 3cc 9.7 8.4 7.7 582/141 .350” .287”-2.300” / .000”-0.000”

CHEVROLET 427–V8 DOME-1V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.250 3.760 9.800” 2618 PRG110-3 $1.15

Oversizes: STD / .030 / .040 / .060 / .070 / .100
Ring Pack:
2-1/16” / 1-3/16”
Ring Set Part No.
4250BD8 $117.54 Notes: Closed Chamber Design. Centered Pin.
Edelbrock and O.E. Heads.

PART #
Piston & Ring Kit ROD C/H PIN Dish/
Dome C/R cc
96.5-- 108 --119 Gram
Weight Top
Land Valve-RLF
Depth-Dia.
INT • EXH

IC777KTD $919.65 6.135 1.765 .990 x 2.750” .190” H/Dome -18cc 10.9 9.8 8.9 671/141 .360” .285”-2.300” / .000”-0.000”

IC786KTD $1,031.70 6.385 1.520 .990 x 2.750” .130” S/Dome -12cc 10.3 9.3 8.5 623/141 .350” .285”-2.300” / .000”-0.000”

IC788KTD $1,026.00 6.385 1.520 .990 x 2.750” .210” H/Dome -20cc 11.1 10.1 9.1 627/141 .350 .285”-2.300” / .000”-0.000”

Page 21
CHEVROLET BBC, continued
CHEVROLET 427–V8 DOME-1V
Premium Forged - For Piston and Ring Kit add "KTD".

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.250 3.760 9.800" 2618 PRG110-3 $1.15

Oversizes:
STD / .030 / .040 / .060 / .070 / .100
Ring Pack:
2-1/16" / 1-3/16"
Ring Set Part No. 4250BD8 $117.54 Notes: Hollow Dome. Centered Pin. Will Fit Afr, Rhs, Trick Flow, World, Edelbrock, Brodix, Dart & O.E. Chevy Open Chamber Heads That Are 118cc’s Or Larger. Always Check Piston To Chamber & Valves To Assure You Have Adequate Operating Clearance.

PART #
Piston & Ring Kit ROD C/H PIN Dish/ Dome C/R
119cc Gram
Weight Top
Land Valve-RLF
Depth-Dia.
INT • EXH

IC988KTD $1,045.65 6.135 1.765 .990 x 2.750" .425" DOME -38cc 11 703/141 .360” .275"-2.420" / N/A

IC998KTD $1,112.94 6.135 1.765 .990 x 2.750" .650" DOME -43cc 11 718/141 .360” 275"-2.420" / N/A

IC989KTD $1,045.65 6.385 1.52 .990 x 2.750" .425" Dome
-38cc 11 655/141 .340” ..275"-2.420" / N/A

IC999KTD $1,059.63 6.385 1.52 .990 x 2.750" .650" DOME -43cc 11 668/141 .340” .275"-2.420" / N/A

CHEVROLET 454–V8 FLAT TOP-1V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.250 4.000 9.800" 2618 PRG110-3 $1.15

Oversizes: STD / .030 / .040 / .060 / .070 / .100
Ring Pack: 2-1/16" / 1-3/16"
Ring Set Part No. 4250BD8 $117.54 Notes:
Centered Pin.

PART #
Piston & Ring Kit ROD C/H PIN DISH/ DOME C/R cc
96.5--115-119 GRAM Top
Land VALVE-RLF DEPTH-DIA.

IC780KTD $937.85 6.135 1.645 .990 x 2.750" FT/1V 3cc 9.7 8.4 8.2 605/141 .365" .287"-2.300" / .000"-0.000"

IC781KTD $1,016.33 6.385 1.395 .990 x 2.750" FT/1V 3cc 9.7 8.4 8.2 546/141 .355" .287"-2.300" / .000"-0.000"

CHEVROLET 454–V8 CLOSED CHAMBER DOME-1V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.250 4.000 9.800 2618 PRG110-3 $1.15

OVERSIZES: STD / .030 / .040 / .060 / .070 / .100 Notes: Closed Chamber Design. Centered Pin. Edelbrock and O.E. style Heads. Does not fit Mark 6 heads.

RING PACK:
2-1/16" / 1-3/16"

RINGSET PART NO: 4250BD8 $117.54

PART #
Piston & Ring Kit ROD C/H PIN DISH/ DOME C/R cc
96.5----115--119 GRAM Top
Land VALVE-RLF DEPTH-DIA.

IC779KTD $964.46 6.135 1.645 .990 x 2.750" .190" H/Dome -18cc 11.7 9.9 9.5 648/141 .365" .285"-2.300" / .000"-0.000"

IC782KTD $931.00 6.135 1.645 .990 x 2.750" .290" H/Dome -27cc 12.9 10.7 10.3 673/141 .365" .286"-2.300" / .000"-0.000"

IC778KTD $1,045.65 6.385 1.395 .990 x 2.750" 190” H/Dome -18cc 11.7 9.9 9.5 591/141 .365" .285"-2.300" / .000"-0.000"

IC783KTD $1,045.65 6.385 1.395 .990 x 2.750" .290” H/Dome -27cc 12.9 10.7 10.3 616/141 .355" .286"-2.300" / .000"-0.000"

CHEVROLET 454–V8 OPEN CHAMBER DOME-1V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.250 4.000 9.800" 2618 PRG110-3 $1.15

Oversizes: STD / .030 /.040/ .060 / .070 / .100 / .125
Ring Pack:
2-1/16" / 1-3/16"
Ring Set Part No.
4250BD8 $117.54 Notes: Hollow Dome. Centered Pin. Will Fit Afr, Rhs, Trick Flow,
World, Edelbrock, Brodix, Dart & O.E. Chevy Open Chamber Heads
That Are 118cc’s Or Larger. Always Check Piston To Chamber &
Valves To Assure You Have Adequate Operating Clearance.

PART #
Piston & Ring Kit ROD C/H PIN DISH/ DOME C/R
119cc GRAM Top
Land VALVE-RLF DEPTH-DIA.

IC990KTD $991.07 6.135 1.645 .990 x 2.750" .425" DOME -38cc 11 678/141 .360" .275"-2.420" / N/A

IC600KTD $1,034.43 6.135 1.645 .990 x 2.750" .650" DOME -43cc 12 690/141 .360" .275"-2.420" / N/A

IC991KTD $1,097.53 6.385 1.395 .990 x 2.750" .425" DOME -38cc 11 620/141 .360" .275"-2.420" / N/A

IC601KTD $1,061.09 6.385 1.395 .990 x 2.750" .650" DOME -43cc 12 633/141 .360" .275"-2.420" / N/A

Page 22
CHEVROLET BBC, continued
CHEVROLET 489–V8 DISH-1V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.250 4.250 9.800" 2618 PRG110-3 $1.15

Oversizes: STD / .030 / .040 / .060 / .070 / .100
Ring Pack: 2-1/16" / 1-3/16"
Ring Set Part No.
4250BD8 $117.54 Notes:
Centered Pin.

PART #
Piston & Ring Kit ROD C/H PIN DISH/ DOME C/R cc
96.5---115-119 GRAM Top
Land VALVE-RLF DEPTH-DIA.

IC947KTD $1,045.65 6.385 1.270 .990 x 2.750” DISH 11.5cc 9.5 8.4 8.2 517/141 .350” .302”-2.370” / .000”-0.000”

CHEVROLET 489–V8 FLAT TOP-1V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.250 4.250 9.800" 2618 PRG110-3 $1.15

Oversizes: STD / .030 / .040 / .060 / .070 / .10
Ring Pack: 2-1/16" / 1-3/16"
Ring Set Part No.
4250BD8 $117.54 Notes:
Centered Pin.

PART #
Piston & Ring Kit ROD C/H PIN DISH/ DOME C/R cc
96.5---115-119 GRAM Top
Land VALVE-RLF DEPTH-DIA.

IC784KTD $957.54 6.135 1.520 .990 x 2.750” FT/1V 3cc 10.2 8.9 8.6 582/141 .350” .287”-2.300” / .000”-0.000”

IC785KTD $929.47 6.385 1.270 .990 x 2.750” FT/1V 3cc 10.2 8.9 8.6 520/141 .336” .287”-2.300” / .000”-0.000”

CHEVROLET 489–V8 CLOSED CHAMBER DOME-1V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.250 4.250 9.800" 2618 PRG110-3 $1.15

Oversizes: STD / .030 / .040 / .060 / .070 / .100
Ring Pack: 2-1/16" / 1-3/16"
Ring Set Part No.
4250BD8 $117.54 Notes: Closed Chamber Design. Centered Pin. Edelbrock & O.E. Heads. Does not fit Mark 6
heads.

PART #
Piston & Ring Kit ROD C/H PIN Dish/Dome C/R cc
96.5----115---119 Gram
Weight Top
Land Valve-RLF
Depth-Dia.
INT • EXH

IC786KTD $1,031.70 6.135 1.520 .990 x 2.750” .130” S/Dome -12cc 11.7 9.9 9.6 623/141 .350” .285”-2.300” / .000”-0.000”

IC788KTD $1,026.00 6.135 1.520 .990 x 2.750” .210” H/Dome -20cc 12.7 10.6 10.2 627/141 .350” .285”-2.300” / .000”-0.000”

IC787KTD $975.65 6.385 1.270 .990 x 2.750” .130” S/Dome -12cc 11.7 9.9 9.6 566/141 .336” .285”-2.300” / .000”-0.000”

IC789KTD $1,003.80 6.385 1.270 .990 x 2.750” .210” H/Dome -20cc 12.7 10.6 10.2 571/141 .336” .285”-2.300” / .000”-0.000”

CHEVROLET 489–V8 OPEN CHAMBER DOME-1V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.250 4.250 9.800” 2618 PRG110-3 $1.15

Oversizes: STD / .030 / .040 / .060 / .070 / .100 / .125
Ring Pack:
2-1/16" / 1-3/16"
Ring Set Part No.
4250BD8 $117.54 Notes: Hollow Dome. Centered Pin. Will Fit AFR, RHS, Trick Flow, World, Edelbrock, Brodix, Dart & O.E. Chevy Open
Chamber Heads That Are 118cc’s Or Larger. Always Check Piston To Chamber & Valves To Assure You Have Adequate Operating
Clearance.

PART #
Piston & Ring Kit ROD C/H PIN DISH/ .425”DOME C/R cc
119 GRAM Top
Land VALVE-RLF DEPTH-DIA.

IC989KTD $1,045.65 6.135 1.520 .990 x 2.750” DOME -38cc 12.0 655/141 .340” .275”-2.420” N/A

IC999KTD $1,059.63 6.135 1.520 .990 x 2.750” .650” DOME -43cc 12.7 668/141 .340” .275”-2.420” N/A

IC993KTD $1,112.94 6.385 1.270 .990 x 2.750” .425” DOME -38cc 12.0 595/141 .340” .275”-2.420” N/A

IC603KTD $1,061.09 6.385 1.270 .990 x 2.750” .650” DOME -43cc 12.7 608/141 .340” .275”-2.420” N/A

Page 23
CHEVROLET BBC, continued
CHEVROLET 502–V8 DISH-1V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.466 4.000 9.800" 2618 PRG110-3 $1.15

Oversizes: .004 / .034 / .064 / .100 / .134
Ring Pack: 2-1/16" / 1-3/16"
Ring Set Part No.
4466BD8 Notes:
Centered Pin.

PART #
Piston & Ring Kit ROD C/H PIN DISH/ DOME C/R cc
96.5---115-119 GRAM Top
Land VALVE-RLF DEPTH-DIA.

IC948KTD.004 $1,073.70 6.385 1.395 .990 x 2.750 DISH 11.5cc 9.8 8.6 8.4 597/141 .350” .311”-2.374” / .000”-0.000”

CHEVROLET 502–V8 FLAT TOP-1V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.466
¹ 4.500 4.000 9.800" 2618 PRG110-3 $1.15

Oversizes: ¹ STD / .030 / .060 / .100 / .110 / .125
.004 / .034 / .064 / .100 / .134
Ring Pack: 2-1/16" / 1-3/16"
Ring Set Part No.
4466BD8 ¹ 4500JS8 Notes:
Centered Pin.

PART #
Piston & Ring Kit ROD C/H PIN DISH/ DOME C/R cc
96.5----115--119 GRAM Top
Land VALVE-RLF DEPTH-DIA.

IC805KTD.004 $979.94 6.135 1.645 .990 x 2.750” FT/1V 3c 10.5 9.1 8.9 656/141 .336” .302”-2.374” / .000”-0.000”

IC806KTD.004 $998.14 6.385 1.395 .990 x 2.750” FT/1V 3cc 10.5 9.1 8.9 576/141 .330” .302”-2.374” / .000”-0.000”

¹ IC748KTS $1,131.12 6.135 1.645 .990 x 2.750” FT/1V 3cc 10.5 9.1 8.9 670/175 .350” .340”-2.536” / .000”-0.000”

CHEVROLET 502–V8 CLOSED CHAMBER DOME-1V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.466
¹ 4.500 4.000 9.800" 2618
¹ 4032 PRG110-3 $1.15

Oversizes: ¹ STD / .030 / .060 / .100 / .110 / .125
.004 / .034 / .064 / .100 / .134
Ring Pack: 2-1/16" / 1-3/16"
Ring Set Part No.
4466BD8 ¹ 4500JS8 Notes: Centered Pin. Closed Chamber Design.Edelbrock & O.E. Heads. Does not fit Mark 6 heads.

PART #
Piston & Ring Kit ROD C/H PIN DISH/ DOME C/R cc
96.5---115-119 GRAM Top
Land VALVE-RLF DEPTH-DIA.

IC807KTD.004 $977.00 6.135 1.645 .990 x 2.750” .180” S/Dome -17c 12.6 10.6 10.3 719/141 .336” .295”-2.300” / .000”-0.000”

IC808KTD.004 $1,027.50 6.385 1.395 .990 x 2.750” .180” S/Dome -17cc 12.6 10.6 10.3 655/141 .330” .295”-2.300” / .000”-0.000”

¹ IC749KTS $1,075.05 6.135 1.645 .990 x 2.750” .180” S/Dome -17cc 12.6 10.6 10.3 714/175 .350” .340”-2.536” / .000”-0.000”

CHEVROLET 502–V8 OPEN CHAMBER DOME-1V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.466 4.000 9.800" 2618 PRG110-3 $1.15

Oversizes: .004 / .034 / .064 / .100 / .134
Ring Pack: 2-1/16" / 1-3/16"
Ring Set Part No.
4466BD8 Notes: Hollow Dome. Centered Pin. Will Fit AFR, RHS, Trick Flow, World, Edelbrock, Brodix, Dart & O.E. Chevy Open Chamber
Heads That Are 118cc’s Or Larger. Always Check Piston To Chamber & Valves To Assure You Have Adequate Operating Clearance.

PART #
Piston & Ring Kit ROD C/H PIN DISH/ DOME C/R cc
119 GRAM Top
Land VALVE-RLF DEPTH-DIA.

IC994KTD.004 $1,142.19 6.135 1.645 .990 x 2.750” .650” H/Dome -43cc 13.1 664/141 .350” .275”-2.420” / N/A

IC995KTD.004 $1,142.19 6.385 1.395 .990 x 2.750” .650” H/Dome -43cc 13.1 607/141 .350” .275”-2.420” / N/A

Page 24
CHEVROLET BBC, continued
CHEVROLET 540–V8 DISH-1V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.466 4.250 9.800" 2618 PRG110-3 $1.15

Oversizes: .004 / .034 / .064 / .100 / .134
Ring Pack: 2-1/16" / 1-3/16"
Ring Set Part No.
4466BD8 Notes:
Centered Pin.

PART #
Piston & Ring Kit ROD C/H PIN DISH/ DOME C/R cc
96.5---115-119 GRAM Top
Land VALVE-RLF DEPTH-DIA.

IC949KTD.004 $1,073.70 6.385 1.27 .990 x 2.750 DISH 23cc 9.5 8.5 8.3 577/141 .336” .311”-2.374” / .000”-0.000”

CHEVROLET 540–V8 FLAT TOP-1V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.466 4.250 9.800" 2618 PRG110-3 $1.15

Oversizes: .004 / .034 / .064 / .100 / .134
Ring Pack: 2-1/16" / 1-3/16"
Ring Set Part No.
4466BD8 Notes:
Centered Pin.

PART #
Piston & Ring Kit ROD C/H PIN DISH/ DOME C/R cc
96.5---115-119 GRAM Top
Land VALVE-RLF DEPTH-DIA.

IC811KTD.004 $998.14 6.135 1.520 .990 x 2.750” FT/1V 3cc 11.1 9.6 9.4 631/141 .336” .302”-2.374” / .000”-0.000”

IC812KTD.004 $965.94 6.385 1.270 .990 x 2.750” FT/1V 3cc 11.1 9.6 9.4 570/141 .310” .303”-2.374” / .000”-0.000”

CHEVROLET 540–V8 CLOSED CHAMBER DOME-1V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.466 4.250 9.800" 2618 PRG110-3 $1.15

Oversizes: ¹ STD / .030 / .060
.004 / .034 / .064 / .100 / .134
RING PACK: 2-1/16” / 1-3/16” ¹ .043, 1/16, 3/
Ring Pack: 2-1/16” / 1-3/16”
¹ .043, 1/16, 3/16
Ring Set Part No.
4466BD8 500JS8 ¹ Notes: Solid Dome. Centered Pin. Closed
Chamber Design. Edelbrock and O.E. Heads.

PART #
Piston & Ring Kit ROD C/H PIN DISH/ DOME C/R cc
96.5--+-115-+119 GRAM Top
Land VALVE-RLF DEPTH-DIA.

IC813KTD.004 $1,090.45 6.135 1.520 .990 x 2.750” .112” DOME -10cc 12.4 10.6 10.2 657/141 .336” .294”-2.300” / .000”-0.000”

IC814KTD.004 $981.20 6.385 1.270 .990 x 2.750” .112” DOME -10cc 12.4 10.6 10.2 606/141 .310” .294”-2.300” / .000”-0.000”

IC516KTS $1,175.89
¹ 6.385 1.270 .990 x 2.750” .112” DOME -10cc 12.4 10.6 10.2 591/175 .350” .340”-2.536” / .000”-0.000”

CHEVROLET 540–V8 OPEN CHAMBER DOME-1V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.466 4.250 9.800" 2618 PRG110-3 $1.15

Oversizes: ¹ STD / .030 / .060
.004 / .034 / .064 / .100 / .134
Ring Pack: 2-1/16” / 1-3/16”
¹ .043, 1/16, 3/16
Ring Set Part No.
4466BD8 500JS8 ¹ Notes: Hollow Dome. Centered Pin. Will Fit AFR, RHS,
Trick Flow, World, Edelbrock, Brodix, Dart & O.E. Chevy Open
Chamber Heads That Are 118cc’s Or Larger. Always Check Piston
To Chamber & Valves To Assure You Have Adequate Operating
Clearance. ¹ Lateral Gas Ported.

PART #
Piston & Ring Kit ROD C/H PIN DISH/ DOME C/R cc
119 GRAM Top
Land VALVE-RLF DEPTH-DIA.

IC996KTD.004 $1,142.19 6.135 1.520 990 x 2.750” .425” H/Dome -38cc 13.1 628/141 .350” .275”-2.420” / .000”-0.000”

IC997KTD.004 $1,142.19 6.385 1.270 990 x 2.750” .425” H/Dome -38cc 13.1 566/141 .340” .275”-2.420” / .000”-0.000”

IC512KTS $1,360.62
¹ 6.385 1.270 990 x 2.750” .425” H/Dome -36cc 12.9 645/175 .350” .380”-2.536” / .000”-0.000”

Page 25
CHEVROLET BBC, continued
CHEVROLET 555–V8 DOME-1V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.560 4.250 9.800" 2618 PRG110-3 $1.15

Oversizes: STD / .030 / .060
Ring Pack: .043", 1/16", 3/16"
Ring Set Part No.
4500JS8 Notes: M42 $27.83 Skirt coating. Centered Pin.

PART #
Piston & Ring Kit ROD C/H PIN Open Chamber C/R cc
119 Gram
Weight Top
Land Valve-RLF
Depth-Dia.
INT • EXH

IC511KTS $1,360.62 6.385 1.270 .990"X.2.930" OC-33cc 12.5 636/175 .350” .380”-2.536” / .000”-0.000

CHEVROLET 572–V8 DISH-1V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.500 4.500 10.200" 2618 PRG110-3 $1.15

Oversizes: STD / .030 / .040 / .060
Ring Pack: 2-1/16" / 1-3/16"
Ring Set Part No.
4500BD8 Notes: Centered Pin.

PART #
Piston & Ring Kit ROD C/H PIN DISH/ DOME C/R cc
96.5----115-119 GRAM Top
Land VALVE-RLF DEPTH-DIA.

IC951KTD $1,073.70 6.535 1.395 .990 x 2.750” DISH 20cc 10.4 9.2 8.9 619/141 .350” .311”-2.374” / .000”-0.000”

IC952KTD $1,073.70 6.535 1.395 .990 x 2.750” DISH 28cc 9.8 8.7 8.5 618/141 .350” .311”-2.374” / .000”-0.000”

CHEVROLET 572–V8 FLAT TOP-1V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.500 4.500 10.200" 2618 PRG110-3 $1.15

Oversizes: STD / .030 / .040 / .060
Ring Pack: 2-1/16" / 1-3/16"
Ring Set Part No.
4500BD8 Notes: Centered Pin.

PART #
Piston & Ring Kit ROD C/H PIN DISH/ DOME C/R cc
96.5----115--119 GRAM Top
Land VALVE-RLF DEPTH-DIA.

IC950KTD $1,033.03 6.535 1.395
ELITE SERIES .990 x 2.750” FT/1V 3cc 11.8 10.2 9.9 602/141 .331” .311”-2.374” / .000”-0.000

CHEVROLET 565-632 -V8 DOME-1V DRAG RACE

Bore PIN O.E. Deck Ht. Alloy Lock Ring

4.600 .990"X.2.930"X.185" 9.800"
*10.200” 2618 PRG110-3 $1.15

Oversizes: STD. / .005 / .010 / .025
Ring Pack: .043", 1/16", 3/16"
Ring Set Part No.
4500JS8 Notes: ELITE Series includes LINE2LINE skirt coating. Anodized top ring groove and crown.
Upgraded 4130 pins.

PART #
Piston & Ring Kit ROD C/H Stroke Open Chamber C/R cc
119 Gram
Weight Top
Land Valve-RLF
Depth-Dia.
INT • EXH

IC510LCAKTS $1,793.30 6.385 1.270 4.250 OC -33cc 12.9 653/175 .325" .380"-2.536" .000 - 0.000"

IC509LCAKTS $1,793.30 6.385 1.215 4.375 OC -40cc 14.3 642/175 .300" .350"-2.536" .000 - 2.040"

* IC508LCAKTS $1,793.30 6.700 1.245 4.500 OC -39cc 14.5 649/17 .300" .350"-2.536" .000 - 2.040"

* IC507LCAKTS $1,793.30 6.700 1.12 4.750 OC -40cc 15.4 621/175 .300" .350"-2.536" .000 - 2.040"

* IC514LCAKTS $1,793.30 6.700 1.120 4.750 OC -44cc 15.8 634/175 .300" .350"-2.536" .000 - 2.040"

Page 26
CHRYSLER SB
CHRYSLER 318–V8 FLAT TOP-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

3.910 3.310 9.578” 2618 PRH107-3

Oversizes: .030 / .040 / .060
Ring Pack: 2-1/16" / 1-3/16"
Ring Set Part No.
3910BD8 Notes: Centered Pin.

PART # ROD C/H PIN DISH/ DOME C/R cc
60----65--70 GRAM
Weight Top
Land VALVE-RLF DEPTH-DIA.

IC844KTD.030 $1,021.93 6.123 1.810 .984 x 2.750” FT/2V 4.7cc 10.1 9.5 9.0 492/118 .275” .243”-2.200” / .231”-1.720”

CHRYSLER 318–V8 DOME-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

3.910 3.310 9.578” 2618 PRH107-3

Oversizes: .030 / .040 / .060
Ring Pack: 2-1/16" / 1-3/16"
Ring Set Part No.
3910BD8 Notes: Centered Pin.

PART # ROD C/H PIN DISH/ DOME C/R cc
60-- 65--70 GRAM
Weightt Top
Land VALVE-RLF DEPTH-DIA.

IC845KTD.030 $1,021.92 6.123 1.810 .984 x 2.750” .140” S/Dome -4.9cc 11.5 10.7 10.0 525/118 .275” .243”-2.200” / .231”-1.720”

CHRYSLER 360–V8 DISH-

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.000 3.580 9.599” 2618 PRH107-3

Oversizes: STD / .030 / .040 / .060 / .070 / .080
Ring Pack: 2-1/16" / 1-3/16"
Ring Set Part No.
4000BD8 $128.59 Notes: Centered Pin. LA Rod must be narrowed
to 1.00".

PART # ROD C/H PIN DISH/ DOME C/R cc
60---- 65--70 GRAM
Weight Top
Land VALVE-RLF DEPTH-DIA.

IC742KTD $965.82 6.123 1.675 .984 x 2.750” DISH 9.6cc 10.6 10.0 9.5 548/118 .240” .243”-2.200” / .231”-1.720”

CHRYSLER 360–V8 FLAT TOP-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.000 3.580 9.599” 2618 PRH107-3

Oversizes: STD / .030 / .040 / .060 / .070 / .080
Ring Pack: 2-1/16" / 1-3/16"
Ring Set Part No.
4000BD8 $128.59 Notes: Centered Pin. LA Rod must be narrowed to 1.00".

PART # ROD C/H PIN DISH/ DOME C/R cc
60--- 65----70 GRAM
Weight Top
Land VALVE-RLF DEPTH-DIA.

IC741KTD $881.90 6.123 1.675 .984 x 2.750” FT/2V 5cc 11.2 10.5 10.0 530/118 .222” .243”-2.200” / .232”-1.720”

Page 27
CHRYSLER SB, continued
CHRYSLER 360–V8 DOME-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.000 3.580 9.599” 2618 PRH107-3

Oversizes: STD / .030 / .040 / .060
Ring Pack: 2-1/16" / 1-3/16"
Ring Set Part No.
4000BD8 $128.59 Notes: Centered Pin. Will Fit Edelbrock Cylinder Head. LA Rod must be narrowed to 1.00".

PART # ROD C/H PIN DISH/ DOME C/R cc
60---- 65---70 GRAM
Weight Top
Land VALVE-RLF DEPTH-DIA.

IC743KTD $965.82 6.123 1.675 .984 x 2.750” .280”S/Dome -11.2cc 14.1 13.0 12.1 492/118 .280” .266”-2.250” / .274”-1.820”

CHRYSLER 390–V8 STEP-DISH-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

3.910 4.000 9.578” 2618 PRH107-3

Oversizes: .030 / .040 / .060
Ring Pack: 2-1/16" / 1-3/16"
Ring Set Part No.
3910BD8 Notes: Centered Pin. Use 318 block.

PART # ROD C/H PIN DISH/ DOME C/R cc
60-- 65--70 GRAM
Weight Top
Land VALVE-RLF DEPTH-DIA.

IC847KTD.030 $998.09 6.123 1.465 .984 x 2.750” S-DISH 23cc 9.8 9.3 8.9 439/118 .300” .243”-2.200” / .231”-1.720”

CHRYSLER 390–V8 FLAT TOP-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

3.910 4.000 9.578” 2618 PRH107-3

Oversizes: .030 / .040 / .060
Ring Pack: 2-1/16" / 1-3/16"
Ring Set Part No.
3910BD8 Notes: Centered Pin.

PART # ROD C/H PIN DISH/ DOME C/R cc
60---- 65---70 GRAM
Weight Top
Land VALVE-RLF DEPTH-DIA.

IC846KTD.030 $954.70 6.123 1.465 .984 x 2.750” FT/2V 4.7cc 12.0 11.3 10.6 525/118 .275” .243”-2.200” / .231”-1.720”

CHRYSLER 408–V8 STEP-DISH-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.000 4.000 9.599” 2618 PRH107-3

Oversizes: STD / .030 / .040 / .060 / .070 / .080
Ring Pack: 2-1/16" / 1-3/16"
Ring Set Part No.
4000BD8 $128.59 Notes: Centered Pin. May Require Thicker Head
Gaskets On 1992 And Later Magnum Truck Blocks.
Some stock rods may need to be narrowed. LA Rod must be narrowed to 1.00". Fits Brodix 18° B1-BA head.

PART # ROD C/H PIN DISH/ DOME C/R cc
60---- 65---70 GRAM
Weight Top
Land VALVE-RLF DEPTH-DIA.

IC846KTD 6.123 1.46 .984 x 2.750” FT/2V 4.7cc 12.0 11.3 10.6 525/118 .275” .243”-2.200” / .231”-1.720”

Page 28
CHRYSLER SB, continued
CHRYSLER 408–V8 STEP-DISH-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.000 4.000 9.585” 2618 PRH107-3

Oversizes: .030 / .040 / .060 / .070 / .080
Ring Pack: 2-1/16" / 1-3/16"
Ring Set Part No.
4000BD8 $128.59 Notes: Centered Pin. Uses 2.500” Pin. Designed
For 1992 And Later With Shorter Deck Height.
Magnum block.

PART # ROD C/H PIN DISH/ DOME C/R cc
60-- 65--70 GRAM
Weight Top
Land VALVE-RLF DEPTH-DIA.

IC984KTD.030 6.123 1.445 .984 x 2.500” STEP-DISH 20.5cc 10.4 9.9 9.4 480/106 .312” .243”-2.200” / .231”-1.720”

IC983KTD.030 $965.82 6.123 1.445 .984 x 2.500” STEP-DISH 27cc 9.8 9.3 8.9 482/106 .314” .243”-2.200” / .231”-1.720”

IC982KTD.030 $965.82 6.123 1.445 .984 x 2.500” STEP-DISH 34cc 9.2 8.8 8.4 489/106 .332” .243”-2.200” / .231”-1.720”

CHRYSLER 408–V8 FLAT TOP-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.000 4.000 9.599” 2618 PRH107-3

Oversizes: STD / .030 / .040 / .060 / .070 / .080
Ring Pack: 2-1/16" / 1-3/16"
Ring Set Part No.
4000BD8 $128.59 Notes: Centered Pin. May Require Thicker Head Gaskets On 1992 And Later Magnum Truck Blocks.
LA Rod must be narrowed to 1.00".

PART # ROD C/H PIN DISH/ DOME C/R cc
60--- 65----70 GRAM
Weight Top
Land VALVE-RLF DEPTH-DIA.

IC744KTD $848.19 6.123 1.465 .984 x 2.750” FT/2V 5cc 12.4 11.6 11.0 507/118 .222” .243”-2.200” / .232”-1.720”

CHRYSLER 408–V8 DOME-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.000 4.000 9.600” 2618 PRH107-3

Oversizes: STD / .020 / .030 / .040 / .060 / .070 / .080
Ring Pack: 2-1/16" / 1-3/16"
Ring Set Part No.
4000BD8 $128.59 Notes: Centered Pin. Fits O.E. Magnum And
Edelbrock 58cc Cylinder Heads. LA Rod must
be narrowed to 1.00".

PART # ROD C/H PIN DISH/ DOME C/R cc
60---- 65---70 GRAM
Weight Top
Land VALVE-RLF DEPTH-DIA.

IC969KTD $965.82 6.123 1.465 .984 x 2.750” .085” S/Dome -.5cc 13.7 12.5 11.7 505/118 .280” .280”-2.250” / .274”-1.820”

CHRYSLER BB
CHRYSLER 383–V8 DOME - 2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.250 3.380 9.980” 4032 PRF116-3

Oversizes: .030 / .040 / .060
Ring Pack: 2-1/16" / 1-3/16"
Ring Set Part No.
4250BD8 $117.54 Notes: Pin is centered. Fits Indy. Edelbrock and
O.E. heads. No standard size.

PART # ROD C/H PIN DISH/ DOME C/R cc
75---- 80 --88 GRAM
Weight Top
Land VALVE-RLF DEPTH-DIA.

IC687KTD.030 $923.87 6.358 1.912 1.094 x 3.000” .146" DOME -4.5cc 10.7 10.4 9.6 674/190 0.230 .218 / 2.300” .199 / 1.880”

Page 29
CHRYSLER BB, continued
CHRYSLER 431/489–V8 DISH - 2V STROKER 383

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.250 3.750/
4.250 9.980” 2618 PRG110-3 $1.15

Oversizes: .030 / .040 / .060
Ring Pack: 2-1/16" / 1-3/16"
Ring Set Part No.
4250BD8 $117.54 Notes: Pin is centered.
No Standard Size. Designed for 383" Block with 3.750" Stroke and *6.760" Rod OR 4.250" Stroke and **6.535" Rod. Ratios calculated with block machined to .000" deck clearance
.990" Wrist Pin

PART # ROD C/H PIN DISH/ DOME C/R cc
75---- 80 --88 GRAM
Weight Top
Land VALVE-RLF DEPTH-DIA.

IC690KTD.030 $981.33 *6.760
**6.535 1.318 .990 x 3.000” DISH-2V 12cc 10.1
11.4 9.7
10.9 9.1
10.1 560/158 0.250 .215 / 2.300” .199 / 1.880”

CHRYSLER 431/489–V8 DOME - 2V STROKER 383

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.250 3.750/
4.250 9.980” 2618 PRG110-3 $1.15

Oversizes: 030 / .040 / .060
Ring Pack: 2-1/16" / 1-3/16"
Ring Set Part No.
4250BD8 $117.54 Notes: n is centered. Fits Indy, Edelbrock, 440 Source and O.E. heads.
No Standard Size. Designed for 383" Block with 3.750" Stroke and *6.760" Rod OR 4.250" Stroke and **6.535" Rod.
Ratios calculated with block machined to .000" deck clearance .990" Wrist Pin

PART # ROD C/H PIN DISH/ DOME C/R cc
75--- 80 ---88 GRAM
Weight Top
Land VALVE-RLF DEPTH-DIA.

IC689KTD.030 $970.09 *6.760
**6.535 1.318 .990 x 3.000” FT-2V 4.5cc 10.4
12.3 10.1
11.7 9.7
10.8 560/158 0.250 .215 / 2.300” .199 / 1.880”

CHRYSLER 478-V8 DISH - 2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.250 4.150 9.980” 2618 PRG110-3 $1.15

Oversizes: .030 / .040 / .060
Ring Pack: 2-1/16" / 1-3/16"
Ring Set Part No.
4250BD8 $117.54 Notes: Centered pin. Chrysler 383 block with
4.150" stroke and an aftermarket 6.760" rod using a .990" pin.

PART # ROD C/H PIN DISH/ DOME C/R cc
78--- 80--- 84 GRAM
Weight Top
Land VALVE-RLF DEPTH-DIA.

C505KTD.030 6.760 1.120 .990 x 3.000” DISH/2V 12cc 10.8 10.6 10.2 491/158 0.225 .225 / 2.300” .199 / 1.880”

CHRYSLER 478-V8 FLAT TOP - 2V STROKER 383

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.250 4.150 9.980” 2618 PRG110-3 $1.15

Oversizes: .030 / .040 / .060
Ring Pack: 2-1/16" / 1-3/16"
Ring Set Part No.
4250BD8 $117.54 Notes: Chrysler 383 block with 4.150" stroke and an aftermarket 6.760" rod using a .990" pin. Centered pin.

PART # ROD C/H PIN DISH/ DOME C/R cc
75---- 80 --88 GRAM
Weight Top
Land VALVE-RLF DEPTH-DIA.

IC513KTD.030 6.760 1.120 .990 x 3.000” FT/2V 4.5cc 11.5 11.3 10.9 467/158 0.220 .215 / 2.300” .199 / 1.880”

Page 30
CHRYSLER BB, continued
CHRYSLER 440–V8 STEP-DISH-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.320 3.750 10.725” 2618 PRG110-3 $1.15

Oversizes: .030 / .040 / .055
Ring Pack: 2-1/16" / 1-3/16"
Ring Set Part No.
4320BD8 / 4250BD8.125 $117.54 Notes: Pin Diameter Is .9898” (BBC). Pin Is
Centered. Use 4250BD8.125 $117.54 Ring Set For The .055” Oversize Piston.

PART # ROD C/H PIN DISH/ DOME C/R cc
-75-- 78-- 88 GRAM
Weight Top
Land VALVE-RLF DEPTH-DIA.

IC836KTD.030 $925.29 6.768 2.067 .990 x 3.000” S-DISH 12cc 10.4 10.2 9.3 709/158 .296” .215”-2.300” / .199”-1.880”

CHRYSLER 440–V8 FLAT TOP-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.320 3.750 10.725” 2618 PRG110-3 $1.15 .990
PRF116-3 -1.094

Oversizes: .030 / .040 / .055
Ring Pack: 2-1/16" / 1-3/16"
Ring Set Part No.
4320BD8 / 4250BD8.125 $117.54 Notes: IC822 Pin Diameter Is .9898” (BBC). Pin Is Centered. Use 4250BD8.125 $117.54 Ring Set For The .055” Oversize Piston.
*IC968 use stock pin @ 1.094”.

PART # ROD C/H PIN DISH/ DOME C/R cc
-75-- 78-- 88 GRAM
Weight Top
Land VALVE-RLF DEPTH-DIA.

IC822KTD.030 $958.79 6.768 2.067 .990 x 3.000” FT/2V 4.5cc 11.2 10.9 9.9 686/158 .260” .215”-2.300” / .199”-1.880”

IC968KTD.030 $1,009.26 * 6.768 2.067 1.094 x 3.000” FT/2V 4.5cc 11.2 10.9 9.9 685/190 .260” .215”-2.300” / .199”-1.880”

CHRYSLER 450–V8 STEP-DISH-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.342 3.750 9.980” 2618 PRG110-3 $1.15

Oversizes: .033 / .040 / .060
Ring Pack: 2-1/16" / 1-3/16"
Ring Set Part No.
4342BD8 / 4250BD8.125 $117.54 Notes: Pin Diameter Is .9898” (BBC). Pin Is
Centered. Use 4250BD8.125 $117.54 Ring Set For The .033” Oversize Piston. Use 400 Low Deck Block.

PART # ROD C/H PIN DISH/ DOME C/R cc
-75-- 78-- 88 GRAM
Weight Top
Land VALVE-RLF DEPTH-DIA.

IC837KTD.033 $1,087.66 6.768 1.322 .990 x 3.000” S-DISH 12cc 10.5 10.2 9.4 709/158 .296” .215”-2.300” / .199”-1.880”

CHRYSLER 450–V8 FLAT TOP-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.342 3.750 9.980” 2618 PRG110-3 $1.15

Oversizes: .033 / .040 / .060
Ring Pack: 2-1/16" / 1-3/16"
Ring Set Part No.
4342BD8 / 4250BD8.125 $117.54 Notes: Pin Diameter Is .9898” (BBC). Pin Is
Centered. Use 4250BD8.125 $117.54 Ring Set For The .033” Oversize Piston. Use 400 Low Deck Block.

PART # ROD C/H PIN DISH/ DOME C/R cc
75--- 78--- 88 GRAM
Weight Top
Land VALVE-RLF DEPTH-DIA.

IC823KTD.033 $970.07 6.768 1.322 .990 x 3.000” FT/2V 4.5cc 11.3 11.0 10.0 542/158 .250” .215”-2.300” / .199”-1.880”

Page 31
CHRYSLER BB, continued
CHRYSLER 463–V8 STEP-DISH-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.320 3.900 10.725” 2618 PRG110-3 $1.15

Oversizes: .030 / .040 / .055
Ring Pack: 2-1/16" / 1-3/16"
Ring Set Part No.
4320BD8 / 4250BD8.125 $117.54 Notes: Pin Diameter Is .9898” (BBC). Pin Is
Centered. Use 4250BD8.125 $117.54 Ring Set For The .055” Oversize Piston. Use 440 Block.

PART # ROD C/H PIN DISH/ DOME C/R cc
-75-- 78-- 88 GRAM
Weight Top
Land VALVE-RLF DEPTH-DIA.

IC838KTD.030 $1,007.90 7.100 1.660 .990 x 2.750” S-DISH 16.4cc 10.4 10.1 9.3 636/141 .320” .215”-2.300” / .199”-1.880”

CHRYSLER 463–V8 FLAT TOP-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.320 3.900 10.725” 2618 PRG110-3 $1.15

Oversizes: .030 / .040 / .055
Ring Pack: 2-1/16" / 1-3/16"
Ring Set Part No.
4320BD8 / 4250BD8.125 $117.54 Notes: Pin Diameter Is .9898” (BBC). Pin Is
Centered. Use 4250BD8.125 $117.54 Ring Set For The .055” Oversize Piston.

PART # ROD C/H PIN DISH/ DOME C/R cc
-75--- 78-- 88 GRAM
Weight Top
Land VALVE-RLF DEPTH-DIA.

IC824KTD.030 $1,007.90 7.100 1.660 .990 x 2.750” FT/2V 4.5cc 11.6 11.3 10.3 686/141 .260” .215”-2.300” / .199”-1.880”

CHRYSLER 468–V8 STEP-DISH-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.342 3.900 9.980” 2618 PRG110-3 $1.15

Oversizes: .033 / .040 / .060
Ring Pack: 2-1/16" / 1-3/16"
Ring Set Part No.
4342BD8 / 4250BD8.125 $117.54 Notes: Pin Diameter Is .9898” (BBC). Pin Is
Centered. Use 4250BD8.125 $117.54 Ring Set For The .033” Oversize Piston. Use 400 Low Deck Block.

PART # ROD C/H PIN DISH/ DOME C/R cc
-75- 78- 88 GRAM
Weight Top
Land VALVE-RLF DEPTH-DIA.

IC839KTD.033 $970.09 6.535 1.480 .990 x 2.750” S-DISH 16.4cc 9.8 9.6 8.9 709/141 .320” .215”-2.300” / .197”-1.880”

CHRYSLER 468–V8 FLAT TOP-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.342 3.900 9.980” 2618 PRG110-3 $1.15

Oversizes: .033 / .040 / .060
Ring Pack: 2-1/16" / 1-3/16"
Ring Set Part No.
4342BD8 / 4250BD8.125 $117.54 Notes: Pin Diameter Is .9898” (BBC). Pin Is
Centered. Use 4250BD8.125 $117.54 Ring Set For The .033” Oversize Piston. Use 400 Low Deck Block.

PART # ROD C/H PIN DISH/ DOME C/R cc
-75--- 78-- 88 GRAM
Weight Top
Land VALVE-RLF DEPTH-DIA.

IC825KTD.033 $970.09 6.535 1.480 .990 x 3.000” FT/2V 4.5cc 11.7 11.4 10.4 686/158 .260” .215”-2.300” / .199”-1.880”

Page 32
CHRYSLER 493–V8 STEP-DISH-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.320 4.150 10.725” 2618 PRG110-3 $1.15

Oversizes: .030 / .040 / .055
Ring Pack: 2-1/16" / 1-3/16"
Ring Set Part No.
4320BD8 / 4250BD8.125 $117.54 Notes: Pin Diameter Is .9898” (BBC). Pin Is
Centered. Use 4250BD8.125 $117.54 Ring Set For The .055” Oversize Piston. Use 440 Block.

PART # ROD C/H PIN DISH/ DOME C/R cc
-75-- 78--- 88 GRAM
Weight Top
Land VALVE-RLF DEPTH-DIA.

IC840KTD.030 $985.49 6.768 1.869 .990 x 3.000” S-DISH 23.7cc 10.3 10.1 9.3 683/158 350” .215”-2.300” / .199”-1.880”

IC515KTD.030 $1,014.80 6.768 1.869 .990 x 3.000” S-DISH 12cc 11.4 11.1 10.2 712/158 .350” .215”-2.300” / .200”-1.880”

CHRYSLER 493–V8 FLAT TOP-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.320 4.150 10.725” 2618 PRG110-3 $1.15

Oversizes: .030 / .040 / .055 / .060
Ring Pack: 2-1/16" / 1-3/16"
Ring Set Part No.
4320BD8 / 4250BD8.125 $117.54 Notes: in Diameter Is .9898” (BBC). Pin Is
Centered. Use 4250BD8.125 $117.54 Ring Set For The .055” Oversize Piston. Use 440 Block.

PART # ROD C/H PIN DISH/ DOME C/R cc
-75--- 78-- 88 GRAM
Weight Top
Land VALVE-RLF DEPTH-DIA.

IC826KTD.030 $1,003.70 6.768 1.867 .990 x 3.000” FT/2V 4.5cc 12.3 12.0 10.9 651/158 .260” .215”-2.300” / .199”-1.880”

CHRYSLER 498–V8 STEP-DISH-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.342 4.150 9.980” 2618 PRG110-3 $1.15

Oversizes: .033 / .040 / .060
Ring Pack: 2-1/16" / 1-3/16"
Ring Set Part No.
4342BD8 / 4250BD8.1255 Notes: Pin Diameter Is .9898” (BBC). Pin Is
Centered. Use 4250BD8.125 $117.54 Ring Set For The .033” Oversize Piston. Use 400 Low Deck Block.

PART # ROD C/H PIN DISH/ DOME C/R cc
-75--- 78-- 88 GRAM
Weight Top
Land VALVE-RLF DEPTH-DIA.

IC841KTD.033 $970.09 6.768 1.122 .990 x 3.000” S-DISH 23.7cc 10.4 10.2 9.4 507/158 .266” .215”-2.300” / .200”-1.880”

CHRYSLER 498–V8 FLAT TOP-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.342 4.150 9.980” 2618 PRG110-3 $1.15

Oversizes: .033 / .040 / .060
Ring Pack: 2-1/16" / 1-3/16"
Ring Set Part No.
4342BD8 / 4250BD8.1255 Notes: Pin Diameter Is .9898” (BBC).
Pin Is Centered. Use 4250BD8.125 $117.54 Ring Set For The .033” Oversize Piston. Use 400 Low Deck Block.

PART # ROD C/H PIN DISH/ DOME C/R cc
-75--- 78-- 88 GRAM
Weight Top
Land VALVE-RLF DEPTH-DIA.

IC827KTD.033 $970.09 6.768 1.122 .990 x 3.000” FT/2V 4.5cc 12.4 12.1 11.0 498/158 .220” .215”-2.300” / .199”-1.880”

Page 33
CHRYSLER BB, continued
CHRYSLER 505–V8 STEP-DISH-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.32 4.250 10.725” 2618 PRG110-3 $1.15

Oversizes: .030 / .040 / .055
Ring Pack: 2-1/16" / 1-3/16"
Ring Set Part No.
4320BD8 / 4250BD8.125 $117.54 Notes: Pin Diameter Is .9898” (BBC). Pin Is
Centered. Use 4250BD8.125 $117.54
Ring Set For The .055” Oversize Piston. Use 440 Block.

PART # ROD C/H PIN DISH/ DOME C/R cc
-75-- 78-- 88 GRAM
Weight Top
Land VALVE-RLF DEPTH-DIA.

IC842KTD.030 $950.52 7.100 1.485 .990 x 2.750” S-DISH 26.7cc 10.3 10.0 9.3 592/14 1.320” .215”-2.300” / .194”-1.880”

CHRYSLER 505–V8 FLAT TOP-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.320 4.250 10.725” 2618 PRG110-3 $1.15

Oversizes: .030 / .040 / .055
Ring Pack: 2-1/16" / 1-3/16"
Ring Set Part No.
4320BD8 / 4250BD8.125 $117.54 Notes: Pin Diameter Is .9898” (BBC). Pin Is Centered. Use 4250BD8.125 $117.54 Ring Set For The .055” Oversize Piston. Use 440 Block.

PART # ROD C/H PIN DISH/ DOME C/R cc
-75--- 78-- 88 GRAM
Weight Top
Land VALVE-RLF DEPTH-DIA.

IC828KTD.030 $967.22 7.100 1.485 .990 x 2.750” FT/2V 4.5cc 12.6 12.2 11.1 577/141 .260” .215”-2.300” / .199”-1.880”

CHRYSLER 512–V8 STEP-DISH-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.342 4.250 9.980” 2618 PRG110-3 $1.15

Oversizes: .033 / .040 / .060
Ring Pack: 2-1/16" / 1-3/16"
Ring Set Part No.
4342BD8 / 4250BD8.125 $117.54 Notes: Pin Diameter Is .9898” (BBC). Pin Is
Centered. Use 4250BD8.125 $117.54 Ring Set For The .033” Oversize Piston. Use 400 Low Deck Block.

PART # ROD C/H PIN DISH/ DOME C/R cc
-75--- 78-- 88 GRAM
Weight Top
Land VALVE-RLF DEPTH-DIA.

IC837KTD.033 $1,087.66 6.535 1.322 .990 x 3.000” S-DISH 12cc 11.8 11.5 10.5 709/158 .296” .215”-2.300” / .199”-1.880”

CHRYSLER 512–V8 FLAT TOP-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.342 4.250 9.980” 2618 PRG110-3 $1.15

Oversizes: .033 / .040 / .060
Ring Pack: 2-1/16" / 1-3/16"
Ring Set Part No.
4342BD8 / 4250BD8.125 $117.54 Notes: Pin Diameter Is .9898” (BBC). Pin Is Centered. Use 4250BD8.125 $117.54 Ring Set For The .033” Oversize Piston. Use 400 Low Deck Block.

PART # ROD C/H PIN DISH/ DOME C/R cc
-75--- 78-- 88 GRAM
Weight Top
Land VALVE-RLF DEPTH-DIA.

IC823KTD.033 $970.07 6.535 1.322 .990 x 3.000” FT/2V 4.5cc 12.7 12.3 11.2 542/158 .250” .215”-2.300” / .199”-1.880”

Page 34
CHRYSLER BB, continued
CHRYSLER 520–V8 STEP-DISH-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.320 4.375 10.725” 2618 PRG110-3 $1.15

Oversizes: .030 / .040 / .055
Ring Pack: 2-1/16" / 1-3/16"
Ring Set Part No.
4320BD8 / 4250BD8.125 $117.54 Notes: Pin Diameter Is .9898” (BBC). Pin Is
Centered. Use 4250BD8.125 $117.54 Ring Set For The .055” Oversize Piston. Use 440 Block.

PART # ROD C/H PIN DISH/ DOME C/R cc
-75-- 78-- 88 GRAM
Weight Top
Land VALVE-RLF DEPTH-DIA.

IC843KTD.030 $1,007.90 7.100 1.423 .990 x 2.750” S-DISH 30.4cc 10.3 10.0 9.3 582/141 .300” .215”-2.300” / .200”-1.880”

CHRYSLER 520–V8 FLAT TOP-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.320 4.375 10.725” 2618 PRG110-3 $1.15

Oversizes: .030 / .040 / .055
Ring Pack: 2-1/16" / 1-3/16"
Ring Set Part No.
4320BD8 / 4250BD8.125 $117.54 Note: Pin Diameter Is .9898” (BBC). Pin Is
Centered. Use 4250BD8.125 $117.54 Ring Set For The .055” Oversize Piston. Use 440 Block.

PART # ROD C/H PIN DISH/ DOME C/R cc
-75--- 78-- 88 GRAM
Weight Top
Land VALVE-RLF DEPTH-DIA.

IC829KTD.030 $1,007.90 7.100 1.423 .990 x 2.750” FT/2V 4.5cc 12.9 12.6 11.4 564/141 .260” .215”-2.300” / .200”-1.880”

CHRYSLER 541–V8 STEP-DISH-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

*4.375 4.500 10.725” 2618 PRG110-3 $1.15

Oversizes: .033 / .040 / .060
Ring Pack: 2-1/16" / 1-3/16"
Ring Set Part No.
4250BD8.125 $117.54 *Notes: Piston Is For A 4.3750” Finished Size Only. Pin Diameter Is .9898” (BBC). Pin Is Centered. Use
4250BD8.125 $117.54 Ring Set For The .033” Oversize Piston. Piston Will Be .053” Below Deck. Use 440 Block.

PART # ROD C/H PIN DISH/ DOME C/R cc
-75-- 78-- 88 GRAM
Weight Top
Land VALVE-RLF DEPTH-DIA.

IC837KTD.033 $1,087.66 7.100 1.322 .990 x 3.000” S-DISH 12cc 11.3 10.7 9.9 561/158 .296” .215”-2.300” / .199”-1.880”

CHRYSLER 541–V8 FLAT TOP-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

*4.375 4.500 10.725” 2618 PRG110-3 $1.15

Oversizes: .033
Ring Pack: 2-1/16" / 1-3/16"
Ring Set Part No.
4250BD8.125 $117.54 *Notes: Piston Is For A 4.3750” Finished Size Only. Pin Diameter Is .9898” (BBC). Pin Is Centered. Use
250BD8.125 Ring Set For The .033” Oversize Piston. Piston Will Be .053” Below Deck. Use 440 Block.

PART # ROD C/H PIN DISH/ DOME C/R cc
-75--- 78-- 88 GRAM
Weight Top
Land VALVE-RLF DEPTH-DIA.

IC823KTD.033 $970.07 7.100 1.322 .990 x 3.000” FT/2V 4.5cc 12.1 11.4 10.5 559/158 .250” .215”-2.300” / .199”-1.880”

CHRYSLER 572–V8 FLAT TOP-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.500 4.500 10.725” 2618 PRG110-3 $1.15

Oversizes: STD / .030
Ring Pack: 2-1/16" / 1-3/16"
Ring Set Part No.
4500BD8 Notes: Pin Diameter Is .9898” (BBC). Pin Is
Centered. 4.5 Bore Aftermarket Block.

PART # ROD C/H PIN DISH/ DOME C/R cc
-75--- 78-- 88 GRAM
Weightt Top
Land VALVE-RLF DEPTH-DIA.

IC956KTD $1,037.29 7.100 1.355 .990 x 2.750 FT/2V 4.9cc 14.1 13.7 12.5 567/141 .250” .224”-2.370” / .204”-1.920”

Page 35
CHRYSLER 5.7L HEMI 3.790”, 3.900”
and 4.050” STROKES
CHRYSLER 5.7L HEMI HEMI-2V
371 w/ 3.790” Stroke – 382 w/ 3.900” Stroke 396 w/ 4.050” Stroke

Bore Pin O.E. Deck Ht. Alloy Lock Ring

3.917 .927 x 2.250" 9.250" 2618 PRJ100-3 $1.15

Oversizes: .0015 / .010 / .020 / .030 / .040
Ring Pack: 2-1.5mm, 1-3mm
Ring Set Part No.
3917CD8 $117.54 Notes: Offset pins. Designed for 6.125” aftermarket rods. .0015” oversize designed for hone clean-up of standard size cylinders, use standard

PART # ROD C/H Stroke DISH/ DOME C/R cc
-65- 74.5- 85 GRAM
Weightt Top
Land VALVE-RLF DEPTH-DIA.

IC645CKTD.010 $898.60 6.125 1.220 3.790" .084" DISH 13.8cc 9.6 8.8 8.0 409/130 .240" .105"-2.200" / .105"-2.200"

IC646CKTD.010 $898.60 6.125 1.220 3.790" .016" DOME .02cc 11.3 10.1 9.0 416/130 .240" .105"-2.200" / .105"-2.200"

IC647CKTD.010 $898.60 6.125 1.220 3.790" .168" DOME -14.6cc 13.8 12.0 10.5 430/130 .240" .105"-2.200" / .105"-2.200"

IC648CKTD.010 $898.60 6.125 1.165 3.900" .110" DISH 17cc 9.6 8.7 8.0 396/130 .240" .105"-2.200" / .105"-2.200"

IC649CKTD.010 $809.12 6.125 1.165 3.900" .011" DISH 3.3cc 11.1 10.0 9.0 398/130 .240" .105"-2.200" / .105"-2.200"

IC650CKTD.010 $898.60 6.125 1.165 3.900" .134" DOME -13.5cc 13.6 11.9 10.5 414/130 .240" .105"-2.200" / .105"-2.200"

IC651CKTD.010 $898.60 6.125 1.090 4.050" .143" DISH 21.2cc 9.5 8.7 8.0 380/130 .240" .105"-2.200" / .105"-2.200"

IC652CKTD.010 $1,007.87 6.125 1.090 4.050" .036" DISH 7cc 11.0 9.9 9.0 383/130 .240" .105"-2.200" / .105"-2.200"

IC653CKTD.010 $970.03 6.125 1.090 4.050" .100" DOME -8.7 13.5 11.9 10.5 396/130 .240" .105"-2.200" / .105"-2.200"

CHRYSLER 6.1L HEMI 3.790”, 3.900” and 4.050” STROKES
CHRYSLER 6.1L HEMI HEMI-2V 391ci w/ 3.790” Stroke –
402ci w/ 3.900” Stroke - 417ci w/ 4.050” Stroke

Bore Pin O.E. Deck Ht. Alloy Lock Ring

4.055 .927 x 2.250" 9.250" 2618 PRJ100-3 $1.15

Oversizes: STD / .010 / .020 / .030 / .040
Ring Pack: 1.5mm, 1.5mm, 3.0mm
Ring Set Part No.
4055CS Notes: Wrist pin offset .030".

PART # ROD C/H Stroke DISH/ DOME C/R cc
-64-- 75.- 85 GRAM
Weightt Top
Land VALVE-RLF DEPTH-DIA.

IC535CKTS $893.13 6.125 1.220 3.790 4cc Dish 11.3 10.2 9.2 433/130 .240" .101/2.200" / .101/2.200"

IC536CKTS $901.53 6.125 1.220 3.790 20cc Dish 9.6 8.9 8.1 418/130 .240" .101/2.200" / .101/2.200"

IC538CKTS $893.13 6.125 1.165 3.900 7.5cc Dish 11.2 10.2 9.2 428/130 .240" .101/2.200" / .101/2.200"

IC539CKTS $893.13 6.125 1.090 4.050 12.5cc Dish 11.0 10.0 9.1 404/130 .240" .101/2.200" / .101/2.200"

IC540CKTS $901.53 6.125 1.090 4.050 22cc Dish 10.0 9.2 8.5 390/130 .240" .101/2.200" / .101/2.200"

IC541CKTS $901.53 6.125 1.165 3.900 23cc Dish 9.6 8.9 8.1 410/130 .240" .101/2.200" / .101/2.200"

CHRYSLER BB HEMI
CHRYSLER 472–V8 HEMI-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.250 4.150 10.725” 2618 PRH113-3 $1.15

Oversizes: STD / .030 / .040 / .060
Ring Pack: 2-1/16" / 1-3/16"
Ring Set Part No.
4250BD8 $117.54 Notes: Pin Is Centered.

PART # ROD C/H PIN DISH/ DOME C/R 172cc GRAM
Weightt Top
Land VALVE-RLF DEPTH-DIA.

IC894KTD $1,045.65 6.860 1.765 1.031 x 3.000” .240” DOME -39.6cc 7.9 678/161 .500” .117”-2.450” / .090”-2.140”

IC895KTD $1,045.65 6.860 1.765 1.031 x 3.000” .372” DOME -57cc 8.9 728/161 .500” .117”-2.450” / .090”-2.140”

IC896KTD $1,045.65 6.860 1.765 1.031 x 3.000” .510” DOME -70.6cc 9.8 765/161 .500” .117”-2.450” / .090”-2.140”

IC897KTD $1,045.65 6.860 1.765 1.031 x 3.000” .695” DOME -81.5cc 10.8 796/161 .500” .117”-2.450” / .090”-2.140”

IC898KTD $1,045.65 6.860 1.765 1.031 x 3.000” .819” DOME -90.5cc 11.8 821/161 .500” .127”-2.450” / .103”-2.140”

CHRYSLER 528–V8 HEMI-2V

Bore Stroke O.E. Deck Ht. Alloy Lock Ring

4.500 4.150 10.725” 2618 PRH113-3 $1.15

Oversizes: STD / .005 / .020
Ring Pack: 2-1/16" / 1-3/16"
Ring Set Part No.
4500BD8 Notes: Pin Is Centered.

PART # ROD C/H PIN DISH/ DOME C/R 172cc GRAM
Weightt Top
Land VALVE-RLF DEPTH-DIA.

IC936KTD $1,224.90 6.860 1.780 1.031 x 3.000” .546” DOME -70cc 10.7 785/161 .450” .127”-2.450” / .103”-2.140”

Top of Page

HOME

HEAD DESIGN This section will help you match the head type with the description in the catalog . The head design may not be exact but should give a close approxi- mation of what the piston will look like . D-Cup Design D-Cup - Maintains quench design and keeps the piston rim level all the way around Step-Dish Design Step-dish maintains the full quench while lowering the rest of piston rim below deck . This design allows for a big volume dish on long strokes while still maintaining the quench . Flat-Top Design Circular Dish Design Circular Dish Design - Has no quench and the dish is just lowered below the rim of the piston. Dome Design Dome Design - Has raised area above the quench portion of the piston.	LIGHT WEIGHT TOOL • Length 2.250 X .927 Diameter / 88 Gram Part No. R-71 • Length 2.500 X .927 Diameter / 98 $1.15 Gram Part No. R-60 • Length 2.750 X .912 Diameter / 105 Gram Part No. R-72 • Length 2.750 X .927 Diameter / 107 Gram Part No. R-61 • Length 2.750 X .984 Diameter / 107 Gram Part No. R-73 • Length 3.007 X .927 Diameter / 118 Gram Part No. R-20
COMPRESSION RATIOS ICON calculates its compression ratio based on a .030 oversize, zero deck, and a .040 quench. These ratios are given as a guideline. To get exact ratios you must calculate them based on exact numbers attained from your parts.
WARRANTY ICON Performance Piston products (part of U.E.&M.) are sold without warranty or guarantee of any kind. ICON Performance Pistons shall not under any circumstances be liable for special, incidental or consequential damages of any kind from the purchase, installation, or use of these products. ICON Performance Pistons makes no guarantee or warranty on emissions.

TABLE OF CONTENTS Premium Forged Pistons, wrist pins & Ring kits
Piston Ring Listings	2
Tech Tips and Piston Orientation	3–4
Premium Forged Pistons	5
AMC Premium Forged Pistons	6
Chevrolet Premium Forged SBC Pistons	6–20
Chevrolet Premiium Forged BBC Pistons	20-25
Chrysler SB Premium Forged Piston	26–28
Chrysler BB Premium Forged Pistons	28-34
Chrysler Hemi Premium Forged Pistons	35
Ford - Mercury Flat Head Premium Forged Pistons	36
Ford Modular Premium Forged Pistons 4.6L to 5.4L	36–38
Ford Windsor Premium Forged Pistons 289 to 427	38-45
Ford Cleveland 351-402 Premium Forged Pistons	46-47
Ford FE 390-482 Premium Forged Pistons	48-51
Ford 429-460 to 545 Premium Forged Pistons	51-55
Olds 455 Premium Forged Pistons	56
Pontiac 400-505 Premium Forged Pistons	57–59

PISTON & RING KITS Ordering ICON’s new piston and ring kits has been made easy. The kit number uses standard ICON part numbers and adds a “KT” suffix to indicate kit. The alpha character at the end shows what ring material is used in the kit.

PART #	.	.	Sizes
3312BD8 $169.23		STD	0.030	0.063	.	.
3445DD4 $169.23		STD	.5mm	.75mm	1.0mm	1.5mm
3445ED4 $60.02		STD	.5mm	.75mm	1.0mm	.
3445ES4 $61.53		STD	.5mm	.75mm	1.0mm	.
3551CD8 $72.59		0.005	0.010	0.020	0.030	.
3622DS4 $61.53 (92mm)		STD	.25mm	.50mm	.75mm	1.0mm
3736AM8 $82.45		STD	0.020	0.030	0.040	0.060
3736BD8 $204.33		STD	0.020	0.030	0.040	0.060
3736CD8.025 $281.26		0.025	0.035	0.045	0.065	.
3736ES8.014 $143.99		0.014 0.064	0.024	0.034	0.044	0.054
3780BD4 $169.23		STD	0.020	0.030	0.040	.
3780CD8 $76.90		0.020	0.030	0.040	0.060	.
3780CS8 $76.92		STD 0.040	0.005	0.010	0.020	0.030
3780CS8-N $76.92		STD	0.015	0.025	0.035	0.045
3875AM8 $86.72		STD	0.020	0.030	0.040	0.060
3898CM8 $113.22		STD	0.002	0.005	0.010	.
3898CD8.002 $113.22		0.002	0.010	0.020	.	.
3898ES8 $200.00		STD	0.007	0.010	0.015	.
3910AM8 $92.30		STD	0.020	0.030	0.040	0.060
3910BD8.030 $173.45		0.030	0.040	0.060	.	.
3917CD8 $117.54		STD	0.010	0.020	0.030	0.040
3917LS4		STD	.25mm	.5mm	.	.
4000AD8 $153.85		0.030	0.040	0.060	.	.
4000AM4 $51.67		STD	0.020	0.030	0.040	0.060
4000AM8 $61.53		STD	0.020	0.030	0.040	0.060
4000AM8 $61.53		0.07	0.08	0.1	.	.
4000BD8 $128.59		0.005	0.025	0.035	0.045	0.065
		0.005	0.025	0.035	0.045	0.065
		0.07	0.08	.	.	.
4000BM8 $107.69		STD	0.020	0.030	0.040	0.060
4000CD8 $97.85		0.005	0.010	0.015	0.025	0.035
4000CD8 $97.85		0.045	0.065	0.07	0.075	0.085
4000CM8 $97.85		STD	0.005	0.010	0.020	0.030
4000CM8 $97.85		0.040	0.060	0.065	0.07	0.08
4000ES8 $148.32		STD	0.005	0.010	0.015	0.020
		0.035	0.065	0.07	0.075	0.08
		0.085	.	.	.	.

4050GM8 $76.92	STD	0.020	0.030	0.040	0.060
4055CS8 $113.22	STD	0.010	0.020	0.030	0.040
4062AM8.030 $254.63	0.030	0.040	0.060	.	.
4080AM8.030 $128.60	0.030	.	.	.	.
4120AM8 $128.60	STD	0.030	0.040	0.060	.
4120BD8 $153.85	STD	0.035	0.045	0.065	.
4125AD8 $184.62	STD	0.030	0.040	0.060	.
4125AM8 $76.92	STD 0.100	0.020	0.030	0.040	0.060
4125BD8.005 $128.60	0.005	0.010	0.025	0.035	0.045
.	0.065	.	.	.	.
4125BM8 $123.07	STD	0.020	0.030	0.040	0.060
4125CD8.005 $173.45	0.005	0.025	0.035	0.045	0.065
4130AM8 $138.46	STD	0.020	0.030	0.040	0.060
4130BD8	0.030	0.040	0.060	.	.
4151BD8.035 $153.85	0.035	0.045	0.065	.	.
4151FM8 $148.32	STD	0.030	0.040	0.060	.
4165AM8 $148.32	STD	0.030	0.040	0.060	.
4165BD8.005 $173.45	0.005	0.035	0.045	0.065	.
4250AD8.030 $188.94	0.030	0.040	0.060	.	.
4250AM8.005 $76.92.92	STD	0.005	0.010	0.020	0.030
4250AM8.005 $76.92.92	0.040	0.060	0.07	0.08	0.1
4250BD8 $117.54	0.005	0.020	0.035	0.040	0.065
4250BD8 $117.54	0.07	0.1	0.125	.	.
4300AM8.030 $153.85	0.030	0.040	0.060	.	.
4312AM8 $153.85	0.030	0.040	0.060	.	.
4320AM8 $138.46	STD	0.020	0.030	0.040	0.060
4320AM8 $138.46	0.005	0.020	0.035	0.040	0.055
4320BD8.060	0.060	0.065	.	.	.
4342AM8 $153.85	STD	0.020	0.030	0.040	0.060
4342AM8 $153.85	STD	0.020	0.030	0.040	0.060
4342BD8.040 $349.79	STD	0.040	0.060	.	.
4360AM8 $97.83	STD	0.020	0.030	0.040	0.060
4360BD8 $148.32	STD	0.020	0.035	0.040	0.060
4360BD8 $148.32	0.065	0.085	.	.	.
4466BD8.004 $148.32	0.004	0.034	0.064	0.1	0.134
4500BD8.005 $148.32	0.005	0.025	0.035	0.045	0.065
4500JS8.005 $229.56	0.005	0.010	0.015	0.030	0.035
4500JS8.005 $229.56	0.065	0.105	0.115	0.13	.

Quench is the area behind the valves. This area should match the flat area on your cylinder head. Proper quench promotes cooling of the piston and can be effective in reducing detonation.		Checking cylinder heads: icon suggests checking cylinder heads with clay or some other method before final assembly to assure proper piston to head clearance.
CHEVY V-6 262 4 LEFTS AND 2 RIGHTS.	CHEVY 302,305, 327, 334, 350, 377,383, 400, 434 CHRY 318, 340, 360, 383, 400, 408, 440, 450, 463, 468, 493, 498, 505, 520 PONTIAC 389, 400, 428, 455 BUICK 455 .	FORD 289, 302, 331, 347, 351W, 372W, 383W, 393W, 408W, 416W, 418W .

2618 ALLOY GENERAL CLEARANCE GUIDE LINES
Application	Top Ring End Gap Factor	Piston/ Wall 3.500- 4.100	Piston/ Wall 4.100 & UP
Street Naturally Aspirated	0.004	.0035- .0045	.0045- .0055
Street Naturally Aspirated	0.004	.0035- .0045	.0045- .0055
Street Towing	0.0045	.0040- .0050	.0050- .0060
Street Towing	0.0045	.0040- .0050	.0050- .0060
Street Nitrous Or Supercharged	0.005	.0045- .0055	.0055- .0065
Street Nitrous Or Supercharged	0.005	.0045- .0055	.0055- .0065
Circle Track 2 Bbl Or Restrictor	0.004	.0040- .0050	.0055- .0065
Circle Track Unrestricted	0.004	.0045- .0065	.0055- .0075
Circle Track Alcohol Injection	0.004	.0045- .0065	.0055- .0075
Circle Track Alcohol Carb	0.0045	.0050- .0070	.0060- .0080
Drag Gasoline	0.004	.0050- .0070	.0060- .0080
Drag Alcohol	0.004	.0040- .0070	.0050- .0080
Drag Supercharged Or Nitrous	0.005	.0060- .0090	.0070- .0100
Drag Supercharged Alcohol	0.005	.0050- .0070	.0060- .0080
Marine Naturally Aspirated	0.004	.0045- .0060	.0055- .0070
Marine Supercharged	0.0045	.0055- .0070	.0065- .0080
Propane	0.004	.0035- .0070	.0045- .0080
Final piston clearance should be based solely on the demands of the application . Clearance has been built into the piston, measure piston prior to final hone .

4032 ALLOY GENERAL CLEARANCE GUIDE LINES
APPLICATION	TOP RING Factor	PISTON/ WALL 3.500-4.100	PISTON/ WALL 4.100 & UP
APPLICATION	TOP RING Factor	PISTON/ WALL 3.500-4.100	PISTON/ WALL 4.100 & UP
Street Naturally Aspirated	0.004	.0025- .0035	.0035- .0045
Street Naturally Aspirated	0.004	.0025- .0035	.0035- .0045
Street Towing	0.0045	.0030- .0040	.0040- .0050
Street Towing	0.0045	.0030- .0040	.0040- .0050
Street Nitrous Or Supercharged	0.005	.0035- .0045	.0045- .0055
Circle Track 2 Bbl Or Restrictor	0.004	.0030- .0040	.0045- .0055
Circle Track Unrestricted	0.004	.0035- .0055	.0045- .0065
Circle Track Alcohol Injection	0.004	.0035- .0055	.0045- .0065
Circle Track Alcohol Carb	0.0045	.0040- .0060	.0050- .0070
Drag Gasoline	0.004	.0040- .0060	.0050- .0070
Drag Alcohol	0.004	.0030- .0060	.0040- .0070
Drag Supercharged Or Nitrous	0.005	.0050- .0080	.0060- .0090
Drag Supercharged Alcohol	0.005	.0040- .0060	.0050- .0070
Marine Naturally Aspirated	0.004	.0035- .0050	.0045- .0060
Marine Supercharged	0.0045	.0045- .0060	.0055- .0070
Propane	0.004	.0030- .0060	.0040- .0070
Final piston clearance should be based solely on the demands of the application . Clearance has been built into the piston, measure piston prior to final hone .

Bore	Stroke	O.E. Deck Ht.	Alloy	Lock Ring
3.875	3.895	9.450"	4032	N/A
OVERSIZES: .020 / .030 / .040 / .060 RING PACK: 2-5/64" / 1-3/16" RINGSET PART NO: 3875AM8 $86.72		Notes: Offset Pin . Press Fit Only . Use 4 .0 Block and Rods with 258ci crank

PART No. Piston & Ring Kit	ROD	C/H	PIN	DISH DOME	C/R 60cc	Gram Weight	Top Land	Valve RLF Depth DIA. Intake	Valve RLF Depth DIA. Exhaust
IC945KTM.020 $782.43	6.123	1.353	931	D-cup 10.8cc	10.7	439/ 170	.245"	.000" - 0.000"	.000" - 0 .000"
IC944KTM.020 $758.60	6.123	1.353	.931	D-cup 21cc	9.6	437/ 170	.245"	.000" - .000"	.000" - 0 .000"
IC668KTM.020 $782.43	6.123	1.353	.931	CIR . DISH 27cc	8.8	416/ 170	.250"	.000" - 0.000"	.000" - 0 .000"

New LS lineup has two levels, PREMIUM and ELITE, to match the best features and alloy to the performance applica.. on demands.
PREMIUM
PREMIUM are fully machined from 4032 alloy for street/strip and mild power adders (boost / nitrous). Piston and ring kits are supplied with new performance 1.2mm steel moly top and 1.2mm duc.. le iron napier second with a 3.0mm oil.
	FEATURES: Off set Wrist pins 2nd Land Accumulator Grooves Round Wire Locks M42 $27.83 Skirt Coating Standard	ALLOY: 4032 Lock Rings: BR8894-1 $1.15 Ring Pack: 1.2mm, 1.2mm, 3.0mm

Piston Set	Piston and Ring Kit	CI	Bore	Stroke	Rod	C.H.	Pin Dia.	CC	Crown	Gram Wgt. Piston Pin	Top Land	Comp. ratiio cc 64.5...68.4		UEM Ring #
IC545C $86.69	IC545CKTS $765.59	327	3.78	3.622	6.098	1.331	.945	3cc	Flat Top	403/ 124	.275	9.7	9.3	3780CS8-N $76.92
IC545C.010 $86.69	IC545CKTS.010 $765.59	327	3.79	3.622	6.098	1.331	.945	3cc	Flat Top	403/ 124	.275	9.7	9.3	3780CS8.015-N $76.92
IC545C.020 $86.69	IC545CKTS.020 $765.59	327	3.8	3.622	6.098	1.331	.945	3cc	Flat Top	403/ 124	.275	9.7	9.3	3780CS8.025-N $76.92
IC545C.030 $86.69	IC545CKTS.030 $765.59	327	3.81	3.622	6.098	1.331	.945	3cc	Flat Top	403/ 124	.275	9.7	9.3	3780CS8.035-N $76.92
IC545C.040 $86.69	IC545CKTS.040 $765.59	327	3.82	3.622	6.098	1.331	.945	3cc	Flat Top	403/ 124	.275	9.7	9.3	3780CS8.045-N $76.92
IC546C $103.46	IC546CKTS $893.09	327	3.78	3.622	6.125	1.304	.927	3cc	Flat Top	399/ 124	.275	9.7	9.3	3780CS8-N $76.92
IC546C.010 $103.46	IC546CKTS.010 $893.09	327	3.78	3.622	6.125	1.304	.927	3cc	Flat Top	399/ 124	.275	9.7	9.3	3780CS8.015-N $76.92
IC546C.020 $103.46	IC546CKTS.020 $893.09	327	3.78	3.622	6.125	1.304	.927	3cc	Flat Top	399/ 124	.275	9.7	9.3	3780CS8.025-N $76.92
IC546C.030 $103.46	IC546CKTS.030 $893.09	327	3.78	3.622	6.125	1.304	.927	3cc	Flat Top	399/ 124	.275	9.7	9.3	3780CS8.035-N $76.92
IC546C.040 $103.46	IC546CKTS.040 $893.09	327	3.78	3.622	6.125	1.304	.927	3cc	Flat Top	399/ 124	.275	9.7	9.3	3780CS8.045-N $76.92
IC547C $89.45	IC547CKTS $786.74	327	3.78	3.622	6.098	1.331	.945	-5cc	Dome	425/ 124	.275	10.7	10.2	3780CS8-N $76.92
IC547C.010 $89.45	IC547CKTS.010 $786.74	327	3.79	3.622	6.098	1.331	.945	-5cc	Dome	425/ 124	.275	10.7	10.2	3780CS8.015-N $76.92
IC547C.020 $89.45	IC547CKTS.020 $786.74	327	3.8	3.622	6.098	1.331	.945	-5cc	Dome	425/ 124	.275	10.7	10.2	3780CS8.025-N $76.92
IC547C.030 $89.45	IC547CKTS.030 $786.74	327	3.81	3.622	6.098	1.331	.945	-5cc	Dome	425/ 124	.275	10.7	10.2	3780CS8.035-N $76.92
IC547C.040 $89.45	IC547CKTS.040 $786.74	327	3.82	3.622	6.098	1.331	.945	-5cc	Dome	425/ 124	.275	10.7	10.2	3780CS8.045-N $76.92
IC548C $103.52	IC548CKTS $897.19	327	3.78	3.622	6.125	1.304	.927	-5cc	Dome	425/ 124	.275	10.7	10.2	3780CS8-N $76.92
IC548C.010 $103.52	IC548CKTS.010 $897.19	327	3.79	3.622	6.125	1.304	.927	-5cc	Dome	425/ 124	.275	10.7	10.2	3780CS8.015-N $76.92
IC548C.020 $103.52	IC548CKTS.020 $897.19	327	3.8	3.622	6.125	1.304	.927	-5cc	Dome	425/ 124	.275	10.7	10.2	3780CS8.025-N $76.92
IC548C.030 $103.52	IC548CKTS.030 $897.19	327	3.81	3.622	6.125	1.304	.927	-5cc	Dome	425/ 124	.275	10.7	10.2	3780CS8.035-N $76.92
IC548C.040 $103.52	IC548CKTS.040 $897.19	327	3.82	3.622	6.125	1.304	.927	-5cc	Dome	425/ 124	.275	10.7	10.2	3780CS8.045-N $76.92

GM 6.0L LS2 BLOCK.15° VALVE ANGLE 9.240" DECK
	FEATURES: Offsset Wrist pins 2nd Land Accumulator Grooves Round Wire Locks M42 $27.83 Skirt Coating Standard	Alloy 4032 Lock Rings: BR8894-1 $1.15 Ring Pack: 1.2mm, 1.2mm, 3.0mm

Piston Set	Piston & Ring Set	CI	Bore	Stroke	Rod	C.H.	Pin Dia.	CC	Crown	Gram Wgt. Piston Pin	Top Land	Comp. ratiio cc 64.5...68.4		UEM Ring #
IC551C $100.66	IC551CKTS $937.86	365	4.00	3.622	6.125	1.304	.927	4cc	Flat Top	456/ 121	.275	10.4	10.0	4000ES8 $148.32
IC551C.005 $100.66	IC551CKTS.005 $937.86	365	4.005	3.622	6.125	1.304	.927	4cc	Flat Top	456/ 121	.275	10.4	10.0	4000ES8.005 $148.32
IC551C.010 $100.66	IC551CKTS.010 $937.86	365	4.010	3.622	6.125	1.304	.927	4cc	Flat Top	456/ 121	.275	10.4	10.0	4000ES8.010 $148.32
IC551C.020 $100.66	IC551CKTS.020 $937.86	365	4.020	3.622	6.125	1.304	.927	4cc	Flat Top	456/ 121	.275	10.4	10.0	4000ES8.020 $148.32
IC551C.030 $100.66	IC551CKTS.030 $937.86	365	4.030	3.622	6.125	1.304	.927	4cc	Flat Top	456/ 121	.275	10.4	10.0	4000ES8.030 $148.32
IC551C.065 $100.66	IC551CKTS.065 $937.86	375	4.065	3.622	6.125	1.304	.927	4cc	Flat Top	456/ 121	.275	10.7	10.3	4000ES8.065 $148.32
IC551C.070 $100.66	IC551CKTS.070 $937.86	375	4.07	3.622	6.125	1.304	.927	4cc	Flat Top	456/ 121	.275	10.7	10.3	4000ES8.070 $148.32
IC551C.070 $100.66	IC551CKTS.070 $937.86	375	4.07	3.622	6.125	1.304	.927	4cc	Flat Top	456/ 121	.275	10.7	10.3	4000ES8.070 $148.32
IC551C.075 $100.66	IC551CKTS.075 $937.86	375	4.075	3.622	6.125	1.304	.927	4cc	Flat Top	456/ 121	.275	10.7	10.3	4000ES8.075 $148.32
IC551C.080 $100.66	IC551CKTS.080 $937.86	375	4.080	3.622	6.125	1.304	.927	4cc	Flat Top	456/ 121	.275	10.7	10.3	4000ES8.080 $148.32
IC552C $97.86	IC552CKTS $921.05	403	4.000	4.000	6.125	1.115	.927	4cc	Flat Top	418 / 121	.275	11.4	11.0	4000ES8 $148.32
IC552C.005 $97.86	IC552CKTS.005 $921.05	403	4.005	4.00	6.125	1.115	.927	4cc	Flat Top	418 / 121	.275	11.4	11.0	4000ES8.005 $148.32
IC552C.010 $97.86	IC552CKTS.010 $921.05	403	4.010	4.00	6.125	1.115	.927	4cc	Flat Top	418 / 121	.275	11.4	11.0	4000ES8.010 $148.32
IC552C.020 $97.86	IC552CKTS.020 $921.05	403	4.02	4.00	6.125	1.115	.927	4cc	Flat Top	418 / 121	.275	11.4	11.0	4000ES8.020 $148.32
IC552C.030 $97.86	IC552CKTS.030 $921.05	403	4.030	.004	6.125	1.115	.927	4cc	Flat Top	418 / 121	.275	11.4	11.0	4000ES8.030 $148.32
IC552C.065 $97.86	IC552CKTS.065 $921.05	414	4.065	4.00	6.125	1.115	.927	4cc	Flat Top	418 / 121	.275	11.7	11.2	4000ES8.065 $148.32
IC552C.070 $97.86	IC552CKTS.070 $921.05	414	4.07	4.00	6.125	1.115	.927	4cc	Flat Top	418 / 121	.275	11.7	11.2	4000ES8.070 $148.32
IC552C.070 $97.86	IC552CKTS.070 $921.05	414	4.07	4.00	6.125	1.115	.927	4cc	Flat Top	418 / 121	.275	11.7	11.2	4000ES8.070 $148.32
IC552C.075 $97.86	IC552CKTS.075 $921.05	414	4.075	4.00	6.125	1.115	.927	4cc	Flat Top	418 / 121	.275	11.7	11.2	4000ES8.075 $148.32
IC552C.080 $97.86	IC552CKTS.080 $921.05	414	4.08	4.00	6.125	1.115	.927	4cc	Flat Top	418 / 121	.275	11.7	11.2	4000ES8.080 $148.32
IC553C $93.66	IC553CKTS $887.45	365	4.00	3.622	6.125	1.304	.927	12.5cc	Dish	460 / 121	.275	9.5	9.2	4000ES8 $148.32
IC553C.005 $93.66	IC553CKTS.005 $887.45	365	4.005	3.622	6.125	1.304	.927	12.5cc	Dish	460 / 121	.275	9.5	9.2	4000ES8.005 $148.32
IC553C.010 $93.66	IC553CKTS.010 $887.45	365	4.010	3.622	6.125	1.304	.927	12.5cc	Dish	460 / 121	.275	9.5	9.2	4000ES8.010 $148.32
IC553C.020 $93.66	IC553CKTS.020 $887.45	365	4.020	3.622	6.125	1.304	.927	12.5cc	Dish	460 / 121	0.28	9.5	9.2	4000ES8.020 $148.32
IC553C.020 $93.66	IC553CKTS.020 $887.45	365	4.020	3.622	6.125	1.304	.927	12.5cc	Dish	460 / 121	0.28	9.5	9.2	4000ES8.020 $148.32
IC553C.030 $93.66	IC553CKTS.030 $887.45	365	4.030	3.622	6.125	1.304	.927	12.5cc	Dish	460 / 121	.275	9.5	9.2	4000ES8.030 $148.32
IC553C.065 $93.66	IC553CKTS.065 $887.45	375	4.065	3.622	6.125	1.304	.927	12.5cc	Dish	460 / 121	.275	9.8	9.4	4000ES8.065 $148.32
IC553C.070 $93.66	IC553CKTS.070 $887.45	375	4.070	3.622	6.125	1.304	.927	12.5cc	Dish	460 / 121	.275	9.8	9.4	4000ES8.070 $148.32
IC553C.075 $93.66	IC553CKTS.075 $887.45	375	4.075	3.622	6.125	1.304	.927	12.5cc	Dish	460 / 121	.275	9.8	9.4	4000ES8.075 $148.32
IC553C.080 $93.66	IC553CKTS.080 $887.45	375	4.080	3.622	6.125	1.304	.927	12.5cc	Dish	460 / 121	.275	9.8	9.4	4000ES8.080 $148.32

GM 5.7L LS1/LS6 BLOCK 15° VALVE ANGLE 9.240" DECK
	FEATURES: Offsset Wrist pins 2nd Land Accumulator Grooves Round Wire Locks M42 $27.83 Skirt Coating Standard	Alloy 2618 Lock Rings: BR8894-1 $1.15 Ring Pack: 1.2mm, 1.2mm, 3.0mm

GM 5.7L LS1/LS6 BLOCK 15° VALVE ANGLE 9.240" DECK
Piston Set	Piston and Ring Set	CI	Bore	Stroke	Rod	C.H.	Pin Dia.	CC	Crown	Gram Wgt. Piston Pin	Top Land	Comp. ratiio cc 64.5...68.4		UEM Ring #

IC521CA $110.40	IC521CAKTS $1,059.73	346	3.898	3.622	6.098	1.331	.945	4cc	Flat Top	433 / 124	.245	10.0	9.6	3898ES8 $200.00
IC521CA.005 $110.40	IC521CAKTS.005 $1,059.73	346	3.905	3.622	6.098	1.331	.945	4cc	Flat Top	433 / 124	.245	10.0	9.6	3898ES8.007 $200.00
IC521CA $110.40 .015	IC521CAKTS.015 $1,059.73	346	3.913	3.622	6.098	1.331	.945	4cc	Flat Top	433 / 124	.245	10.0	9.6	3898ES8.015 $200.00
IC520CA $121.67	IC520CAKTS $1,153.47	382	3.898	4.00	6.125	1.115	.927	4cc	Flat Top	395 / 121	.245	11.0	10.5	3898ES8 $200.00
IC520CA.005 $121.67	IC520CAKTS.005 $1,153.47	382	3.905	4.00	6.125	1.115	.927	4cc	Flat Top	395 / 121	.245	11.0	10.5	3898ES8.007 $200.00
IC520CA.015 $121.67	IC520CAKTS.015 $1,153.47	382	3.913	4.00	6.125	1.115	.927	4cc	Flat Top	395 / 121	.245	11.0	10.5	3898ES8.015 $200.00
IC525CA $110.40	IC525CAKTS $1,059.73	346	3.898	3.622	6.125	1.304	.927	16.5cc	Dish	426 / 121	.245	8.8	8.5	3898ES8 $200.00
IC525CA.005 $110.40	IC525CAKTS.005 $1,059.73	346	3.905	3.622	6.125	1.304	.927	16.5cc	Dish	426 / 121	.245	8.8	8.5	3898ES8.007 $200.00
IC525CA.015 $110.40	IC525CAKTS.015 $1,059.73	346	3.913	3.622	6.125	1.304	.927	16.5cc	Dish	426 / 121	.245	8.8	8.5	3898ES8.015 $200.00
IC525CA.015 $110.40	IC525CAKTS.015 $1,059.73	346	3.913	3.622	6.125	1.304	.927	16.5cc	Dish	426 / 121	.245	8.8	8.5	3898ES8.015 $200.00
IC526CA $110.40	IC526CAKTS $1,059.73	382	3.898	4.00	6.125	1.115	.927	10cc	Dish	394 / 121	.245	10.3	9.9	3898ES8 $200.00
IC526CA.005 $110.40	IC526CAKTS.005 $1,059.73	382	3.905	4.00	6.125	1.115	.927	10cc	Dish	394 / 121	.245	10.3	9.9	3898ES8.007 $200.00
IC526CA.015 $110.40	IC526CAKTS.015 $1,059.73	382	3.913	4.00	6.125	1.115	.927	10cc	Dish	394 / 121	.245	10.3	9.9	3898ES8.015 $200.00

GM 6.0L-6.2L LS2/LS3/LSA/LS9/L99 BLOCK 15° VALVE ANGLE 9.240" DECK
	FEATURES: Offsset Wrist pins 2nd Land Accumulator Grooves Round Wire Locks M42 $27.83 Skirt Coating Standard	Alloy 2618 Lock Rings: BR8894-1 $1.15 Ring Pack: 1.2mm, 1.2mm, 3.0mm

PART # Piston & Ring Kit	ROD	C/H	PIN	Dish/Dome	C/R	Gram Weight	Top Land	Valve-RLF Depth-Dia. INT • EXH
IC959KTD $1,035.87	6.010	2.307	.990 x 3.000"	DOME /2V -89.1cc	10.0	758/158	.198"	.135" - 2.320" / .135" - 2.062"
IC979KTD.038 $1,135.34	6.135	2.182	.990 x 3.000"	DOME /2V -89.1cc	10.0	743/158	.198"	.135" - 2.320" / .135" - 2.062"
