Scat 4340 Steel I-Beam
Rods
& Stock Replacement Rods
RPM - RON'S PRECISION MACHINE, INC.
69 E. 580 N.
Santaquin, Utah 84655
|
1-801-754-5338 or Toll free 1-866-700-5877 Contact us anytime 24-7 |
| Engine Rebuild Kit and Parts Online Catalog |

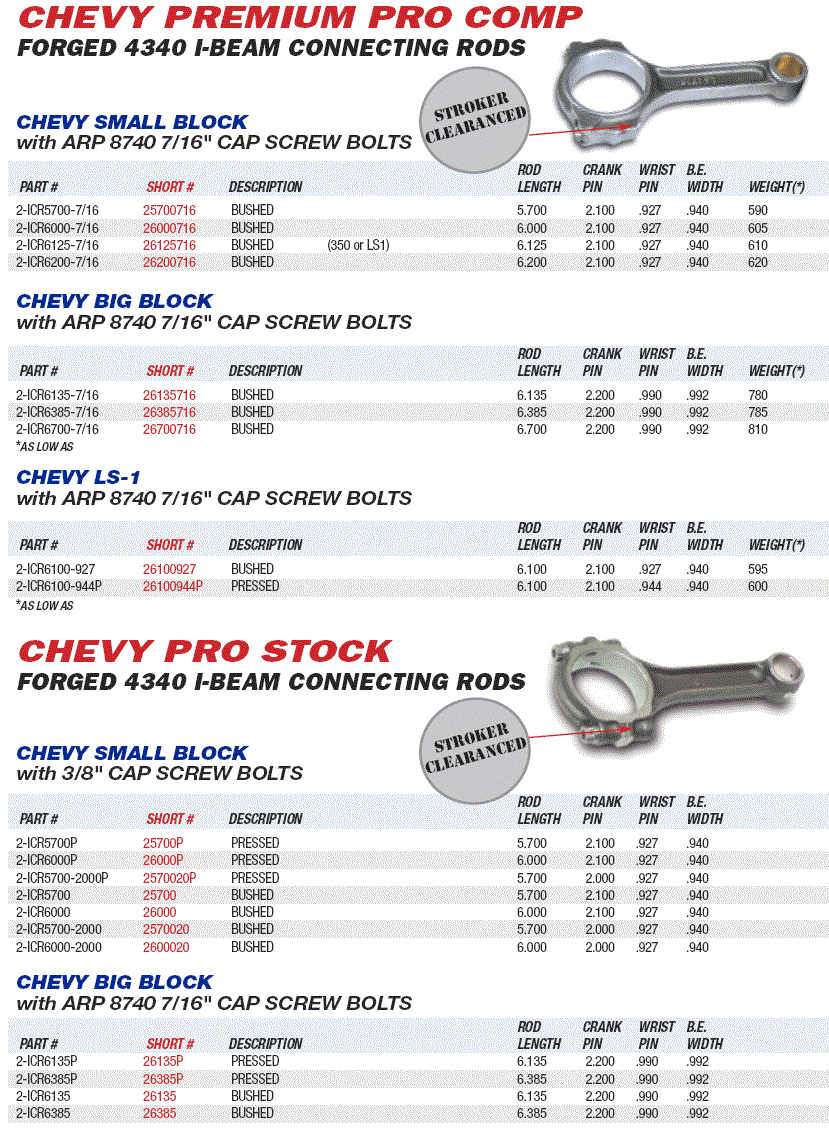

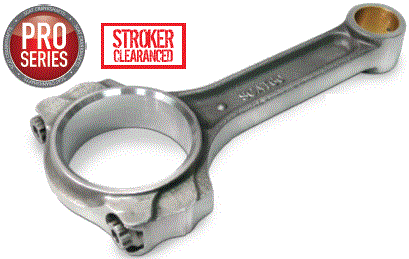

| PRO SERIES 4340 I-BEAMS Connecting Rods - Stroker Clearance. Single rib cap design for added strength and bearing support Polished and shot peened beams to eliminate stress risers Special hollow dowels and huge 7/16” cap screw bolts greatly increase strength and horsepower capabilities Available for Chevy, Chrysler |

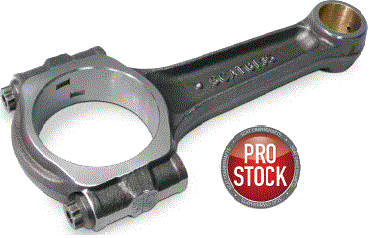

PRO STOCK 4340 I-BEAMS
|
Press pin or bushed Lightweight I-Beam design for increased
strength and quicker RPMs ARP Wave-Loc Bolts Available for Chevy, Chrysler, Ford, Holden |

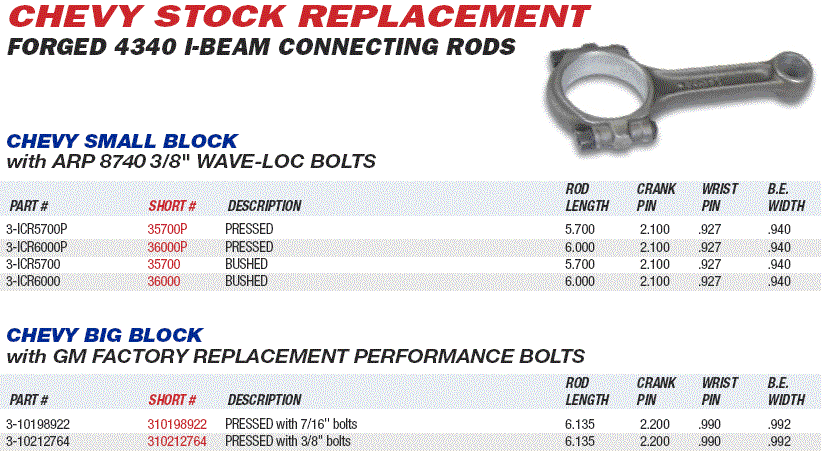

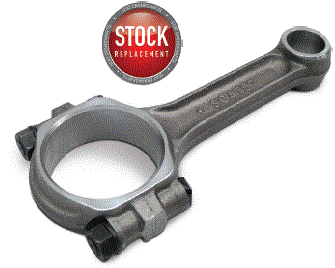

STOCK Replacement
Press pin or bushed
|
Lightweight I-Beam design for increased strength and quicker RPMs |
| Part#_____Your Cost | Make | Application | Style |
Bolt Brand |
Bolt Size |
Bolt Material |
Rod Length |
Rod Journal |
Wrist Pin |
Big End Width |
| 3ICR5700P $325.65 | Chevy | Stock Replacement | I-Beam | ARP | 3/8" | ARP 8740 | 5.700 | 2.100 | 0.927 | 0.940 |
| 3ICR5700 $377.91 | Chevy | Stock Replacement | I-Beam | ARP | 3/8" | ARP 8740 | 5.700 | 2.100 | 0.927 | 0.940 |
| 3ICR6000P $368.55 | Chevy | Stock Replacement | I-Beam | ARP | 3/8" | ARP 8740 | 6.000 | 2.100 | 0.927 | 0.940 |
| 3ICR6000 $334.01 | Chevy | Stock Replacement | I-Beam | ARP | 3/8" | ARP 8740 | 6.000 | 2.100 | 0.927 | 0.940 |
| 3-10198922 $384.93 | Chevy | Factory Replacement | I-Beam | ARP | 7/16" | Factory Rep | 6.135 | 2.200 | 0.990 | 0.992 |
| 3-10212764 $384.93 | Chevy | Factory Replacement | I-Beam | ARP | 3/8" | Factory Rep | 6.135 | 2.200 | 0.990 | 0.992 |
| 2ICR5700-2000P $337.29 | Chevy | Pro Stock | I-Beam | ARP | 3/8" | ARP 8740 | 5.700 | 2.000 | 0.927 | 0.940 |
| 2ICR5700-2000PA $506.25 | Chevy | Pro Stock | I-Beam | ARP | 3/8" | ARP 2000 | 5.700 | 2.000 | 0.927 | 0.940 |
| 2ICR5700P $333.75 | Chevy | Pro Stock | I-Beam | ARP | 3/8" | ARP 8740 | 5.700 | 2.100 | 0.927 | 0.940 |
| 2ICR5700PA $506.25 | Chevy | Pro Stock | I-Beam | ARP | 3/8" | ARP 2000 | 5.700 | 2.100 | 0.927 | 0.940 |
| 2ICR6000P $389.61 | Chevy | Pro Stock | I-Beam | ARP | 3/8" | ARP 8740 | 6.000 | 2.100 | 0.927 | 0.940 |
| 2ICR6000PA $506.25 | Chevy | Pro Stock | I-Beam | ARP | 3/8" | ARP 2000 | 6.000 | 2.100 | 0.927 | 0.940 |
| 2ICR5700-2000 $413.01 | Chevy | Pro Stock | I-Beam | ARP | 3/8" | ARP 8740 | 5.700 | 2.000 | 0.927 | 0.940 |
| 2ICR5700-2000A $530.00 | Chevy | Pro Stock | I-Beam | ARP | 3/8" | ARP 2000 | 5.700 | 2.000 | 0.927 | 0.940 |
| 2ICR6000-2000 $357.77 | Chevy | Pro Stock | I-Beam | ARP | 3/8" | ARP 8740 | 6.000 | 2.000 | 0.927 | 0.940 |
| 2ICR6000-2000A $530.00 | Chevy | Pro Stock | I-Beam | ARP | 3/8" | ARP 2000 | 6.000 | 2.000 | 0.927 | 0.940 |
| 2ICR5700 $355.36 | Chevy | Pro Stock | I-Beam | ARP | 3/8" | ARP 8740 | 5.700 | 2.100 | 0.927 | 0.940 |
| 2ICR5700A $496.08 | Chevy | Pro Stock | I-Beam | ARP | 3/8" | ARP 2000 | 5.700 | 2.100 | 0.927 | 0.940 |
| 2ICR6000 $413.01 | Chevy | Pro Stock | I-Beam | ARP | 3/8" | ARP 8740 | 6.000 | 2.100 | 0.927 | 0.940 |
| 2ICR6000A $530.00 | Chevy | Pro Stock | I-Beam | ARP | 3/8" | ARP 2000 | 6.000 | 2.100 | 0.927 | 0.940 |
| 2ICR6135P $358.49 | Chevy | Pro Stock | I-Beam | ARP | 7/16" | ARP 8740 | 6.135 | 2.200 | 0.990 | 0.992 |
| 2ICR6135PA $566.25 | Chevy | Pro Stock | I-Beam | ARP | 7/16" | ARP 2000 | 6.135 | 2.200 | 0.990 | 0.992 |
| 2ICR6385P $413.01 | Chevy | Pro Stock | I-Beam | ARP | 7/16" | ARP 8740 | 6.385 | 2.200 | 0.990 | 0.992 |
| 2ICR6385PA $566.25 | Chevy | Pro Stock | I-Beam | ARP | 7/16" | ARP 2000 | 6.385 | 2.200 | 0.990 | 0.992 |
| 2ICR6135 $398.45 | Chevy | Pro Stock | I-Beam | ARP | 7/16" | ARP 8740 | 6.135 | 2.200 | 0.990 | 0.992 |
| 2ICR6135A $587.50 | Chevy | Pro Stock | I-Beam | ARP | 7/16" | ARP 2000 | 6.135 | 2.200 | 0.990 | 0.992 |
| 2ICR6385 $398.45 | Chevy | Pro Stock | I-Beam | ARP | 7/16" | ARP 8740 | 6.385 | 2.200 | 0.990 | 0.992 |
| 2ICR6385A $587.50 | Chevy | Pro Stock | I-Beam | ARP | 7/16" | ARP 2000 | 6.385 | 2.200 | 0.990 | 0.992 |
| 2ICR5090P $340.56 | Ford 302 | Pro Stock | I-Beam | ARP | 3/8" | ARP 8740 | 5.090 | 2.123 | 0.912 | 0.830 |
| 2ICR5090PA $506.25 | Ford 302 | Pro Stock | I-Beam | ARP | 3/8" | ARP 2000 | 5.090 | 2.123 | 0.912 | 0.830 |
| 2ICR5090 $350.83 | Ford 302 | Pro Stock | I-Beam | ARP | 3/8" | ARP 8740 | 5.090 | 2.123 | 0.912 | 0.830 |
| 2ICR5090A $530.00 | Ford 302 | Pro Stock | I-Beam | ARP | 3/8" | ARP 2000 | 5.090 | 2.123 | 0.912 | 0.830 |
| 2ICR5325-927 $413.01 | Ford 302 | Pro Stock | I-Beam | ARP | 3/8" | ARP 8740 | 5.325 | 2.123 | 0.927 | 0.830 |
| 2ICR5325-927A $530.00 | Ford 302 | Pro Stock | I-Beam | ARP | 3/8" | ARP 2000 | 5.325 | 2.123 | 0.927 | 0.830 |
| 2ICR5400-912 $413.01 | Ford 302 | Pro Stock | I-Beam | ARP | 3/8" | ARP 8740 | 5.400 | 2.123 | 0.912 | 0.830 |
| 2ICR5400-912A $530.00 | Ford 302 | Pro Stock | I-Beam | ARP | 3/8" | ARP 2000 | 5.400 | 2.123 | 0.912 | 0.830 |
| 2ICR5400-927 $361.39 | Ford 302 | Pro Stock | I-Beam | ARP | 3/8" | ARP 8740 | 5.400 | 2.123 | 0.927 | 0.830 |
| 2ICR5400-927A $530.00 | Ford 302 | Pro Stock | I-Beam | ARP | 3/8" | ARP 2000 | 5.400 | 2.123 | 0.927 | 0.830 |
| 2ICR5955-912 $446.60 446.602 | Ford 302 | Pro Stock | I-Beam | ARP | 3/8" | ARP 8740 | 5.955 | 2.311 | 0.912 | 0.830 |
| 2ICR5955-912A $530.00 | Ford 302 | Pro Stock | I-Beam | ARP | 3/8" | ARP 2000 | 5.955 | 2.311 | 0.912 | 0.830 |
| 2ICR40L6125P $356.68 | Jeep | Pro Stock | I-Beam | ARP | 3/8" | ARP 8740 | 6.125 | 2.095 | 0.931 | 1.065 |
| 2ICR40L6125PA $530.00 | Jeep | Pro Stock | I-Beam | ARP | 3/8" | ARP 2000 | 6.125 | 2.095 | 0.931 | 1.065 |
| 2ICR308-5700-2124 $422.37 | Holden | Pro Series | I-Beam | ARP | 7/16" | ARP 8740 | 5.700 | 2.124 | 0.927 | 0.880 |
| 2ICR308-5700-2124A $588.37 588.367 | Holden | Pro Series | I-Beam | ARP | 7/16" | ARP 2000 | 5.700 | 2.124 | 0.927 | 0.880 |
| 2ICR5700-7/16 $427.66 | Chevy | Pro Series | I-Beam | ARP | 7/16" | ARP 8740 | 5.700 | 2.100 | 0.927 | 0.940 |
| 2ICR5700-7/16A $572.13 | Chevy | Pro Series | I-Beam | ARP | 7/16" | ARP 2000 | 5.700 | 2.100 | 0.927 | 0.940 |
| 2ICR6000-7/16 $425.26 | Chevy | Pro Series | I-Beam | ARP | 7/16" | ARP 8740 | 6.000 | 2.100 | 0.927 | 0.940 |
| 2ICR6000-7/16A $572.13 | Chevy | Pro Series | I-Beam | ARP | 7/16" | ARP 2000 | 6.000 | 2.100 | 0.927 | 0.940 |
| 2ICR6000-866-7/16 $494.91 | Chevy | Pro Series | I-Beam | ARP | 7/16" | ARP 8740 | 6.000 | 2.100 | 0.866 | 0.940 |
| 2ICR6000-866-7/16A $615.86 615.862 | Chevy | Pro Series | I-Beam | ARP | 7/16" | ARP 2000 | 6.000 | 2.100 | 0.866 | 0.940 |
| 2ICR6000-2000-7/16 $539.40 539.396 | Chevy | Pro Series | I-Beam | ARP | 7/16" | ARP 8740 | 6.000 | 2.000 | 0.927 | 0.940 |
| 2ICR6000-2000-7/16A $615.86 615.862 | Chevy | Pro Series | I-Beam | ARP | 7/16" | ARP 2000 | 6.000 | 2.000 | 0.927 | 0.940 |
| 2ICR6125-7/16 $422.08 | Chevy | Pro Series | I-Beam | ARP | 7/16" | ARP 8740 | 6.125 | 2.100 | 0.927 | 0.940 |
| 2ICR6125-7/16A $572.13 | Chevy | Pro Series | I-Beam | ARP | 7/16" | ARP 2000 | 6.125 | 2.100 | 0.927 | 0.940 |
| 2ICR6125-2000-7/16 $539.40 539.396 | Chevy | Pro Series | I-Beam | ARP | 7/16" | ARP 8740 | 6.125 | 2.000 | 0.927 | 0.940 |
| 2ICR6125-2000-7/16A $615.86 615.862 | Chevy | Pro Series | I-Beam | ARP | 7/16" | ARP 2000 | 6.125 | 2.000 | 0.927 | 0.940 |
| 2ICR6200-7/16 $441.42 | Chevy | Pro Series | I-Beam | ARP | 7/16" | ARP 8740 | 6.200 | 2.100 | 0.927 | 0.940 |
| 2ICR6200-7/16A $572.13 | Chevy | Pro Series | I-Beam | ARP | 7/16" | ARP 2000 | 6.200 | 2.100 | 0.927 | 0.940 |
| 2ICR6135-7/16 $439.71 | Chevy | Pro Series | I-Beam | ARP | 7/16" | ARP 8740 | 6.135 | 2.200 | 0.990 | 0.992 |
| 2ICR6135-7/16A $579.15 | Chevy | Pro Series | I-Beam | ARP | 7/16" | ARP 2000 | 6.135 | 2.200 | 0.990 | 0.992 |
| 2ICR6385-7/16 $432.48 | Chevy | Pro Series | I-Beam | ARP | 7/16" | ARP 8740 | 6.385 | 2.200 | 0.990 | 0.992 |
| 2ICR6385-7/16A $579.15 | Chevy | Pro Series | I-Beam | ARP | 7/16" | ARP 2000 | 6.835 | 2.200 | 0.990 | 0.992 |
| 2ICR6700-7/16 $452.15 | Chevy | Pro Series | I-Beam | ARP | 7/16" | ARP 8740 | 6.700 | 2.200 | 0.990 | 0.992 |
| 2ICR6700-7/16A $579.15 | Chevy | Pro Series | I-Beam | ARP | 7/16" | ARP 2000 | 6.700 | 2.200 | 0.990 | 0.992 |
| 2ICR6800-7/16 $503.10 | Chevy | Pro Series | I-Beam | ARP | 7/16" | ARP 8740 | 6.800 | 2.200 | 0.990 | 0.992 |
| 2ICR6800-7/16A $579.15 | Chevy | Pro Series | I-Beam | ARP | 7/16" | ARP 2000 | 6.800 | 2.200 | 0.990 | 0.992 |
| 2ICR6100-927 $425.26 | LS1 | Pro Series | I-Beam | ARP | 7/16" | ARP 8740 | 6.100 | 2.100 | 0.927 | 0.940 |
| 2ICR6100-927A $572.13 | LS1 | Pro Series | I-Beam | ARP | 7/16" | ARP 2000 | 6.100 | 2.100 | 0.927 | 0.940 |
| 2ICR6100-944P $433.69 | LS1 | Pro Series | I-Beam | ARP | 7/16" | ARP 8740 | 6.100 | 2.100 | 0.944 | 0.940 |
| 2ICR6100-944PA $572.13 | LS1 | Pro Series | I-Beam | ARP | 7/16" | ARP 2000 | 6.100 | 2.100 | 0.944 | 0.940 |
| 2ICR6123-2124 $494.91 | Chrysler | Pro Series | I-Beam | ARP | 7/16" | ARP 8740 | 6.123 | 2.124 | 0.984 | 0.925 |
| 2ICR6123-2124A $572.13 | Chrysler | Pro Series | I-Beam | ARP | 7/16" | ARP 2000 | 6.123 | 2.124 | 0.984 | 0.925 |
| 2ICR5400-7/16 $494.91 | Chevy | Pro Series | I-Beam | ARP | 7/16" | ARP 8740 | 5.400 | 2.123 | 0.927 | 0.830 |
| 2ICR5400-7/16A $572.13 | Chevy | Pro Series | I-Beam | ARP | 7/16" | ARP 2000 | 5.400 | 2.123 | 0.927 | 0.830 |
| 2ICR6240-943P $494.91 | Chrysler | Pro Series | I-Beam | ARP | 7/16" | ARP 8740 | 6.240 | 2.126 | 0.943 | 0.930 |
| 2ICR6240-943PA $572.13 | Chrysler | Pro Series | I-Beam | ARP | 7/16" | ARP 2000 | 6.240 | 2.126 | 0.943 | 0.930 |
