MASTER ENGINE REBUILD KITS & PARTS

Home

Quality Performance Gaskets

TABLE OF CONTENTS
Page 2
Automotive Gaskets
Cometic Gasket - An Exclusive NASCAR Performance Product
Carburetor Gaskets

Designed by engineers, validated by the winners circle. Cometic carburetor gaskets are manufactured from performance grade materials that resist swelling from various types of fuel. Can be custom ordered to your exact specifications.

Part # Price Application Material C15184 $8.73 HOLLEY 2 BBL CARB OPEN PLENUM .039” FIBER C5282 $6.35 HOLLEY 2 BBL CARB 2 HOLE 1.750” .047” FIBER C5263 $6.95 HOLLEY 4150 4BBL CARB OPEN PLENUM .047” FIBER C5262 $6.95 HOLLEY 4150 4BBL 4 HOLE 1.750” .047” FIBER C15238 $10.48 HOLLEY 4500 4BBL CARB OPEN PLENUM . .047” FIBER C15239 $6.95 HOLLEY 4500 4BBL 4 HOLE 1.750” GASKET .047” FIBER C5280 $6.95 HOLLEY 390 CFM 4BBL CARB 4 HOLE 1-19/32” 047” FIBER C15181 $8.73 CARTER AFB 4BBL SQUARE BORE 4 HOLE .039” FIBER C15183 $8.73 ROCHESTER QUADRAJET 4BBL SPREAD BORE .039” FIBER C15240 $4.25 WEBER 48MM CARB .047” FIBER C5388 $3.60 HOLLEY AIRHORN CARB 060” FIBER C15241 $7.87 HOLLEY FLOAT BOWL .062” MP C15242 $7.87 HOLLEY 2 CIRCUIT METERING BLOCK .062” MP C15243 $7.87 HOLLEY 3 CIRCUIT METERING BLOCK .062” MP C15244 $1.29 HOLLEY/QUIK FUEL POWER VALVE .062” MP

Differential Gaskets

Cometic Differential Gaskets are offered for the most popular differentials in the industry. Made from performance inspired materials and engineered to be the best sealing gasket you can find. Don’t see what you are looking for? Simply send us your used gasket and we can custom make exactly what you need.

Part # Price Application Material C15212 $14.38 AMC 12 BOLT 125” FIBER C15213 $10.32 DANA 25,27,30 10 BOLT .032” AFM C15214 $11.14 DANA 35 10 BOLT .060” AFM C15215 $20.13 DANA 44 .060” AFM C15216DANA 44/GM 8.75” CORVETTE/VIPER .032”AFM C15217 $20.13 DANA 60/70 .060” AFM C15218 $14.43 DANA 80 10 BOLT .032” AFM C15219 $12.91 DODGE 7.25” 10 BOLT FRONT AXLE .032” AFM C15220 $10.16 DODGE 8.25” 10 BOLT REAR AXLE .032” AFM C15221 $10.32 FORD 10.5” 12 BOLT 032”AFM C15222 $8.98 FORD 8” 10 BOLT .032” AFM. C15223 $24.49 FORD 8.8” 10 BOLT .060” AFM C15224 FORD 9” 10 BOLT .040” .Formed Silicone C5848-032 $24.49 FORD 9” 10 BOLT .032” AFM C15225 $14.43 FORD 9.75” 12 BOLT .060” AFM C15226 $12.91 GM “O” AXLE 12 BOLT IRREGULAR .060” AFM C15227 $7.77 GM 1/2 TON 12 BOLT .032”AFM C15228 $12.91 GM 12 BOLT .060” AFM C15229 $9.72 GM 7.5” 10 BOLT REAR AXLE .032”AFM C15230 $10.32 GM 7.75” 9 BOLT FRONT AXLE .032” AFM C15231 $7.77 GM 8.5” 1/2 & 3/4 TON 10 BOLT032”AFM C15232 $11.50 GM 8.5” 10 BOLT .060”AFM C15233 $15.82 GM 9.5” 1/2 & 3/4 TON 14 BOLT .060”AFM C15234 $15.82 GM TRUCK 14 BOLT .060”AFM C15235 $17.34 LEGEND CAR 10 BOLT .032” AFM C15236 $14.37 SPRINT MIDGET 10-BOLT QUICK CHANGE .060” AFM C15237 $10.67 WINTER QUICK CHANGE 10 BOLT .060” AFM

Transmission Gaskets Why trust your expensive transmission to some flimsy paper gasket? Keep your transmission fluid and gear lube where it belongs with our Aluminum Foamet Material (AFM) Gaskets. AFM consists of an aluminum core and features a foam rubber coating bonded to both sides. Ideal for sealing less than perfect surfaces and can be installed without the use of additional sealers! Part # Price Application Material C15246 $23.07 DODGE 727/46RE PAN .060” AFM C15247 $23.07 FORD A4LD/4R44E/4R55E 1993-05 .060” AFM C15248 $23.07 FORD C-4/C-5 11 BOLT 1970-86 .060” AFM C15249 $23.07 FORD C-6 3 SPEED 17 BOLT .060” AFM C15250 $23.07 GM 4L80E 1991-10 .060” AFM C15251 $23.07 GM TH700-R4/4L60E 1982-03 .060” AFM C15252 $23.07 GM POWERGLIDE 2SPD TRANS PAN .075” AFM C15253 $23.07 GM TURBO 400 TRANS PAN .075” AFM C15254 $23.07 GM TURBO 350 PAN TRANS .075” AFM

Page 3

Valve Cover Gaskets & Sets Race inspired designs and materials ensure that these valve cover gaskets will perform well above the OE standard. Cometic valve cover gaskets surpass the quality and ability of typical cork or paper gaskets offered by other manufactures. Withstands blowing out, over tightening, and high vacuum all at an affordable price. Part # Price Application C5976 $27.43 CHRYSLER 426 HEMI V8 C5983 $27.43 CHRYSLER BIG BLOCK WEDGE C5193 $21.74 CHRYSLER/DODGE 5.7/6.1L HEMI 2003+UP SET - 1 HEAD C5177 $146.26 FORD 4.6L DOHC 1996-98 C5178 $59.23 FORD 4.6L SOHC 1996-04 C5179 $59.23 FORD 4.6L SOHC 2002-04 TRUCK C5974 $21.56 FORD SMALL BLOCK 289,302,351W C5975 $27.43 GM BIG BLOCK MARK 4/5/6 C15245 $29.00 GM LS V8 GEN III/IV 1999-14 C5973 $27.43 GM SMALL BLOCK 18/23* V8 C5044 $27.43 PONT 265/301/350/400/428/455 SPORT COMPACT Part # Price Application C4643 $37.48 FORD ZETEC 2.0L DOHC 1995-97 /SET C4644 $68.08 FORD ZETEC 2.0L DOHC 1998-04 /SET C4653 $47.68 FORD 2300 2.3L SOHC 1974-93 / SET C4701 $40.60 HONDA 1.5L 4 CYL 88-95 / SET C4628 $29.00 HONDA B16A2/3 & B18C1/C5 94-01 / SET C4665 $29.00 HONDA D16Y5/7/8 96-00 / SET C4655 $37.48 HONDA D16Z6 VTEC 92-95 / SET C4706 $40.60 HONDA DOHC 1.6L 86-89 / SET C4679 $53.53 HONDA/ACURA B18A1/B1 1990-01 /SET C4781 $29.00 MAZDA B6 1.6L 1989-93 / SET C4788 $37.48 MAZDA MX-6 FS-DE 2.0L 91-97 / SET C4722 $101.40 MITSUBISHI DOHC 24V 3.0L 91-00 / SET C4691 $50.53 MITSUBISHI ECLIPSE 2.0L 89-94 / SET C4713 $76.82 MITSUBISHI GALANT SOHC 24V 3.0L 88-96 / SET C15046 $56.38 MITSU/DODGE 2.0L 420A 95-99 / SET C4607 $44.85 NISSAN CA18DE/DET 1989-1993 / SET C4906 $21.74 NISSAN E15T 1.5L SOHC 1983-84 / SET C4631 $37.48 NISSAN KA24DE 2.4L 1993-01 FWD / SET C4761 $29.00 NISSAN KA24DE 2.4L DOHC 1991-94 / SET C4766 $44.85 NISSAN KA24DE 2.4L DOHC 1995-98 / SET C4552 $44.73 NISSAN RB20/25/26 1988-02 / SET C4730 $51.98 NISSAN SR16/20VE 1.6L 1997-01 / SET C4747 $37.48 NISSAN SR20DE 2.0L DOHC 1991-96 FWD / SET C4753 $27.43 NISSAN SR20DET S13 DOHC 88-93 / SET C4755 $27.43 NISSAN SR20DET S14 DOHC 94-98 / SET C4773 $37.48 NISSAN VG30DE 3.0L V6 90-99 / SET C4871 $52.11 SUBARU EJ22E SOHC 90-96 / SET C4880 $29.00 SUBARU EJ255 DOHC 06-07 / LEFT C4873 $121.63 SUBARU EJ25D DOHC 96-99 / SET C4863 $40.60 SUBARU WRX EJ205 02-05 / RIGHT C4864 $40.60 SUBARU WRX EJ205 02-05 / LEFT C4642 $44.73 SUBARU EJ25 SOHC 1999-05 / SET C4928 $29.00 SUBARU EJ257 DOHC 2004-06 / LEFT C4929 $29.00 SUBARU EJ257 DOHC 2004-06 / RIGHT C4935 $21.74 TOYOTA 22R/RE/REC 81-85 / SET C4830 $44.85 TOYOTA 2RZ-FE 2.4L 4 CYL 95-02 / SET C4807 $24.43 TOYOTA 4A-GE 1.6L 84-92 / SET C4820 $33.35 TOYOTA 5S-FE 2.2L 4 CYL 90-97 / SET C4851 $44.73 TOYOTA SUPRA 2JZ-GE/GTE 93-97 / SET C4838 $29.00 TOYOTA SUPRA 7M-GTE 87-92 / SET C4608 $49.08 TOYOTA 3S-GTE 1991-1995 / SET DIESEL Part # Price Application C15056 $27.43 CUMMINS 3.9L 4BT 4CYL DIESEL / SET C5614.. CUMMINS 5.9L 24V DIESEL 1998.5-02 / SET C15066 $49.10 CUMMINS 5.9L 12V DIESEL 1992-98 / SET C15070 $92.71 CUMMINS 5.9L 24VCR DIESEL 2003-07 / SET C15143 $166.66 FORD 6.0L POWERSTROKE 2003-08 / SET C15151 $130.30 FORD 6.4L POWERSTROKE 2008-10 / SET C15162 $144.87 FORD 7.3L POWERSTROKE 1994-97 / EACH C15163 $178.23 FORD 7.3L POWERSTROKE 1998-02 / EACH

Turbo Gaskets

Manufactured from a high grade stainless steel, these turbocharger gaskets get the job done the first time! The embossed spring steel maintains a torque set and won’t burn through or push out. Does not require additional sealers. Part # Price Application C4514 $10.96 TURBO INLET FLANGE T3 GARRETT C4515 $10.96 TURBO INLET FLANGE T25 GARRETT C4516 $10.96 TURBO INLET FLANGE T4 GARRETT C4513 $10.96 TURBO INLET FLANGE T4 DIVIDED C4517 $10.96 TURBO INLET FLANGE T6 GARRETT C5723-030 $10.96 SUBARU WRX TURBO TO UP PIPE C5736-030 SUBARU WRX TURBO TO DOWNPIPE C15154 $156.46 FORD 6.4L POWERSTROKE 2008-10

Valve Stem Seals

New age engine builds require new age valve stem seals and we have them! These viton steel body (VSB) seals are available for most applications ranging from automotive to off road dirt bikes. Sold in packs of 16. See page 145 for additional Valve Stem Seals

Part#	Valve Stem O.D	Guide O.D.	Height	Overal O.D.
3225V16 $33.23	6mm	11mm	9.3mm	13.4mm
3262V16 $30.39	7mm	11mm	9.5mm	14.4mm
3516P16 $34.67	8mm	4.92”	.470”	.616”.
3237V16 $28.94	5/16”	.500”	.517”	.562”
3235V16 $34.74	5/16”	.531”.	516”	.677”
3188V16 $37.60	11/32"	.500”	.531”	.623”
3228V16 $41.92	11/32”	.530”	..527”	.674”
3195V16 $31.70	3/8”	.500”	.531”	.623”
3198V16 $34.74	3/8”	.625”	.531”	.742”

Page 4
TABLE OF CONTENTS

MLS Multi Layer Steel

MLS Gaskets are comprised of multiple embossed layers of both AMP (Advanced Multi-Polymer Coating) and uncoated stainless steel. The embossed outer layers of the gaskets meet the demands of a variety of harsh sealing environments, load conditions and surface finishes. Requires less clamp load creating less bore distortion and conforms load distribution across the sealing area. The center or shim layer is an uncoated stainless steel layer which can be varied to accommodate multiple thickness requirements. No sealants or re-torque required. 3 Layer MLS Style Cross Section

MLX Multi Layer Xtreme

MLX Gaskets utilize an integrated “stopper” layer for combustion chamber sealing and improved clamp load around the cylinder without increasing bore distortion. MLX technology can be found in the applications below and are made from the same materials as our MLS Head Gaskets. No sealants or re-torque required. 3 Layer MLx Style Cross Section 4 Layer MLx Style Cross Section 5 Layer MLx Style Cross Section

StreetPro is a product line of Cometic Gasket manufactured by Cometic Gasket. Geared toward the street rodder who is looking to purchase a kit with all necessary gaskets and seals needed for your rebuild.

MLS Head Gaskets

Make ..................................Page

Austin .........................67 AMC ...........................5 BMW .........................68 Buick ..........................6 Cadillac.......................7 Chevrolet.....................8 Chevrolet Diesel.........24 Chrysler/Dodge..........25 Coventry Climax........73 Cummins Diesel .........39 Ecotec 4 Cylinder.....8, 80 Ferrari.........................73 Fiat/Lancia..................74 Ford............................44 Ford Diesel..................61 Ford/Lotus/Cosworth..74 Honda/Acura...............81 Hyundai......................92 Jaguar ........................92 LSJ Ecotec 2.0L.......8, 79 Mazda.........................97 Mercedes Benz............99 MG...........................100 Mini..........................100 Mitsubishi.................101 Mitsu 3.0L 6G72..... 104 Nissan......................104 Oldsmobile................65 Peugeot/Citroen......120 Pontiac.....................66 Porsche...................120 Renault...................122 Rover......................122 Saab........................123 Subaru....................123 Toyota....................135 Triumph.................145 TVR.......................146 Vauxhall/Opel........146 VW/Audi................146 Volvo ....................148 3.6L LY7/LLT/LF.....10 COPPER Head Gaskets Make ........................................Page Buick V6 192-231-252 Stage I & II.......................6 . GM / Chevy 18/23 Degree Small Block..........11 GM / Chevy LS................15 GM / ChevyLSX / LH......18 GM / Chevy Big Block MK4...............20 Chrysler 318-360 LA.......28 Chrysler 383-440 Wedge..35 Chrysler Early Hemi 354-392...........................36 Chrysler 426 Hemi..........37 Ford Non SVO 260-351W..54 Ford 429-460.....................60

MLX Head Gaskets

Make ...........................................Page

194, 230, 250, 292 Inline 6 1962-84...............................11

4.2L Inline 6 "LL8" Vortec 4200 2002-09.......................11 18-23 Degree SBC...................... 11 SBC w/All Pro Heads, Dart/Brodix....................... 13 Chevy R07.2...................... 14 LS1/LS2/LS3/LS6.............. 15 LS7, LS9/LSA................... 17 LS Next Block, LSX.......... 18 LT1 6.2L........................... 19 Big Block V8..................... 21 GM 5.2 Prostock............... 23 6.6L Duramax................... 24 5.7L Hemi V8 2003-15....... 31 6.1L Hemi V8 2005-10....... 31 6.2L Hemi V8 2015-Present "Hellcat"............................32 6.4L Hemi V8 2011-Present "Apache"...........................33 7.0L Hemi V8 2016-Present "Drag Pak" .......................33 S/B Chrys. V8 - R3 Block w/W2, W7, W8, or W9 Heads...34 Small Block V8 - R6 Race Block........................34 Big Block Wedge 361, 383, 400, 413, 426, & 440ci V8..35 392 Hemi V8 1957-58........36 426 Hemi 1966 & Later (Gasket bores .060" ..........37 8.0L V10 1992-Early 96, (Gen 1 Viper).....................38 8.0/8.3L V10 Late 1996-07, (Gen 2/3 Viper)..................38 8.4L V10 2013-17 (Gen 5 Viper)....................39 Prostock Hemi 500ci V8...39 CUMMINS 3.9L 4BT Diesel Cummins 4cyl 1983+.......................39 5.9L 12v 6BT Inline 6 Diesel 1992-98.................40 Cummins ISB 24v.......... 41 Cummins 5.9L CR......... 42 Cummins 6.7L............... 43 6.7L 24v ISB Inline 6 Diesel 2007.5+Up............43 Ford 1.6L Sigma...... 44, 74, Ford 3.5L Ecoboost....... 48 Ford 4.6/5.4L SOHC/DOHC............... 49 Ford 5.0L Coyote.......... 51 Ford 5.8L Trinity V8..... 52 Ford 302/351 ................. 54 Ford New Boss 302 Block 56 Ford 351 C. M. 400....... 56 Ford FR9 V8................. 57 Ford Prostock Racing... 61 Ford 6.0L Powerstroke. 61 Ford 6.4L Powerstroke. 63 Ford 6.7L Scorpion, Powerstroke................. 64 Ford 7.3L Powerstroke..64 Honda/Acura K20/24.... 89 Hyundai 2.0L & 3.8L DOHC V6.................... 92 Jaguar AJ133 5.0L....... 96 Mazda MZR 2.3L DOHC................ 99 Mini 1.6L Turbo Prince.....100 Mitsu EVO X 4B11T. 101 Mitsu 2.0L 4G63/4G63T..............102 Mitsu 2.0L 4B11T.... 103 Nissan 2.0L SR20DE/DET S14..... 109 Nissan GT-R VR38DETT ..............118 Nissan TB48DE, VK56DE 5.6L.................. 119 Nissan...................... 119 Rover 5.0L V8 LR-V8.. 123 Subaru FA20, EJ205.... 124 Subaru EJ22E............. 125 Subaru EJ25D DOHC. 127 Subaru EJ251/EJ253... 128 Subaru EJ255............. 129 Subaru EJ257............. 131 Toyota 2ZZ-GE 1.8L.. 137 Toyota 1FZ-FE 4.5L... 144

STREET PRO KITS

Make ..................................................Page

BMW..................................... 68, 70 Buick.......................................... 7 Chevrolet....... 10, 12, 16, 19, 21, 25 Chevrolet Diesel......................... 24 Chrysler/Dodge... 26, 29, 31, 32, 35, 36, 38 Cummins........39, 40, 41, 42, 43, 44 Ford..... 46,47,50,53,55,59, 60,62,63 Ford Diesel................ 61, 62, 63, 64 Ford/Lotus........................... 78, 79 Honda/Acura. 81, 82, 83, 85, 86, 87, 88 Mazda.............................. 97, 98 Mitsubishi............. 101, 103, 104 Nissan... 106, 107, 108, 109, 110, 111, 112, 113, 115, 116, 117 Oldsmobile.............................. 65 Pontiac.................................... 66 Subaru..................... 125,126,127, 128,130, 131, 132,133 Toyota.................... 136,137,139, .140, 142, 143 Miscellaneous Gaskets & Accessories Application ...............................................Page Molded Rubber Valve Cover Gas.. 3 MLS Exhaust Gaskets................. 149 Valve Stem Seals......................3, 150 2PC Rear Main Seals.................. 151 Rear End Gaskets.......................... 2 Carburetor Gaskets....................... 2 Fuel Cell Gasket Kits................. 151 High Vacuum Crank Seals......... 151 Turbo Gaskets............................... 3 Timing Cover Sets...................... 151 Damper Rebuild O-rings............. 151 Transmission Gaskets.................... 2 Fasteners.................................... 156

Page 5
Cometic Gasket -
An Exclusive NASCAR Performance Product

AMC

4.0L Inline 6 242ci 1987-2006 87-01 Cherokee, 93-04 Grand Cherokee, 87-90 Wagoneer, 87-92 Comanche, 91-06 Wrangler

Head Gaskets MLS Head Gaskets

Additional thicknesses available see page 4

Bore Thickness Pkg Qty.......Part # Part# Price 3.950 ..........050" .........1... C5987-050 $146.26 4.000 ..........050" ........1... C5988-050 $146.26 4.060 ..........050" ........1... C5989-050 $146.26

Individual Gaskets

Timing Cover Set

Application ..................................Part# ...Price 3.8/4.0/4.2L I6 1965-2006 ....... C5047 $21.74

290-401ci V8

Head Gaskets

Additional thicknesses available see page 4

MLS Head Gaskets Fits: 290 1966-69, 304 1970-78, 343 1967-69, 360 1970-91

Bore Thickness Pkg Qty ......Part# ............Price 3.810" .........040" .........1... C5669-040 $120.13 4.140" .........040" .......1. . C5674-040 $120.13

MLS Head Gaskets Fits: 390 1970 & 401 1972-74

Bore ........Thickness .Pkg Qty ......Part# ..........Price 4.250" .........040" .........1............ C5937-040 $120.13 4.380" .........040" .......1............ C5938-040 $120.13

MLS Head Gaskets Fits: INDY 401 Aluminum Heads

Bore Thickness Pkg Qty ........Part#............ Price 4.380" .........040" .........1... . C5409-040 $120.13 4.380" .........080" .......1. ... C5409-080 $165.13

Individual Gaskets

Exhaust Gasket Set

Application ...................................Part# ...........Price 304-401ci w/Dogleg Ports ........... C5161-064 $31.81 304-401ci w/Rectangle Ports..... C5101-064 $31.81

Intake Gasket Set

Application ............................................Part# ........Price 290-401 V8 1970-91 1.13" x 2.22". C15002-060 $36.15 390/401 Indy Head 1.20" x 2.30". C15003-060 $36.15

Valve Cover Gasket (sold individually)

Application .............................Part# .........Price 390/401ci V8 Indy Head .... C5115-188 $20.24

.

Timing Cover Set

Application ..................................Part# ...Price 290-401ci V8 1966-88............... C5046 $21.56

Page 6

BUICK

Head Gaskets 192, 231, 252ci V6 Stock, Stage I, and Stage II

Additional thicknesses available see page 4

MLS Head Gaskets

Bore ........Thickness Pkg Qty ..Part#.......... Price 3.860" .........040" .........1....... C5691-040 $108.68 4.020" .........040" .......1....... C5692-040 $108.68 4.090" .........040" .......1....... C5693-040 $108.68

Copper Head Gaskets

Bore .......Thickness Pkg Qty.. Part#.............. Price 3.860" .........043" .........1....... C15407-043 $121.68

Individual Gaskets

Exhaust Gasket Set

Application ...........................Part# .........Price Stock & Stage I Ports ...... C5696-064 $36.06 Stage II Ports.................. C5791-064 $36.06

Valve Cover Gasket (sold individually)

Application ............................Part# .........Price Iron & Aluminum Heads..... C5697-188 $20.24

Intake Gasket Set

Application ..................................Part# ..........Price Stock & Stage I Ports ................ C5694-060 $31.70 Stage II PortsPorts..... ............ C5792-060 $36.06

Timing Cover Set

Application ......................................Part# ...Price 66-87 V6/Small V8 w/Rope Seal ... C5048 $29.00 V6/Small V8 w/Radial Seal.......... C5049 $21.74

Oil Pan Gasket

Application ..................................Part# ........Price 20 Bolt .................................... C5700-094 $39.09

Rear Main Seal

Application ..................................Part# ...Price 2 Piece w/Side Rails .................. C5707 $24.45

3800 Series II V6 1996-2003

Head Gaskets

Additional thicknesses available see page 4

MLS Head Gasket - Left Side

Bore ....Thickness Pkg Qty ....Part# Price ...Price 3.840" ......066" .........1... .... C5720-066 $165.13

MLS Head Gasket - Right Side

Bore ....Thickness Pkg Qty .....Part#........... Price 3.840" ......066" .........1... ..... C5721-066 $165.13

Page 7
BUICK
400, 430 & 455 V8 - All Years
Head Gaskets
MLS Head Gaskets

Bore .......Thickness Pkg Qty Part # .......Price
4.312”..........040”..........1.... C5753-040 $123.05
4.385”..........040”..........1.... C5754-040 $123.05
4.400”..........040”..........1.... C5755-040 $123.05

Individual Gaskets
Exhaust Gasket Set
Application .............................Part # .....Price
All Years ........................... C5776-064 $37.60

Timing Cover Set
Application ..........................................Part # ...Price
1967-76 Water Pump Gasket........ C5144-031 $13.02
1970-76 455 Water Outlet GasketC15004-031 $2.36

Intake Gasket Set
Application ........................................Part # ...Price
1967-71 1.172” x 2.453” Port...... C5143-060 $34.68
1972-76 1.156” x 2.420” Port...... C5775-060 $36.16

Oil Pan Gasket
Application ..........................Part # ...Price
1967-76 4pc Set.................. C5145 $44.89

Valve Cover Gasket (sold individually)
Application .............................Part # ...Price
All Years ........................... C5774-094 $24.43

Timing Cover Set
Application .............................Part # Price
67-74 400, 430, 455 V8....... C5050 $21.56


Gasket Kits

To purchase a complete gasket kit order both top end and bottom end gasket kit

Top end gasket kit

Application ................................................Part # .........Price
Big Block 455ci 1970-76 4.385” Bore... PRO1011T $259.45

Bottom end gasket kit

Application .....................................Part # Price
Big Block 455ci 1970-76.......... PRO1011B $44.76

Page 7
CADILLAC
Northstar 4.6L 32v V8 1993-2011
Head Gaskets

MLS Head Gasket - Left Side
Bore Thickness Pkg Qty Part #.........Price
3.700”.......066”..........1.. C5716-066 $179.60
See page 8 for additional gaskets
Additional thicknesses available see page 4

MLS Head Gasket - Right Side Bore Thickness Pkg Qty Part #.........Price 3.70.....066”................1.. C5716-066 $179.60

Page 8
CHEVROLET / GM

Additional thicknesses available see page 4

ECOTEC 4 Cylinder

Head Gaskets

Additional thicknesses available see page 4

MLS Head Gasket - LSJ 2.0L

Bore Thickness Pkg ...Qty ....Part# ..........Price 87mm .........027" .........1.... C5921-027 $120.13

MLX Head Gasket - LSJ 2.0L

Bore ......Thickness .Pkg Qty Part# ..........Price 87mm .........040" .........1.... C5032-040 $165.13

MLX Head Gasket - LNF 2.0L 08-10

Bore Thickness Pkg ...Qty ...Part# .............Price 88mm .........032" .........1... C15256-032 $165.13

MLX Head Gasket - LTG 2.0L DOHC

Bore Thickness Pkg Qty ...Part# ...........Price 87mm .........028" .....1.... C4964-028 $165.13

MLS Head Gaskets - L61/L42 2.2L DOHC

Bore Thickness Pkg Qty ...Part#........... Price 87mm .........040" .....1.... C5768-040 $120.13 89mm .........040" .....1.... C5804-040 $120.13

Individual Gaskets

MLS Exhaust Gasket

Application .........................Part# .........Price 2000-2009 2.2/2.4L ....... C4150-030 $28.94

.

2.2L 134ci "LN2": Cavalier/Sunfire FWD 1998-02, S-10/Sonoma RWD 1994-03

Additional thicknesses available see page 4

MLS Head Gaskets

Bore .......Thickness Pkg Qty Part# .........Price 90mm .........030" .........1.... C5914-030 $120.13 93mm .........030" .........1.... C5915-030 $120.13

Page 9

CHEVROLET / GM

2.4L 146ci "LD9" Twin Cam 1996-2001

Additional thicknesses available see page 4

MLS Head Gasket - 1996-99 w/EGR

Bore Thickness Pkg ....Qty .....Part# .........Price 3.595" .........030" .........1.... C5298-030 $120.13

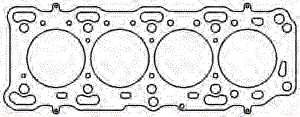

MLS Head Gaskets - 1999-01 w/o EGR

Bore Thickness Pkg ....Qty ....Part# ...........Price 3.595" .........030" .........1.... C5866-030 $120.13 3.595" .........075" .........1.... C5866-075 $165.13

.

2.5L 153ci 1965-1979/3.0L VORTEC 3000 (Marine)

Additional thicknesses available see page 4

MLS Head Gasket

Bore Thickness Pkg ....Qty ....Part# .........Price 4.100" .........045" .........1.... C5956-045 $108.68

.

3.1/3.4/3.9L 60 Degree V6

Additional thicknesses available see page 4

MLS Head Gasket - 3.1L 1993-99

Bore Thickness Pkg ....Qty ...Part# .........Price 91mm .........051" .........1.... C5220-051 $117.39

MLS Head Gasket - 3.4L 1993-05

Bore Thickness Pkg ....Qty... Part# ..........Price 95mm .........051" .........1.... C5266-051 $117.39

MLS Head Gasket - 3.9L 2006-11 Left Side

Bore Thickness Pkg ....Qty .....Part# ..........Price 101mm ........051" .........1.... C5226-051 $117.39

MLS Head Gasket - 3.9L 2006-11 Right Side

Bore .......Thickness Pkg Qty Part#........... Price 101mm ........051" .........1.... C5227-051 $117.39

Individual Gaskets

Exhaust Gasket Set

Application .........................Part# ...........Price 1993-05 3.1/3.4L V6 ..... C15005-064 $24.52

Page 10

CHEVROLET / GM

3.6L LY7/LLT/LFX V6 2004-Present

Head Gaskets

Additional thicknesses available see page 4

MLX Head Gasket - Left Side

Bore Thickness Pkg ....Qty ...Part# ..........Price 98mm .........044" .........1.... C5029-044 $117.39

MLX Head Gasket - Right Side

Bore Thickness Pkg ....Qty ...Part# ..........Price 98mm .........044" .........1.... C5028-044 $117.39

.

4.3L 229/262ci 90 Degree V6 1985-2009

Head Gaskets

Additional thicknesses available see page 4

MLS Head Gaskets

Bore Thickness Pkg ....Qty ........Part# .....Price 4.060" .........040" .........1.... C5739-040 $120.13 4.120" .........040" .........1.... C5740-040 $120.13 4.155" .........040" .........1.... C5741-040 $120.13

Individual Gaskets

Valve Cover Gasket (sold individually)

Application ..................................Part# ......Price 4.3L V6 .188" ML Material ...... C15006-188 $18.76

Timing Cover Set

Application .................................Part# ......Price 1985-95 w/Thick Front OP Seal C5051 $21.56

Intake Gasket Set

Application .........................Part# ......Price 4.3L V6 .060" Fiber ....... C15007-060 $36.08

Water Pump Gasket

Application ..........................Part# ......Price .018" AFM Material ........ C5299-018 $0.86

Exhaust Gasket Set

Application ..........................................Part# ........Price 1985-92 4.3L V6 .064" AM... C15008-064 $24.52

Oil Pan Gasket

Application.. Part# ...Price 4 Piece Set C5496 $33.23

Fuel Pump Mounting Gasket

Application .................................Part# ...........Price 1985-96 4.3L V6 .020" Fiber... C15009-020 $2.76

Rear Main Seal Kit

Application .......Part# ...Price 1 Piece Design C5106 $33.23

.

Gasket Kits

To purchase a complete gasket kit order both top end and bottom end gasket kit

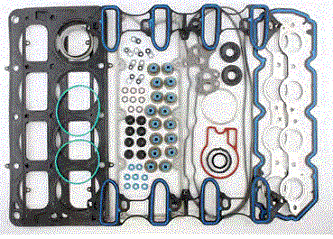

TOP END GASKET KIT

BOTTOM END GASKET KIT

Gasket Kits To purchase a complete gasket kit order both top end and bottom end gasket kit Top end gasket kit Application................................. Part# ......Price 4.3L V6 1985-93 4.120" Bore PRO1006T $227.43 Bottom end gasket kit Application ...............Part# ......Price 4.3L V6 1985-93 PRO1006B $73.78

Page 11

CHEVROLET / GM

194, 230, 250, 292 Inline 6 1962-84

Head Gaskets

MLS Head Gasket

Bore .......Thickness Pkg Qty Part# .............Price 4.125" .........040" ...........1... C5699-040 $213.03

Individual Gaskets

Intake/Exhaust Gasket Set

Application ......................Part#.....................Price 292 I6 Intake .059" ....... CFMC15010-059 $72.92

Timing Cover Set

Application ..................................Part...Price 4/6 Cyl 151/230/250/292 .......... C5053 $21.56

.

4.2L Inline 6 "LL8" Vortec 4200 2002-09

Head Gaskets

MLX Head Gasket

Bore ....Thickness Pkg Qty Part# ..............Price 3.710" ....040" .........1.. .... C15374-040 $228.93

.

18/23 Degree Small Block V8 262-400ci (*has steam holes)

Head Gaskets

MLS Head Gaskets - Round Bore

Bore .......Thickness Pkg Qty Part# ...........Price 4.060" .........040" .........1..... C5245-040 $119.17 4.100" .........040" .........1..... C5246-040 $108.68 4.125" .........040" .........1..... C5247-040 $108.68 * 4.165" .........040" .........1..... C5248-040 $108.68 * 4.200" .........040" .........1..... C5249-040 $108.68 *

MLS Head Gaskets - Valve Pocketed Bore

Bore .......Thickness Pkg Qty Part#.......... Price 4.060" .........040" .........1.... C5269-040 $108.68 4.100" .........040" .........1.... C5270-040 $108.68 4.125" .........040" .........1... C5271-040 $108.68 * 4.165" .........040" .........1... C5272-040 $108.68 * 4.200" .........040" .........1... C5273-040 $108.68 *

MLX Head Gaskets - Round Bore

Bore .....Thickness Pkg Qty.Part# ..........Price 4.165" ....040U........1.... C5031-040 $140.45 4.220" ....040" ........1.... C5786-040 $140.45

Copper Head Gaskets - Round Bore

Bore Thickness .....Pkg Qty ..Part# ...........Price 4.165" .........043" .........1... C15411-043 $136.21

Copper Head Gaskets - Valve Pocketed Bore

Bore Thickness ......Pkg Qty .Part# ............Price 4.200" .........043" .........1... C15412-043 $136.21

See page 12 for additionalgaskets

Page 12
CHEVROLET / GM

18/23 Degree Small Block V8 262-400ci

Individual Gaskets

Valve Cover Gaskets (sold individually)

Application .......................................Part # .....Price 18/230 Molded Rubber ..................... C5973 $27.43 Splayed Valve Heads ............... C5390-094 $24.52

Oil Pan Gasket Kit

Application ............................................Part #..... Price 1955-79 LH Dipstick 4pc Kit .......... C5295-094 $37.60 1980-85 RH Dipstick 4pc Kit.................. C5294 $37.60 1986-97 1 pc Molded Rubber ................ C5072 $47.78

Exhaust Gasket Set

Application .........................................Part # ......Price 180 1.50" x 1.47" .064" AM........... C5314-064 $43.43 230 1.45" x 1.48" .030" MLS.......... C5892-030 $50.58 230 1.50" Round .030" MLS .......... C5891-030 $50.58 230 1.45" x 1.60" .030" MLS ..... C5894-030 $52.01 230 1.625" Round .030" MLS ..... C5893-030 $52.01 230 1.55" x 1.45" .030" MLS..... C15190-030 $44.88

Intake Gasket Set

Application ..........................................Part # ......Price 180 Heads 1.35" X 2.25" Port.......... C5541-060 $36.15 230 Heads 1.24" X 1.97" Port....... C5544-060 $36.15 230 Heads 1.24" x 2.10" Port ....... C5545-060 $29.41 230 Heads 1.28" x 2.17" Port ....... C5528-060 $36.15 305/350 w/TPI 85-92 Set................... C15198 $43.33 China Rail Gaskets......................... C5536-060 $7.48

Timing Cover Set

Application ..........................................Part # ......Price 1957-74 w/Thin Front OP Seal ............... C5052 $21.56 1975-95 w/Thick Front OP Seal ........... C5051 $21.56

Fuel Pump Mounting Gaskets

Application ..........................................Part # ......Price 2 Bolt - .032" AFM............................ C5389-032 $2.16 4 Bolt - .032" AFM........................ C15012-032 $2.16

Rear Main Seal Kit

Application ..........................................Part # ......Price 2 Piece Viton .......................................... C5680 $31.81 1 Piece Viton ......................................... C5106 $33.23

Water Pump Gaskets

Application ..........................................Part # ......Price Water Pump MTG Gasket ............... C5299-018 $0.86 Water Pump Backing Plate Gssket C15011-.....................032 $7.32

Individual Gaskets

Distributor Gasket

Application ........................................Part # ......Price .060" Fiber ................................... C5531-060 $1.58

Thermostat Gasket

Application ........................................Part # ......Price .047" Fiber .................................... C5538-047 $1.36

To purchase a complete gasket kit order both top end and bottom end gasket kit TOP END GASKET KIT Application ................................Part #.......... Price 350ci (67-85) & 400ci (70-76) 4.165" Bore ... ...............................................PRO1003T $308.71 350ci TPI (87-92), TBI (86-93) 4.100" Bore.. ................................................PRO1004T $321.84 ZZ4 Crate Engine 4.080" Bore . PRO1026T $286.96 BOTTOM END GASKET KIT Application ...................................Part #.......... Price 350ci (67-79) & 400ci (70-76) ...PRO1003B $97.08 350ci (86-93) 1pc Rear Main .. PRO1004B $88.29

Page 13
CHEVROLET / GM

Small Block V8 - Aftermarket & Race

Head Gaskets

Additional thicknesses available see page 4

MLS Head Gaskets - Vortec Head

Bore .....Thickness Pkg .......Qty ......Part # .......... Price 4.080" .........040" .................1....... C5474-040 $108.68 4.165" .........040" ...............1....... C5410-040 $108.68

MLS Head Gasket - Edelbrock RPM Heads

Bore .....Thickness Pkg ......Qty ........Part # ......... Price 4.135" .........040" ..............1......... C5274-040 $108.68

MLS Head Gaskets - Brodix BD2000

Bore .....Thickness Pkg ......Qty ........Part # ........ Price 4.030" .........040" ...............1......... C5404-040 $105.76 4.125" .........040" .............1......... C5405-040 $105.76 4.135" .........040" .............1......... C5406-040 $105.76 4.160" .........040" .............1......... C5407-040 $105.76 4.200" .........040" .............1......... C5408-040 $105.76

Additional thicknesses available see page 4

MLS Head Gaskets - Brodix Heads

Bore .....Thickness Pkg ......Qty ......Part # .......... Price 4.030" .........040" ...............1......... C5399-040 $105.76 4.125" .........040" .............1......... C5400-040 $105.76 4.135" .........040" .............1......... C5401-040 $105.76 4.160" .........040" .............1......... C5402-040 $105.76 4.200" .........040" .............1......... C5403-040 $105.76

Head Gaskets

MLX Head Gasket - All Pro Heads

Bore .....Thickness Pkg .......Qty ......Part # .......... Price 4.220" .........040" ................1....... C5551-040 $140.45

Additional thicknesses available see page 4

MLS Head Gasket - Dart/Brodix 4.5" Bore Spacing

Bore .....Thickness Pkg .......Qty ........Part # ........ Price 4.270" .........040" .................1......... C5215-040 $111.58

MLX Head Gasket - Dart/Brodix 4.5" Bore Spacing

Bore .....Thickness Pkg ...Qty ......Part # .......... Price 4.310" .........040" ............1..... C15208-040 $140.45

Individual Gaskets

Intake Manifold Gaskets

Application .........................................Part # ....... Price 230 Dart Cast Iron .......................... C5528-060 $36.15 Brodix BD2000 .............................. C5421-060 $31.81 Brodix WP 12S .............................. C5425-059 $31.81 Brodix WP 247............................... C5426-059 $31.81 Brodix WP 262............................... C5427-059 $31.81 Brodix GB 2000 ............................ C5423-059 $31.81 Brodix Track 1 & Spec Head ........ C5414-059 $31.81 Brodix Street.................................. C5416-059 $31.81 China Rail Gaskets.......................... C5536-060 $7.48

Exhaust Manifold Gaskets

Application ........................................Part # ....... Price Brodix GB 2000 - .064" AM........... C5422-064 $27.38 Brodix Track 1 - .064" AM ......... C5415-064 $27.38 Brodix Street - .064" AM ............... C5417 $27.38 Brodix/All Pro 286 (7 Bolt) MLS.. C5040-030 $46.34 Brodix/Dart 130 4.4/4.5" Spacin... C5039-030 $46.34

Oil Pan Gasket

Application .........................................Part # ....... Price Dart Iron Eagle/Rocket Block .......... C5104-094 $50.68

CHEVROLET / GM Page 14

350 & 400 SB2 Race V8

Head Gaskets

MLS Head Gaskets

Bore ....Thickness Pkg ........Qty........ Part # ...... Price 4.125" .........040" .................1....... C5321-040 $108.68 4.165" .........040" ...............1...... C5323-040 $108.68 4.190" .........040" ...............1...... C5472-040 $108.68 4.200" .........040" ...............1...... C5324-040 $108.68

Additional thicknesses available see page 4

Individual Gaskets

Timing Cover Gasket

Application .........................................Part # ....... Price SB2 - .020" RC ............................... C5533-020 $25.97

Valve Cover Gasket (sold individually)

Application .........................................Part # ....... Price SB2 - .188" Thickness ..................... C5235-188 $25.97

Intake Manifold Set

Application .........................................Part # ....... Price SB2 - 2.085" x 1.560" Ports ............ C5311-031 $40.51 SB2 - MLS ..................................... C5819-040 $89.77

Water Pump Gasket

Application .........................................Part # ....... Price Water Pump MTG Gasket ................. C5299-018 $0.86 Water Pump Backing Plate Gasket C15011-032 $7.32

Intake Valley Plate Gaskets

Application .........................................Part # ....... Price Stock Opening - .060" AFM ............ C5647-060 $28.94 .970" Holes - .060" AFM .............. C5308-060 $28.94 .625"/.750" Holes - .060" AFM .... C5307-060 $28.94

Exhaust Manifold Gaskets

Application .........................................Part # ....... Price 1.50" x 1.60" Ports - MLS ............... C5552-065 $43.33 1.90" x 1.63" Ports - MLS ............ C5836-030 $68.02

Rear Main Seal

Application .........................................Part # ....... Price Dual Lip/High Vacuum ......................... C5379 $101.33

Oil Pan Gasket

Application .....................................Part # ....... Price SB2 - 4pc Set ............................. C5553-060 $47.73

Distributor Gasket

Application .........................................Part # ....... Price .060" Fiber ........................................ C5531-060 $1.58

Fuel Pump Mounting Gasket

Application .........................................Part # ....... Price 4 Bolt - .032" AFM.......................... C15012-032 $2.16

R07.2 Race V8

Head Gasket

MLX Head Gasket

Bore .....Thickness Pkg .......Qty ......Part # .......... Price 4.220" .........040" .................1....... C5577-040 $140.58

Additional thicknesses available see page 4

Individual Gaskets

Rubber Seal/O-Ring Kit

Application .........................................Part # ....... Price R07.2 ................................................. C5979 $286.93

Valve Cover Gasket (sold individually)

Application .............................................Part # ... Price Nitrile Formed Rubber O-Ring .............. C15013 $23.14

CHEVROLET / GM Page 15

LT1/LT4 350ci 1992-1996

Head Gaskets

Additional thicknesses available see page 4

MLS Head Gaskets

Bore .....Thickness Pkg .......Qty ........Part # ........ Price 4.040" .........040" .................1........ C5645-040 $108.68 4.100" .........040" ...............1........ C5646-040 $108.68

Individual Gaskets

Valve Cover Gasket (sold individually)

Application ....................................Part # ........... Price .094" Thickness ........................... C15014-094 $15.79

Exhaust Manifold Gaskets

Application .........................................Part # ....... Price 1.52" x 1.51" Ports, MLS................. C5895-030 $53.45

Intake Manifold Set

Application .......................................Part # ..........Price LT1/LT4 - 2.085" x 1.560" Ports ... C15015-060 $41.95

Throttle Body Gasket Gasket

Application .........................................Part # ......... Price 1992-97 LT1/LT4 ........................... C15016-060 $6.95

Oil Pan Gasket Set

Application .................................................Part # .Price 1992-97 1 pc Molded Rubber.................. C5072 $47.78

Rear Main Seal Kit

Application ...............................................Part # .. Price 1 Piece Viton .......................................... C5106 $33.23

Exhaust Pipe Gaskets

Application .........................................Part # .........Price Header Collector Gasket .................. C15017-064 $5.44 Y-Pipe Gasket................................. C15018-064 $8.19

Timing Cover Sets

Application .............................................Part # ... Price 1992-94 ................................................. C5054 $36.15 1994-97 ................................................. C5055 $27.43

Water Pump Gasket

Application......................................... Part # .........Price Water Pump Mounting Gasket ......... C15019-031 $6.68

LS1/LS6 5.7L, LS2 6.0L, & LS3 6.2L

Head Gaskets

MLS Head Gaskets

Bore ......Thickness Pkg ......Qty ....Part # .........Price 3.810" .........051" ................1... C15361-051 $108.68 3.910" .........051" ..............1..... C5475-051 $108.68 4.060" .........051" ..............1..... C5751-051 $108.68 4.100" .........051" ..............1..... C5489-051 $108.68 4.130" .........051" ..............1..... C5317-051 $108.68 4.160" .........051" ..............1..... C5318-051 $108.68 4.190" .........051" ..............1..... C5319-051 $108.68

Additional thicknesses available see page 4

MLX Head Gaskets

Bore ........Thickness Pkg ....Qty ...Part # .........Price 4.040" .........051" .................1... C5505-051 $140.45 4.150" .........040" ...............1... C5014-040 $140.45 4.150" .........052" ...............1... C5514-052 $115.07

Copper Head Gaskets

Bore .....Thickness Pkg ...Qty .......Part # .........Price 4.100" .........050" ............1........ C15408-050 $136.21

Individual Gaskets

Valve Cover Gasket (sold individually)

Application ..............................................Part #.. Price 99-14 LS V8 - Center Bolt .................... C5170 $17.23 Valve Cover Grommet Set ................. C15030 $14.40

Exhaust Manifold Gaskets

Application ........................................Part # ........ Price 97-13 LS V8 - Round Port ............. C5818-030 $46.31

CHEVROLET / GM
Page 16

LS1/LS6 5.7L, LS2 6.0L, & LS3 6.2L

Individual Gaskets

Throttle Body Gaskets

Application ............................................Part # ....Price 97-05 4.8/5.3/5.7L................................ C5168 $15.79 99-05 6.0L ............................................ C5169 $15.79 2005 5.3/6.0L SUV ............................. C15020 $11.05 06-13 4.8/5.3/6.0/6.2L ......................... C15021 $18.71

Intake Manifold Gaskets

Application ............................................Part # ....Price 99-05 5.7/6.0L Car Intake .................... C5165 $49.20 99-05 5.3/6.0L Truck Intake ............... C5166 $88.36 LS3/L92 Carb Intake Gaskets ... C15022-060 $33.26 08-13 LS3 6.2L Car Intake .................. C5037 $46.24 07-13 6.0/6.2L Truck Intake ............ C15024 $128.91 Gen III LS1/LS6 Valley Gasket ........ C15026 $30.25 Gen IV LS w/D.O.D. Valley Gasket . C15023 $76.79 Gen IV LS w/o D.O.D. Valley Gasket C15025 $40.51

Rear Main Seal Kit

Application ............................................Part # ....Price 1997-13 LS V8..................................... C5172 $75.30

Fuel Injector O-Ring Set

Application ............................................Part # ....Price Upper and Lower O-Rings................... C15027 $33.16

Oil Pan Gasket Set

Application ..............................................Part # ....Price 97-13 LS V8 (not Vette) ......................... C5173 $33.16

Exhaust Pipe Gaskets

Application ..............................................Part # .....Price Graphite Exhaust Pipe............................. C15028 $11.47 Metal Ring Exhaust Pipe .................... C15029 $9.86

Valve Stem Seals

Application ............................................Part # ......Price 97-01 LS V8.................................... 3516PB-16 $34.67 02-13 LS V8 - Hat Style................... 3256V-16 $21.89

Timing Cover Set

Application ............................................Part # ....Price 1997-13 LS V8 .................................... C5056 $49.10

Cooling/Water Pump Gaskets

Application ............................................Part # ....Price 99-13 LS V8 (pair) Molded.................... C5174 $12.98 99-13 LS V8 (pair) .031" Fiber...... C15032-031 $6.48 99-13 Water Pump Backing O-ring...... C15033 $2.26 97-13 Coolant Bypass Seals ................ C15034 $7.34

Cam Plate Gasket

Application ............................................Part # ....Price with Recessed Bolts.............................. C15031 $34.74

Knock Sensor Grommet Kit

Application ............................................Part # ....Price 1999-2013 - 2 Pack............................. C15035 $7.96

Thermostat Seal

Application ............................................Part # ....Price 2004-13 Gen IV ................................... C15036 $8.06

Gasket Kits

To purchase a complete gasket kit order both top end and bottom end gasket kit

TOP END GASKET KIT

Application ......................................Part #..........Price 1997-05 LS1 5.7L (Car Only) | 4.100” Bore................................... PRO1007T $308.71 LS3/L92 6.2L Carbureted 4.060” Bore................................... PRO1035T $242.06 1999-01 6.0L (Truck Only) 4.100” Bore................................... PRO1008T $272.57 2001-10 4.8/5.3L Truck/Van/SUV 3.840” Bore................................... PRO1040T $458.14 2001-07 6.0L Truck/Van/SUV 4.060” Bore................................... PRO1041T $336.23 2005-07 6.0L Truck/Van/SUV 4.100” Bore................................... PRO1037T $389.99 2007-10 6.0/6.2L Truck/Van/SUV 4.100” Bore................................... PRO1036T $436.38 2009-11 LS3 6.2L (Car Only)....... PRO1043T $376.86

BOTTOM END GASKET KIT

Application ......................................Part # ............Price 4.8/5.3/5.7/6.0/6.2L LS V8............ PRO1040B $213.09 with flat mount Cam Plate bolts 4.8/5.3/5.7/6.0/6.2L LS V8............ PRO1036B $278.28 with recessed Cam Plate bolts

CHEVROLET / GM
Page 17

LS7 7.0L V8

Head Gasket

MLS Head Gasket

Bore .........Thickness....... Pkg Qty ..Part # ..........Price 4.150" .........051" .................1........ C5889-051 $120.13

Additional thicknesses available see page 4

MLX Head Gasket

Bore .........Thickness....... Pkg Qty ..Part # ..........Price 4.150" .........052" .................1........ C5030-052 $140.45

Individual Gaskets

Intake Manifold Gaskets

Application ............................................Part # ....Price LS7 2006-13 w/Carb Intake............. C5167-060 $33.26 Gen IV LS w/o D.O.D. Valley Gasket ... C15025 $40.51

Valve Cover Gasket (sold individually)

Application ............................................Part # ....Price 99-13 LS V8 - Center Bolt..................... C5170 $17.23 Valve Cover Grommet Set ................ C15030 $14.40

Exhaust Manifold Gaskets

Application ............................................Part # ....Price 2006-13 D-Port - MLS ................... C5073-030 $44.78

Valve Stem Seals

Application ............................................Part # ....Price 05-13 LS7 V8 - Hat Style.................. 3256V-16 $24.34

Fuel Injector O-Ring Set

Application ............................................Part # ....Price Upper and Lower O-Rings................... C15027 $33.16

Timing Cover Set

Application ............................................Part # ....Price 1997-13 LS V8..................................... C5056 $49.10

Cooling/Water Pump Gaskets

Application ............................................Part # .....Price 99-13 LS V8 (pair) Molded.................... C5174 $12.98 99-13 LS V8 (pair) .031" Fiber....... C15032-031 $6.48 99-13 Water Pump Backing O-ring....... C15033 $2.26 97-13 Coolant Bypass Seals ................. C15034 $7.34

Rear Main Seal Kit

Application ............................................Part # ....Price 1997-13 LS V8..................................... C5172 $75.30

.

LS9/LSA 6.2L 2009-2013

Head Gasket

MLX Head Gasket - Right Side

Bore .........Thickness....... Pkg Qty ..Part # ..........Price 4.100" .........051" .................1........ C5985-051 $140.45

Additional thicknesses available see page 4

MLX Head Gasket - Left Side

Bore .........Thickness....... Pkg Qty ..Part # ..........Price 4.100" .........051" .................1........ C5986-051 $140.45

Individual Gaskets

Valve Cover Gasket (sold individually)

Application ............................................Part # ....Price 99-13 LS V8 - Center Bolt..................... C5170 $17.23 Valve Cover Grommet Set ................ C15030 $14.40

Valve Stem Seals

Application ............................................Part # ....Price 09-13 LS V8 - Hat Style.................... 3256V-16 $24.34

Exhaust Manifold Gaskets

Application ............................................Part # ....Price 09-13 LS V8 - Round Port .............. C5818-030 $46.31

Oil Pan Gasket Set

Application ............................................Part # ....Price 97-13 LS V8 (Pan to Block).................. C5173 $33.16

Intake Manifold Gaskets

Application ............................................Part # ....Price Gen IV LS w/o D.O.D. Valley Gasket... C15025 $40.51

Timing Cover Set

Application ............................................Part # ....Price 1997-13 LS V8..................................... C5056 $49.10

CHEVROLET / GM
Page 18

LS9/LSA 6.2L 2009-2013

Individual Gaskets

Cooling/Water Pump Gaskets

Application ..............................................Part # ....Price 99-13 LS V8 (pair) Molded..................... C5174 $12.98 99-13 LS V8 (pair) .031" Fiber....... C15032-031 $6.48 99-13 Water Pump Backing O-ring....... C15033 $2.26 97-13 Coolant Bypass Seals ................. C15034 $7.34

Rear Main Seal Kit

Application ............................................Part # ....Price 1997-13 LS V8.................................... C5172 $75.30

GM/DART LS NEXT BLOCK

Head Gasket

MLX Head Gasket - Right Side

Bore .........Thickness....... Pkg Qty ..Part # ..........Price 4.200" .........052" .................1..... C15362-052 $140.45

Additional thicknesses available see page 4

1/2" & 3/8" Stud Hole Combination

MLX Head Gasket - Left Side

Bore .........Thickness....... Pkg Qty ..Part # ..........Price 4.200" .........052" .................1..... C15363-052 $140.45

LSX RACE BLOCK

Head Gasket

MLS Head Gaskets - Right Side

Bore .........Thickness....... Pkg Qty ..Part # ..........Price 4.125" .........051" .................1....... C5933-051 $108.68 4.125" .........140" ...............1...... C5933-140 $276.89 4.185" .........051" ...............1...... C5935-051 $108.68

Additional thicknesses available see page 4

MLS Head Gaskets - Left Side

Bore .........Thickness....... Pkg Qty ..Part # ..........Price 4.125" .........051" .................1....... C5934-051 $108.68 4.185" .........051" ...............1...... C5936-051 $108.68

MLX Head Gaskets - Right Side

Bore .........Thickness....... Pkg Qty ..Part # ..........Price 4.100" .........040" .................1....... C5075-040 $140.45 4.150" .........040" ...............1...... C5702-040 $140.45 4.200" .........040" ...............1...... C5077-040 $140.45

MLX Head Gaskets - Left Side

Bore .........Thickness..... Pkg Qty ..Part # ..........Price 4.100" .........040" ...............1..... C5076-040 $140.45 4.150" .........040" .............1.... C5703-040 $140.45 4.200" .........040" .............1..... C5078-040 $140.45

Copper Head Gaskets - Left Side

Bore .........Thickness....... Pkg Qty ..Part # ..........Price 4.100" .........043" .................1..... C15409-043 $136.21

Copper Head Gaskets - Right Side

Bore .........Thickness....... Pkg Qty ..Part # ..........Price 4.100" .........043" ............1.......... C15410-043 $136.21

CHEVROLET / GM
Page 19

LSX RACE BLOCK

Individual Gaskets

Oil Pan Gasket Set

Application ............................................Part # ....Price 97-13 LS V8 (Pan to Block).................. C5173 $33.16

Cooling/Water Pump Gaskets

Application ..............................................Part # ....Price 99-13 LS V8 (pair) Molded.................... C5174 $12.98 99-13 LS V8 (pair) .031" Fiber...... C15032-031 $6.48 99-13 Water Pump Backing O-ring...... C15033 $2.26 97-13 Coolant Bypass Seals ................ C15034 $7.34

Timing Cover Set

Application ............................................Part # ....Price 1997-13 LS V8...................................... C5056 $49.10

Valve Cover Gasket (sold individually)

Application ............................................Part # ....Price 99-13 LS V8 - Center Bolt..................... C5170 $17.23 Valve Cover Grommet Set ................ C15030 $14.40

Exhaust Manifold Gaskets

Application .........................................Part # .......Price 2006-13 D-Port - MLS .................. C5073-030 $44.78 LSX-DR .064" AM ..................... C15038-064 $39.02

Intake Manifold Gaskets

Application ............................................Part # ....Price LS7 2006-13 w/Carb Intake............. C5167-060 $33.26 LSX-DR Head - Lrg Port............. C15037-060 $36.16 Gen IV LS w/o D.O.D. Valley Gasket...................................... C15025 $40.51

Valve Stem Seals

Application ............................................Part # ....Price 09-13 LS V8 - Hat Style.................... 3256V-16 $24.34

Gasket Kits

To purchase a complete gasket kit order both top end and bottom end gasket kit

TOP END GASKET KIT

BOTTOM END GASKET KIT

Application .......................................Part # ...........Price LSX w/LS7 Carb Intake 4.125" Bore .................................. PRO1025T $231.93

Application ......................................Part # ..........Price LSX V8......................................... PRO1025B $182.63

LS1/LS6 5.7L, LS2 6.0L, & LS3 6.2L w/Darton M.I.D. Sleeves

Head Gasket

MLS Head Gasket

Bore .........Thickness....... Pkg Qty ..Part # ..........Price 3.910" .........040" .................1........ C5788-040 $120.13 4.125" .........040" ...............1........ C5789-040 $120.13 4.165" .........040" ...............1........ C5790-040 $120.13

Additional thicknesses available see page 4

LT1/LT4 6.2L V8 2014+UP

Head Gasket

Additional thicknesses available see page 4

MLX Head Gasket

Bore .........Thickness....... Pkg Qty ..Part # ..........Price 4.100" .........051" .................1........ C5038-051 $140.45 4.150" .........051" ...............1...... C15203-051 $140.45 4.200" .........051" ...............1...... C15202-051 $140.45

CHEVROLET / GM
Page 20

LT1/LT4 6.2L V8 2014+UP

Individual Gaskets

Exhaust Manifold Gasket

Application ..........................................Part # ......Price 2014+ 1.920" Port - .021" MLS ...... C5020-021 $65.06

Holden 308 V8

Head Gaskets

MLS Head Gaskets

Bore .........Thickness....... Pkg Qty ..Part # ..........Price 4.100" .........040" .................1........ C5806-040 $123.05 4.200" .........040" ...............1........ C5807-040 $123.05

20 See page 21 for StreetPro gaskets

Additional thicknesses available see page 4

348ci 1958-61/409ci 1961-65 "W" V8

Head Gasket

MLS Head Gaskets

Bore .........Thickness....... Pkg Qty ..Part # ..........Price 4.200" .........040" .................1........ C5255-040 $120.13 4.375" .........040" ...............1........ C5256-040 $120.13 4.437" .........040" ...............1........ C5219-040 $120.13

Individual Gaskets

Exhaust Manifold Gasket

Application .......................................Part # ..........Price 409ci V8 - .064" AM .................... C15040-064 $40.53

Intake Manifold Gasket

Application ........................................Part # .........Price 409ci V8 - .059" CFM .................. C15039-059 $40.53

Big Block V8 - Gen4 1965-90 396,402,427,454ci

Head Gasket

MLS Head Gaskets

Bore .........Thickness....... Pkg Qty ..Part # ..........Price 4.320" .........040" .................1........ C5816-040 $123.05 4.375" .........040" ...............1........ C5329-040 $123.05 4.540" .........040" ...............1........ C5330-040 $123.05 4.630" .........040" ...............1........ C5331-040 $123.05

Copper Head Gaskets

Bore .........Thickness.... Pkg Qty ....Part # ..........Price 4.320" .........043" ............1.......... C15413-043 $154.95 4.530" .........043" ..........1.......... C15414-043 $154.95 4.630" .........043" ..........1.......... C15415-043 $154.95

Individual Gaskets

Valve Cover Gasket (sold individually)

Application ............................................Part # ....Price Molded Rubber .188"............................ C5975 $27.43

Exhaust Manifold Gaskets

Application .........................................Part # ........Price 1.85" x 1.90" Sq Port - MLS............ C5897-030 $53.64 1.920" Round Port - MLS.............. C5896-030 $53.64 2.000" Round Port - MLS.............. C5349-030 $53.64 2.130" Round Port - MLS.............. C5996-030 $53.64 2.200" Round Port - MLS.............. C5350-030 $53.64 2.250" Round Port - MLS.............. C5251-030 $53.64

Intake Manifold Gaskets

Application .........................................Part # ........Price Rect Port 1.75" x 2.50" - .060" KF ......................................... C5649-060 $36.15 Oval Port 1.82" x 2.05" - .060" KF ....................................... C15041-060 $36.15

CHEVROLET / GM
Page 21

Big Block V8 - Gen4 1965-90 396,402,427,454ci

Individual Gaskets

Rear Main Seal Kit

Application ..............................................Part # ....Price 2pc 1965-90 - Silicone............................ C5086 $24.56 2pc 1965-90 - Viton ............................... C5682 $37.67

Cooling/Water Pump Gaskets

Application ............................................Part # ....Price Water Pump Mounting - Req 2 .......... C5347-039 $6.42 Water Outlet ................................... C5346-047 $1.36

Timing Cover Sets

Application ............................................Part # ....Price 1965-95 BBC V8 ................................. C5057 $23.14

Oil Pan Gasket Set Application ..............................................Part # ....Price 4pc Kit ................................................... C5344 $37.60

To purchase a complete gasket kit order both top end and bottom end gasket kit

TOP END GASKET KIT Application ..................................Part # ..........Price 454ci 1970-85 4.275" Bore ..... PRO1005T $259.45

BOTTOM END GASKET KIT  Application ..................................Part # .........Price Big Block Gen 4 ........................PRO1005B $67.98

.

.

Big Block V8 - Gen5/6 1991-00 454, 502ci

Head Gasket

Additional thicknesses available

MLS Head Gaskets

Bore .........Thickness....... Pkg Qty ..Part # ..........Price 4.320" .........040" .................1........ C5817-040 $123.05 4.375" .........040" ...............1........ C5332-040 $123.05 4.540" .........040" ...............1........ C5333-040 $123.05 4.630" .........040" ...............1........ C5334-040 $123.05

Individual Gaskets

Valve Cover Gasket (sold individually)

Application ............................................Part # ....Price Molded Rubber .188"............................ C5975 $27.43

Exhaust Manifold Gaskets

Application .........................................Part # .......Price 1.85" x 1.90" Sq Port - MLS............ C5897-030 $53.64 1.920" Round Port - MLS.............. C5896-030 $53.64 2.000" Round Port - MLS.............. C5349-030 $53.64 2.130" Round Port - MLS.............. C5996-030 $53.64 2.200" Round Port - MLS.............. C5350-030 $53.64 2.250" Round Port - MLS.............. C5251-030 $53.64

Intake Manifold Gaskets

Application .........................................Part # ........Price Rect Port 1.75" x 2.50" - .060" KF ......................................... C5649-060 $36.15 Oval Port 1.82" x 2.05" - .060" KF ........................................ C15041-060 $36.15

Timing Cover Sets

Application ............................................Part # ....Price 1990-95 BBC V8 C5057 $23.14 1996-00 BBC V8................................. C5058 $21.56

Cooling/Water Pump Gaskets

Application ...........................................Part # ........Price Water Pump Mounting - Req 2 .......... C5347-039 $6.42 Water Outlet ................................... C5346-047 $1.36

Rear Main Seal Kit

see page 4

Application ............................................Part # ....Price 2pc 1991-00 Gen 5/6 - Viton................ C5087 $37.67

Oil Pan Gasket Set

Application ............................................Part # ....Price 1pc Molded Rubber............................ C15077 $37.51

CHEVROLET / GM
Page 22

Big Block V8 - Aftermarket, Race, & Marine Blocks

Head Gasket

MLS Head Gaskets - Mercury Gen4/5/6 w/4 Bolts in Lifter Valley

Bore .........Thicknes.... Pkg Qty ..Part # ..........Price 4.500" .........051" ............1........ C5634-051 $111.58 4.530" .........051" ..........1........ C5635-051 $111.58 4.580" .........051" ..........1........ C5636-051 $111.58 4.600" .........051" ..........1........ C5637-051 $111.58

22 See page 23 for additional gaskets

Additional thicknesses available see page 4

.

MLS Head Gaskets - Mercury 1050 Gen 4 w/2 Slotted Lifter Valley Bolts

Bore .........Thickness....... Pkg Qty ..Part # ..........Price 4.500" .........051" .................1........ C5638-051 $111.58 4.530" .........051" ...............1........ C5639-051 $111.58 4.580" .........051" ...............1........ C5640-051 $111.58 4.600" .........051" ...............1........ C5641-051 $111.58

MLS Head Gaskets - Mercury Marine 526/625 Gen

Bore .........Thickness....... Pkg Qty ..Part # ..........Price 4.470" .........040" .................1....... C5760-040 $123.05

MLS Head Gaskets - Mercury 8.1L 496 - Right Side

Bore .........Thickness....... Pkg Qty ..Part # ..........Price 4.280" .........051" .................1........ C5761-051 $123.05 4.350" .........051" ...............1........ C5762-051 $123.05 4.450" .........051" ...............1........ C5763-051 $123.05

MLS Head Gaskets - Mercury 8.1L 496 - Left Side

Bore .........Thickness....... Pkg Qty ..Part # ..........Price 4.280" .........051" .................1........ C5764-051 $123.05 4.350" .........051" ...............1........ C5765-051 $123.05 4.450" .........051" ...............1........ C5766-051 $123.05

MLS Head Gaskets - Brodix Big Duke-Big Brodie

Bore .........Thickness....... Pkg Qty ..Part # ..........Price 4.310" .........040" .................1........ C5432-040 $111.58 4.570" .........040" ...............1........ C5433-040 $111.58 4.630" .........040" ...............1........ C5434-040 $111.58

MLS Head Gaskets - ZL1 1969 7.0L 427ci Aluminum Round Bore

Bore .........Thickness....... Pkg Qty ..Part # ..........Price 4.250" .........040" .................1........ C5746-040 $123.05 4.300" .........040" ...............1........ C5747-040 $123.05 4.375" .........040" ...............1........ C5759-040 $123.05

CHEVROLET / GM
Page 23

Big Block V8 - Aftermarket, Race, & Marine Blocks

Individual Gaskets

Valve Cover Gasket (sold individually)

Application ............................................Part # ....Price Molded Rubber .188"............................ C5975 $27.43

Intake Manifold Gaskets

Application ............................................Part # ....Price Brodix Big Brodie Oval - .060" KF ... C5430-060 $31.81 Brodix Big Brodie R ectangle-.060" KF........................... C5428-060 $31.81 Brodix Big Duke - .060" KF........... C5419-060 $31.81 Mercury 1050 - MLS ..................... C5821-051 $89.77

Exhaust Manifold Gaskets

Application ............................................Part # ....Price Brodix Big Brodie - .064" AM ......... C5429-064 $27.38 Brodix Big Duke - .064" AM ....... C5418-064 $27.38 Mercury 525/625 EFI - MLS ...... C15364-030 $56.49 Mercury 1050 - MLS .................... C5820-051 $85.43

Rear Main Seal Kits

Application ............................................Part # ....Price 2pc 1965-90 - Silicone C5086 $24.56 2pc 1965-90 - Viton ............................ C5682 $37.67 1pc 1991-00 Gen 5/6 - Viton .............. C5087 $37.67

Timing Cover Sets

Application ............................................Part # ....Price 1965-95 BBC V8 ................................ C5057 $23.14 1996-00 BBC V8................................. C5058 $21.56

Oil Pan Gasket Set

Application............................................ Part # Price 4pc Kit 1965-90 ..................................... C5344 $37.60 4pc Kit Bolt Holes@Mains .................. C5254 $40.51 1pc Molded Rubber 91-00 .................  C15077 $37.51

Cooling/Water Pump Gaskets

Application ............................................Part # ....Price Water Pump Mounting - Req 2 .......... C5347-039 $6.42 Water Outlet .................................... C5346-047 $1.36

.

Prostock Racing V8

Head Gasket

Additional thicknesses available see page 4

MLS Head Gaskets - DRCE-2 4.900" Bore Centers 500ci

Bore .........Thickness....... Pkg Qty ..Part # ..........Price 4.675" .........051" .................1........ C5449-051 $157.98 4.700" .........051" ...............1........ C5450-051 $157.98 4.780" .........051" ...............1........ C5451-051 $157.98

MLS Head Gaskets - DRCE-3 4.900" Bore Centers 500ci

Bore .........Thickness....... Pkg Qty ..Part # ..........Price 4.675" .........051" .................1........ C5796-051 $157.98 4.700" .........051" ...............1........ C5797-051 $157.98 4.780" .........051" ...............1........ C5798-051 $157.98

MLS Head Gasket - IHRA 5.00" Bore Centers 800ci

Bore .........Thickness....... Pkg Qty ..Part # ..........Price 4.755" .........040" .................1....... C5850-040 $157.98

MLX Head Gasket - 5.20" Bore Centers

Bore .........Thickness....... Pkg Qty ..Part # ..........Price 4.860" .........040" .................1....... C5013-040 $140.58

.

.

MLS Head Gaskets - BRODIX 5.0 Bore Space Big Block V8

Bore .........Thickness.... Pkg Qty ..Part # ..........Price 4.700" .........041" ............1.......... C15397-041 $157.98 4.760" .........041" ............1.......... C15398-041 $157.98 4.795" .........041" ............1.......... C15399-041 $157.98

CHEVROLET / GM
Page 24

6.5L Diesel V8 1992-00

Head Gasket

MLS Head Gaskets - Right Side

Bore .........Thickness....... Pkg Qty ..Part # ..........Price 4.100" .........045" ................1........ C5885-045 $124.54

24 See page 25 for StreetPro gaskets Additional thicknesses available see page 4

MLS Head Gaskets - Left Side

Bore .........Thickness....... Pkg Qty ..Part # ..........Price 4.100" .........045" .................1........ C5884-045 $124.54

Head Bolt Kit

....................................................... Part # ..........Price ARP 190,000 psi........................... COM0001 $311.68

6.6L Duramax Diesel V8 2001-07

Head Gasket

MLX Head Gaskets - Right Side

Bore .........Thickness....... Pkg Qty ..Part # ..........Price 4.130" .........053" .................1..... C15375-053 $240.70 4.130" .........062" ...............1..... C15375-062 $240.70

MLX Head Gaskets - Left Side

Bore .........Thickness....... Pkg Qty ..Part # ..........Price 4.130" .........053" .................1...... C15376-053 $240.70 4.130" .........062" ...............1...... C15376-062 $240.70

MLS Head Gaskets - Right Side

Bore .........Thickness....... Pkg Qty ..Part # ..........Price 4.100" .........040" .................1....... C5882-040 $182.51

MLS Head Gaskets - Left Side

Bore .........Thickness....... Pkg Qty ..Part # ..........Price 4.100" .........040" .............1.......... C5883-040 $182.51

Individual Gaskets

Rear Main Seal Kit

Application ............................................Part # ....Price 2001-07.............................................. C15044 $79.53

Exhaust Manifold Gaskets

Application ............................................Part # ....Price 2001-04 8mm Bolts - MLS........... C15042-030 $56.39

Timing Cover Set

Application ............................................Part # ....Price 2001-07............................................... C15045 $55.01

Oil Pan Gasket Set

Application ............................................Part # ....Price 2001-06 17 Bolt - .060" KF................. C15043 $23.06

CHEVROLET / GM
Page 25
6.6L Duramax Diesel V8 2001-07

To purchase a complete gasket kit order both top end and bottom end gasket kit

TOP END GASKET KITS

BOTTOM END GASKET KIT

Application .........................................Part # ..........Price 6.6L Duramax 2001-04 4.100” Bore PRO3008T $618.96 6.6L Duramax 2004-07 4.100” Bore PRO3009T $759.67

Application .................................Part # .........Price 6.6L Duramax 2001-07........... PRO3008B $236.18

Page 25
CHRYSLER / DODGE
2.0L DOHC 4cyl ECC/
420A 1995-99 Gasket Kits






MLS Head Gaskets - Additional thicknesses available
Bore ........Thickness...Pkg Qty.Part # ........ Cost
87.5mm.........040”..........1.... C5497-040 $108.68
88.5mm.........040”..........1.... C5498-040 $108.68

Additional thicknesses available

INDIVIDUAL GASKETS

Application	Part # Cost	.	Application	Part # Cost
Valve Cover Gasket Set			Cam Seal Set
1995-99 2.0L DOHC	C15046 $56.38		Pair - 48 x 35 x 7	C15049 $17.34
Intake Manifold Gaskets			Front Crank Seal Set
Intake Manifold Gasket - .060” AFM	C15047-060 $14.38		1995-99 2.0L DOHC	C15053 $27.36
Intake Plenum Gasket - .031” Fiber	C15048-031 $5.71		Oil Pan Gasket Set
Exhaust Manifold Gasket			Molded Rubber	C15050 $37.51
2.040” X 1.100” Port - MLS	C4161-030 $28.94		Rear Main Seal
Throttle Body Gasket			1995-99 2.0L DOHC	C15052 $17.30
Molded Rubber	C15051 $4.63		.	.
Valve Stem Seal Set (16 Pack)			.	.
5 x 10.8 x 18.3 x 16.9 - Hat Style	3180V16 $41.96		.	.

Page 26
CHRYSLER / DODGE

Cometic Gasket - An Exclusive NASCAR Performance Product 2.0L DOHC 4cyl ECC/420A 1995-99

GASKET KITS

To purchase a complete gasket kit order both top end and bottom end gasket kits

TOP END GASKET KIT

Application ......................................Part #.......... Cost 1995-99 420A 2.0L DOHC 87.5mm Bore................................. PRO2005T $202.88

BOTTOM END GASKET KIT

Application .....................................Part #......... Cost
1995-99 420A 2.0L DOHC.......... PRO2005B $97.08

CHRYSLER / DODGE
Cometic Gasket - An Exclusive NASCAR Performance Product

HEAD GASKETS
2.4L DOHC Turbo 4cyl “SRT4” 2003-05
MLS Head Gaskets - Additional thicknesses available







Bore .........Thickness..Pkg Qt...Part # ..........Price
87.5mm........030”..........1....... C4548-030 $120.13
90mm............030”.........1....... C4549-030 $120.13

2.2L DOHC 4cyl 1991-93
MLS Head Gaskets - Additional thicknesses available







Bore .......Thickness ..Pkg Qt...Part # .........Price
89.5mm.....066”..........1.... .... C5733-066 $165.13

2.2L SOHC 4cyl 1982-90,
2.5L SOHC 4cyl 1986-95

MLS Head Gaskets - Additional thicknesses available .....Bore .......Thickness ..Pkg Qty..Part # .............Price 89.5mm.......066”.......1...... C5734-066 $165.13

Page 27
3.5L SOHC V6 1999-10, 4.0L SOHC V6 2007-11

MLS Head Gasket - Right Side - Additional thicknesses available Bore .............Thickness .....Pkg Qty ..Part # ...........Price 96.5mm.......075”...........1..... C5015-075 $96.99 MLS Head Gasket - Left Side Bore ........Thicknes...Pkg Qty ..Part # ........Price 96.5mm.........075”..........1.... C5016-075 $96.99

3.7L SOHC V6 2002-13 Powertech “EKG”
MLS Head Gasket - Additional thicknesses available








Bore.......Thickness.Pkg Qty ..Part # ...........Price
95mm.......030”..........1......... C5794-030 $120.13


4.0L Inline 6 242ci 1987-2006

87-01 Cherokee, 93-04 Grand Cherokee, 87-90 Wagoneer, 87-92 Comanche, 91-06 Wrangler

MLS Head Gaskets - Additional thicknesses available






Bore .......Thicknes....Pkg Qty ..Part # .......Price
3.950...........050”..........1.... C5987-050 $146.26
4.000...........050”..........1.... C5988-050 $146.26
4.060...........050”..........1.... C5989-050 $146.26

Individual Gaskets
Timing Cover Set
Application ..............................Part # Price
3.8/4.0/4.2L I6 1965-2006.. C5047 $21.74


4.7L SOHC V8 1999-13 Powertech
MLS Head Gaskets - 1999-07 -
Additional thicknesses available

Bore ......Thickness.Pkg Qty.Part # ..........Price
93mm.......030”.........1....... C5213-030 $120.13
95mm......030”..........1....... C5214-030 $120.13

MLS Head Gasket - 2008-13 -
Additional thicknesses available

Bore ....Thickness Pkg Qty .Part # ...........Price
94mm.....030”..........1.... ... C5803-030 $120.13

Page 28

CHRYSLER / DODGE

CHRYSLER / DODGE

Polyspherical 318 V8 1957-67 (A Engine)

Head Gaskets

MLS Head Gaskets

Bore ........Thickness Pkg Qty .........Part # ..........Price 4.030" .........040" .........1............. C15296-040 $125.95

Additional thicknesses available see page 4

5.2L & 5.9L Magnum V8 1992-03

Head Gaskets

MLS Head Gaskets

Bore ........Thickness Pkg Qty ..........Part # ..........Price 4.040" .........040" .........1............... C5554-040 $99.92 4.040" .120" .........1.................... C5565-120 $253.68

Additional thicknesses available see page 4

Individual Gaskets

Valve Cover Gasket (sold individually)

Application ........................................Part # .........Price 10 Bolt - .047" KF .......................... C5557-047 $36.15

Oil Pan Gasket Set

Application ........................................Part # .........Price 4pc Set ........................................... C5560-094 $40.38

Intake Manifold Gaskets

Application ........................................Part # .........Price 2.150" x 1.140" Port - .047" KF...... C5555-047 $24.49 China Rail Gaskets....................... C5556-047 $8.90

Timing Cover Sets

Application ........................................Part # ......Price 1992-96.............................................. C5059 $27.43 1997-03 ............................................. C5060 $27.43

Exhaust Manifold Gasket

Application ........................................Part # .........Price 1.195" x 1.675" - .064" AM............. C5558-064 $30.33

Rear Main Seal

Application ........................................Part # ......Price 2pc Viton........................................... C5564 $40.51

Cooling/Water Pump Gaskets

Application ........................................Part # .........Price Water Pump Cover Gasket.............. C5561-018 $14.31 Thermostat Gasket ...................... C5562-018 $1.99

Fuel Pump Gasket

Application ........................................Part # .........Price Fuel Pump to Block .......................... C5642-031 $2.76

.

318/340/360ci V8 "LA" 1964-92

Head Gaskets

MLS Head Gaskets

Bore ........Thickness Pkg Qty ..........Part # ..........Price 4.040" .........040" .........1............... C5633-040 $108.68 4.080" .........040" .........1.............. C5622-040 $108.68 4.125" .........040" .........1.............. C5457-040 $108.68 4.180" .........040" .........1.............. C5456-040 $108.68

Additional thicknesses available see page 4

MLS Head Gaskets - w/318A Engine Quest or Edelbrock Heads

Bore ........Thickness Pkg Qty ..........Part # ..........Price 4.040" .........040" .........1............... C5916-040 $120.13 4.080" .........040" .........1.............. C5917-040 $120.13 4.125" .........040" .........1.............. C5918-040 $120.13 4.180" .........040" .........1.............. C5919-040 $120.13

Copper Head Gaskets

Bore ........Thickness Pkg Qty ..........Part # ..........Price 4.200" .........043" .........1.............. C15416-043 $136.21

Page 29

CHRYSLER / DODGE

318/340/360ci V8 "LA" 1964-92

Individual Gaskets

Valve Cover Gasket (sold individually)

Application ........................................Part # .........Price 5 Bolt - .094" KF ............................ C5623-094 $24.49

Timing Cover Set

Application ........................................Part # .........Price 1964-91 Set C5061 $34.71

Intake Manifold Gaskets

Application ........................................Part # .........Price 1.170" x 2.300" - .060" KF ............. C5624-060 $36.15 China Rail Gaskets........................ C5625-060 $8.90

Oil Pan Gasket Sets

Application ........................................Part # .........Price 4pc 318/340ci V8............................ C5627-094 $40.38 4pc 360ci V8................................... C5508-094 $40.38

Exhaust Manifold Gaskets

Application ........................................Part # .........Price 1.205" x 1.845" - .064" AM............ C5628-064 $28.87 1.310" x 1.640" - MLS................ C5901-030 $53.64

Rear Main Seal Kit

Application ........................................Part # .....Price 273/318/340ci 2pc - Viton................. C5683 $41.88 360ci 2pc - Viton .............................. C5684 $37.67

Fuel Pump Gasket

Application ........................................Part # .........Price Fuel Pump to Block .......................... C5642-031 $2.76

Cooling / Water Pump Gaskets

Application ........................................Part # .........Price Water Pump Gasket ...................... C15054-060 $14.43 Thermostat Gasket ....................... C5574-018 $1.36

Gasket Kits

To purchase a complete gasket kit order both top end and bottom end gasket kit

TOP END GASKET KIT Application ....................................Part # ...........Price 1968-89 318, 1968-73 340, 1971-80 360 .............................. PRO1000T $253.69 4.080" Bore

BOTTOM END Gasket Kits

Application ......................................Part # ..........Price 360ci V8........................................ PRO1000B $88.29 318/340ci V8................................. PRO1002B $88.29

Page 30

CHRYSLER / DODGE

5.7L Hemi V8 2003-Present

Head Gaskets

Additional thicknesses available see page 4

MLX Head Gaskets - Right Side

Bore ........Thickness Pkg Qty .........Part # ..........Price 4.000" .........040" .........1............. C15315-040 $146.32

MLX Head Gaskets - Left Side

Bore ........Thickness Pkg Qty ..........Part # ..........Price 4.000" .........040" .........1.............. C15316-040 $146.32

Additional thicknesses available see page 4

MLS Head Gaskets - Right Side

Bore ........Thickness Pkg Qty ..........Part # ..........Price 3.950" .........027" .........1............... C5467-027 $120.13 4.100" .........027" .........1............. C5749-027 $120.13

MLS Head Gaskets - Left Side

Bore ........Thickness Pkg Qty ..........Part # ..........Price 3.950" .........027" .........1............... C5468-027 $120.13 4.100" .........027" .........1............... C5750-027 $120.13

Individual Gaskets

Valve Cover Gasket (sold individually)

Application ........................................Part # .....Price Molded Rubber (Need 2)................... C5193 $21.74

Thermostat Housing Gasket

Application ........................................Part # ....Price Molded Rubber.................................. C5198 $4.28

Intake Manifold Gasket Set

Application ........................................Part # ......Price Molded Rubber - Set of 8................... C5196 $25.97

Oil Pan Gasket Set

Application ........................................Part # .....Price Intergrated Windage Tray................... C5201 $86.90

Throttle Body Gasket

Application ........................................Part # ....Price Molded Rubber.................................. C5199 $12.99

Timing Cover Set

Application ........................................Part # ......Price 2003-15 5.7L Hemi............................ C5202 $51.98

Exhaust Gaskets

Application ........................................Part # .........Price MLS Exhaust Gaskets - Pair ........... C5854-030 $47.66

Rear Main Seal Kit

Application ........................................Part # .....Price Seal and Housing Gasket.................... C5203 $49.26

Valve Stem Seal Set (16 Pack)

Application ........................................Part # .........Price Hat Style - Viton Steel Body - EXH.. 3260V-16 $64.27 Hat Style - Viton Steel Body - INT ..................... 3261V-16 $41.82

Water Pump Gasket

Application ........................................Part # ...Price Molded Rubber.................................. C5204 $9.18

Page 31

CHRYSLER / DODGE

5.7L Hemi V8 2003-15

Gasket Kits

To purchase a complete gasket kit order both top end and bottom end gasket kit

TOP END GASKET KIT Application ......................................Part # .........Price 2003-08 5.7L V8 3.950 Bore ....... PRO1022T $321.84

BOTTOM END GASKET KIT

Application ....................................Part # ............Price 2003-08 5.7L V8 ........................ PRO1022B $220.34

6.1L Hemi V8 2005-10

Head Gaskets

Additional thicknesses available see page 4

MLS Head Gaskets

Bore ........Thickness Pkg Qty ..........Part # ..........Price 4.100" .........040" .........1............... C5876-040 $120.13 4.125" .........040" .........1............... C5441-040 $120.13 4.185" .........040" .........1............... C5042-040 $120.13 4.250" .........040" .........1............... C5890-040 $120.13

MLX Head Gasket

Bore ........Thickness Pkg Qty ......Part # ..........Price 4.100" .........040" .........1........ C15149-040 $146.32 4.100" .........044" .........1........ C15149-044 $146.32 4.100" .........054" .........1........ C15149-054 $146.32 4.100" .........058" .........1........ C15149-058 $146.32

MLS Head Gaskets - Aluminum Sleeved Block

Bore ........Thickness Pkg Qty ..........Part # ..........Price 4.055" .........040" .........1............... C5525-040 $120.13 4.125" .........070" .........1............... C5526-070 $165.13 4.125" .........075" .........1............... C5526-075 $165.13 4.125" .........040" .........1............... C5526-040 $120.13 4.185" .........040" .........1............... C5527-040 $120.13

Individual Gaskets

Valve Cover Gasket (sold individually)

Application ........................................Part # .....Price Molded Rubber (Need 2)................... C5193 $21.74

Thermostat Housing Gasket

Application ........................................Part # ....Price Molded Rubber.................................. C5198 $4.28

Intake Manifold Gasket Set

Application ........................................Part # ......Price 6.1L - .060" KF................................. C5197 $44.78

Oil Pan Gasket Set

Application ........................................Part # ......Price Intergrated Windage Tray.................... C5201 $86.90

Throttle Body Gasket

Application ........................................Part # .....Price Molded Rubber.................................. C5199 $12.99

Timing Cover Set

Application ........................................Part # .......Price 2003-15 6.1L Hemi............................ C5202 $51.98

Page 32

CHRYSLER / DODGE

6.1L Hemi V8 2005-10 Cont.

Individual Gaskets

Rear Main Seal Kit

Application ........................................Part # .....Price Seal and Housing Gasket..................... C5203 $49.26

Exhaust Gaskets

Application .....................................Part # .........Price MLS Exhaust Gaskets - Pair ........ C5872-030 $50.58

Water Pump Gasket

Application ........................................Part # ....Price Molded Rubber.................................. C5204 $9.18

Valve Stem Seal Set (16 Pack)

Application ........................................Part # .........Price Hat Style - Viton Steel Body - EXH... 3260V-16 $64.27 Hat Style - Viton Steel Body - INT .................... 3261V-16 $41.82

Gasket Kits

To purchase a complete gasket kit order both top end and bottom end gasket kit

TOP END GASKET KIT Application ....................................Part # ............Price 2005-10 6.1L Hemi V8 4.125" Bore .................................. PRO1023T $260.09

BOTTOM END GASKET KIT

Application ........................................Part # .........Price 2005-10 6.1L Hemi V8.................. PRO1023B $247.78

.

6.2L Hemi V8 2015-Present "Hellcat"

Head Gaskets

MLX Head Gasket - Right Side

Bore ........Thickness Pkg Qty ..........Part # ..........Price 4.150" .........040" .........1.............. C15292-040 $146.32

Additional thicknesses available see page 4

MLX Head Gasket - Left Side

Bore ........Thickness Pkg Qty ..........Part # ..........Price 4.150" .........040" .........1.............. C15293-040 $146.32

Additional thicknesses available see page 4

Page 33

CHRYSLER / DODGE

6.4L Hemi V8 2011-Present "Apache"

Head Gaskets

Additional thicknesses available see page 4

MLS Head Gasket - Right Side

Bore ........Thickness Pkg Qty ..........Part # ..........Price 4.120" .........040" .........1............... C5026-040 $120.13

MLS Head Gasket - Left Side

Bore ........Thickness Pkg Qty ..........Part # ..........Price 4.120" .........040" .........1............... C5027-040 $120.13

6.4L Hemi V8 2011-Present "Apache"

Head Gaskets

MLX Head Gasket - Right Side

Bore ........Thickness Pkg Qty ..........Part # ..........Price 4.150" .........040" .........1.............. C15172-040 $146.32

Additional thicknesses available see page 4

MLX Head Gasket - Left Side

Bore ........Thickness Pkg Qty ..........Part # ..........Price 4.150" .........040" .........1.............. C15173-040 $146.32

7.0L Hemi V8 2016-Present "Drag Pak"

Head Gaskets

7.0L Hemi V8 2016-Present “Drag Pak”

MLX Head Gasket - Right Side

Bore ........Thickness Pkg Qty ..........Part # ..........Price 4.200" .........054" .........1.............. C15391-054 $140.45

Additional thicknesses available see page 4

MLX Head Gasket - Left Side

Bore ........Thickness Pkg Qty ..........Part # ..........Price 4.200" .........054" .........1.............. C15392-054 $140.45

Small Block V8 - A-8 Sprint & A-4 Midget

Head Gaskets

Additional thicknesses available see page 4

MLS Head Gaskets - A-8 Sprint Block

Bore ........Thickness Pkg Qty ..........Part # ..........Price 4.165" .........040" .........1............... C5828-040 $108.68 4.200" .........040" .........1............... C5829-040 $108.68 4.250" .........040" .........1............... C5830-040 $108.68

MLS Head Gaskets - A-4 Midget Block

Bore ........Thickness Pkg Qty ..........Part # ..........Price 4.165" .........040" .........1............... C5831-040 $108.68 4.200" .........040" .........1............... C5832-040 $108.68

Individual Gaskets

Valve Cover Gasket (sold individually)

Application ........................................Part # .........Price Midget & Sprint Head ..................... C5784-060 $20.24

Oil Pan Gasket Set

Application ........................................Part # .........Price Midget Block - .060" AFM ............. C5596-060 $31.77

Intake Manifold Gasket

Application ........................................Part # ....Price A-4 Midget Intake Gasket.................. C5590 $24.49

Page 34

CHRYSLER / DODGE

Small Block V8 - R3 Block w/W2, W7, W8, or W9 Heads

Head Gaskets

Additional thicknesses available see page 4

MLS Head Gaskets - R3 Block w/W2 Heads

Bore ........Thickness Pkg Qty ..........Part # ..........Price 4.100" .........040" .........1............... C5567-040 $108.68 4.200" .........040" .........1............... C5466-040 $108.68

MLS Head Gaskets - R3 Block w/W7, W8, W9 Heads

Bore ........Thickness Pkg Qty ..........Part # ...........Price 4.060" .........040" .........1............... C5579-040 $108.68 4.100" .........040" .........1............... C5580-040 $108.68 4.165" .........040" .........1............... C5581-040 $108.68 4.185" .........040" .........1............... C5582-040 $108.68

Individual Gaskets

Valve Cover Gaskets (sold individually)

Application ........................................Part # .........Price W2/W5/W7/W9 Heads................... C5568-094 $24.49 W8 Heads ...................................... C5592-094 $20.14

Thermostat Gasket

Application ........................................Part # .........Price R3 Block ......................................... C5574-018 $1.36

Intake Manifold Gaskets

Application ........................................Part # .........Price W2 Heads 1.35" x 2.07".................. C5569-060 $24.49 W7/W8/W9 Heads 1.45" x 2.20".... C5586-031 $24.49 China Rail Gaskets............................ C5625-060 $8.90

Oil Pan Gasket

Application ........................................Part # .........Price R3 Block - Rails Only...................... C5575-094 $30.25

Exhaust Gaskets

Application ........................................Part # .........Price W2 Heads 1.47" x 1.45".................. C5571-064 $27.42 W7/W8/W9 Heads D-Port.............. C5593-064 $28.87

Timing Cover Gasket

Application ........................................Part # .........Price R3 Block - .018" AFM ................... C5576-018 $18.68

Fuel Pump Gasket

Application ........................................Part # .........Price R3 Block - .031" Fiber..................... C5642-031 $2.76

Water Pump Gasket

Application ........................................Part # .........Price R3 Block ......................................... C5573-018 $10.88

Small Block V8 - R4 Block w/P5 Heads

Head Gaskets

Additional thicknesses available see page 4

MLS Head Gaskets

Bore ........Thickness Pkg Qty ..........Part # ..........Price 4.200" .........040" .........1............... C5801-040 $120.13 4.250" .........040" .........1............... C5800-040 $120.13

Small Block V8 - R6 Race Block

Head Gaskets

Additional thicknesses available see page 4

MLX Head Gasket - Right Side

Bore ........Thickness Pkg Qty ..........Part # ..........Price 4.220" .........040" .........1............... C5670-040 $140.58

MLX Head Gasket - Left Side

Bore ........Thickness Pkg Qty ..........Part # ..........Price 4.220" .........040" .........1............... C5671-040 $140.58

Page 35

CHRYSLER / DODGE

Big Block Wedge 361, 383, 400, 413, 426, & 440ci V8

Head Gaskets

Additional thicknesses available see page 4

MLS Head Gaskets

Bore ........Thickness Pkg Qty ...Part # ..........Price 4.250" .........040" .........1........ C5459-040 $120.13 4.350" .........040" .........1........ C5460-040 $120.13 4.380" .........040" .........1........ C5461-040 $120.13 4.410" .........040" .........1........ C5462-040 $120.13 4.500" .........040" .........1........ C5464-040 $120.13 4.600" .........040" .........1........ C5799-040 $120.13

Copper Head Gaskets

Bore ........Thickness Pkg Qty ..........Part # .............Price 4.400" .........043" .........1.............. C15417-043 $152.16

Individual Gaskets

Oil Pan Gasket

Application ........................................Part # .........Price Big Block Wedge V8-.060"AFM..... C5617-060 $20.14

Valve Cover Gasket (sold individually)

Application ........................................Part # .....Price Molded Rubber.................................. C5983 $27.43

Intake Manifold Gaskets

Application ........................................Part # .........Price 2.31" x 1.23" - .060" KF ................. C5611-060 $24.49 China Rail Gaskets............................ C5612-060 $9.63

Exhaust Gaskets

Application ........................................Part # .........Price 1.85" x 1.35" - .064" AM................. C5619-064 $28.87 1.78" x 1.46" - .030" MLS........... C5902-030 $59.23

Timing Cover Gasket Set

Application ........................................Part # ....Price Big Block Wedge V8......................... C5062 $34.71

Water Pump Gaskets

Application ........................................Part # .........Price Pump to Block - Pair....................... C5615-032 $14.31

Fuel Pump Gasket

Application ........................................Part # .........Price Fuel Pump to Block .......................... C5642-031 $2.76

Thermostat Gasket

Application ........................................Part # .........Price Big Block Wedge V8 ....................... C5616-018 $1.99

Rear Main Seal Kit

Application ........................................Part # .......Price 2pc Viton........................................... C5686 $43.41

Gasket Kits

To purchase a complete gasket kit order both top end and bottom end gasket kit

TOP END GASKET KIT Application ........................................Part # .........Price Big Block Wedge V8 4.410" Bore ................................... PRO1001T $253.69

BOTTOM END GASKET KIT

Application ........................................Part # .........Price Big Block Wedge V8 ..................... PRO1001B $97.01

Page 36

CHRYSLER / DODGE

392 Hemi V8 1957-58

Head Gaskets

Additional thicknesses available see page 4

MLS Head Gaskets

Bore ........Thickness Pkg Qty ..........Part # ..........Price 4.000" .........040" .........1............... C5210-045 $120.13 4.100" .........040" .........1............... C5211-045 $120.13

Copper Head Gaskets

Bore ........Thickness Pkg Qty ..........Part # ..........Price 4.060" .........043" .........1.............. C15418-043 $136.21

Individual Gaskets

Valve Cover Gaskets

Application ........................................Part # .........Price 392 Hemi - 188" ML (pair) ............. C5236-188 $55.04

Oil Pan Gasket Set

Application ........................................Part # ......Price 1958-59 4pc Set .............................. C15055 $46.34

Intake Manifold Gasket Set

Application ........................................Part # .....Price Includes Valley Gasket....................... C5237 $76.79

Distributor Gasket

Application ........................................Part # .........Price 392 Hemi - .031" Fiber...................... C5239-031 $2.04

Exhaust Gaskets

Application ........................................Part # .........Price 1957-58 - .064" AM........................ C5238-064 $43.44

Timing Cover Gasket Set

Application ........................................Part # .......Price 1955-59 Early Hemi............................ C5063 $37.48

Cooling/Water Pump Gaskets

Application ........................................Part # .........Price Pump to Block - 4 Pack ................... C5228-060 $9.60 Water Outlet .................................... C5229-060 $4.89 Water Inlet ....................................... C5230-032 $1.99

Carburetor Gasket Kits

Application ........................................Part # ......Price 392 Hemi 2bbl Kit C5240 $10.40 392 Hemi 4bbl Kit ............................... C5241 $18.65

Gasket Kits

To purchase a complete gasket kit order both top end and bottom end gasket kit

TOP END GASKET KIT Application ....................................Part # List ......Price 392 Hemi V8 1957-58 4.100" Bore.............................................. PRO1028T $231.93

BOTTOM END GASKET KIT

Application ........................................Part # .........Price 392 Hemi V8 1957-58.................... PRO1028B $97.01

Page 37

CHRYSLER / DODGE

426 Hemi 1966 & Later (Gasket bores .060" larger than listed)

Head Gaskets

Additional thicknesses available see page 4

MLS Head Gaskets

Bore ........Thickness Pkg Qty ..........Part # ..........Price 4.250" .........040" .........1............... C5445-040 $120.13 4.280" .........040" .........1............... C5454-040 $120.13 4.310" .........040" .........1............... C5455-040 $120.13 4.375" .........040" .........1............... C5446-040 $120.13 4.500" .........040" .........1............... C5447-040 $120.13

Copper Head Gaskets

Bore ........Thickness Pkg Qty ..........Part # ..........Price 4.320" .........043" .........1.............. C15419-043 $152.16

Individual Gaskets

Valve Cover Gasket (sold individually)

Application ..........................................Part # List.Price Molded Rubber.................................... C5976 $27.43

Oil Pump Gasket

Application ........................................Part # .........Price 426 Hemi ........................................ C5604-032 $8.45

Oil Pan Gasket

Application ........................................Part # .........Price 426 Hemi - .060" AFM ................... C5606-060 $20.14

Intake Manifold Gaskets

Application ........................................Part # .........Price 1.85" x 2.00" - .047" KF ................ C5598-047 $24.49

Exhaust Gaskets

Application ........................................Part # .........Price 1.84" x 1.89" - .030" MLS............... C5965-030 $50.56

Fuel Pump Gasket

Application ........................................Part # .........Price Fuel Pump to Block ......................... C5642-031 $2.76

Cooling / Water Pump Gaskets

Application ........................................Part # .........Price Pump to Block - Pair........................ C5601-018 $14.31 Pump to Housing .............................. C5602-032 $14.31 Thermostat Gasket ............................. C5603-018 $1.99

Distributor Gasket

Application ........................................Part # .........Price 426 Hemi ......................................... C5607-060 $1.58

Rear Main Seal Kit

Application ........................................Part # List .Price 2pc Viton........................................... C5686 $43.41

Gasket Kits

To purchase a complete gasket kit order both top end and bottom end gasket kit

TOP END GASKET KIT Application ....................................Part # List .....Price 426 Hemi 7.0L 1966-71 4.100" Bore .................................. PRO1021T $227.43

BOTTOM END GASKET KIT

Application ........................................Part # .........Price 426 Hemi 7.0L 1966-71 ................. PRO1021B $111.51

Page 38

CHRYSLER / DODGE

8.0L V10 1992-Early 96, (Gen 1 Viper)

Head Gaskets

Additional thicknesses available see page 4

MLS Head Gaskets

Bore ........Thickness Pkg Qty ..........Part # ..........Price 4.030" .........051" .........1............... C5113-051 $250.79 4.165" .........051" .........1............... C5114-051 $250.79

Individual Gaskets

Intake Manifold Gaskets

Application ........................................Part # .........Price 1992+Up - .039" Fiber .................... C5827-039 $27.42

Exhaust Manifold Gaskets

Application ........................................Part # .........Price 1992-E96 - .030" MLS ................... C5679-030 $40.51

8.0/8.3L V10 Late 1996-07, (Gen 2/3 Viper)

Head Gaskets

Additional thicknesses available see page 4

MLS Head Gasket

Bore ........Thickness Pkg Qty ..........Part # ..........Price 4.060" .........051" .........1............... C5814-051 $157.98 4.125" .........051" .........1............... C5815-051 $157.98 4.165" .........051" .........1............... C5816-051 $123.05

MLX Head Gasket w/1/2" Studs

Bore ........Thickness Pkg Qty ..........Part # ..........Price 4.125" .........054" .........1............... C5585-054 $233.31

MLX Head Gasket w/9/16" Studs

Bore ........Thickness Pkg Qty ..........Part # ..........Price 4.125" .........054" .........1............... C5487-054 $233.31

Individual Gaskets

Exhaust Manifold Gaskets

Application ........................................Part # .........Price 1996-03 Gen 2 - .020" MLS............ C5825-020 $40.51 2004-05 Gen 3 - .030" MLS............ C5865-030 $40.51

Intake Manifold Gasket

Application ........................................Part # .........Price 1992-Up - .039" Fiber ..................... C5827-039 $27.42

8.4L V10 2008-10 , (Gen 4 Viper)

Head Gaskets

Additional thicknesses available

MLS Head Gasket

Bore ........Thickness Pkg Qty ..........Part # ..........Price 4.125" .........045" .........1............... C5107-045 $157.98

MLX Head Gasket w/9/16" Studs

Bore ........Thickness Pkg Qty ..........Part # ..........Price 4.125" .........054" .........1............... C5504-054 $233.31

Additional thicknesses availablesee page 4 Individual Gaskets

Exhaust Manifold Gasket Set

Application ........................................Part # .........Price 2010 - Up MLS ............................ C15150-040 $66.50

Page 39
CHRYSLER / DODGE

8.4L V10 2013-17 (Gen 5 Viper)

Head Gaskets

MLS Head Gasket - Left Side

Bore .......Thickness Pkg Qty .........Part # ...........Price 4.125" .........040" .......1.............. C15377-040 $157.98

.

Prostock Hemi 500ci V8

MLS Head Gaskets - Gen1 Hemi 99

Bore .......Thickness Pkg Qty .........Part # ...........Price 4.660" .........051" .......1............... C5444-051 $157.98 4.685" .........051" .......1............... C5443-051 $157.98 4.700" .........051" .......1............... C5442-051 $157.98 4.720" .........051" .......1............... C5438-051 $157.98

MLS Head Gaskets - Gen2 "DPS2"

Bore .......Thickness Pkg Qty .........Part # ...........Price 4.750" .........050" .......1............... C5045-050 $195.66

CUMMINS

3.9L 4BT Diesel 4cyl 1983+ Additional thicknesses available see page 4

MLS Head Gasket - Right Side

Bore .......Thickness Pkg Qty .........Part # ...........Price 4.125" .........040" .......1.............. C15378-040 $157.98

3.9L 4BT Diesel 4cyl 1983+

Head Gasket

MLX Head Gasket

Bore .......Thickness Pkg Qty .........Part # ...........Price 4.100" .........061" .......1............... C5591-061 $144.86

See page 40 for StreetPro Gasket Kits Additional thicknesses available see page 4

Individual Gaskets

Valve Cover Gasket Set

Application .......................................Part # ........Price 3.9L 4BT C15056 $27.43

Thermostat Housing Seal

Application .......................................Part # .....Price 3.9L 4BT ........................................ C15059 $9.56

Intake Manifold Gaskets

Application .......................................Part # .....Price 3.9L 4BT ........................................ C15057 $14.30

Oil Pan Gasket

Application .......................................Part # .....Price 3.9L 4BT - .031" Fiber.................... C15060 $38.96

Exhaust Manifold Gaskets Set

Application .......................................Part # ......Price 3.9L 4BT - 4 Pack .......................... C15058 $28.78

Rear Main Seal

Application .......................................Part # .....Price 3.9L 4BT ........................................ C15062 $95.57

Valve Stem Seal

Application .......................................Part # ....Price 8x12.3x12x17 Viton - Need 8 ......... 3164V $2.44

Pushrod Cover Gasket

Application .......................................Part # .....Price 3.9L 4BT 1983-97 ......................... C15064 $20.08

Timing Cover Seal

Application .......................................Part # .......Price 3.9L 4BT ........................................ C15063 $97.03

Fuel Pump Gaskets

Application .......................................Part # ..........Price Fuel Pump Gasket ........................... C5389-032 $2.16 Injection Pump Gasket ....................... C15061 $4.73

Water Pump Gasket

Application .......................................Part # .....Price 3.9L 4BT 1983-97 - O-Ring ........... C15065 $2.18

.

Page 40

CUMMINS

3.9L 4BT Diesel 4cyl 1983+

Gasket Kits

TOP END GASKET KIT

Application ...............................Part # ............Price 3.9L 4BT 4cyl Diesel 4.100" Bore ............................. PRO3000T $282.62

BOTTOM END GASKET KIT

Application ...............................Part # ............Price 3.9L 4BT 4cyl Diesel ................ PRO3000B $282.62

5.9L 12v 6BT Inline 6 Diesel 1992-98

Head Gasket

MLX Head Gasket

Bore .......Thickness Pkg Qty .........Part # ...........Price 4.100" .........061" .......1............... C5955-061 $284.14

Additional thicknesses available see page 4

Individual Gaskets

Valve Cover Gasket Set

Application .......................................Part # ......Price 5.9L 6BT 1992-98 .......................... C15066 $49.10

Thermostat Housing Seal

Application .......................................Part # ......Price 5.9L 6BT 1992-98 .......................... C15059 $9.56

Oil Pan Gasket

Application .......................................Part # ......Price 5.9L 6BT 1992-98 .......................... C15068 $46.31

Intake Manifold Gasket Set

Application .......................................Part # .....Price 5.9L 6BT 1992-98 .......................... C15067 $53.62

Rear Main Seal

Application .......................................Part # .....Price 5.9L 6BT 1992-98 ......................... C15062 $95.57

Exhaust Manifold Gaskets Set

Application .......................................Part # .........Price 5.9L 6BT 1992-98 - .040" MLS .... C5725-040 $60.78

Valve Stem Seal

Application .......................................Part # ....Price 8x12.3x12x17 Viton - Need 12 ........ 3164V $2.44

Pushrod Cover Gasket

Application .......................................Part # .....Price 5.9L 6BT 1989-99 ......................... C15069 $24.62

Timing Cover Seal

Application ........................................Part # ......Price 5.9L 6BT 1992-98 .......................... C15063 $97.03

Fuel Pump Gasket

Application .......................................Part # ........Price Fuel Pump Gasket .......................... C5389-032 $2.16 Injection Pump Gasket ...................... C15061 $4.73

Water Pump Gasket

Application .......................................Part # ......Price 3.9L 4BT 1983-98 - O-Ring ........... C15065 $2.18

Paage 41

CHRYSLER / DODGE

5.9L 12v 6BT Inline 6 Diesel 1992-97

Gasket Kits

To purchase a complete gasket kit order both top end and Bottom end gasket set

TOP END GASKET KIT

Application ....................................Part # ............Price 5.9L 6BT I6 Diesel 92-98 4.100" Bore .................................. PRO3001T $497.15

BOTTOM END GASKET KIT

Application ...................................Part # ............Price 5.9L 6BT I6 Diesel 92-98 ........... PRO3001B $320.39

.

Page 41

5.9L 24v ISB Inline 6 Diesel 1998.5-02

Head Gasket

Additional thicknesses available see page 4

MLX Head Gasket

Bore .......Thickness Pkg Qty .........Part # ...........Price 4.100" .........061" .......1............... C5855-061 $284.14

Individual Gaskets

Valve Cover Gasket Set

Application .......................................Part #.....Price 5.9L ISB 1998.5-02 ....................... C5614 $185.46

Oil Pan Gasket

Application .......................................Part # ......Price 5.9L 6BT 1998.5-02 ...................... C15068 $46.31

Intake Manifold Gasket Set

Application .......................................Part # ......Price 5.9L ISB 1998.5-02 ....................... C15067 $53.62

Rear Main Seal

Application .......................................Part # ......Price 5.9L 6BT 1998.5-02 ....................... C15062 $95.57

Exhaust Manifold Gaskets Set

Application .......................................Part # .........Price 5.9L ISB 1998.5-02....................... C5726-040 $60.78

Pushrod Cover Gasket

Application .......................................Part # ......Price 5.9L 6BT 1998.5-02 ...................... C15069 $24.62

Valve Stem Seals

Application .......................................Part # ....Price Intake VSS - Yellow (Need 12) ........3214V $2.89 Exhaust VSS-Green(Need 12) ......... 3215V $3.76

Water Pump Gasket

Application .......................................Part # .....Price 3.9L 4BT 1998.5-02 - O-Ring ........ C15065 $2.18

Timing Cover Seal

Application .......................................Part # .....Price 5.9L 6BT 1998.5-02 ....................... C15063 $75.31

Page 42

CUMMINS

5.9L 24v ISB Inline 6 Diesel 1998.5-02

Gasket Kit

To purchase a complete gasket kit order both top end and Bottom end gasket set

TOP END GASKET KIT

Application ...................................Part # ............Price 5.9L 24v ISB 6cyl 1998.5-02 ...... PRO3002T $539.26

BOTTOM END GASKET KIT

Application ...................................Part # ............Price 5.9L 24v ISB 6cyl 1998.5-02 ..... PRO3002B $255.07

5.9L 24v ISB Common Rail Inline 6 Diesel 2003-07

Head Gasket

MLX Head Gasket

Bore .......Thickness Pkg Qty .........Part # ...........Price 4.100" .........061" .......1............... C5597-061 $284.14

Additional thicknesses available see page 4

Individual Gaskets

Valve Stem Seals

Application .......................................Part # ....Price Intake VSS - Yellow (Need 12) ........3218V $2.36 Exhaust VSS-Green(Need 12) ......... 3219V $2.36

Fuel Injector Seal Kit

Application .......................................Part # .....Price 5.9L Common Rail 2003-07 ............ C15072 $49.10

Pushrod Cover Gasket

Application .......................................Part # ........Price 5.9L Common Rail 2003-07 C15071 $31.80

Valve Cover Gasket Set

Application .......................................Part # ......Price 5.9L Common Rail 2003-07 ............ C15070 $92.71

Intake Manifold Gasket Set

Application .......................................Part # ......Price 5.9L Common Rail 2003-07 ............ C15067 $53.62

Thermostat Seal

Application .......................................Part # ....Price 5.9L Common Rail 2003-07 ............ C15073 $9.09

Exhaust Manifold Gaskets Set

Application .......................................Part # ........Price 5.9L Common Rail 2003-07........... C5726-040 $60.78

Page 43

CUMMINS

5.9L 24v ISB Common Rail Inline 6 Diesel 2003-07

Gasket Kit

TOP END GASKET KIT

Application .......................................Part # ........Price 5.9L 24v Common Rail 03-07 ....... PRO3003T $575.59

6.7L 24v ISB Inline 6 Diesel 2007.5+Up

Head Gasket

MLX Head Gasket

Bore .......Thickness Pkg Qty .........Part # ...........Price 4.312" .........052" .......1............... C5609-052 $284.14

Additional thicknesses available see page 4

Individual Gaskets

Valve Stem Seal

Application .......................................Part #...Price VSS - Yellow (Need 24) .................3218V $2.36

Rear Main Seal

Application .......................................Part # ......Price 6.7L 24v ISB 2007.5+Up ............... C15062 $95.57

Timing Cover Seal

Application .......................................Part # .....Price 6.7L 24v ISB 2007.5+Up ............... C15063 $97.03

Intake Gasket Set

Application .......................................Part # ......Price 6.7L 24v ISB 2007.5+Up ............... C15076 $54.98

Water Pump Gasket

Application .......................................Part # ......Price 6.7L 24v ISB 2007.5+Up ............... C15065 $2.18

Exhaust Manifold Gaskets Set

Application .......................................Part # ........Price 6.7L 24v ISB 2007.5+Up (MLS).... C5726-040 $60.78

Oil Cooler Gasket Set

Application .......................................Part # ......Price 6.7L 24v ISB 2007.5+Up ............... C15075 $54.98

Thermostat Seal

Application .......................................Part # .....Price 6.7L 24v ISB 2007.5+Up ................ C15073 $9.09

Oil Pan Gasket

Application ........................................Part # ......Price 6.7L 24v ISB 2007.5+Up ................ C15074 $70.93

Pushrod Cover Gasket

Application .......................................Part # ........Price 6.7L 24v ISB 2007.5+Up ................ C15071 $31.80

Page 44

CUMMINS

6.7L 24v ISB Inline 6 Diesel 2007.5+Up Cont.

Gasket Kits

Additional thicknesses available see page 4

TOP END GASKET KIT

Application .......................................Part # ........Price 6.7L 24v ISB 6cyl 2007.5+Up 4.312" Bore .................................. PRO3004T $575.59

BOTTOM END GASKET KIT

Application .......................................Part # ........Price 6.7L 24v ISB 6cyl 2007.5+Up ...... PRO3004B $276.85
